RexnordFX3W219ETwo-Bolt Flange Mount Bearing Unit – 1-3/16 in Bore, Cast Iron, Eccentric Locking Collar, Standard Duty

Name: Rexnord FX3W219E Two-Bolt Flange Mount Bearing Unit – 1-3/16 in Bore, Cast Iron, Eccentric Locking Collar, Standard Duty
Brand: Rexnord
SKU: K4#IAAZX3
Price: 51.6 USD
Availability: InStock

Condition: New

Availability:

4 in stock

Categories: Bearings, Flanged Mount Bearing

Two-bolt cast iron flange unit, 1-3/16 in bore, eccentric locking collar, 4.59 in bolt centres, single lip contact seal, 21.2 kN dynamic, 5,600 rpm.

List Price

$51.60

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Rexnord
MPN	FX3W219E
GTIN	662327034870
Model	FX 3 W 219 E
ID	1.1875 in

Technical Specifications

Material	Cast iron housing, bearing steel insert
Series	FX3W
Type	Flanged Mount Bearing
Lubricant	Grease
Base Number	FX3W219
Industry Terms	Two-bolt flange unit, flange block bearing, Link-Belt flange block, eccentric collar flange bearing, mounted ball bearing unit, FX3 flange block
Common Misspellings	FX3W-219-E, FX3W2I9E, FXW3219E, Rexord, Rexnord Link Belt, Linkbelt
Application Types	Conveyor head and tail shafts, fan and blower shafts, bucket elevators, agricultural drives, general shaft support at moderate speed
Bolt Center To Center	4.5928 in
Number Of Bolt Holes	2
Number Of Bolt Holes For Fasteners	2
Bore Shaft Size	1-3/16 in (1.1875 in)
Housing Style	Two-bolt flange unit
Locking Method	Eccentric locking collar
Mpn Variants	FX3W219E, FX3-W-219-E, FX3 W219E, FX 3 W 219 E, FX3W-219E
Rolling Elements	Balls
Bearing Type	Two-bolt flange mount ball bearing unit
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	No
Duty Type	Standard duty
Locking Device	Eccentric locking collar
Insert Outer Ring	Spherical
Harmonization Code	8483.20.40
Housing Material	Cast iron
Expansion Type	Non-expanding
Part Number	FX3W219E

Cross-References

Cross Reference 1	Link-Belt FX3S219E - setscrew locking, not eccentric collar
Cross Reference 2	Link-Belt FXW219E - high-test iron housing, not cast iron

Seller Part Number: K4#IAAZX3

Product Description

What this part is:

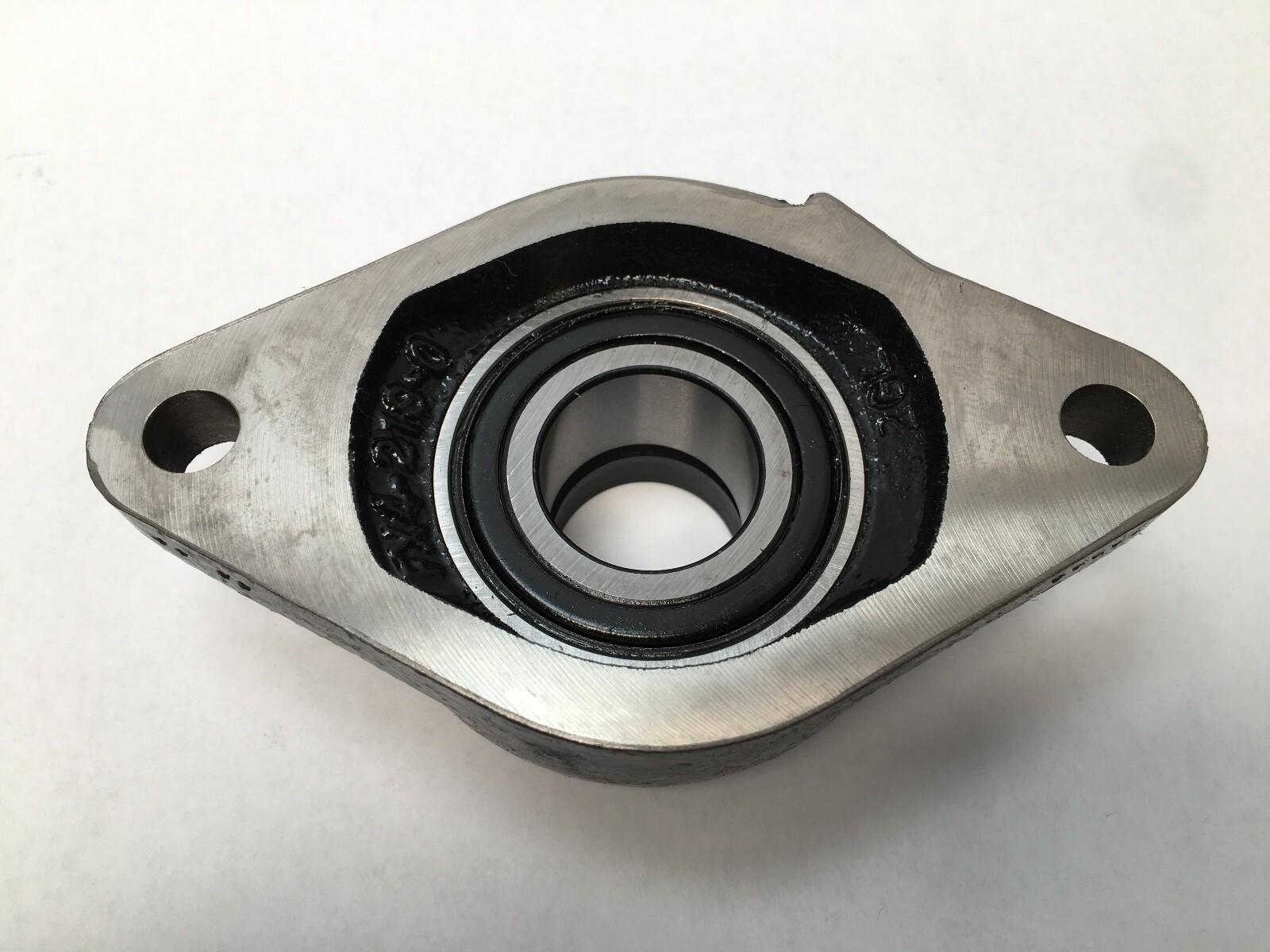

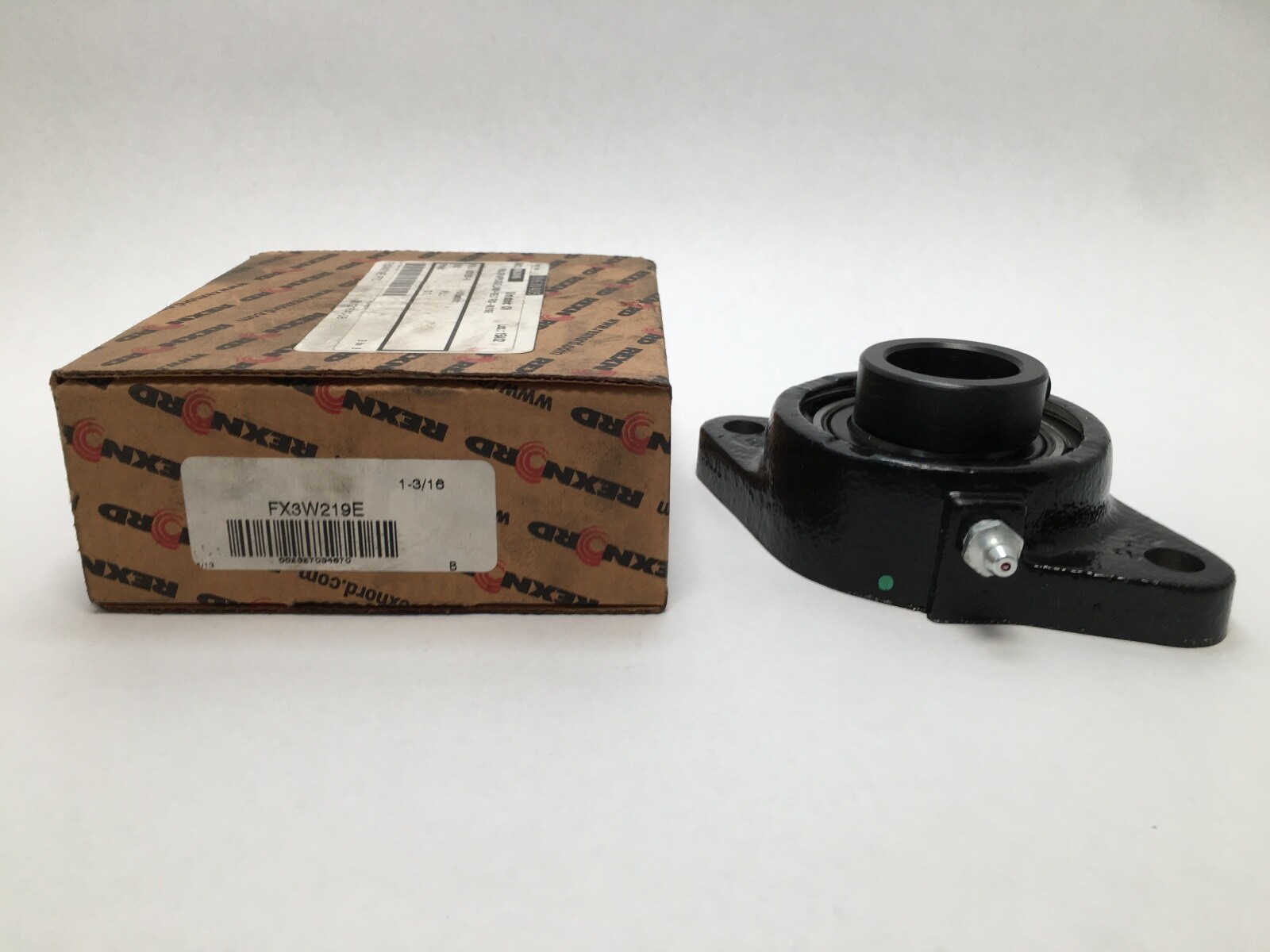

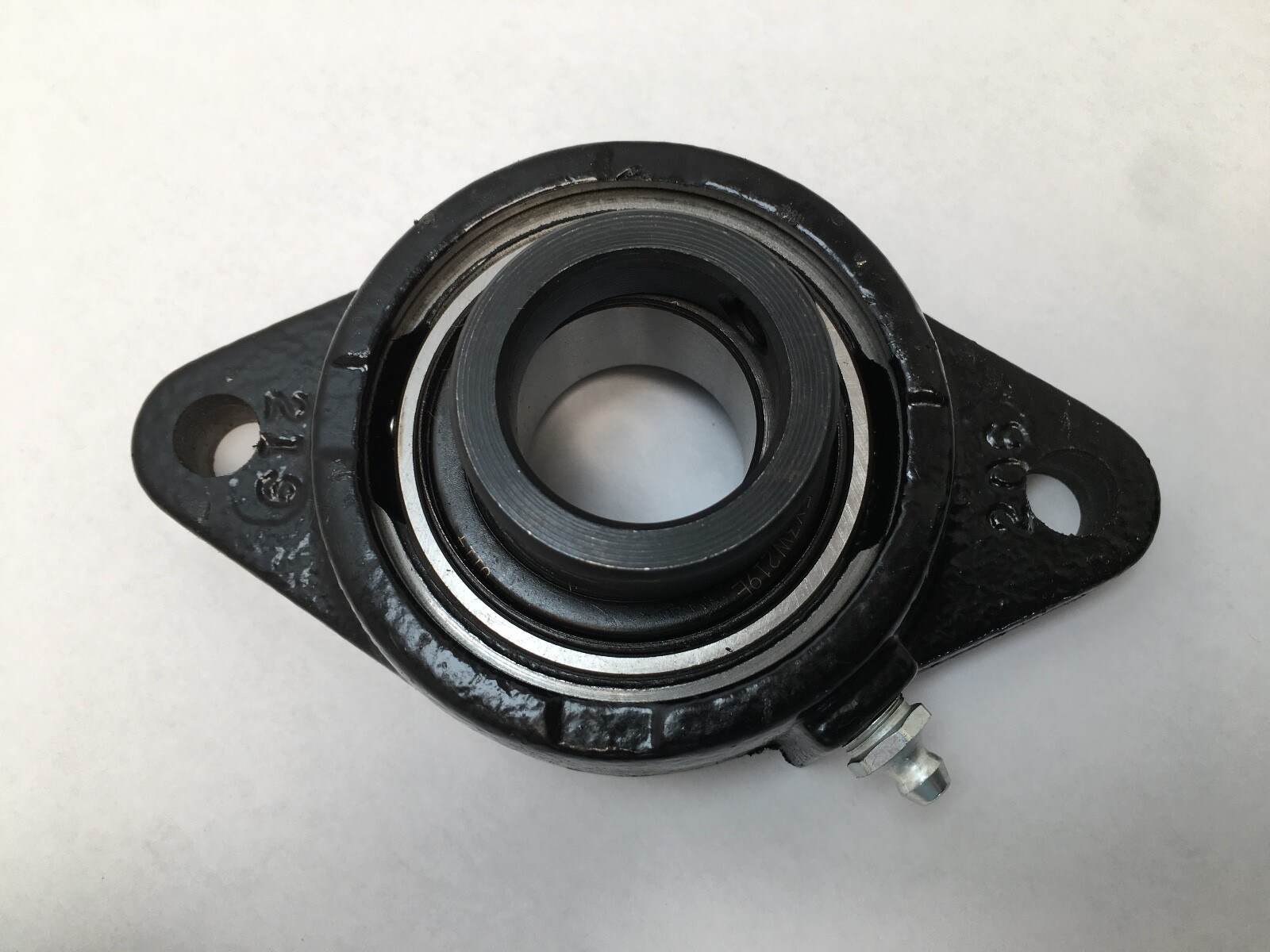

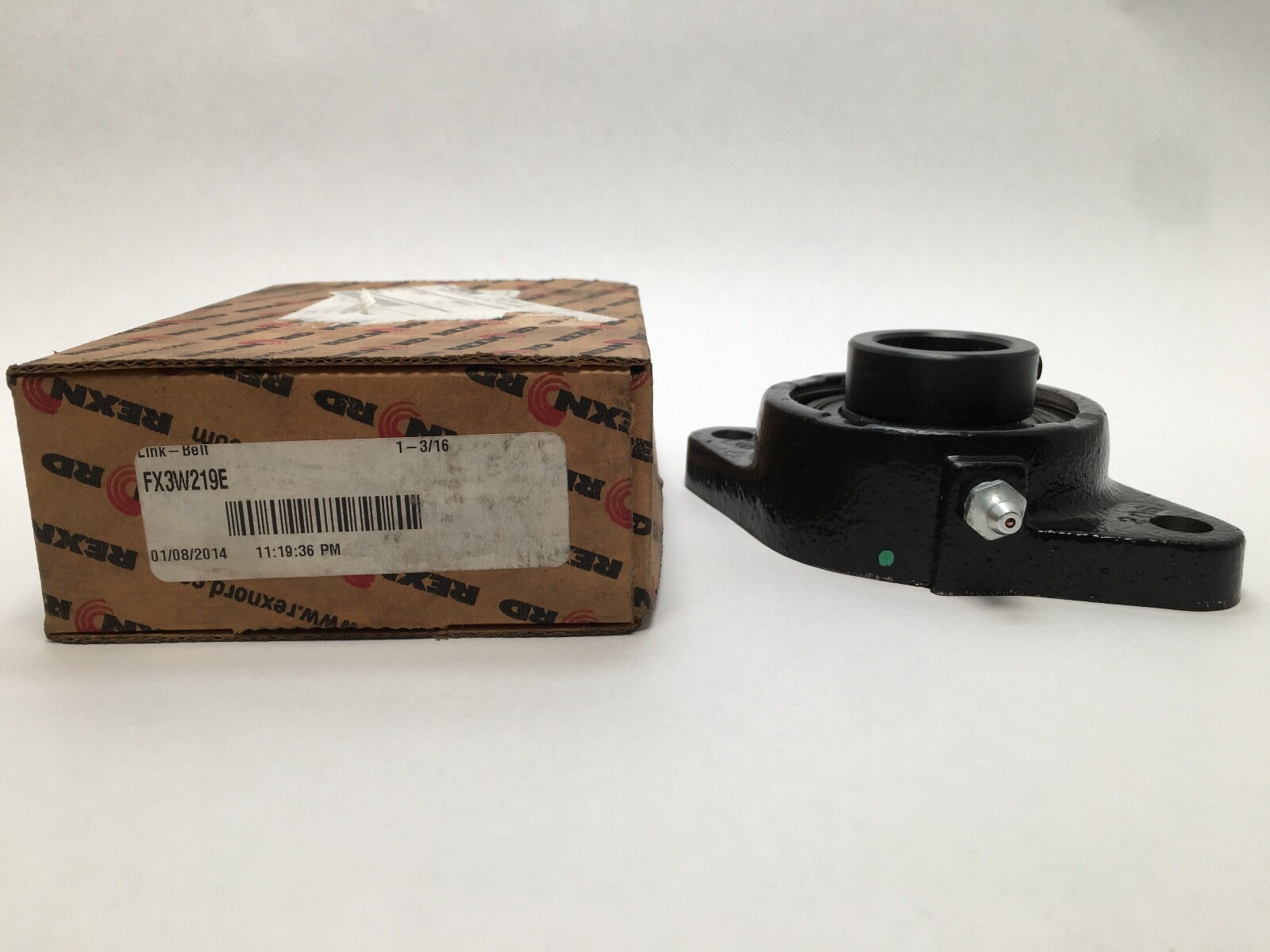

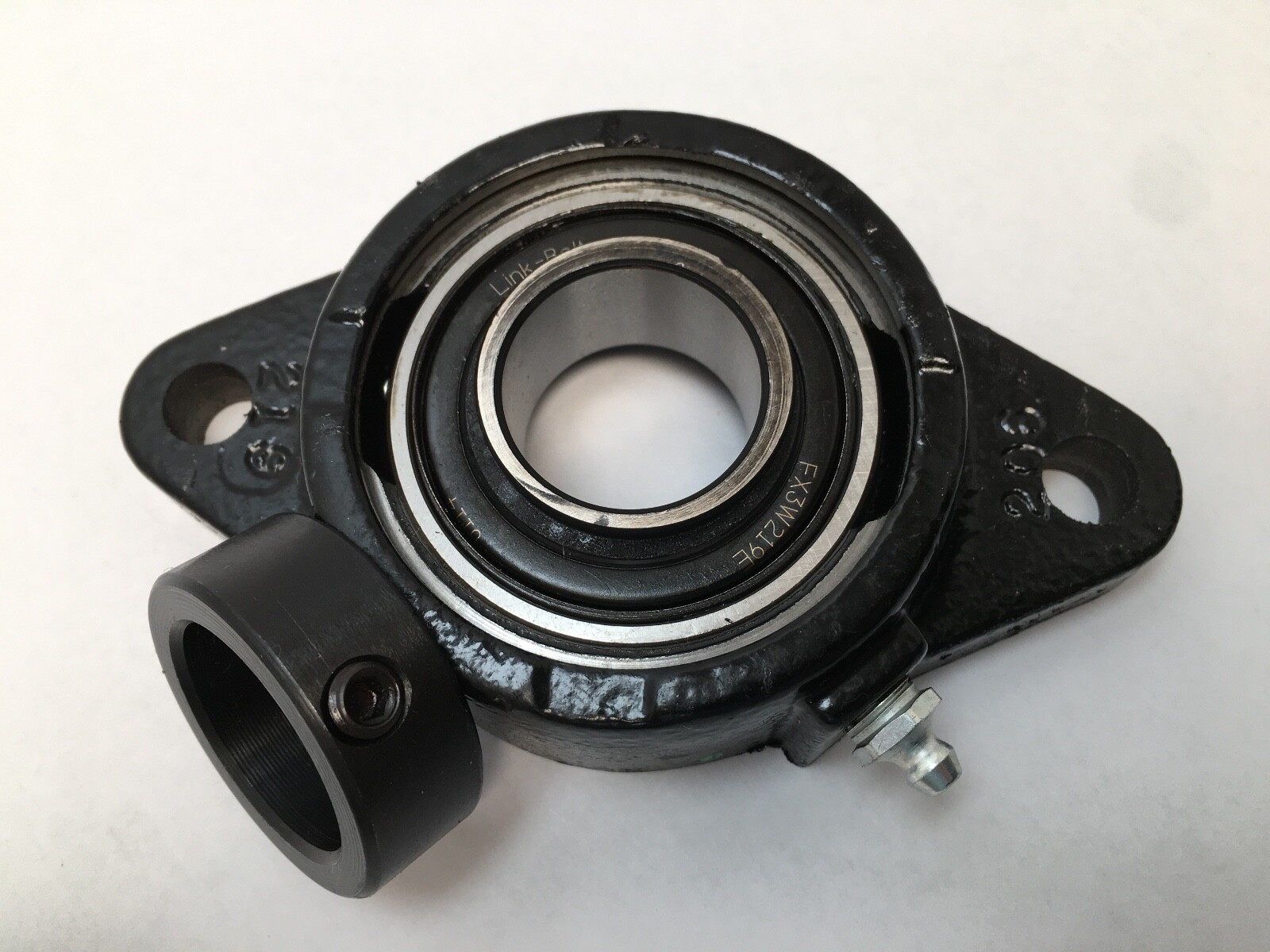

Rexnord Link-Belt FX3W219E two-bolt cast iron flange mount ball bearing unit with eccentric locking collar, 1-3/16 in bore and single lip contact seal. One complete flange unit: cast iron two-bolt housing, sealed spherical-OD insert and eccentric locking collar. Unit Quantity: 1 Pc.

Decoding the designation:

FX3 — Link-Belt two-bolt flange block, standard series.

W — eccentric locking collar.

219 — 200-series ball insert with the bore in sixteenths of an inch, so 19/16 = 1-3/16 in.

E — series execution suffix.

Specifications:

Series: FX3W. Housing Style: Two-bolt flange unit. Housing Material: Cast iron. Bore / Shaft Size: 1-3/16 in (1.1875 in). Bore Type: Straight. Locking Method: Eccentric locking collar. Insert Outer Ring: Spherical. Rolling Elements: Balls. Number Of Rows: 1. Expansion Type: Non-expanding. Closure Type: Single lip contact seal. Cage Type: Nylon retainer. Internal Clearance: C3. Lubricant: Grease. Relubrication: Regreasable. Duty Type: Standard duty. Dynamic Load Rating: 21.2 kN (4,766 lbf). Static Load Rating: 12.5 kN (2,810 lbf). Limiting Speed: 5,600 rpm. Harmonization Code: 8483.20.40. Country of Origin: United States.

Dimensions and mounting:

Housing Style: Two-bolt flange unit. Number Of Bolt Holes For Fasteners: 2. Bolt Center To Center Length: 4.5928 in. Mounting Arrangement: Flange mount. The two bolts sit on a single 4.5928 in centre line either side of the shaft.

Compatibility and replacement:

Related Link-Belt units: FX3S219E (same housing with setscrew locking) and FXW219E (high-test iron housing, eccentric collar). Designation forms: FX3W219E, FX3-W-219-E, FX3 W219E, FX 3 W 219 E, FX3W-219E.
