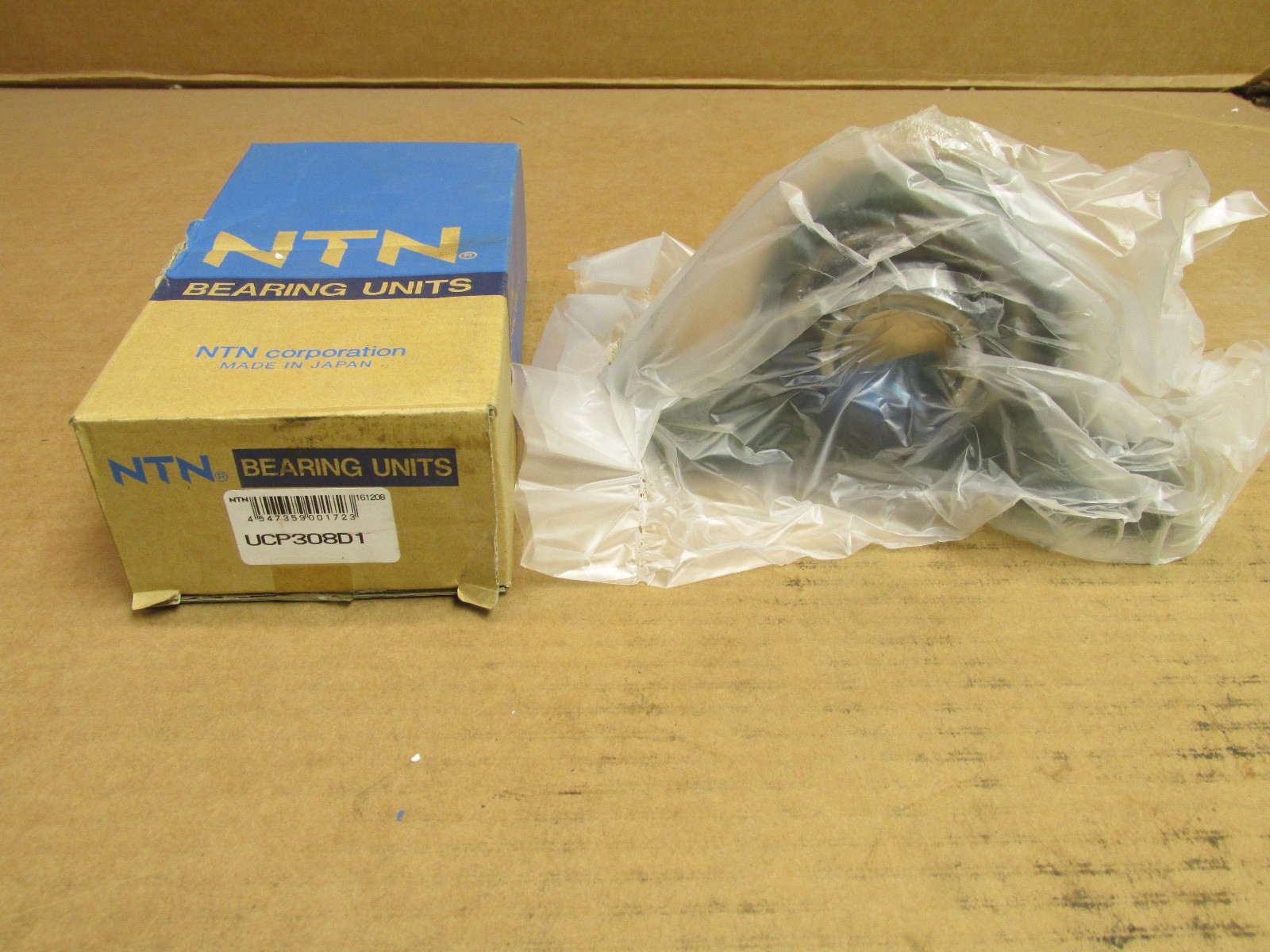

NTNUCP308D1Two-Bolt Pillow Block Unit – 40 mm Bore, Cast Iron Housing, Set-Screw Locking

Name: Two-Bolt Pillow Block Unit – 40 mm Bore, Cast Iron Housing, Set-Screw Locking
Brand: NTN
SKU: BG2#4ZJQA6
Price: 52.71 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Flanged Mount Bearing

Two-bolt cast iron pillow block unit, 40 mm bore, set-screw locking, nitrile contact seals, 170 mm bolt centres, 60 mm shaft centre height.

Same day shipment

List Price

$52.71

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	NTN
MPN	UCP308D1
GTIN	4547359001723
OD	90 mm (3.5430 in)

Technical Specifications

Condition	New
Type	Flanged Mount Bearing
Base Number	UCP308
Industry Terms	Pillow block, plummer block, two-bolt flange-free base unit, mounted ball bearing unit
Application Types	Conveyors, fans, agricultural drives, material handling shafting
Total Width	52 mm (2.0470 in) inner ring
Overall Width	27 mm (1.0630 in) outer ring
Bolt Center To Center Length	170 mm (6.6875 in)
Bore Shaft Size	40 mm (1.5750 in)
Housing Style	Two-Bolt Pillow Block
Locking Method	Two Set Screws
Relubrication	Outer Ring Relubricatable
Replacement Insert	UC308D1
Mpn Variants	UCP308D1, UCP 308 D1, UCP308, UC308D1, P308D1
Precision Class	ISO Class 0
Material	Cast Iron Housing, Chrome Steel Insert
Min Temp	-40 °C (-40 °F)
Dynamic Load Rating	40.5 kN (9,105 lbf)
Static Load Rating	24.0 kN (5,395 lbf)
Series	UCP/UCPX 300 Series
Rolling Elements	Balls, Through-Hardened Steel
Max Temp	120 °C (250 °F)
Bearing Type	Mounted Ball Bearing Pillow Block Unit
Item Weight	3.200 kg (7.06 lb)
Cage Material	Pressed Steel
Internal Clearance	CN
Expansion Type	Non-Expansion
Design Units	Metric
Part Number	UCP308D1
Mounting Type	Two-Bolt Base Mount

Seller Part Number: BG2#4ZJQA6

Product Description

What this part is

NTN UCP308D1 mounted ball bearing unit. Housing Style: Two-Bolt Pillow Block. Bore / Shaft Size: 40 mm (1.5750 in). Bore Type: Cylindrical. Locking Method: Two set screws in the extended inner ring. Insert Part Number: UC308D1. Housing Number: P308D1. Housing Material: Cast Iron. Housing Construction: One piece. Performance Class: Heavy duty. End Type: Open. Unit Quantity: 1 Pc.

Housing style and bolt pattern

Two-bolt pillow block base. Bolt Hole Centres: 170 mm (6.6875 in). Bolt Hole Width: 17 mm (0.6562 in). Bolt Hole Length: 27 mm (1.0625 in). Base to Shaft Centre Height: 60 mm (2.3594 in). Overall Length: 220 mm (8.6562 in). Housing Width: 60 mm (2.3750 in). Total Height: 116 mm (4.5625 in). Base Thickness: 22 mm (0.8750 in). Housing Width at Base: 60 mm (2.3750 in).

Insert bearing data

Outside Diameter: 90 mm (3.5430 in). Inner Ring Width: 52 mm (2.0470 in). Outer Ring Width: 27 mm (1.0630 in). Outer ring is spherical and self-aligning in the housing seat. Internal Clearance: CN. Cage Material: Pressed Steel. Ball Material: Through-hardened steel. Precision Rating: ISO Class 0. Seal Type: Contact. Seal Material: Nitrile Rubber. Expansion Type: Non-expansion.

What these specs mean in practice

Dynamic Load Rating: 40.5 kN (9,105 lbf). Static Load Rating: 24.0 kN (5,395 lbf). Rotational Speed, Maximum: 3,550 RPM on grease. Operating Temperature Range: −40 to 120 °C (−40 to 250 °F). Item Weight: 3.200 kg (7.06 lb). The spherical outer ring takes up initial shaft misalignment at mounting, so the two base bolts can be tightened against a shaft line that is not perfectly parallel to the mounting surface.

Relubrication

Relubrication Feature: Outer ring relubricatable. Grease enters through the housing fitting and passes into the insert through the outer ring, reaching the ball track directly.

Identification and interchange

GTIN: 4547359001723. MPN Variants: UCP308D1, UCP 308 D1, UCP308, UC308D1, P308D1. Series: UCP/UCPX 300 series. Country of Origin: Japan. The D1 suffix is NTN’s designation for the standard cast-iron, set-screw, nitrile-sealed execution of this unit.
