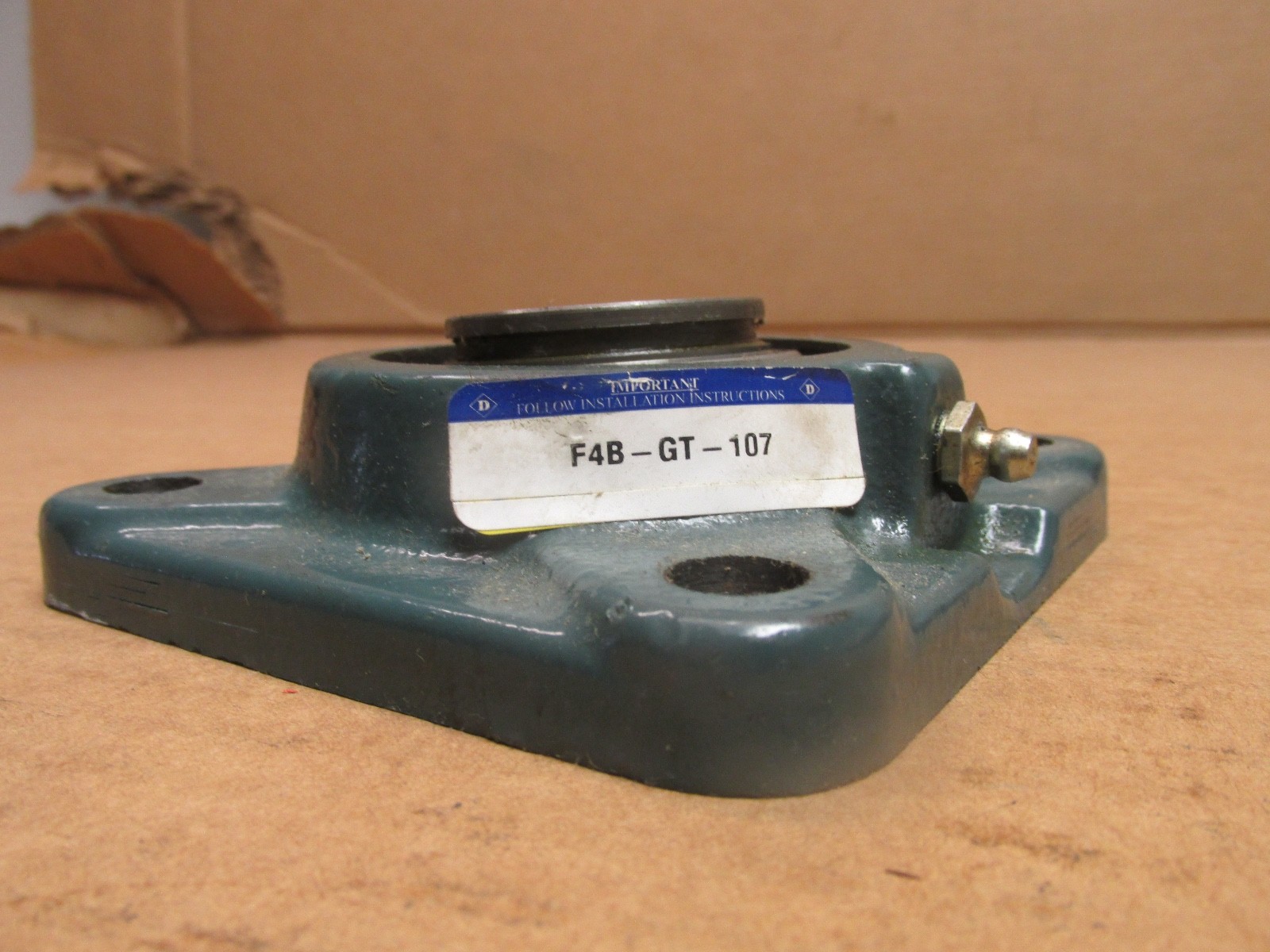

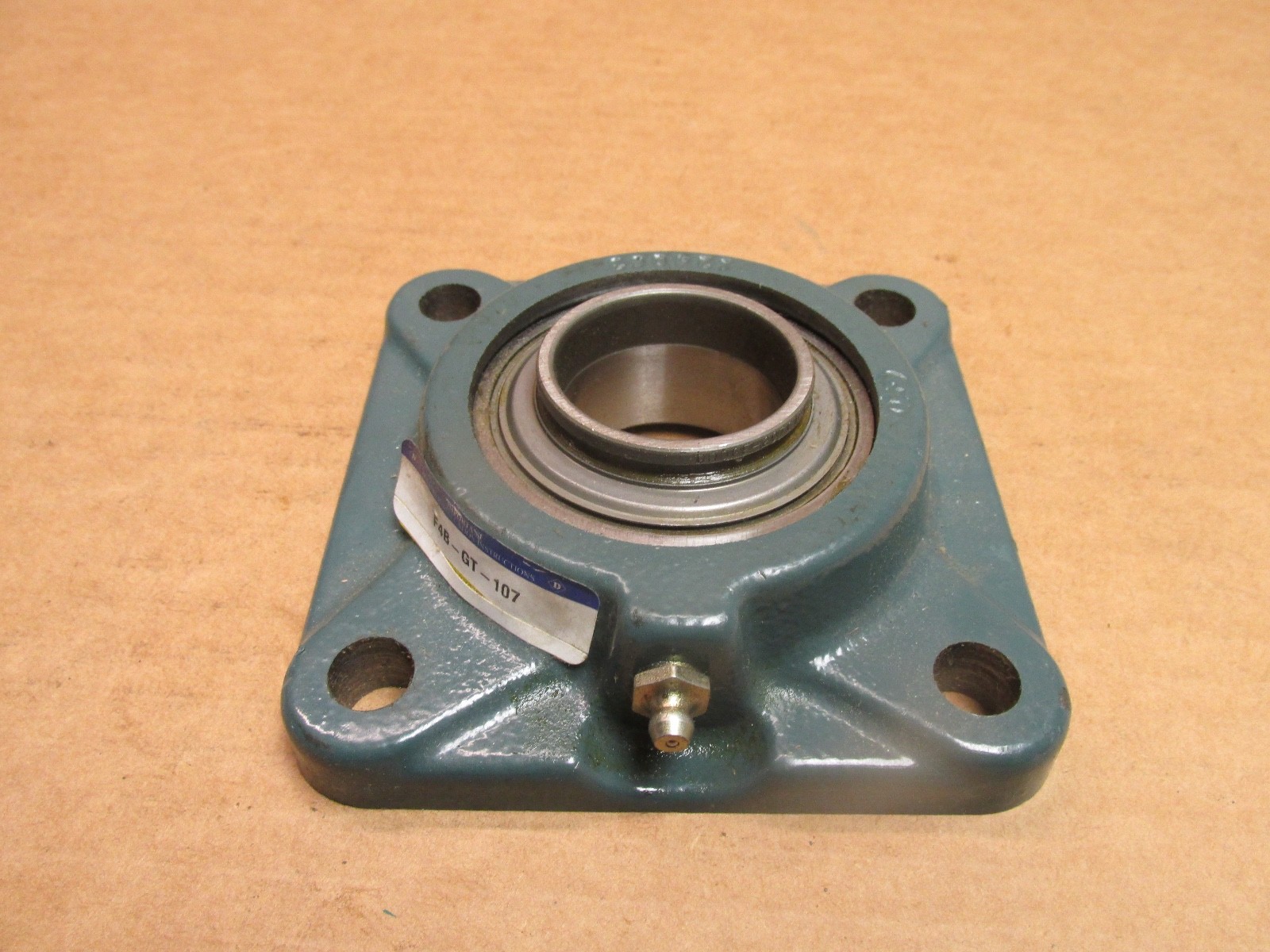

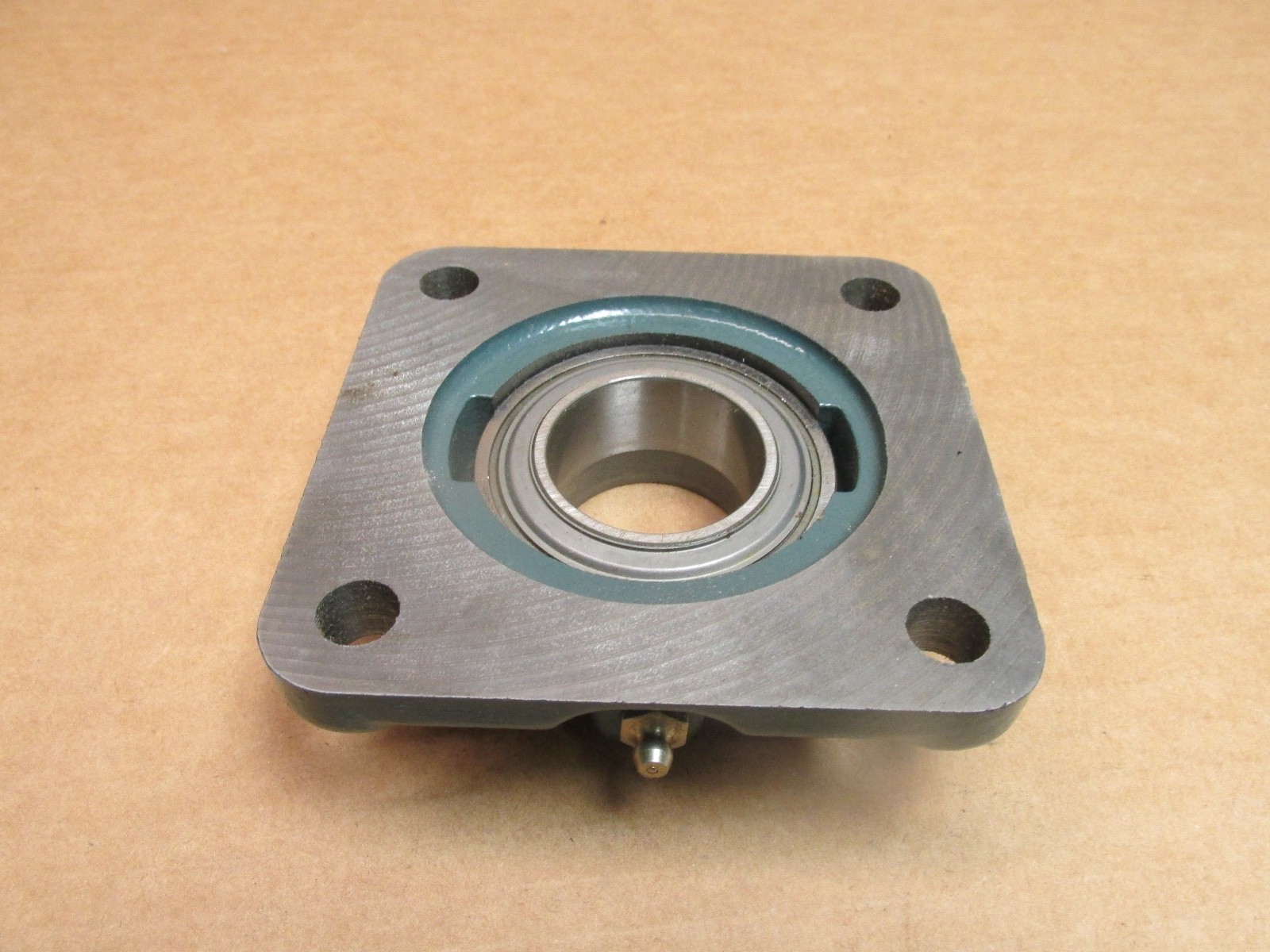

Dodge F4B-GT-107 4-bolt flange ball bearing unit, 1-7/16 in bore, Grip-Tight adapter locking, 3.63 in bolt centers, cast iron housing, catalog 129648.
List Price
$47.81
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
2-Bolt Flange Ball Bearing Unit 1-7/16" Bore, Medium Duty, Setscrew Locking, Seal and Flinger Both Sides$44.14
Cast Iron 4-Bolt Flange Unit – 1-5/8 in Bore, Grip-Tight Adapter, Self-Aligning Ball Insert, Regreasable$65.99
Flange Mount Ball Bearing Unit — 2-Bolt Light Duty, 1-7/16 in Bore, Eccentric Collar Lock, 3.94 in Bolt Centers, Sealed No-Lube$32.28
Square 4-Bolt Flange Ball Bearing Unit 1-7/16" Bore, Setscrew Locking, Seal and Flinger Both Sides$40.60| MFR / Brand | Dodge |
|---|---|
| MPN | F4B-GT-107 |
| GTIN | 782475889365 |
| Model | F4B-GT-107 |
| ID | 1-7/16 in |
| Series | GT |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Bolt Center To Center | 3.63 in |
| Number Of Bolt Holes | 4 |
| Bolt Center To Center Length | 3.63 in |
| Number Of Bolt Holes For Fasteners | 4 |
| Dynamic Load Rating | 5,759 lbf (25,617 N) |
| Static Load Rating | 3,461 lbf (15,395 N) |
| Rolling Elements | Balls |
| Bearing Type | Flange mounted ball bearing unit |
| Number Of Rows | 1 |
| Limiting Speed | 9,500 rpm |
| Locking Device | Grip-Tight adapter |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast iron |
| Industry Terms | 4-bolt flange bearing, square flange unit, adapter mount flange bearing, Grip-Tight flange |
| Bore Shaft Size | 1-7/16 in (1.4375 in, 36.51 mm) |
| Housing Style | 4-bolt flange |
| Locking Method | Grip-Tight adapter |
| Relubrication | Yes |
| Mpn Variants | 129648, F4BGT107, F4B GT 107, F4B-GT-107 / 129648 |
| Additional Attributes | Bearing Series: 207; Flange Size: 4-3/4 in x 4-3/4 in; Overall Depth: 1.79 in; Finish: Uncoated |
The Dodge F4B-GT-107, catalog number 129648, is a four-bolt square flange mounted ball bearing unit for a 1-7/16 in shaft. The insert locks to the shaft with the Dodge Grip-Tight adapter. Housing Style: 4-bolt flange. Housing Material: Cast iron. Bearing Series: 207.
F4B — Dodge four-bolt flange ball bearing housing.
GT — Grip-Tight adapter mounting, a push-pull adapter that grips the shaft with full 360° contact.
107 — 1-7/16 in shaft size.
Bore / Shaft Size: 1-7/16 in (1.4375 in, 36.51 mm). Locking Method: Grip-Tight adapter. Dynamic Load Rating: 5,759 lbf (25,617 N). Static Load Rating: 3,461 lbf (15,395 N). Limiting Speed: 9,500 rpm. Seal Type: Single-lip nitrile rubber contact seal. Expansion Type: Non-expansion. Relubrication: Yes. The adapter mount locks concentrically without set screws bearing on the shaft.
Number Of Bolt Holes: 4. Bolt Center To Center Length: 3.63 in. Flange Size: 4-3/4 in x 4-3/4 in. Overall Depth: 1.79 in. Finish: Uncoated.
Complete mounted unit: cast iron flange housing with Grip-Tight ball bearing insert installed. GTIN: 782475889365.
Dodge catalog number 129648 and engineering number F4B-GT-107 identify the same part. Also written F4BGT107 and F4B GT 107.
