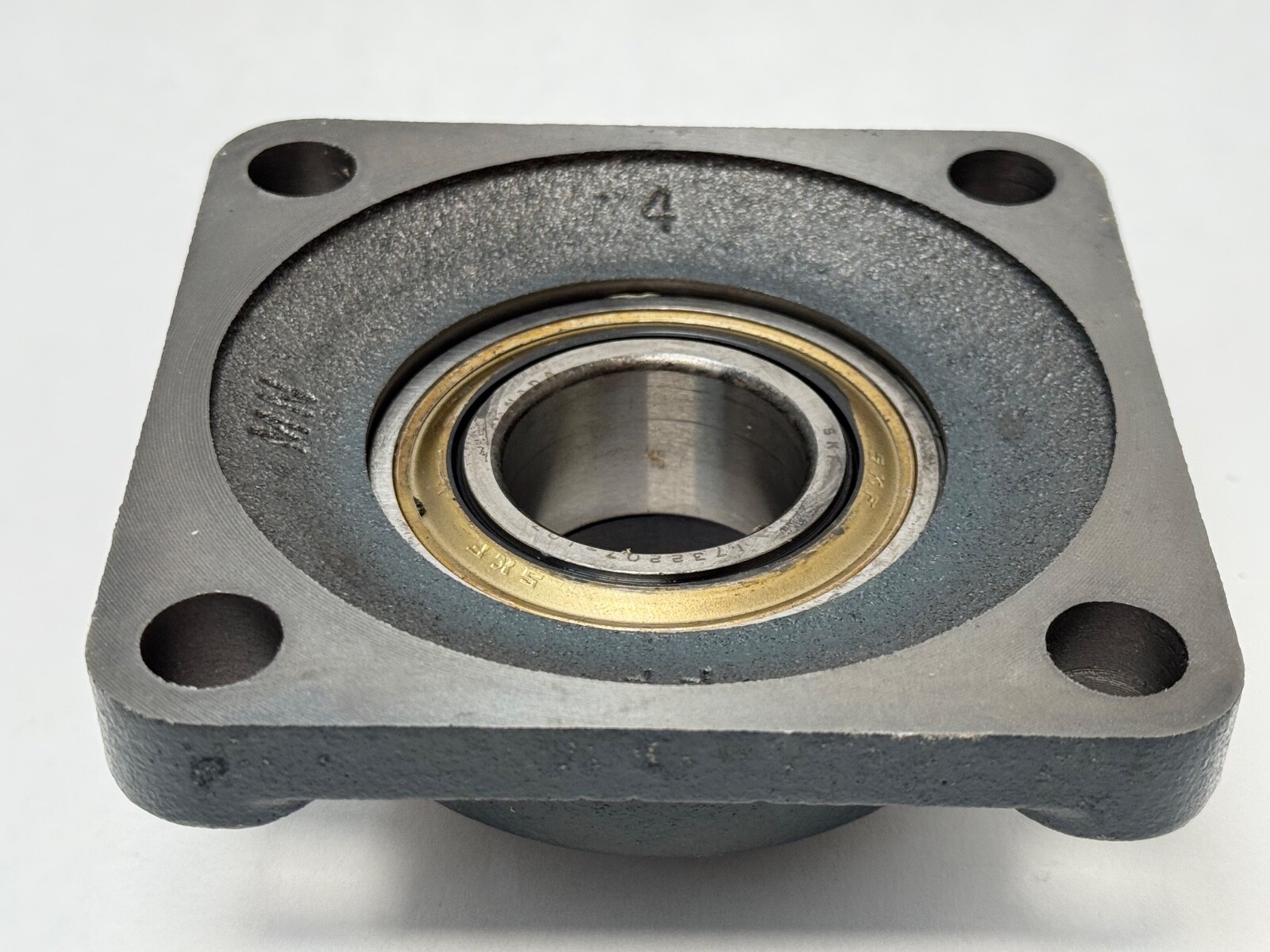

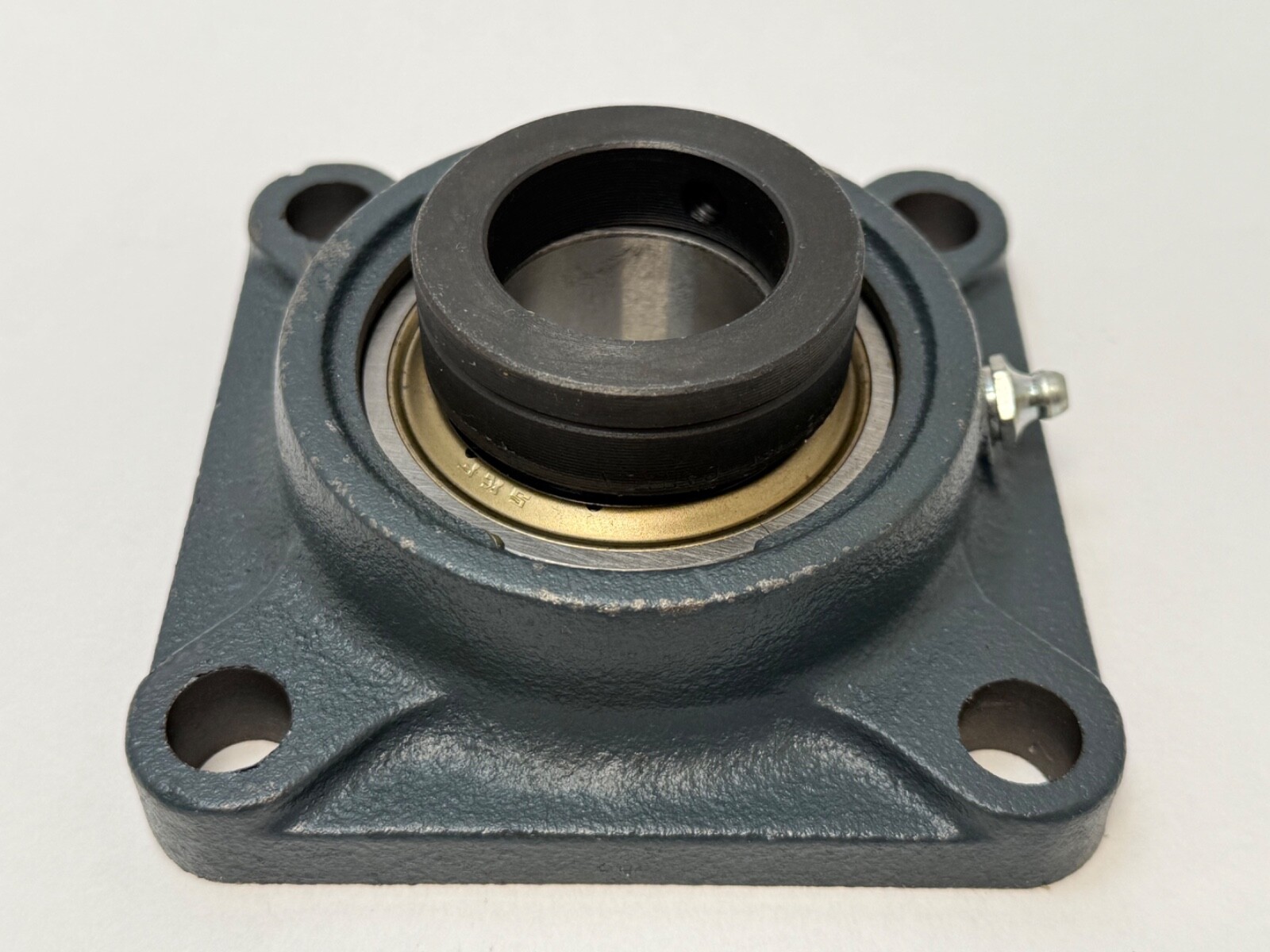

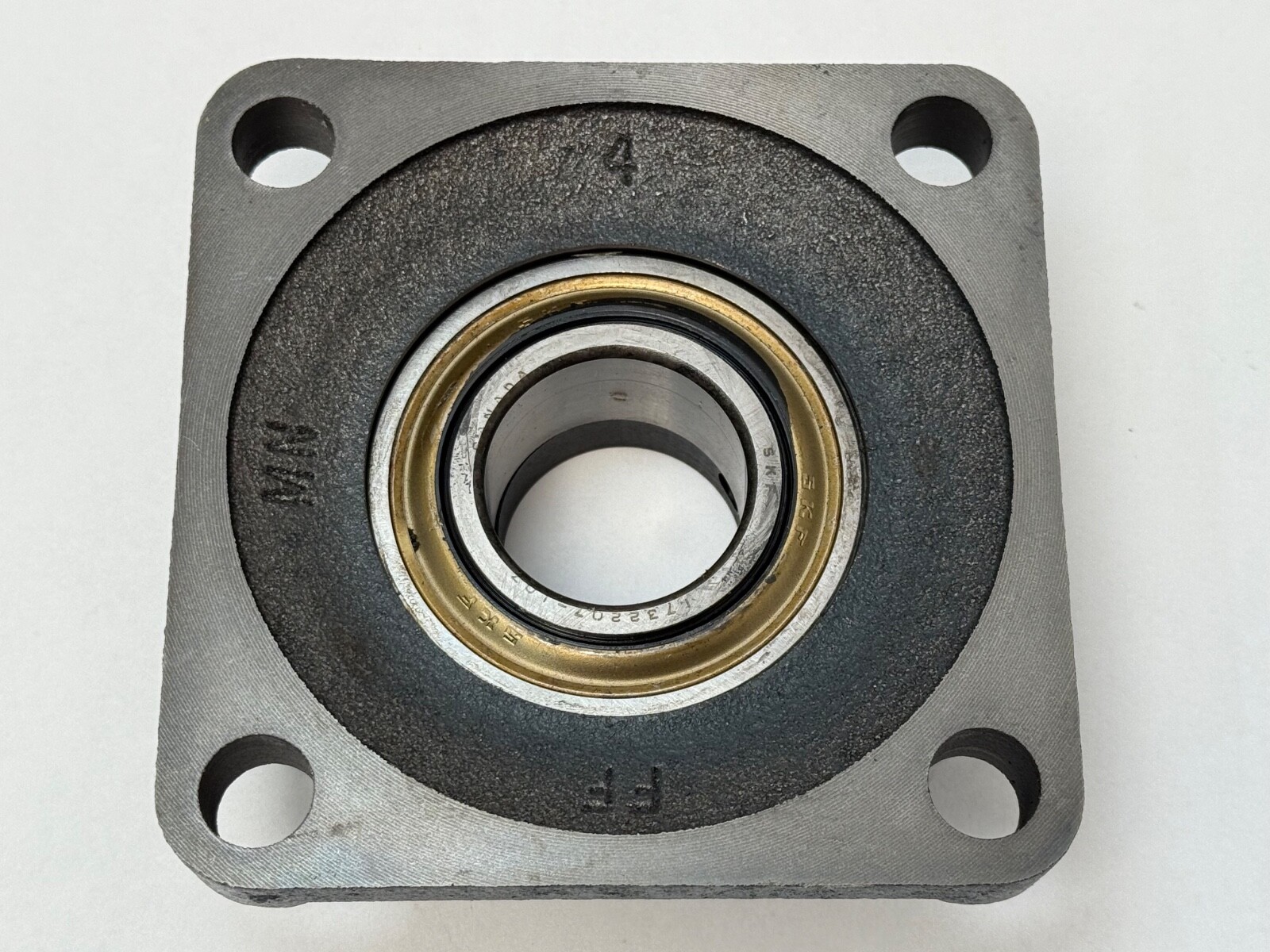

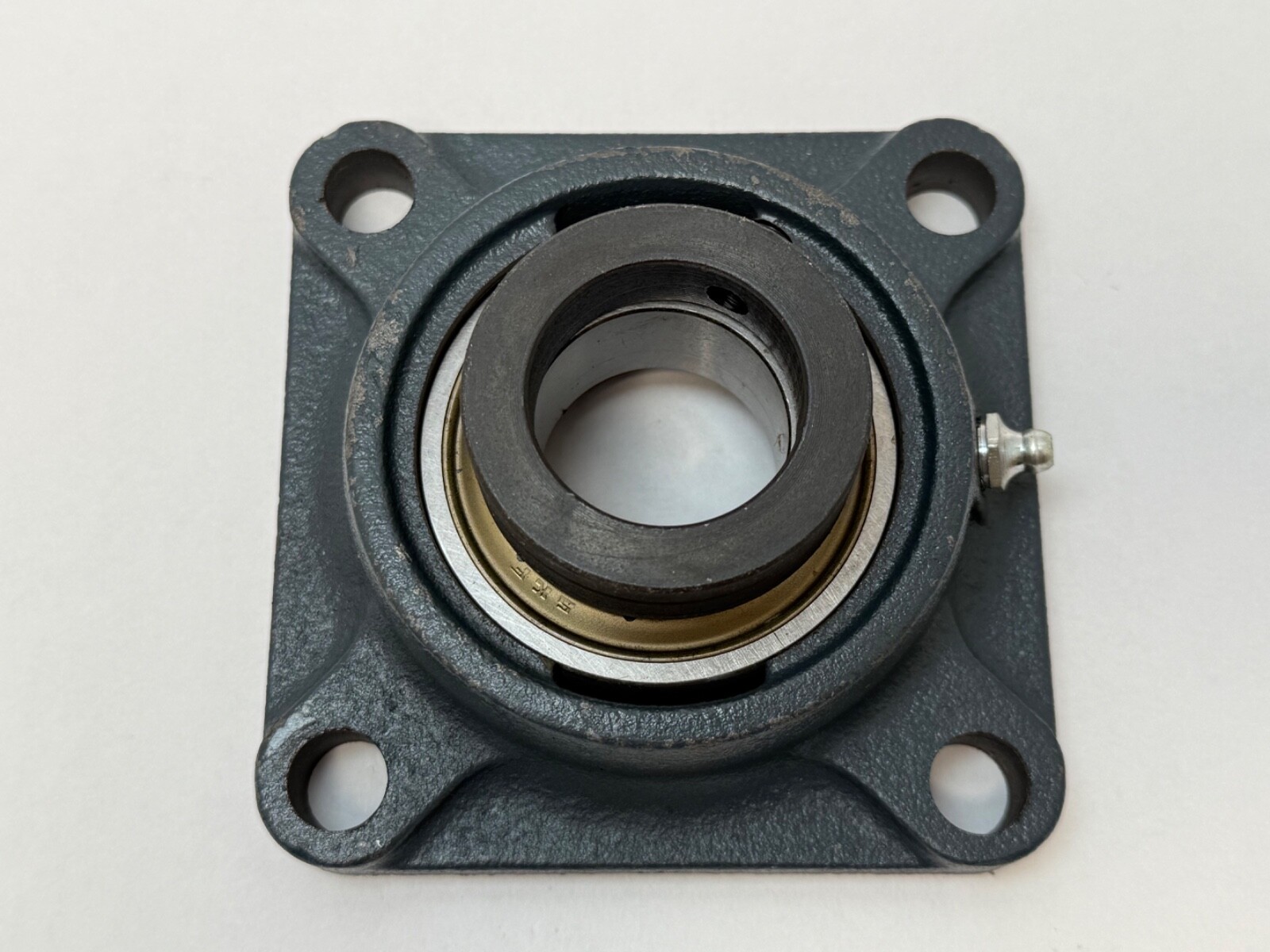

SKF FY 1.7/16 four-bolt square flange ball bearing unit, 1-7/16 in bore, cast iron housing, setscrew locking, seal and flinger both sides, greaseable.
List Price
$40.60
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | FY-107-CB |

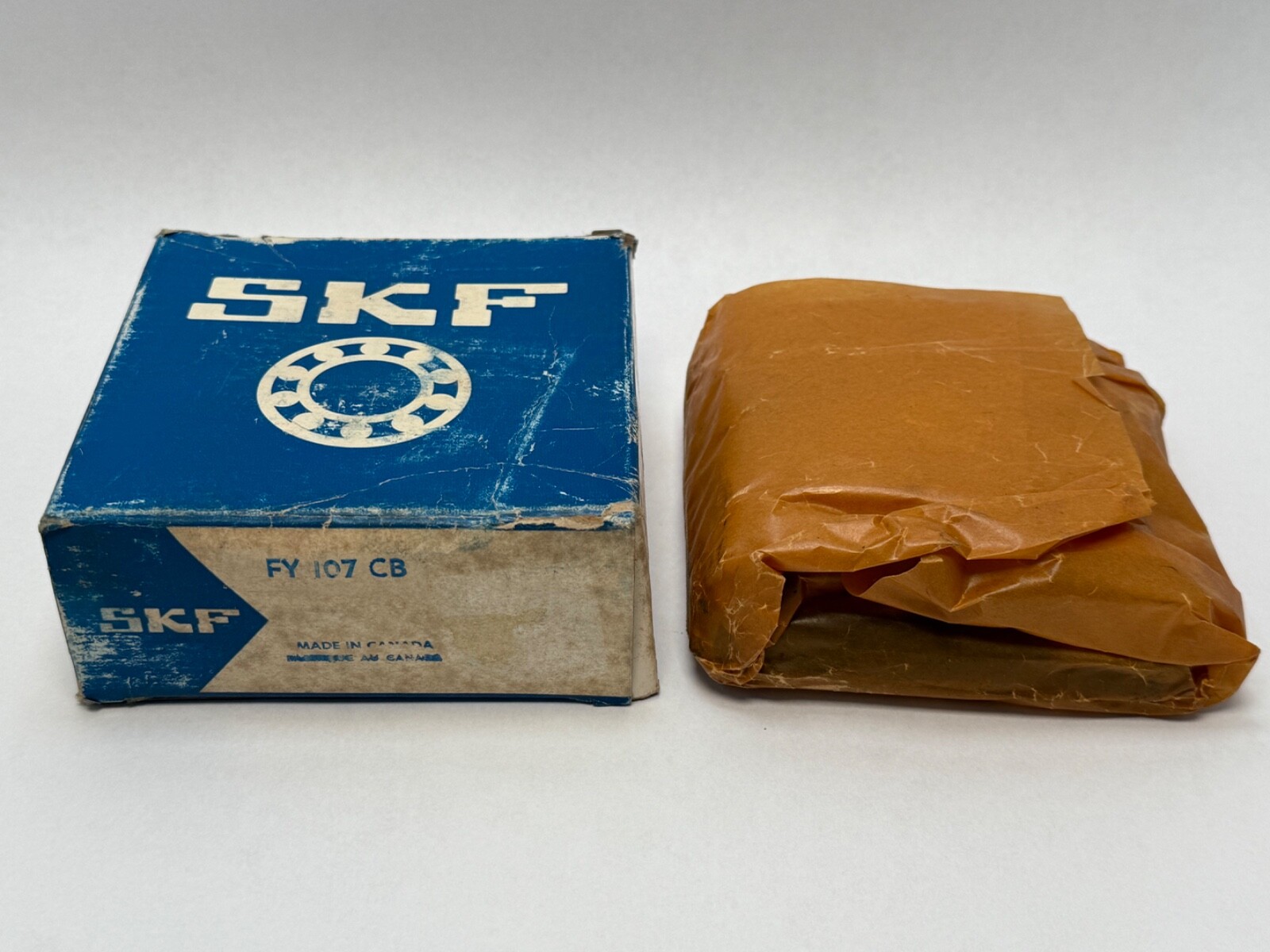

| Model | FY 107 CB / FY1-7/16 |
| ID | 1-7/16 in |
| Material | Cast Iron |
|---|---|
| Type | Flanged Mount Bearing |
| Base Number | FY 1.7/16 |
| Industry Terms | square flange unit, 4-bolt flange bearing, Y-bearing unit, flange block, mounted unit, insert bearing unit |
| Common Misspellings | SKF FY 107CB, FY107 CB, FY-107CB, SKF FY1-7/16, FY 1 7/16 CB, flangette |
| Application Types | Material handling, conveyors, fans, agricultural machinery, packaging lines |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-7/16 in (1.4375 in) |
| Housing Style | Square flanged unit, 4 plain bolt holes, cast iron |
| Locking Method | Set screws in extended inner ring |
| Mpn Variants | FY107CB, FY-107-CB, FY 107 CB, FY 1.7/16, FY 1-7/16, FY107, FY-107 |
| Bearing Type | Mounted ball bearing unit (Y-bearing unit) |
| Number Of Rows | 1 |
| Harmonization Code | UNSPSC 31171536 |
| Part Number | FY-107-CB |
| Cross Reference 1 | SKF FY 1.7/16 TF - SKF catalogue form, setscrew locking |
|---|---|
| Cross Reference 2 | SKF FYT 1.7/16 - two-bolt oval flange vs four-bolt square |

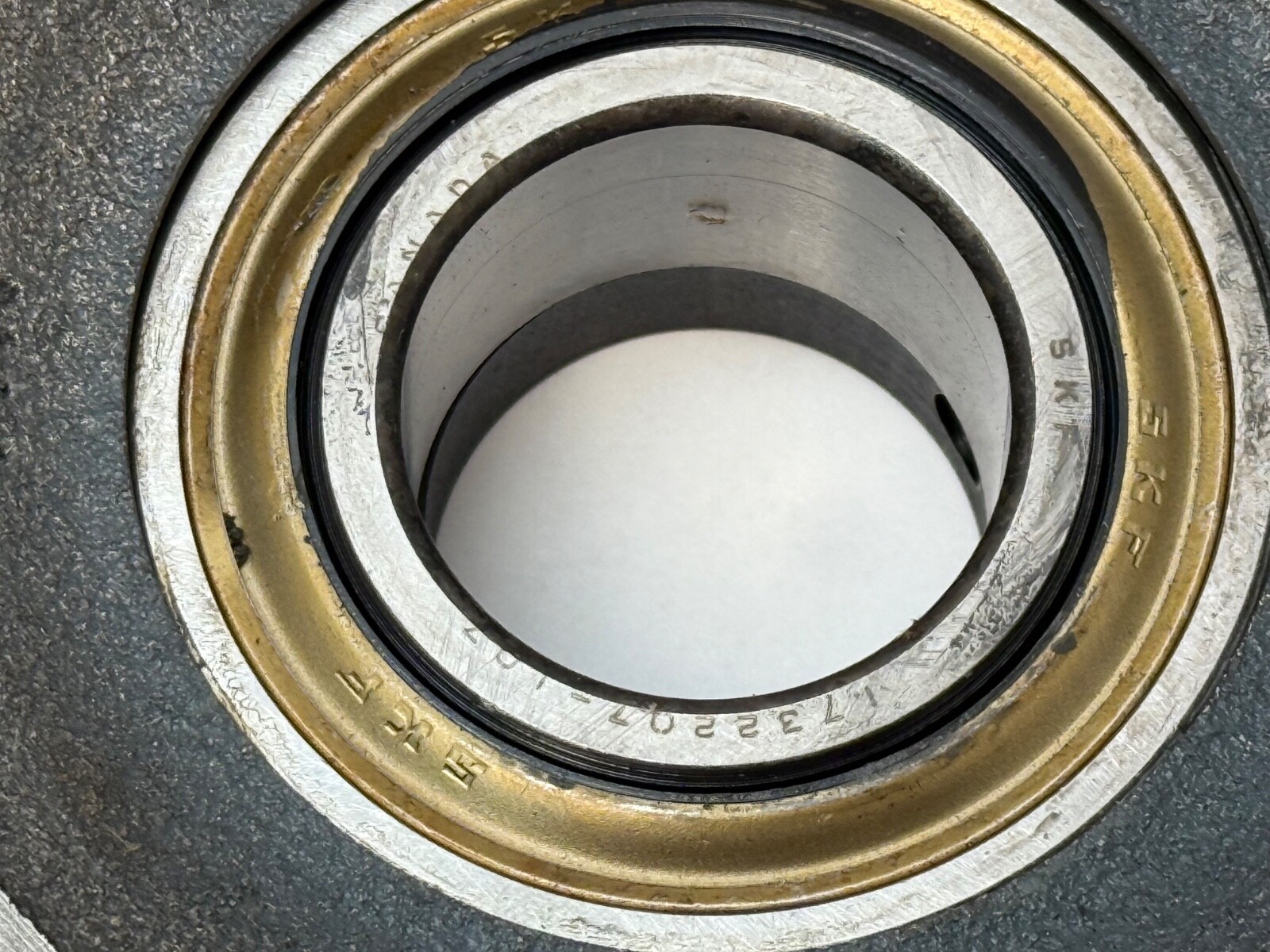

SKF FY 1.7/16 is a Y-bearing unit: a square, four-bolt flange housing in cast iron carrying an insert ball bearing with an extended inner ring and setscrew locking. Housing style: square flanged unit, 4 plain bolt holes, cast iron. Bore / Shaft Size: 1-7/16 in (1.4375 in). The insert seats spherically in the housing, so the unit accommodates moderate initial misalignment.
FY — SKF square flanged ball bearing unit, four bolt holes.
107 — 1-7/16 inch bore. The SKF catalogue form of the same size is FY 1.7/16.
Centre distance between bolt holes: 3.622 in. Attachment bolt diameter: 1/2 in. Housing overall width: 1.3583 in. Total width: 1.8268 in. Bearing total width: 1.689 in. Locking method: set screws in the extended inner ring. Sealing: seal and flinger both sides, contact type. Lubricant: grease, with relubrication hole and grease fitting fitted. Basic dynamic load rating: 5,733 lbf. Basic static load rating: 3,440 lbf. Limiting speed: 5,300 rpm with shaft tolerance h6. Product net weight: 2.82 lb. Rotation: constant or alternating direction. Complies with ISO dimensions. UNSPSC 31171536. Unit Quantity: 1 Pc.
Bolt hole centres: 3.622 in. Bolt size: 1/2 in. Four plain holes in a square flange. Cast iron housing with insert and setscrews fitted.
SKF FY 1.7/16 TF is the SKF catalogue form of this unit. SKF FYT 1.7/16 is the same bearing in a two-bolt oval flange. FY 1.11/16 is the next bore size.
Four, on 3.622 in centres, 1/2 in bolts.

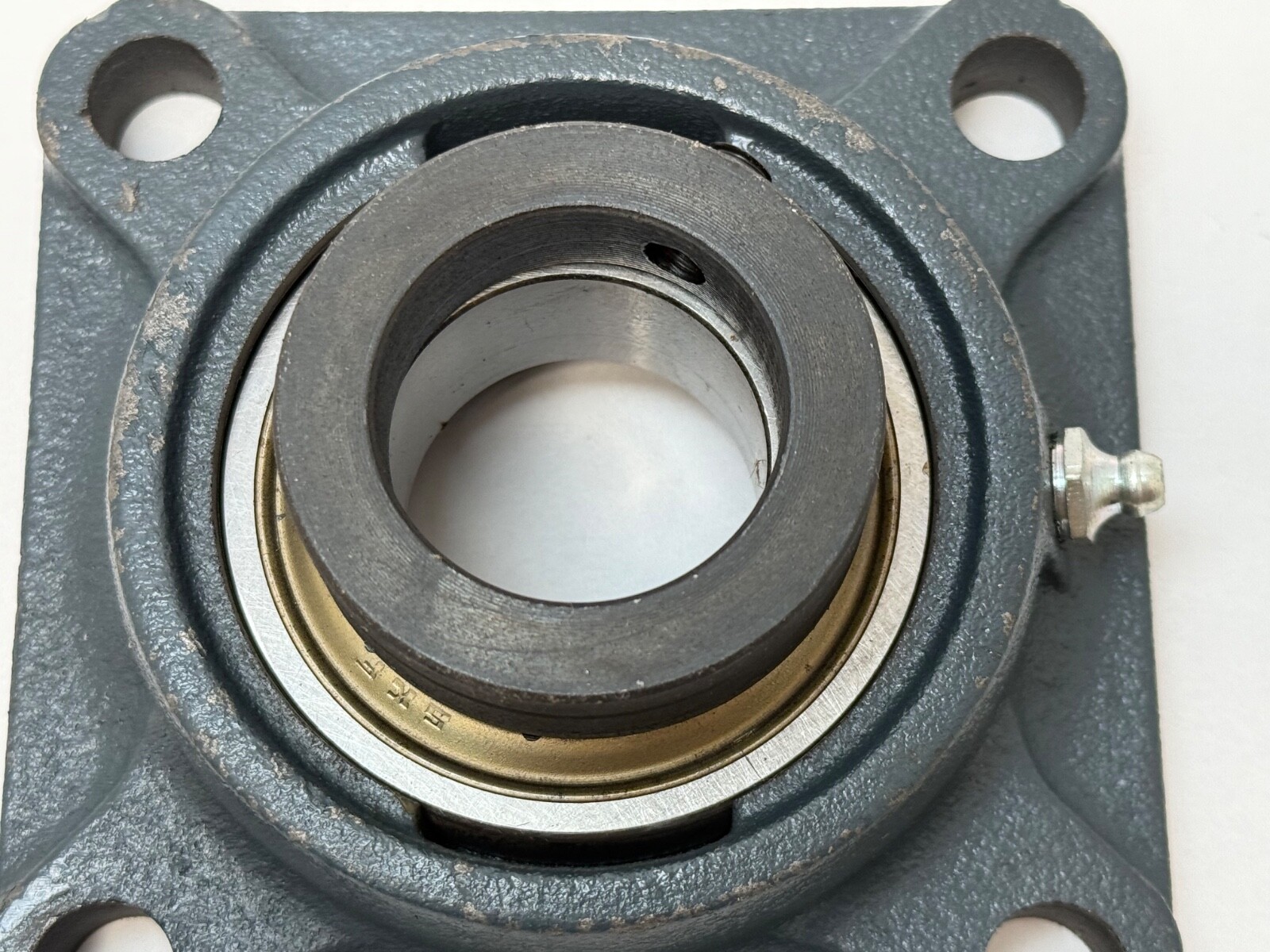

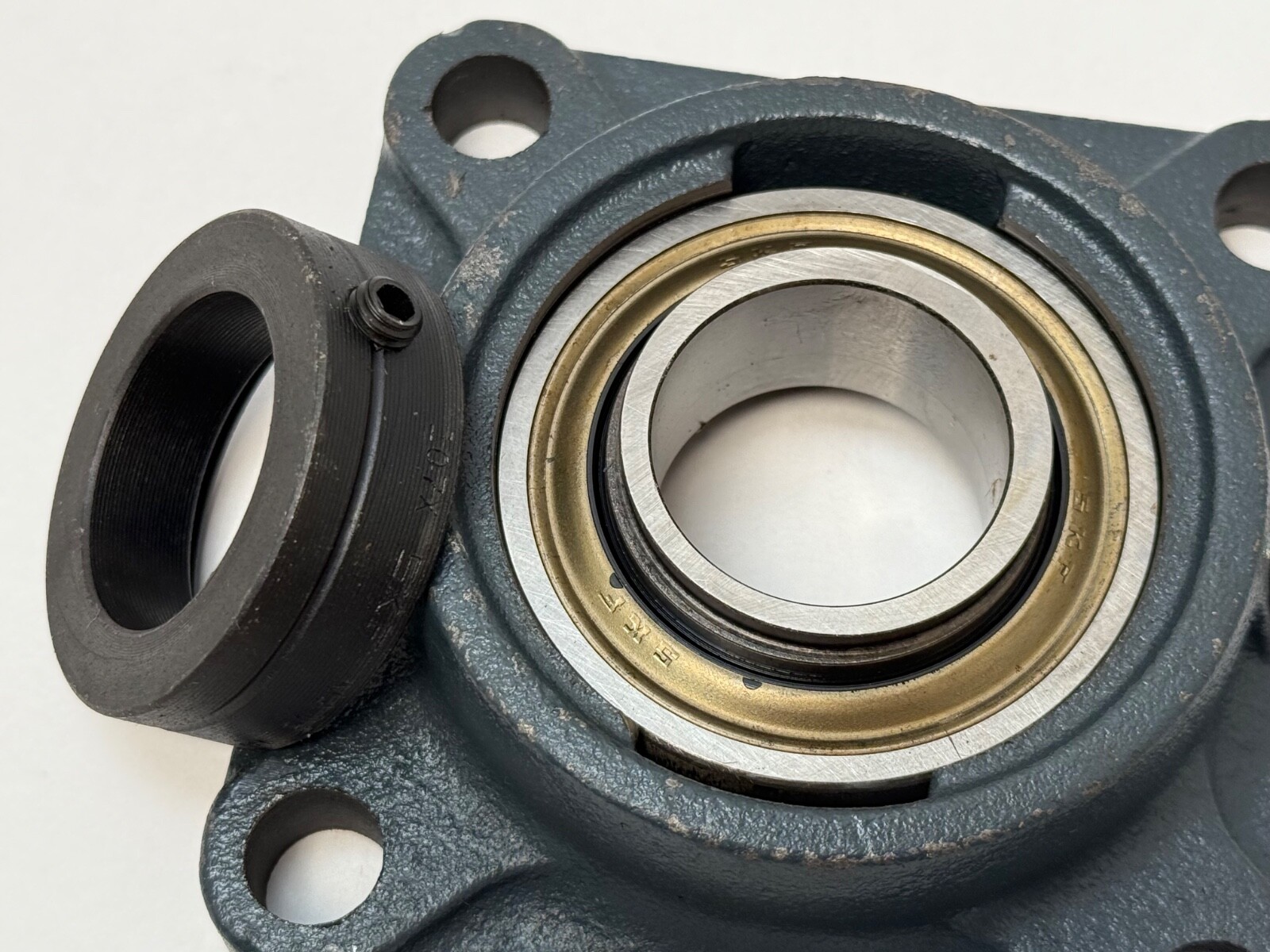

By set screws in the extended inner ring.

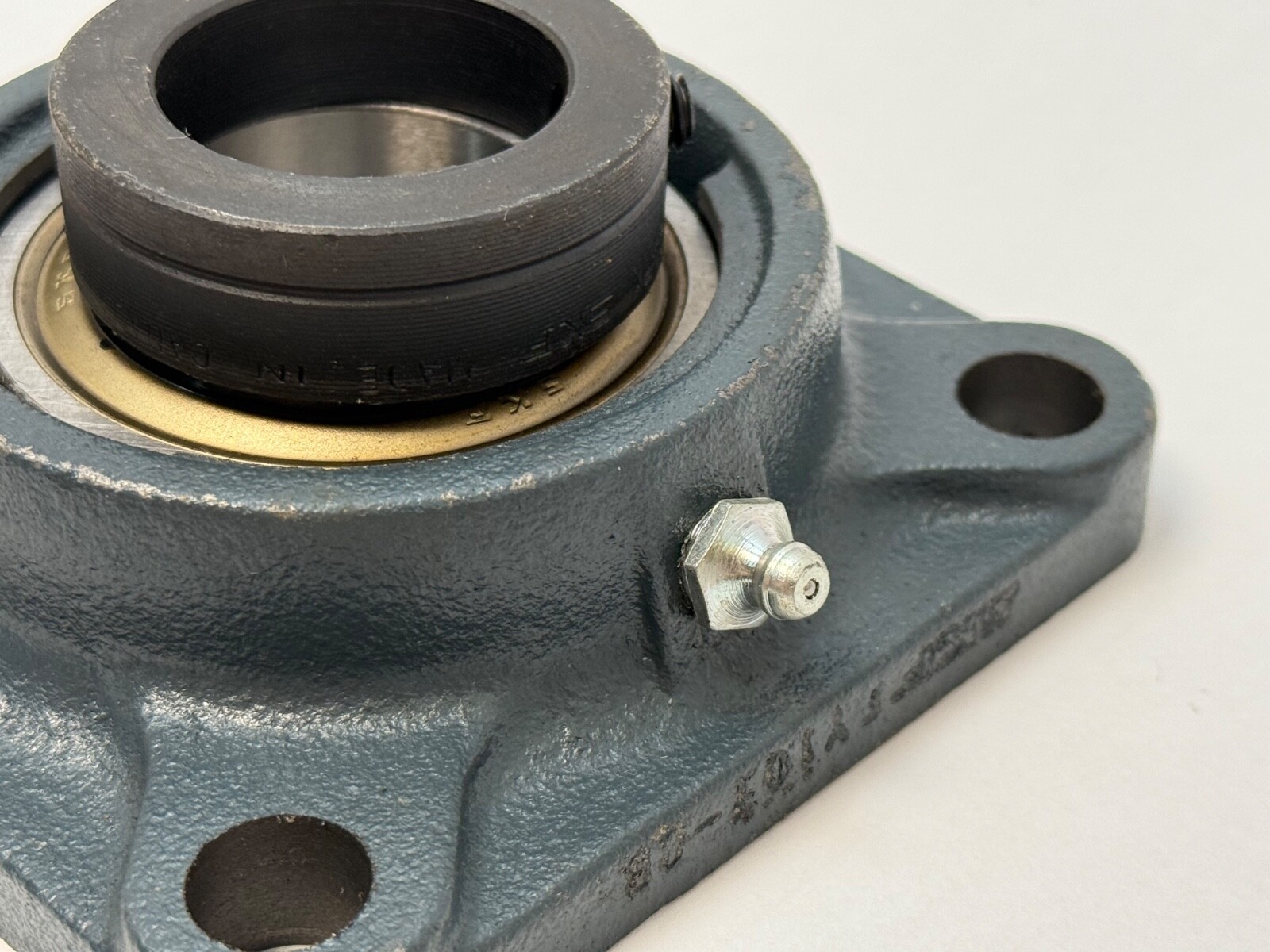

Yes. Contact seal and flinger on both sides, with a grease fitting for relubrication.
