DodgeF2B-DLEZ-108-PCRTwo-Bolt Flange Bearing Unit – 1-1/2 in Bore, Polymer Washdown Housing, D-LOK Clamp Collar, Non-Expansion

Product Description

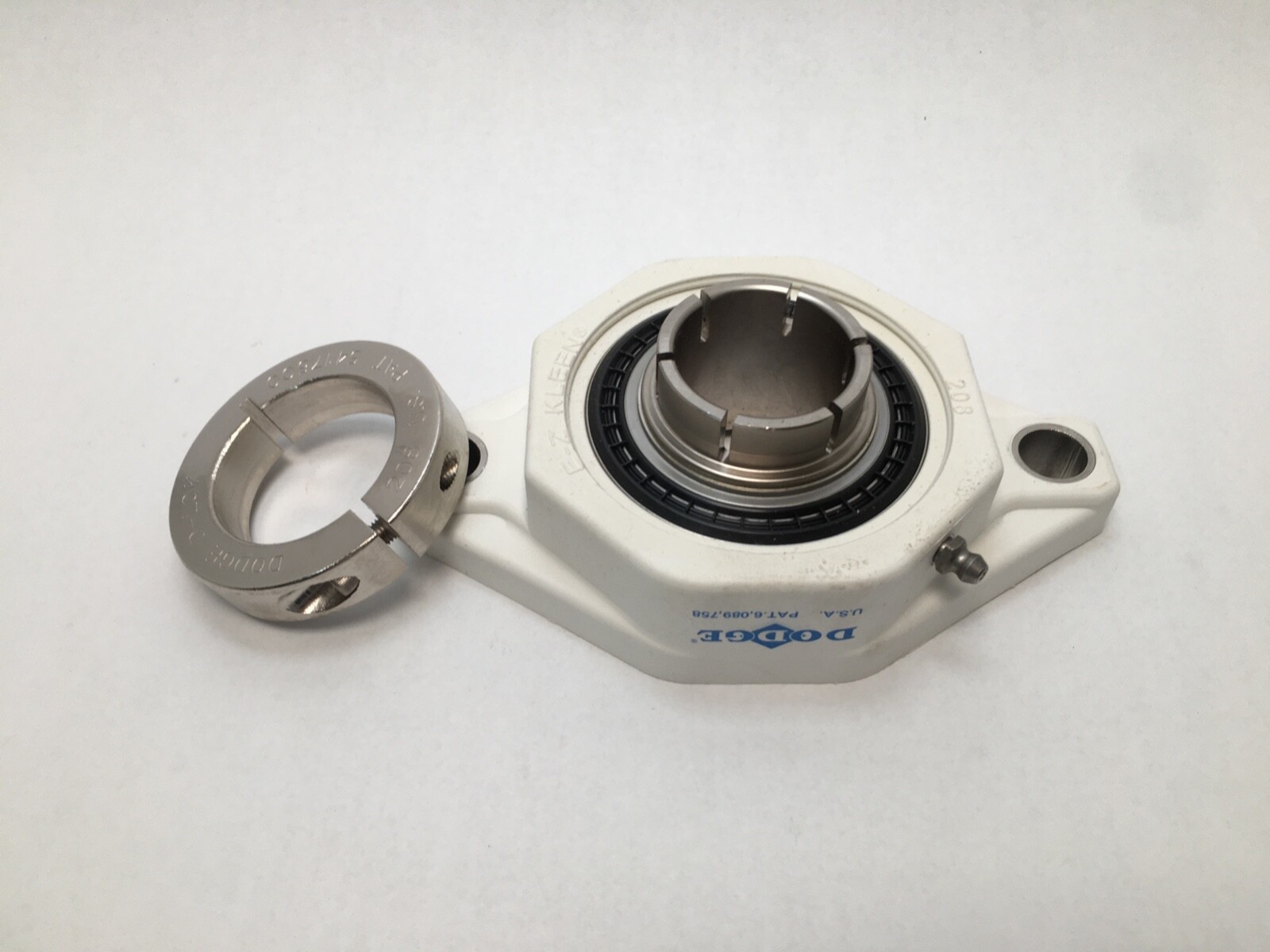

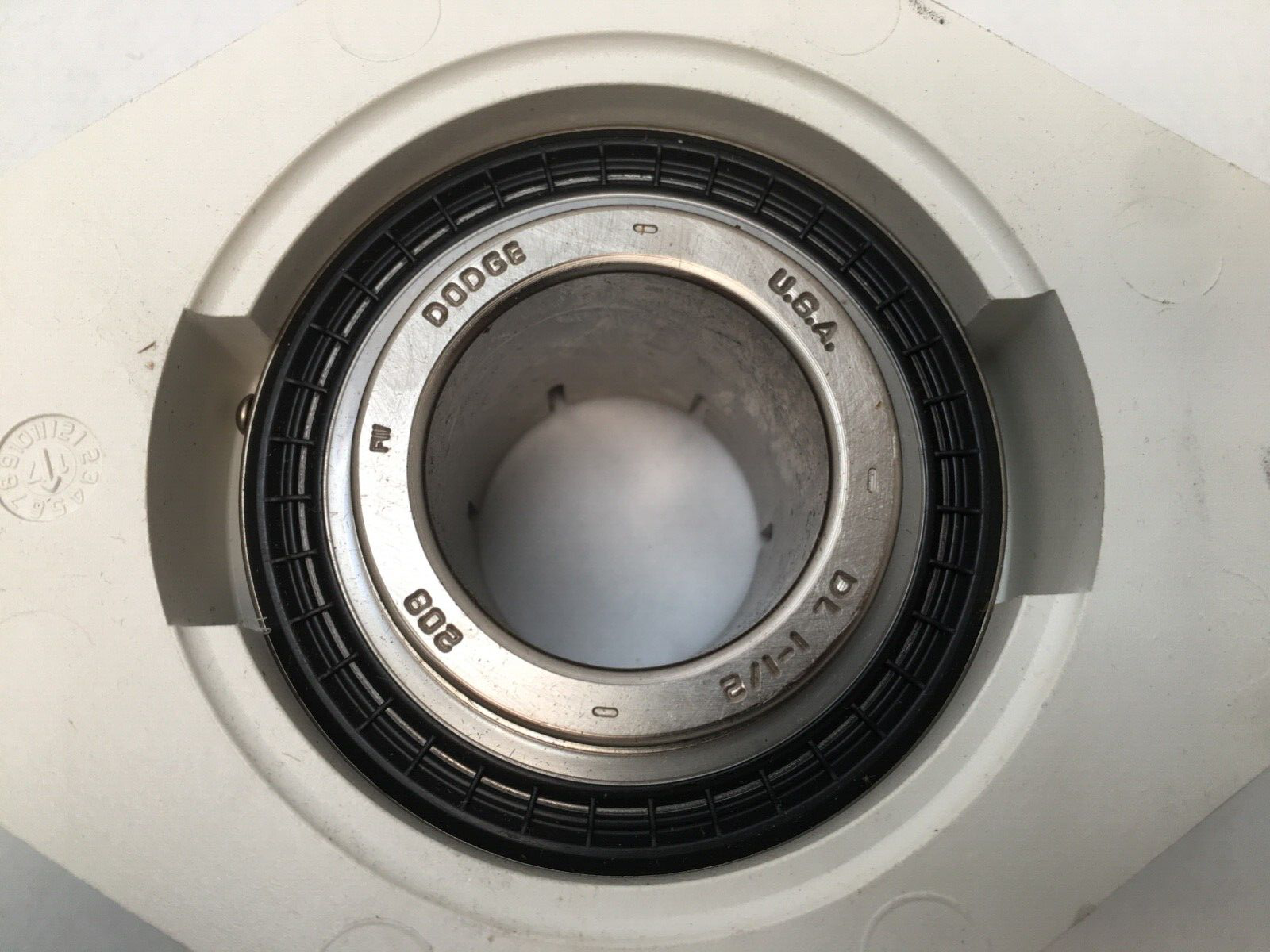

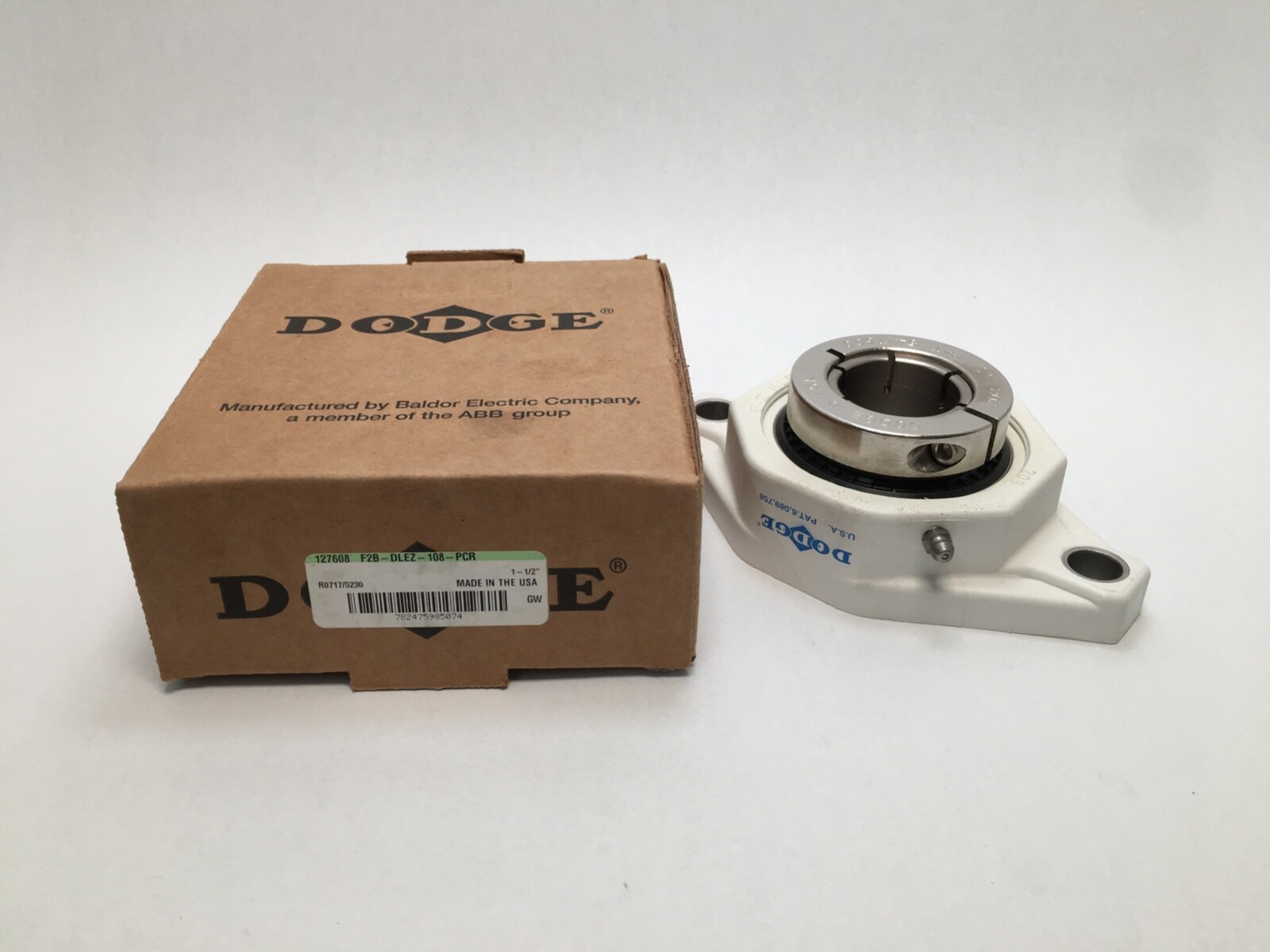

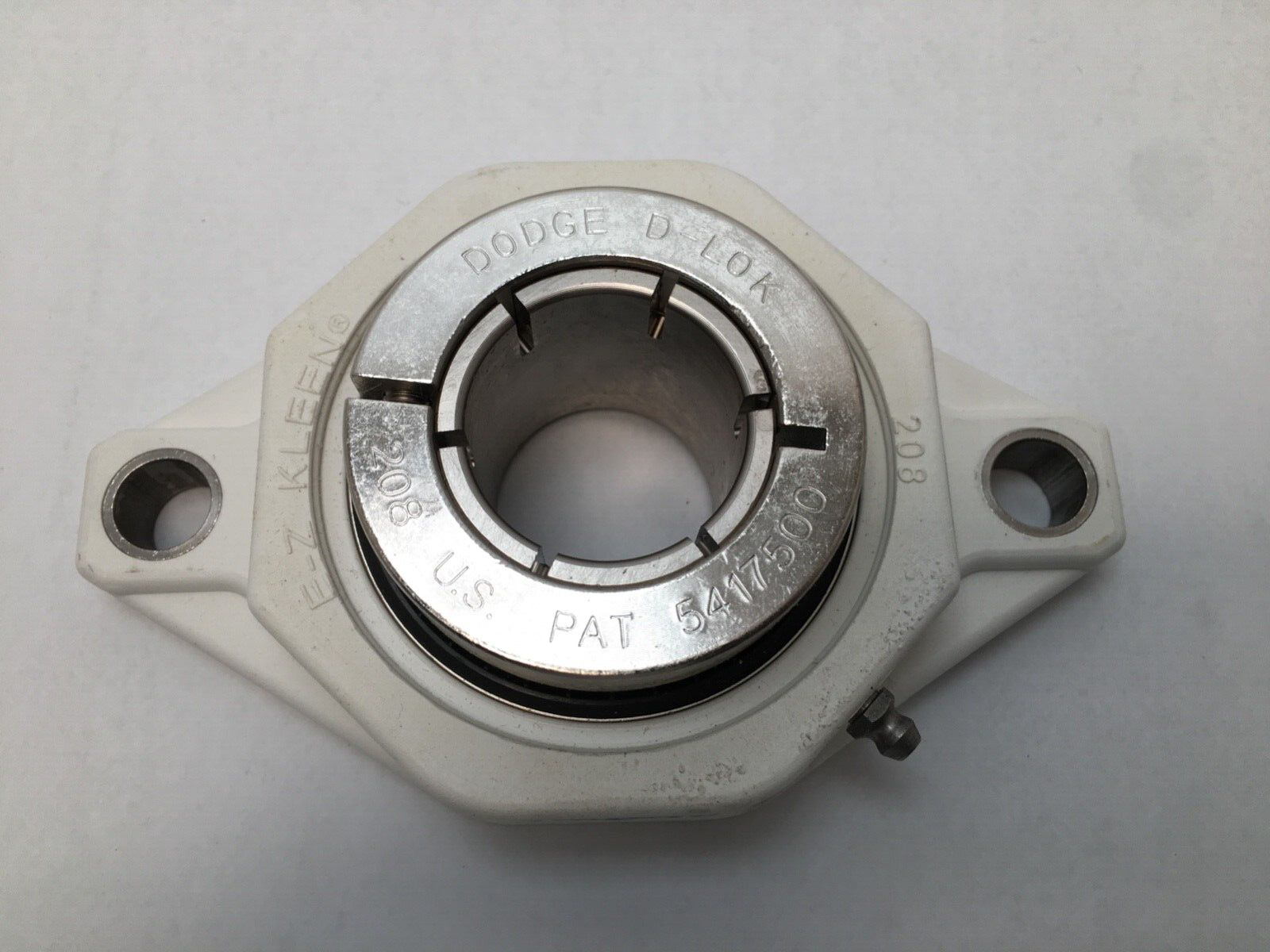

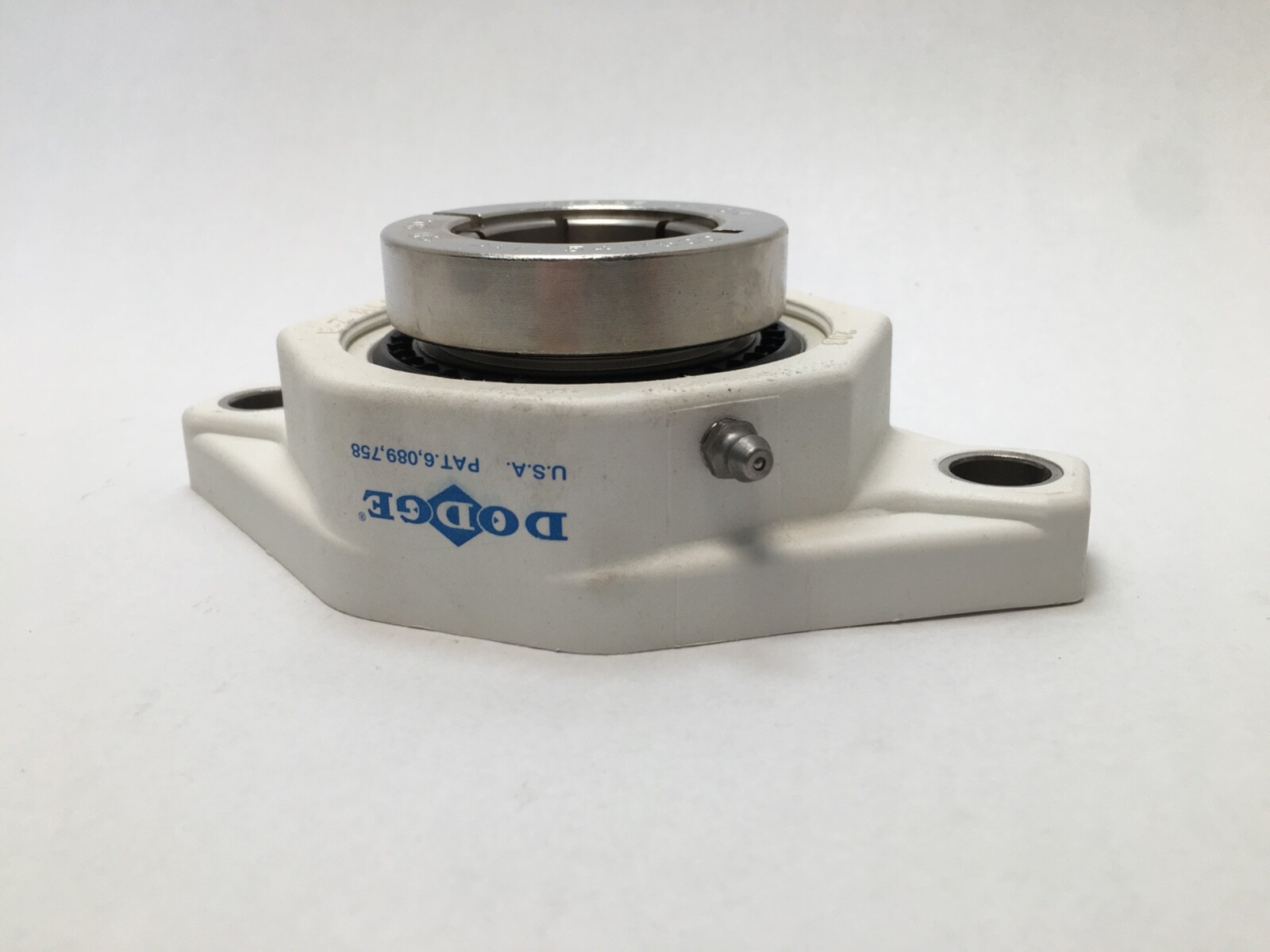

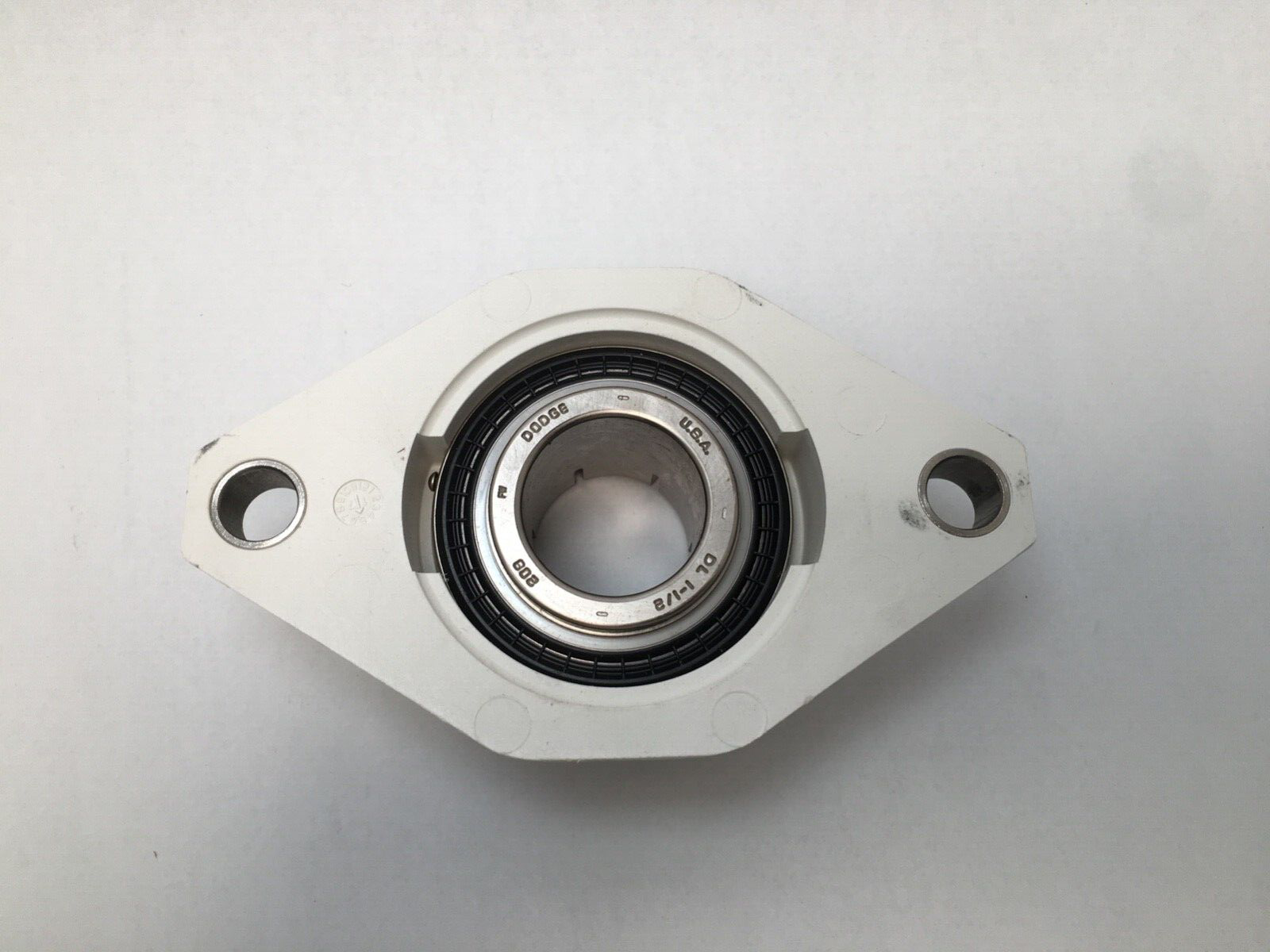

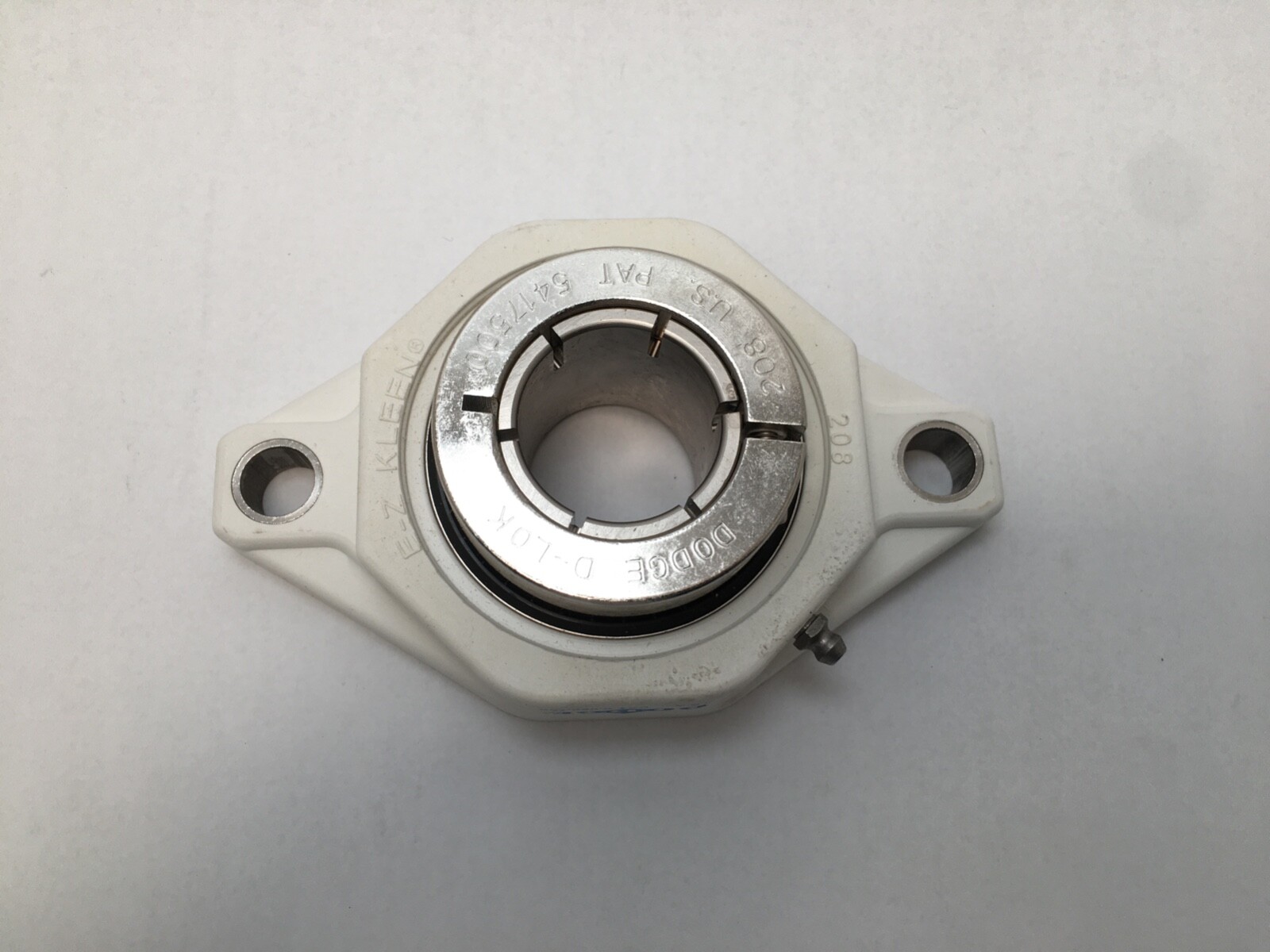

What this part is: Dodge F2B-DLEZ-108-PCR two-bolt flange-mount ball bearing unit, manufacturer catalogue number 127608. Bore: 1-1/2 in, straight and round. Series: 208. Housing: solid PBT polymer, two-bolt flange. Insert: normal-duty wide inner ring ball bearing with a plated steel outer ring, spherical outside surface for self-alignment. Locking device: D-LOK concentric clamp collar. Expansion type: non-expansion (fixed). Decoding the designation: F2B: two-bolt flange block. DL: D-LOK concentric clamp collar shaft attachment. EZ: E-Z Kleen washdown construction. 108: 1-1/2 in bore. PCR: polymer housing with a corrosion-resistant insert. GTIN: 782475985074. Housing style and bolt pattern: Two-bolt flange, solid polymer. Bolt centre to centre: 5.650 in. Bolt hole diameter: 0.500 in, for 1/2 in fasteners. Bore length through the insert: 2.01 in. Weight: 2.80 lb. Load ratings and speed: Dynamic load capacity: 7332 lbf (32.6 kN). Static load capacity: 4475 lbf (19.9 kN). Maximum speed: 3500 rpm. Operating temperature range: -29 °C to 107 °C (-20 °F to 225 °F). What these specs mean in practice: The polymer housing and corrosion-resistant insert suit washdown and chemically aggressive lines where a cast-iron block corrodes at the flange face. The D-LOK concentric clamp collar grips the shaft all the way round instead of on two setscrew points, so it holds a higher reversing load and leaves no burr on the shaft when removed. The spherical insert outside surface takes up initial shaft misalignment during mounting. Sealing and lubrication: Triple-lip contact seals with a rubberised flinger on both sides. Relubricatable through the housing fitting. Factory grease: MobilGrease FM222, an NSF-registered food-grade lubricant. Sensor ready with an adapter. Quantity and configuration: One complete flange unit with insert and clamp collar. Country of origin: United States. Harmonization code: 8483.20.4040. Interchange guidance: SKF F2B 108-D-PCR is the same-spec equivalent two-bolt polymer flange unit. Searchable forms: F2BDLEZ108PCR, F2B DLEZ 108 PCR, 127608, F2B-DLEZ-108-PCR/127608.
