Tapered adapter sleeve assembly, 1-7/16 in shaft, 1.4375 in bore, 1:12 taper, with N09 locknut and W09 lockwasher. Bearing not included. Set of 6.
List Price
$33.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | SNW-09 x 1-7/16 |
| Model | SNW1 7/16 |
| Bearing Type | Bearing Adapter |
| Material | Steel |
|---|---|
| Base Number | SNW-09 |
| Industry Terms | adapter sleeve; adaptor sleeve; sleeve assembly; tapered sleeve; locknut and lockwasher kit; SNW sleeve; 1-7/16 adapter sleeve |
| Common Misspellings | Fafnir SNW09; SNW 09 1 7/16; SWN-09; adaptor sleeve 1-7/16; SNW-9-1-7/16 |
| Application Types | Line shafts; conveyor drives; fans; pillow block mounting on plain shafting |
| Bore Shaft Size | 1-7/16 in (36.51 mm) straight shaft |
| Locking Method | Threaded locknut with tab lockwasher, 1:12 tapered sleeve |
| Mpn Variants | SNW-09-1-7/16, SNW09-1-7/16, SNW 09 1-7/16, SNW-09, SNW09, SNW-09x1-7/16 |
| Compatible With Replaces | 22209K (222K series); 1200K, 1300K; 22200K |
| Additional Attributes | Sleeve bore 1.4375 in; thread 1.767-18; locknut N09; lockwasher W09; taper 1:12 |
| Design Units | Inch |
| Part Number | SNW-09 x 1-7/16 |

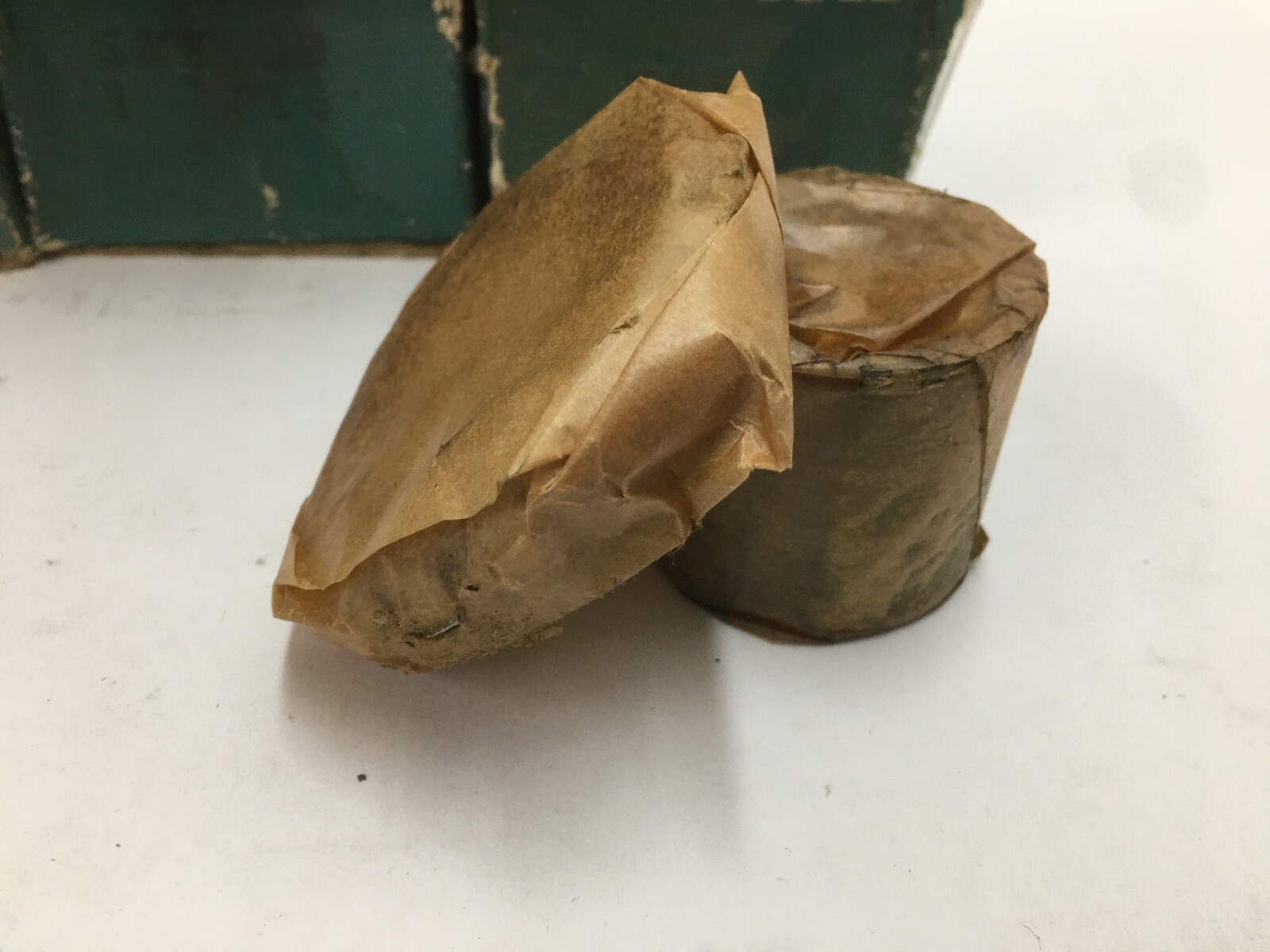

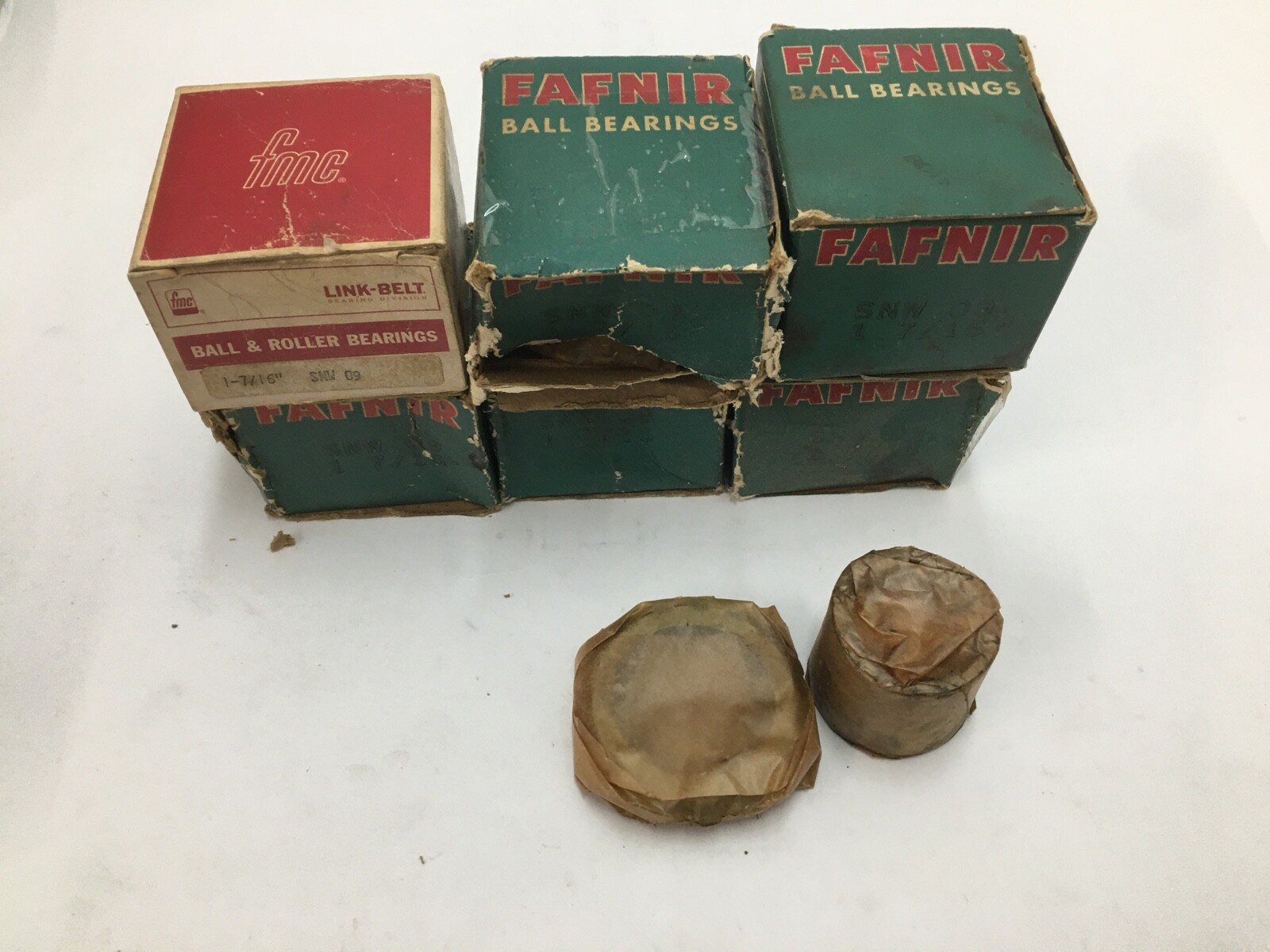

Fafnir SNW-09 x 1-7/16 adapter sleeve assembly for a 1-7/16 in straight shaft: a steel sleeve with a 1:12 outside taper and a straight bore, supplied with its N09 locknut and W09 lockwasher. It mounts a tapered-bore bearing on plain shafting. Unit Quantity: 6 Pcs, six complete assemblies. Bearings and housings are not part of the listing.
SNW — Fafnir/Timken adapter sleeve assembly for inch shafting, with locknut and lockwasher.
09 — sleeve size, which fixes the outside taper and thread and the bearing bore it fits.
1-7/16 — shaft diameter the sleeve bore is machined for.
Product Type: Adapter sleeve assembly. Shaft Size: 1-7/16 in (36.51 mm), straight shaft. Sleeve Bore: 1.4375 in. Thread: 1.767-18. Outside Taper: 1:12. Locknut: N09. Lockwasher: W09. Material: Steel. Series: SNW. Base Number: SNW-09. Design Units: Inch. Unit Quantity: 6 Pcs.
Sleeve bore: 1.4375 in. Thread: 1.767-18. Locking: threaded locknut with tab lockwasher on a 1:12 tapered sleeve. The sleeve grips the shaft around its full circumference, so the shaft needs no keyway or flat.
Fits tapered-bore bearings in the 22209K size of the 222K series. Applied lists the SNW-09 x 1-7/16 for 1200K and 1300K ball bearings and 22200K roller bearings. Search forms: SNW-09-1-7/16, SNW09-1-7/16, SNW 09 1-7/16, SNW-09, SNW09.
A 1-7/16 in straight shaft, with a 1.4375 in sleeve bore.
An N09 locknut and a W09 lockwasher.
Unit Quantity: 6 Pcs.
