SNFAVX15-9CE1Super-Precision Angular Contact Spindle Bearing 15 x 32 x 9 mm, 15° Contact Angle, ABEC 9, Open

Product Description

What this part is

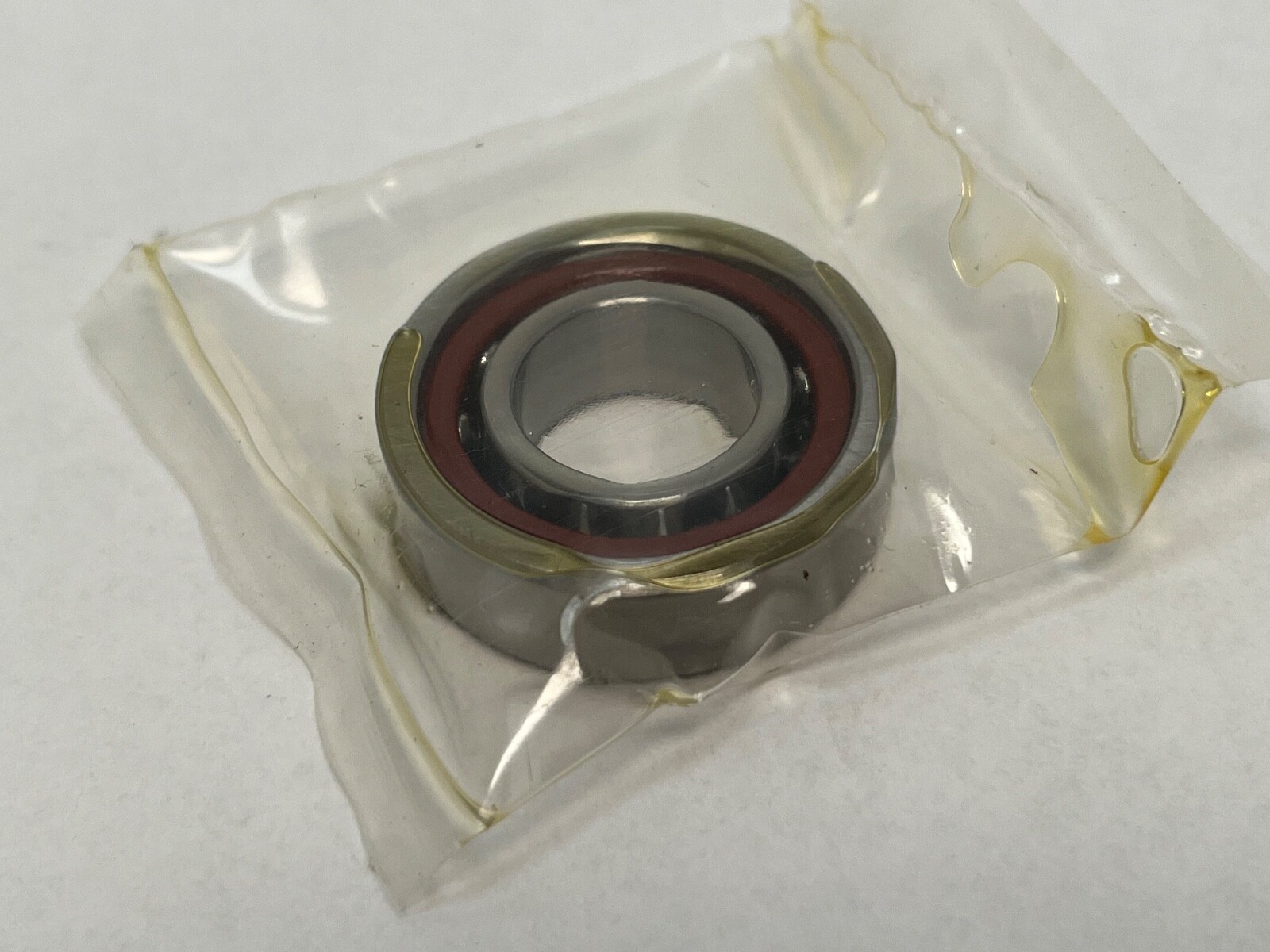

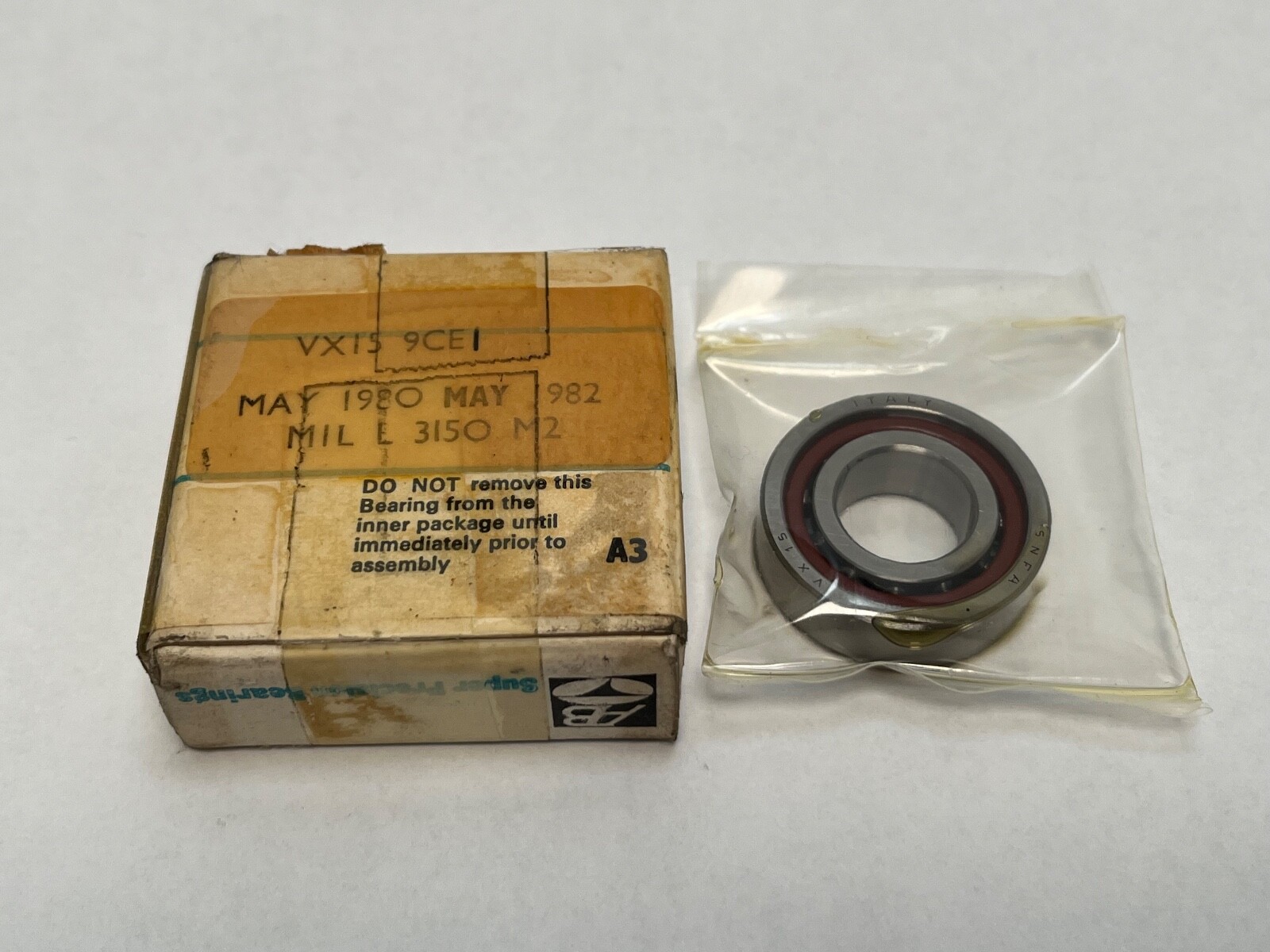

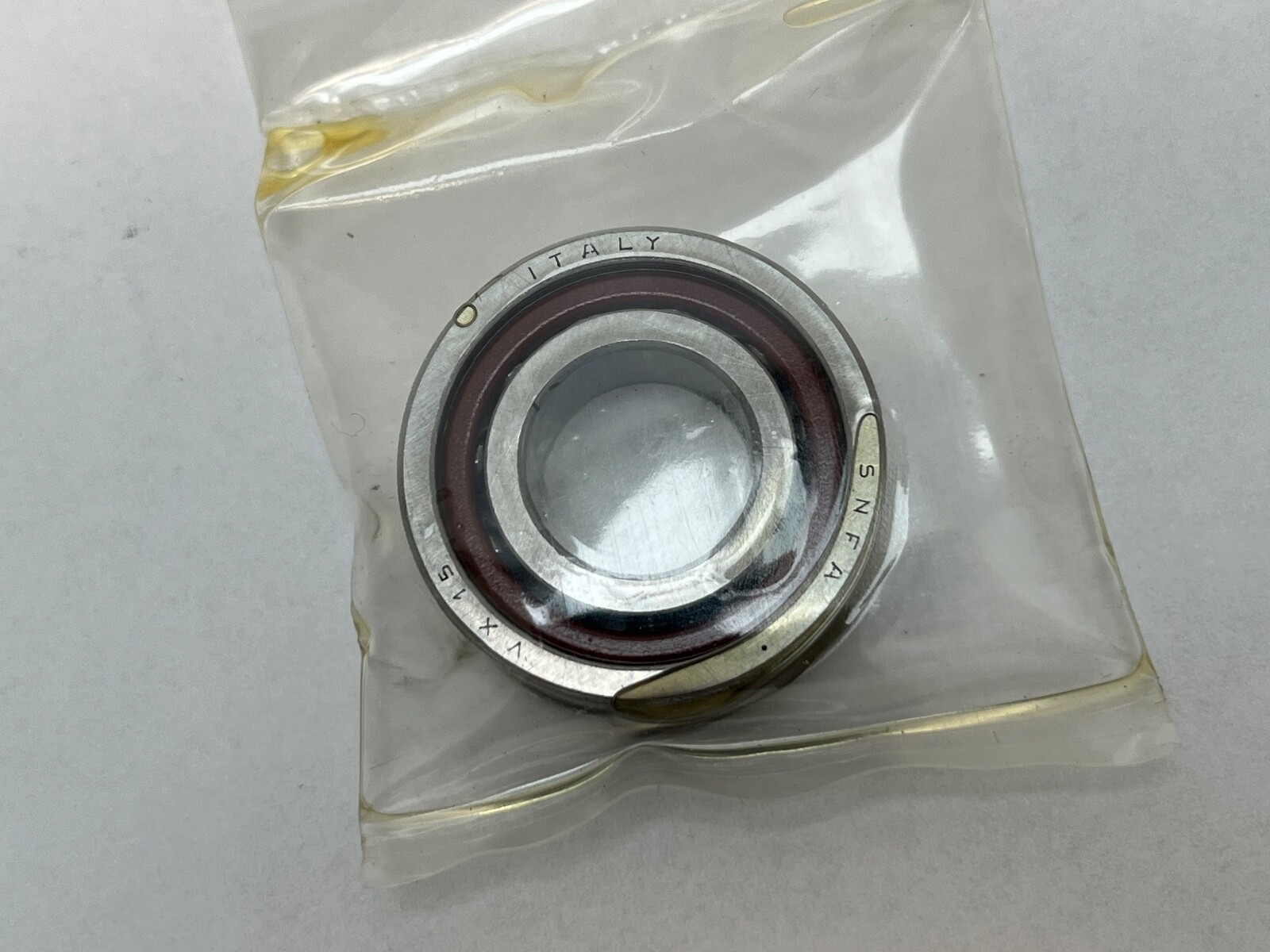

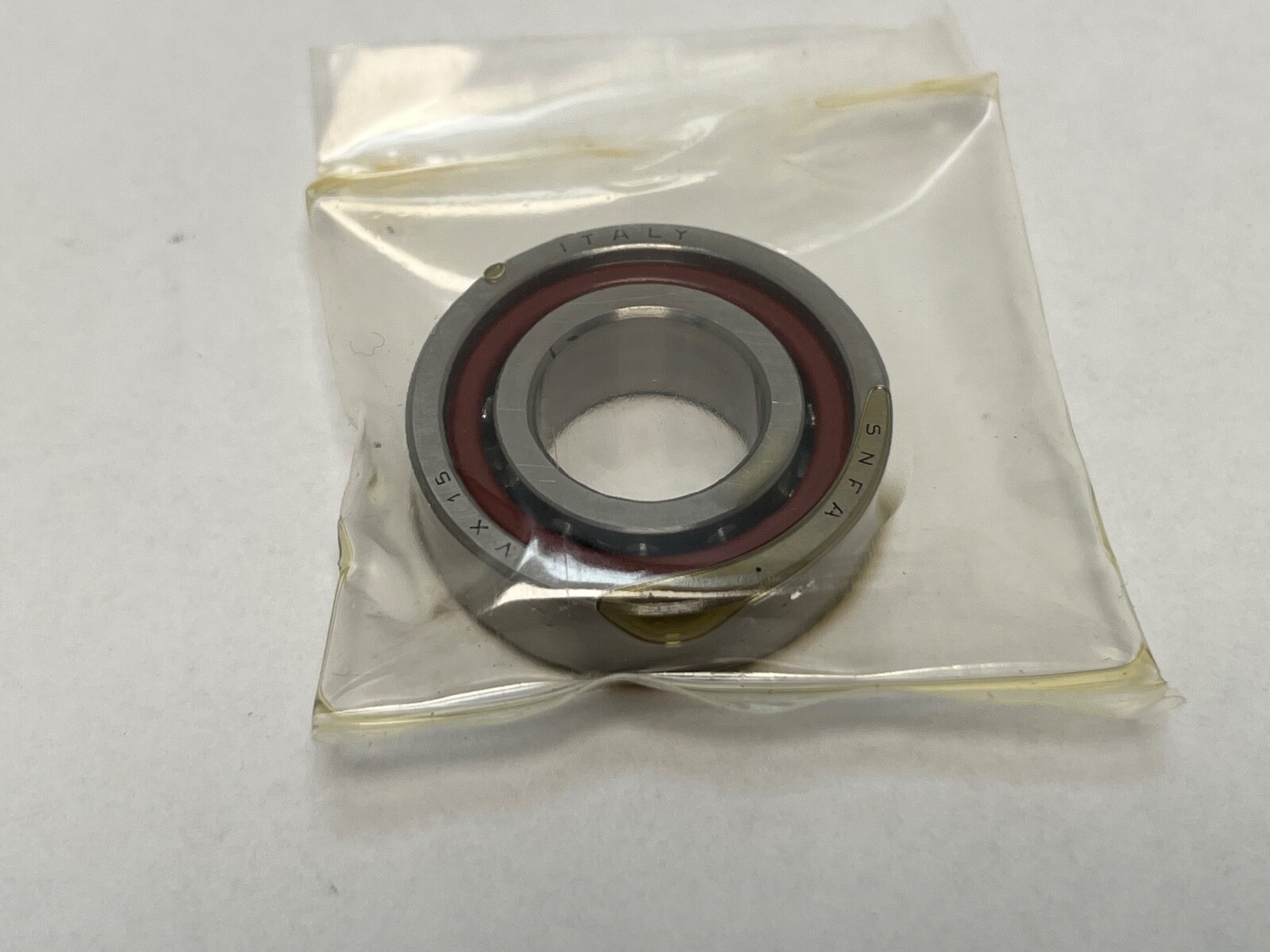

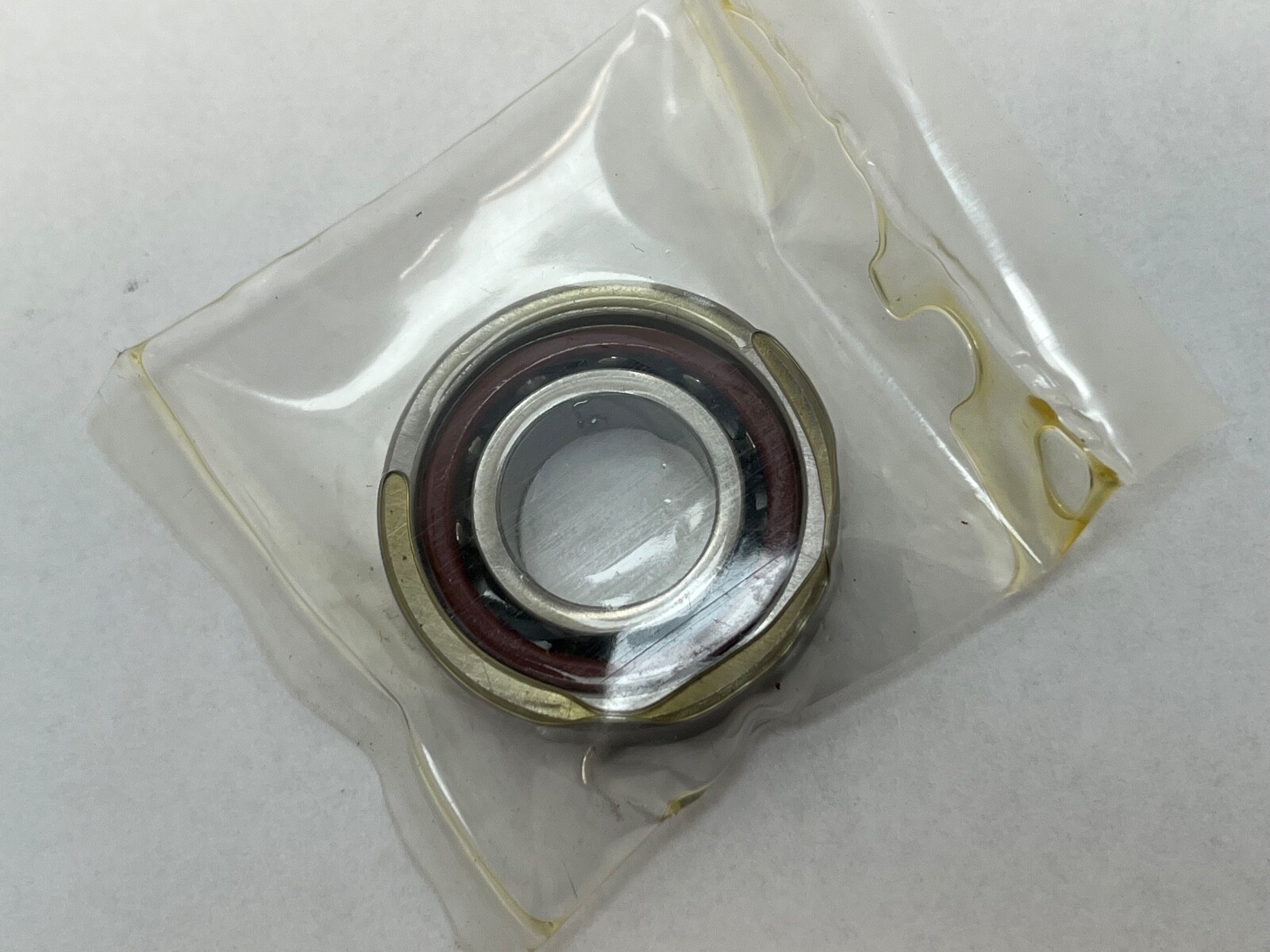

This is an SNFA VX15-9CE1 super-precision angular contact ball bearing with a 15 mm bore, 32 mm outside diameter and 9 mm width, open on both faces. SNFA is a French super-precision bearing maker, now part of the SKF group, and the VX series is built for machine tool spindles and other high-speed precision rotating assemblies.

Decoding the designation

VX15 gives the series and the 15 mm bore. The 9 immediately after the bore is the precision class, ABEC 9, which corresponds to ISO P2 — the tightest commonly supplied class, above P4 and P4A. The trailing 1 specifies a 15° contact angle. The 15 x 32 x 9 mm envelope matches the ISO 7002 light series, which is why the bearing is commonly cross-listed as a 7002-C-P2.

What these specs mean in practice

A 15° contact angle is the high-speed end of the angular contact range: less thrust capacity than a 25° bearing of the same envelope, but higher speed capability and lower heat generation. ABEC 9 tightens bore, outside diameter and running accuracy well beyond ABEC 7, which is what holds spindle runout down at speed. The two specifications work together — the low contact angle allows the speed, and the precision class makes that speed usable.

Quantity and configuration

Single bearing, 1 Pc.

Fitting notes

Bearings of this class expect a ground and dimensionally controlled shaft and housing seat, and are handled clean. Mounting is done without heating or impact, with force applied through the ring being fitted rather than across the balls. Preload comes from the arrangement and the axial clamp.

Interchange guidance

The same-envelope, same-angle equivalents at a lower precision class are SKF 7002 CD/P4A, FAG B7002-C-T-P4S and NSK 7002CTRP4, all 15°, 15 x 32 x 9 mm, but ground to P4 or P4A rather than P2. A 7002 ACD/P4A carries a 25° contact angle and is a related size rather than a substitution.
