Super-precision angular contact duplex pair, 15 x 32 x 9 mm each, 15° contact angle, light preload, open, phenolic cage, P4S, 48,800 rpm grease.
List Price
$42.27
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9102WIDUL |
| GTIN | 087796077720 |
| Model | 2MM9102WI DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Chrome Steel |
|---|---|
| Series | 9100 |
| Condition | New |
| Preload | Light preload |
| Base Number | 2MM9102WI |
| Total Width | 18 mm |
| Mpn Variants | 2MM9102WI-DUL; 2MM9102WICRDUL; 2MM 9102 WI DUL; 2MM-9102-WI-CR-DUL; 2MM9102WIDUL |
| Arrangement Configuration | DUL duplex pair, universally ground, light preload |
| Precision Class | ABEC 7/9 / P4S |
| Dynamic Load Rating C1 | 7,300 N |
| Additional Attributes | Maximum Housing Fillet Radius: 0.3 mm; Shaft Backing Shoulder Diameter: 18.9 mm; Housing Backing Shoulder Diameter: 28.6 mm |
| Cage Type | Outer-ring land riding |
| Dynamic Load Rating | 7,300 N |
| Static Load Rating | 3,600 N |
| Precision Rating | ABEC 7/9 / P4S |
| Rolling Elements | Ball |
| Item Weight | 0.060 kg (0.14 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 48,800 rpm grease; 97,200 rpm oil |
| Internal Clearance | N/A |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex, universally ground |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 2MM9102WI-DUL |
| Cross Reference 1 | SKF 7002 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7002-C-T-P4S-DUL |
| Cross Reference 3 | NSK 7002CTRDULP4 |
| Cross Reference 4 | NTN 7002CDLLBG/GNP4 |
| Cross Reference 5 | RHP 7002CTDULP4 |
| Cross Reference 6 | Koyo 7002C DUL P4 |
| Cross Reference 7 | SNFA VEX 15 /NS 7CE1 DUL |
| Cross Reference 8 | 7002 (related, ISO envelope reference) |

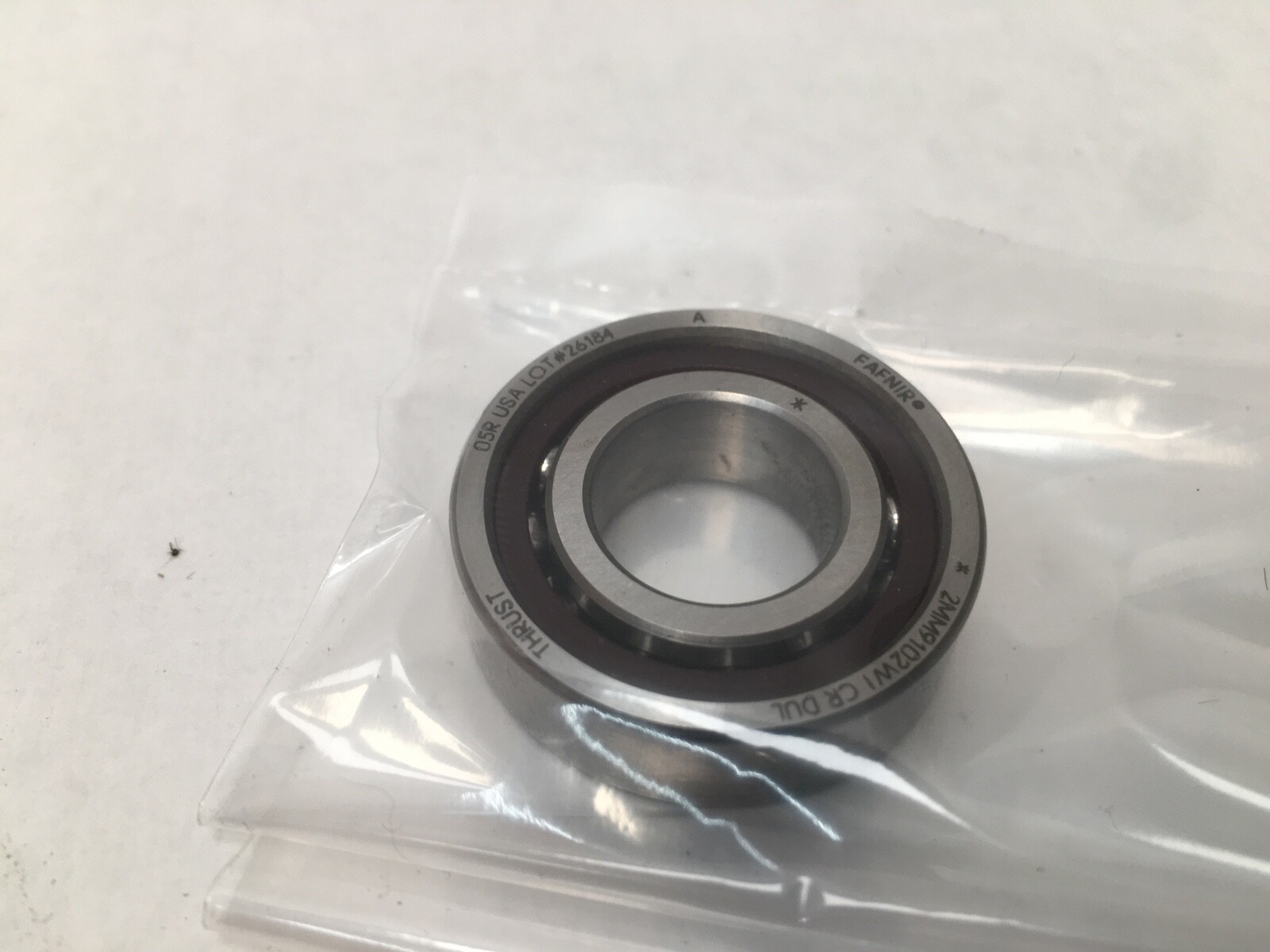

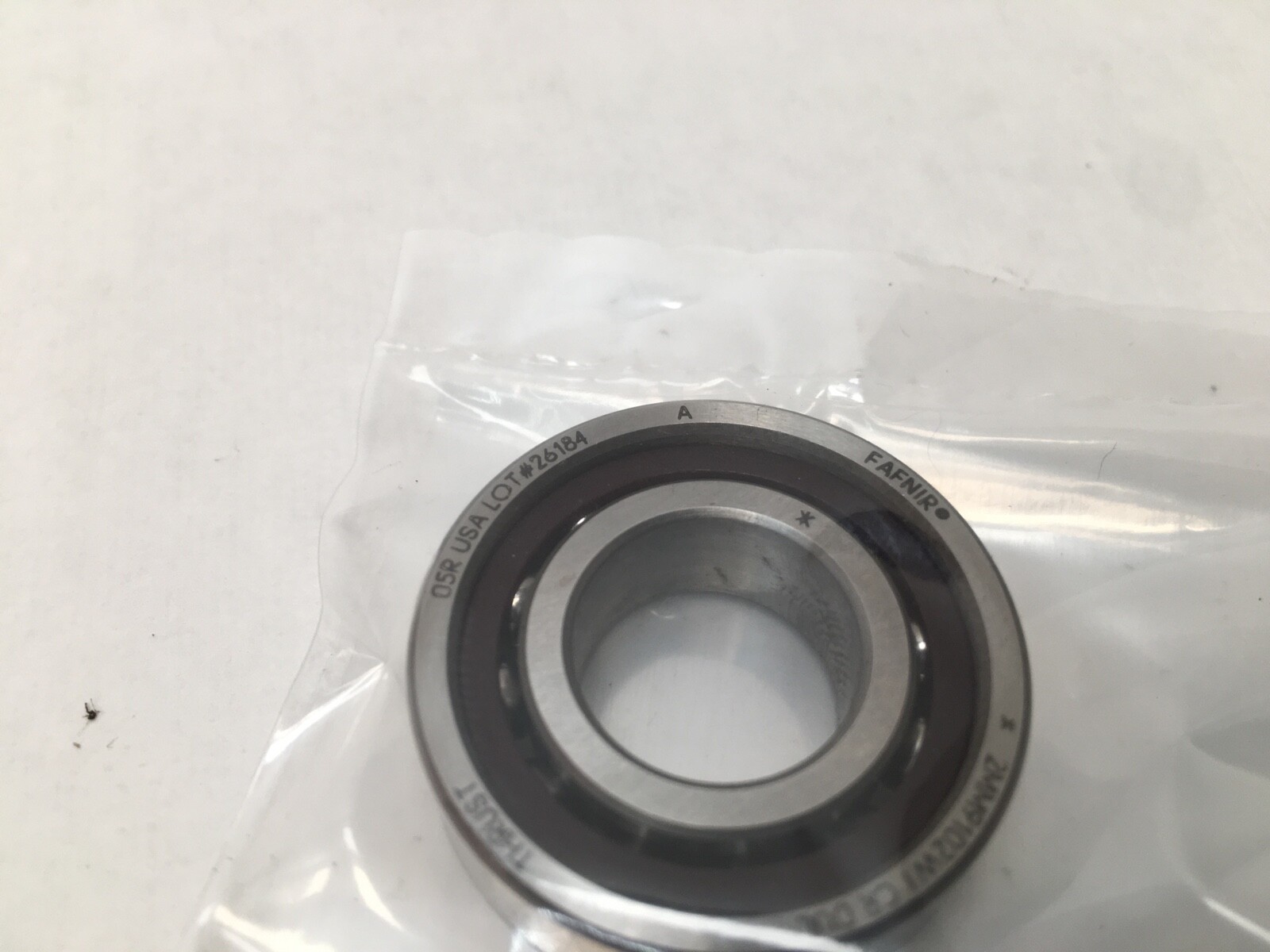

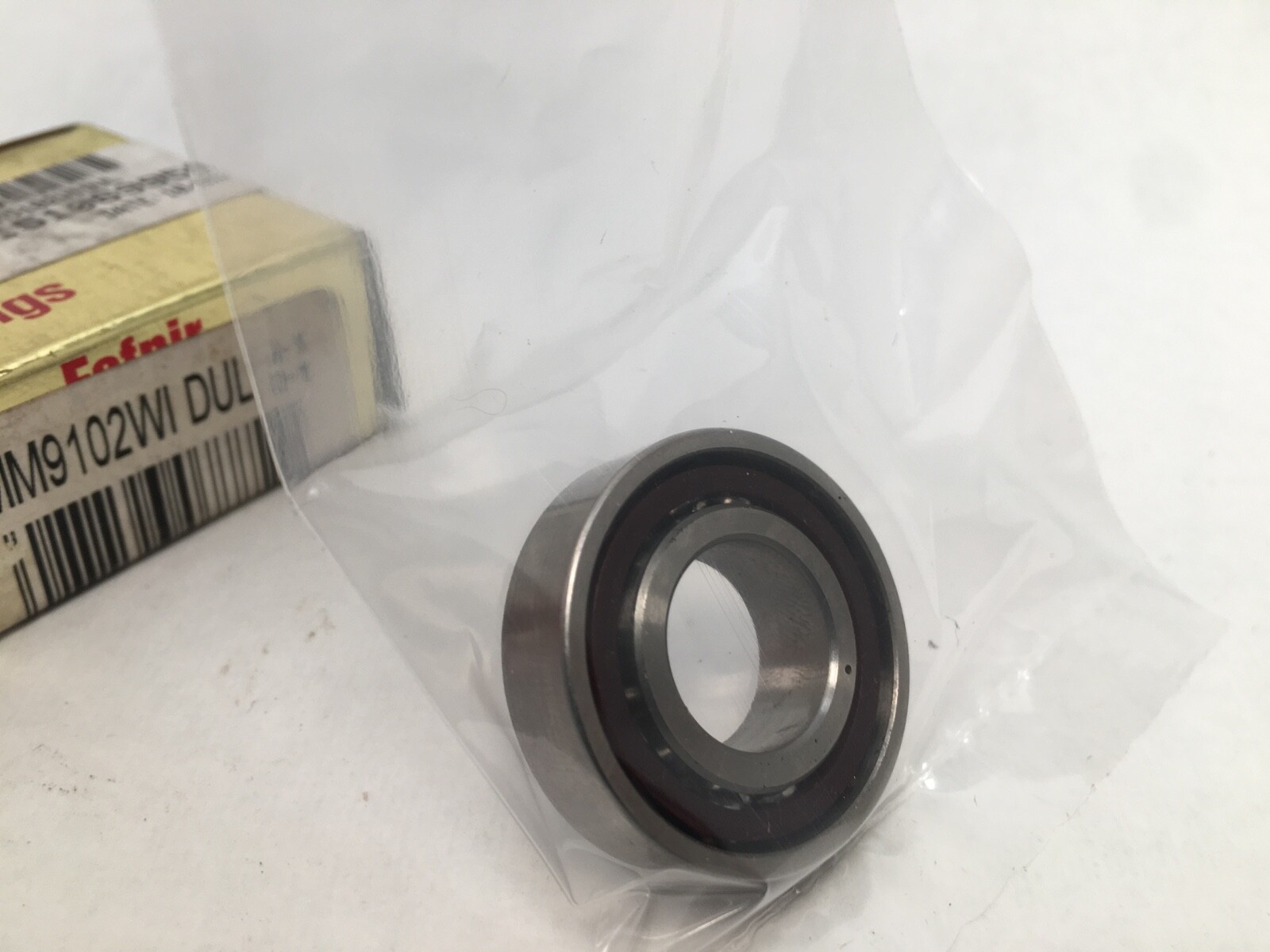

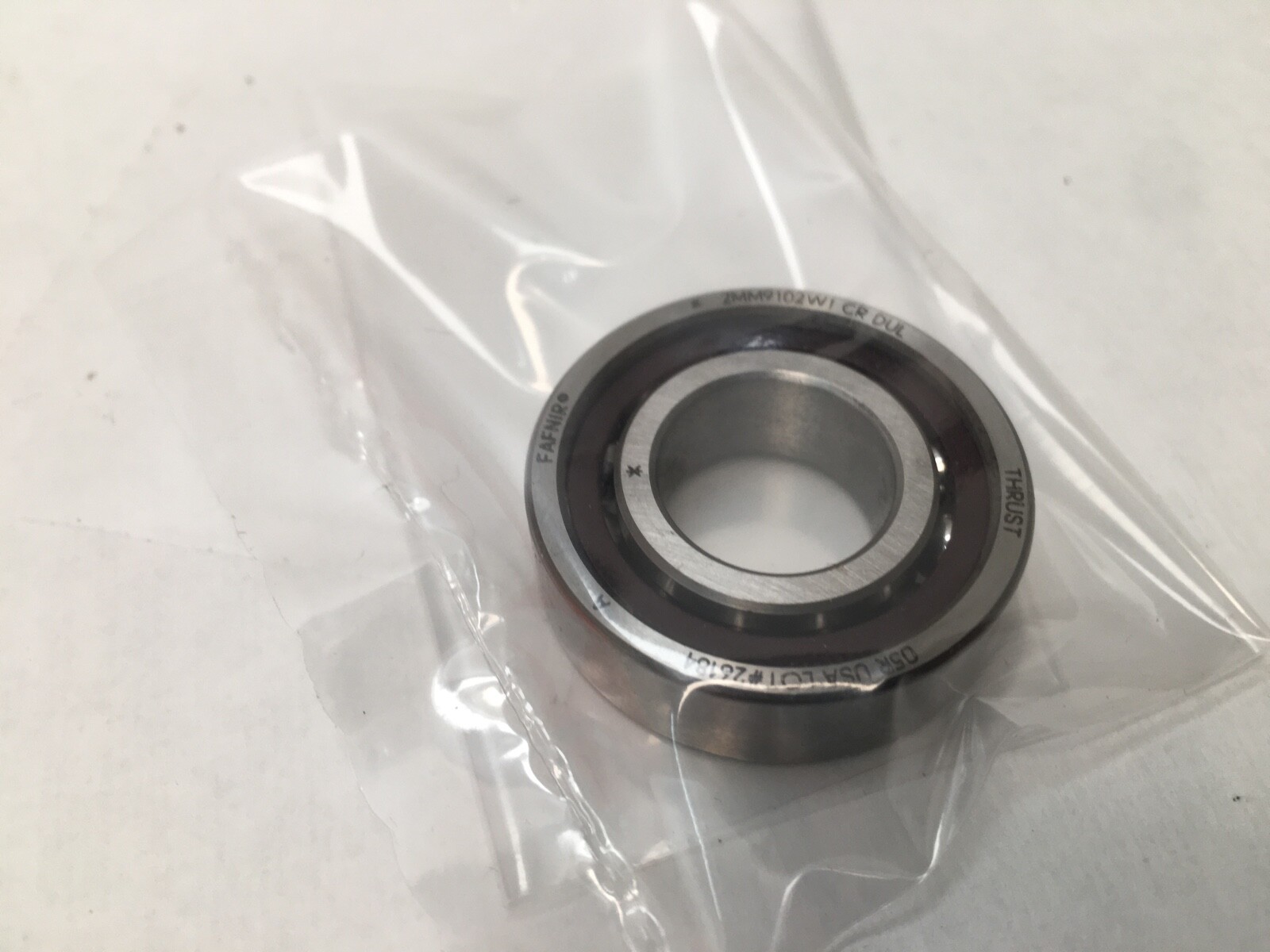

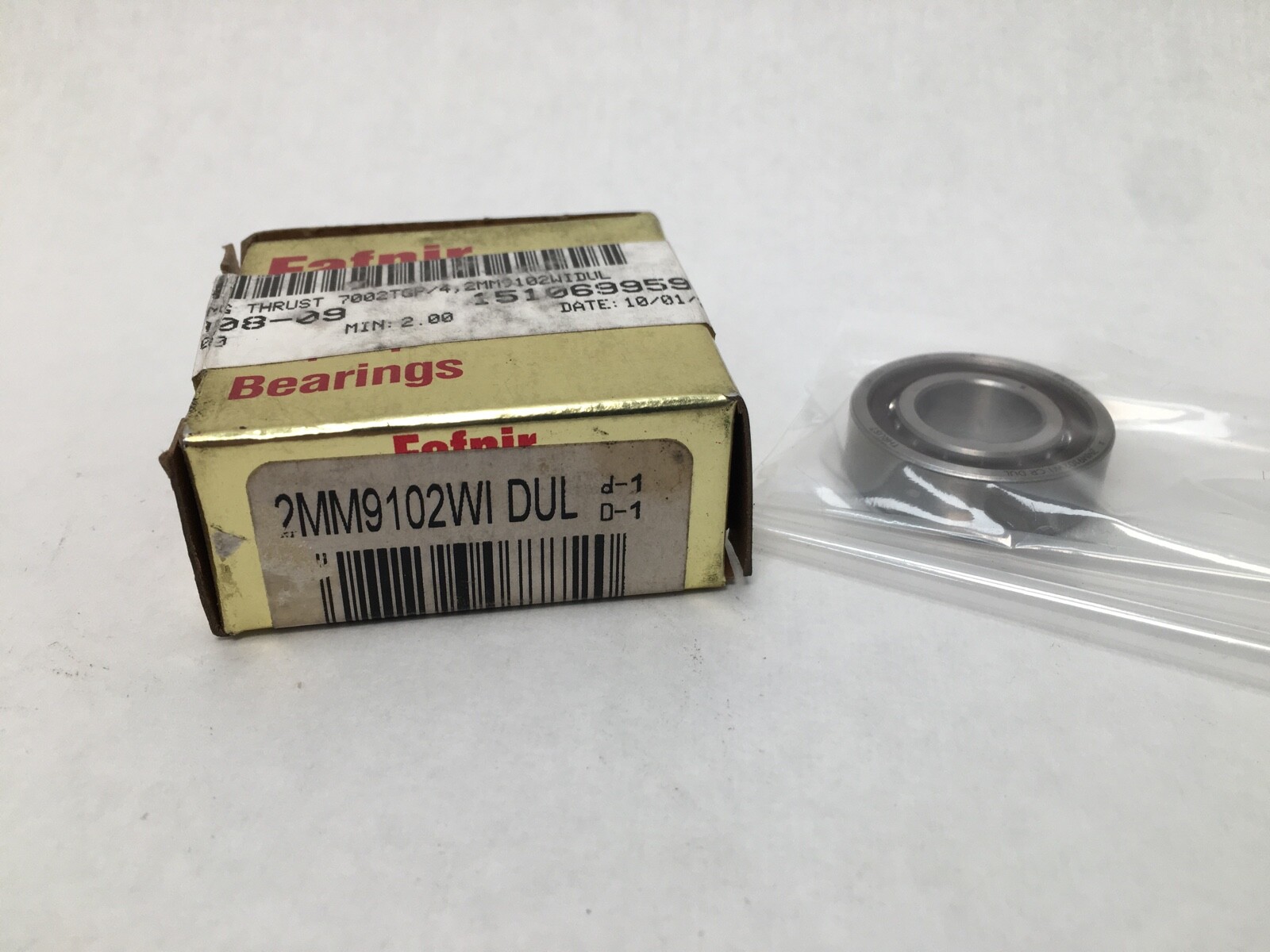

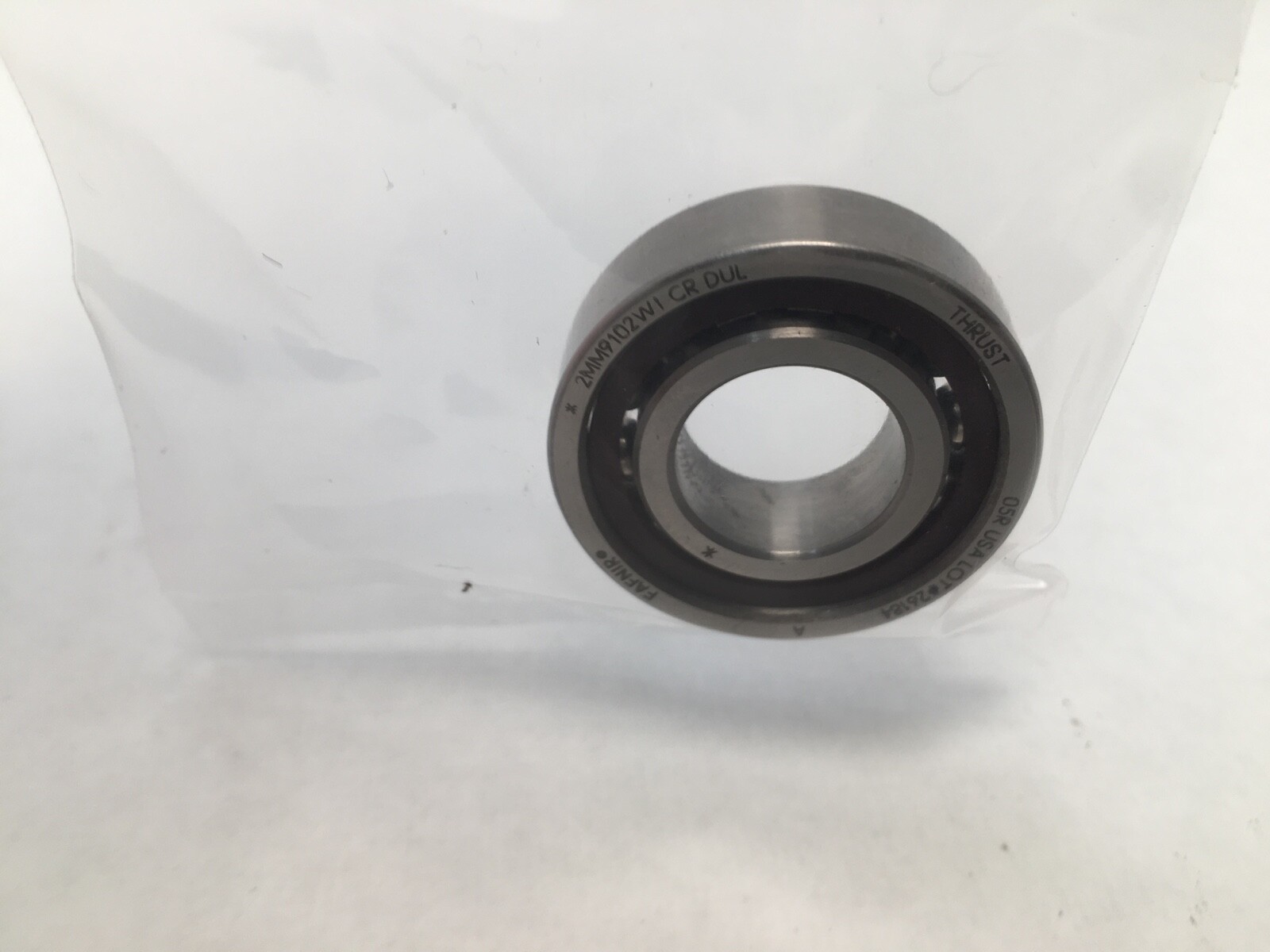

Fafnir 2MM9102WI-DUL super-precision angular contact ball bearing, supplied as a universally ground duplex pair. Series: 9100WI. Base Number: 2MM9102WI. Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm per bearing. Total Width: 18 mm for the pair. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bearing Material: Chrome steel. Item Weight: 0.060 kg (0.14 lb) per bearing.
2MM — 15° contact angle in the Fafnir super-precision spindle range.
MM — super-precision spindle execution, ISO P4S tolerance, ABEC 7/9.
9100 — the ISO 70xx light dimension series; 9102 is the ISO 7002 envelope.
WI — low shoulder on both rings, giving the ball set a clear assembly path and a defined thrust face.
CR — phenolic outer-ring land-riding cage.
DUL — duplex pair, universally ground, light preload.
Contact Angle: 15°. A 15° angle favours speed and radial stiffness over thrust capacity, which is why it is the standard choice for grinding and milling spindles.
Dynamic Load Rating: 7,300 N. Static Load Rating: 3,600 N. Both figures are per bearing.
Limiting Speed: 48,800 rpm grease; 97,200 rpm oil. Lubricant: grease or oil.
Precision Class: ABEC 7/9 / P4S. Cage Material: Phenolic. Cage Type: Outer-ring land riding. A phenolic cage riding on the outer ring land runs quiet at speed and carries lubricant in the cage pockets.
Preload: Light. Internal Clearance: N/A — a preloaded set is elastically loaded rather than clearance-set.
Maximum Housing Fillet Radius: 0.3 mm. Shaft Backing Shoulder Diameter: 18.9 mm. Housing Backing Shoulder Diameter: 28.6 mm. These are the abutment figures the bearing corners will clear.
Unit Quantity: 2 Pcs. Mounting Arrangement: universally ground duplex. Universal grinding lets the two rings be set back to back, face to face or in tandem and still produce the published light preload when clamped.
GTIN: 087796077720. The interchanges below share the 15 x 32 x 9 mm envelope at a 15° contact angle in a P4-class light-preload universally matchable pair. Where a candidate part differs in contact angle or preload class it is a related size rather than a drop-in substitution.
