Super-precision angular contact ball bearing pair, 25 x 47 x 12 mm, 15° contact angle, ABEC 7 / P4, light preload. SKF 7005 CE/P4ADGA equivalent.
List Price
$151.78
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 25 mm ID, 47 mm OD, 12 mm Width, Phenolic Separator, ABEC 7$76.47
Super-Precision Angular Contact Ball Bearing Duplex Pair — 25 mm Bore, 47 mm OD, 12 mm Wide, 15° Contact Angle, Phenolic Cage, C2$145.32
High-Speed Spindle Bearing 25x47x12 mm, Hybrid Silicon-Nitride Ceramic Balls, 15 Degree Contact Angle, ABEC 9, Outer-Ring-Guided Phenolic Cage, Open$136.88
Angular Contact Ball Bearing — 25 mm ID, 47 mm OD, 12 mm Width, 12° Contact Angle, ABEC 9 / P2, Light Preload, Open$145.30| MFR / Brand | SNFA |
|---|---|
| MPN | VEX25-7CE1DUL |
| Model | VEX25-7 CE 1 DUL / 7005 C T P4 DUl / 2MMV9105 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Chrome Steel |
|---|---|
| Series | VEX |
| Lubricant | Oil |
| Preload | Light |
| Mpn Variants | VEX25-7CE1DUL, VEX 25 7CE1 DUL, VEX25-7-CE-1-DUL, VEX25 7 CE 1 DUL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 8,320 N |
| Static Load Rating | 4,150 N |
| Rolling Elements | Ball |
| Item Weight | 0.074 kg (0.16 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 46,000 rpm grease; 70,000 rpm oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal matched pair (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | SKF 7005 CE/P4ADGA |
|---|---|
| Cross Reference 2 | SKF 7005 CEGA/P4A |
| Cross Reference 3 | NSK 7005CTYNP4 |
| Cross Reference 4 | FAG HS7005-C-T-P4S-UL |
| Cross Reference 5 | Fafnir 2MMV9105WICRDUL |

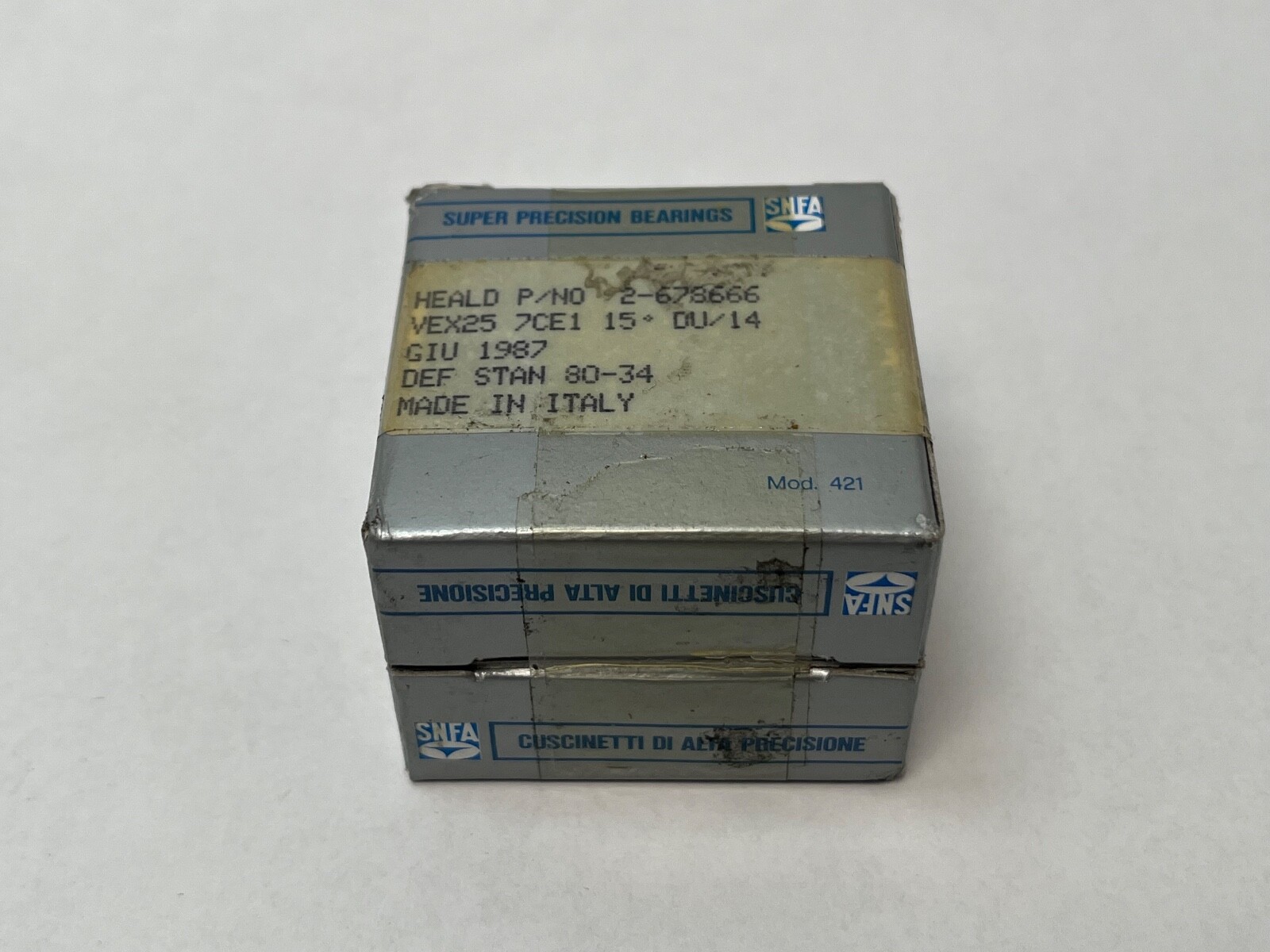

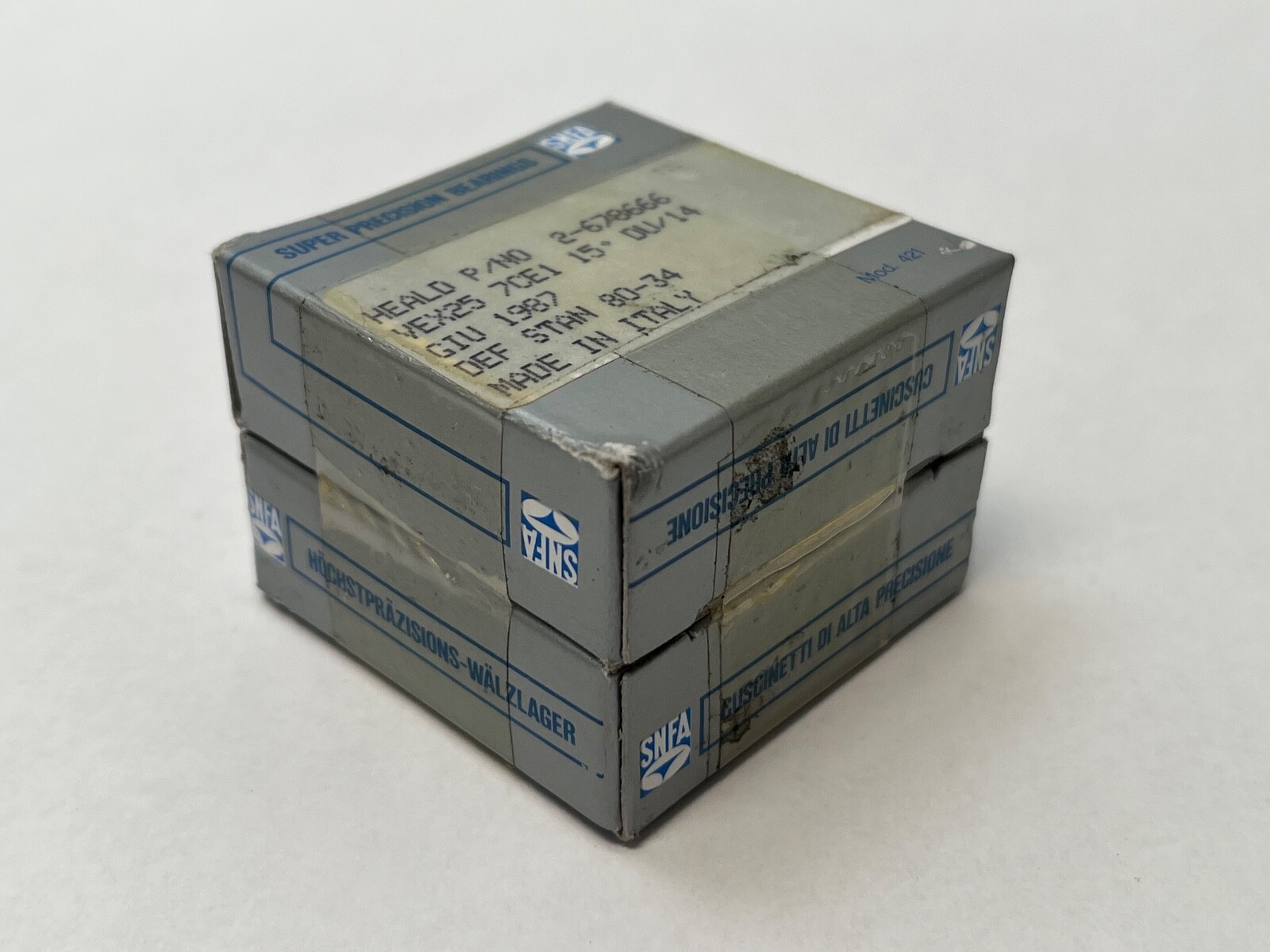

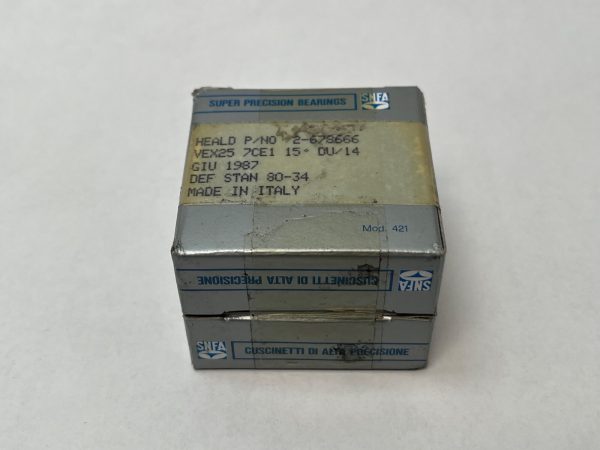

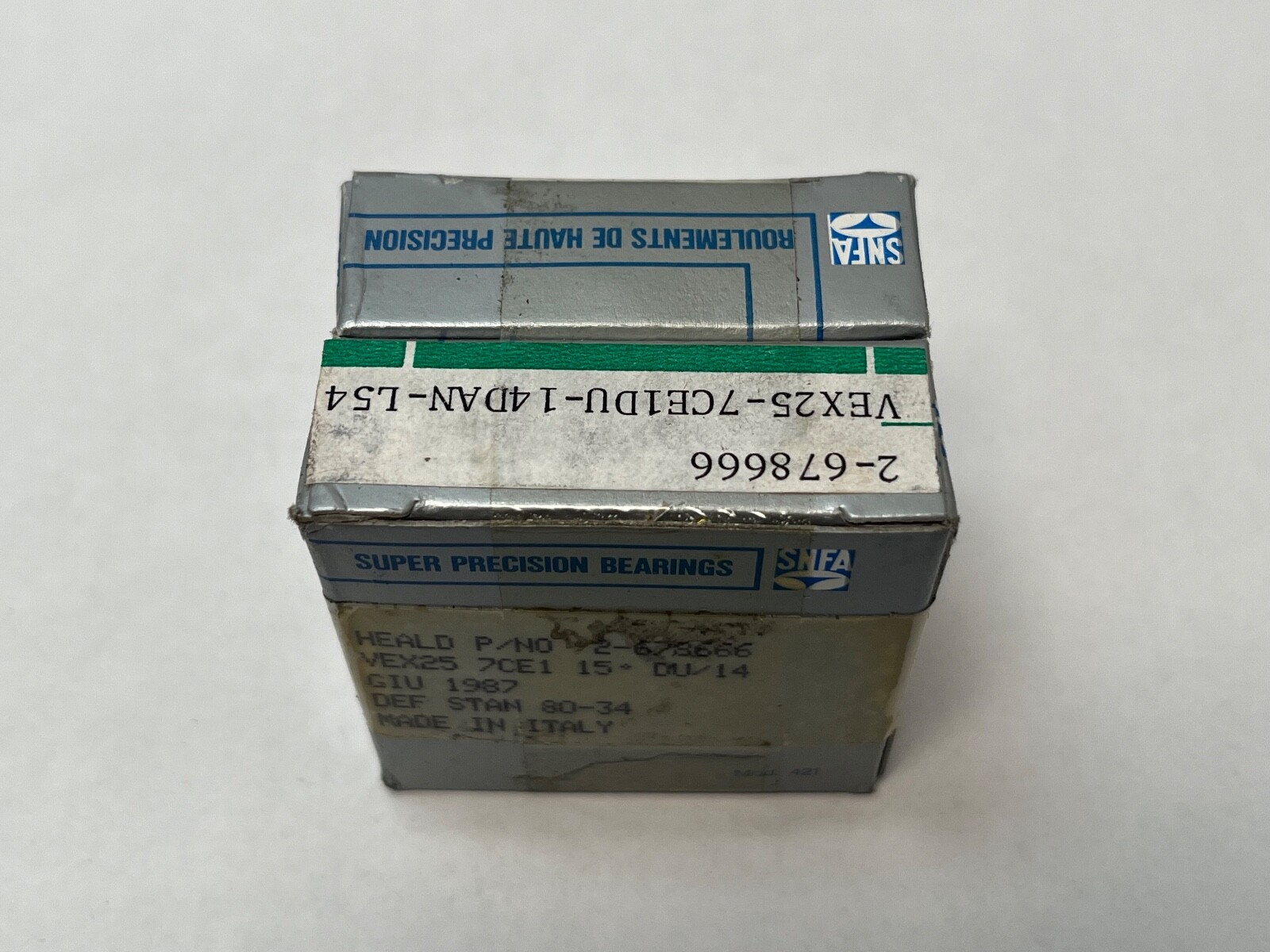

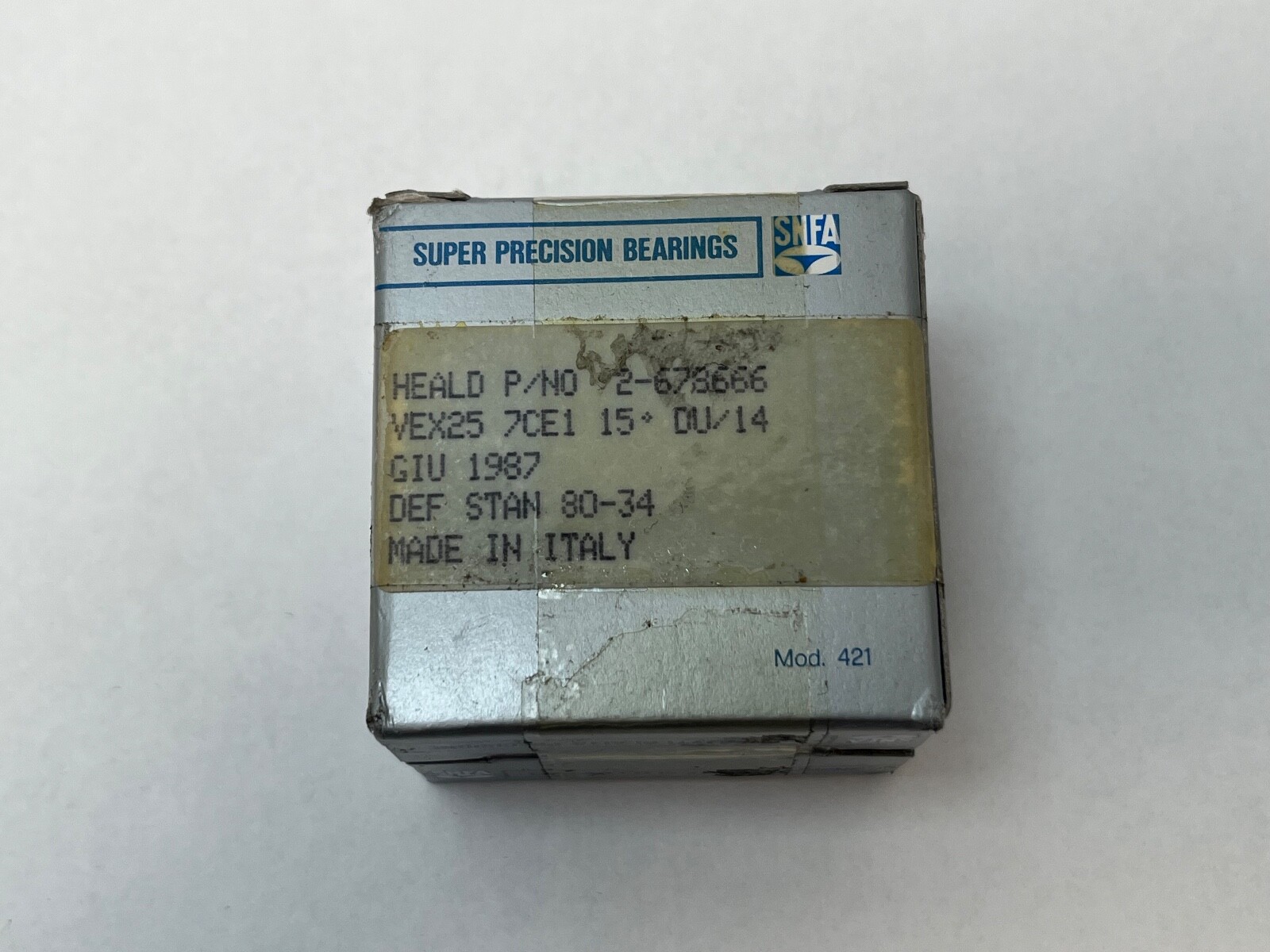

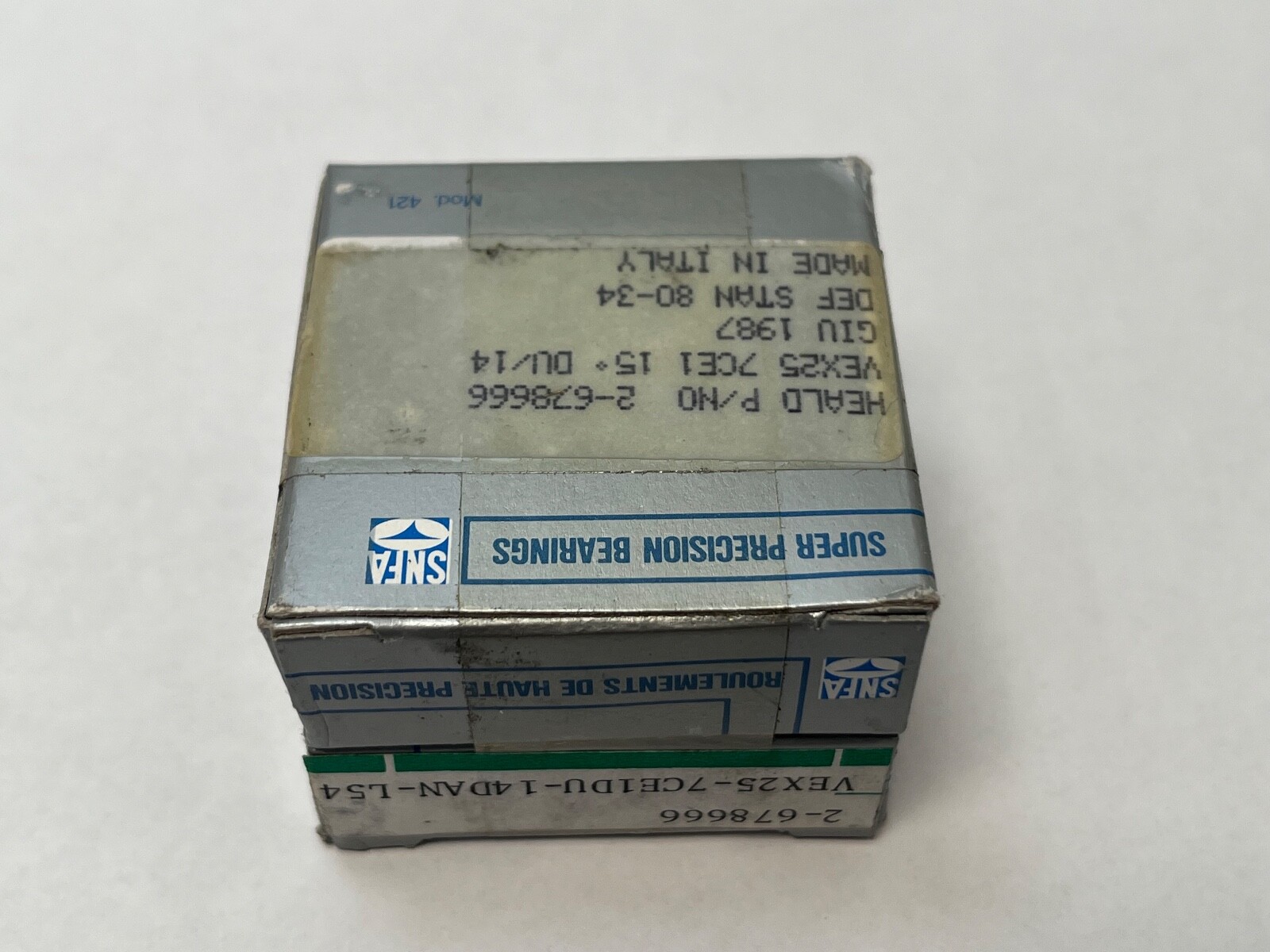

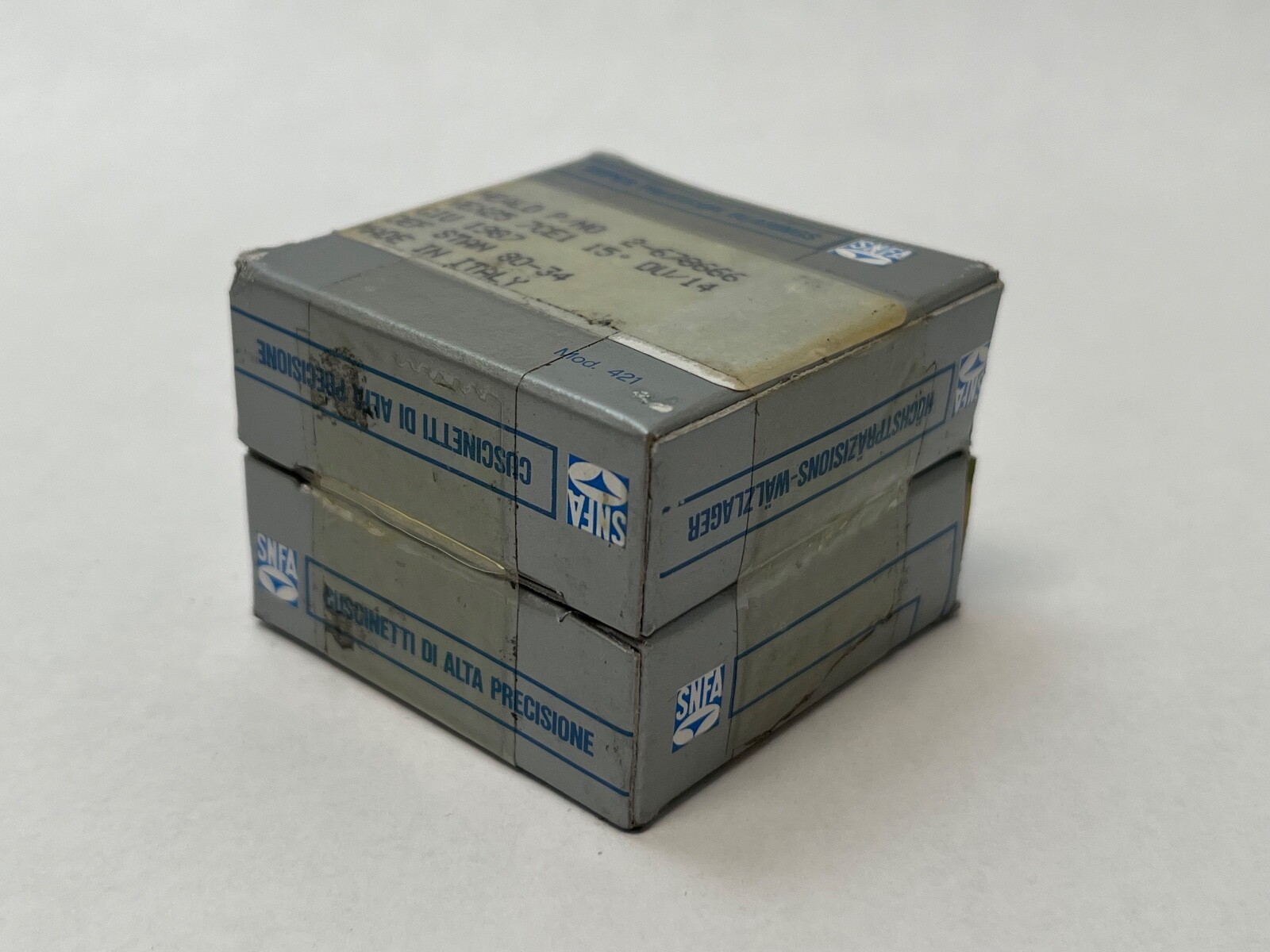

SNFA VEX25-7CE1DUL is a matched set of two super-precision single-row angular contact ball bearings from the SNFA VEX high-speed series, ISO dimension series 10. Bore Diameter: 25 mm. Outside Diameter: 47 mm. Width: 12 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. The current SKF equivalent is the 7005 CE/P4ADGA high-speed E design pair.
VEX — SNFA high-speed angular contact series, ISO dimension series 10 (70xx envelope).
25 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
1 — 15° contact angle.
DU — universal duplex set: two bearings ground for back-to-back, face-to-face or tandem mounting.
L — light preload.
Dynamic Load Rating: 8,320 N per bearing. Static Load Rating: 4,150 N per bearing. Limiting Speed: 46,000 rpm grease; 70,000 rpm oil-air, single bearing. The 15° angle and high-speed internal geometry favour spindle speed and radial stiffness. Light preload keeps heat generation low at high speed.
Item Weight: 0.074 kg (0.16 lb) per bearing. Cage Type: Outer-ring guided. Cage Material: Phenolic. Closure Type: Open.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal matched pair, back-to-back, face-to-face or tandem. Preload: Light.
SKF owns SNFA and lists the VEX series as the SNFA equivalent of its 70 .. CE high-speed range. Cross-references with the same 25 x 47 x 12 mm envelope and 15° contact angle: SKF 7005 CE/P4ADGA, SKF 7005 CEGA/P4A, NSK 7005CTYNP4, FAG HS7005-C-T-P4S-UL, Fafnir 2MMV9105WICRDUL.
