Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

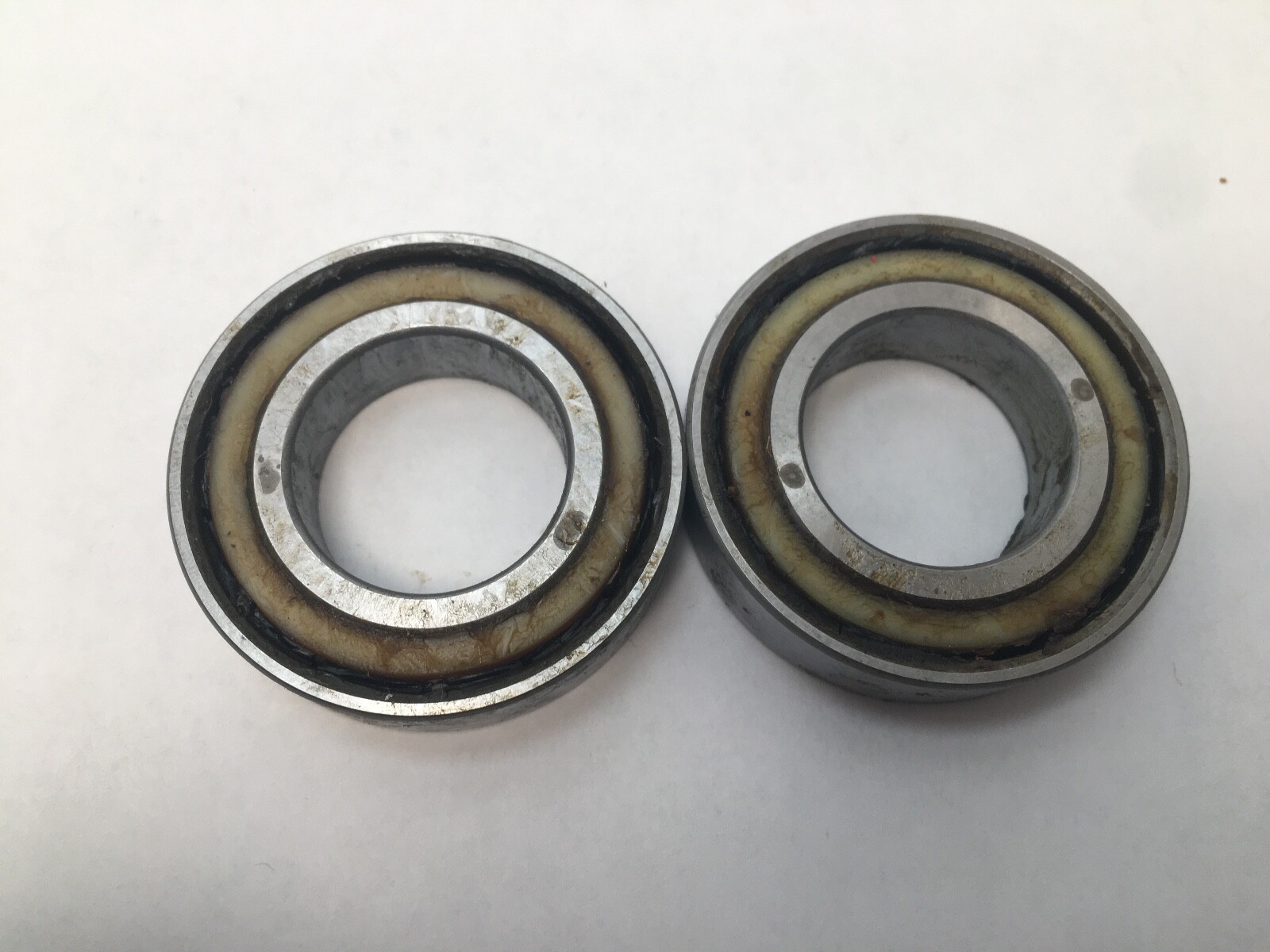

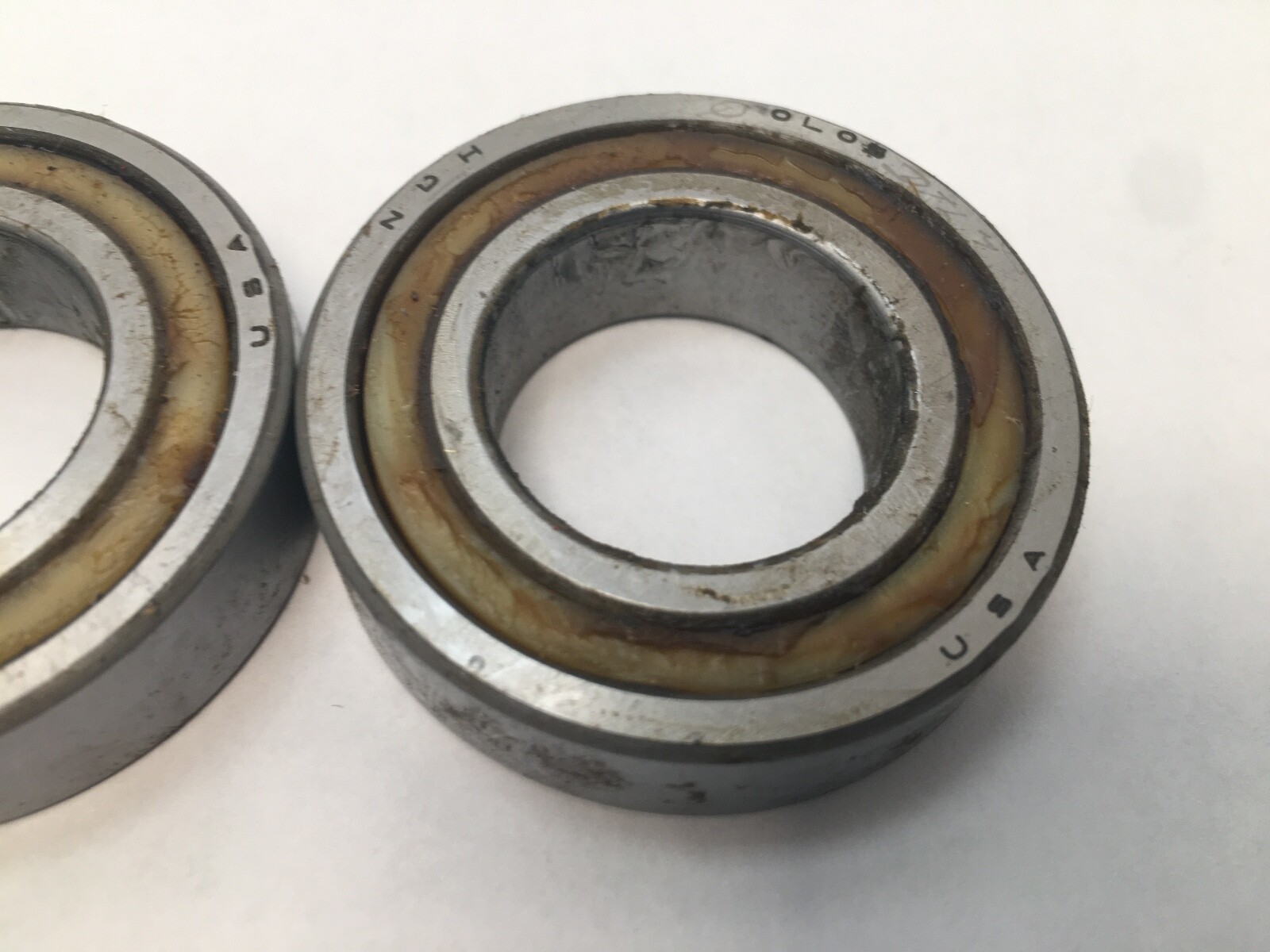

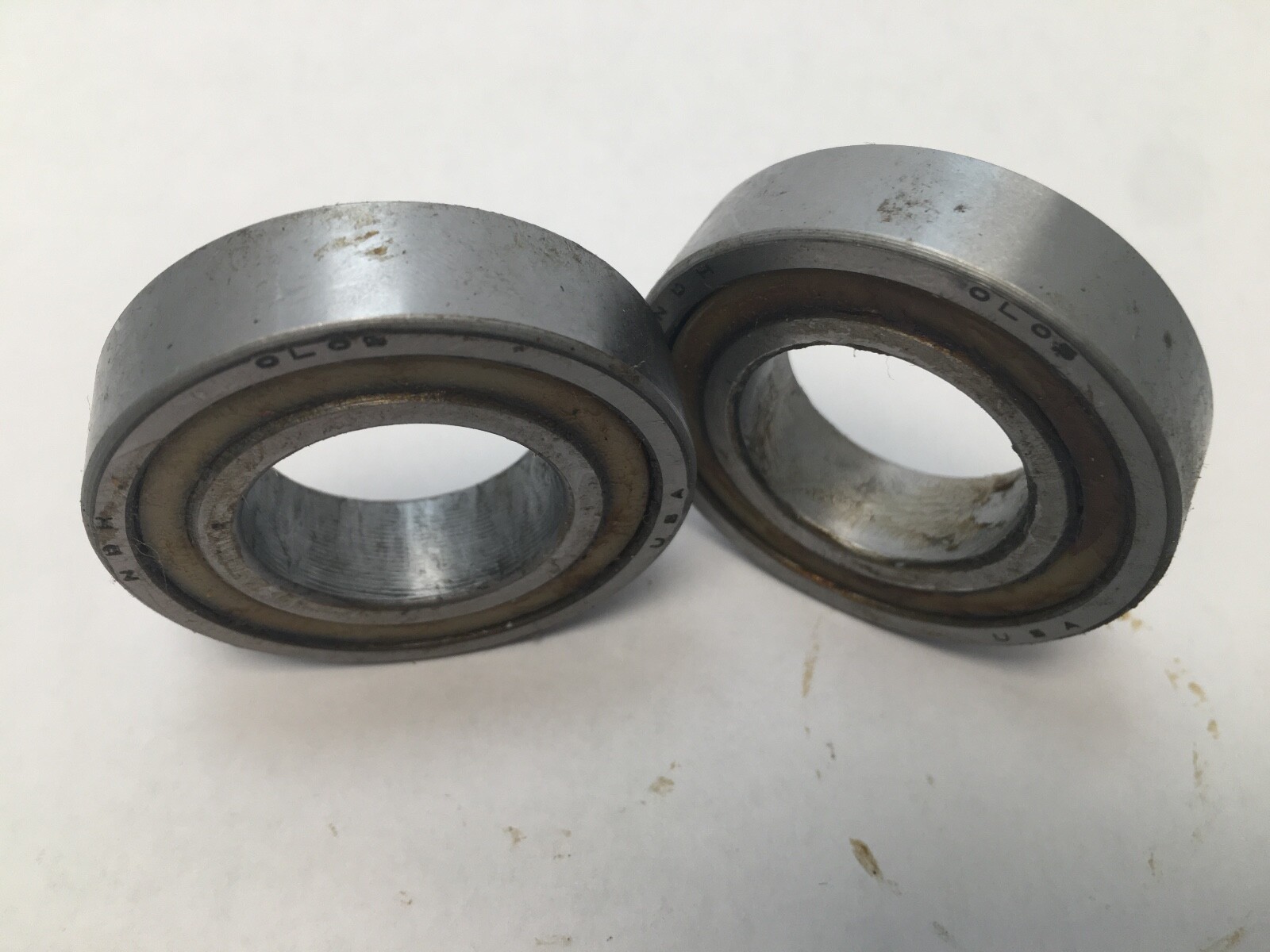

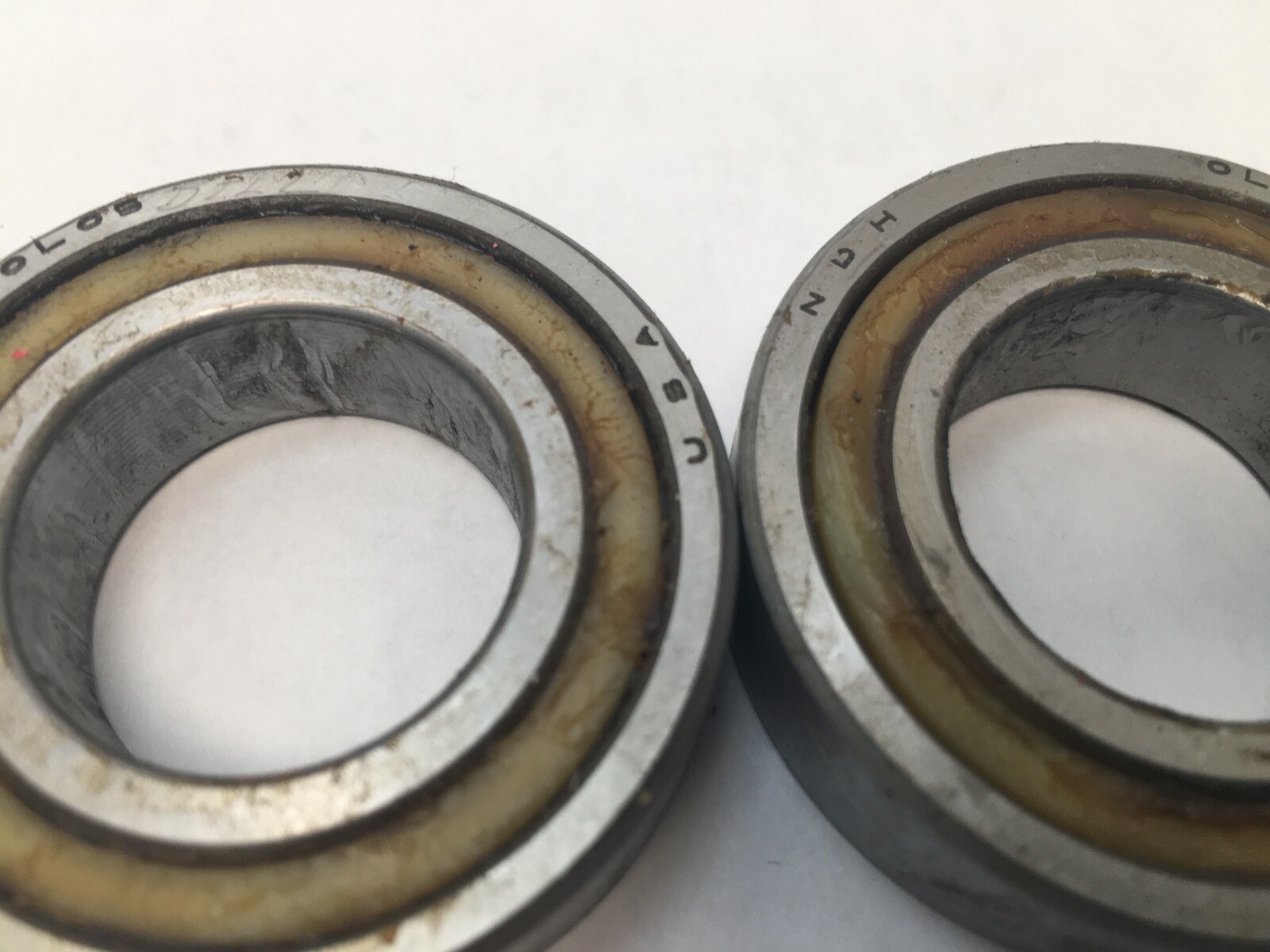

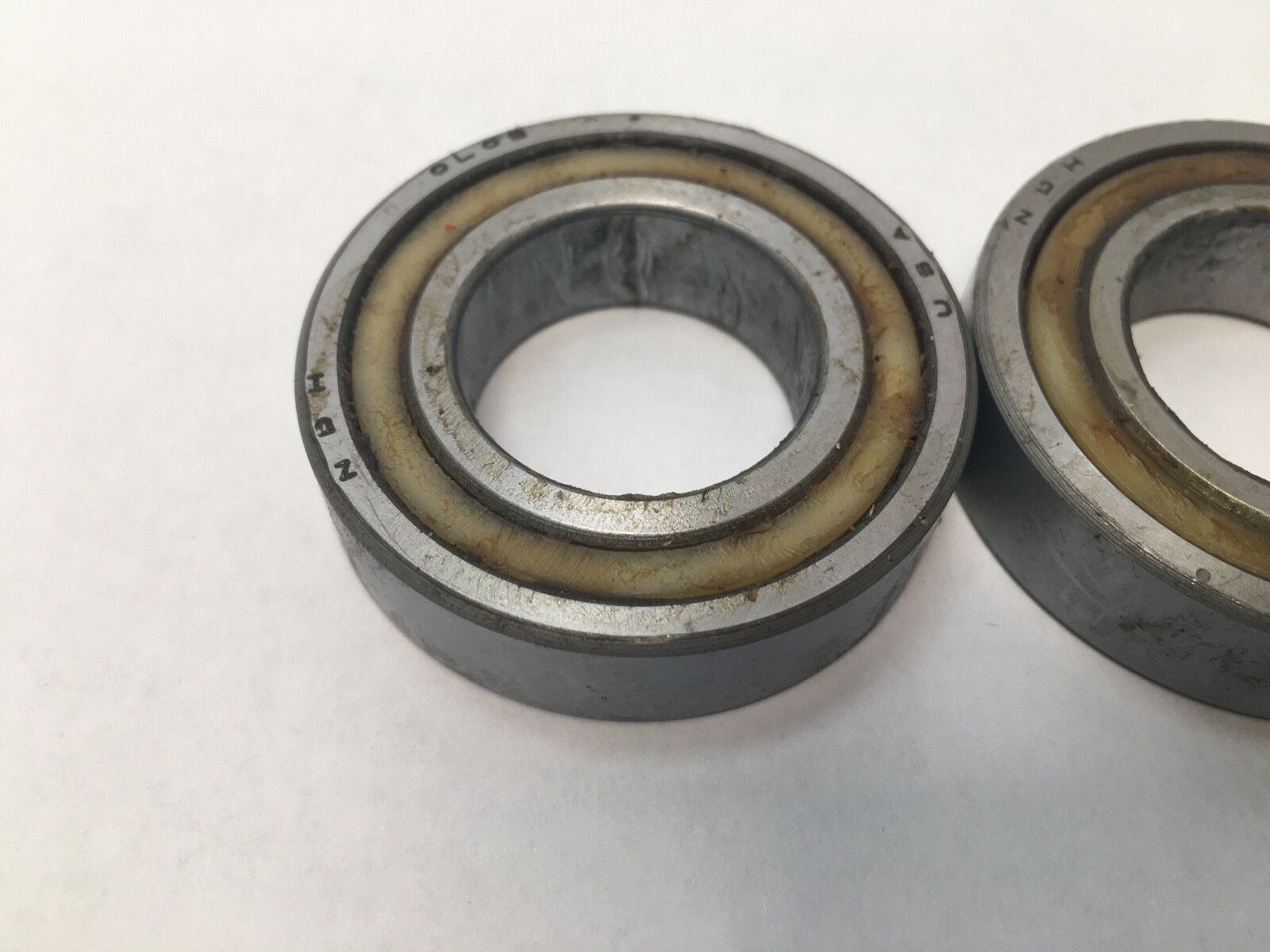

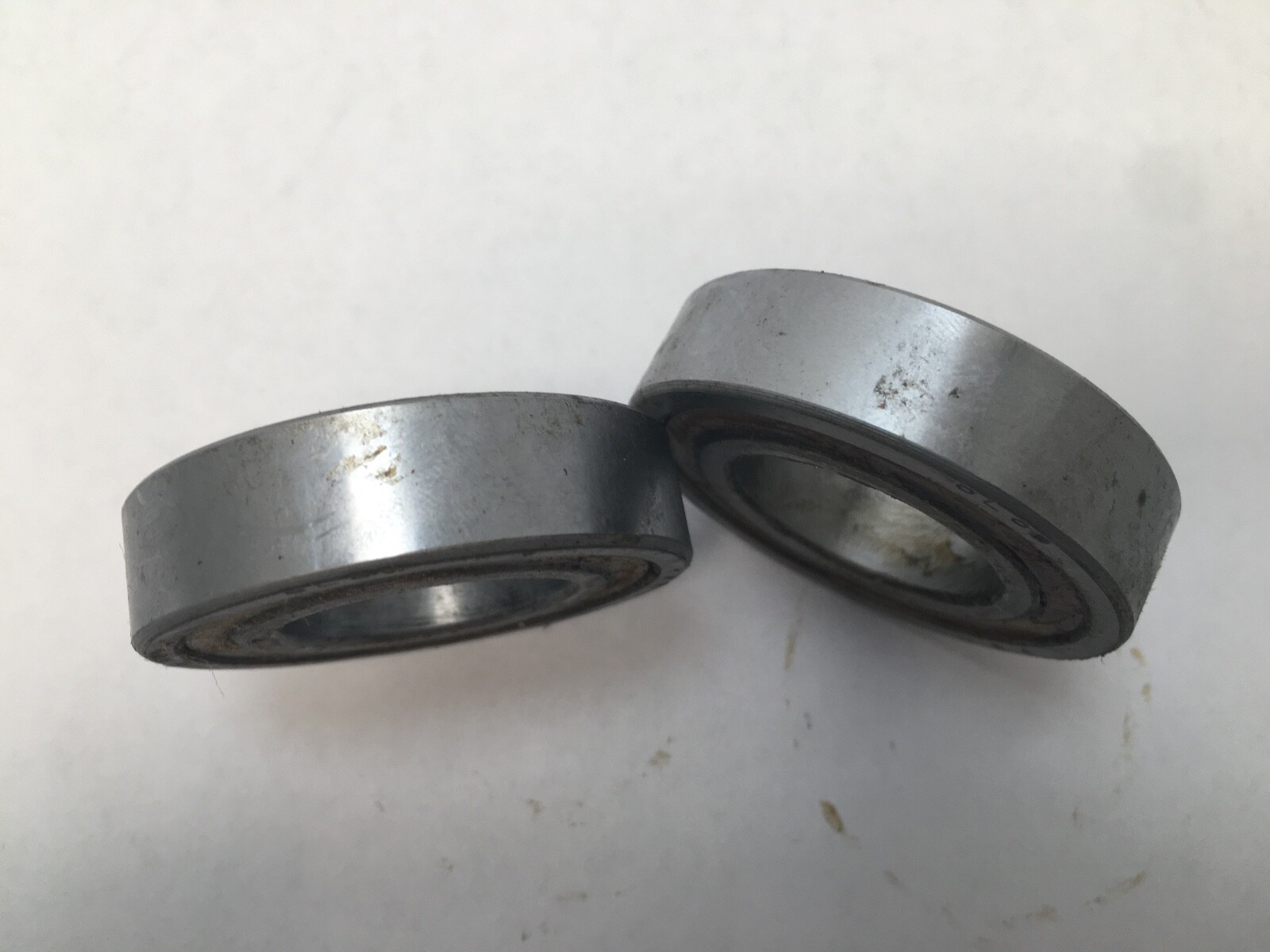

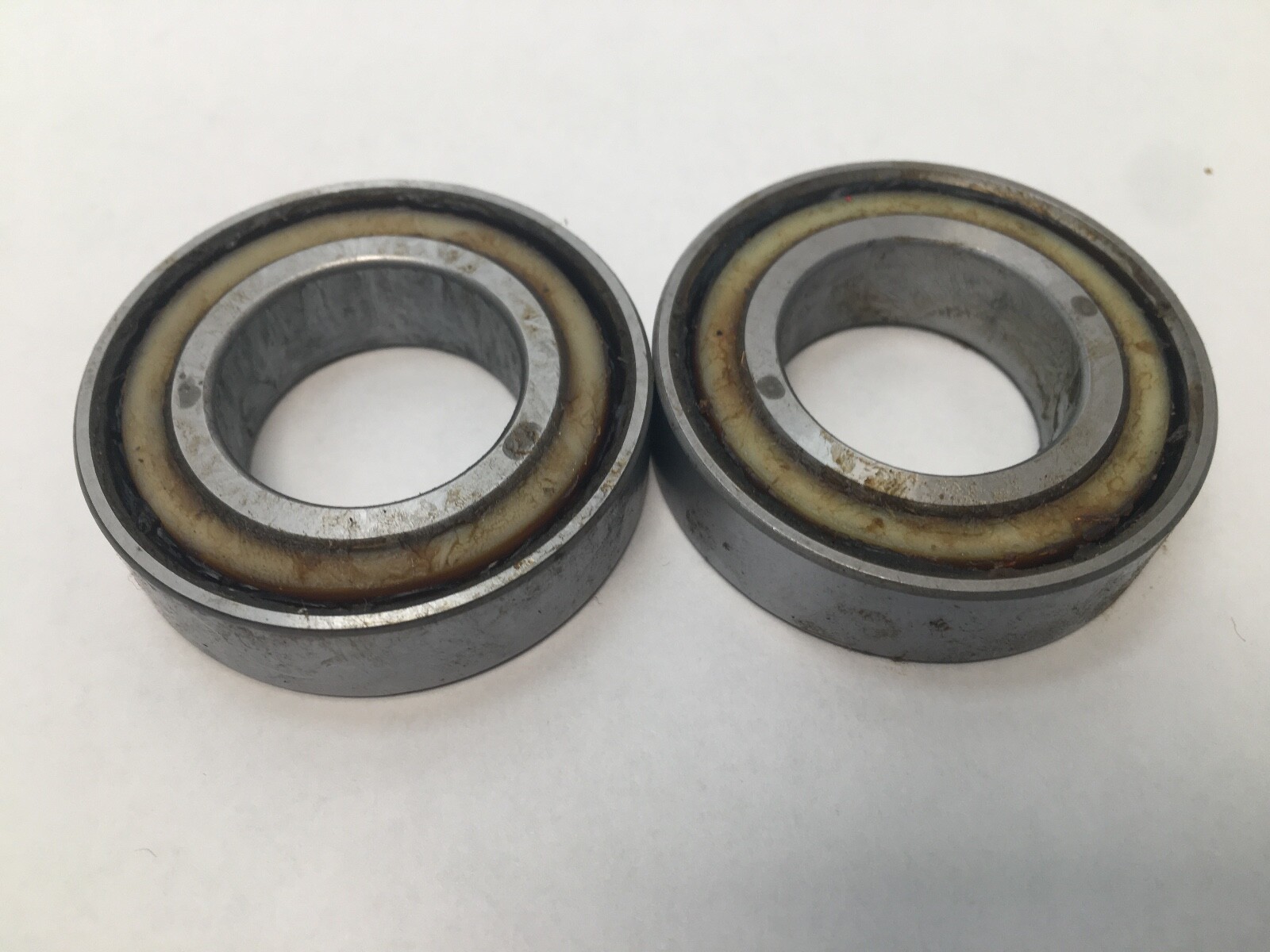

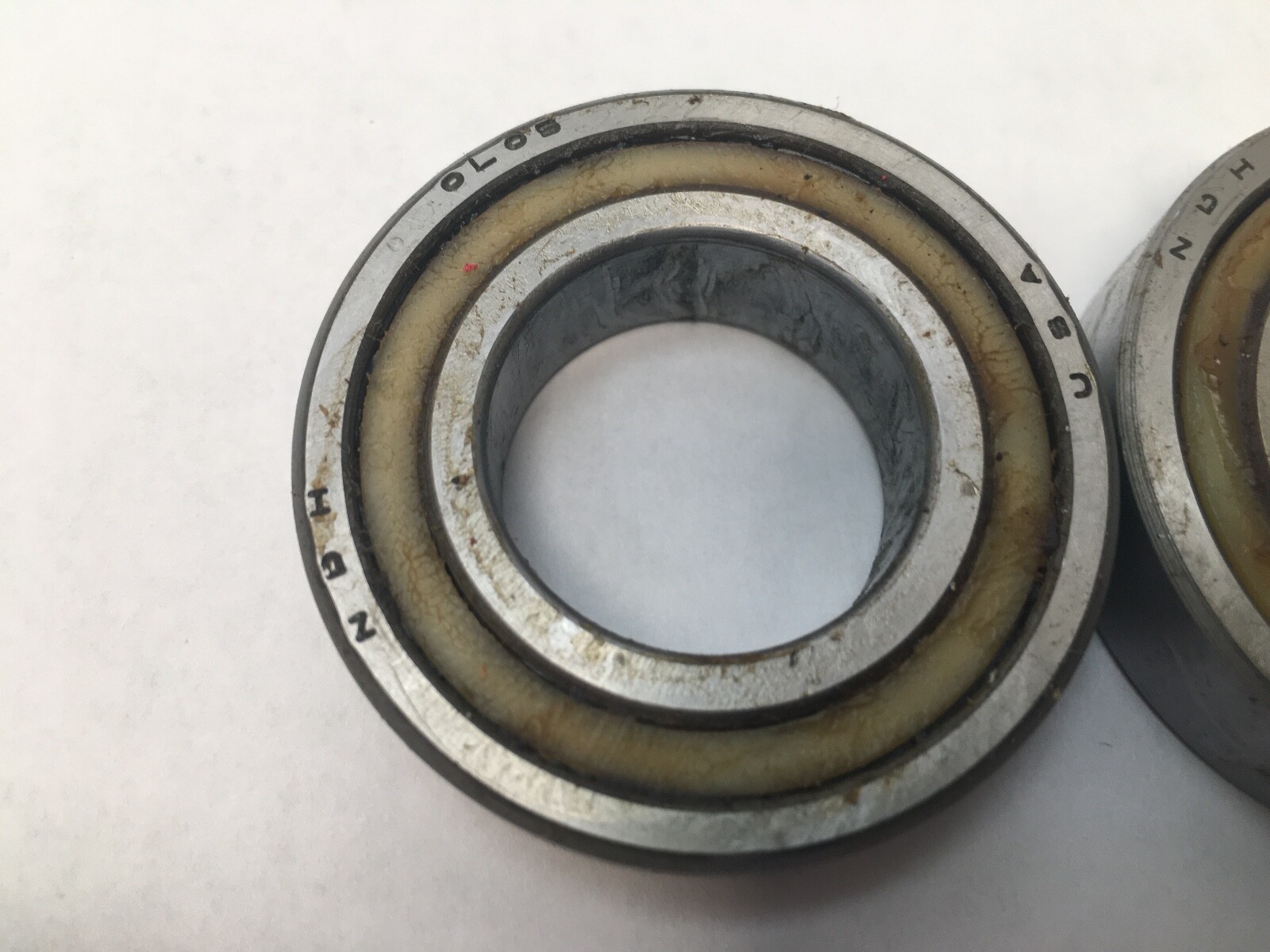

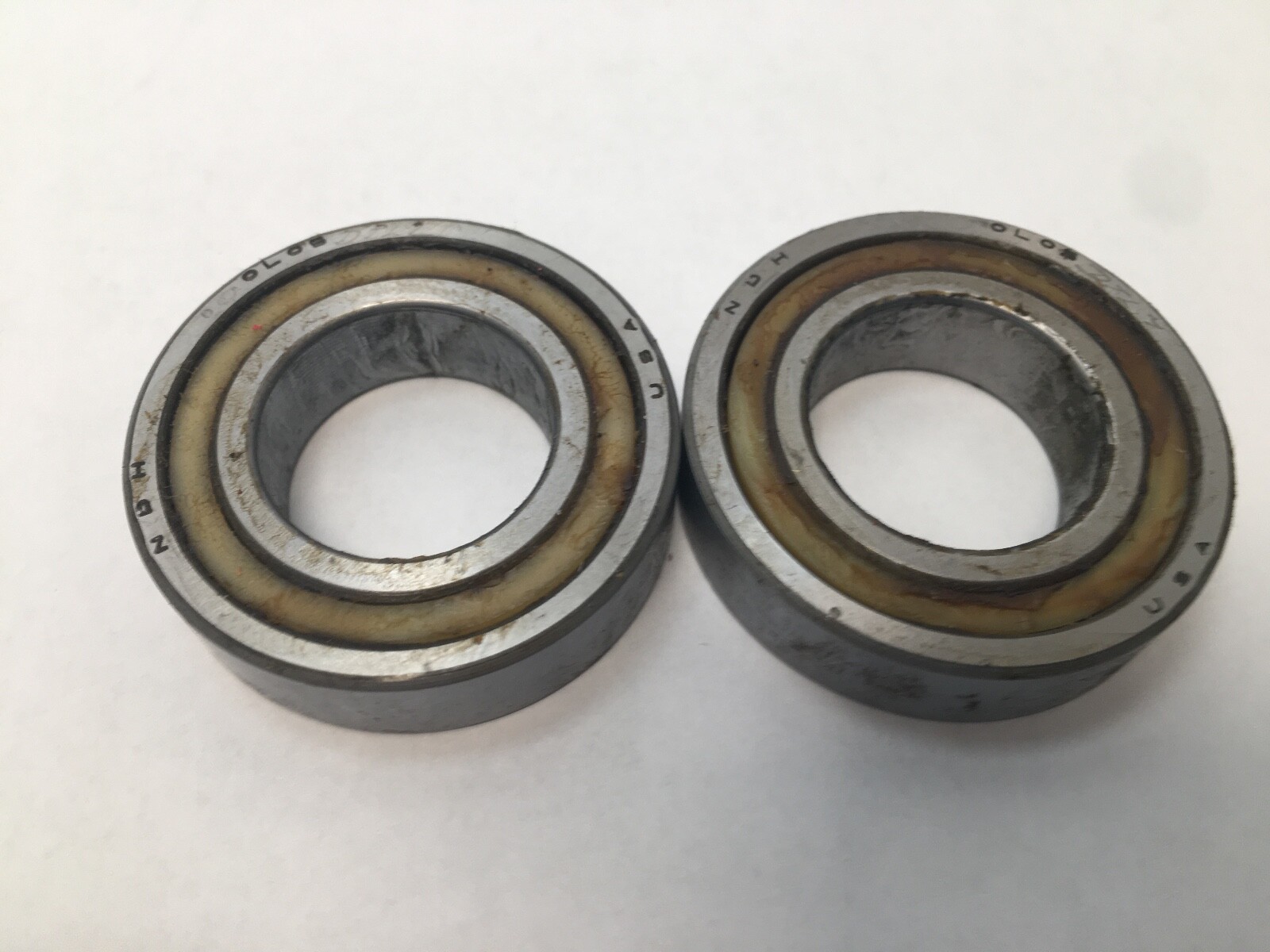

Angular contact ball bearing in the 7005 envelope: 25 mm bore, 47 mm OD, 12 mm width, phenolic separator, ABEC 7. NDH duplex tandem execution, light preload.
List Price
$76.47
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | Q0L05DTL7 |
| Model | Q 0L05 DTL7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Series | 7000 |
|---|---|
| Lubricant | Oil |
| Preload | Light |
| Material | Bearing Steel |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Mounting Arrangement | Duplex tandem (DT) |
| Mpn Variants | Q0L05DTL7, Q-0L05-DTL7, Q 0L05 DTL7, 0L05DTL7, 105 |
| Precision Class | ABEC 7 / P4 |
| Cross Reference 1 | 7005 (same envelope) |
|---|

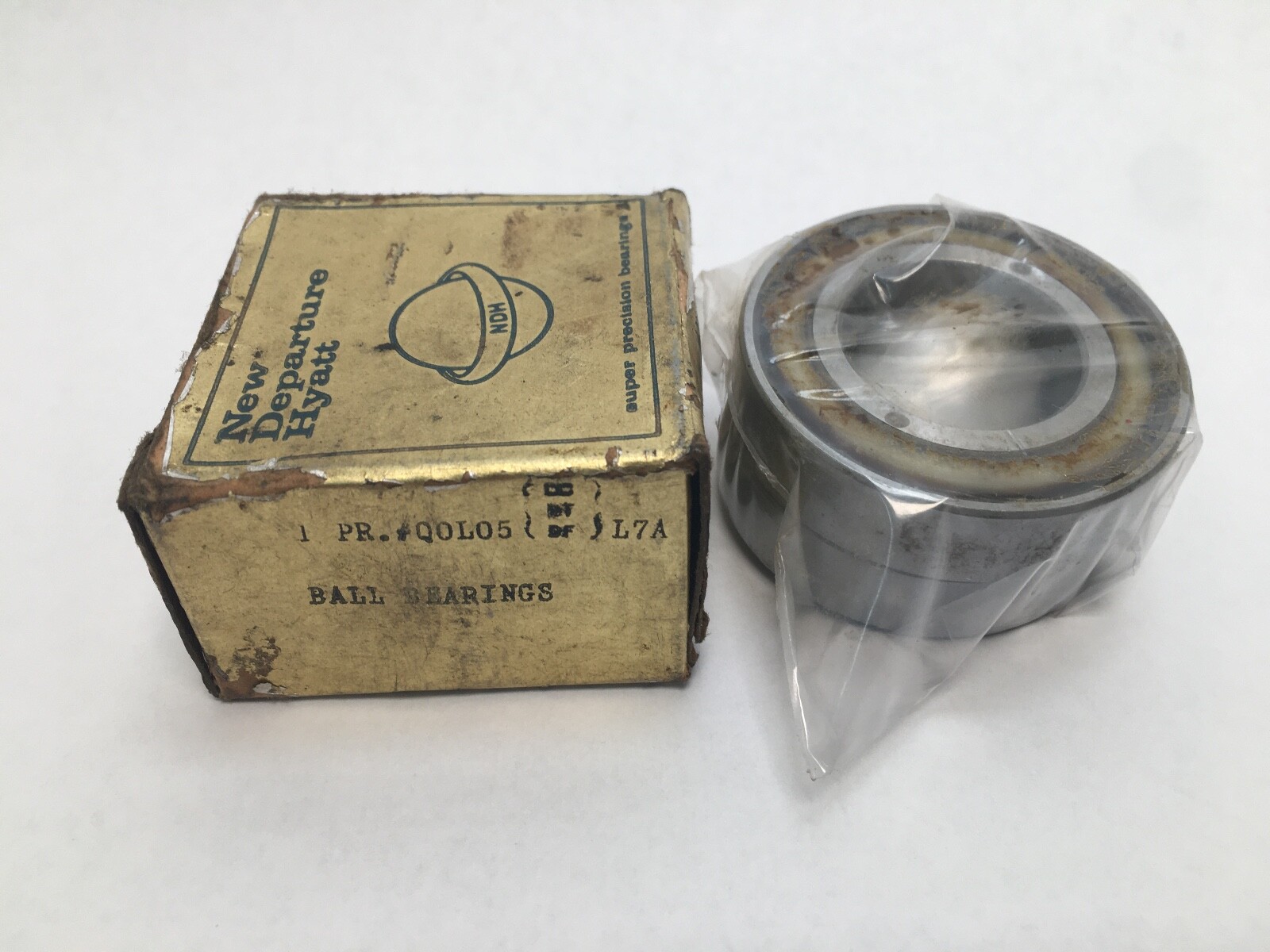

NDH Q0L05DTL7 is an angular contact ball bearing in the ISO 7005 envelope, made by New Departure Hyatt for duplex tandem mounting at light preload, with a phenolic separator and ABEC 7 tolerance.
Q — NDH phenolic separator.

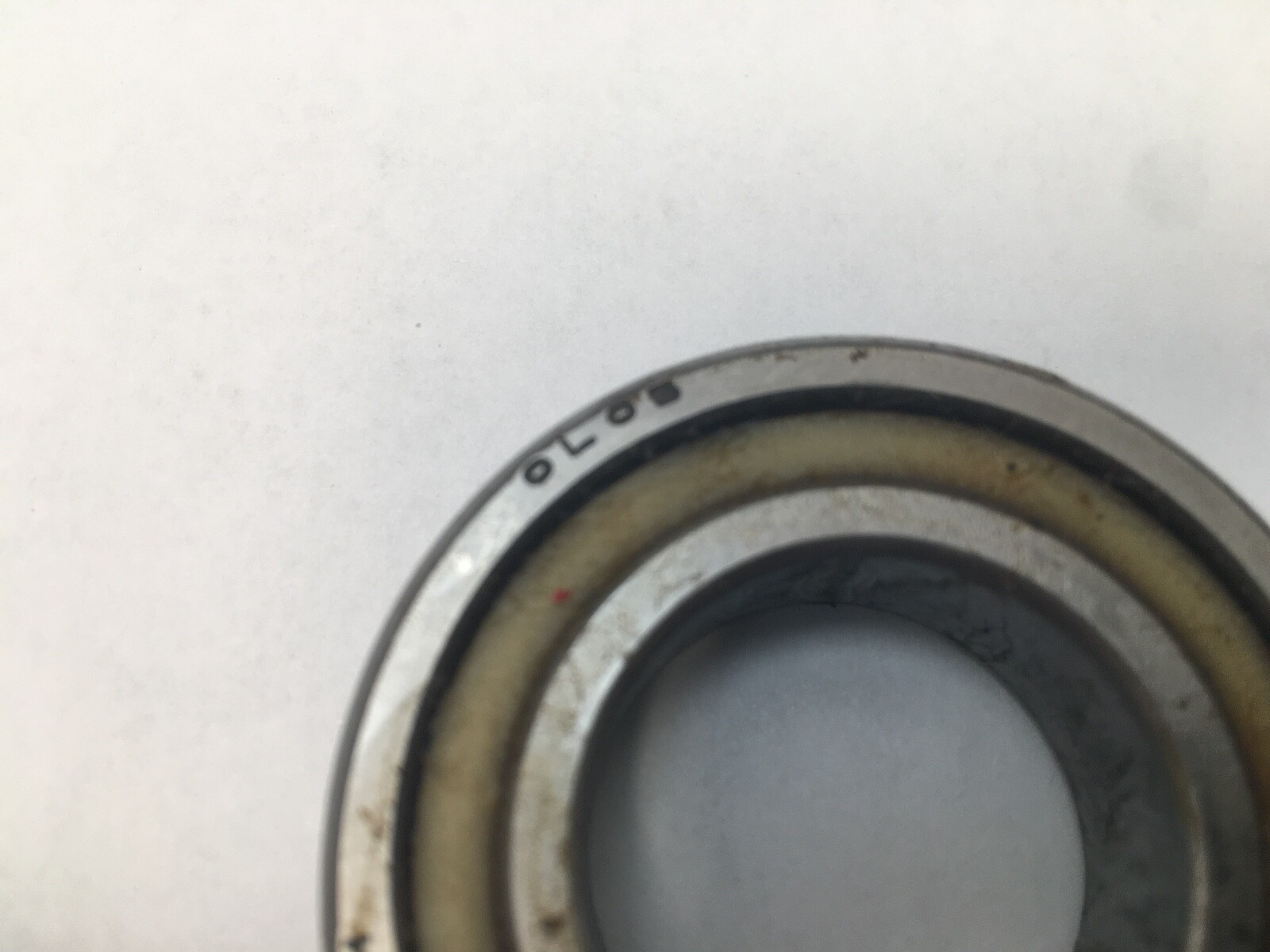

0L05 — NDH number for the ISO 7005 size, 25 x 47 x 12 mm.
DT — duplex tandem. Bearings ground for a matched set mounted facing the same direction.
L — NDH light preload.
7 — ABEC 7 tolerance class.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Cage Material: Phenolic. Precision Class: ABEC 7 / P4. Mounting Arrangement: Duplex tandem (DT). Preload: Light.
Same boundary dimensions as the ISO 7005 size, the Fafnir 9105 size and MRC 105 size.
What size is it?
25 mm bore, 47 mm outside diameter, 12 mm width.
What precision class is it?
ABEC 7.
What arrangement is it ground for?
Duplex tandem at light preload.
