NDH 20204DTL7A precision angular contact ball bearing, 20 x 47 x 14 mm ISO 7204 size, 15° contact angle, ABEC 7, tandem ground with light preload.
List Price
$43.05
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | 20204DTL7A |
| Model | 20204-DTL-7A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Mpn Variants | 20204DTL7A, 20204-DTL-7A, 20204 DTL 7A, 7204 C UL P4, 2MM204WI SUL |
|---|---|
| Precision Class | ABEC 7 / P4 |
| Series | 7200 (ISO 02) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Tandem (DT) |
| Closure Type | Open |
| Industry Terms | angular contact ball bearing; 7204 duplex tandem bearing; ABEC 7 precision bearing; 20x47x14 bearing |
| Common Misspellings | NDH 20204 DTL7A; NHD 20204DTL7A; New Departure Hyatt 20204DTL7A; 20204DLT7A |
| Cross Reference 1 | Fafnir 2MM204WI |
|---|---|
| Cross Reference 2 | SKF 7204 CD/P4A |
| Cross Reference 3 | FAG B7204-C-T-P4S |
| Cross Reference 4 | NSK 7204CTYNSU P4 |

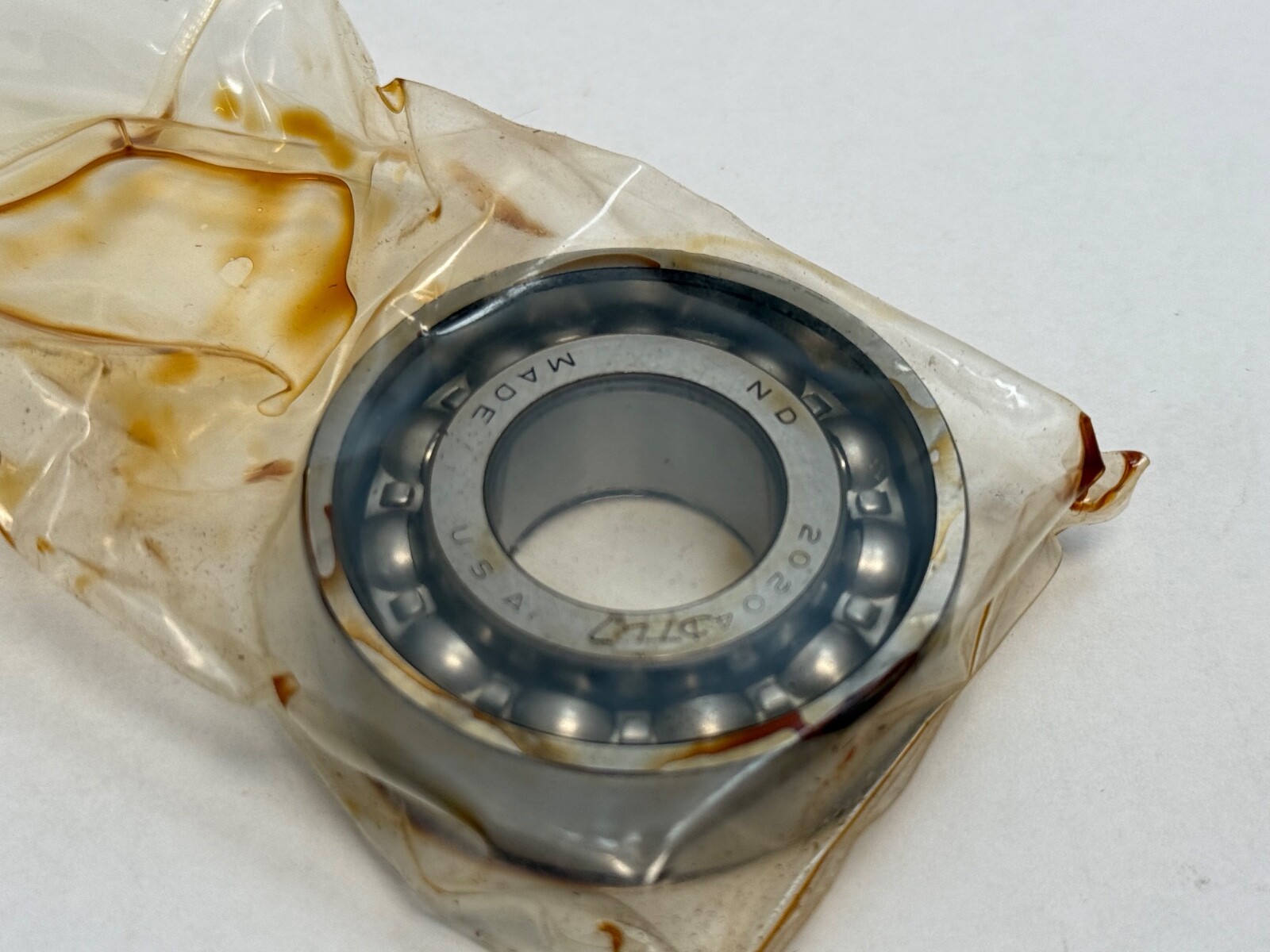

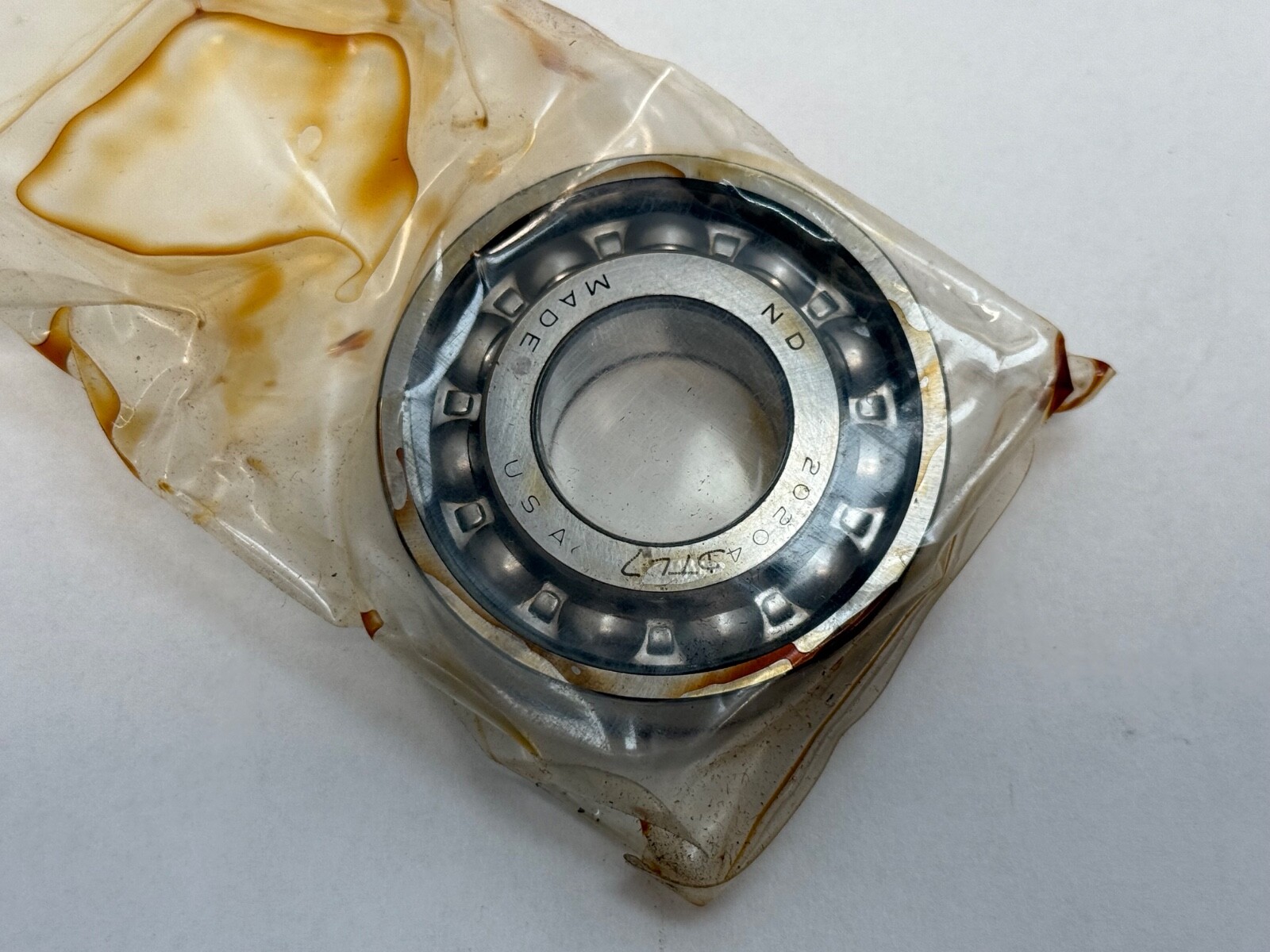

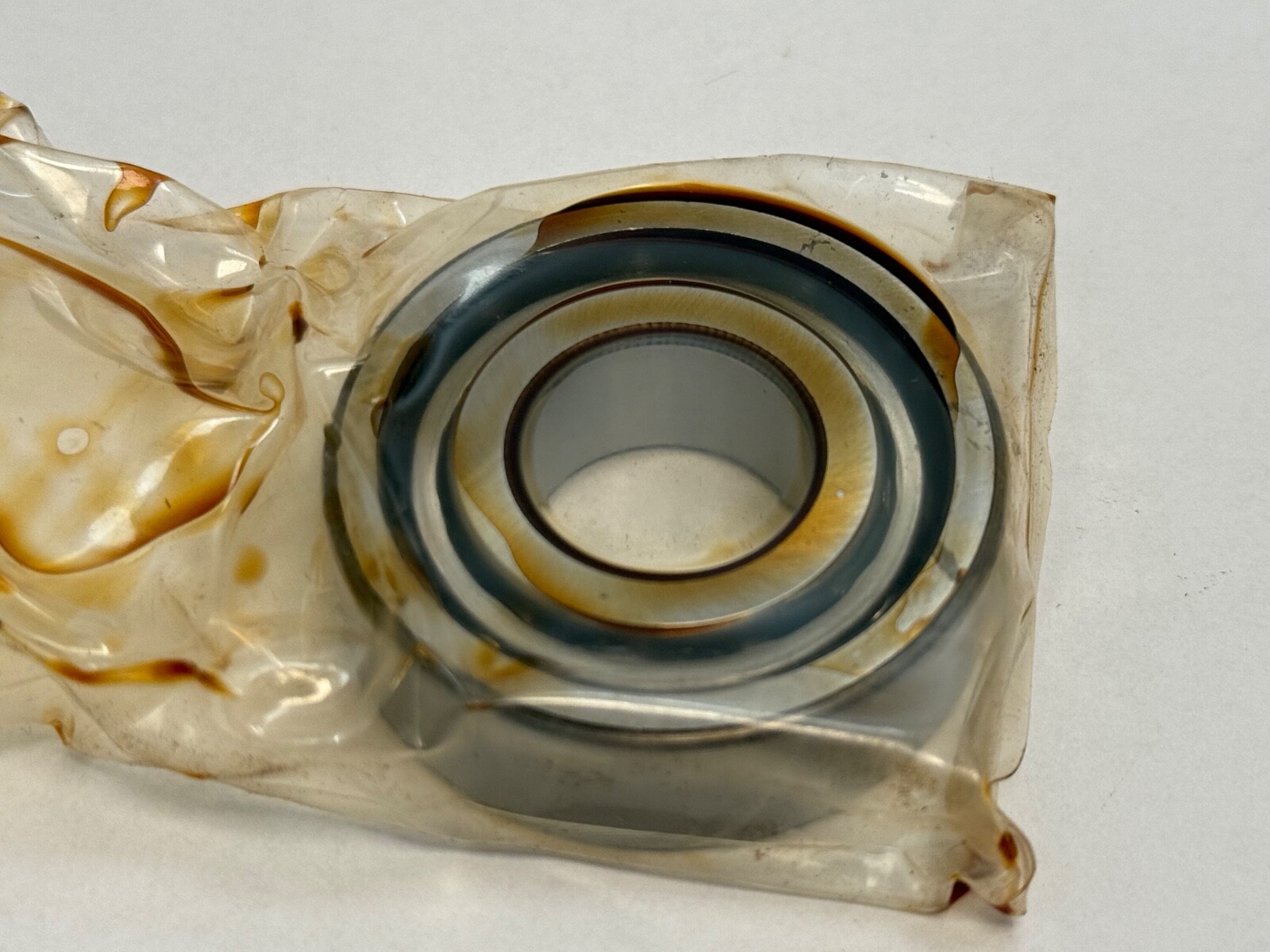

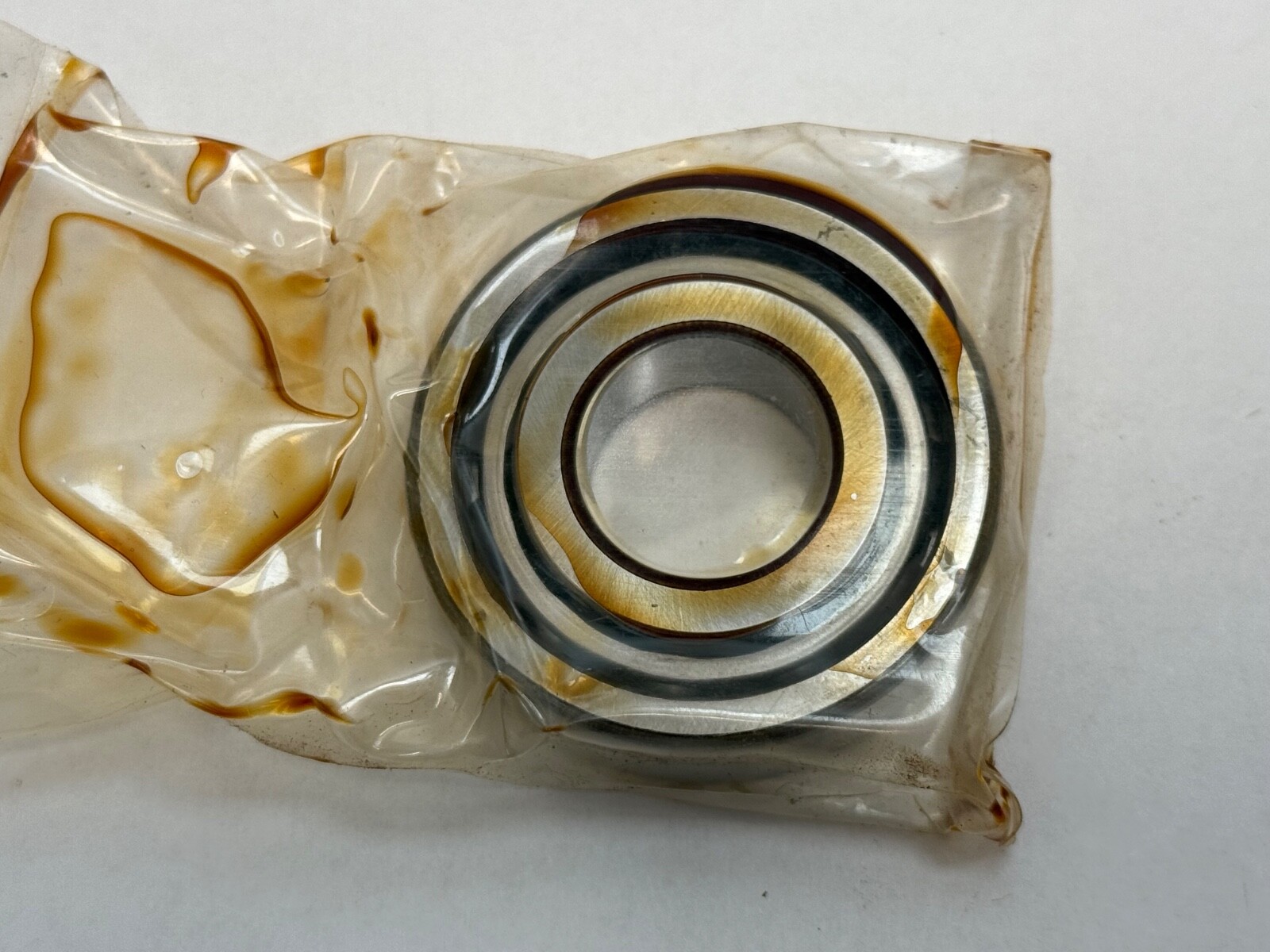

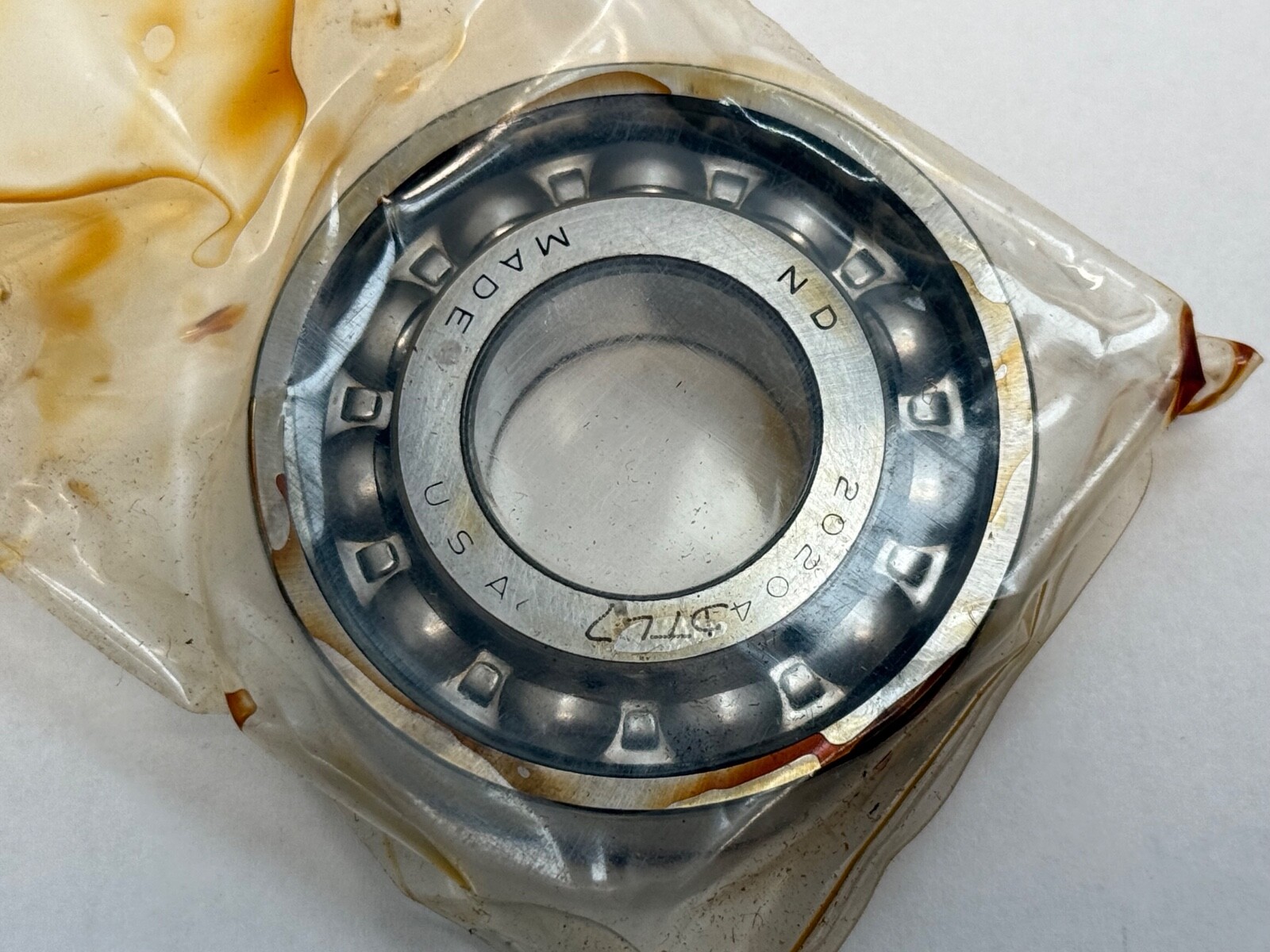

The NDH 20204DTL7A is a single-row precision angular contact ball bearing in the ISO 7204 envelope, made by New Departure Hyatt (NDH), ground for tandem mounting with light preload.
20204 — NDH’s number for the ISO 7204 size, 20 x 47 x 14 mm. The 20-series prefix is the 15° angular contact family.
DT — duplex tandem ground. Bearings of a set face the same direction. Not a double-row bearing.
L — light preload.
7 — NDH tolerance grade, equivalent to ABEC 7.
Bearing Type: Angular contact ball bearing. Rolling Elements: Ball. Number Of Rows: 1. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Mounting Arrangement: Tandem (DT). Closure Type: Open.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 14 mm. Unit Quantity: 1 Pc.

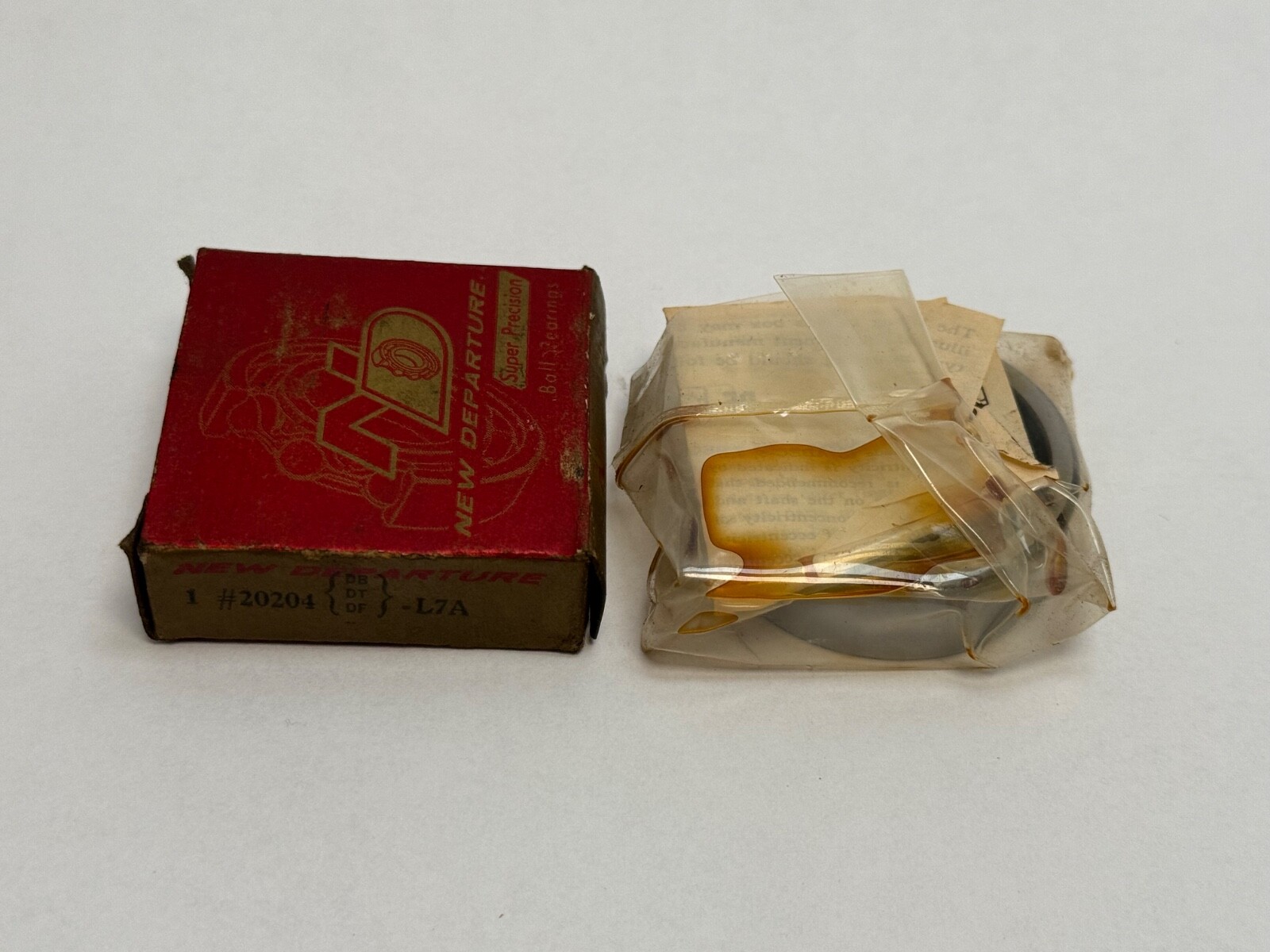

Cross-references at 15° and ABEC 7 / P4: Fafnir 2MM204WI, SKF 7204 CD/P4A, FAG B7204-C-T-P4S, NSK 7204CTYNSU P4. Carton markings: 20204 DTL 7A, 7204 C UL P4, 2MM204WI SUL.
The 7204 size, 20 x 47 x 14 mm, with a 15° contact angle.
ABEC 7, equivalent to ISO P4.
Duplex tandem ground with light preload.
