Availability:
Out of stock
List Price
$557.63
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spindle Angular Contact Ball Bearing - 85 mm ID, 130 mm OD, 22 mm Width, Open, 15° Contact Angle, Machined Phenolic Cage, Medium Preload, Universal Single.$243.90
Super Precision Angular Contact Ball Bearing 85x130x22 mm, 15° Contact Angle, Phenolic Cage, ISO P4 / ABEC 7, Universally Ground Medium Preload$76.49
Super-Precision Angular Contact Ball Bearing - 85 mm ID, 130 mm OD, 22 mm Width, Open, 15° Contact Angle, Light Preload, P6$91.76
Super-Precision Angular Contact Ball Bearing – 85 mm Bore x 130 mm OD x 22 mm Wide, 15° Contact Angle, ABEC 7, Universally Ground$100.80| MFR / Brand | SNFA |
|---|---|
| MPN | EX85-7CE1TDM |
| Model | 2MM-9117 TDM / 7017C TDM / EX-85-7-CE-1-TDM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | EX |
| Preload | Medium |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 66.7 kN / 15000 lbf |
| Static Load Rating | 58.7 kN / 13200 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 4.20 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 9700 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | Fafnir 2MM9117WI-SUM |
|---|---|
| Cross Reference 2 | FAG B7017-C-T-P4S-UM |

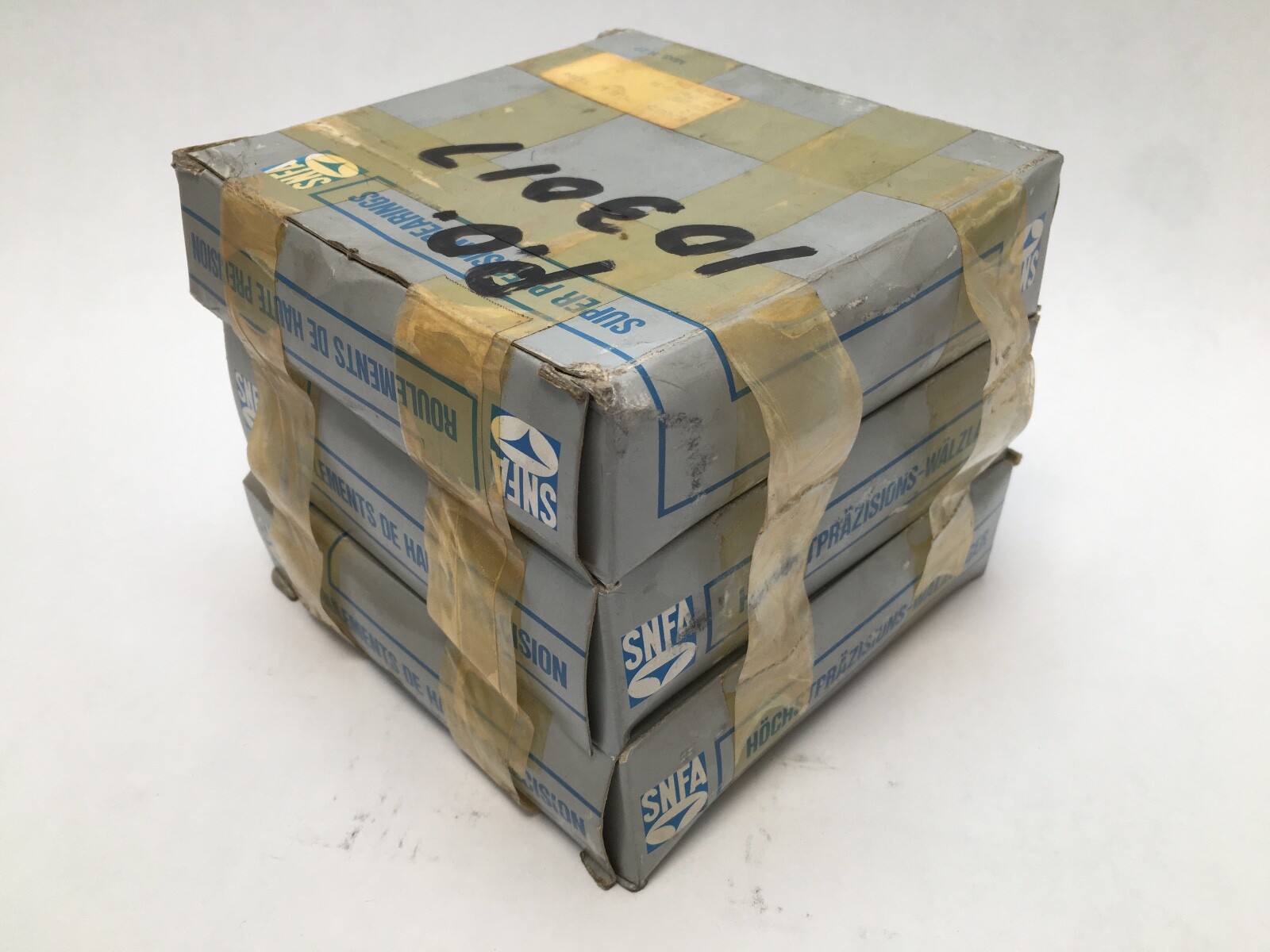

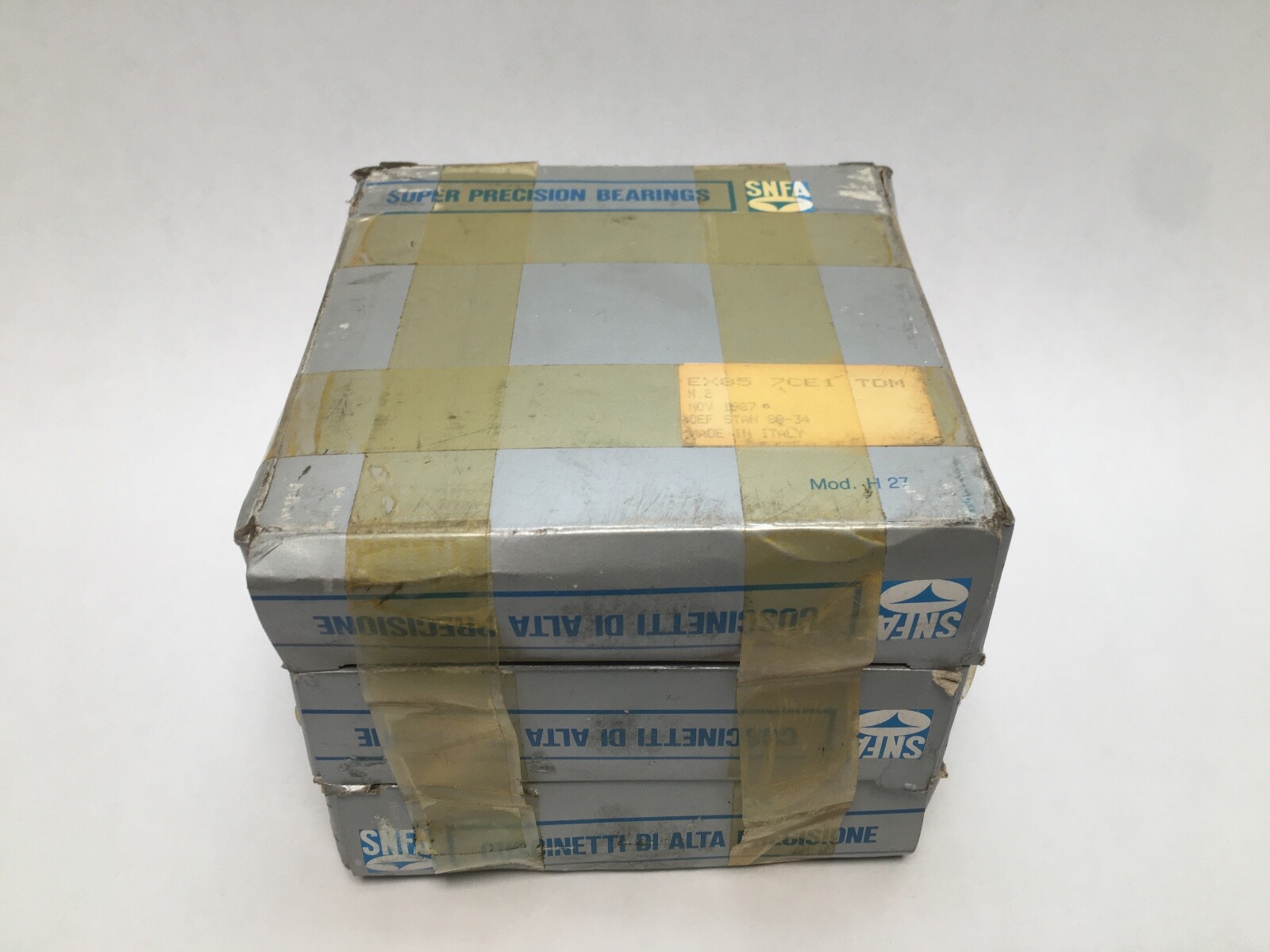

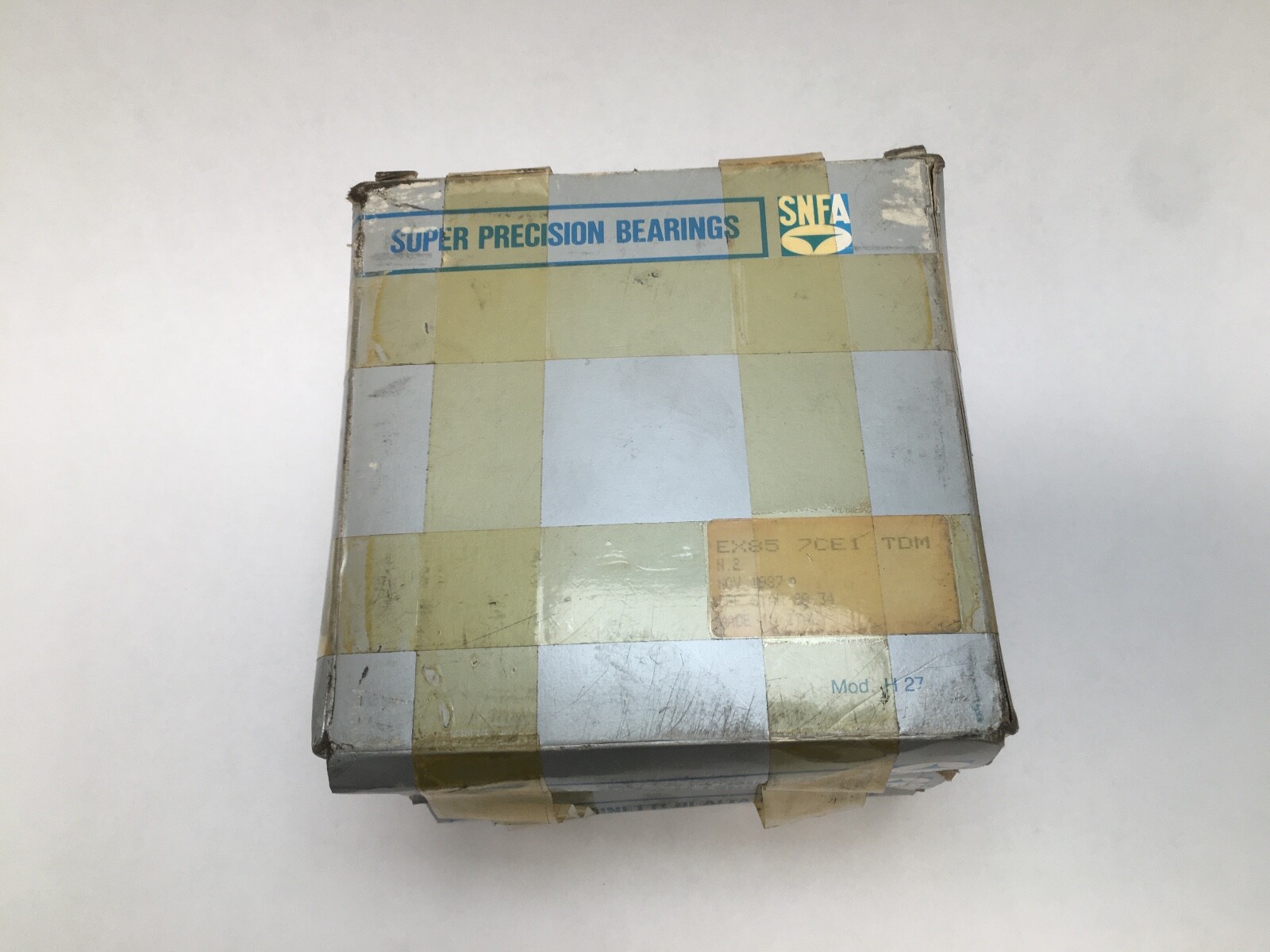

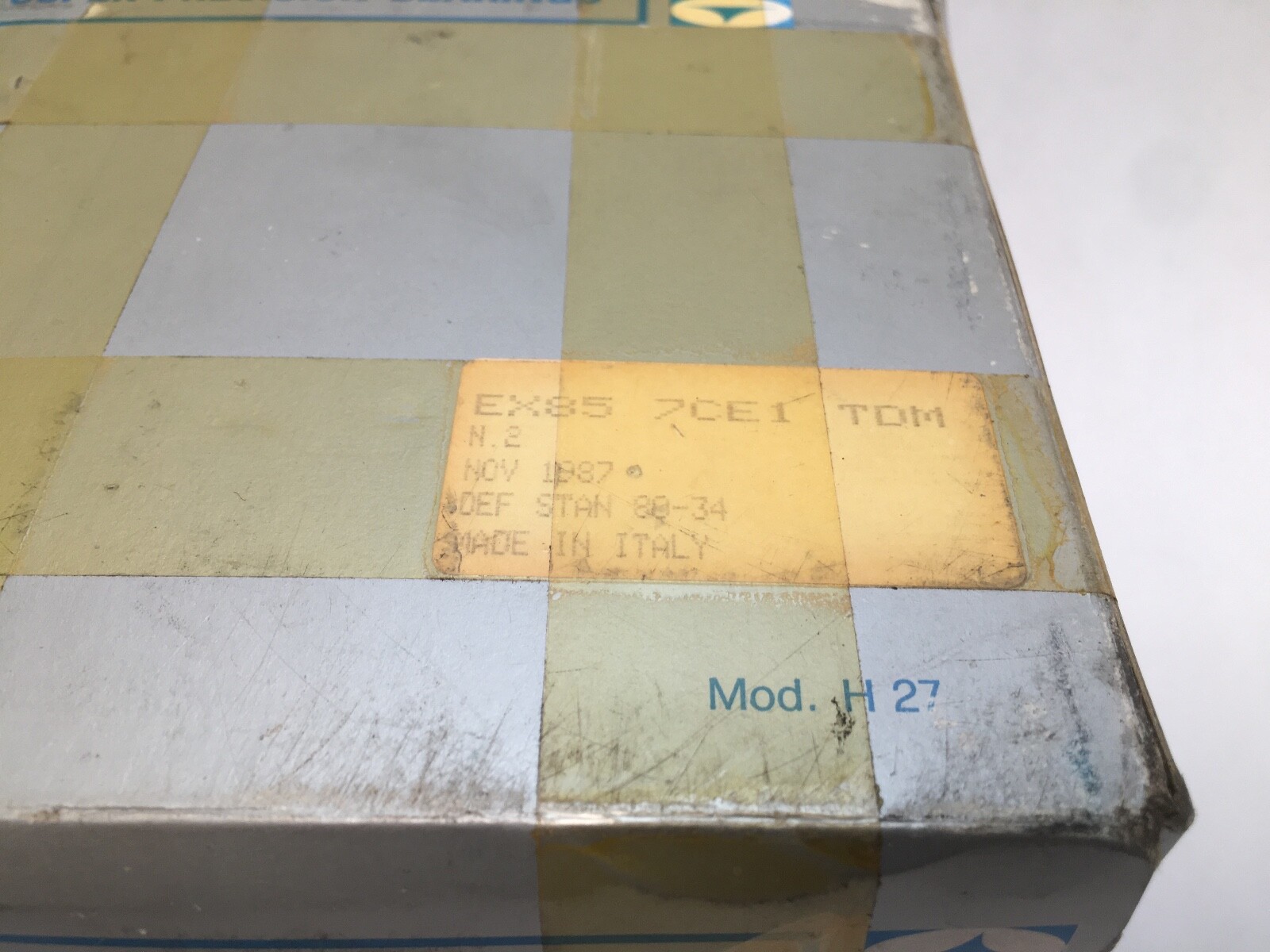

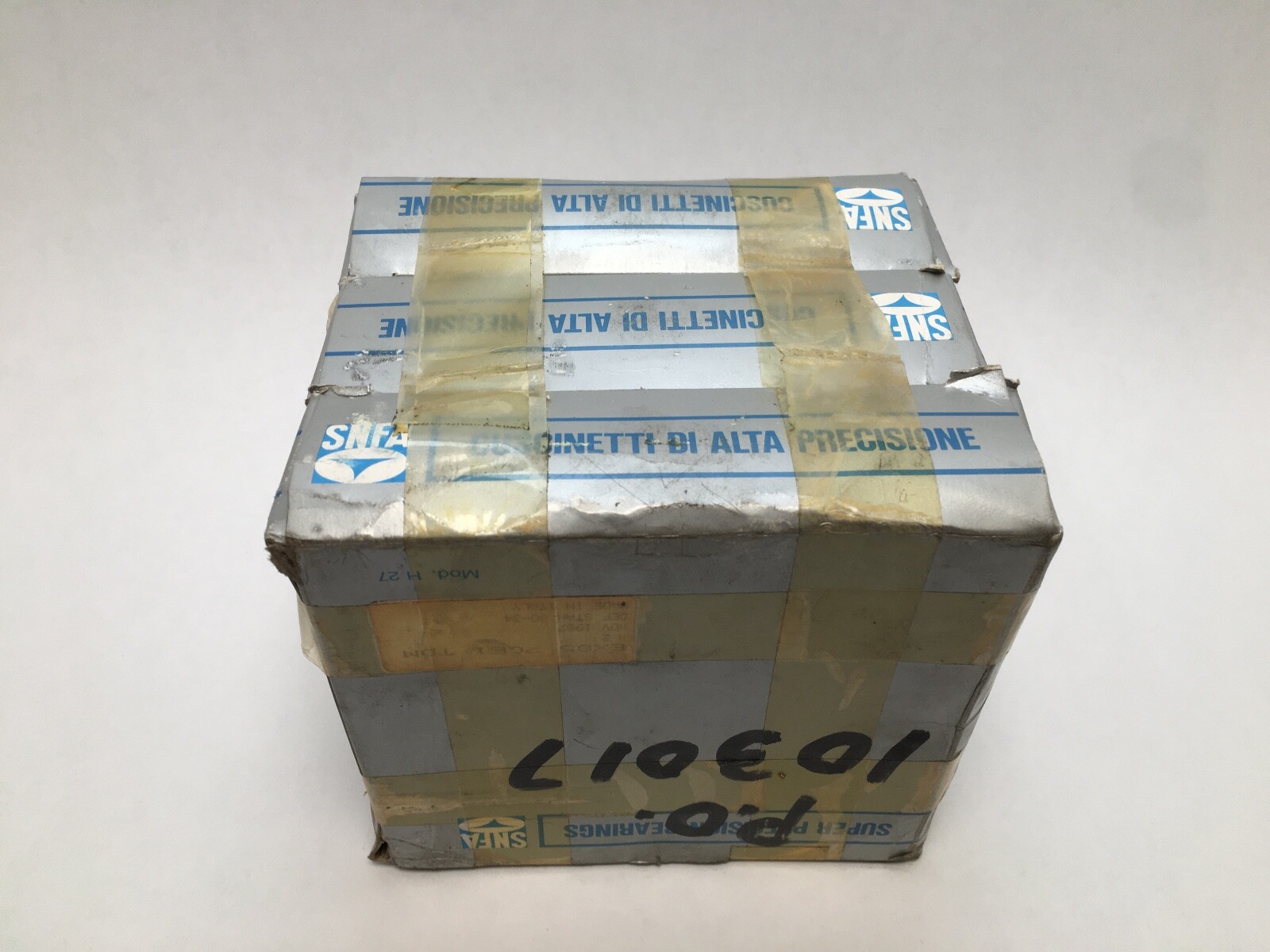

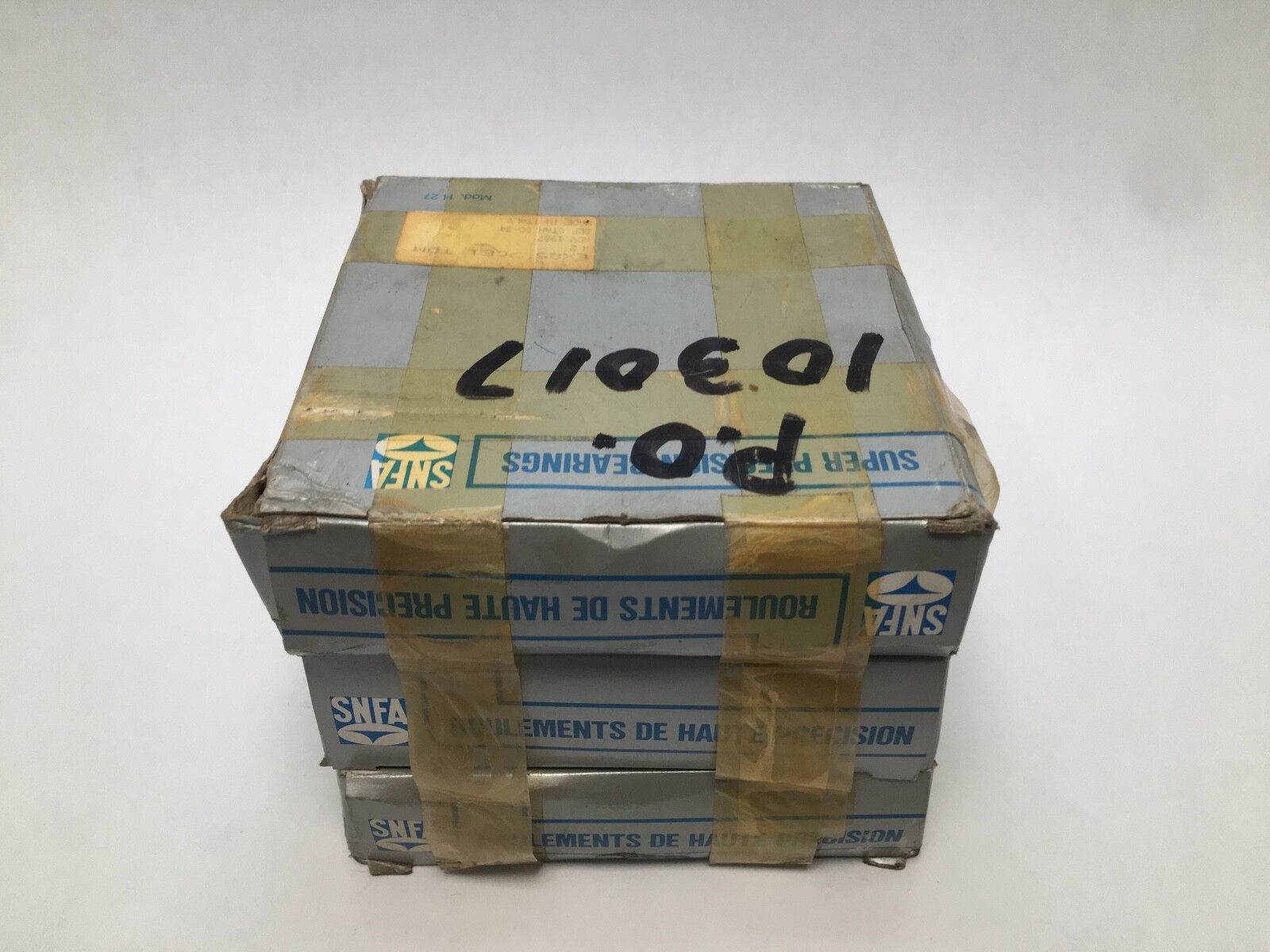

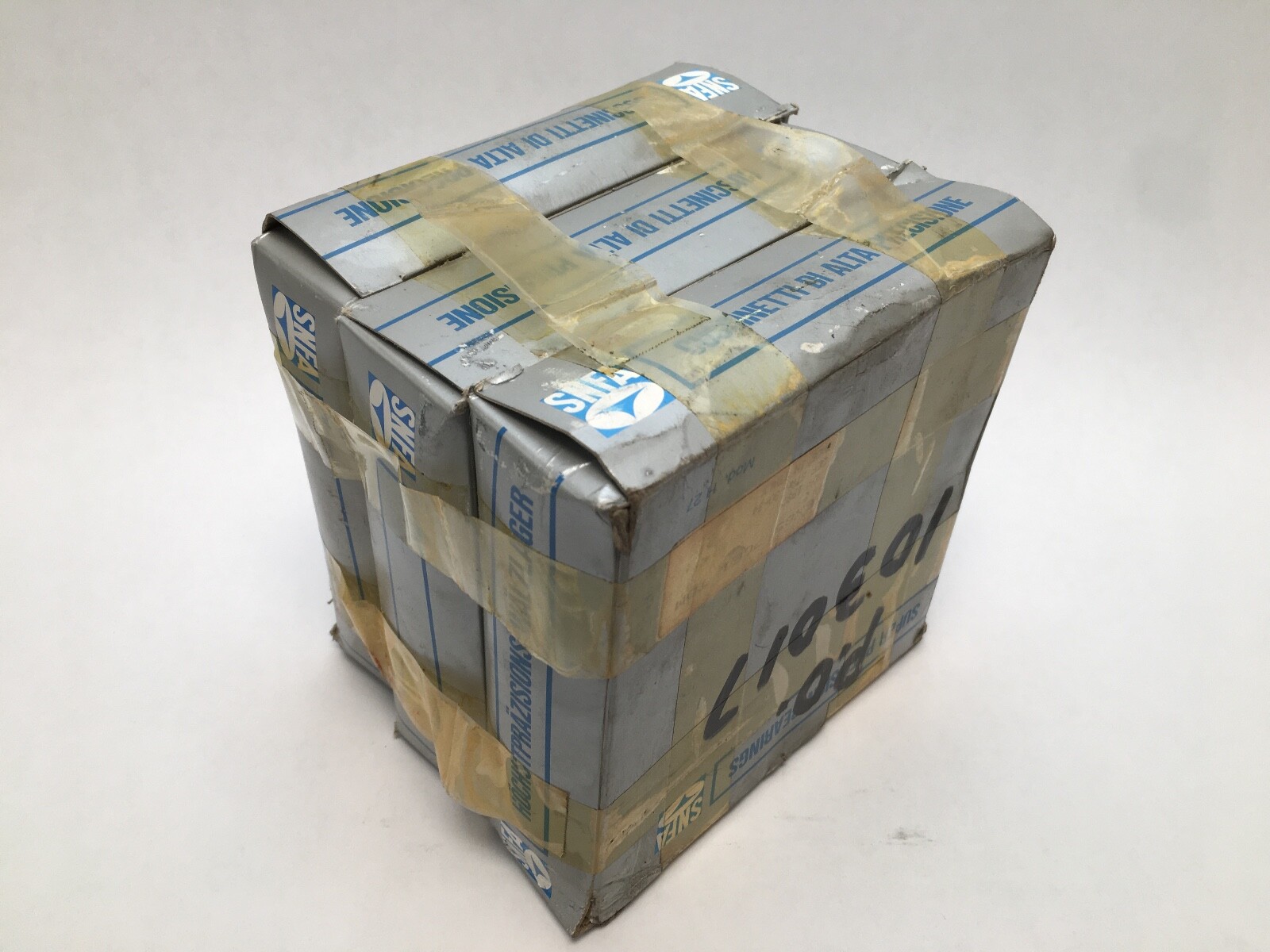

The SNFA EX85-7CE1TDM Bearing is a set of three high-quality Angular Contact Ball Bearings with a bore diameter of 85 mm, outside diameter of 130 mm, and width of 22 mm. Made from durable steel material, these bearings are designed for precision and reliability in industrial automation and motion control systems. Manufactured in the United Kingdom, this specific model is ideal for use in machinery and equipment requiring smooth and efficient power transmission.
$137.64
92 in stock
$137.64
92 in stock
$141.11
255 in stock
