Super-precision angular contact ball bearing, 85 x 130 x 22 mm, 15° contact angle, machined phenolic cage, light preload. Cr 76.0 kN, 16,300 rpm.
List Price
$91.76
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7017CTSULP6 |
| Model | 7017 C T SUL P6 / 2M9117WI CR SUL / B 7017 X2 TA UL EP6 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm (3.3465 in) |
| OD | 130 mm (5.1181 in) |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New – Open box |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 7017 |
| Industry Terms | super precision angular contact bearing, spindle bearing, machine tool bearing, phenolic cage bearing, 15 degree angular contact, ABEC 3 bearing |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes |
| Condition Note | Made In England, New Old Stock |
| Bore Shaft Size | 85 mm (3.3465 in) |
| Mpn Variants | 7017CTSULP6; 7017-C-T-SUL-P6; 7017 C T SUL P6; 7017C; B7017X2TAULEP3; B 7017 X2 TA UL EP3; B7017X2TAULEP6; 2MM9117WICRSUL; 2M9117WI CR SUL |
| Arrangement Configuration | SUL - single universally ground, light preload |
| Precision Class | P6 (RHP EP3, ABEC 3) |
| Min Temp | -30 °C |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | Cr 76.0 kN |
| Static Load Rating | C0r 58.5 kN |
| Precision Rating | P6 (RHP EP3, ABEC 3) |
| Rolling Elements | Steel balls |
| Max Temp | 120 °C |
| Item Weight | 1.98 lbs (0.898 kg) |
| Cage Material | Phenolic (laminated fabric) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A - preloaded universally ground bearing |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° (degrees of arc) |
| Mounting Arrangement | Universally matchable (SUL) |
| Design Units | Metric |
| Bearing Material | Chrome bearing steel |
| Part Number | 7017CTSULP6 |
| Cross Reference 1 | Fafnir 2MM9117WICRSUL |
|---|---|
| Cross Reference 2 | RHP B7017X2TAULEP3 (B-series form of the same bearing) |
| Cross Reference 3 | SKF 7017 CD/P4A (related size, 15°, tighter P4A class) |
| Cross Reference 4 | NSK 7017CTYNSULP4 (related size, polyamide cage, P4 class) |

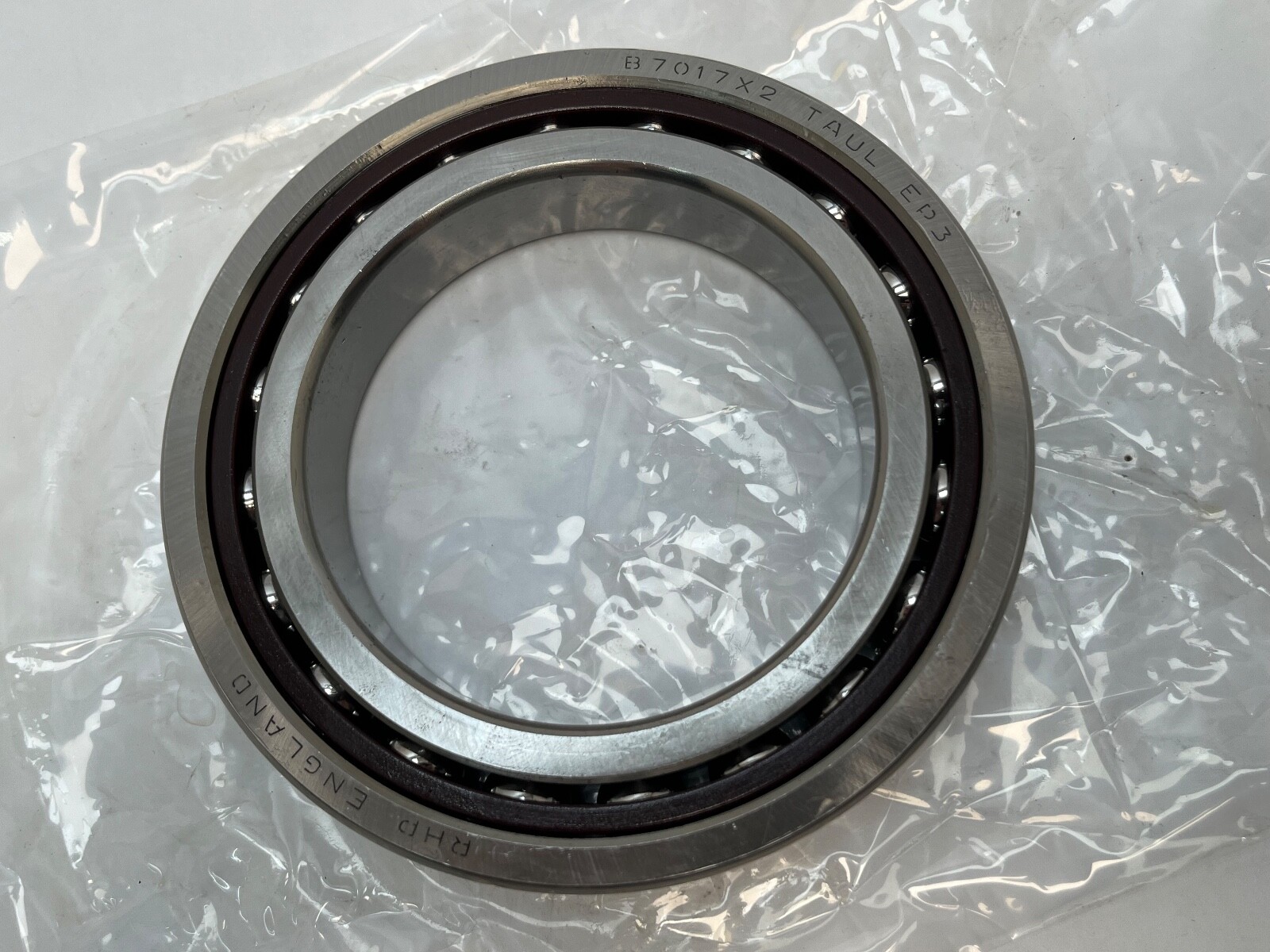

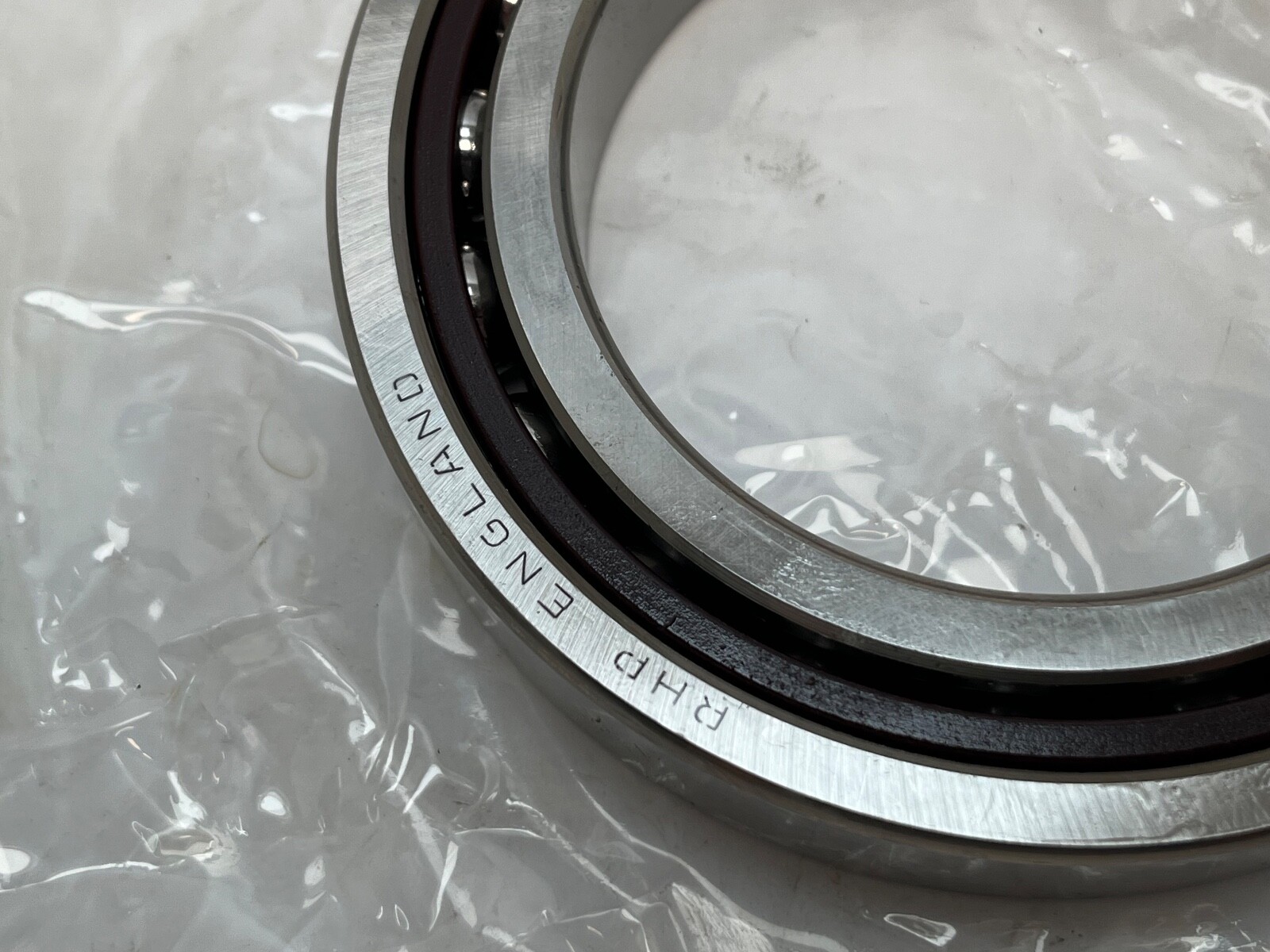

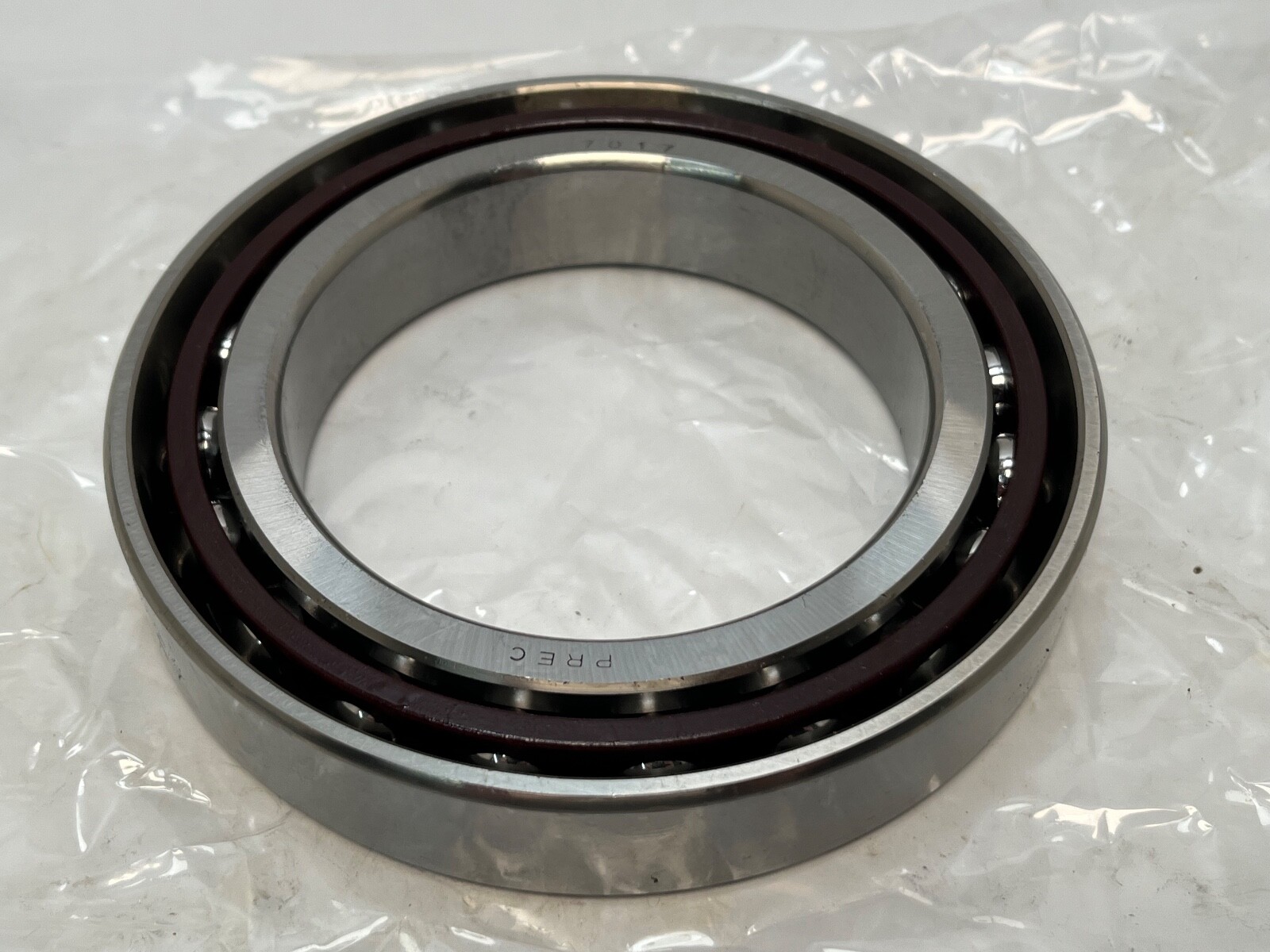

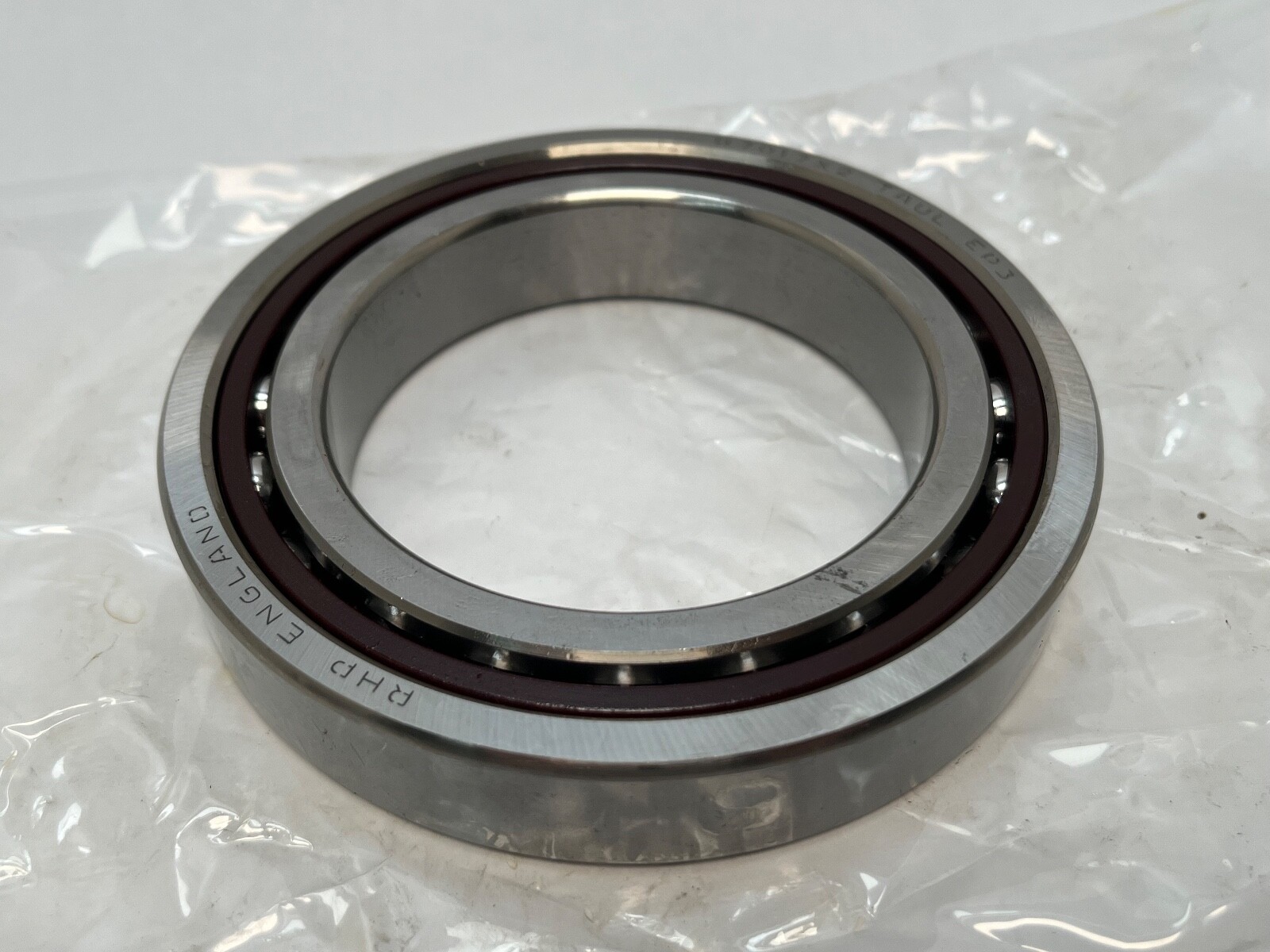

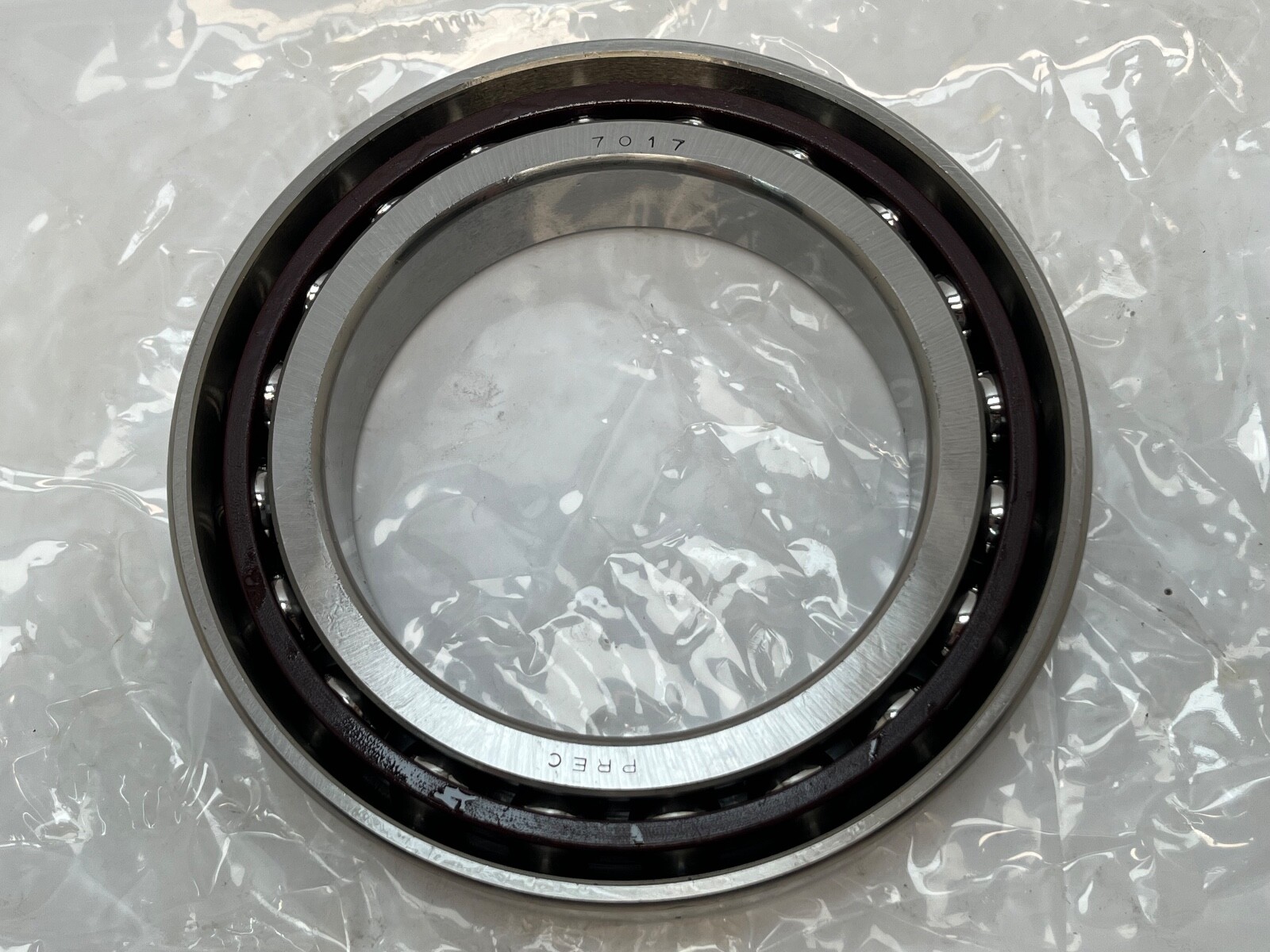

RHP 7017CTSULP6 single-row super-precision angular contact ball bearing. Bore 85 mm, outside diameter 130 mm, width 22 mm. ISO 70 series, size 7017, straight bore, open both faces. RHP is a British maker, now part of NSK. Made in England, new old stock.
Contact Angle: 15°, from the RHP C code. Cage Type: machined, outer-ring guided. Cage Material: laminated phenolic, from T, rated to 120 °C. Grouping: SUL, single universally ground to light preload. Precision Class: P6, equivalent to RHP EP3 and ABEC 3. Series: ISO 70. Base Number: 7017.
Dynamic Load Rating Cr: 76.0 kN. Static Load Rating C0r: 58.5 kN. Limiting speed: 10,700 rpm on grease, 16,300 rpm on oil-air lubrication. Effective load centre a: 25.4 mm. Mass: 0.898 kg.
A 15° contact angle favours speed and radial load over thrust, which is why it is the standard choice for the front position of a high-speed spindle. A machined phenolic cage riding on the outer ring land runs light, damps well and holds up to 120 °C. Light preload removes play without adding much heat. P6 tolerances sit a step below P4 on runout, which suits general precision machine work rather than fine grinding.
One bearing, universally ground to light preload. Universal grinding lets it pair with any other bearing of the same designation back-to-back, face-to-face or in tandem, arriving at the ground preload with no spacer grinding.
Shaft abutment diameter da: 92 mm minimum. Housing abutment diameter Da: 123 mm maximum. Housing fillet radius ra: 1 mm maximum. Chamfer r: 1.1 mm minimum, r1: 0.6 mm minimum.

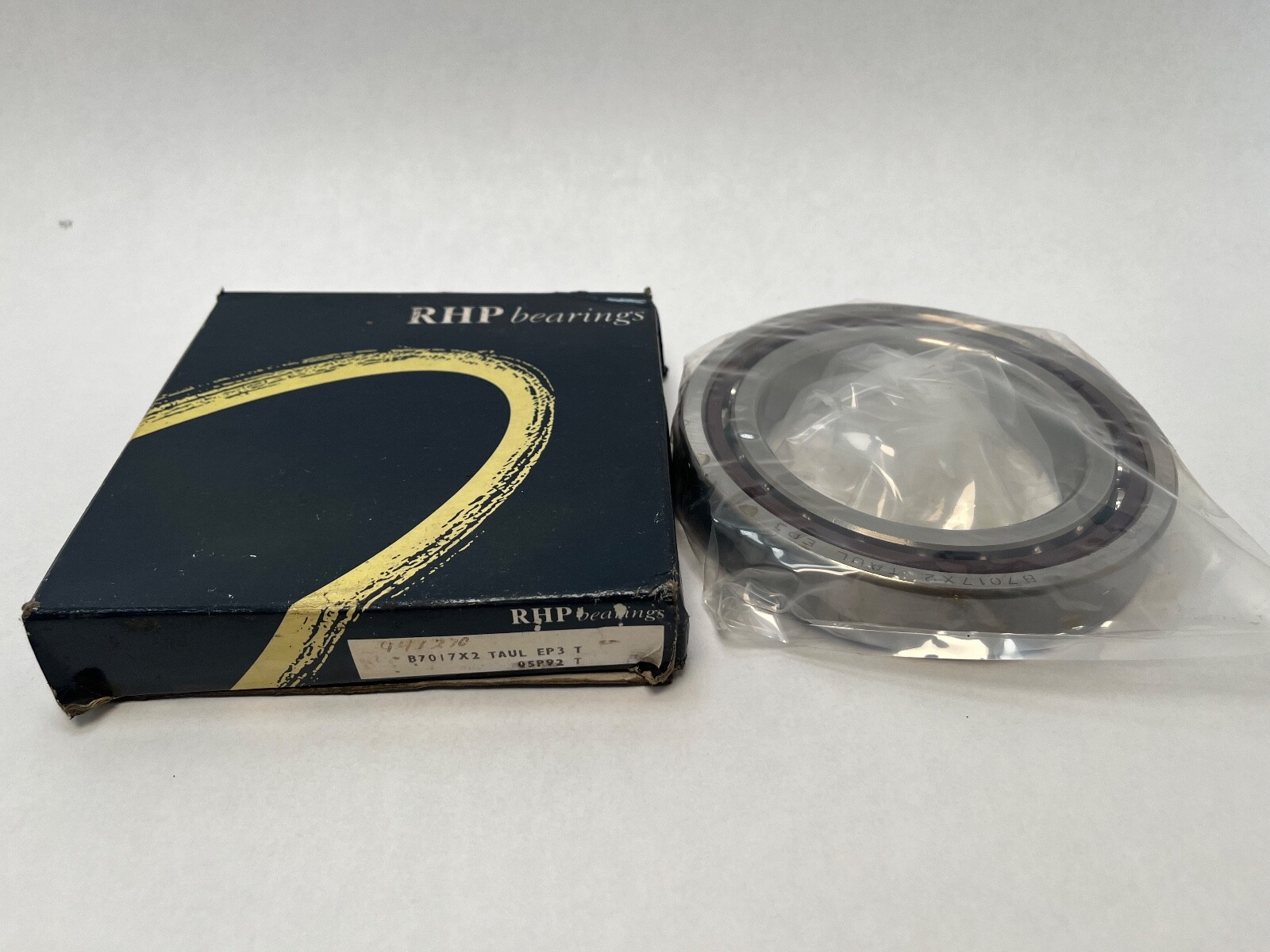

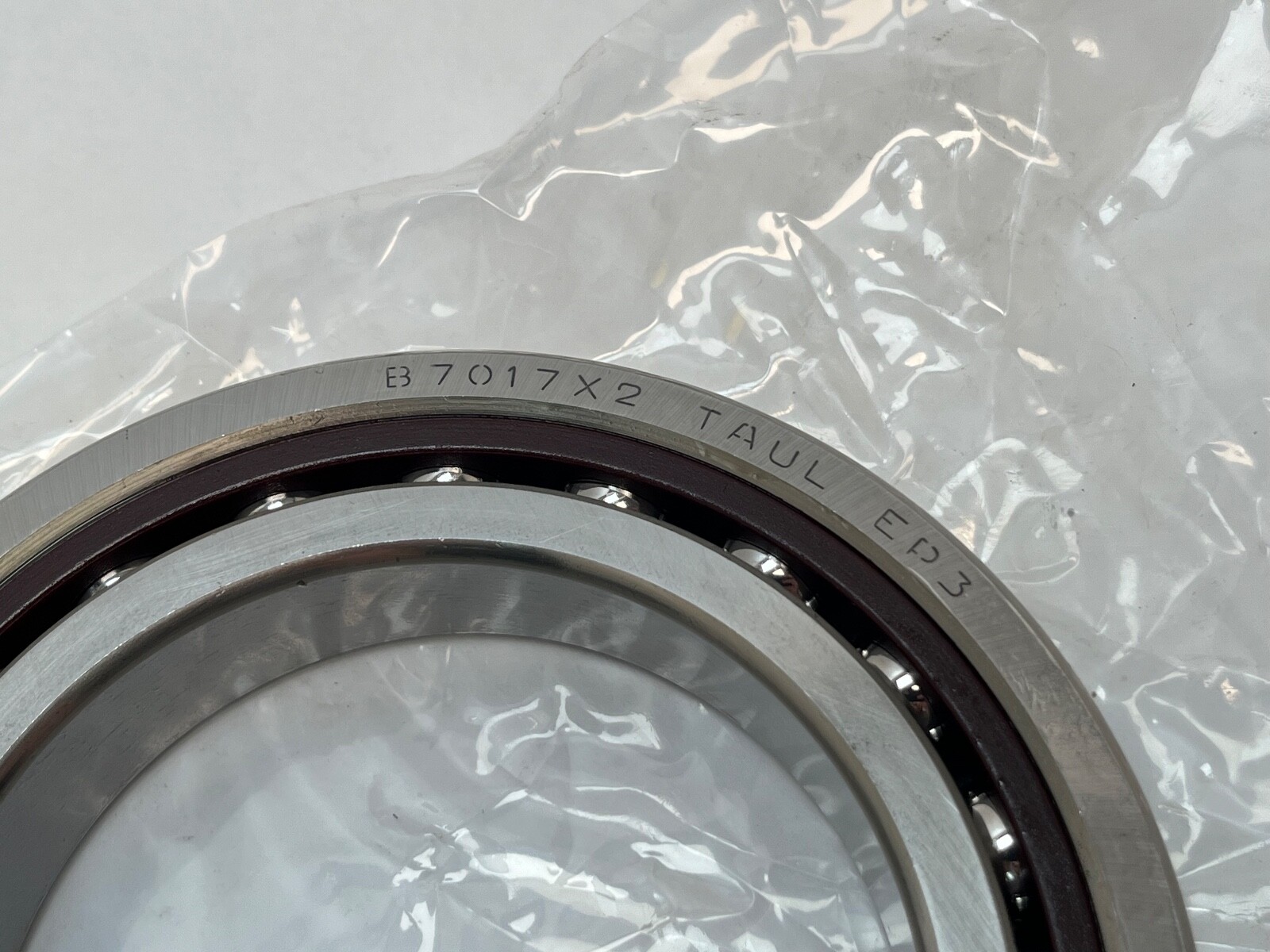

The carton carries three schemes for the same bearing: RHP 7017-C-T-SUL-P6, RHP B-series B7017X2TAULEP3, and the Fafnir cross 2MM9117WICRSUL. All three read 15° and the P6 / EP3 / ABEC 3 class. SKF 7017 CD/P4A and NSK 7017CTYNSULP4 share the envelope and the 15° angle at a tighter class, so they are related sizes.
