Availability:
Out of stock
45 x 75 x 16 mm precision angular contact ball bearing with 15 degree contact angle, light preload, laminated phenolic cage, open, straight bore.
List Price
$93.67
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 45 mm ID, 75 mm OD, 16 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.$51.72
Super Precision Angular Contact Ball Bearing - 45 mm ID, 75 mm OD, 16 mm Width, Open, 25°, Light Preload, ABEC 7.$106.15
Angular Contact Ball Bearing - 45 mm Bore, 75 mm OD, 16 mm Width, Straight Bore, Open, Light Preload, ABEC 7, Laminated Phenolic Cage, Universal Grind$106.81
Super-Precision Spindle Angular Contact Ball Bearing Duplex Pair - 45 mm Bore, 75 mm OD, 16 mm Width, 15 Degree Contact Angle, Light Preload, Phenolic Cage, ABEC 7, Open$183.01| MFR / Brand | RHP |
|---|---|
| Model | 7009 C TB SUL P6 / B 7009 X2 T UL EP3 / 2M9109WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Lubricant | Grease or oil |
| Base Number | 7009 |
| Overall Width | 16 mm |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7009C; 7009-C-T-SUL-P6; B7009X2TULEP3 |
| Precision Class | P6 |
| Additional Attributes | Chamfer r min 1.0 mm; chamfer r1 min 0.6 mm; abutment d1 min 51 mm; abutment D1 max 69 mm; abutment D2 max 70 mm; effective load centre a 16.0 mm; internal volume 11.2 cm3; lubrication-jet pitch circle diameter dT 55.6 mm |
| Cage Type | Laminated |
| Dynamic Load Rating | 24.4 kN (24,400 N) |
| Static Load Rating | 19.3 kN (19,300 N) |
| Precision Rating | ABEC 3 / RHP EP3 |
| Rolling Elements | Ball |
| Item Weight | 0.238 kg |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Design Units | Metric |
| Part Number | 7009CTSULP6 |

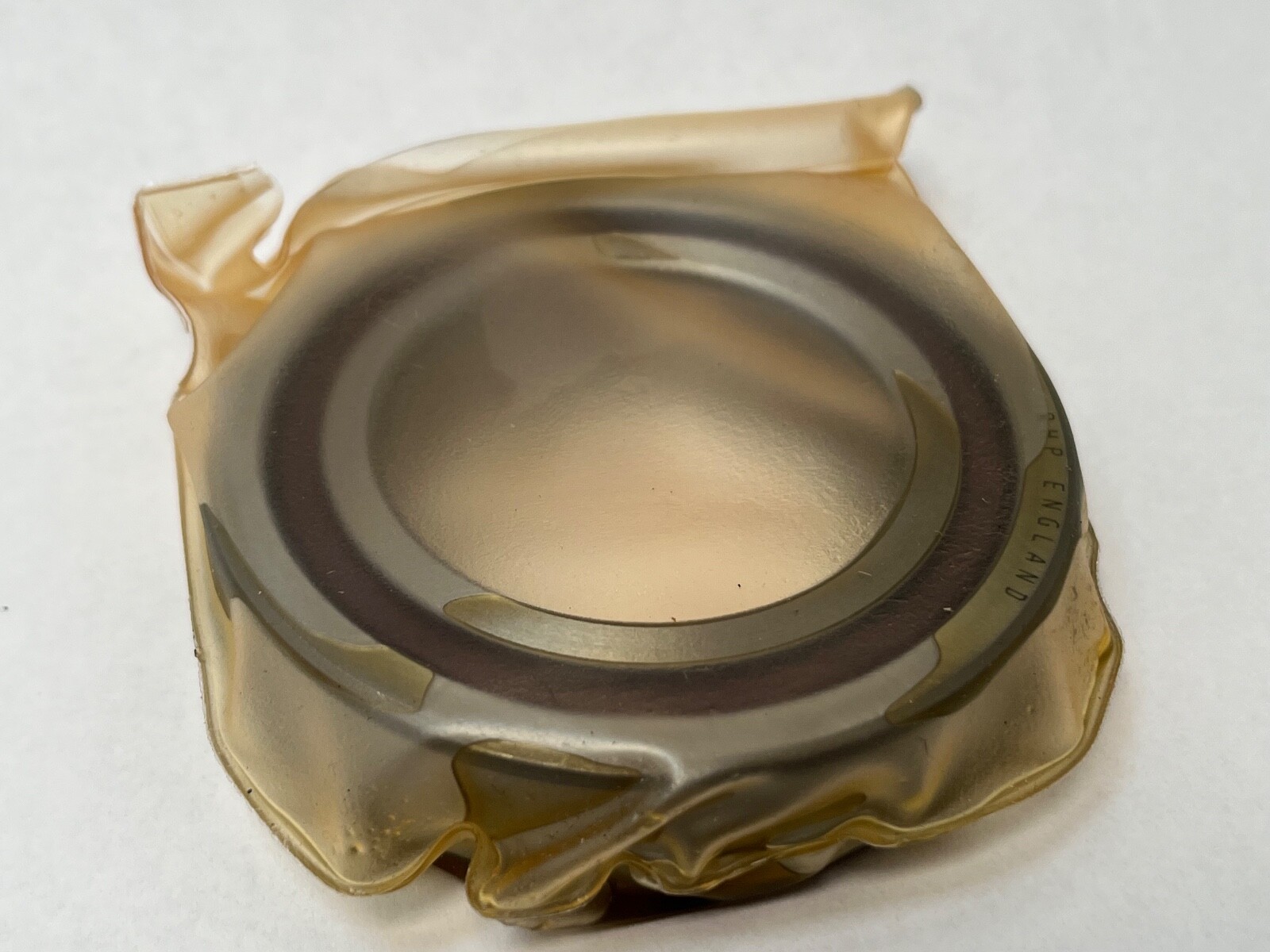

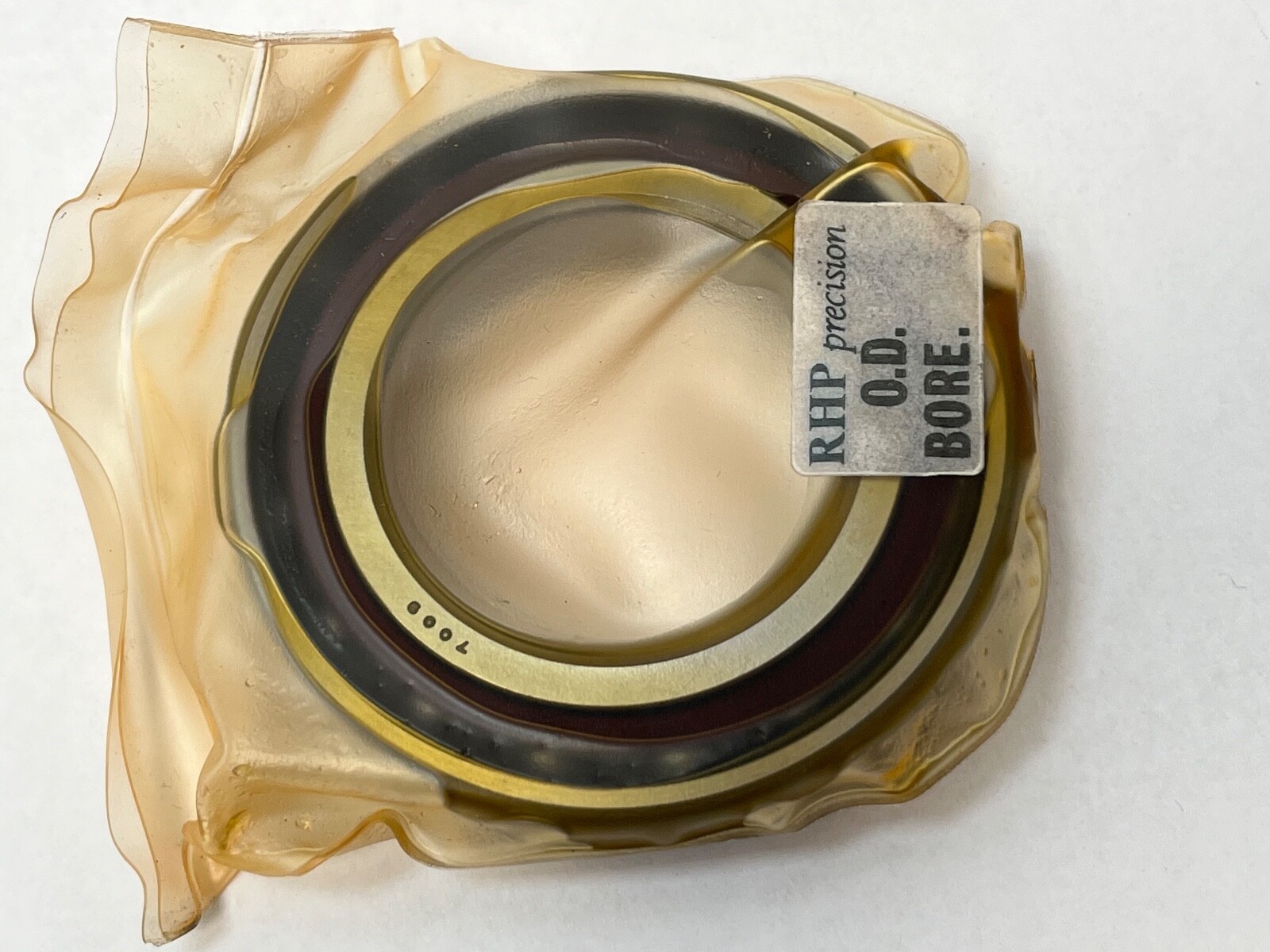

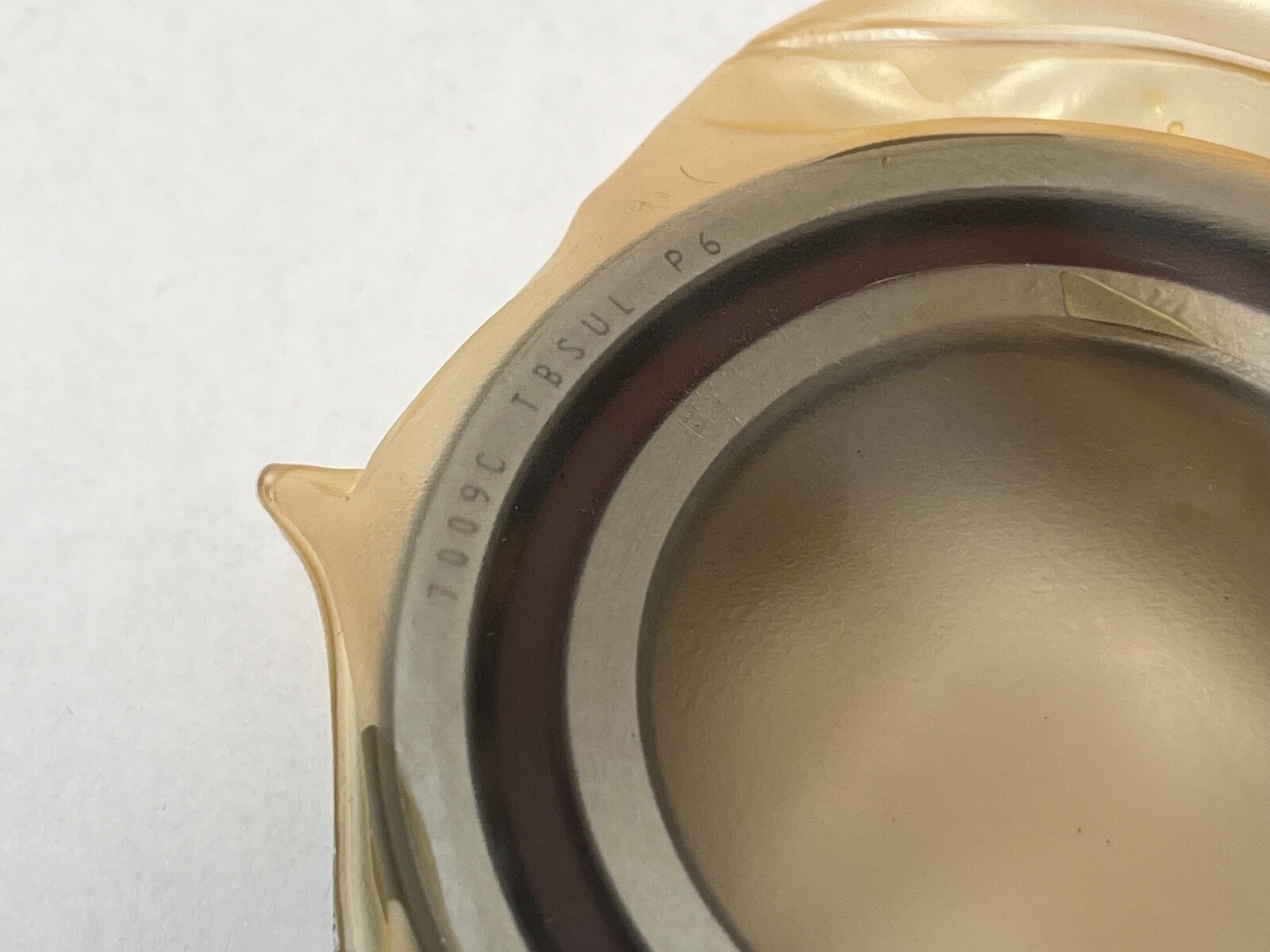

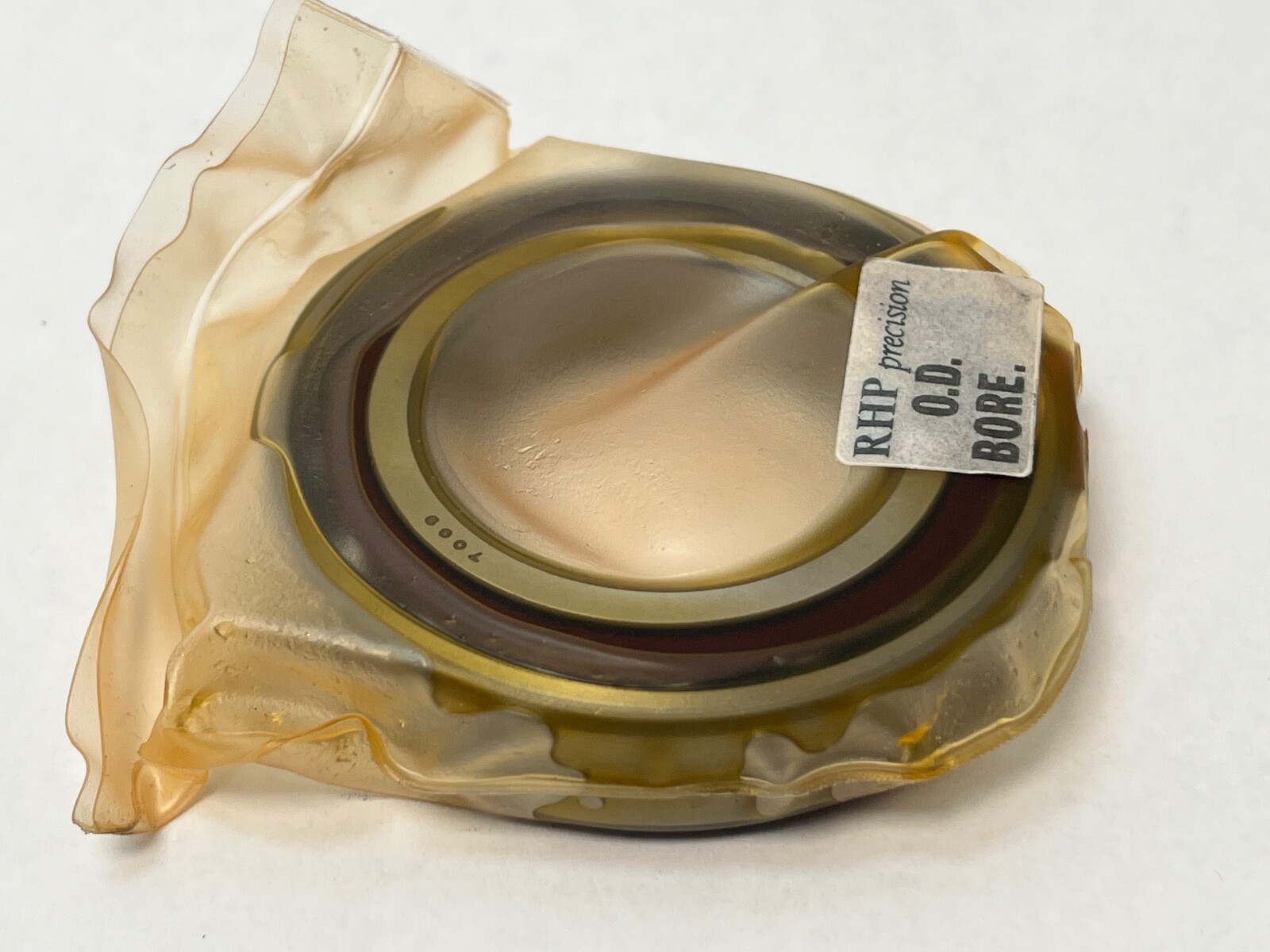

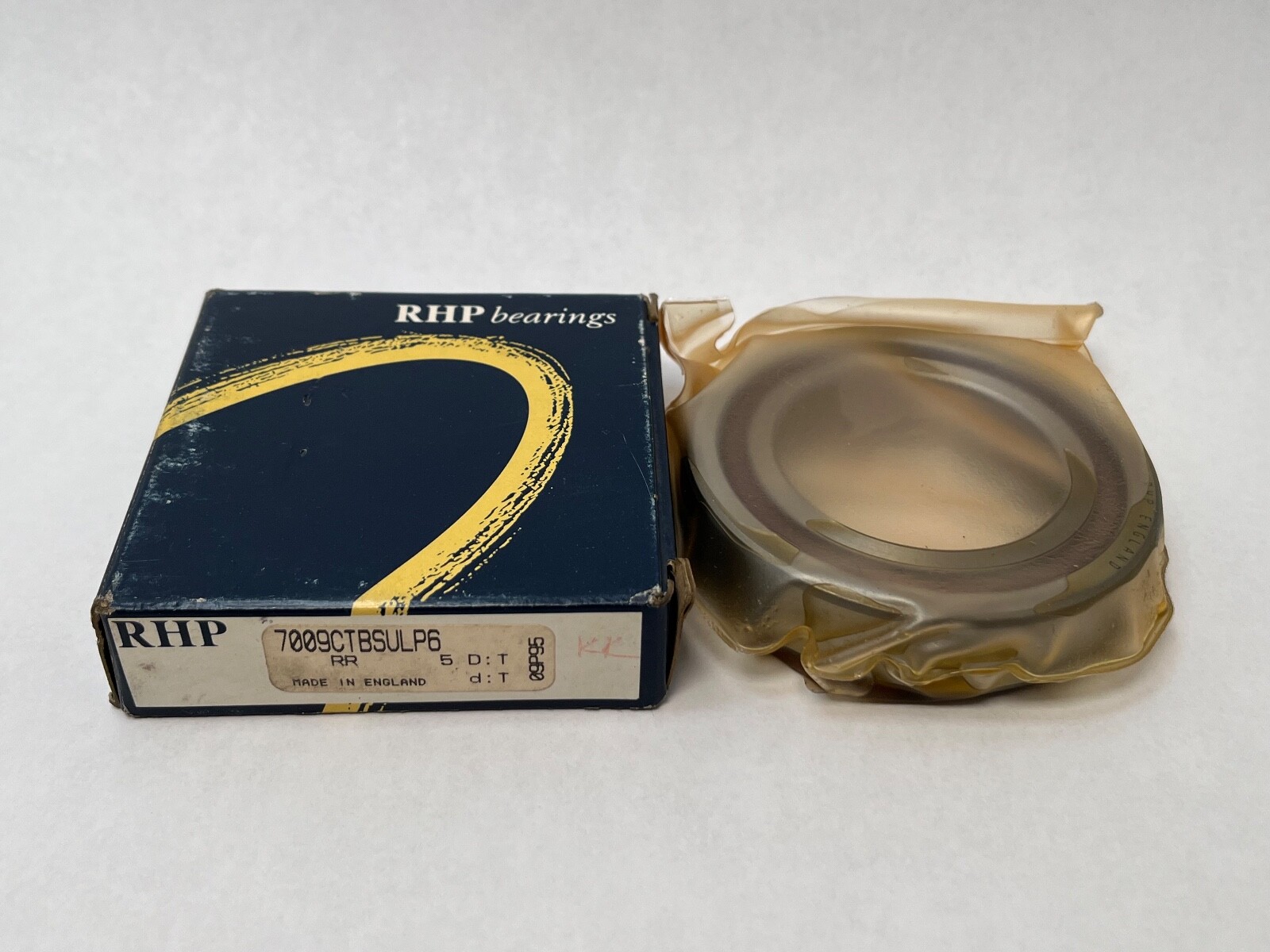

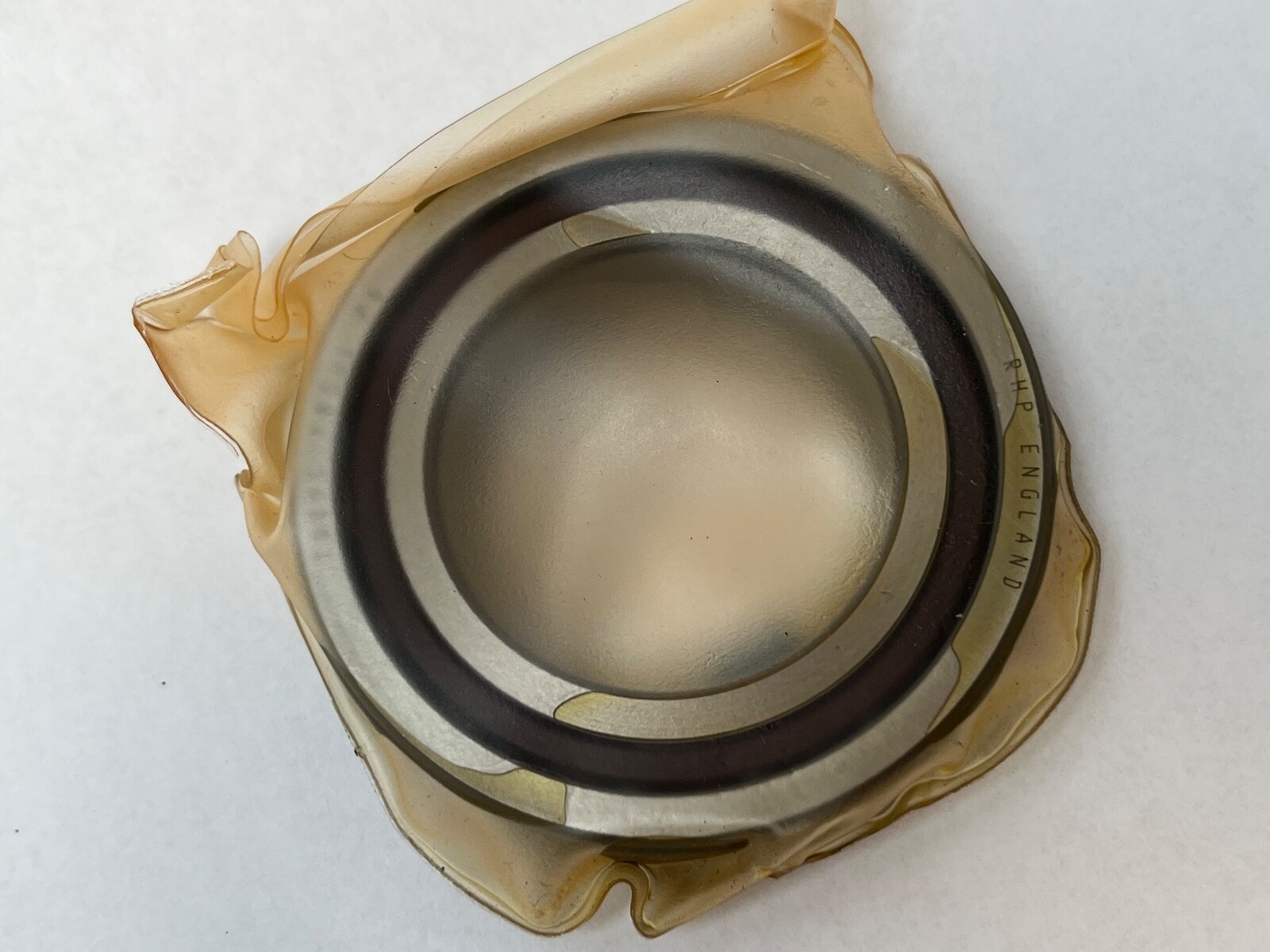

The RHP 7009CTSULP6 is a precision single-row angular contact ball bearing. Bore / Shaft Size: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Snap ring included: No.
70 / 7009 — the ISO 7009 size in dimension series 10, 45 x 75 x 16 mm.
C — 15° contact angle.
T — laminated phenolic cage.
SU — single universal face control, so it stacks with another of the same designation in any orientation.
L — light preload.
P6 — RHP EP3, ISO Class 6, ABEC 3.
Contact Angle: 15°. Dynamic load rating: Cr 24,400 N, 24.4 kN. Static load rating: C0r 19,300 N, 19.3 kN. Precision Class: P6. Precision rating: ABEC 3 / RHP EP3. Preload: Light (L). Cage Material: Phenolic. Cage Type: Laminated. Material: High Carbon Chrome Steel. Lubricant: Grease or oil. Design Units: Metric. Series: 7000. Item weight: 0.238 kg. Internal volume: 11.2 cm³. The 15° angle favours radial stiffness and speed, and the laminated phenolic cage runs quietly and carries oil in its surface.
Chamfer r min: 1.0 mm. Chamfer r1 min: 0.6 mm. Abutment d1 min: 51 mm. Abutment D1 max: 69 mm. Abutment D2 max: 70 mm. Effective load centre a: 16.0 mm. Lubrication-jet pitch circle diameter dT: 55.6 mm.
Unit Quantity: 1 Pc. Single universal face control, so the bearing runs alone and also stacks directly with a like designation back-to-back, face-to-face or in tandem at light preload.
MPN Variants: 7009C, 7009-C-T-SUL-P6, B7009X2TULEP3. Part Number: 7009CTSULP6. Base Number: 7009. These forms all describe the same ISO 7009 boundary dimensions in dimension series 10 with a 15° contact angle, laminated phenolic cage, single universal face control and light preload at ABEC 3.
$137.64
92 in stock
