Availability:
2 in stock
Super precision angular contact ball bearing, 45 x 75 x 16 mm, 25° contact angle, open, matched duplex pair at light preload, phenolic cage, ABEC 7.
List Price
$106.15
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| Model | 7009 E T DUL P4 / B 7009 X3 TA DUL EP7 / 3MM9109WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Source | RHP, Applied |
|---|---|
| Material | Bearing Steel |
| Series | 7000 |
| Condition | New |
| Lubricant | Grease or oil |
| Preload | Light (200 N axial, paired) |
| Base Number | 7009 |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7009ETDULP4 / 7009-E-T-DUL-P4 / 7009 E T DUL P4 / B7009X3TAULEP7 / B7009X3TADULEP7 / 3MM9109WICRDUL |
| Arrangement Configuration | DUL — universal matched duplex pair, light preload |
| Precision Class | P4 |
| Dynamic Load Rating C1 | 23.1 kN |
| Additional Attributes | Inner ring abutment diameter 51 mm min; outer ring abutment diameter 69 mm max; housing abutment diameter 70 mm max; fillet radius r min 1.0 mm; fillet radius r1 min 0.6 mm; internal volume 11.2 cm3; effective load centre 22.0 mm; axial preload 200 N paired; axial stiffness 132 N/micrometre paired |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 23.1 kN |
| Static Load Rating | 18.3 kN |
| Precision Rating | P4 (ABEC 7, ISO Class 4) |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.238 kg (0.52 lb) per bearing |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 26800 (oil / oil-air); 16500 (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal — back-to-back, face-to-face or tandem |
| Design Units | Metric |
| Bearing Material | Carbon chrome bearing steel (SAE 52100) |
| Part Number | 7009ETDULP4 |
| Cross Reference 1 | SKF 7009 ACD/P4ADGA |
|---|---|
| Cross Reference 2 | Fafnir 3MM9109WI CR DUL |

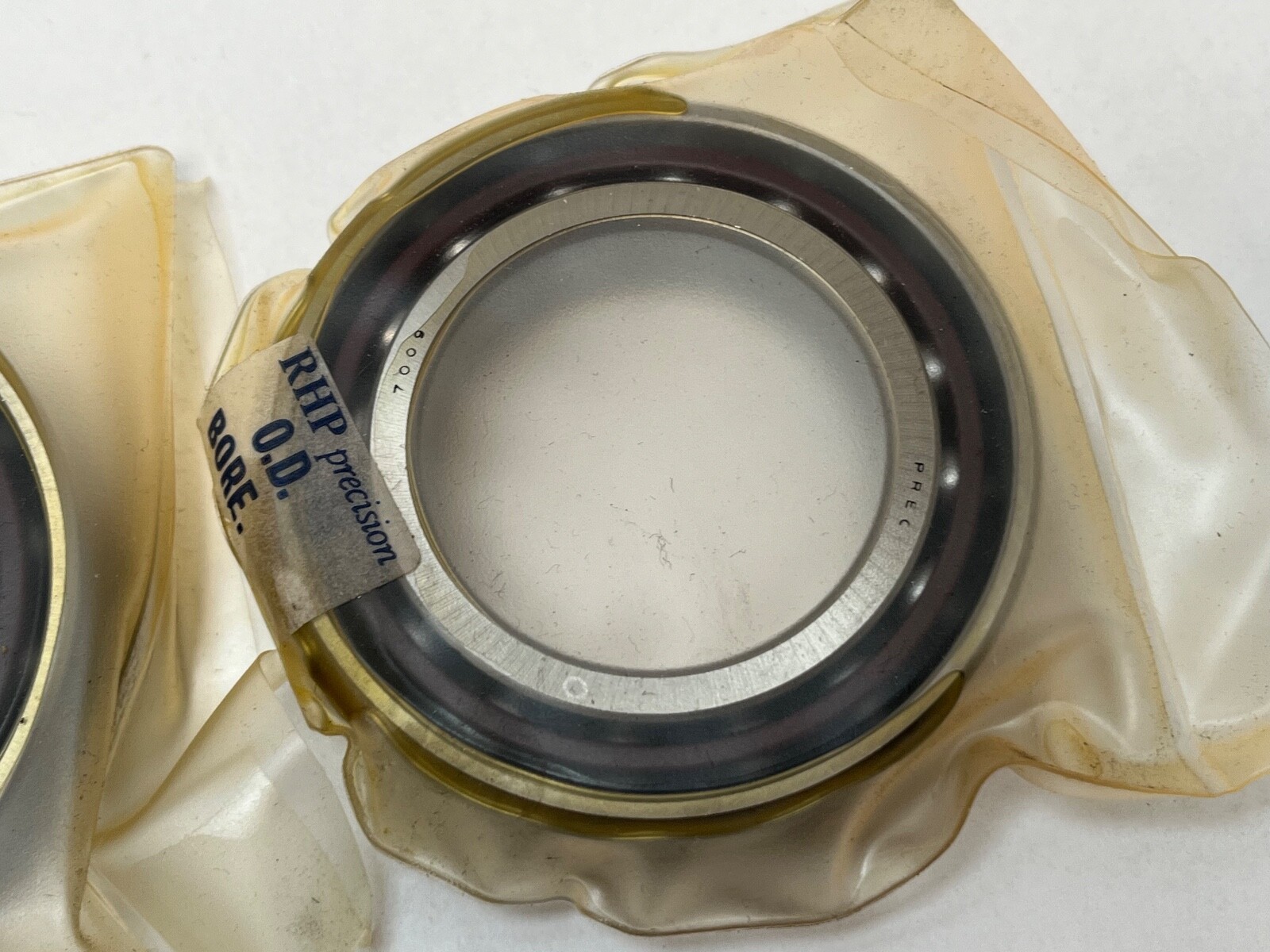

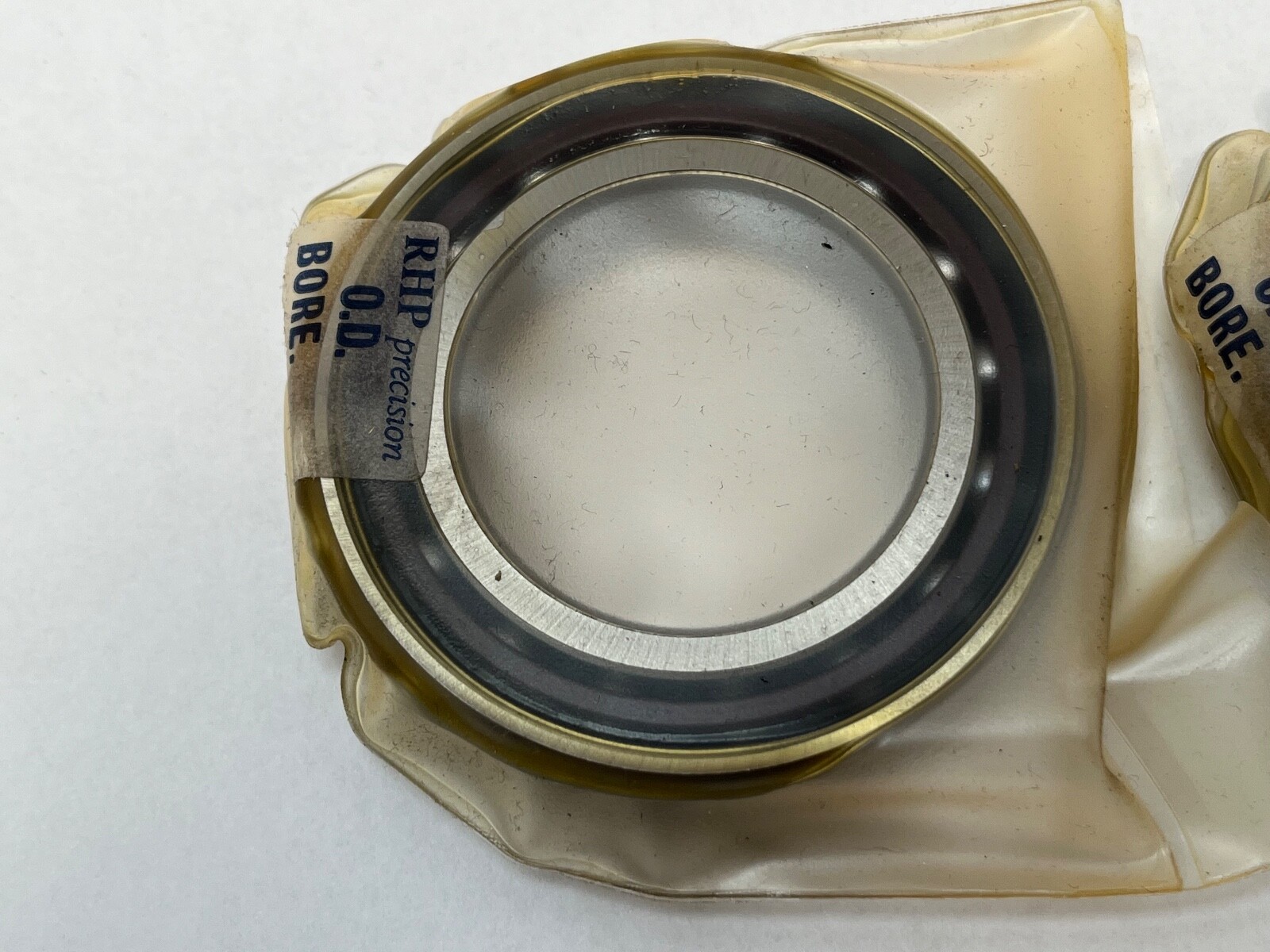

RHP 7009ETDULP4 super precision angular contact ball bearing, ISO dimension series 10, supplied as a matched duplex pair. Bore: 45 mm. Outside Diameter: 75 mm. Width: 16 mm. Contact Angle: 25°. Number of Rows: 1 per bearing. Rolling Elements: steel balls. Bearing Material: carbon chrome bearing steel to SAE 52100. Bore Type: straight. Closure Type: open. Snap Ring Included: No.
Series: 7000, ISO dimension series 10. Base Number: 7009. Contact Angle: 25°, the RHP E execution, catalogued as A5. Cage Material: laminated phenolic resin. Cage Type: machined, outer-ring guided. Grouping: DU, a paired unit. Preload: light. Precision Grade: P4, equivalent to ABEC 7 and ISO Class 4.
Dynamic Load Rating: 23.1 kN. Static Load Rating: 18.3 kN. Limiting Speed, oil or oil-air lubrication: 26,800 rpm. Limiting Speed, grease lubrication: 16,500 rpm. Both speed figures are single-bearing values; a back-to-back pair at light preload runs at 0.80 of the tabulated speed.
Preload: light. Axial Preload: 200 N paired. Axial Stiffness: 132 N per micrometre paired. Effective Load Centre: 22.0 mm. Maximum Operating Temperature: 120°C, set by the laminated phenolic cage. Lubricant: grease or oil.
Inner Ring Abutment Diameter: 51 mm minimum. Outer Ring Abutment Diameter: 69 mm maximum. Housing Abutment Diameter: 70 mm maximum. Fillet Radius r min: 1.0 mm. Fillet Radius r1 min: 0.6 mm. Internal Volume: 11.2 cm³. Mass: 0.238 kg per bearing.

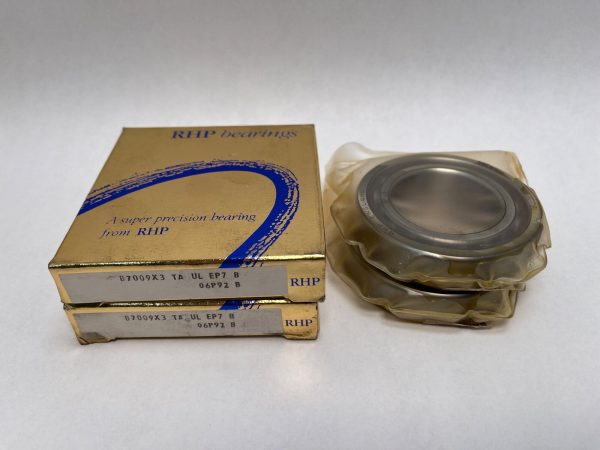

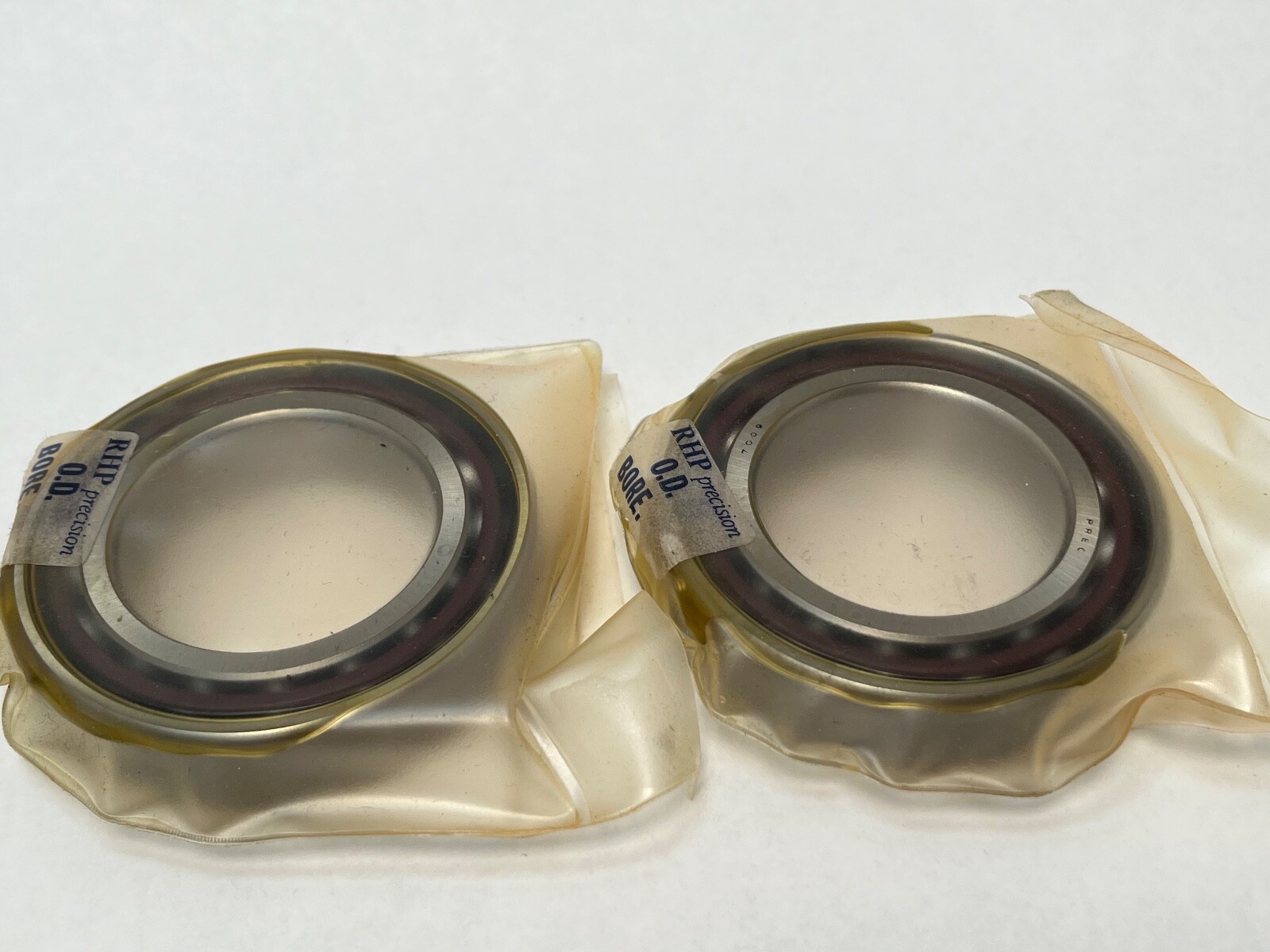

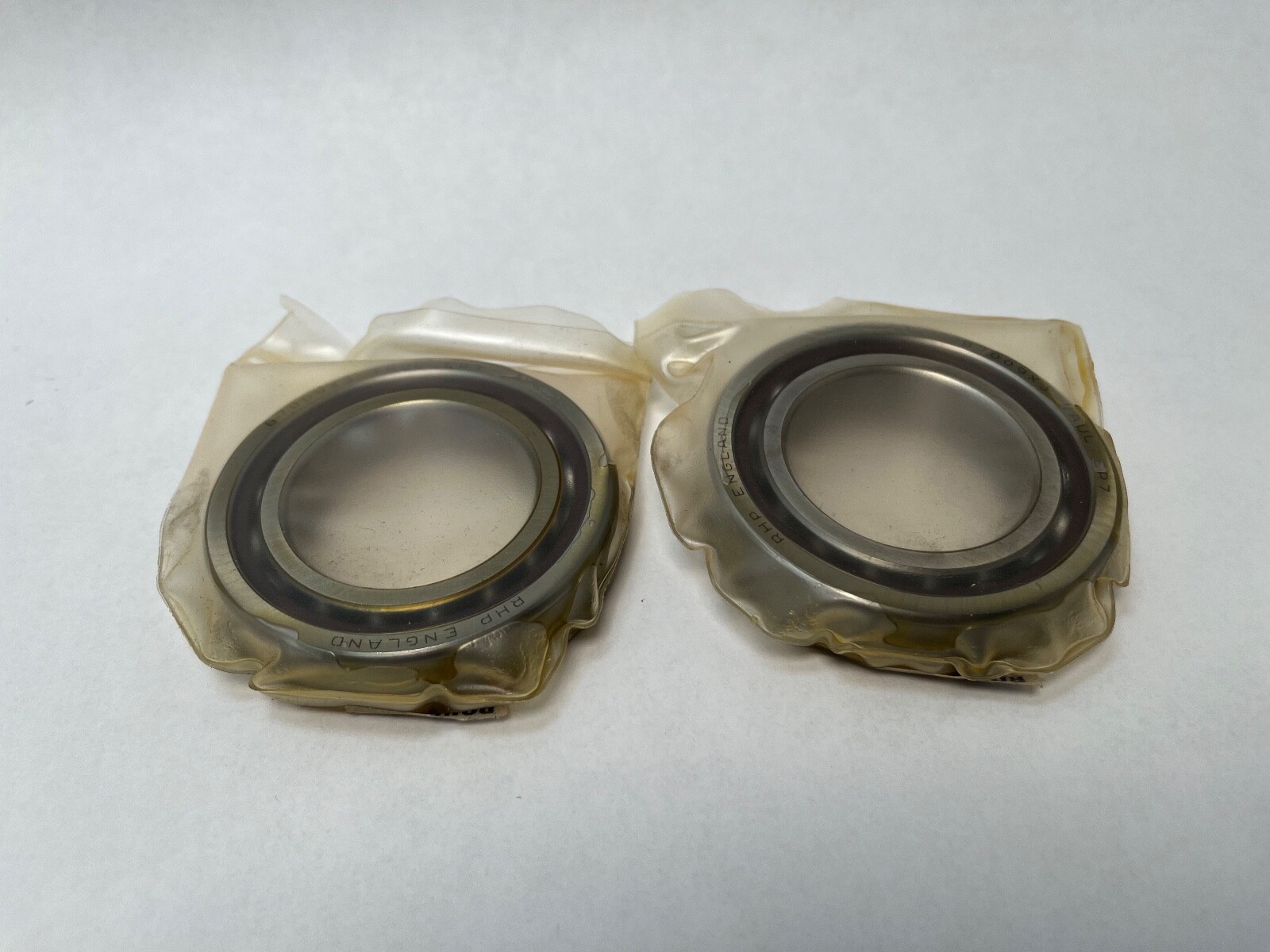

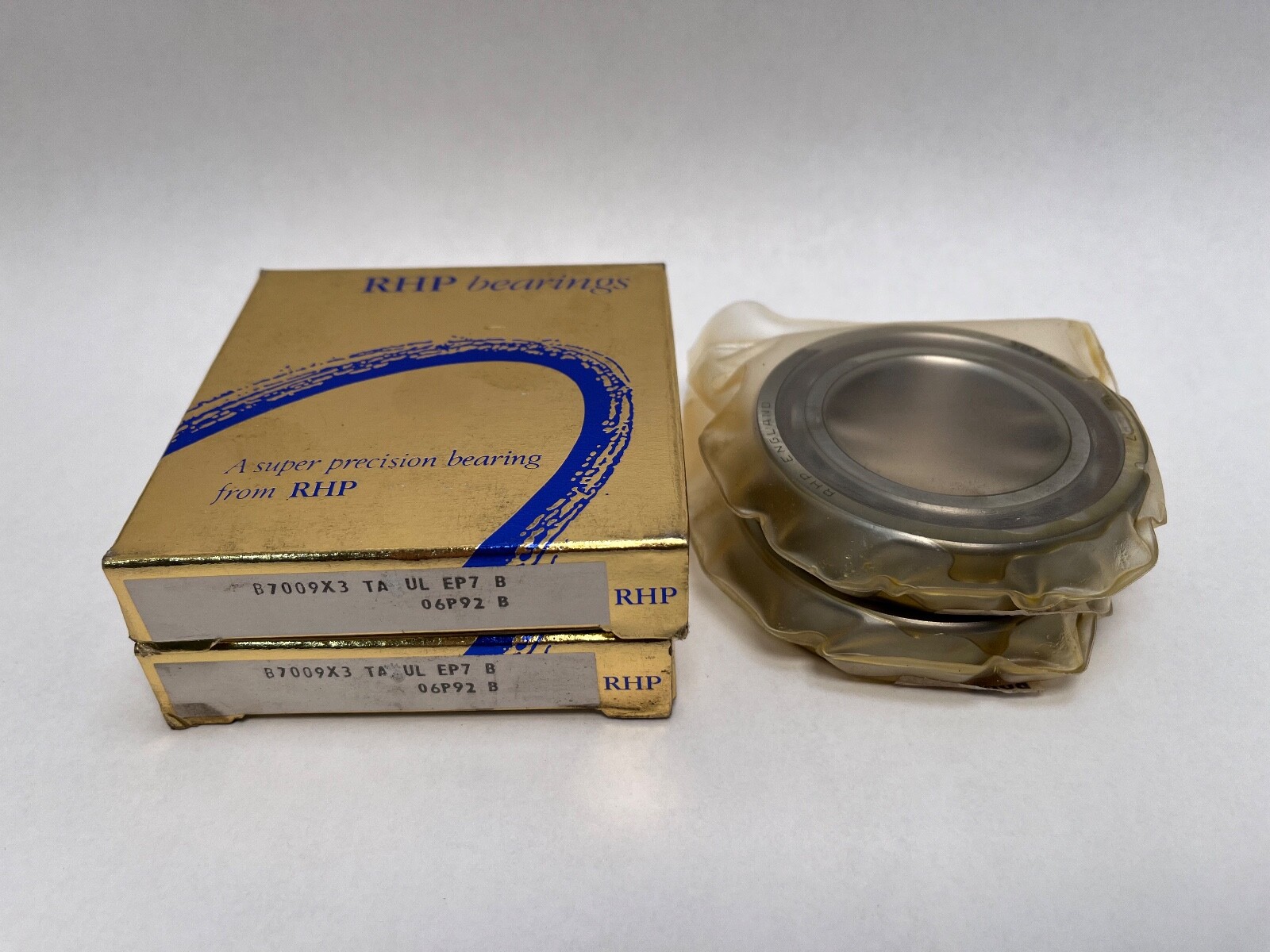

Unit Quantity: 2 Pcs, one matched duplex pair. Arrangement / Configuration: DUL, universal matched duplex pair at light preload. Mounting Arrangement: universal — back-to-back, face-to-face or tandem.
Searchable forms of the number: 7009ETDULP4, 7009-E-T-DUL-P4, 7009 E T DUL P4, B7009X3TAULEP7, B7009X3TADULEP7, 3MM9109WICRDUL.

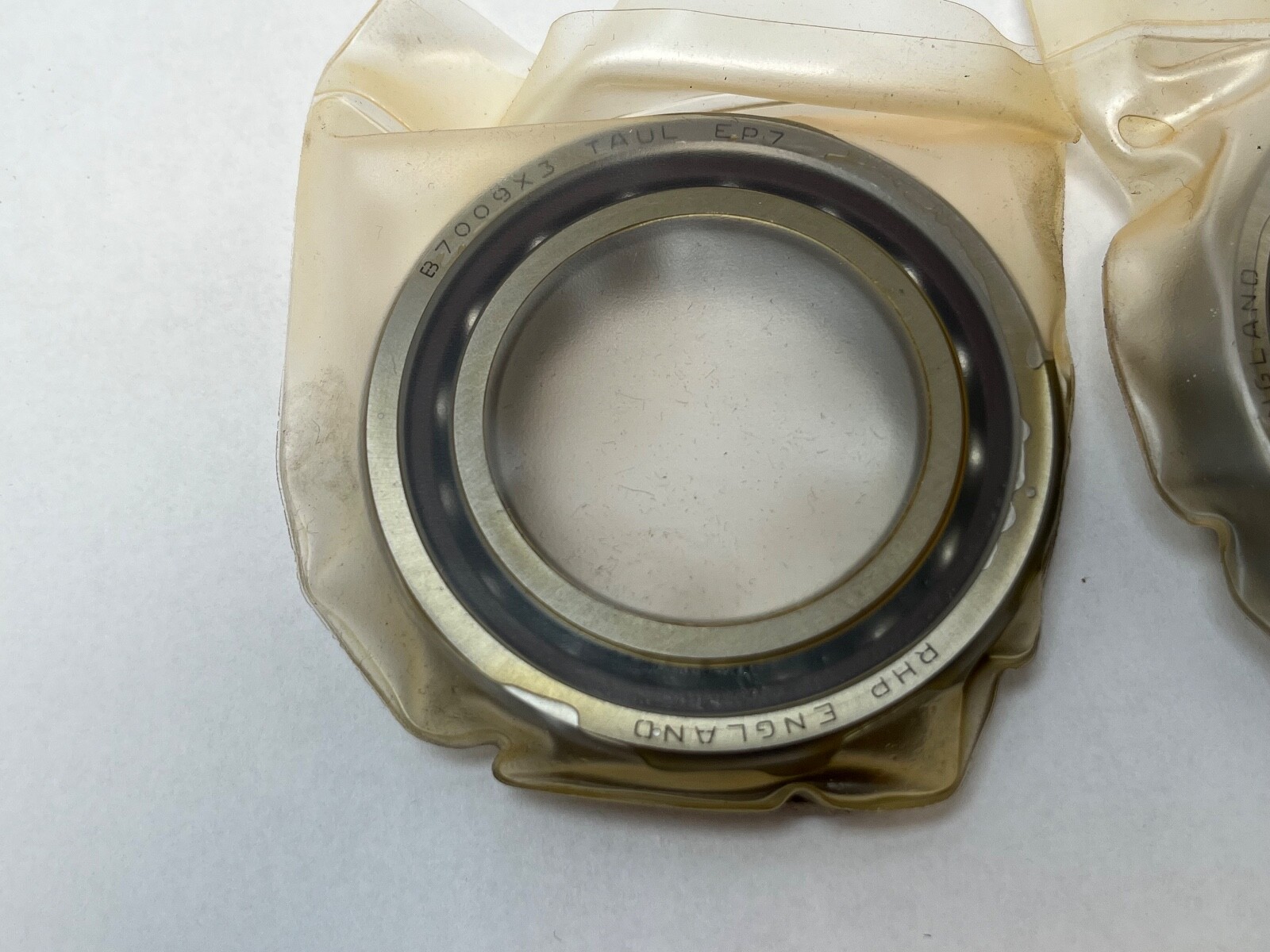

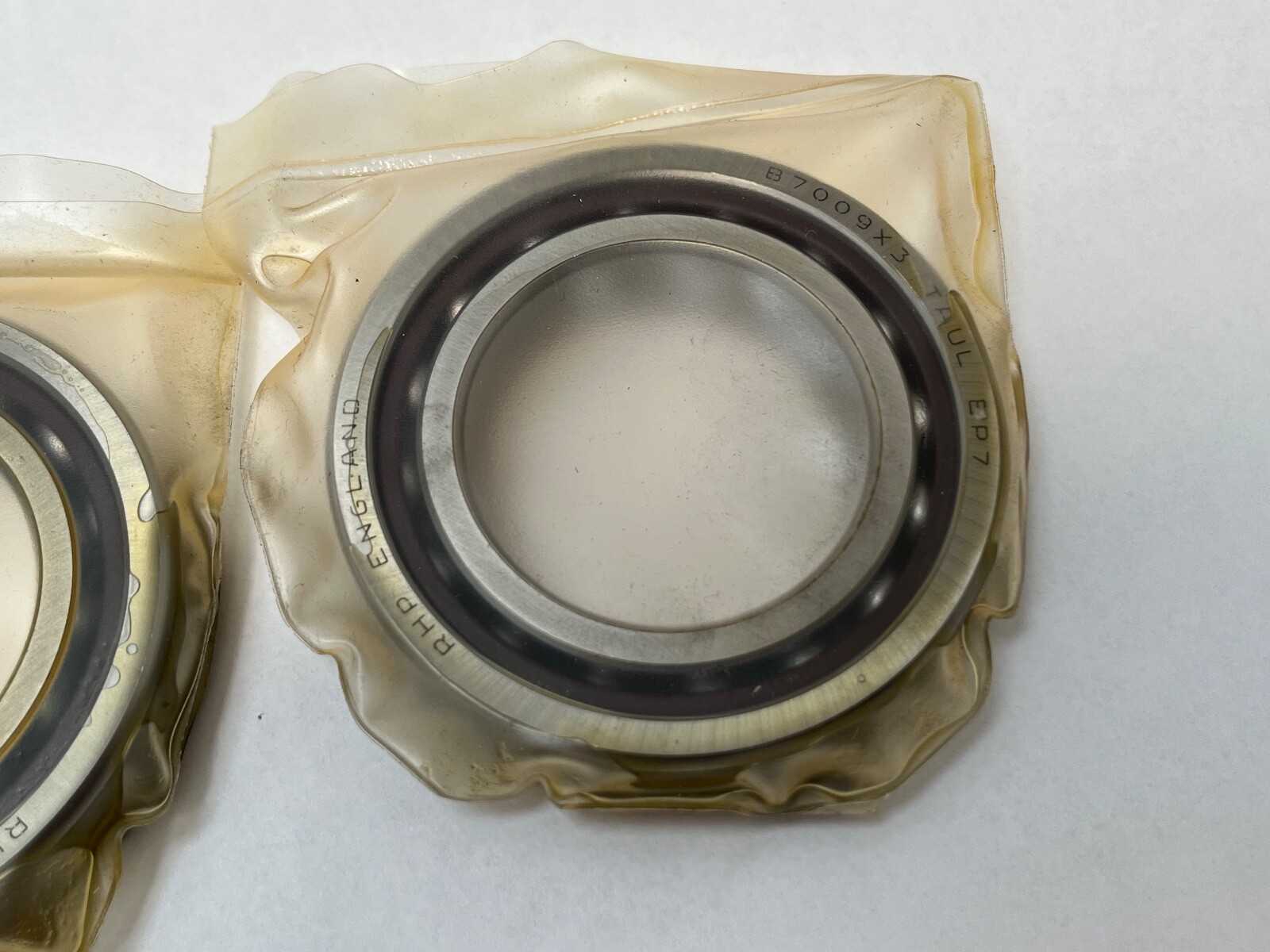

Cross-Reference: SKF 7009 ACD/P4ADGA. The RHP B-series form is B7009X3TAULEP7 and the Fafnir cross is 3MM9109WICRDUL. The 7009C shares the 45 x 75 x 16 mm envelope at a 15° contact angle.
