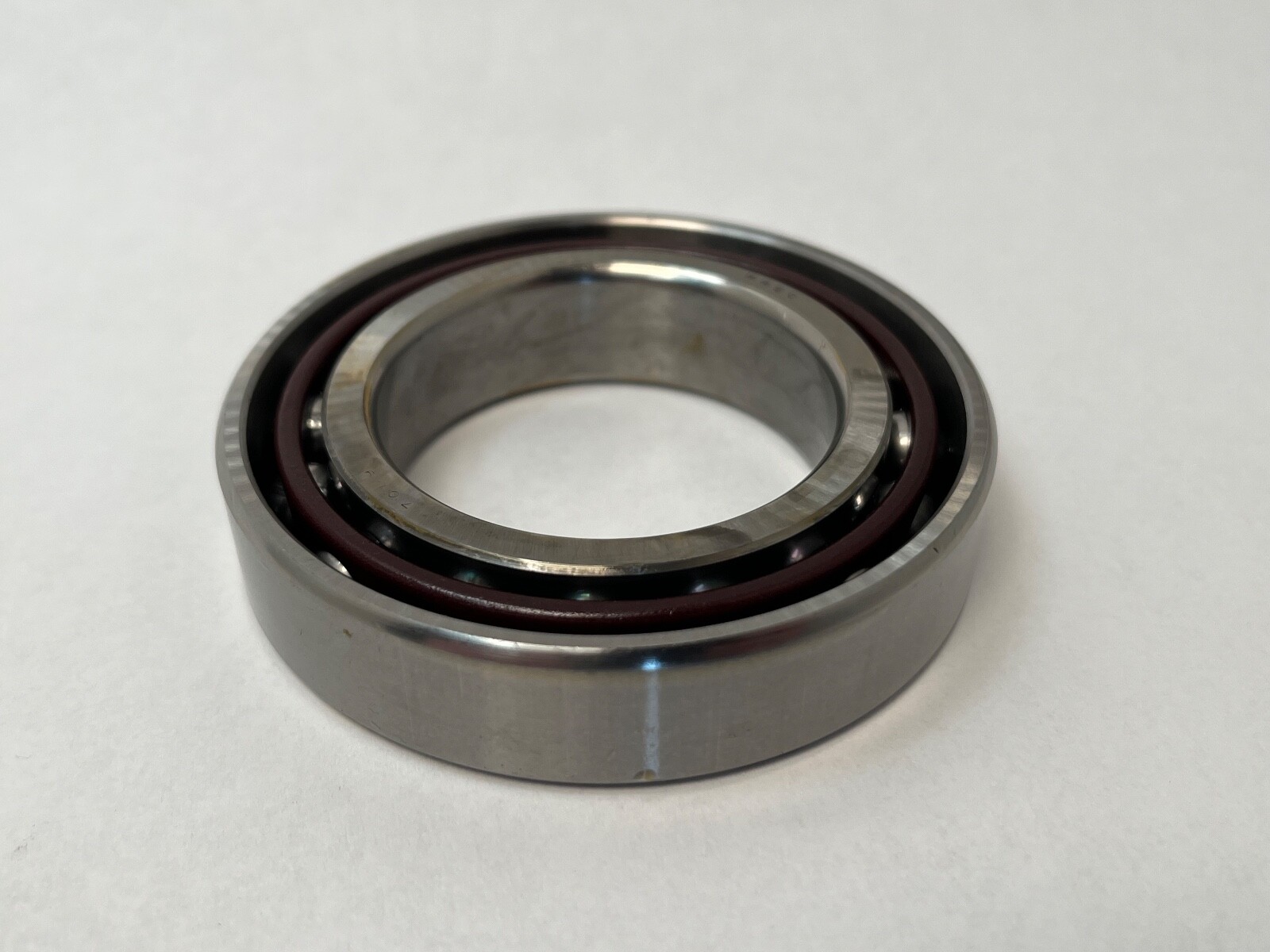

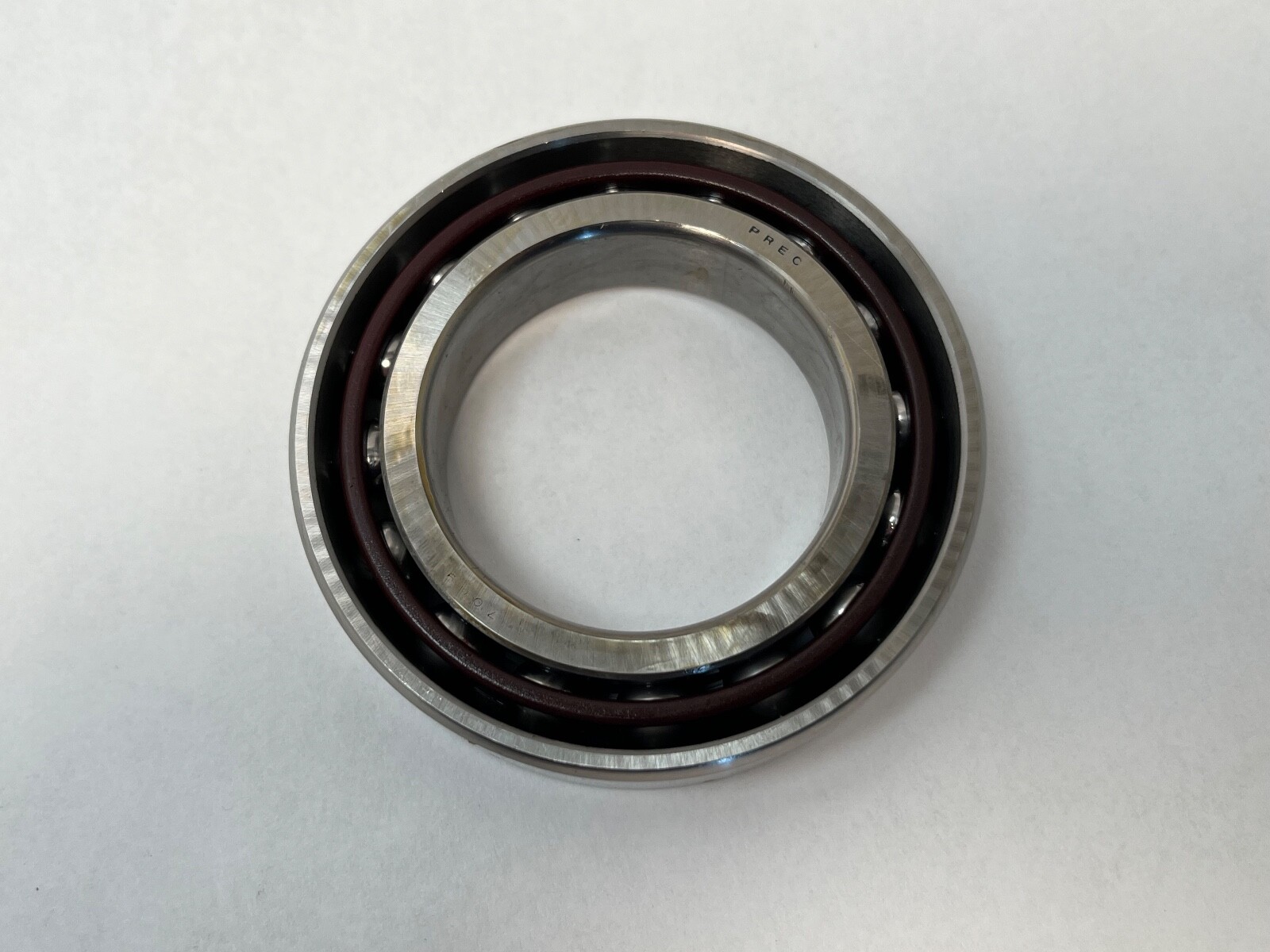

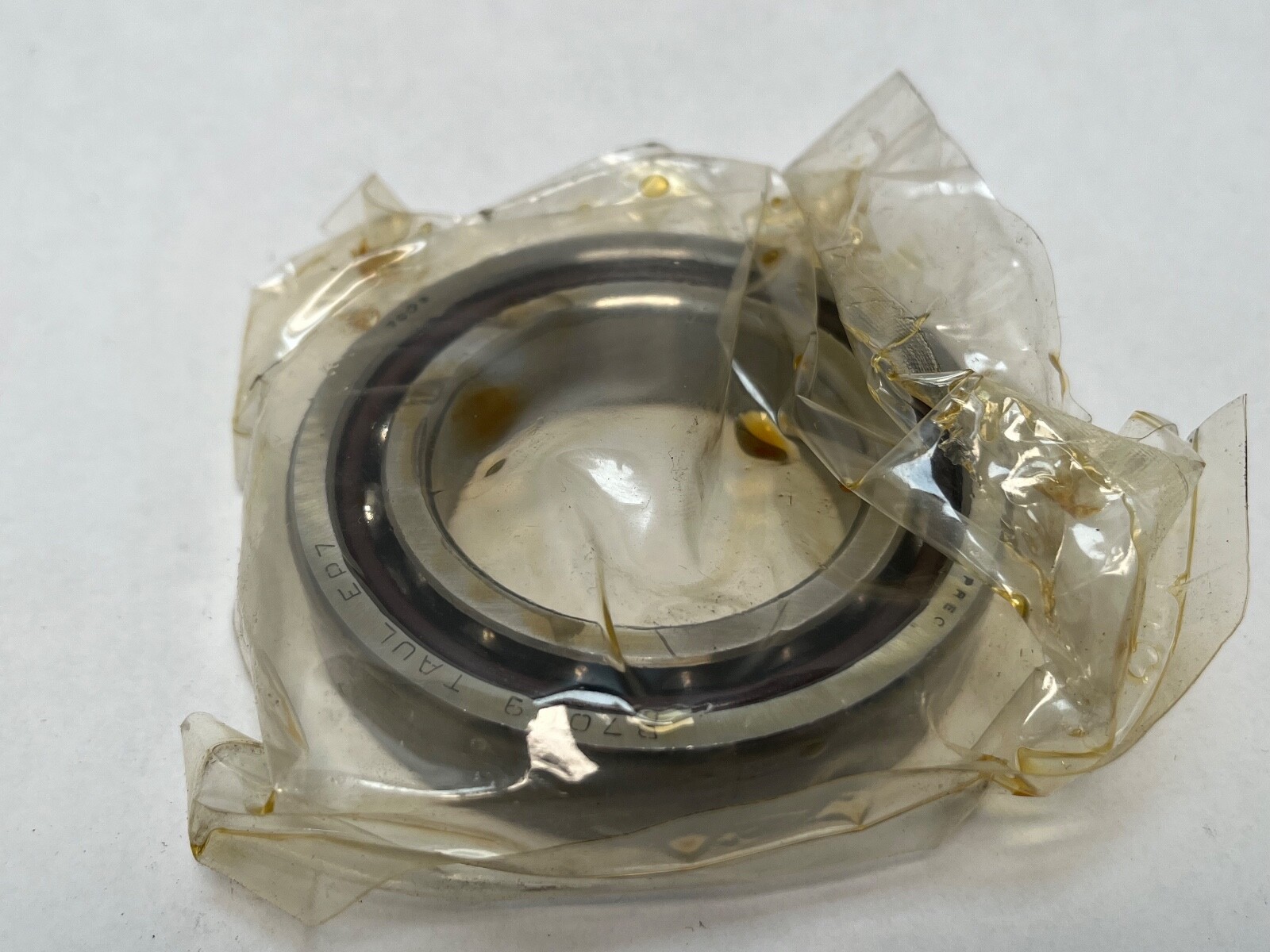

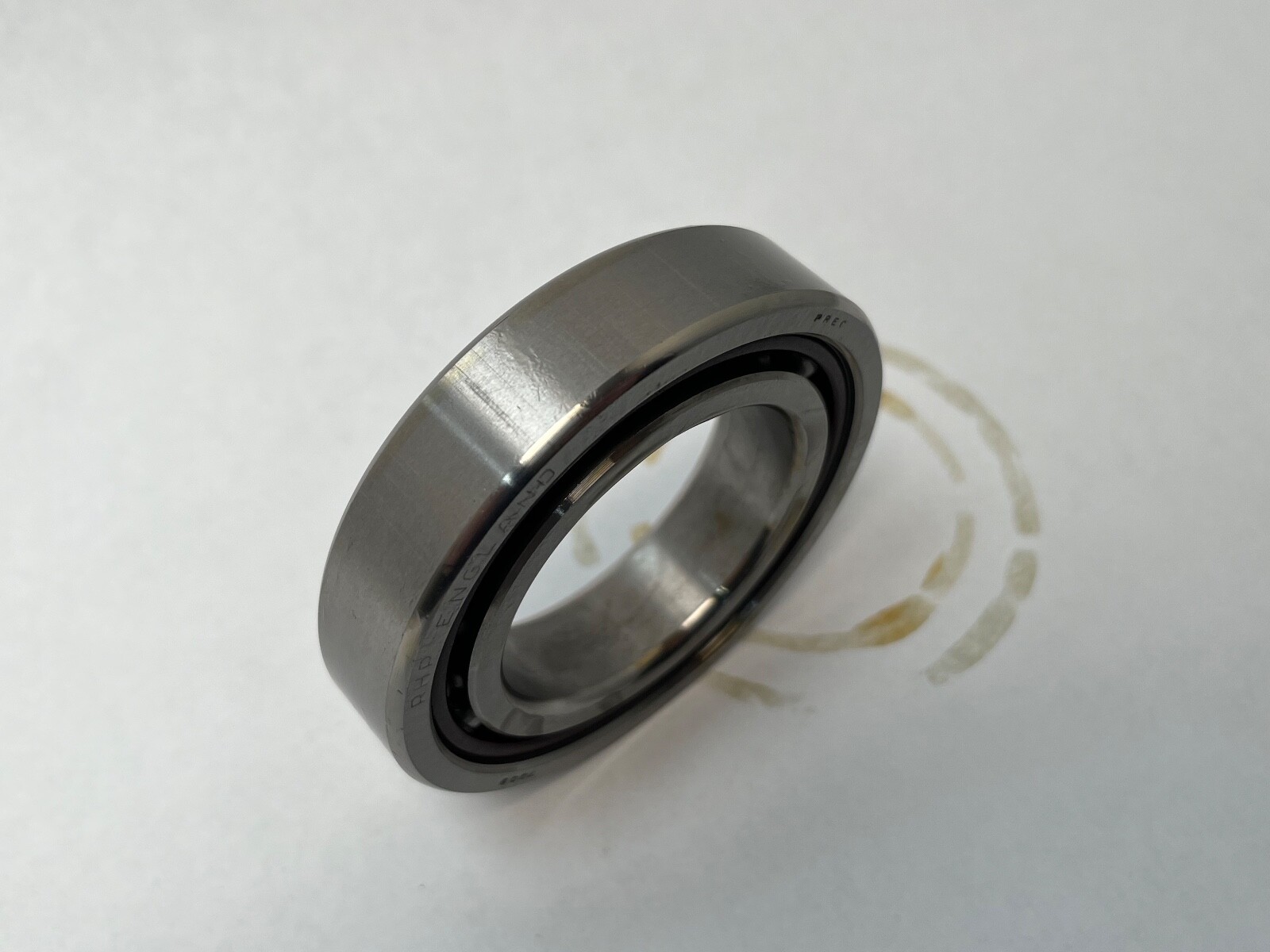

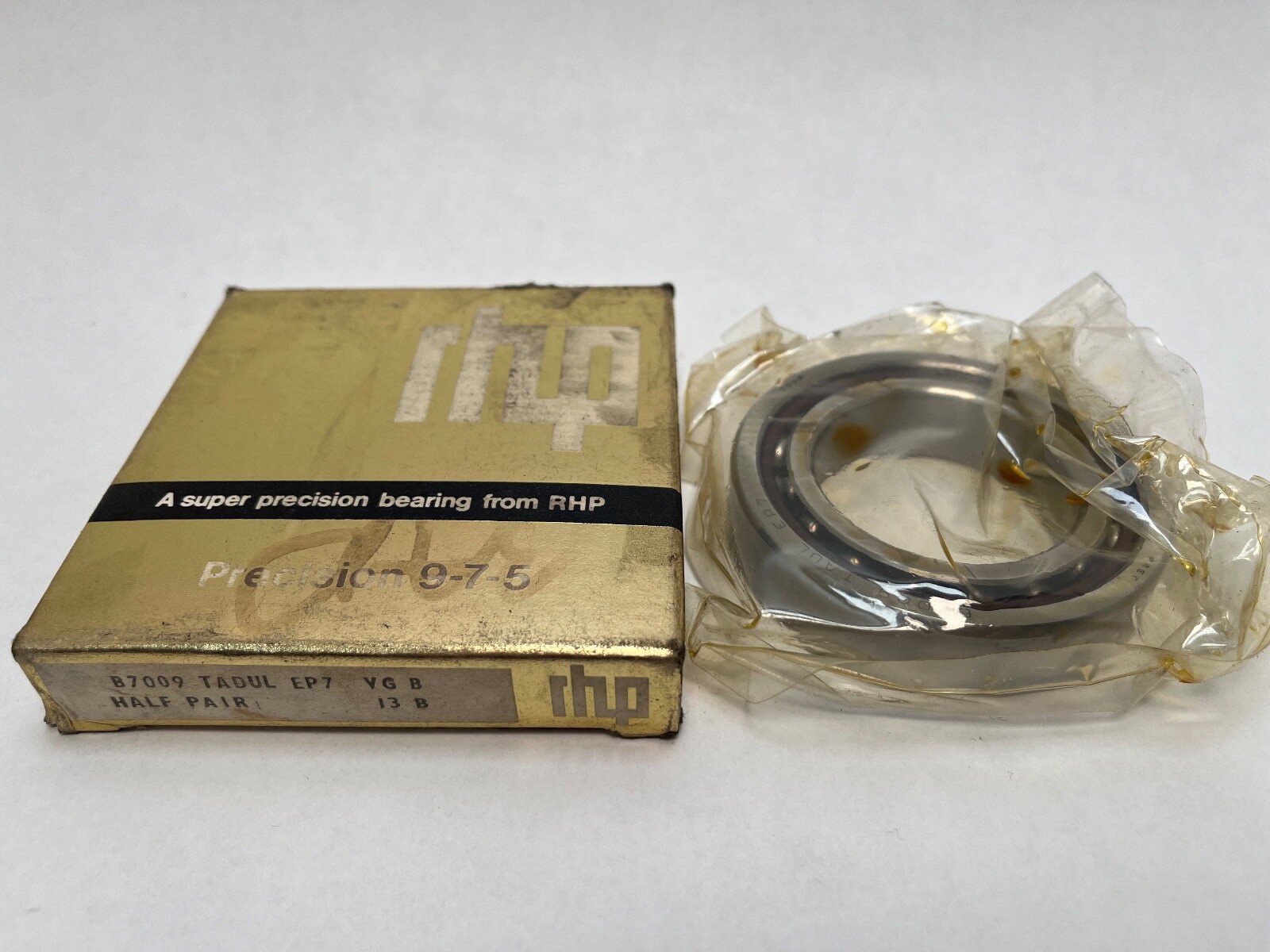

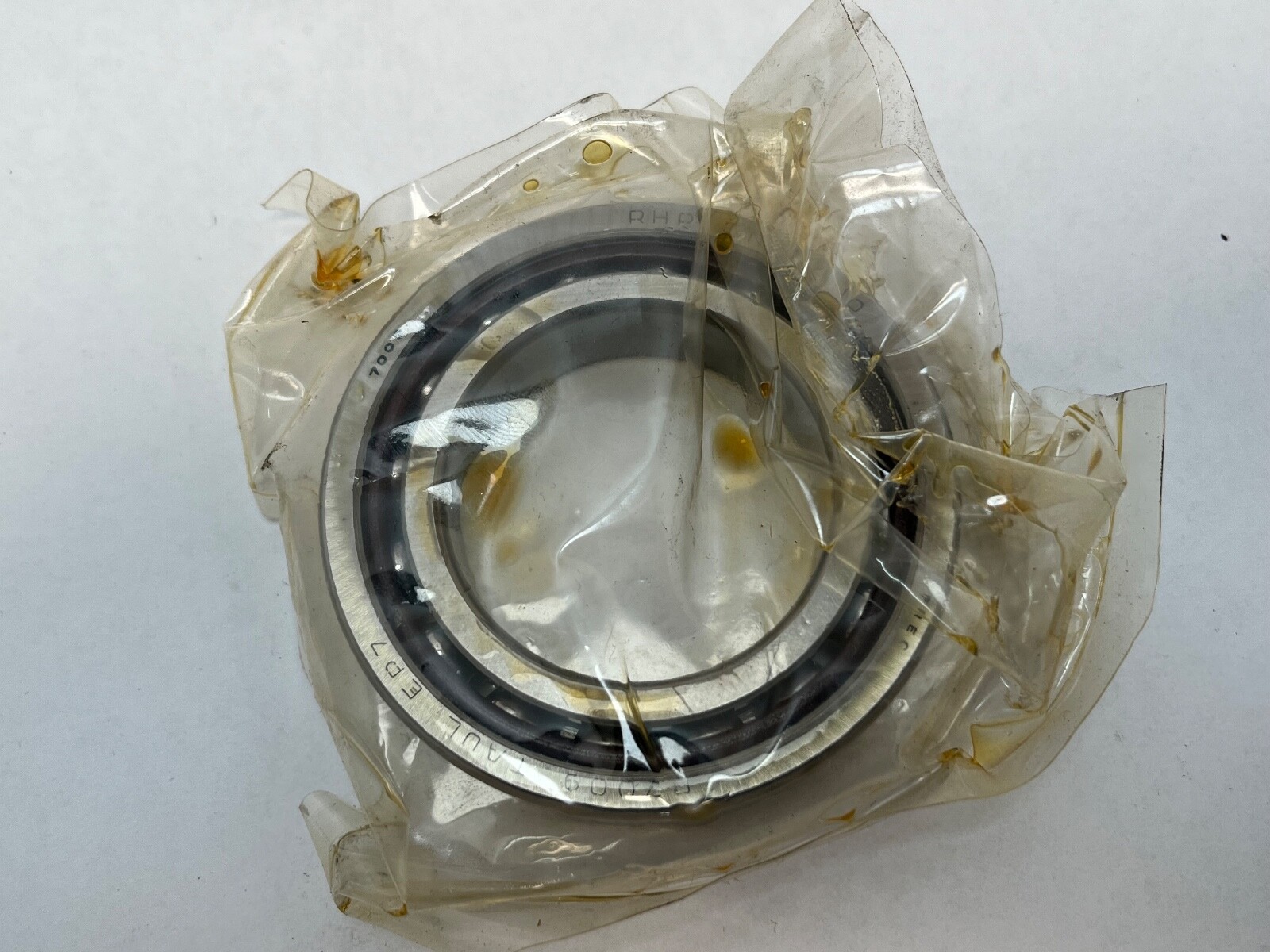

One 45 x 75 x 16 mm super precision angular contact ball bearing, ABEC 7, light preload, laminated phenolic cage, duplex universal grind, metric.
List Price
$106.81
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7009TDULP4-1/2PR |
| Model | 7009 T DUL P4 / B 7009 TA DUL EP7 / MM9109WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light (L) |
| Base Number | 7009 |
| Overall Width | 16 mm |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7009-T-SUL-P4; B7009TAULEP7 |
| Arrangement Configuration | Single bearing, duplex universal grind (DU) |
| Precision Class | P4 |
| Additional Attributes | r min 1.0; r1 min 0.6; d1 min 51; D1 max 69; D2 max 70 (mm) |
| Closure Type | Open |
| Cage Type | Laminated |
| Precision Rating | ABEC 7 / RHP EP7 |
| Rolling Elements | Ball |
| Item Weight | 0.238 kg |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.5028 |
| Mounting Arrangement | Single, or stacked with a like designation |
| Design Units | Metric |
| Part Number | 7009TDULP4-1/2PR |
The RHP 7009TDULP4-1/2PR is a super precision single-row angular contact ball bearing. Bore / Shaft Size: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Unit Quantity: 1 Pc.
70 / 7009 — the ISO 7009 size in dimension series 10, 45 x 75 x 16 mm.
T — laminated phenolic cage.
DU — duplex universal grind, so this bearing stacks with another of the same designation in any orientation.
L — light preload.
P4 — RHP EP7, ISO Class 4, ABEC 7.
-1/2PR — half of a pair, one bearing.
Bearing Type: Angular Contact Ball Bearing. Precision Class: P4. Precision Rating: ABEC 7 / RHP EP7. Preload: Light (L). Cage Material: Phenolic. Cage Type: Laminated. Material: High Carbon Chrome Steel. Lubricant: Grease or oil. Design Units: Metric. Series: 7000. Item Weight: 0.238 kg. Internal Volume: 11.2 cm³. Arrangement / Configuration: single bearing, duplex universal grind (DU). Harmonization Code: 8482.10.5028.
Chamfer r min: 1.0 mm. Chamfer r1 min: 0.6 mm. Abutment d1 min: 51 mm. Abutment D1 max: 69 mm. Abutment D2 max: 70 mm. Lubrication-jet pitch circle diameter dT: 55.6 mm. Mounting Arrangement: single, or stacked back-to-back, face-to-face or tandem with a like designation, at light preload.
MPN Variants: 7009-T-SUL-P4, B7009TAULEP7. Part Number: 7009TDULP4-1/2PR. Base Number: 7009. These forms describe the same ISO 7009 boundary dimensions in dimension series 10 with a laminated phenolic cage, universal grinding and light preload at ABEC 7.
One super precision single-row angular contact ball bearing, 45 x 75 x 16 mm, ABEC 7, with a laminated phenolic cage and light preload.
DU is a duplex universal grind: the bearing stacks with another of the same designation in any orientation.
Half of a pair: this listing is one bearing.
