This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 15 mm ID, 32 mm OD, 9 mm Width, 15° Contact Angle, ABEC 7 / P4, Medium Preload, Open.$64.22
Super Precision Angular Contact Ball Bearing - 15 mm ID, 32 mm OD, 9 mm Width, Open, 15° Contact Angle, Light Preload$64.22
Angular Contact Ball Bearing Duplex Pair – 15 mm ID, 32 mm OD, 9 mm Width, 15° Contact Angle, P4, Light Preload$128.45
Angular Contact Ball Bearing - Straight Bore, 15 mm ID, 32 mm OD, 9 mm Width, Open, 15° Contact Angle, Light Preload, P4 Super-Precision, Matched Pair.$128.45| MFR / Brand | RHP |
|---|---|
| MPN | 7002CTDUMP4V |
| Model | B7002 C T P4S / 7002 CD P4A DGB / 2MM9102WI DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Preload | Medium Preload |
| Cage Type | Machined |
| Dynamic Load Rating | 6.5 kN / 1461 lbf |
| Static Load Rating | 3.5 kN / 787 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.07 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 80000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7002 CD/P4ADGB |
|---|---|
| Cross Reference 2 | FAG B7002-C-T-P4S-DUM |

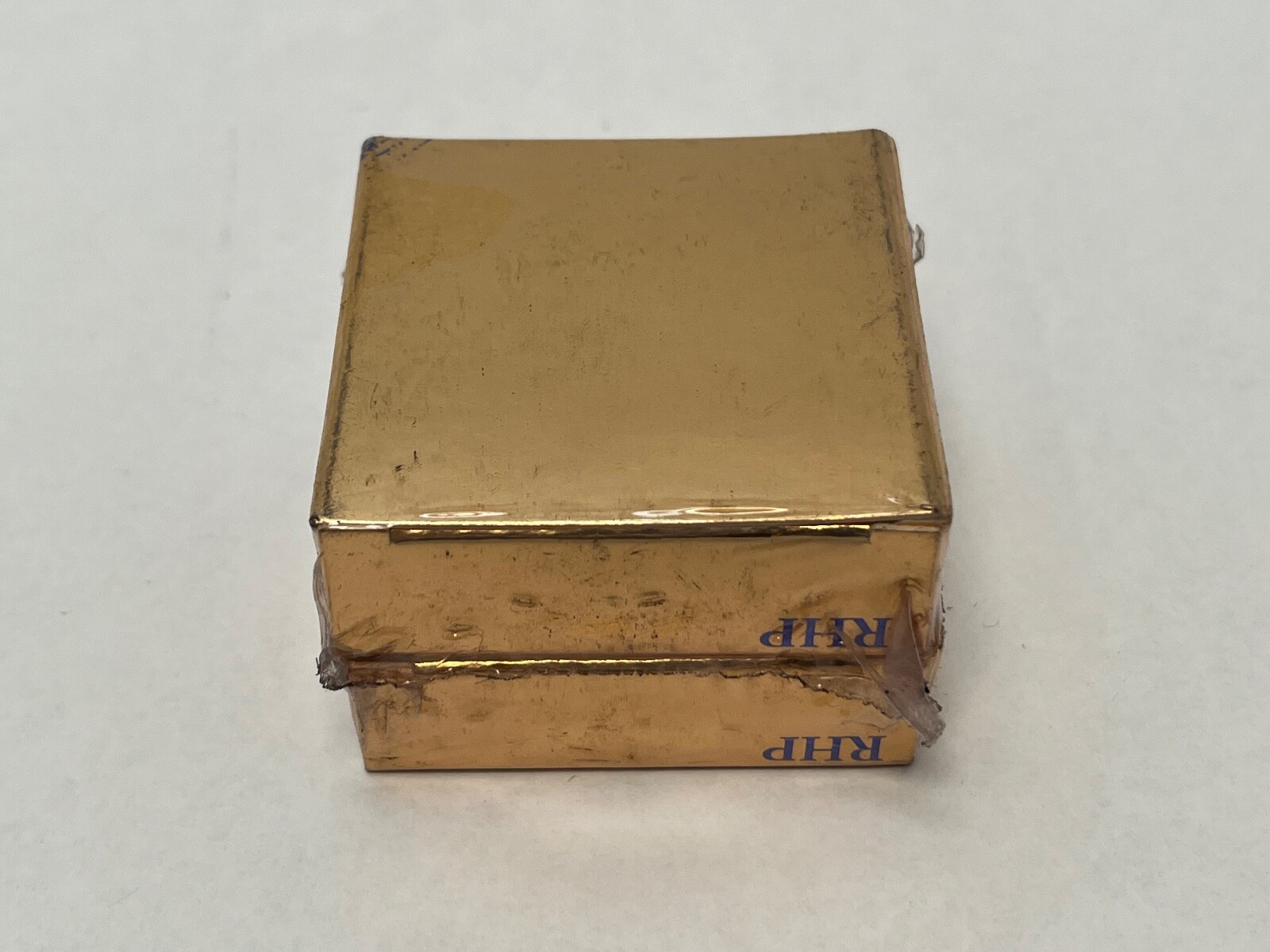

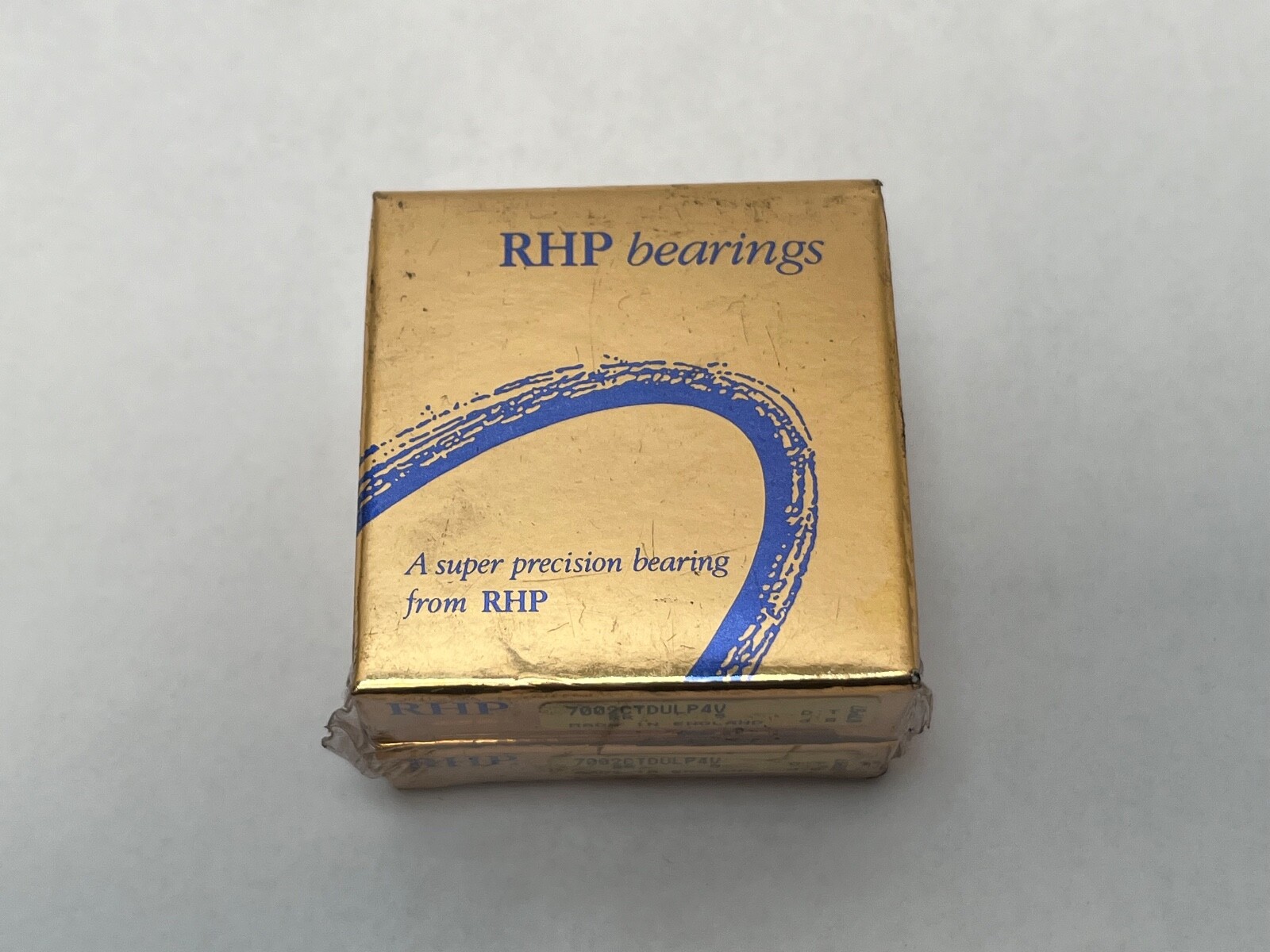

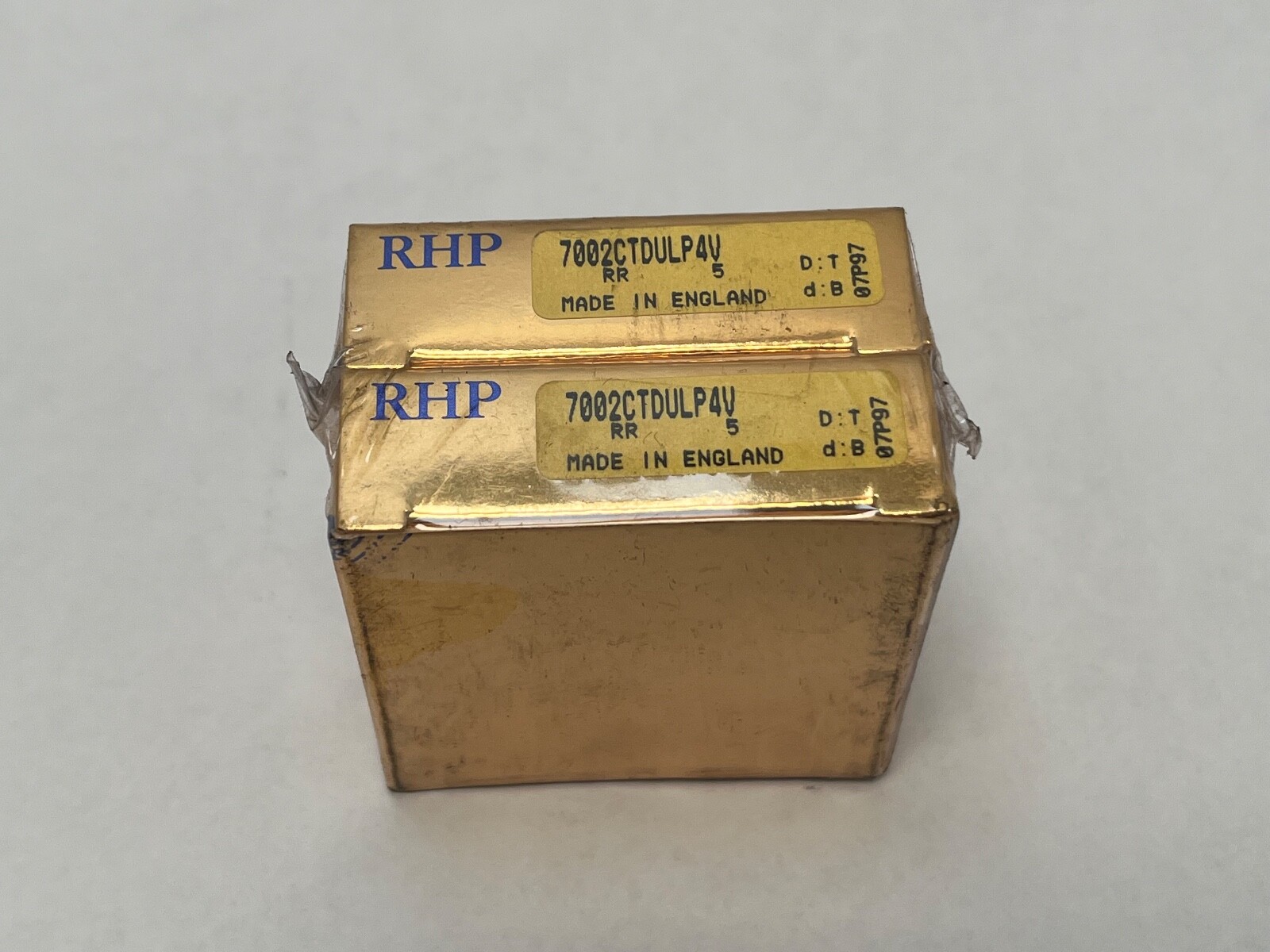

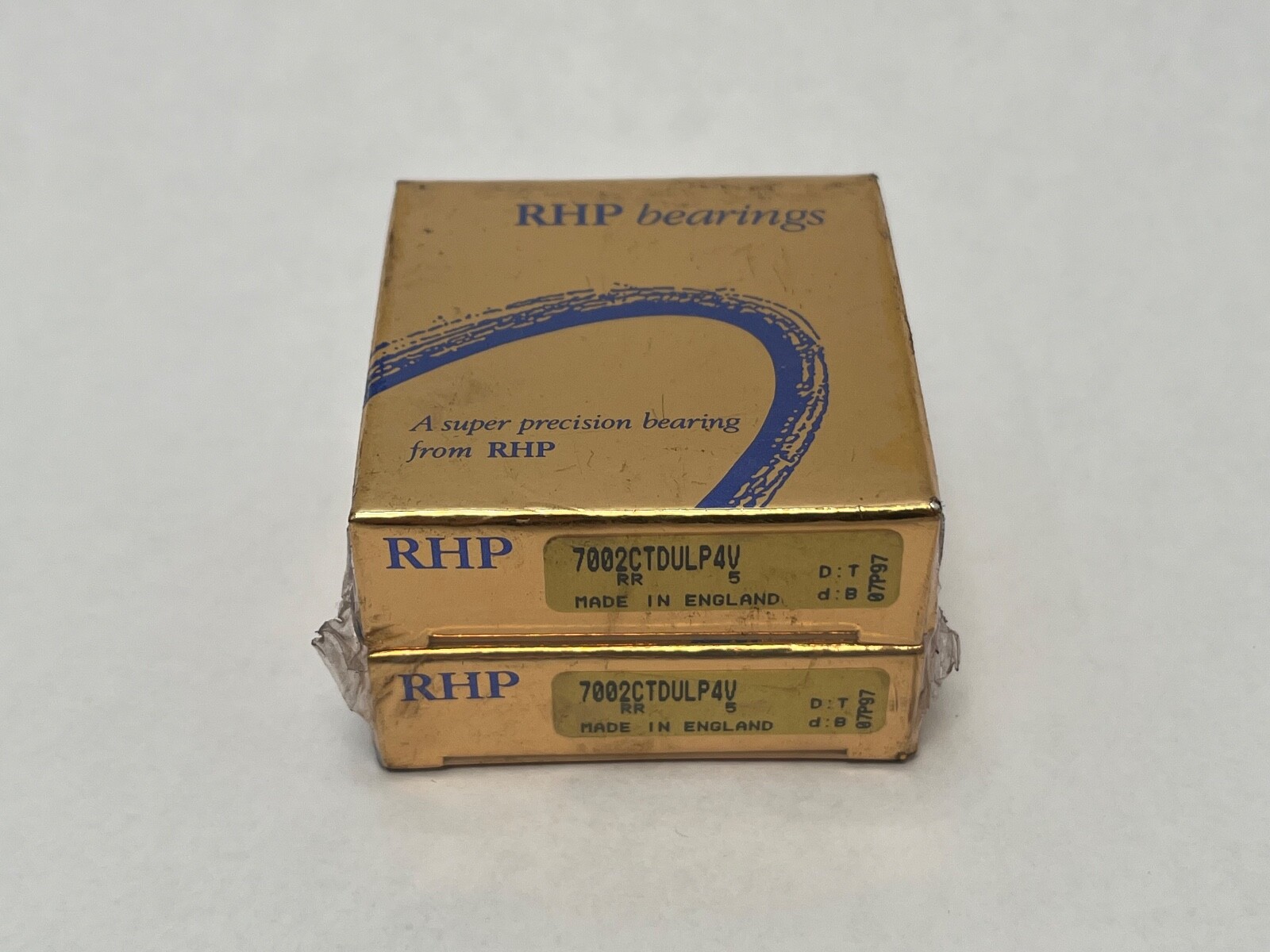

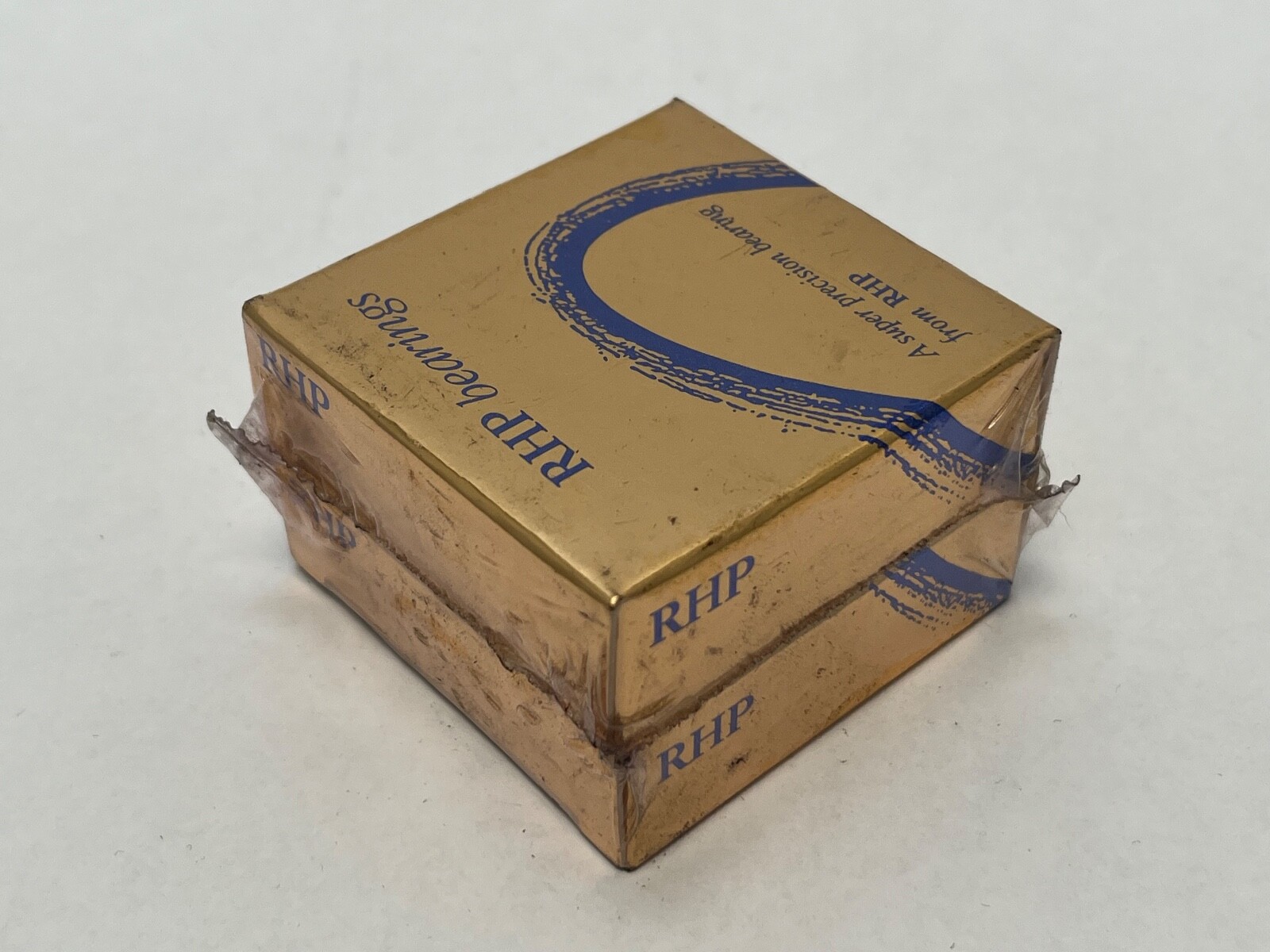

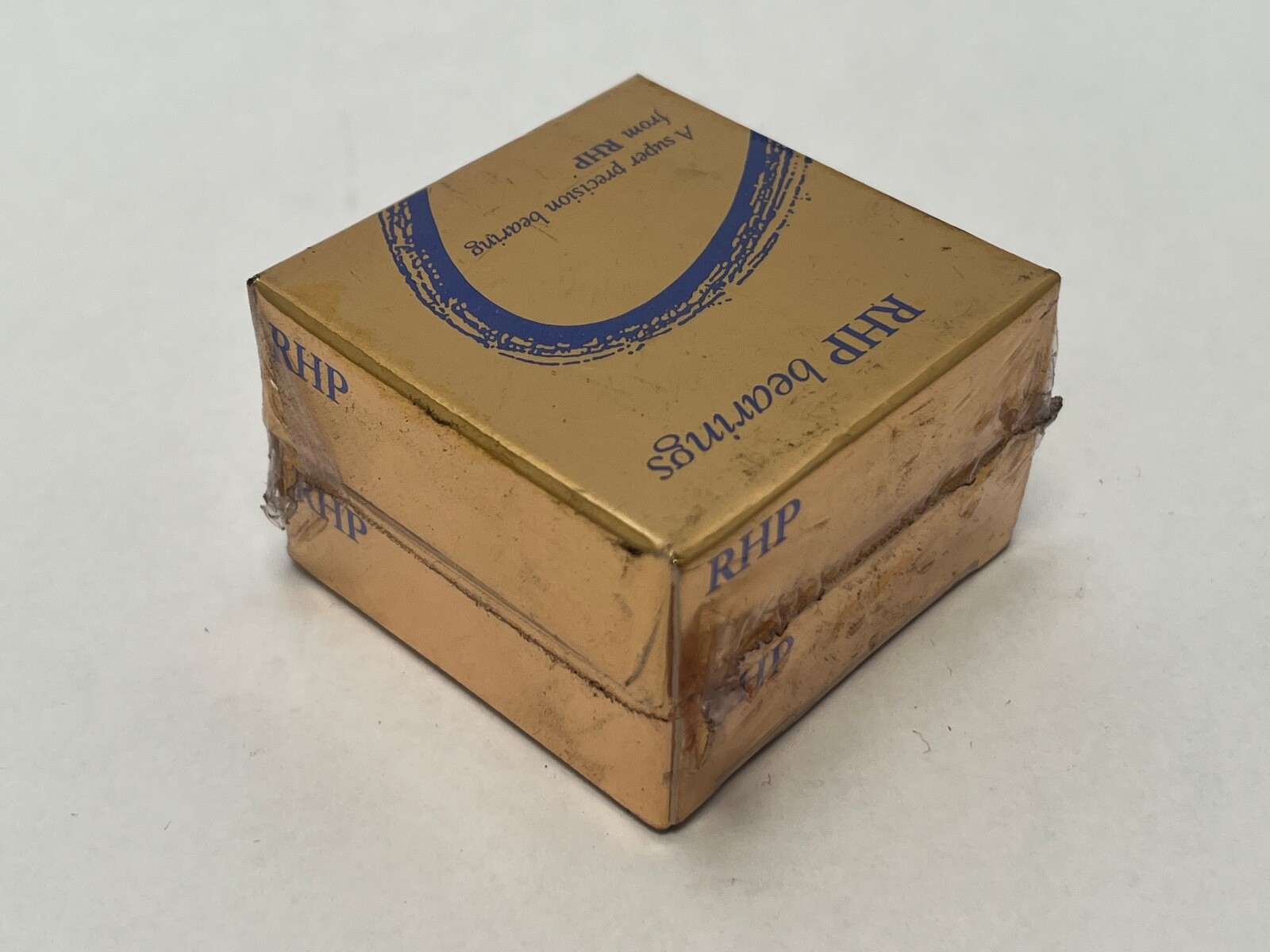

RHP 7002CTDUMP4V Angular Bearing – Precision & Quality Combined Discover the exceptional performance of the RHP 7002CTDUMP4V Angular Contact Ball Bearings, expertly crafted to meet the demands of your high-precision applications. Measuring 15x32x9 mm, this innovative bearing design offers superior load-carrying capabilities, making it ideal for use in machinery and equipment that require precise alignment and minimal friction. Product Features: Brand: RHP Type: Angular Contact Ball Bearing Model: B7002 C T P4S / 7002 CD P4A DGB / 2MM9102WI DUM MPN: 7002CTDUMP4V Manufacture Location: United Kingdom Width: 9 mm This new bearing is reliable and durable, ensuring longevity in performance. Whether you are in need of single items or bulk orders, we cater to all your requirements at competitive prices. Enjoy the benefits of international shipping available on every order, with combined shipping options for your convenience. Experience prompt service with same-day shipping on all items. For expedited needs, next-day shipping is also available at checkout. If you have any difficulty finding the parts you need, please contact us. We are here to help you source all necessary components efficiently.
