Availability:
Out of stock

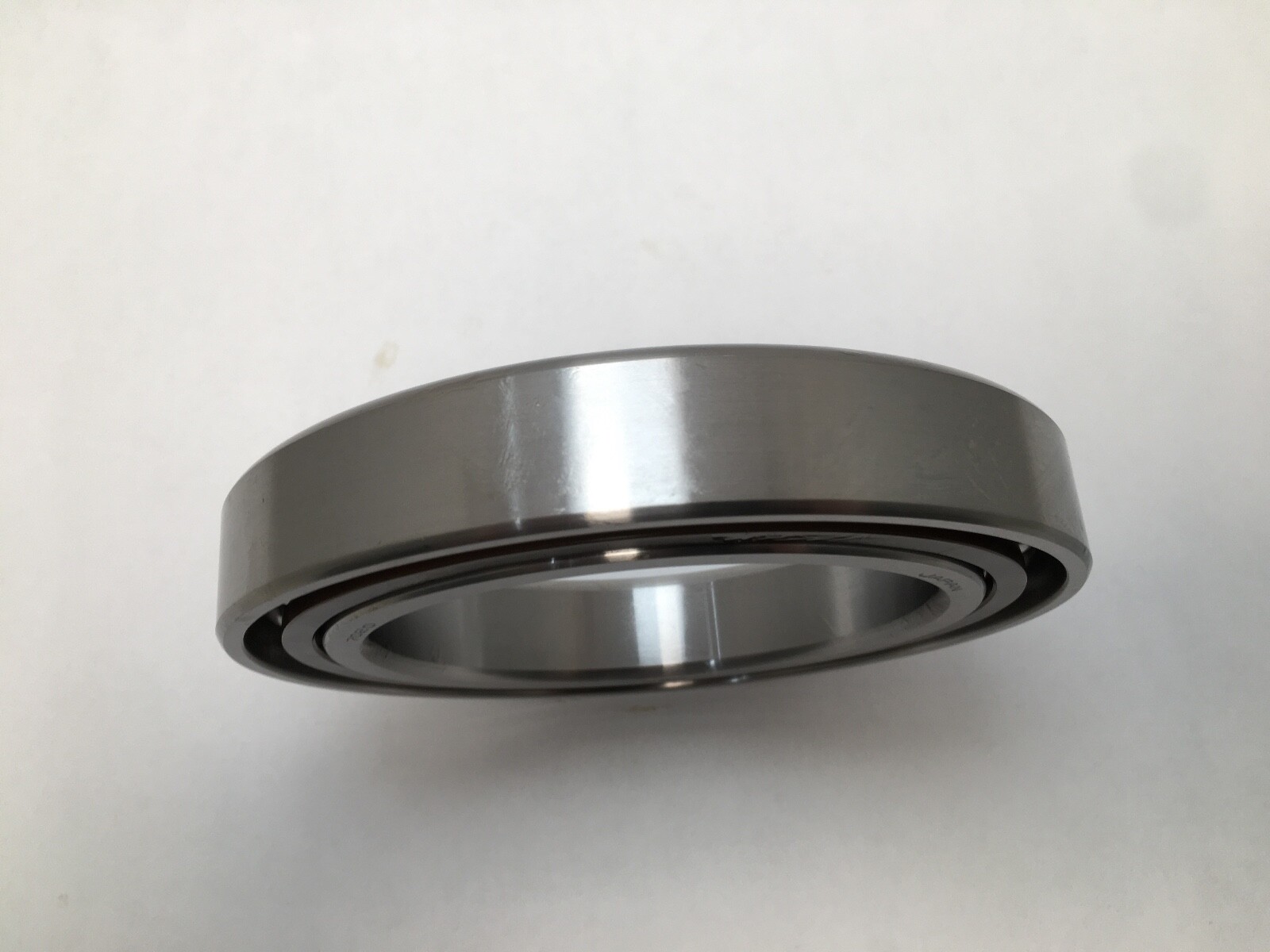

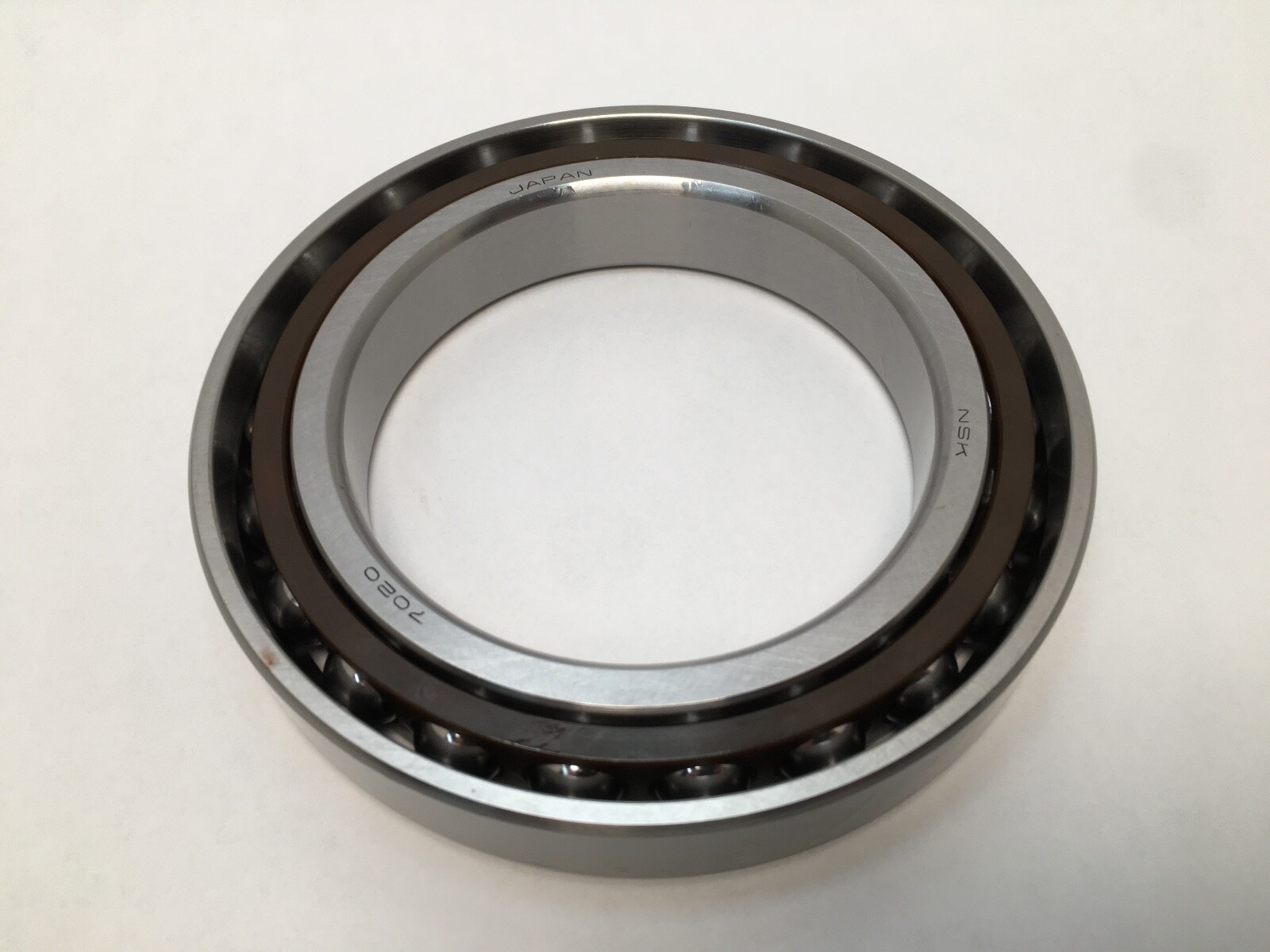

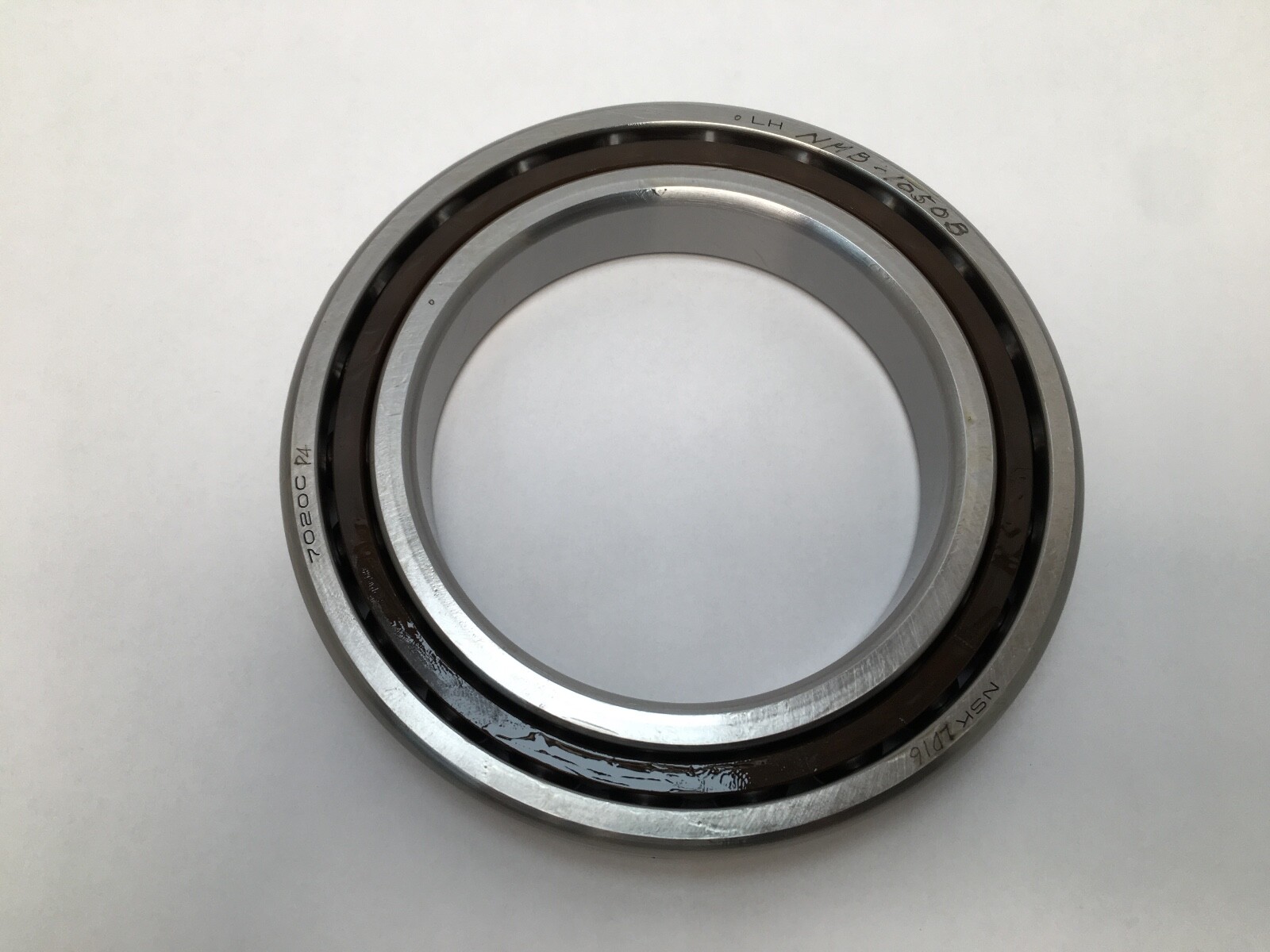

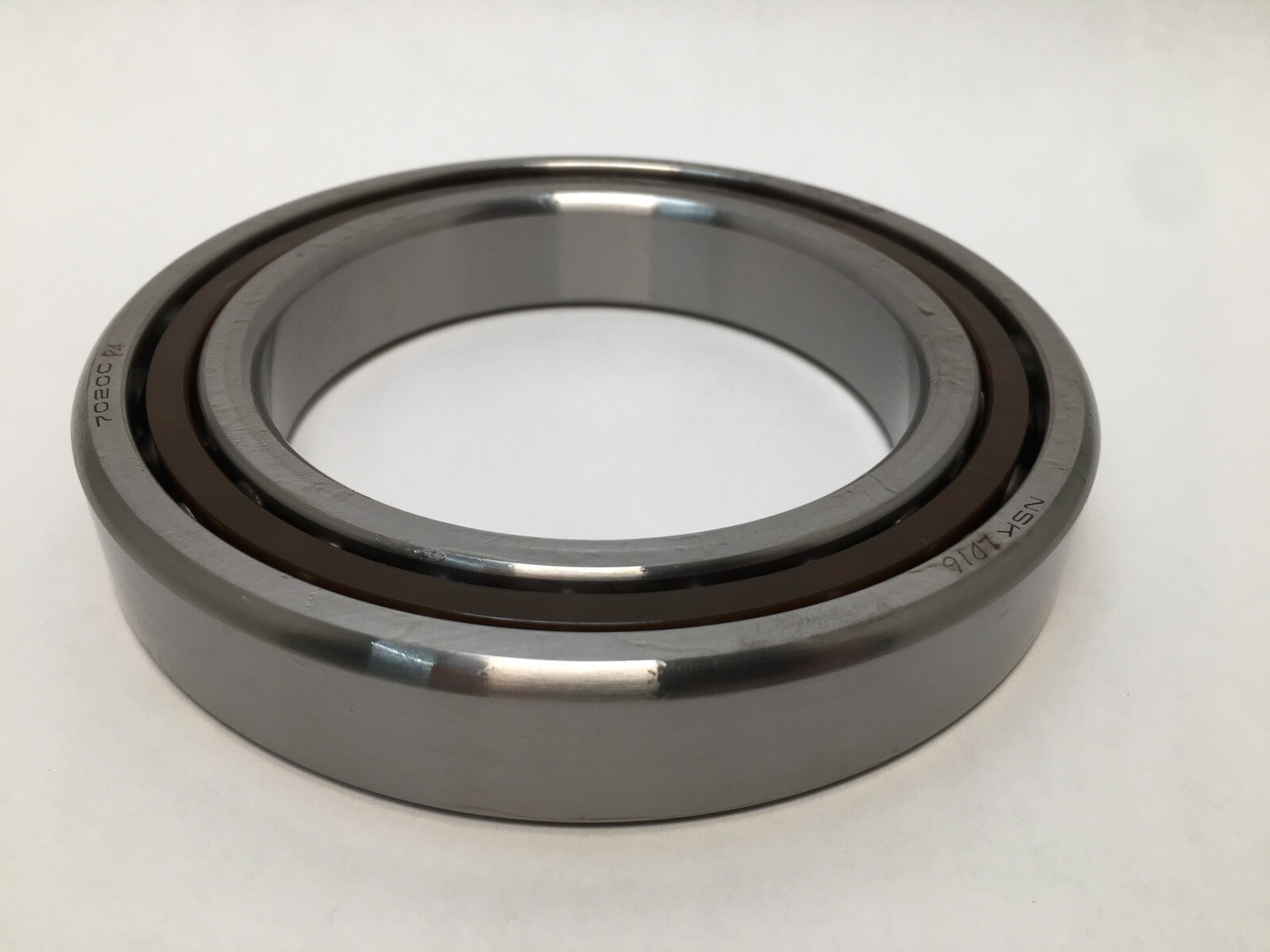

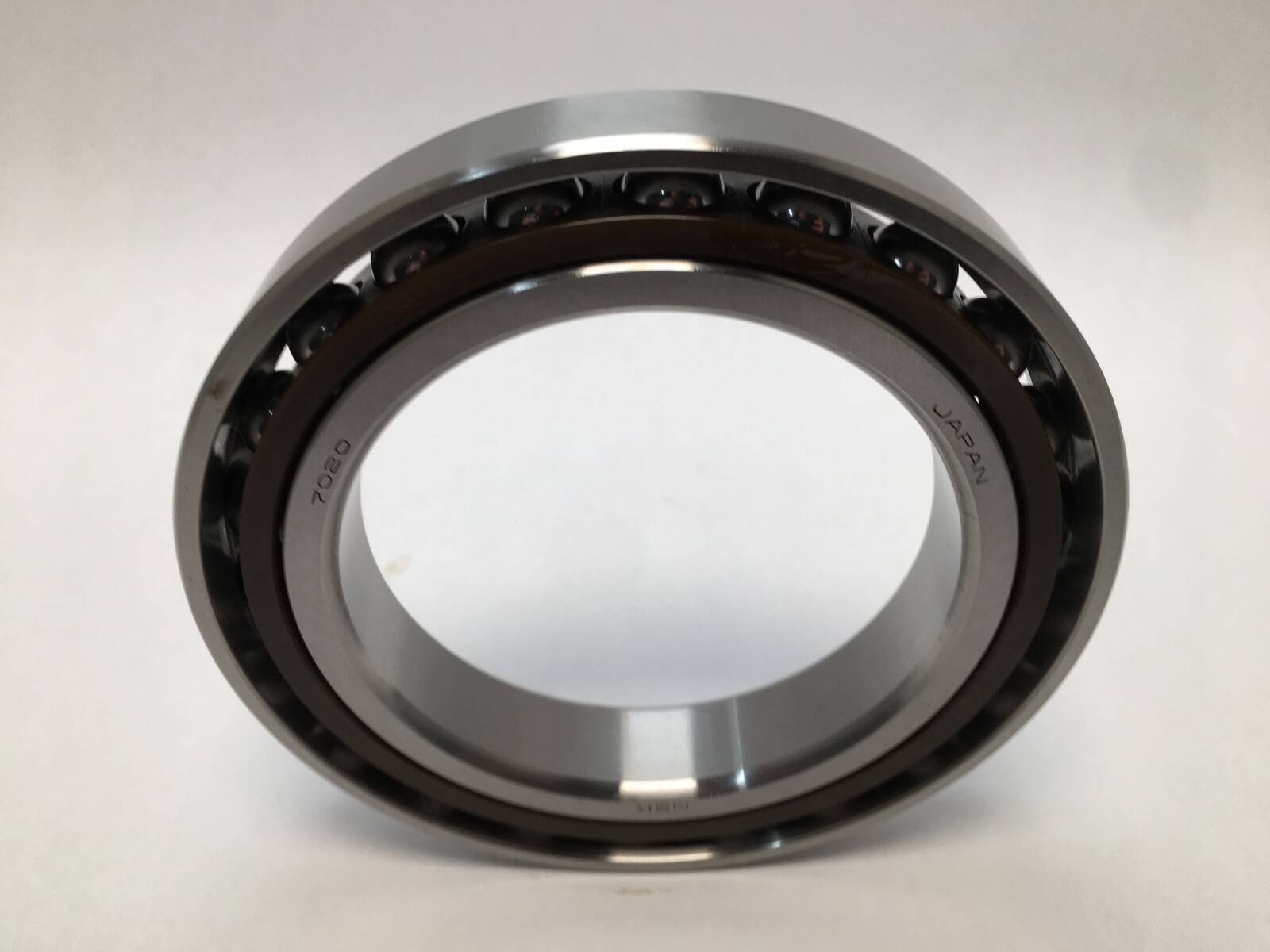

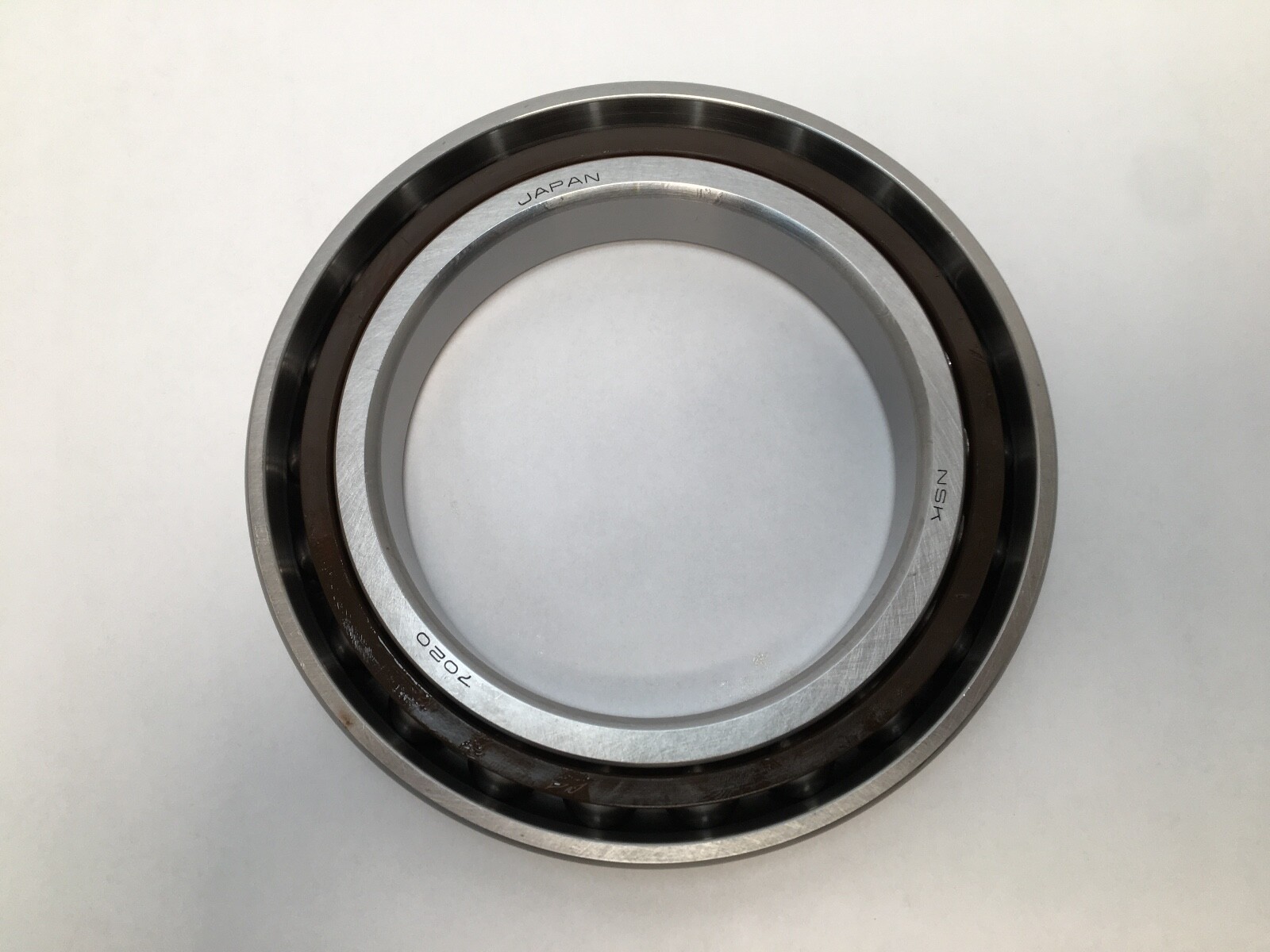

Super precision angular contact ball bearing, 100 x 150 x 24 mm, 15 degree contact angle. Ball-guided cage, P4 accuracy, 95,000 N dynamic load rating.
List Price
$358.75
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Extra-Light Angular Contact Ball Bearing – 100 mm Bore x 150 mm OD x 24 mm Width, 15°, Counterbored Outer Ring$244.66
Angular Contact Ball Bearing — Super-Precision, 100 mm ID, 150 mm OD, 24 mm Width, 15° Contact Angle, Extra Light Preload, P4A, Matched Pair$757.32
Super Precision Angular Contact Ball Bearing - Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Phenolic Cage, Duplex Universal Heavy Preload Pair$644.17
Super Precision Angular Contact Ball Bearing - Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Universal Pairing, Light Preload.$315.74| MFR / Brand | NSK |
|---|---|
| MPN | 7020CTYP4 |
| Model | 7020 C TY P4 2MM9120WI-DUL 120KRDU 7020 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Base Number | 7020 |
| Industry Terms | super precision angular contact ball bearing; machine tool spindle bearing; precision spindle bearing; ball-guided cage bearing; 15 degree angular contact bearing; P4 spindle bearing |
| Common Misspellings | 7020CTY P4; 7O20CTYP4; 7020-C-TY-P4; 7020CYTP4; 7020 CTYP4; 7020CTP4 |
| Application Types | Machine tool spindles; grinding spindles; milling and turning spindles; precision gearboxes; high-speed rotary tables |
| Overall Width | 24 mm |
| Mpn Variants | 7020CTYP4; 7020C TY P4; 7020-CTY-P4; 7020 C TY P4; 7020CTY; 7020C; 2MM9120WI; 120KRDU |
| Precision Class | P4 |
| Additional Attributes | Effective load centre a: 28.7 mm; shaft abutment da min: 109 mm; housing abutment Da max: 141 mm; abutment fillet ra max: 1.5 mm; bearing chamfer r min: 1.5 mm; r1 min: 1 mm; permissible axial load Pa: 49,000 N; factor f0: 16.0; preload classes offered EL, L, M, H |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 95,000 N |
| Static Load Rating | 77,000 N |
| Rolling Elements | Ball |
| Item Weight | 1.27 kg (2.800 lb) per bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 9,200 rpm grease; 14,000 rpm oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7020 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7020-C-T-P4S |
| Cross Reference 3 | NTN 7020C/GNP4 |
| Cross Reference 4 | Koyo 7020C |
| Cross Reference 5 | RHP 7020CTP4 |
| Cross Reference 6 | Fafnir 2MM9120WI |
| Cross Reference 7 | MRC 120KR |
| Cross Reference 8 | GMN S 6020 C |

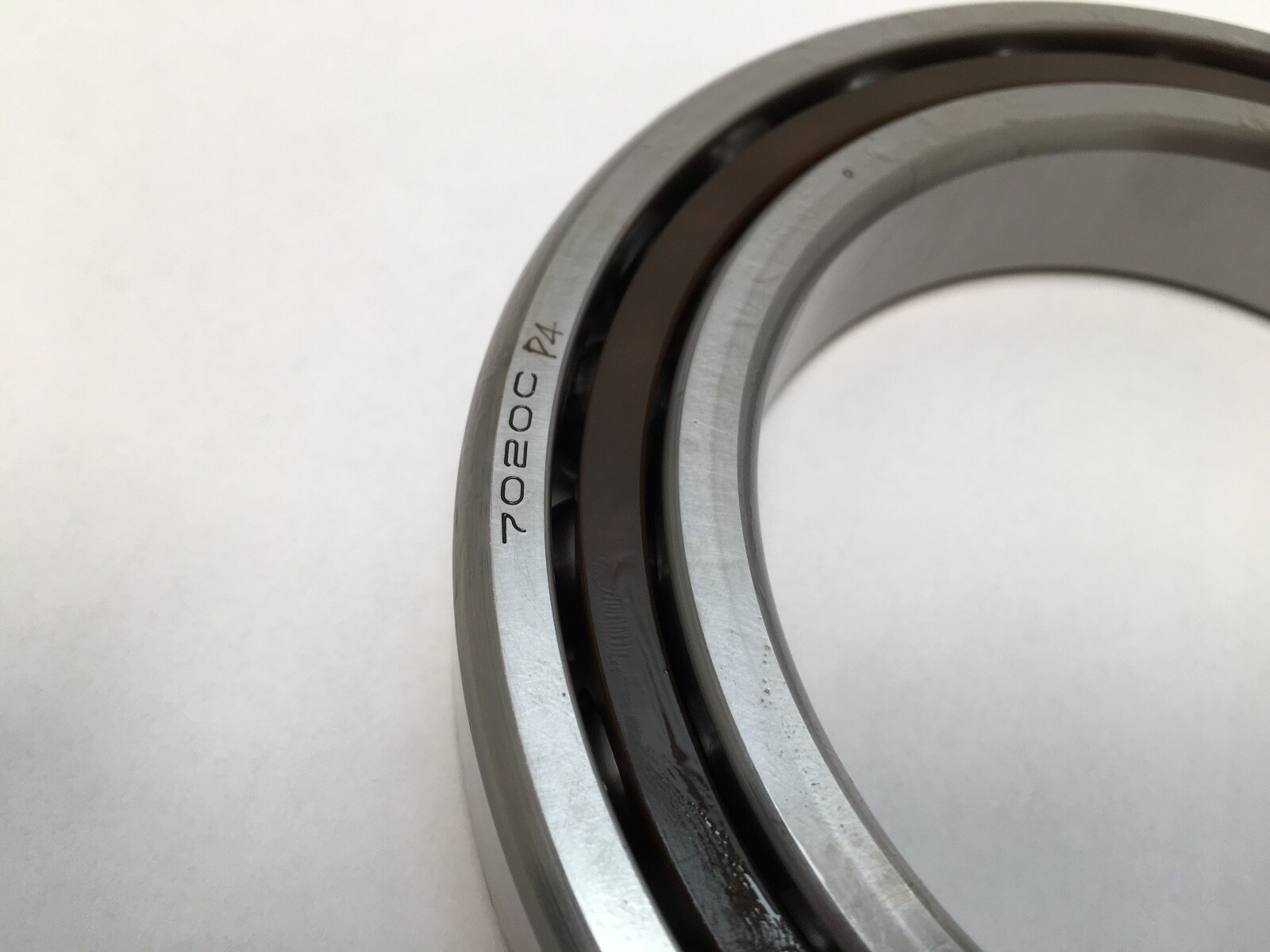

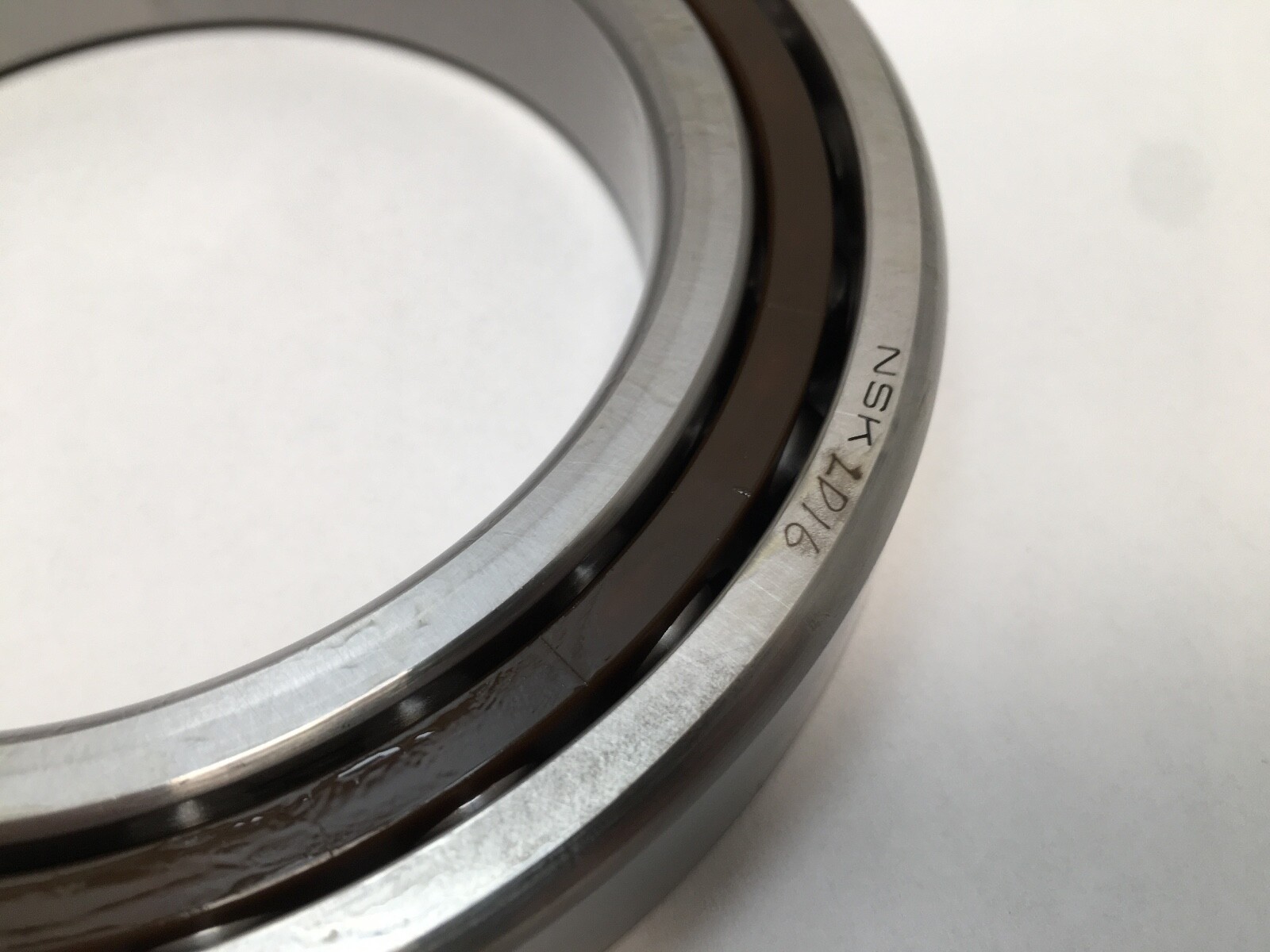

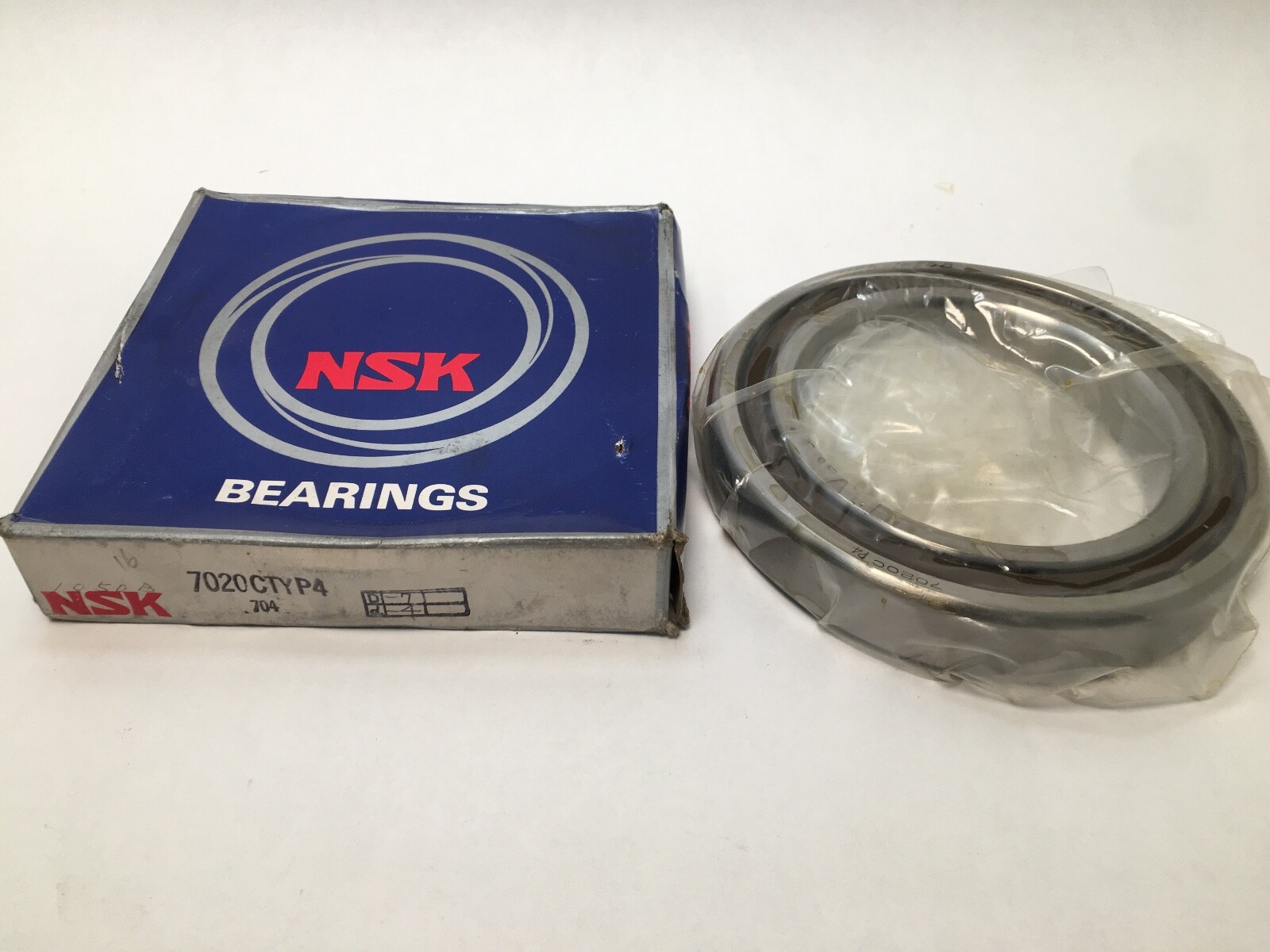

NSK 7020C TY P4 super precision angular contact ball bearing. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Contact Angle: 15°. Precision Class: P4. Cage Type: Ball-guided. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1. Series: 7000. Base Number: 7020.
7020 — NSK’s number for the ISO 70-series size, 100 x 150 x 24 mm.
C — 15° contact angle.
TY — ball-guided cage.
P4 — NSK super precision accuracy grade. This series is offered in P5, P4, P4Y and P3.
Dynamic Load Rating: 95,000 N per bearing. Static Load Rating: 77,000 N per bearing. Ratings and mass are per bearing.
Limiting Speed: 9,200 rpm grease; 14,000 rpm oil. Lubricant: grease or oil.
Item Weight: 1.27 kg (2.800 lb) per bearing.
Permissible axial load Pa: 49,000 N. Factor f0: 16.0.
A 15° contact angle gives higher speed capability and greater radial stiffness than the 25° and 30° executions of the same size.
Shaft abutment diameter da min: 109 mm. Housing abutment diameter Da max: 141 mm. Abutment fillet radius ra max: 1.5 mm.
Bearing chamfer r min: 1.5 mm. Bearing chamfer r1 min: 1 mm. Effective load centre a: 28.7 mm.
Preload classes offered on this size are EL, L, M and H.
Equivalent 100 x 150 x 24 mm 15° super precision angular contact bearings: SKF 7020 CD/P4A, FAG B7020-C-T-P4S, NTN 7020C/GNP4, Koyo 7020C, RHP 7020CTP4, Fafnir 2MM9120WI, MRC 120KR, GMN S 6020 C.
