Availability:
1 in stock

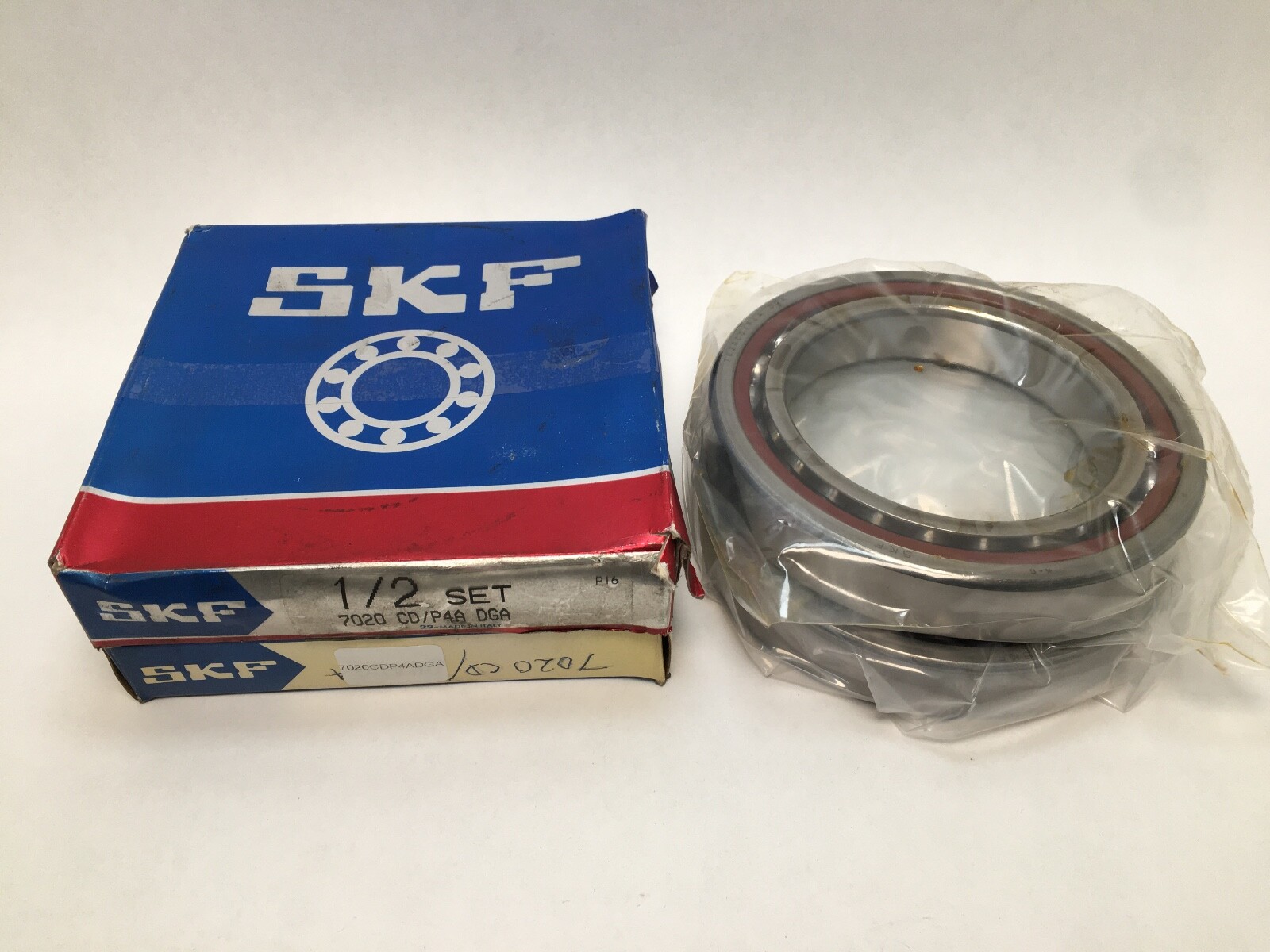

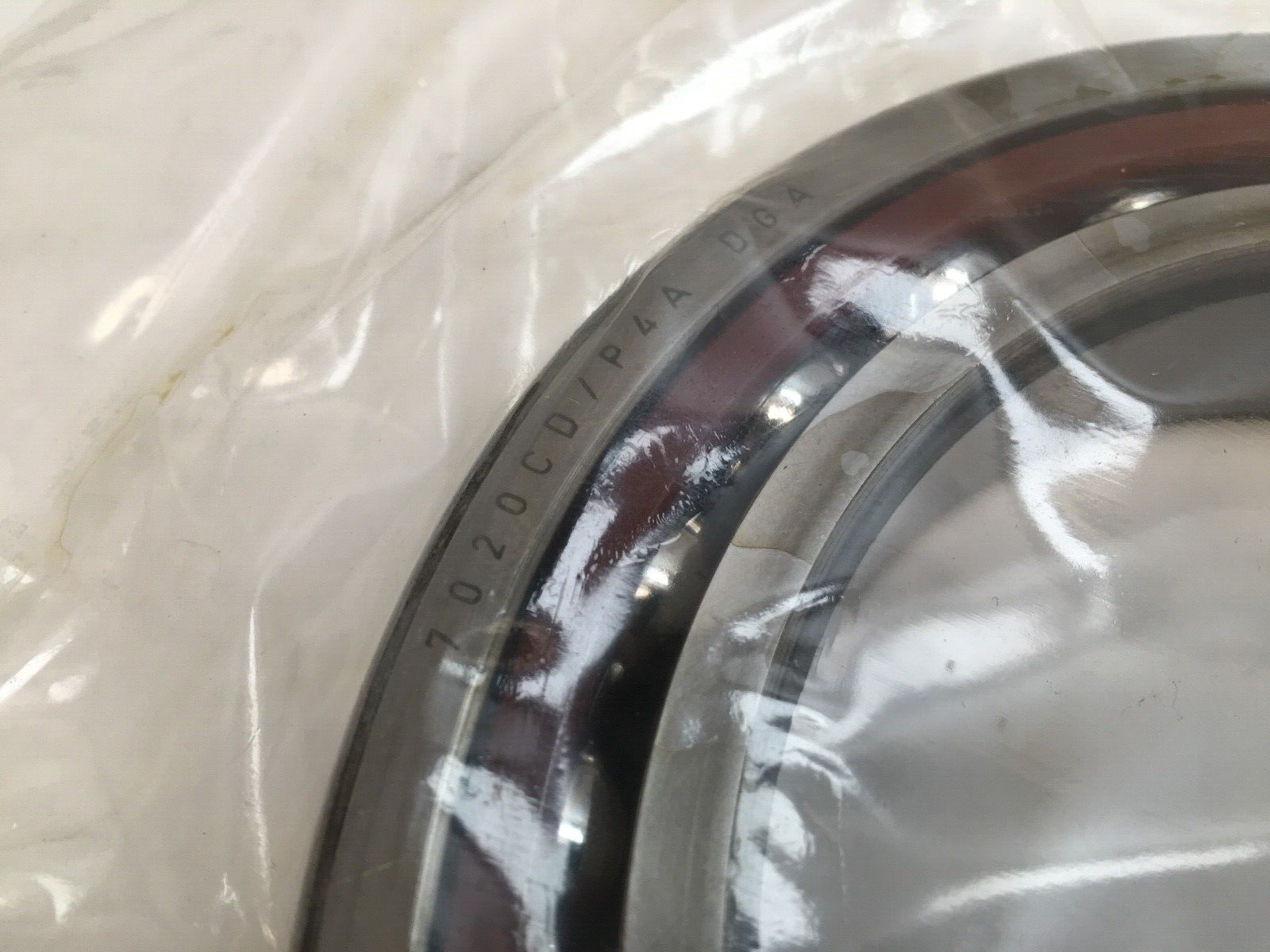

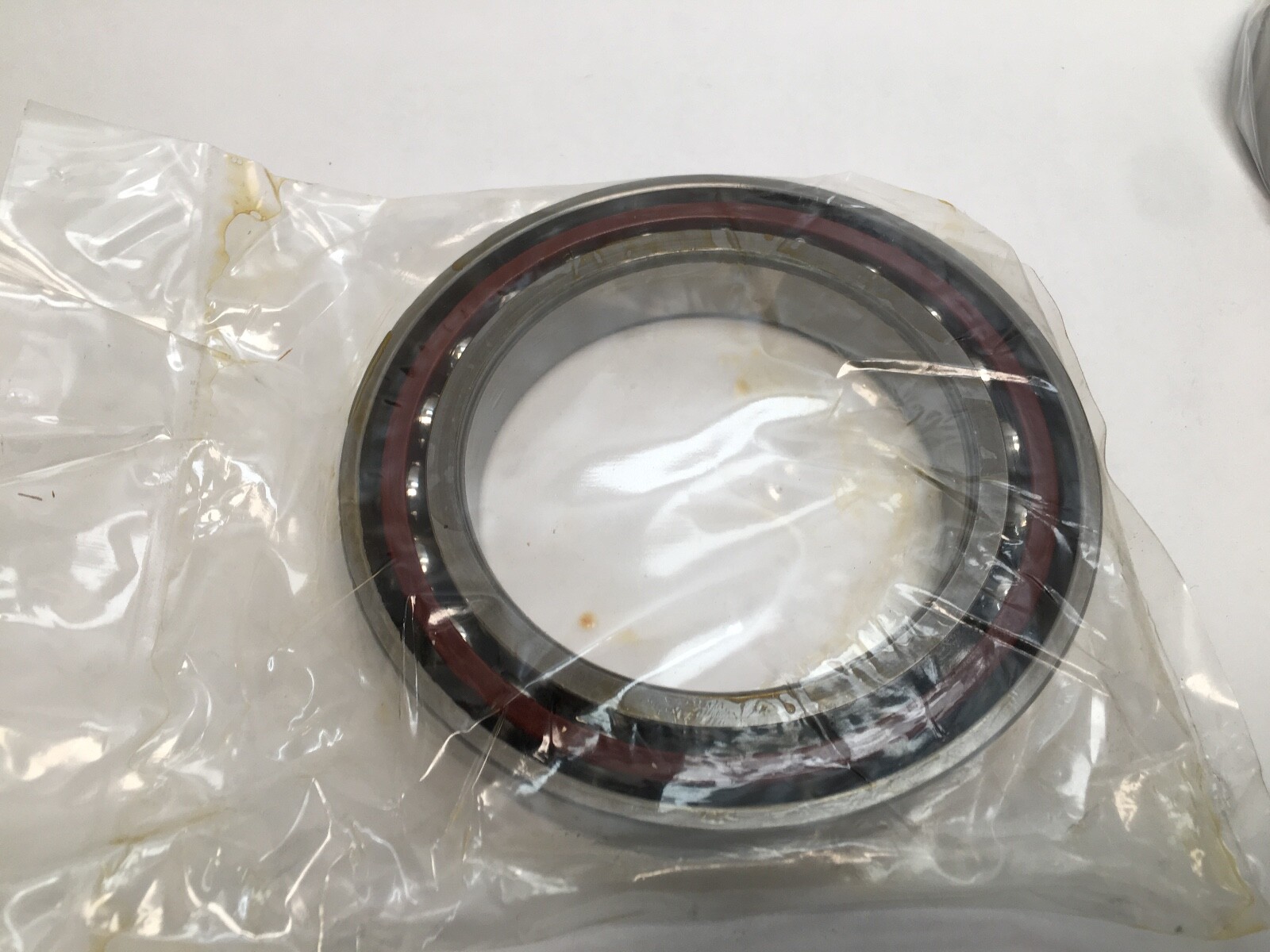

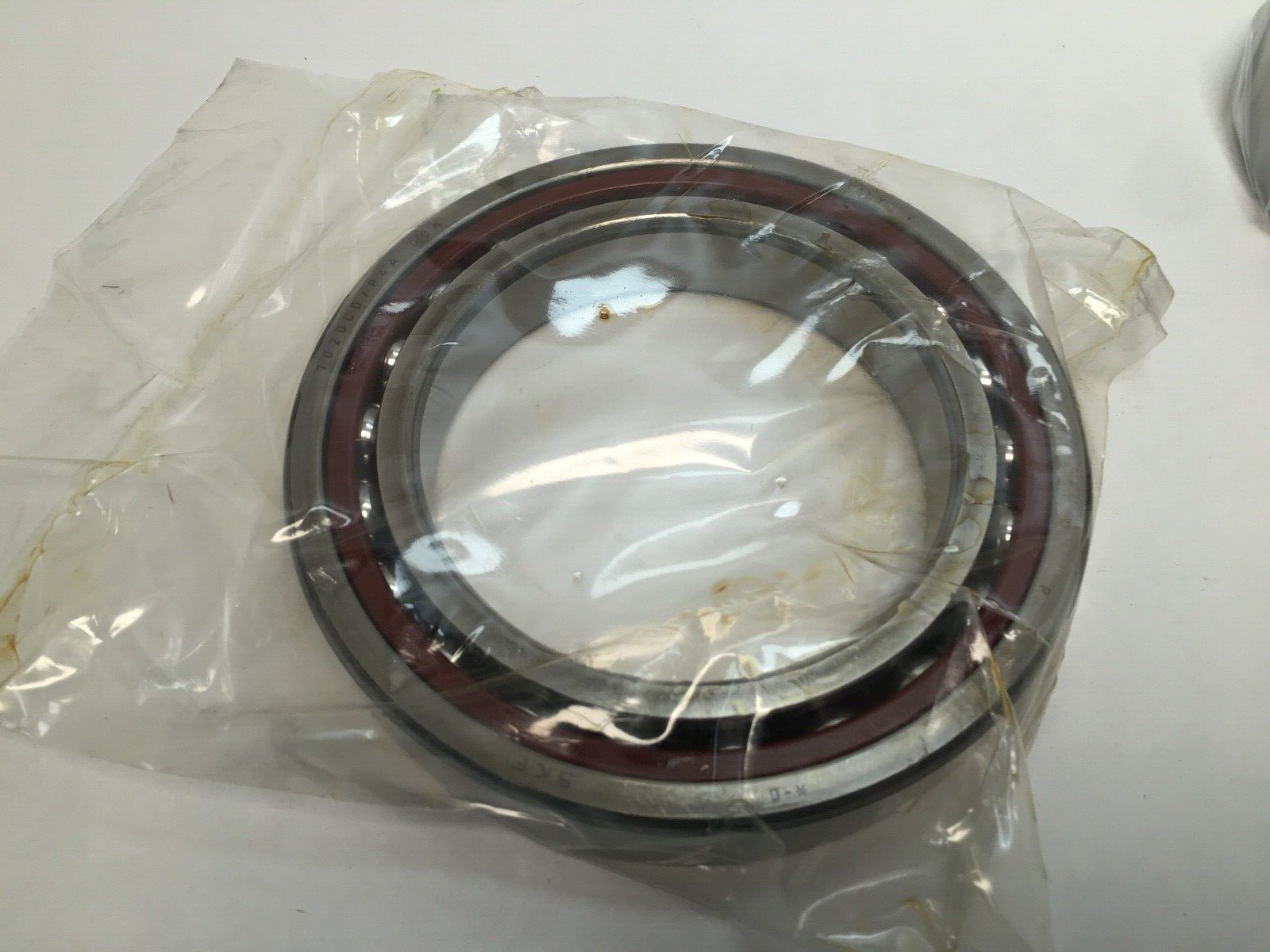

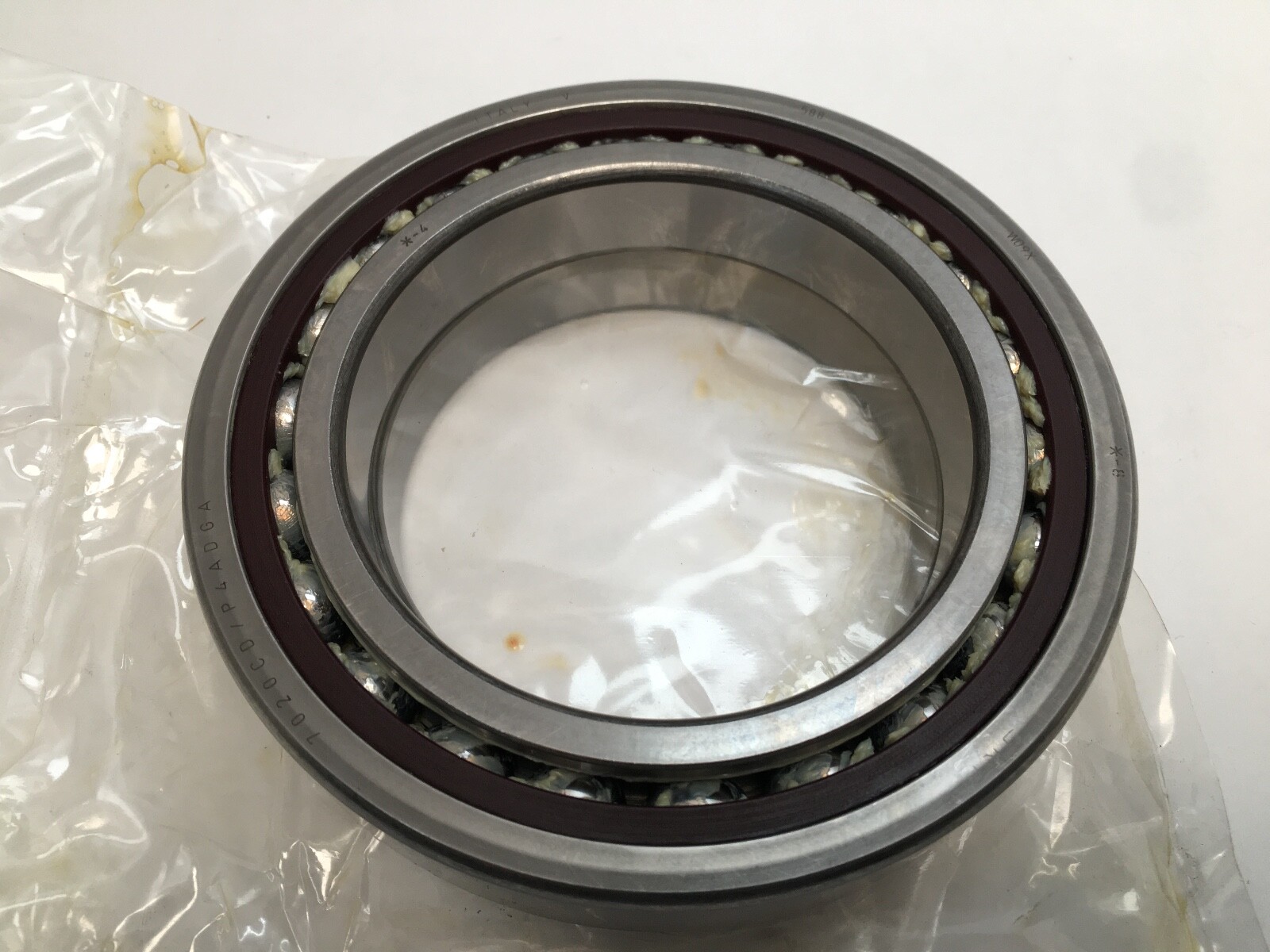

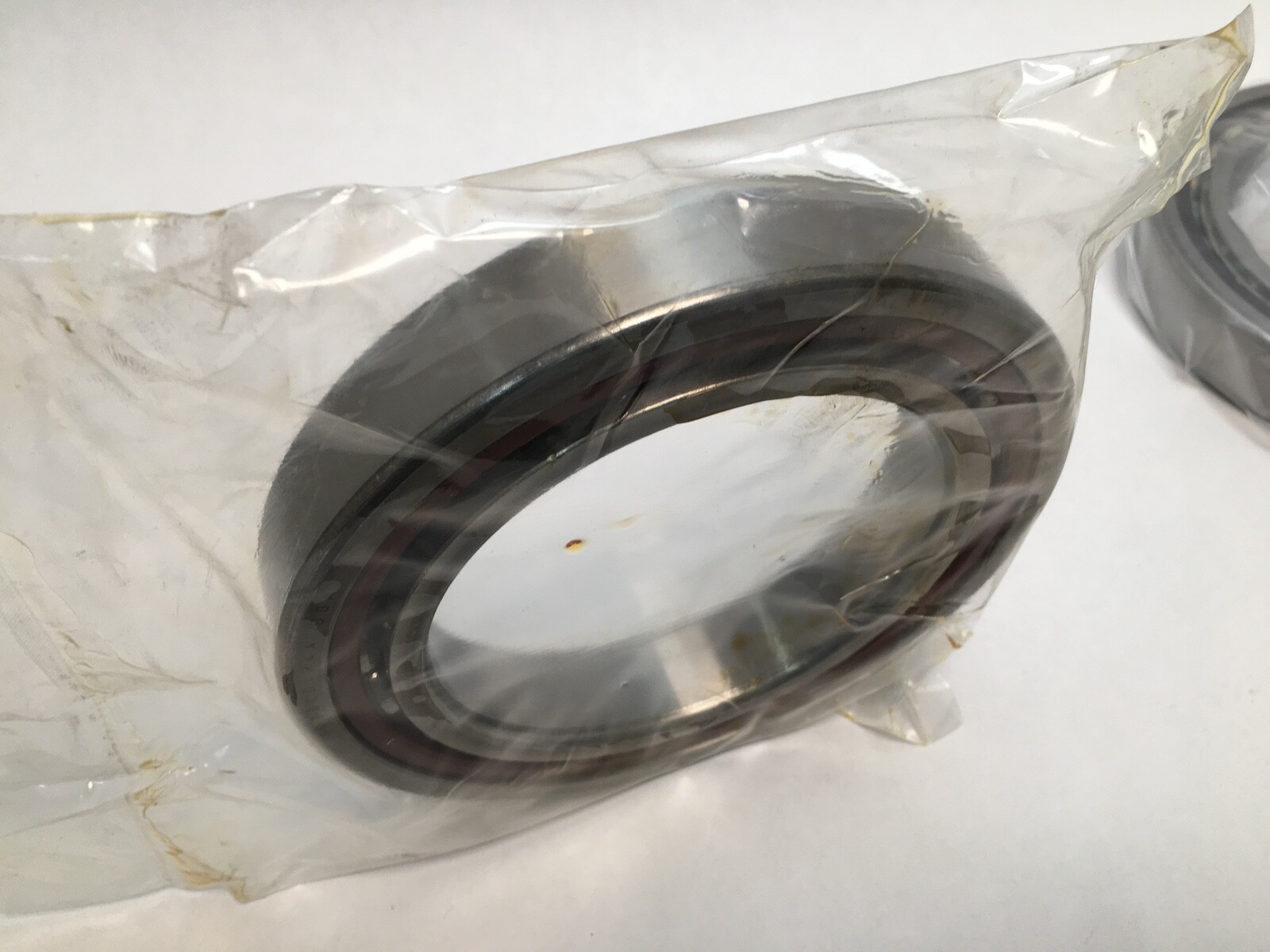

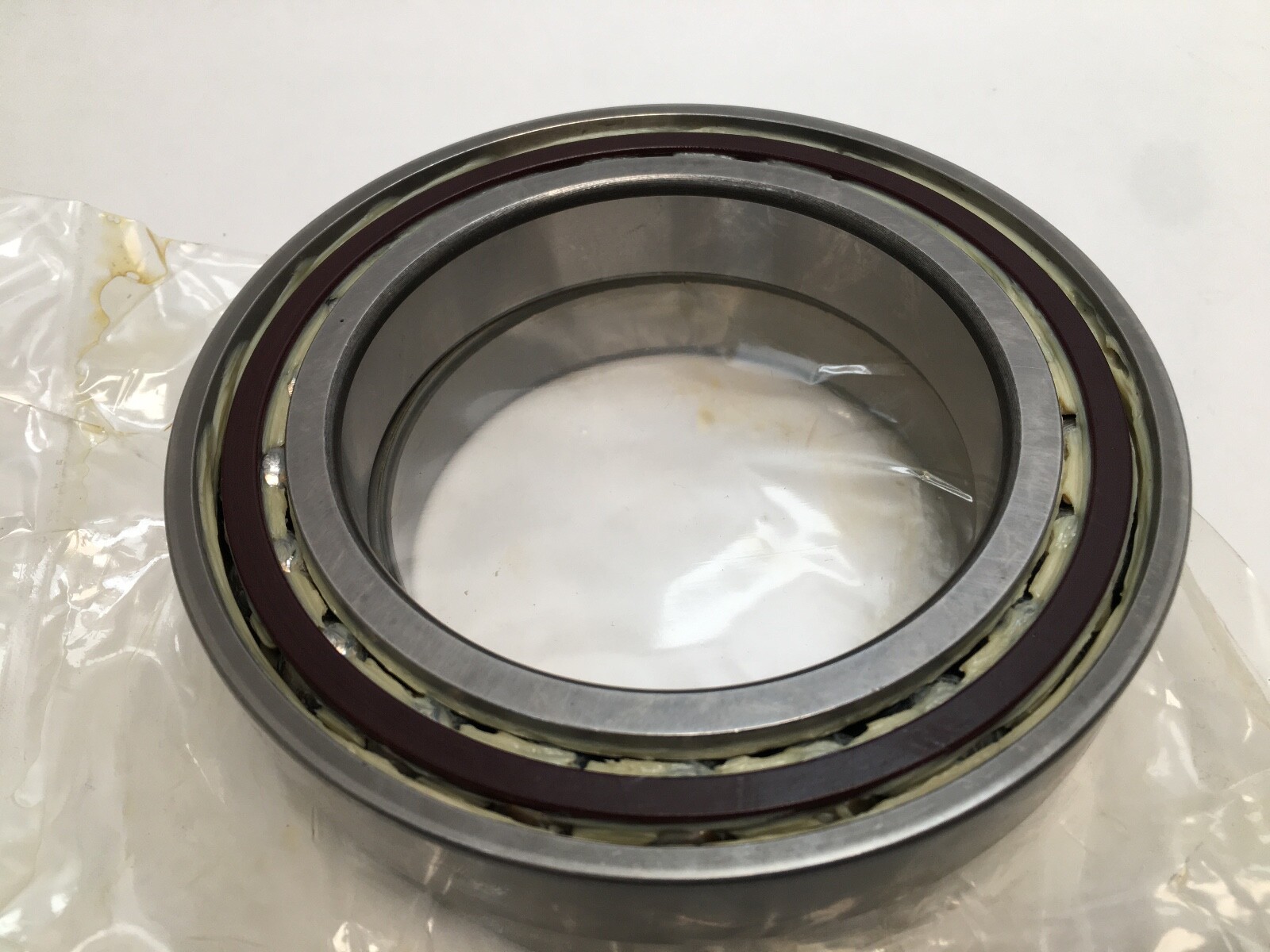

SKF 7020 CD/P4ADGA matched pair of super-precision angular contact bearings, 100 x 150 x 24 mm, 15°, extra light preload 310 N, P4A. Set rating C 135,000 N.
List Price
$757.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7020CDP4ADGA |
| Model | 7020CD/P4A DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light, 310 N |
| Total Width | 48 mm (set) |
| Mpn Variants | 7020 CD/P4ADGA, 7020-CD/P4ADGA, 7020-CD-P4A-DGA, 7020CDP4ADGA |
| Precision Class | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Dynamic Load Rating | 135,000 N (set) |
| Static Load Rating | 170,000 N (set) |
| Precision Rating | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Rolling Elements | Ball |
| Item Weight | 1.24 kg (2.73 lb) per bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 8,500 rpm grease; 14,000 rpm oil-air (single bearing, before arrangement factor) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal pair: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7020-C-T-P4S-DUL |
|---|---|
| Cross Reference 2 | NSK 7020CTYNDULP4 |
| Cross Reference 3 | NTN 7020CDBL |
| Cross Reference 4 | Fafnir 2MM9120WI DUL |
SKF 7020 CD/P4ADGA is a matched set of two super-precision, high-capacity single row angular contact ball bearings in the 70 series, with a 15° contact angle and extra light preload. The set is universally matchable and mounts back-to-back, face-to-face or in tandem in machine tool spindles.
70 — ISO dimension series 10, light section.
20 — bore code, 20 x 5 = 100 mm bore.
CD — 15° contact angle, high-capacity D design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.
DGA — set of two universally matchable bearings, extra light preload.
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 24 mm per bearing; 48 mm set total. Contact Angle: 15°. Dynamic Load Rating: 135,000 N (set); 83,200 N per bearing. Static Load Rating: 170,000 N (set); 85,000 N per bearing. Fatigue Load Limit: 6,400 N (set). Preload: Extra light, 310 N (back-to-back or face-to-face). Axial Stiffness: 112 N/µm. Attainable Speed: 8,500 rpm grease; 14,000 rpm oil-air (single bearing, before arrangement factor). Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Ball Diameter: 15.875 mm. Number Of Balls: 22 per bearing. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 1.24 kg (2.73 lb) per bearing; 2.48 kg (5.47 lb) set total.
Back-to-back mounting reduces attainable speed by factor 0.8; face-to-face by 0.77.
Shaft abutment diameter: 107 mm min. Housing abutment diameter: 143 mm max (large side), 146 mm max (small side). Fillet radius: 1.5 mm max (large side), 1 mm max (small side). Oil nozzle position: 118.7 mm. Reference grease quantity: 16.2 cm³ per bearing.
Unit Quantity: 2 Pcs. One matched set of two bearings.
Same envelope, 15° angle, super-precision class: FAG B7020-C-T-P4S-DUL, NSK 7020CTYNDULP4, NTN 7020CDBL, Fafnir 2MM9120WI DUL. MPN variants: 7020 CD/P4ADGA, 7020-CD/P4ADGA, 7020-CD-P4A-DGA, 7020CDP4ADGA. Harmonization Code: 8482.10.50.
$760.47
16 in stock
