Availability:
12 in stock

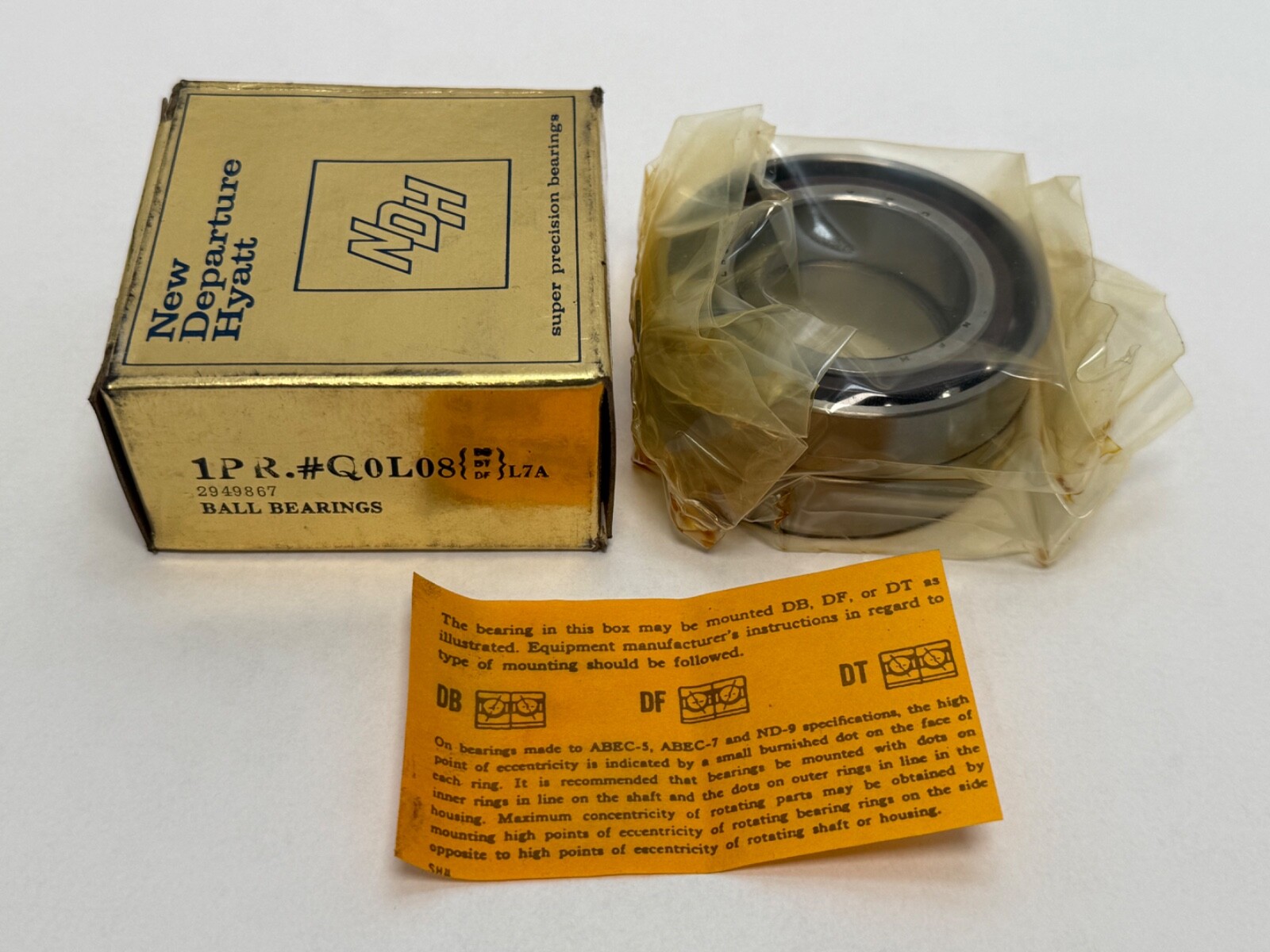

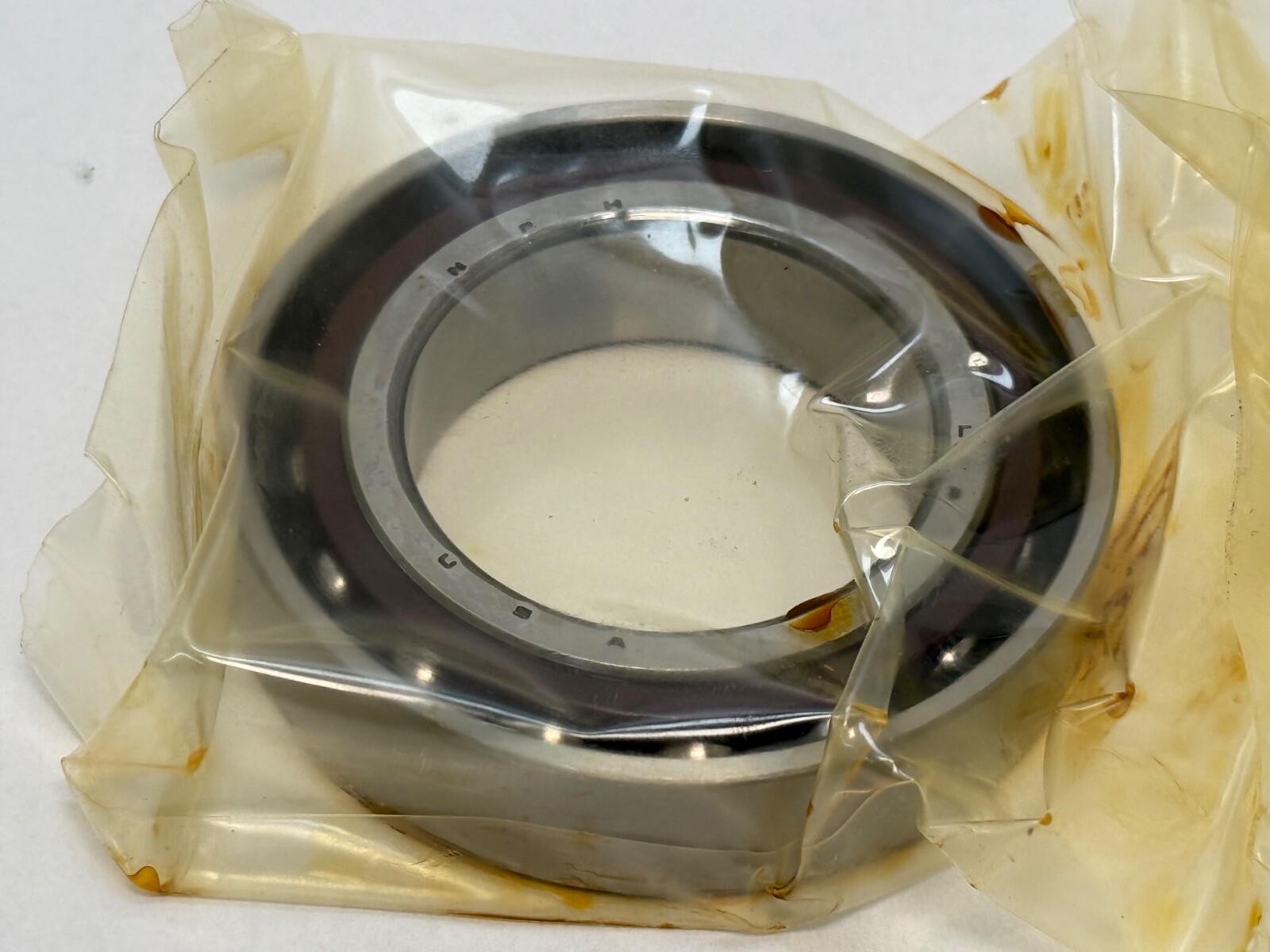

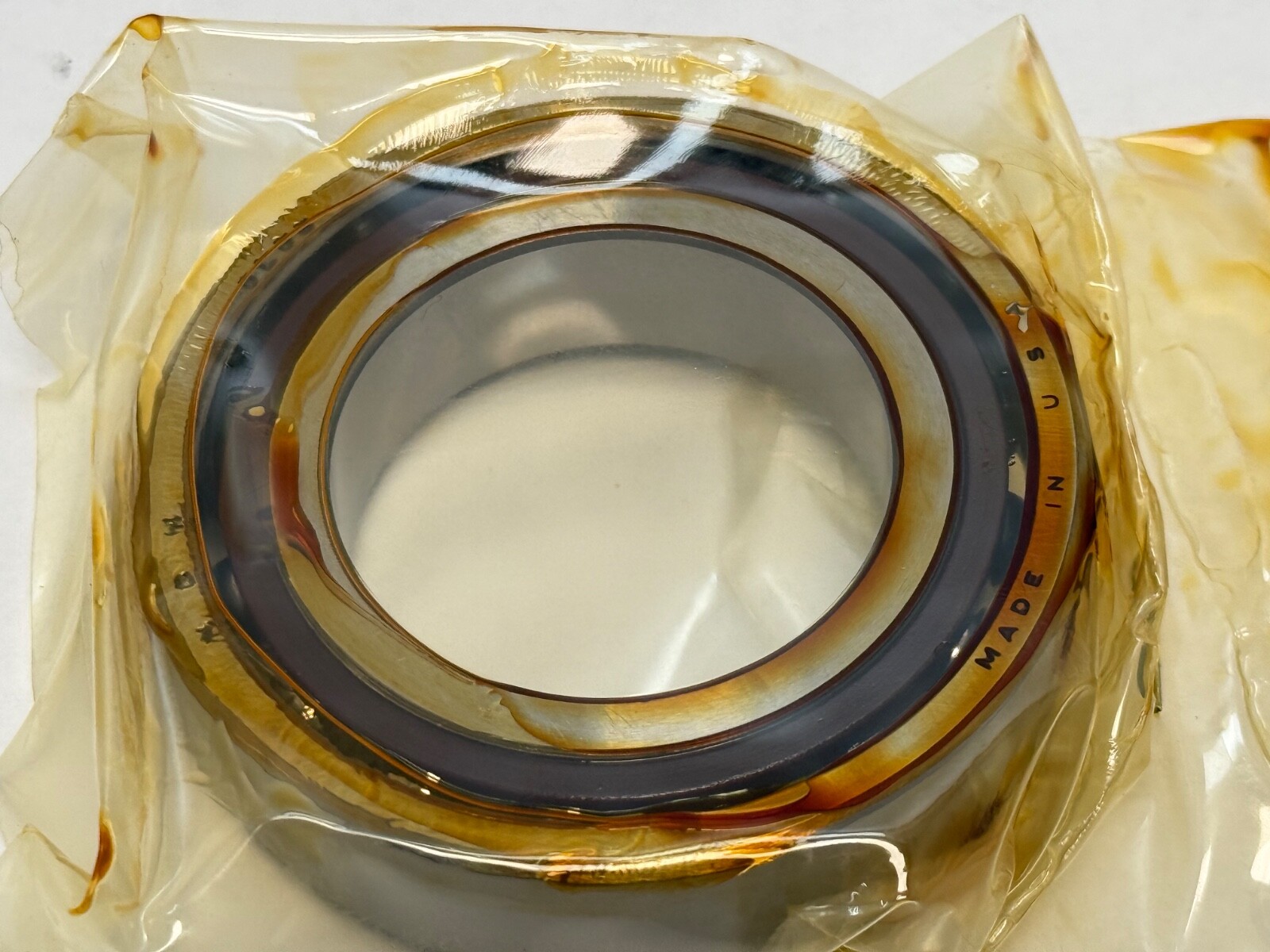

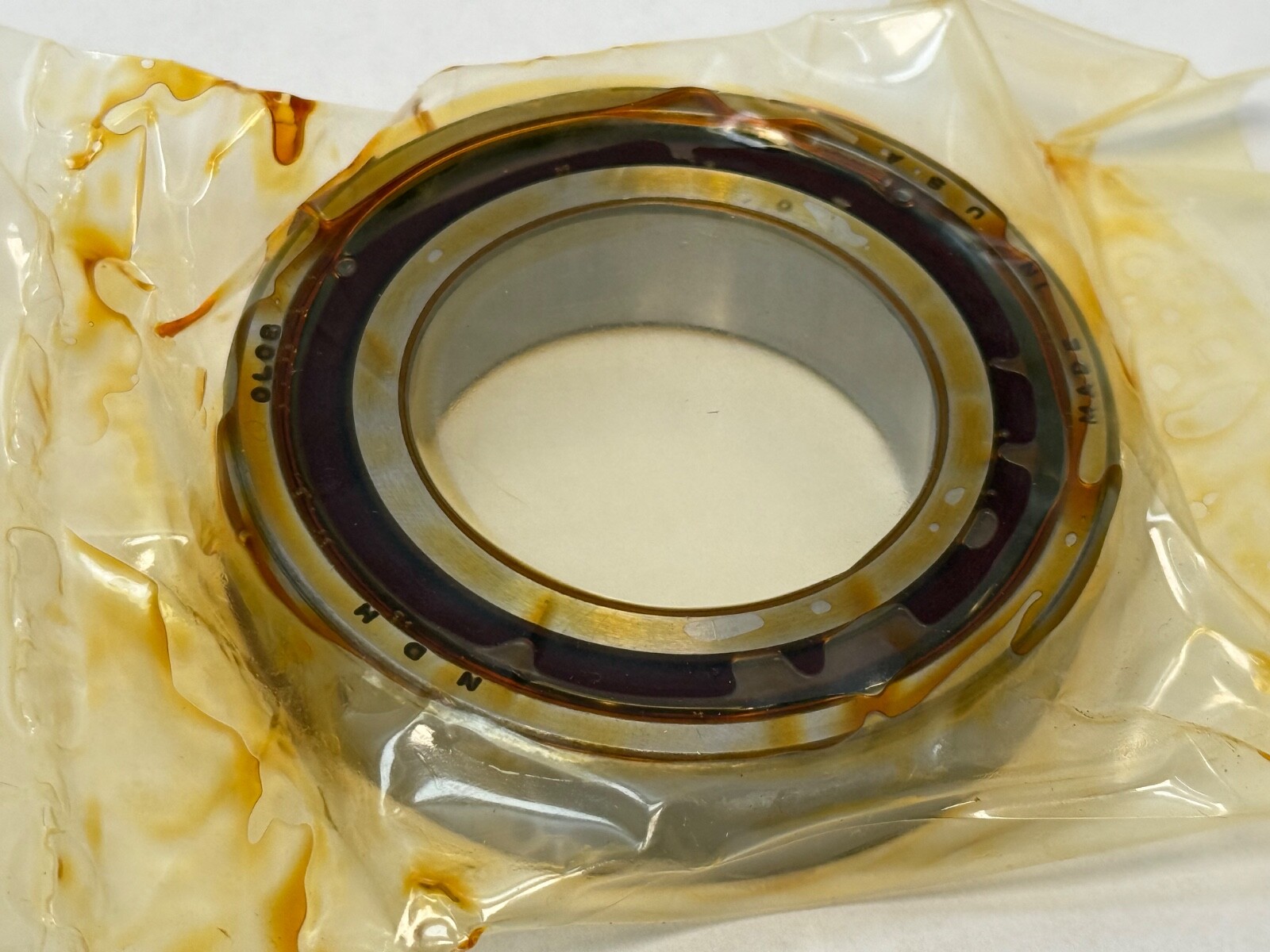

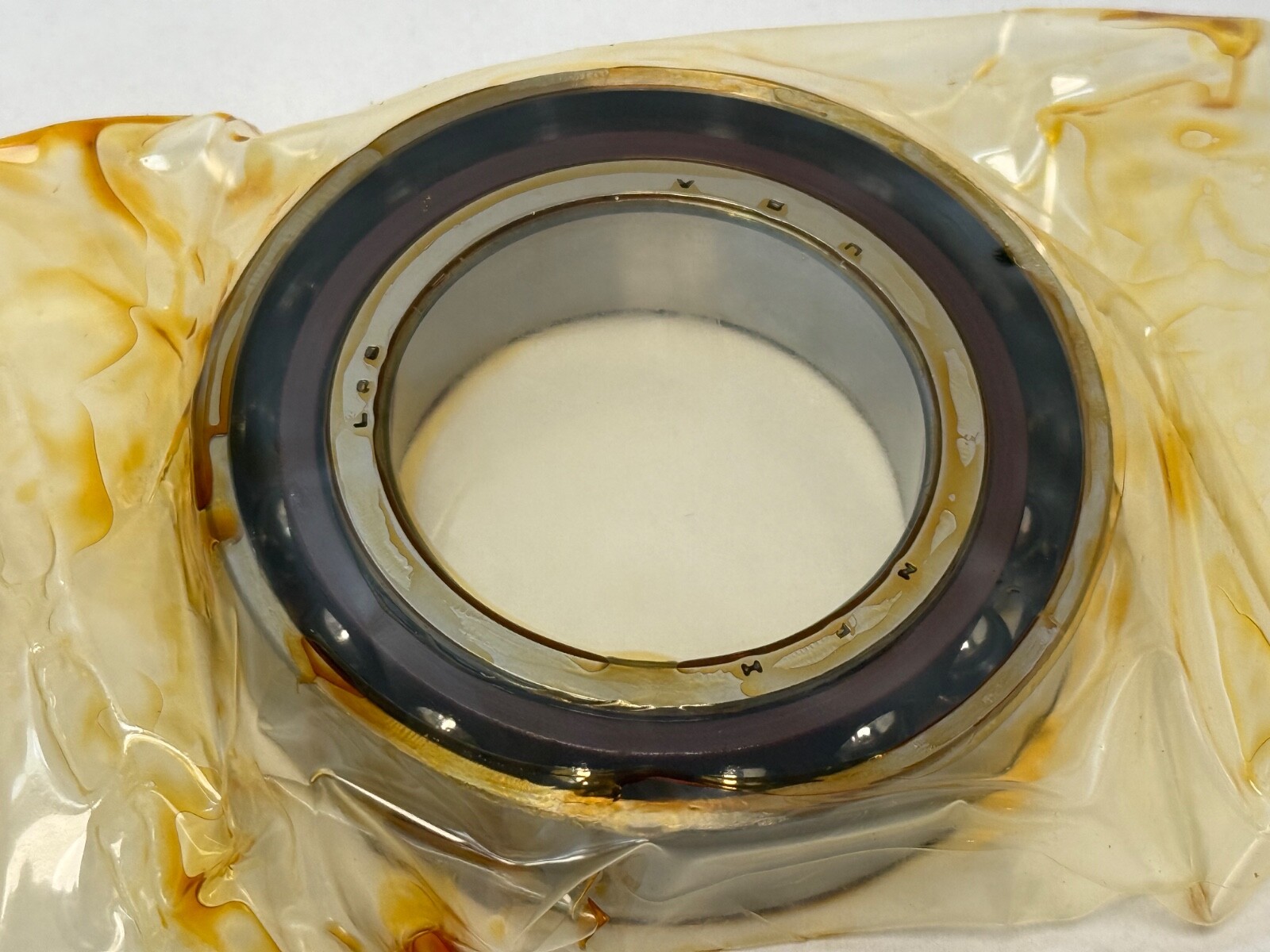

NDH Q0L08DTL7A super precision angular contact ball bearing pair, 40 x 68 x 15 mm, ABEC 7, light preload, duplex flush ground. Nonmetallic separator, 2 Pcs.
List Price
$144.53
12 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | Q0L08DTL7A |
| Model | Q 0L08 DT L7A / 7008 C T DUL P4 / 2MM9108WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15 mm |
| Base Number | 0L08 |
|---|---|
| Industry Terms | super precision angular contact bearing, spindle bearing, duplex bearing set, New Departure Hyatt |
| Common Misspellings | QOL08DTL7A, Q0LO8DTL7A, QOLO8DTL7A |
| Application Types | Machine tool spindles, precision shafts |
| Mpn Variants | Q0L08DTL7A, Q-0L08-DT-L7A, Q 0L08 DT L7A, 0L08 |
| Precision Class | ABEC 7 / P4 |
| Series | 0L00 |
| Cage Material | Nonmetallic separator |
| Number Of Rows | 1 |
| Preload | Light |
| Mounting Arrangement | Duplex, universal flush ground (DT/DB/DF) |
The NDH Q0L08DTL7A is a New Departure Hyatt super precision angular contact ball bearing set, 0L00 extra-light series, supplied as a duplex tandem (DT) matched pair. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Width: 15 mm per bearing. Precision Class: ABEC 7 / P4. Preload: Light.
Q — nonmetallic ball separator.
0L08 — NDH extra-light angular contact series, size 08: 40 x 68 x 15 mm, the ISO 7008 envelope.
DT — duplex set, faces flush ground to preload for universal mounting in tandem (DT), back-to-back (DB) or face-to-face (DF).
L — light preload.
7 — ABEC 7 tolerance.
A — rust preventive compound.
Cage Material: Nonmetallic separator. Mounting Arrangement: Duplex, universal flush ground (DT/DB/DF). ABEC 7 running accuracy suits machine tool spindles and other high-speed precision shafts.

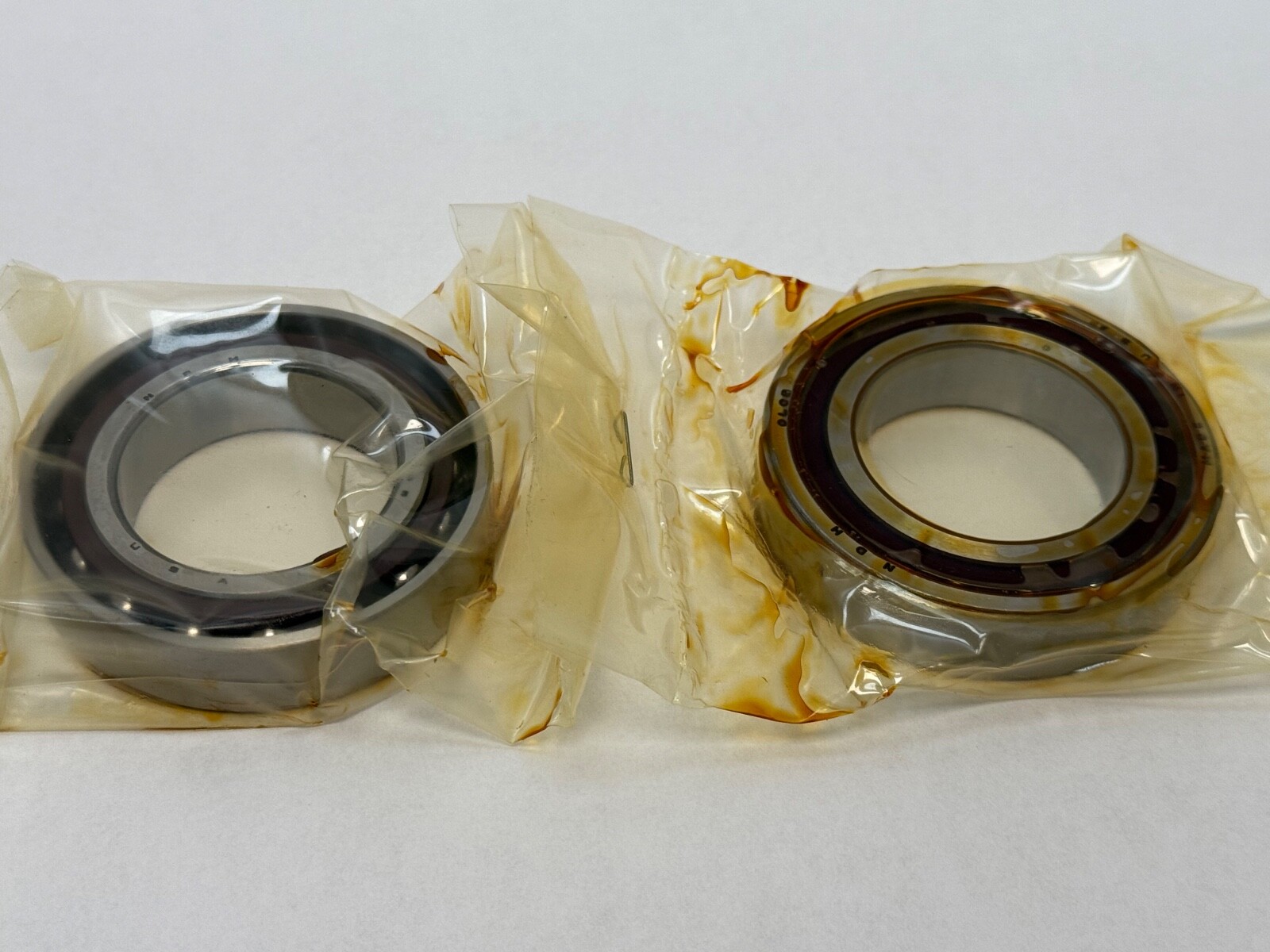

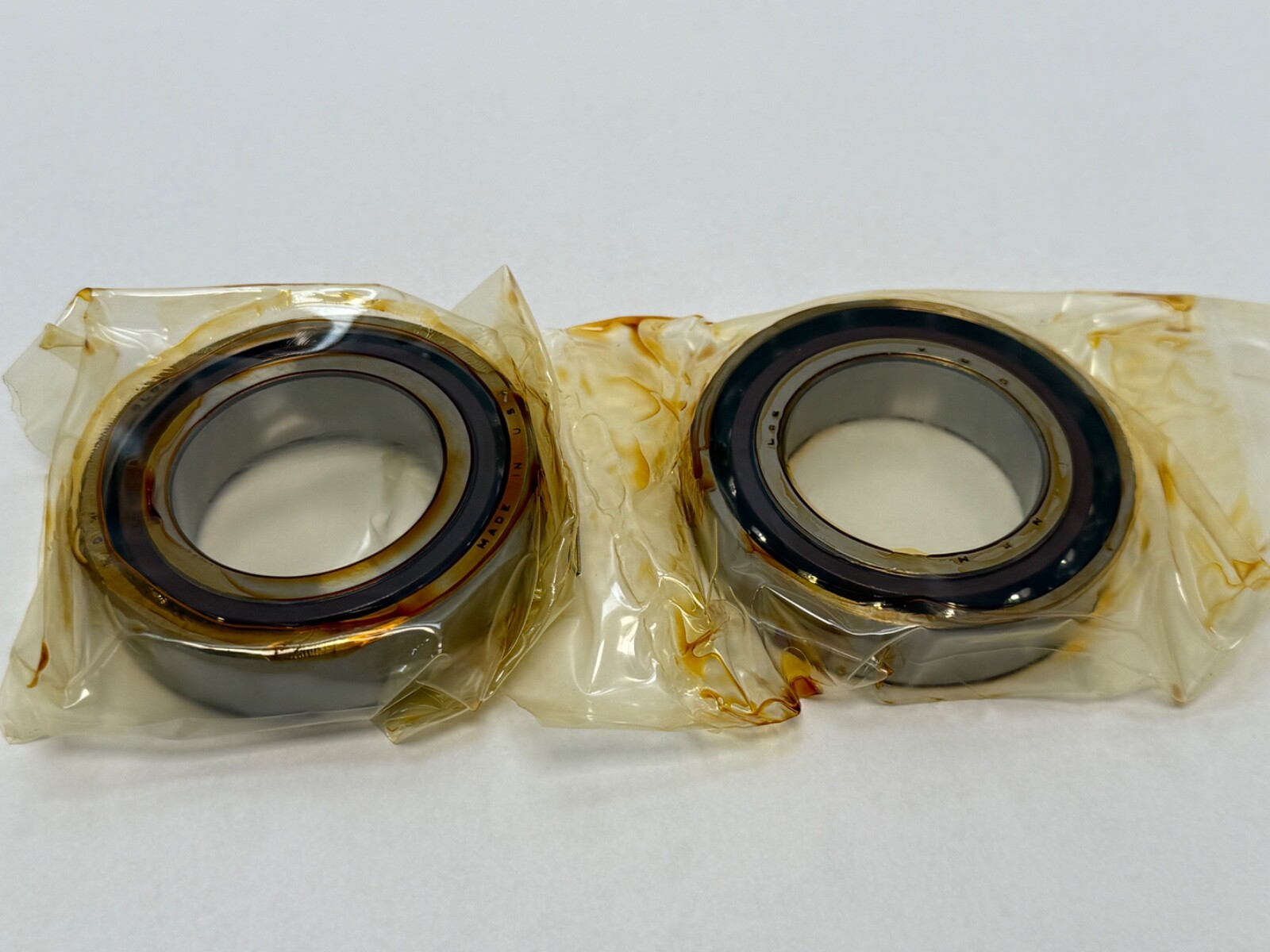

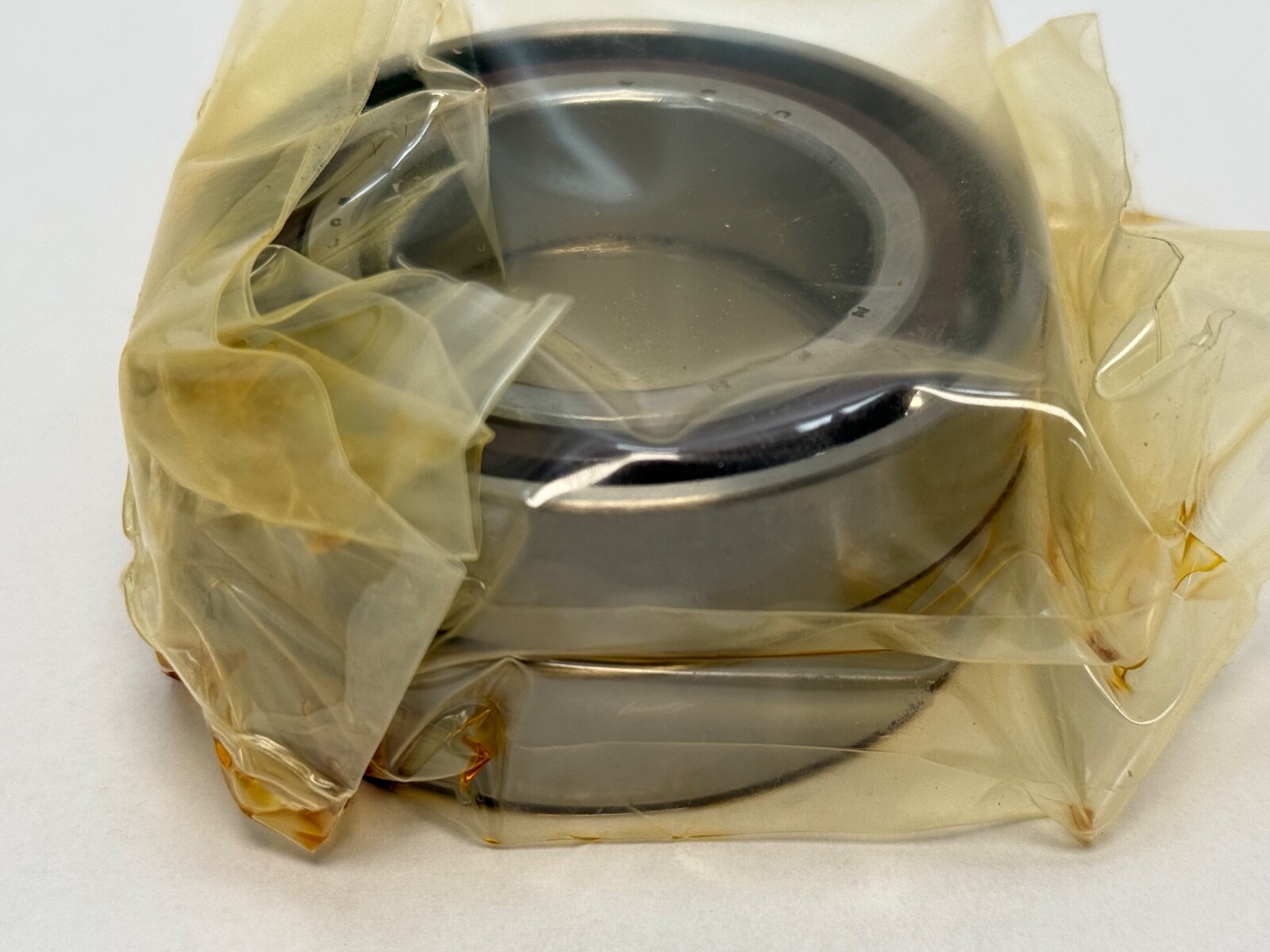

Unit Quantity: 2 Pcs, one factory-matched duplex pair.
Envelope 40 x 68 x 15 mm, the ISO 7008 size, listed against 7008-C and Fafnir 2MM9108WI CR DUL. Also written Q-0L08-DT-L7A and Q 0L08 DT L7A.
