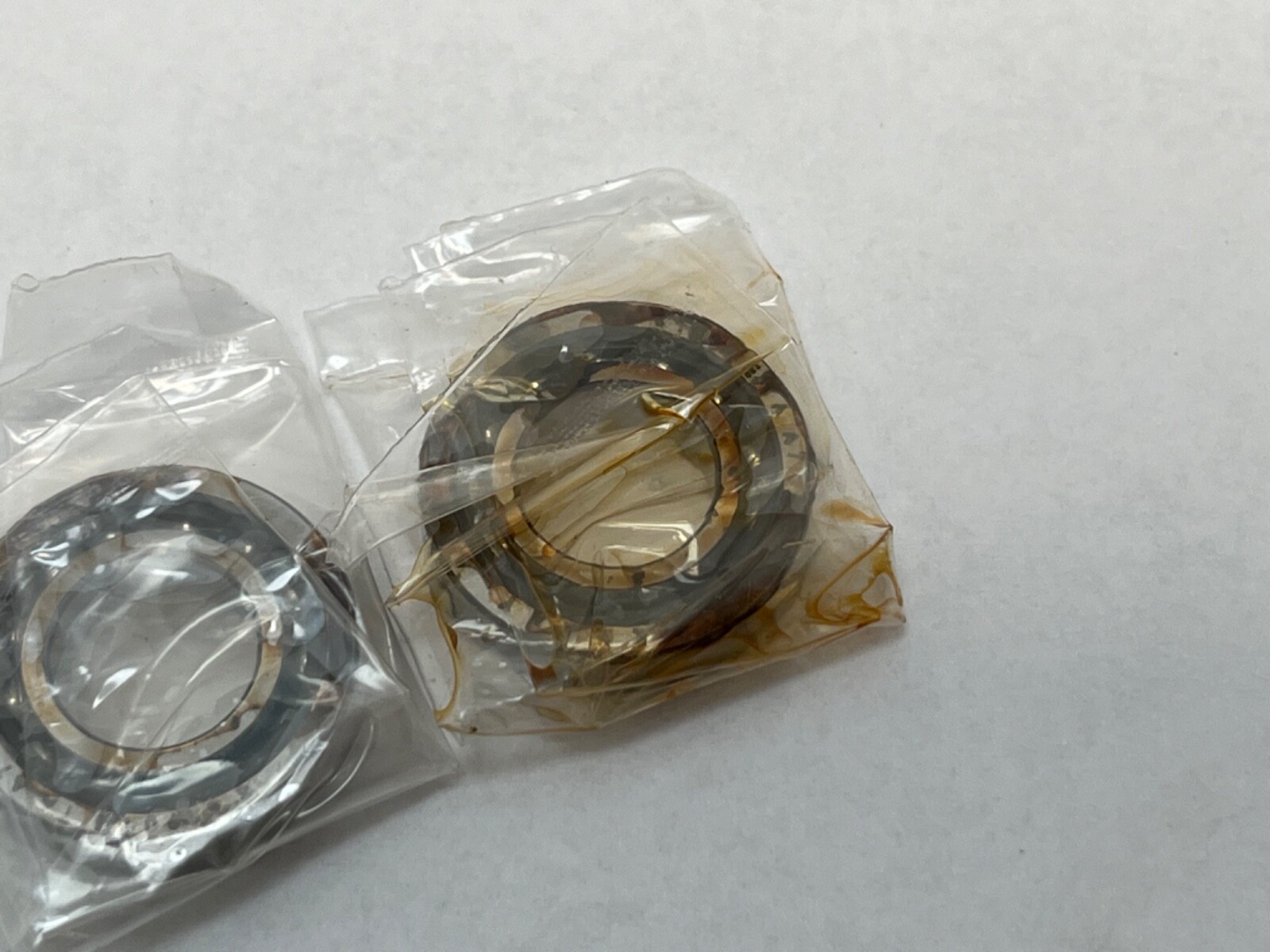

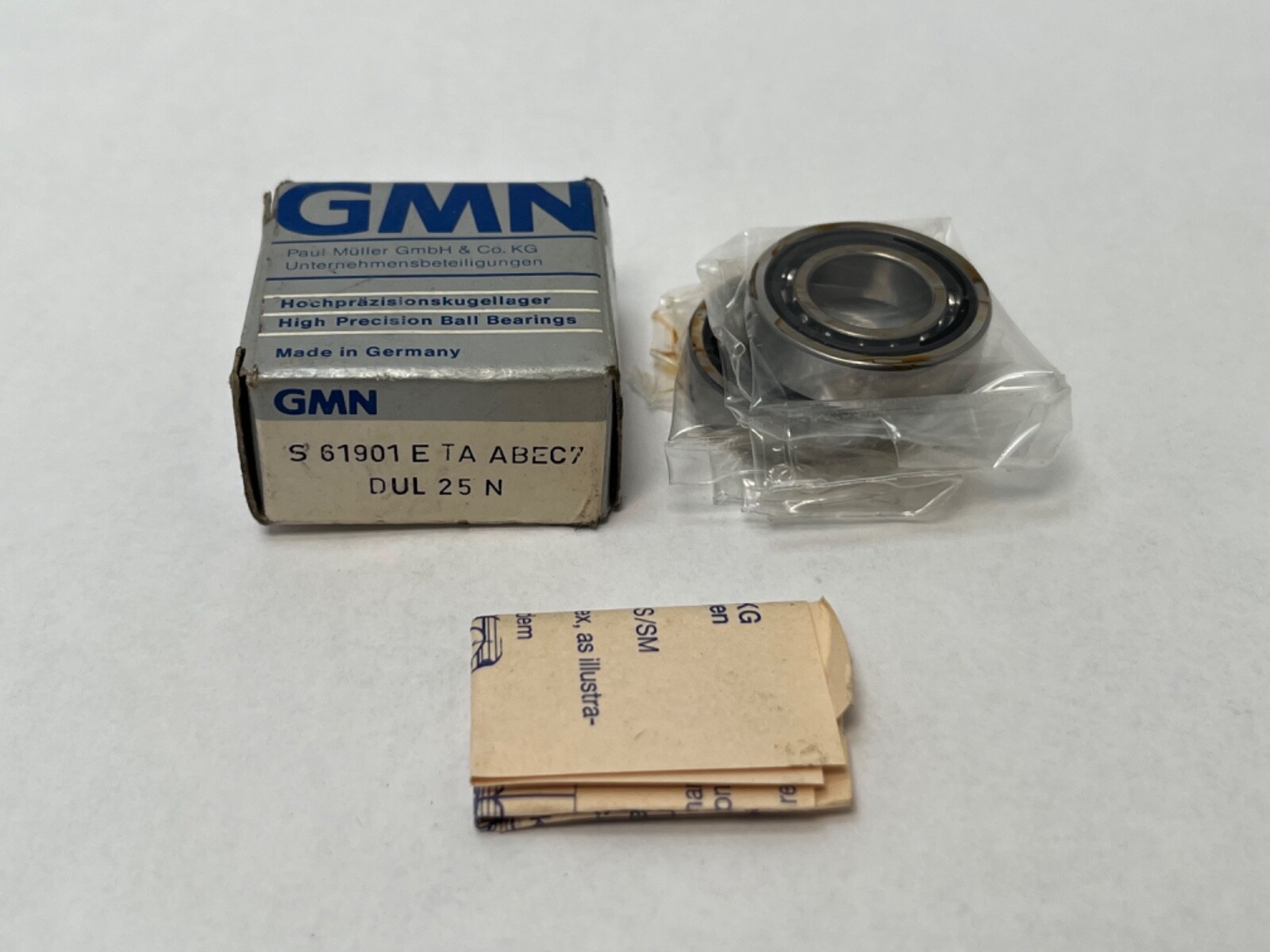

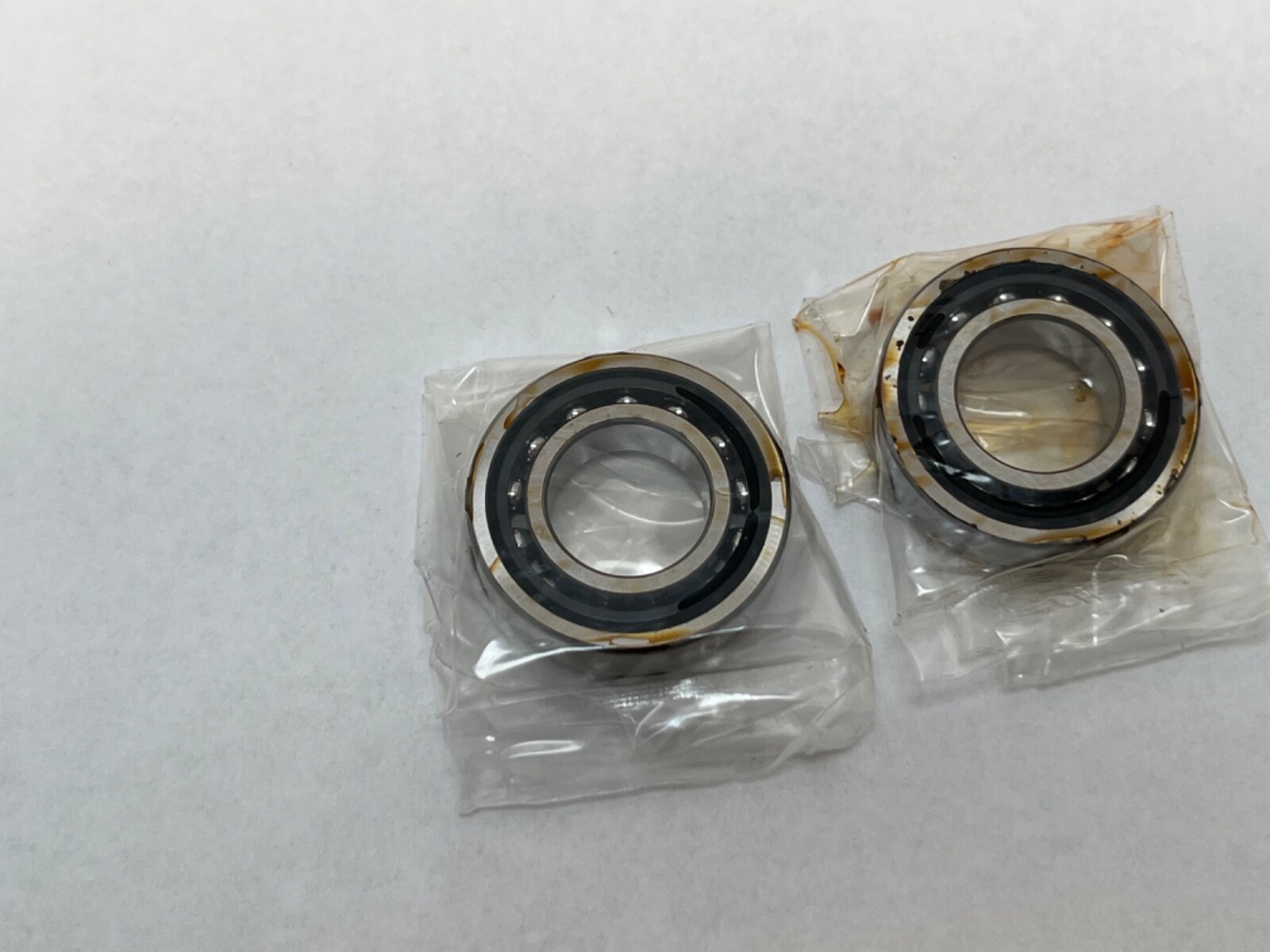

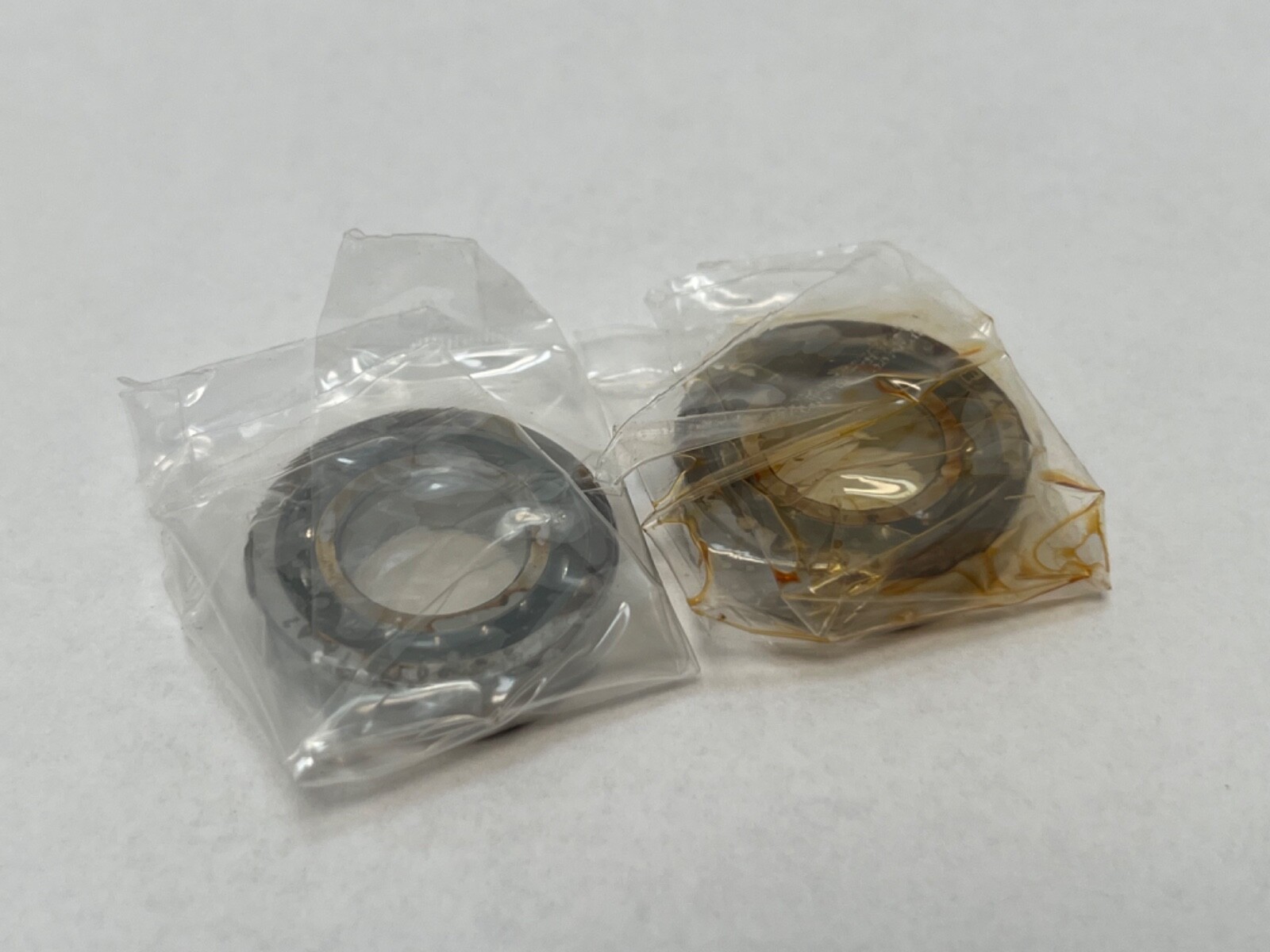

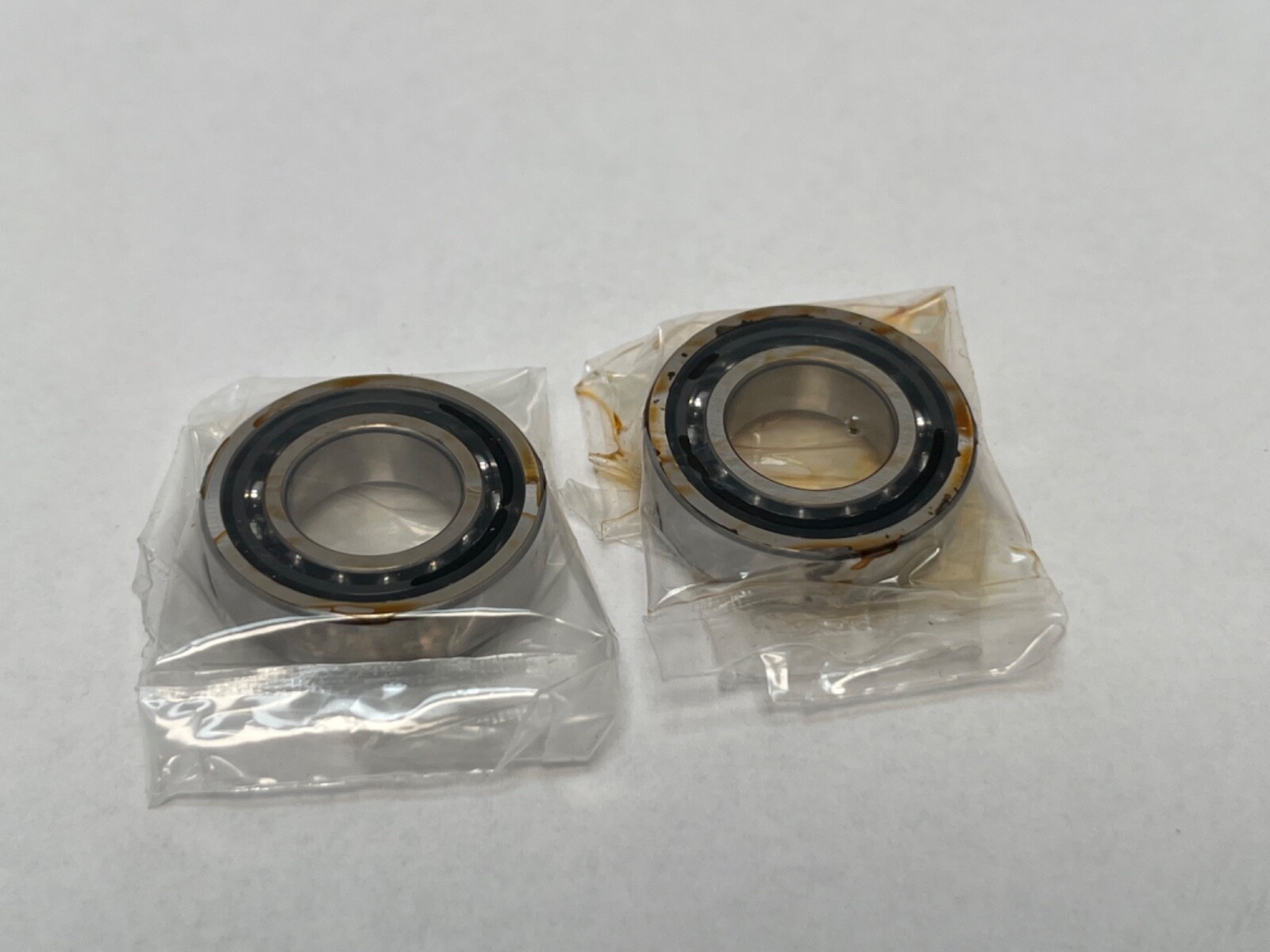

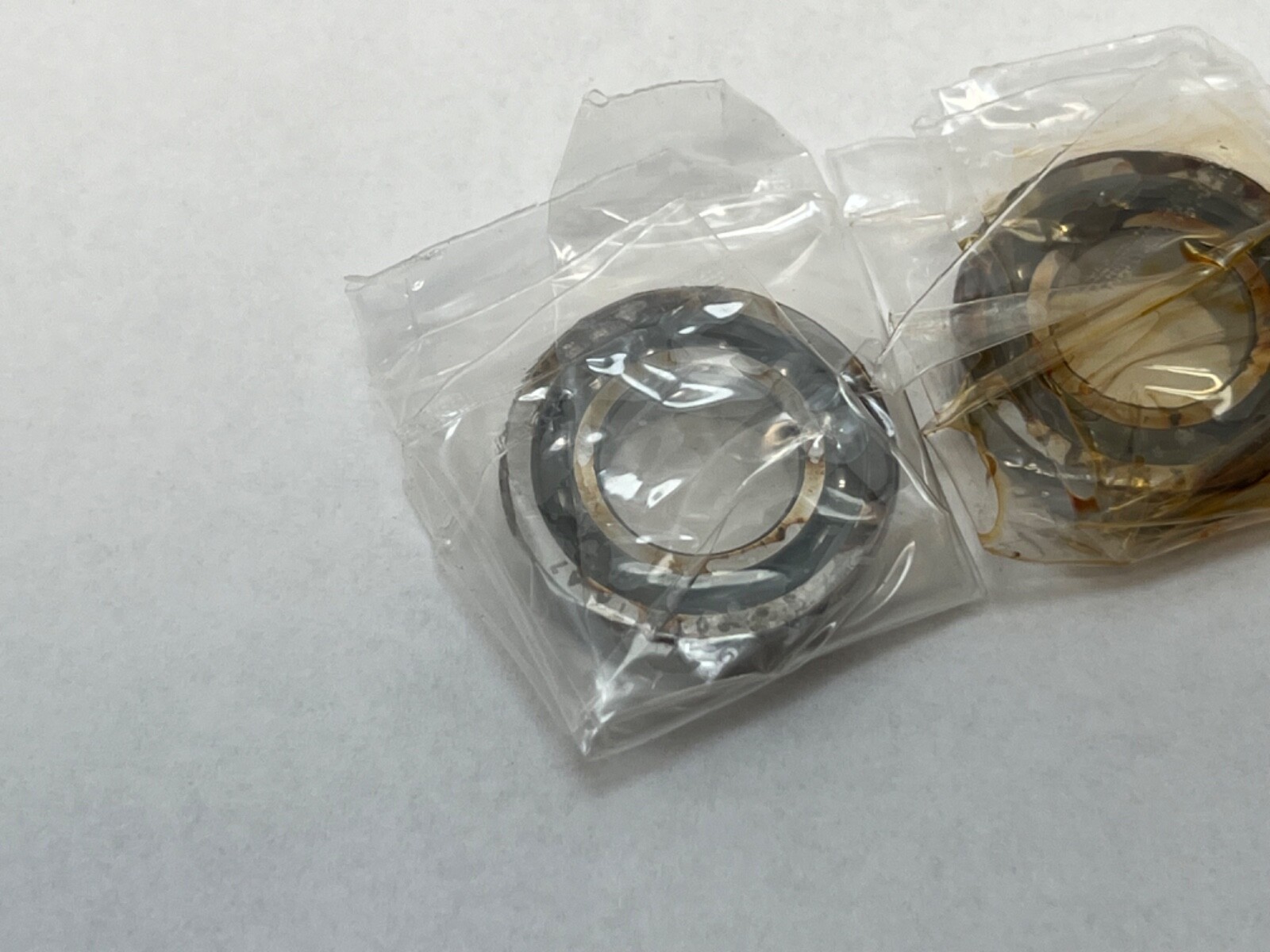

GMN S61901ETAP4DUL angular contact spindle bearing, 12 x 24 x 6 mm, 25° contact angle, P4 precision, universal matching with light preload (25 N), phenolic cage.
List Price
$59.68
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 20 mm ID, 37 mm OD, 9 mm Width, 15° Contact Angle, P4, Phenolic Cage, Universal Light Preload$47.52
Angular Contact Ball Bearing — 35 mm ID, 55 mm OD, 10 mm Width, 25° Contact Angle, ABEC 7, Phenolic Cage, Universal Light Preload$51.42
Angular Contact Ball Bearing — 35 mm ID, 55 mm OD, 10 mm Width, 15°, Phenolic Cage, ABEC 7 / P4, Universal Light Preload$120.80
Super Precision Angular Contact Spindle Bearing 60x85x13 mm, 15° Contact Angle, Phenolic Cage, ABEC 7, Thin Section$89.97| MFR / Brand | GMN |
|---|---|
| MPN | S61901ETAP4DUL |
| Model | S61901ETAP4DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 24 mm |
| Width | 6 mm |
| Series | GMN S 619 |
|---|---|
| Lubricant | Grease or oil |
| Preload | L (light), 25 N |
| Material | 100Cr6 (SAE 52100) steel |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 2,950 N |
| Static Load Rating | 1,600 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.011 kg (0.02 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 62,000 rpm grease; 83,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.1 |
| Contact Angle | 25° |
| Mpn Variants | S61901ETAP4DUL, S 61901 E TA P4 DUL, S-61901-E-TA-P4-DUL, S61901ETAA7UL, S61901ETA, 71901E, 7901A5 |
| Arrangement Configuration | Universal matching (DUL) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 13; Ball diameter: 3.175 mm; Pitch circle diameter: 17.5 mm; Abutment da min: 13.9 mm; Abutment Da max: 22.5 mm; Oil nozzle position dT: 16.5 mm; GMN preload values: L 25 N, M 75 N, S 150 N; Axial rigidity (pair, light preload): 37 N/µm; TA cage operating temperature: 120 °C |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | SKF 71901 ACD/P4A |
|---|---|
| Cross Reference 2 | FAG B71901-E-T-P4S |
| Cross Reference 3 | NSK 7901A5TYNSULP4 |
| Cross Reference 4 | Fafnir 3MM9301WI |
GMN S61901ETAP4DUL is a single-row angular contact spindle bearing from GMN’s S series on the 71901 (7901) envelope, universally matched with light preload. Bore Diameter: 12 mm. Outside Diameter: 24 mm. Overall Width: 6 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4.
S — GMN standard spindle bearing series, non-separable.
61901 — 619 dimension series, 12 mm bore: the 71901 size, 12 x 24 x 6 mm.
E — 25° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring.
P4 — GMN tolerance class P4, corresponding to P4S per DIN 628-6.
DUL — duplex universal matching with light preload. GMN light preload for this size: 25 N.
Dynamic Load Rating: 2,950 N. Static Load Rating: 1,600 N. Limiting Speed: 62,000 rpm grease; 83,000 rpm oil. Preload: L (light), 25 N; axial rigidity of a pair at light preload 37 N/µm. Cage Material: Phenolic, rated by GMN to 120 °C.
Item Weight: 0.011 kg. Number of balls: 13. Ball diameter: 3.175 mm. Pitch circle diameter: 17.5 mm. Abutment diameter inner ring da min: 13.9 mm. Abutment diameter outer ring Da max: 22.5 mm. Oil nozzle position dT: 16.5 mm. Chamfer rs: 0.3 mm. GMN preload values for this size: L 25 N, M 75 N, S 150 N.
Universally matched with light preload for back-to-back, face-to-face or tandem mounting. Closure Type: Open.
Same 12 x 24 x 6 mm envelope, 25° angle and P4-class tolerance: SKF 71901 ACD/P4A, FAG B71901-E-T-P4S, NSK 7901A5TYNSULP4, Fafnir 3MM9301WI. Preload levels and cage materials vary by maker.
