Availability:
1 in stock

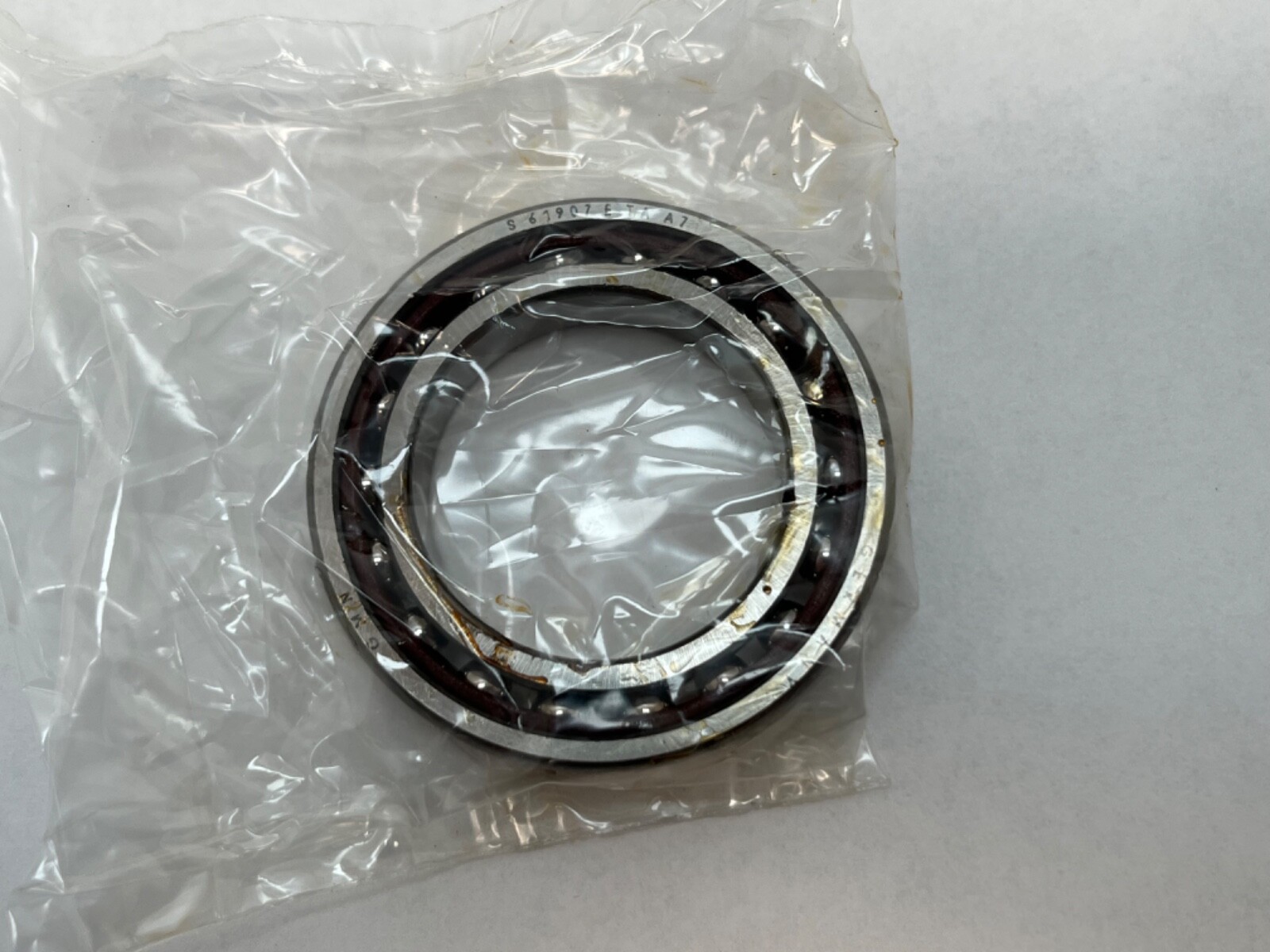

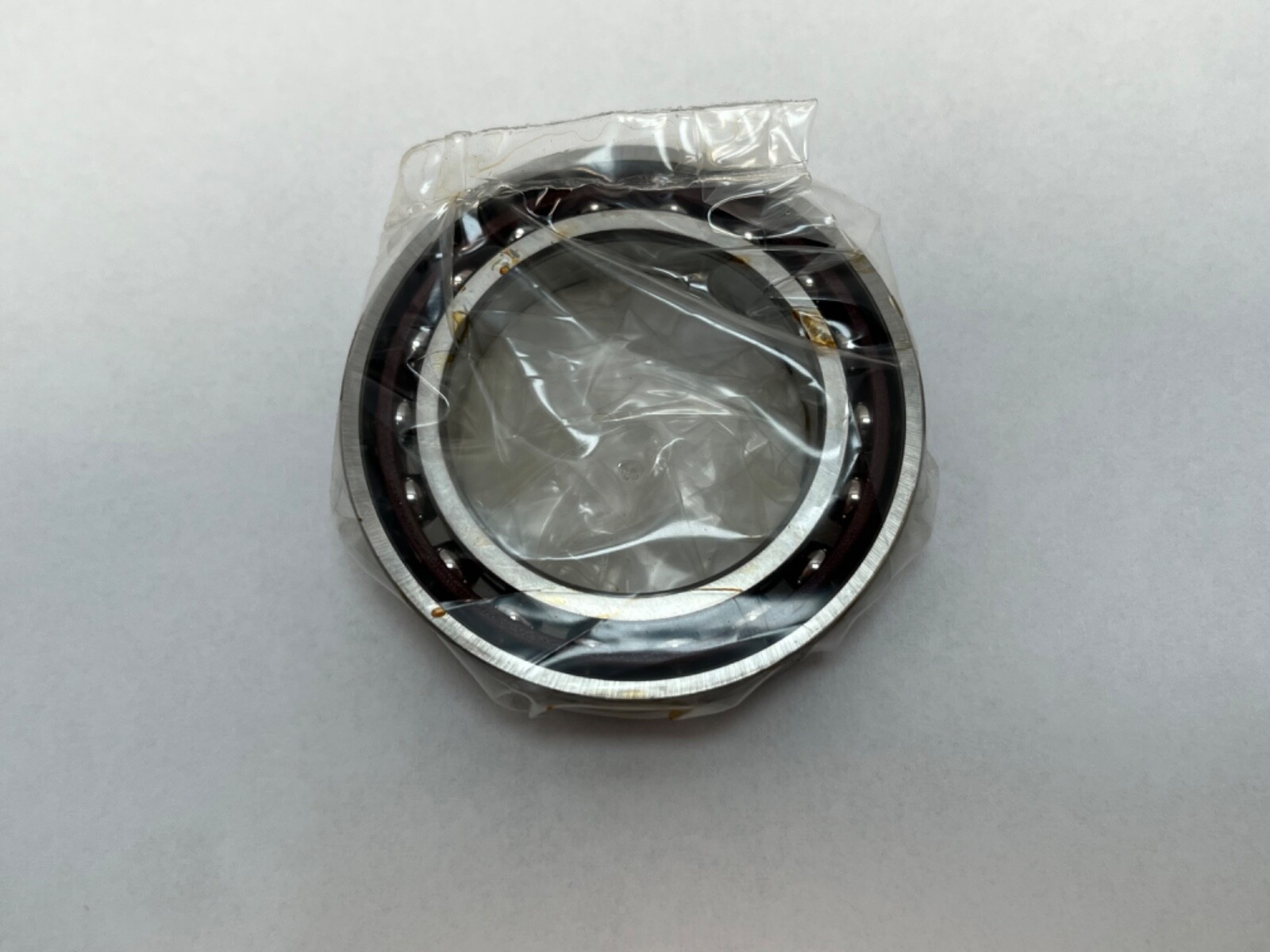

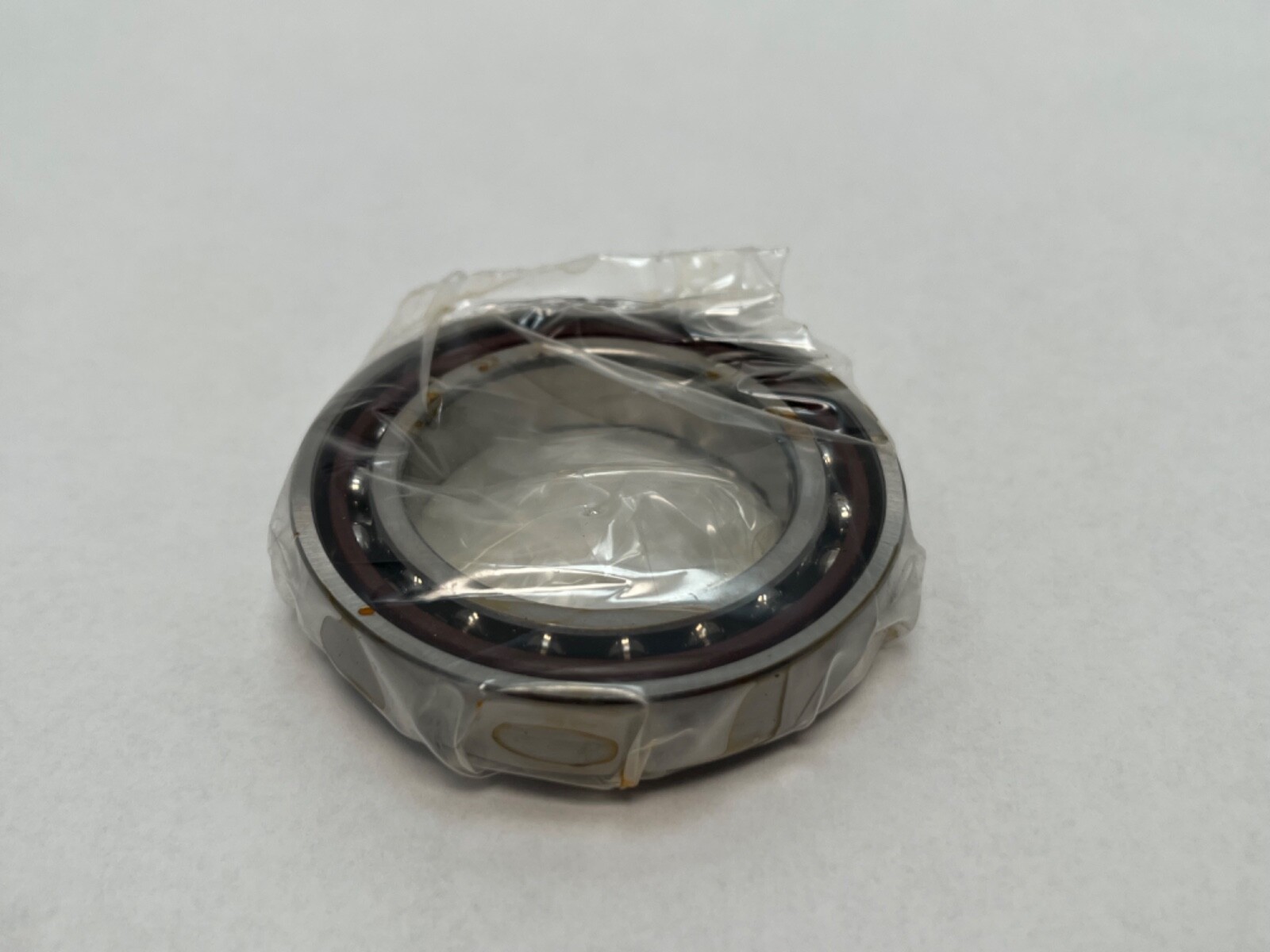

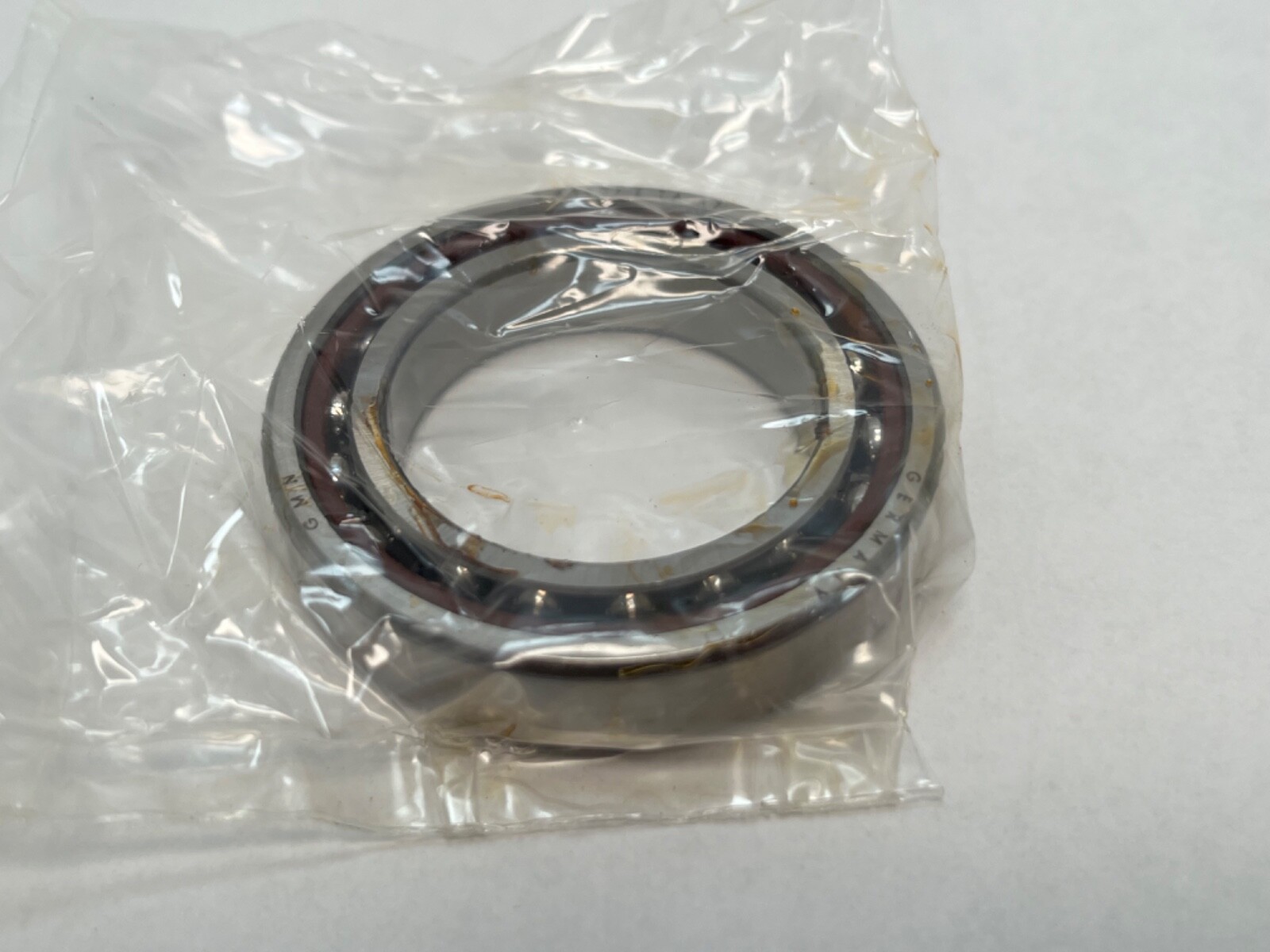

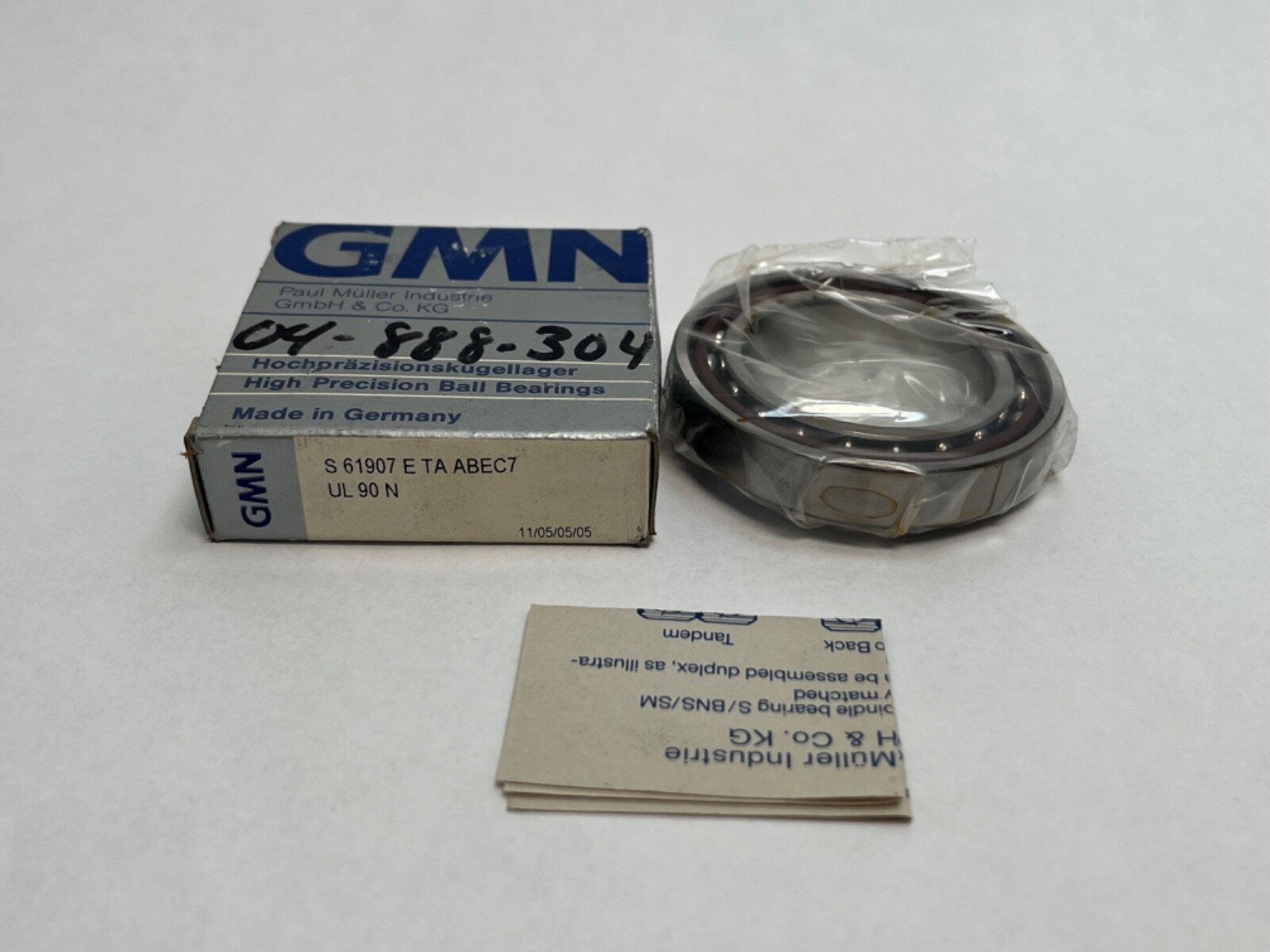

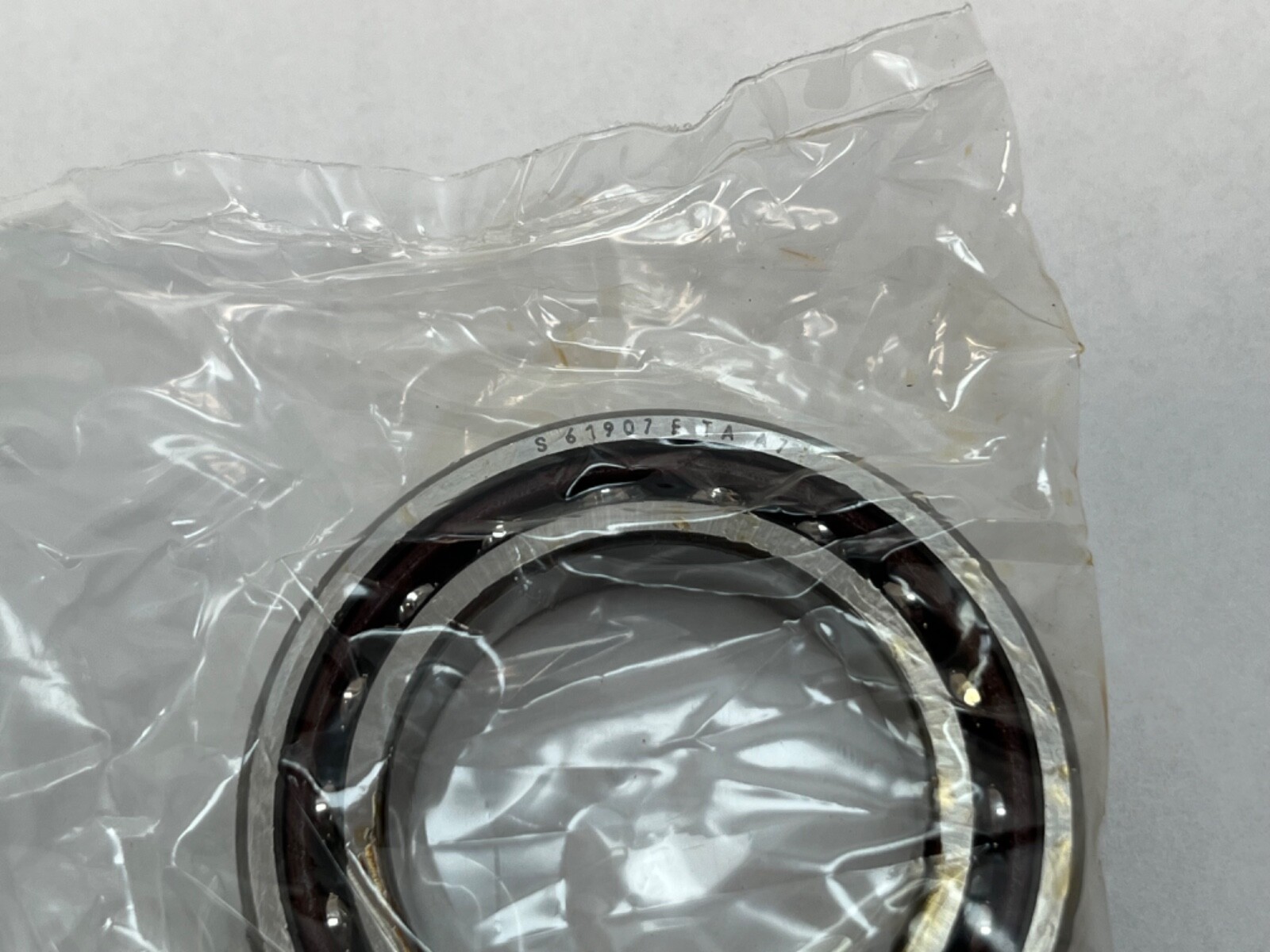

GMN S61907ETAA7UL angular contact spindle bearing, 35 x 55 x 10 mm, 25 degree contact angle, ABEC 7, universal light preload (90 N), phenolic cage.
List Price
$51.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S61907ETAA7UL |
| Model | S61907ETAA7UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Series | GMN S 619 |
|---|---|
| Lubricant | Grease or oil |
| Preload | L (light), 90 N |
| Material | 100Cr6 (SAE 52100) steel |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 10,300 N |
| Static Load Rating | 8,200 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.075 kg (0.17 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 24,000 rpm grease; 32,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mpn Variants | S61907ETAA7UL, S 61907 E TA A7 UL, S-61907-E-TA-P4-UL, S61907ETA, 71907E, 7907A5 |
| Arrangement Configuration | Universal matching (UL) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 18; Ball diameter: 5.56 mm; Pitch circle diameter: 45 mm; Abutment da min: 40 mm; Abutment Da max: 50.5 mm; GMN preload values: L 90 N, M 260 N, S 520 N; Axial rigidity (pair, light preload): 91 N/µm; TA cage operating temperature: 120 °C |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Industry Terms | angular contact spindle bearing; precision spindle bearing; ABEC 7 angular contact bearing; 71907 spindle bearing; 7907 bearing |
| Common Misspellings | GMN S 61907 ETA A7 UL; GNM S61907ETAA7UL; GMN S61907-E-TA-P4-UL; G.M.N. S61907ETAA7UL |
| Application Types | Machine tool spindles; grinding spindles; high-speed shafts; precision instruments |
| Cross Reference 1 | SKF 71907 ACD/P4A |
|---|---|
| Cross Reference 2 | FAG B71907-E-T-P4S |
| Cross Reference 3 | NSK 7907A5TYNSULP4 - polyamide cage |
| Cross Reference 4 | Fafnir 3MM9307WI |
GMN S61907ETAA7UL single-row angular contact spindle bearing from GMN’s S series on the 71907 (7907) envelope, 35 mm bore x 55 mm outside diameter x 10 mm width, universally matched with light preload. Unit Quantity: 1 Pc.
S — GMN standard spindle bearing series, non-separable.
61907 — 619 dimension series, 35 mm bore: the 71907 size, 35 x 55 x 10 mm.
E — 25° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring.
A7 — ABEC 7 per ABMA, corresponding to P4.
UL — universal matching with light preload. GMN light preload for this size: 90 N.
Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: L (light), 90 N. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: 100Cr6 (SAE 52100) steel. Dynamic Load Rating: 10,300 N. Static Load Rating: 8,200 N. Limiting Speed: 24,000 rpm grease; 32,000 rpm oil. Lubricant: grease or oil. Item Weight: 0.075 kg (0.17 lb). Cage Service Temperature: 120 °C maximum.
Number of balls: 18. Ball diameter: 5.56 mm. Pitch circle diameter: 45 mm. Abutment diameter inner ring da min: 40 mm. Abutment diameter outer ring Da max: 50.5 mm. Chamfer rs: 0.6 mm, open side 0.3 mm. GMN preload values for this size: L 90 N, M 260 N, S 520 N. Axial rigidity of a pair at light preload: 91 N/µm. Universally matched for back-to-back, face-to-face or tandem mounting.
Cross-References: SKF 71907 ACD/P4A, FAG B71907-E-T-P4S, NSK 7907A5TYNSULP4 (polyamide cage), Fafnir 3MM9307WI. MPN Variants: S61907ETAA7UL, S 61907 E TA A7 UL, S-61907-E-TA-P4-UL, S61907ETA, 71907E, 7907A5.
25°, set by the E in the designation.
Dynamic load rating 10,300 N and static load rating 8,200 N.
24,000 rpm with grease and 32,000 rpm with oil.
