Double-Row Angular Contact Ball Bearing, 30 x 62 x 23.8 mm, Sealed Both Faces, Polyamide Cage$62.71
Double Row Angular Contact Ball Bearing — 30 mm Bore, 62 mm OD, 23.8 mm (15/16 in) Width, Open, Polyamide Cage$30.39
Angular Contact Ball Bearing - 30 mm Bore, 62 mm OD, 16 mm Width, Open, 40° Contact Angle, Polyamide Window Cage$25.46
Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, Open, 15° Contact Angle, Light Preload.$75.73| MFR / Brand | FAG |
|---|---|
| MPN | 3206B.2RSR.TVH |
| Model | 3206B 2RSR TVH |
| Bearing Type | Angular Contact Ball Bearing, Double Rubber Seal |
| ID | 30 mm |
| OD | 62 mm |
| Width | 15/16 in |
| Series | 3200 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel (100Cr6) |
| Min Temp | -30 °C |
| Dynamic Load Rating | 28.5 kN / 6407 lbf |
| Static Load Rating | 18 kN / 4047 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 110 °C |
| Item Weight | 0.8 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 7500 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.5068 |
| Cross Reference 1 | SKF 3206 A-2RS1 |
|---|---|
| Cross Reference 2 | NTN 3206 ATN |
| Cross Reference 3 | NSK 3206 BD |
| Cross Reference 4 | KOYO 3206 2RS |
| Cross Reference 5 | RHP 3206-2RS |

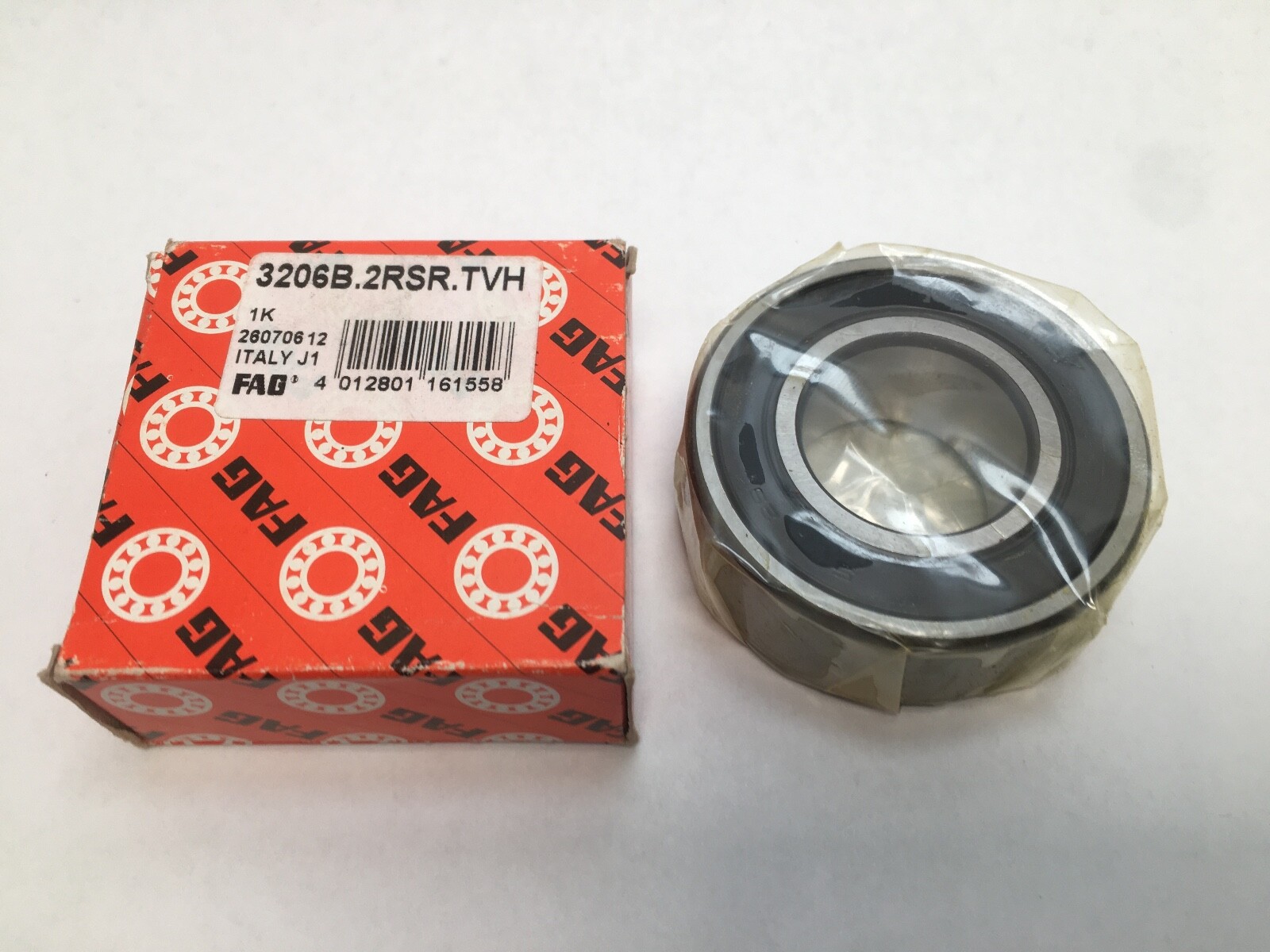

Experience the Precision of the FAG 3206B.2RSR.TVH Angular Bearing Introducing the FAG 3206B.2RSR.TVH Angular Bearing–your ultimate solution for industrial reliability and efficiency. With dimensions of 30mm x 62mm x 15/16″, this bearing promises exceptional performance, making it an ideal choice for engineers and mechanics in need of quality components. Key Features: Robust Construction: Manufactured by FAG in Italy, this new bearing guarantees durability and long-lasting service. Angular Design: The unique angular contact enables it to efficiently handle axial loads in one direction while excelling in radial load support. Versatile Applications: Whether in automotive, aerospace, or industrial machinery, this bearing is adaptable for a multitude of uses. Perfect for replacements or performance enhancements, the FAG 3206B.2RSR.TVH is your reliable partner in machinery improvement. We pride ourselves on competitive pricing and are committed to sourcing any additional parts you may need. Fast Shipping: Enjoy same-day shipping on all items, with next-day delivery options available during checkout. We also combine shipping on all orders, ensuring prompt and efficient delivery. Contact us today to find your required parts and experience the reliability and excellence that FAG bearings provide!
