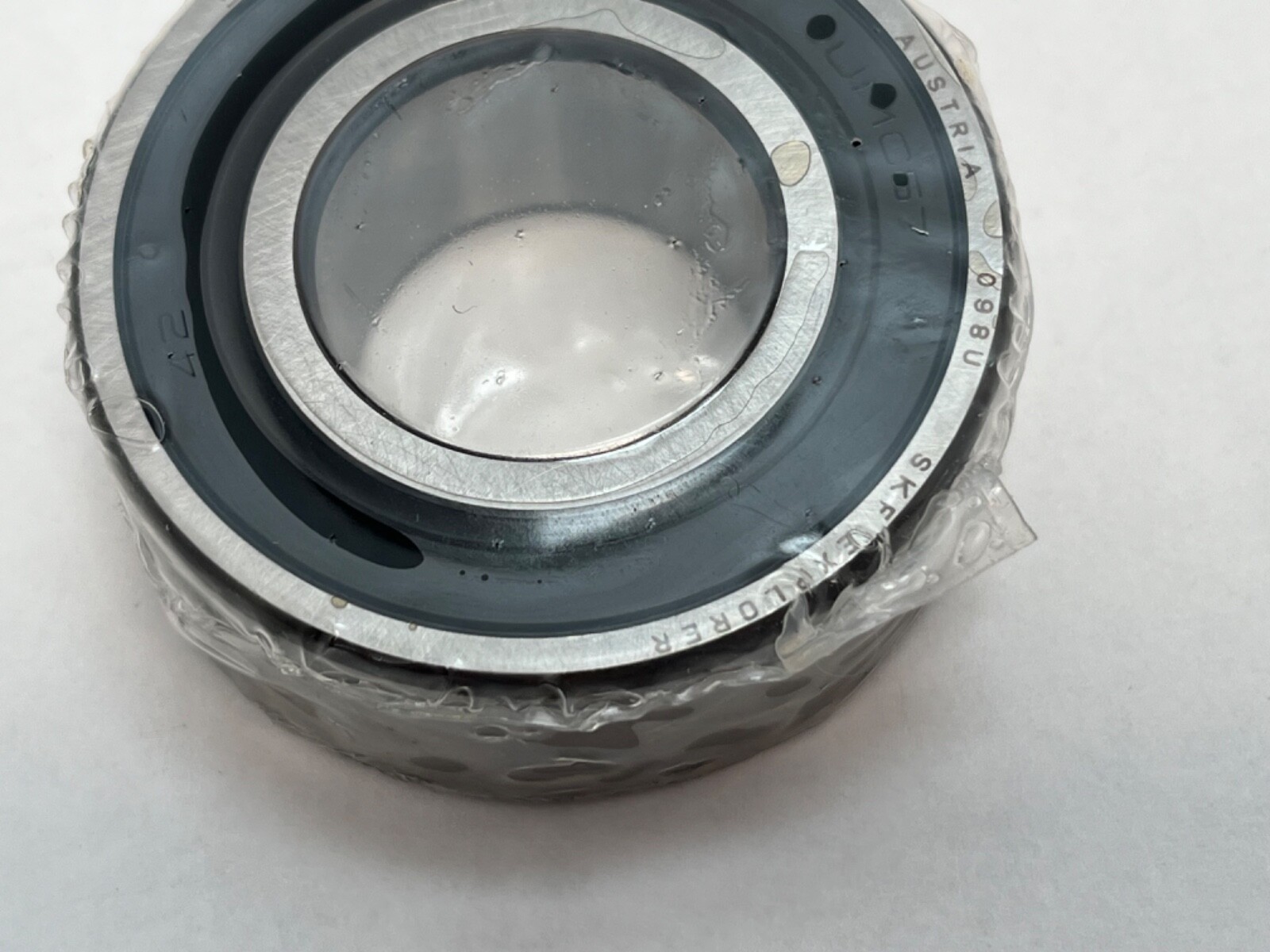

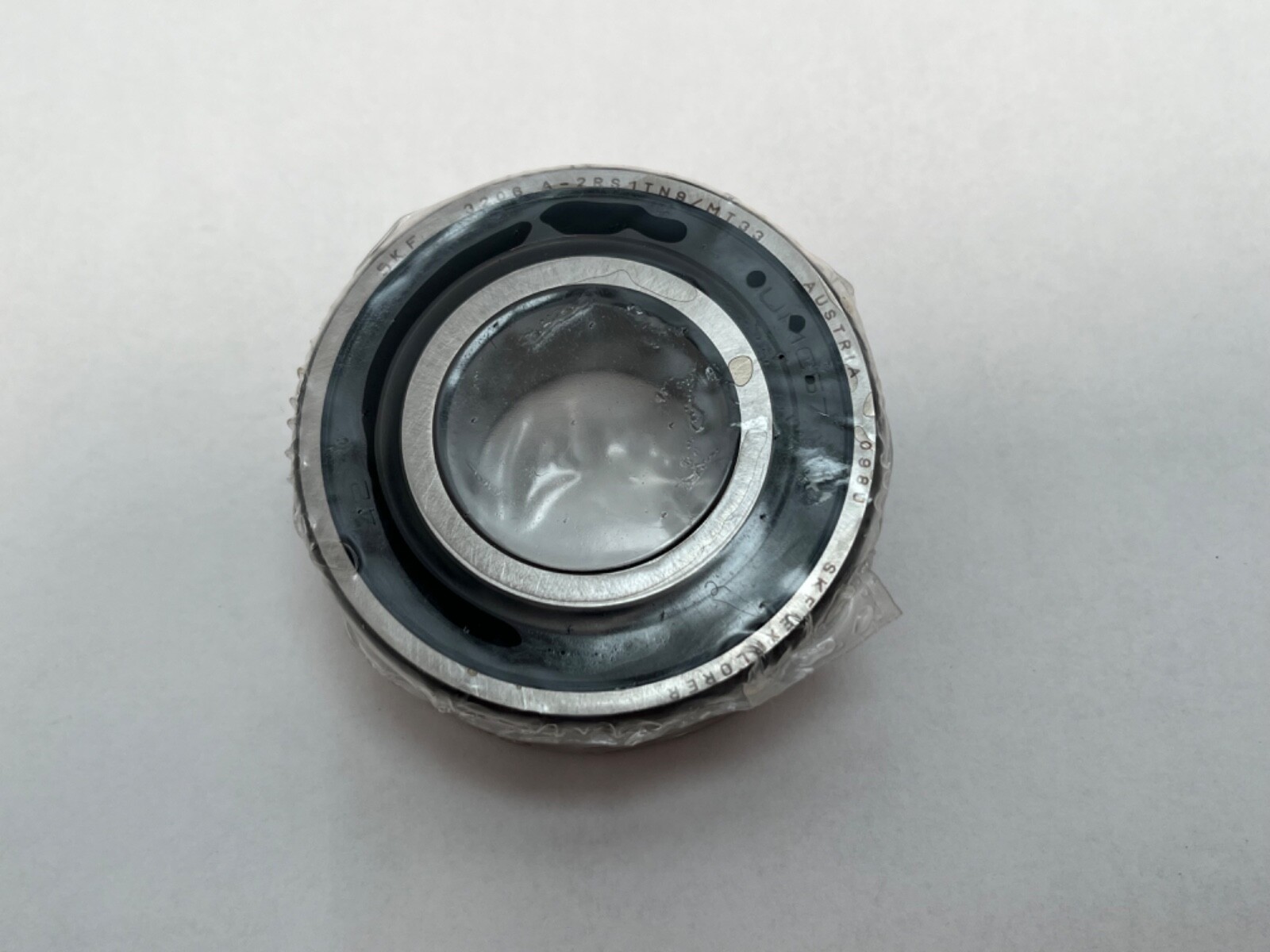

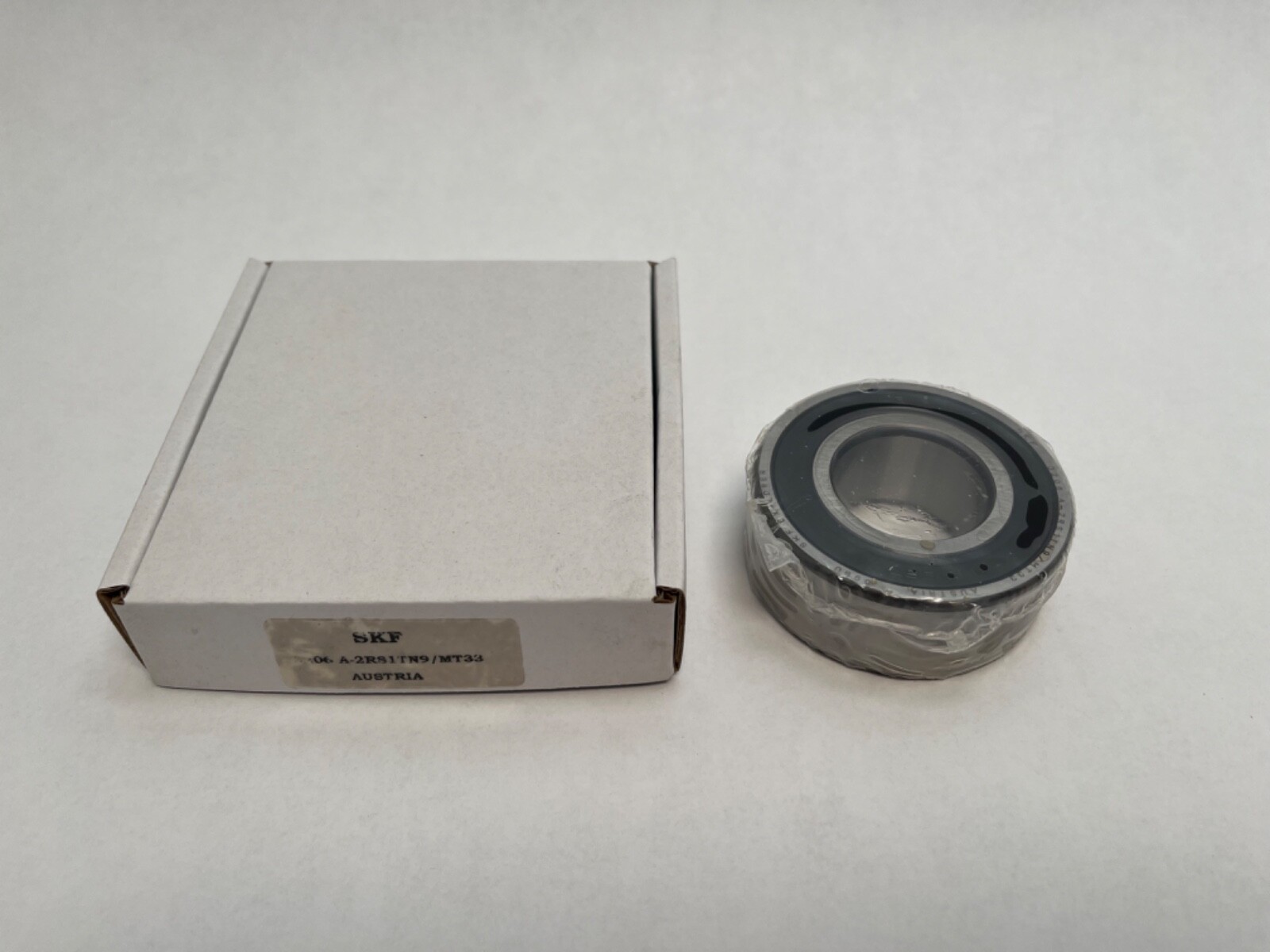

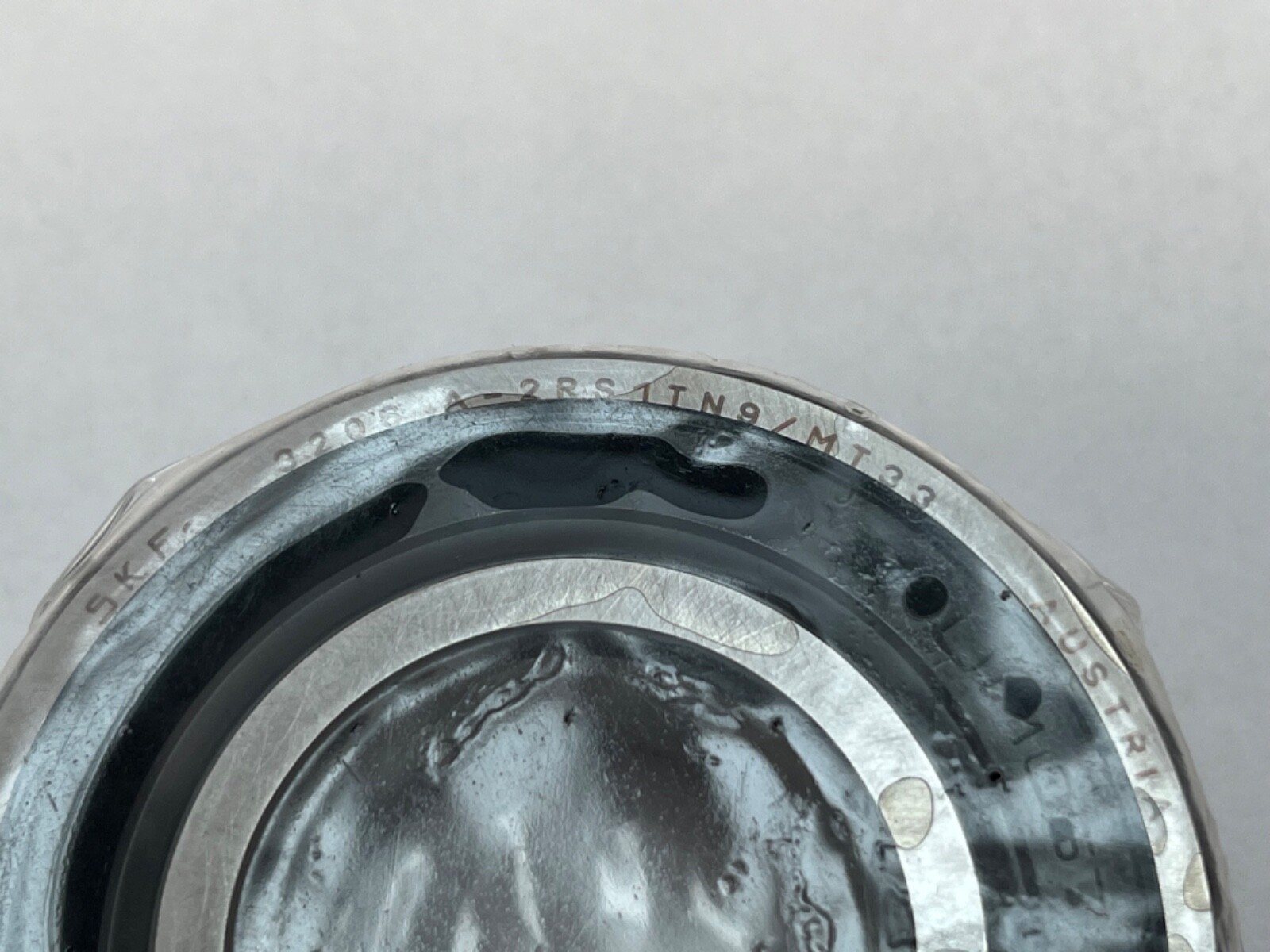

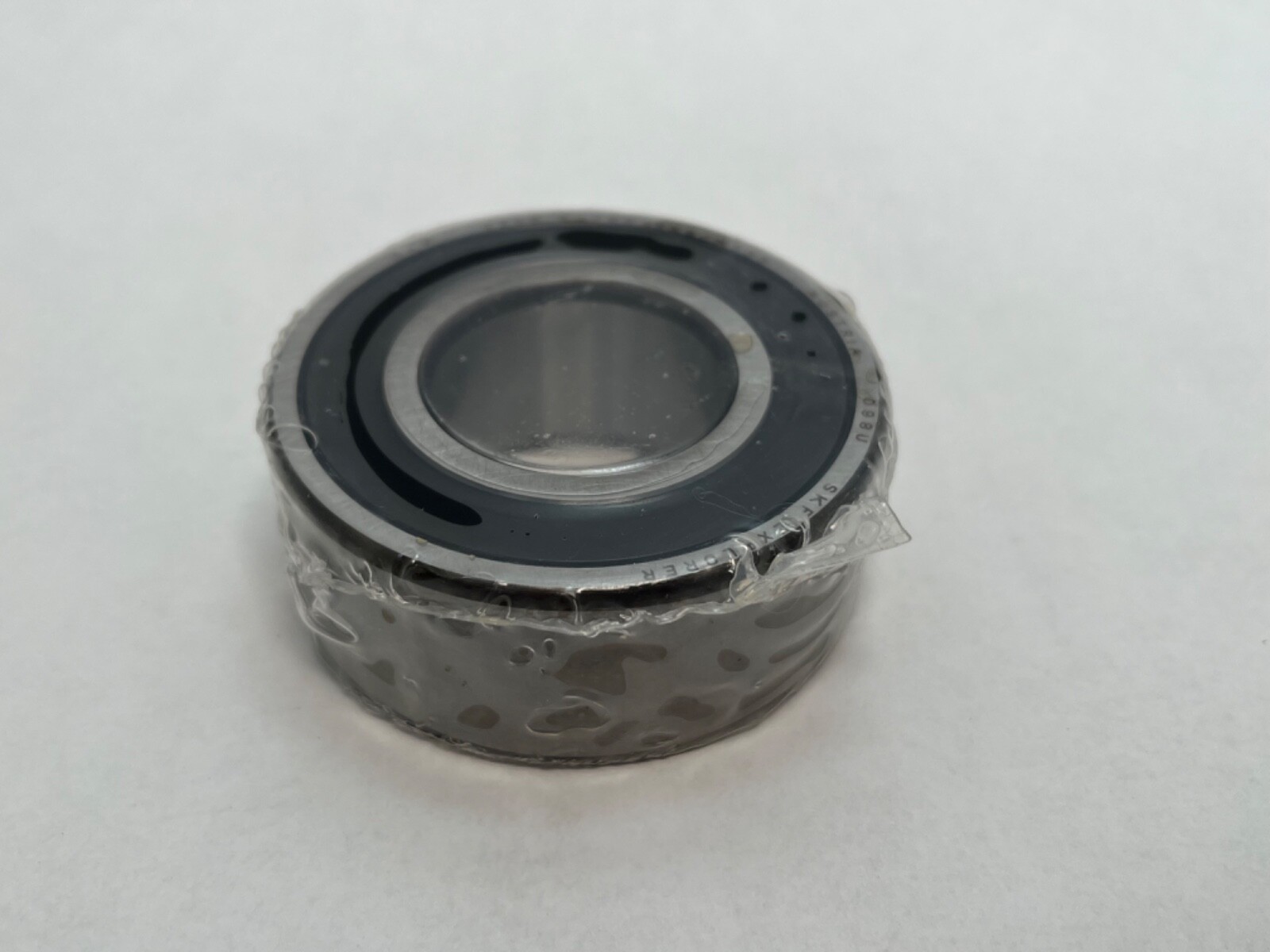

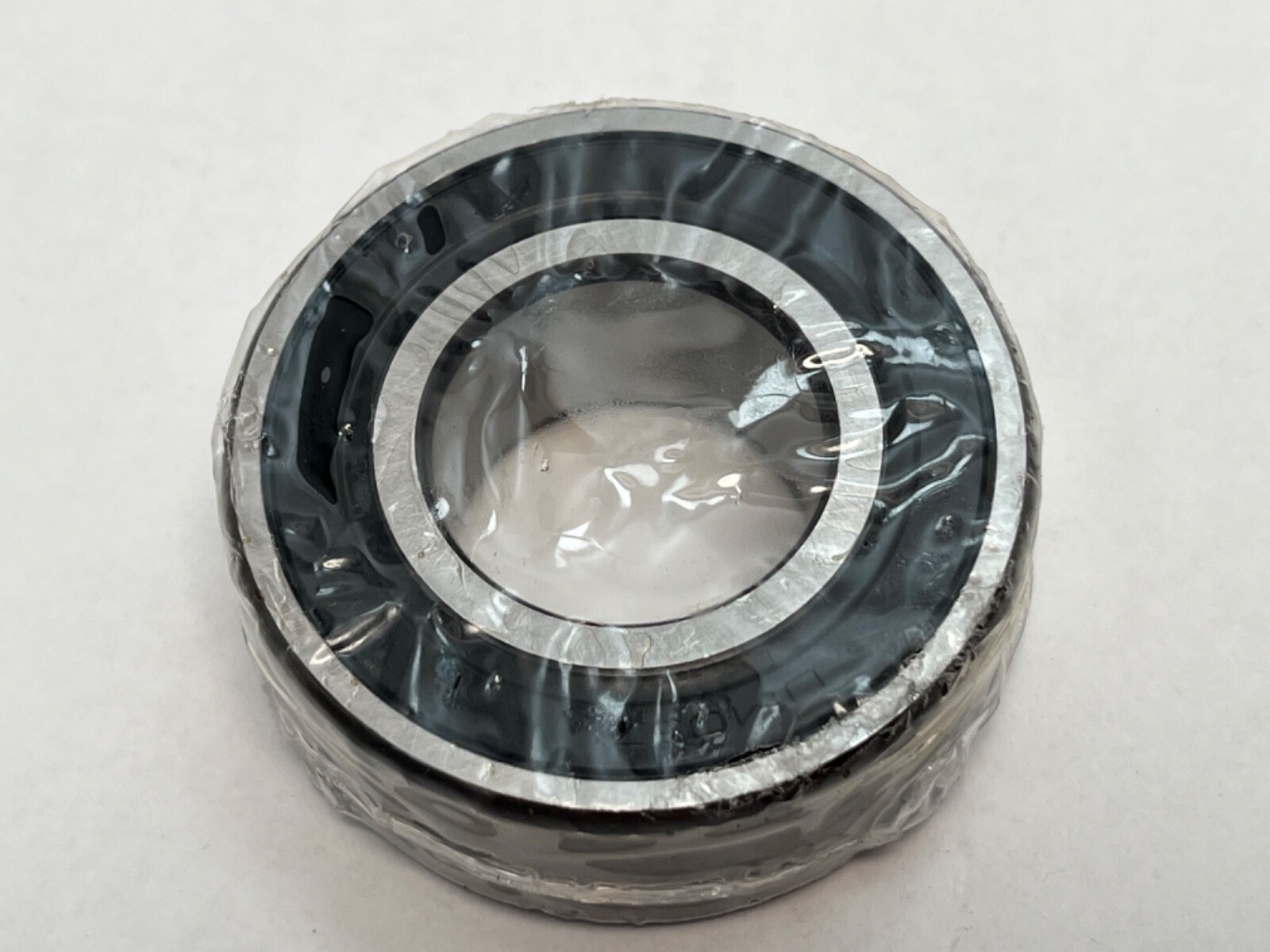

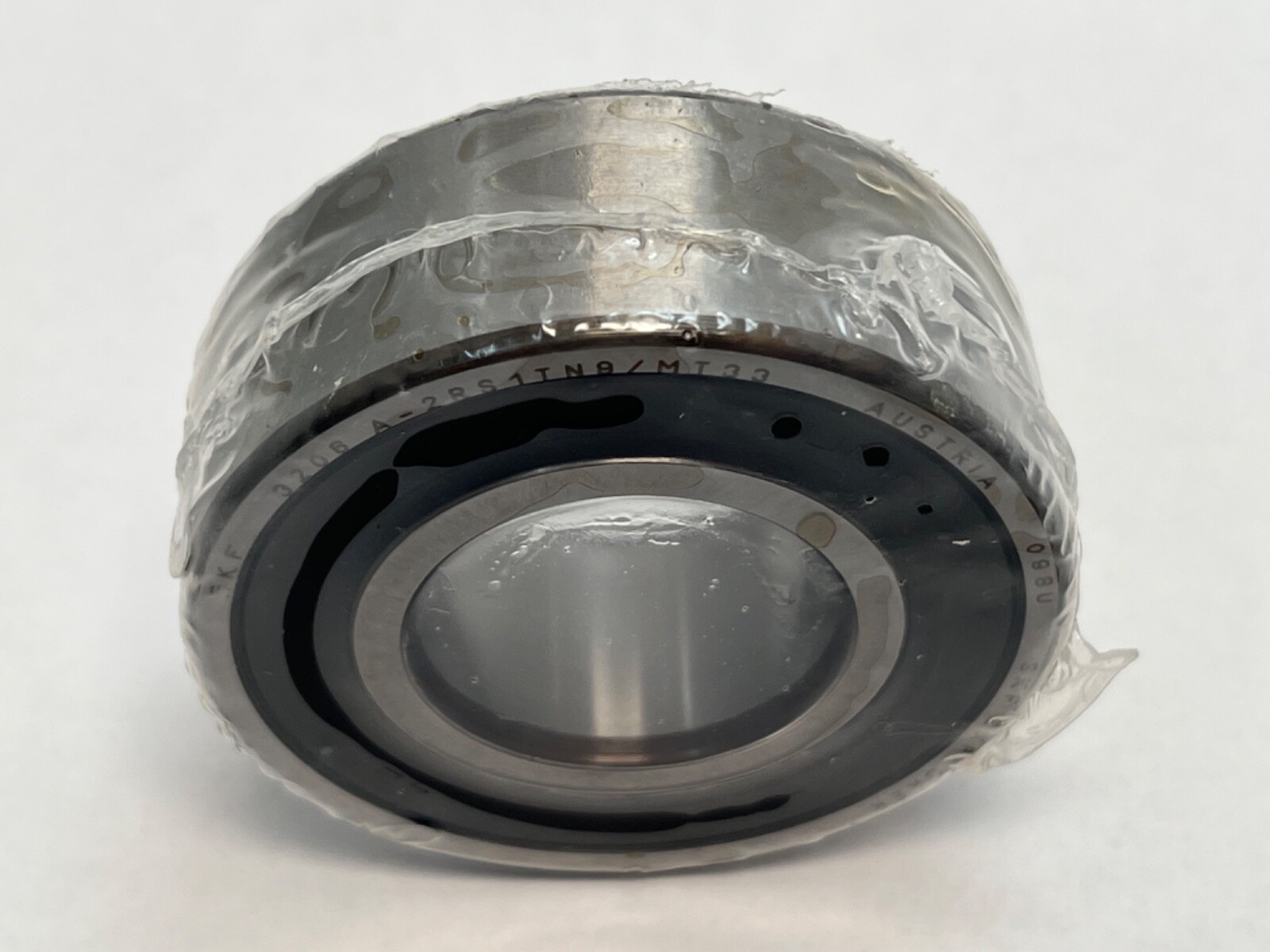

Double-row angular contact ball bearing, SKF 3206 A-2RS1TN9/MT33, 30 x 62 x 23.8 mm, 30° contact angle, contact seals both faces, grease filled.
List Price
$62.71
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 3206 A-2RS1TN9/MT33 |
| Model | 3206 A 2RS1 TN9 MT33 5206A 3206A |
| Bearing Type | Angular Contact Ball Bearing, Double Rubber Seal |
| ID | 30 mm |
| OD | 62 mm |
| Width | 23.8 mm |
| Material | Chrome Steel |
|---|---|
| Series | 3200 |
| Lubricant | Grease |
| Base Number | 3206 |
| Industry Terms | double row angular contact bearing; sealed angular contact |
| Common Misspellings | 3206 A 2RS1 TN9 MT33; 3206-A-2RS-TN9; 3206A 2RS TN9 |
| Application Types | pump shafts; fan and blower wheels; gearbox output shafts |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | 3206 A-2RS1TN9/MT33; 3206A-2RS1TN9; 3206A2RS1TN9; 5206 |
| Dynamic Load Rating | 30,500 N |
| Static Load Rating | 22,000 N |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Part Number | 3206 A-2RS1TN9/MT33 |
| Limiting Speed | 7,500 rpm |
An SKF 3206 A-2RS1TN9/MT33 double-row angular contact ball bearing, sealed on both faces. Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm. Width: 23.8 mm (15/16 in). Number Of Rows: 2. Rolling Elements: Ball. Bore Type: Straight. Seal Type: Double Rubber Seal. Contact Angle: 30°. Lubricant: Grease. Material: Chrome Steel. Series: 32. Unit Quantity: 1 Pc.
32 — SKF double-row angular contact series; bore code 06 gives a 30 mm bore.
A — SKF design designation for this family, two rows set back to back on a 30° contact angle.
2RS1 — contact seal on each face, nitrile rubber on a sheet steel insert.
TN9 — glass-fibre reinforced polyamide 6,6 cage, working temperature ceiling 120 °C.
MT33 — factory grease fill.
Dynamic Load Rating: 30,500 N. Static Load Rating: 22,000 N. Limiting Speed: 7,500 rpm. Contact Angle: 30°. Number Of Rows: 2. Cage: glass-fibre reinforced polyamide 6,6.
Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm. Width: 23.8 mm (15/16 in). Bore Type: Straight.
The 5206 designation carried on cartons of this size is the older American number for the same envelope. MPN Variants: 3206 A-2RS1TN9/MT33, 3206A-2RS1TN9, 3206A2RS1TN9.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 23.8 mm (15/16 in).
A contact seal of nitrile rubber on a sheet steel insert on each face.
Dynamic Load Rating: 30,500 N. Static Load Rating: 22,000 N. Limiting Speed: 7,500 rpm.
