Double-row angular contact ball bearing, 20 mm bore x 47 mm OD x 20.6 mm wide, no filling slots, glass-fibre polyamide TNH cage, C3 clearance, open.
List Price
$24.25
17 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3204BC.TNH.C3 |
| Model | 3204 B C TNH C3 5204B |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 13/16 in |
| Material | Bearing Steel |
|---|---|
| Series | 3200 Series |
| Mpn Variants | 3204BC.TNH.C3; 3204-BC-TNH-C3; 3204BCTNHC3; 3204 BC TNH C3; 3204B; 5204 |
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.5052 |
| Industry Terms | double row angular contact ball bearing; 3204 double row bearing; 20x47x20.6 angular contact bearing; 3200 series bearing; polyamide cage ball bearing |
| Common Misspellings | FAG 3204 BCTNHC3; FAG 3204BC TNH C3; FGA 3204BC.TNH.C3; FAG 3204BC.TVH.C3; FAG 3204-BC-TNH-C |
| Application Types | Pumps; gearboxes; machinery shafts carrying combined radial and axial loads |
| Cross Reference 1 | SKF 3204 A |
|---|---|
| Cross Reference 2 | NSK 3204 |
| Cross Reference 3 | NTN 5204 |
| Cross Reference 4 | MRC 5204 |

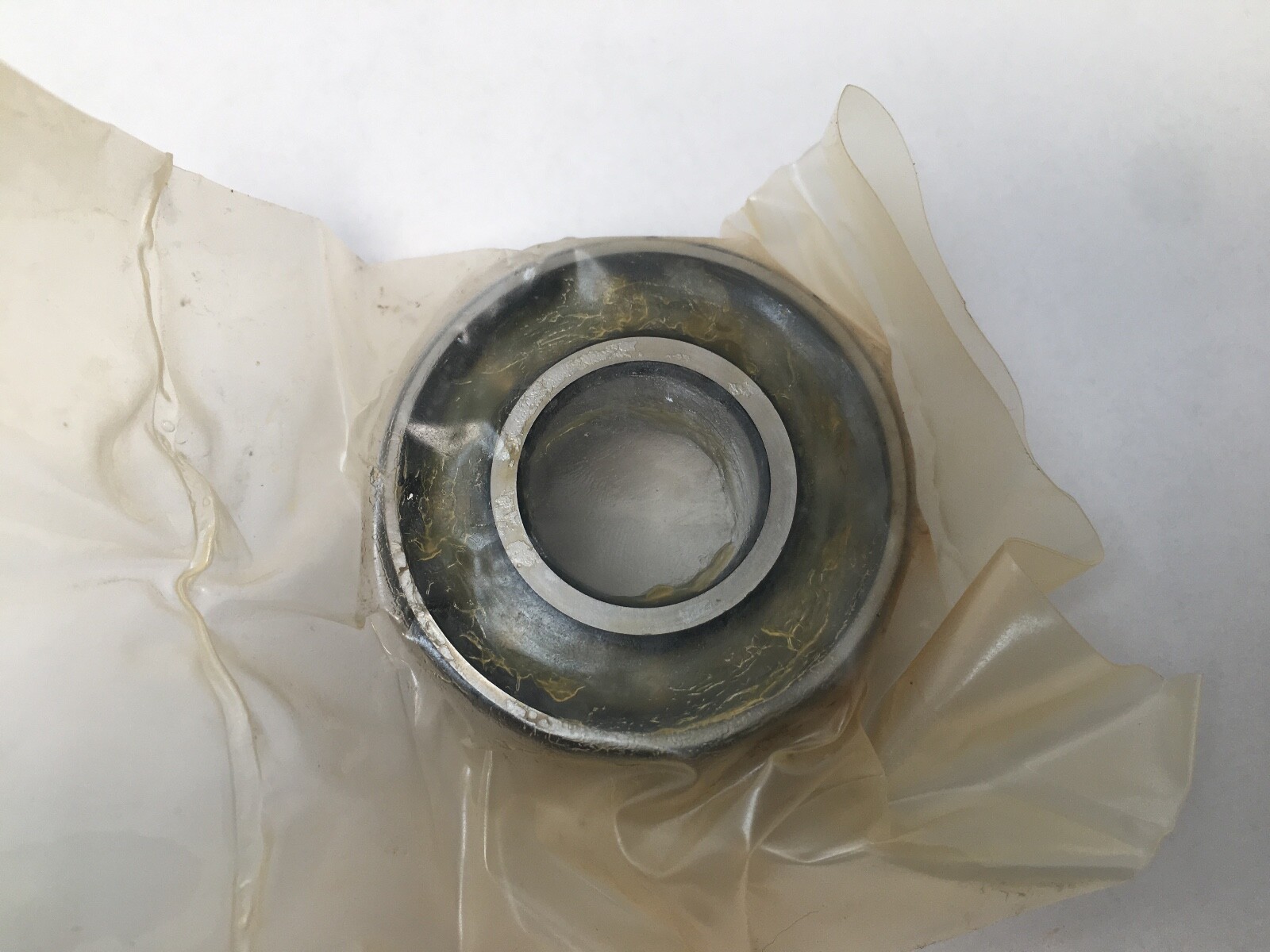

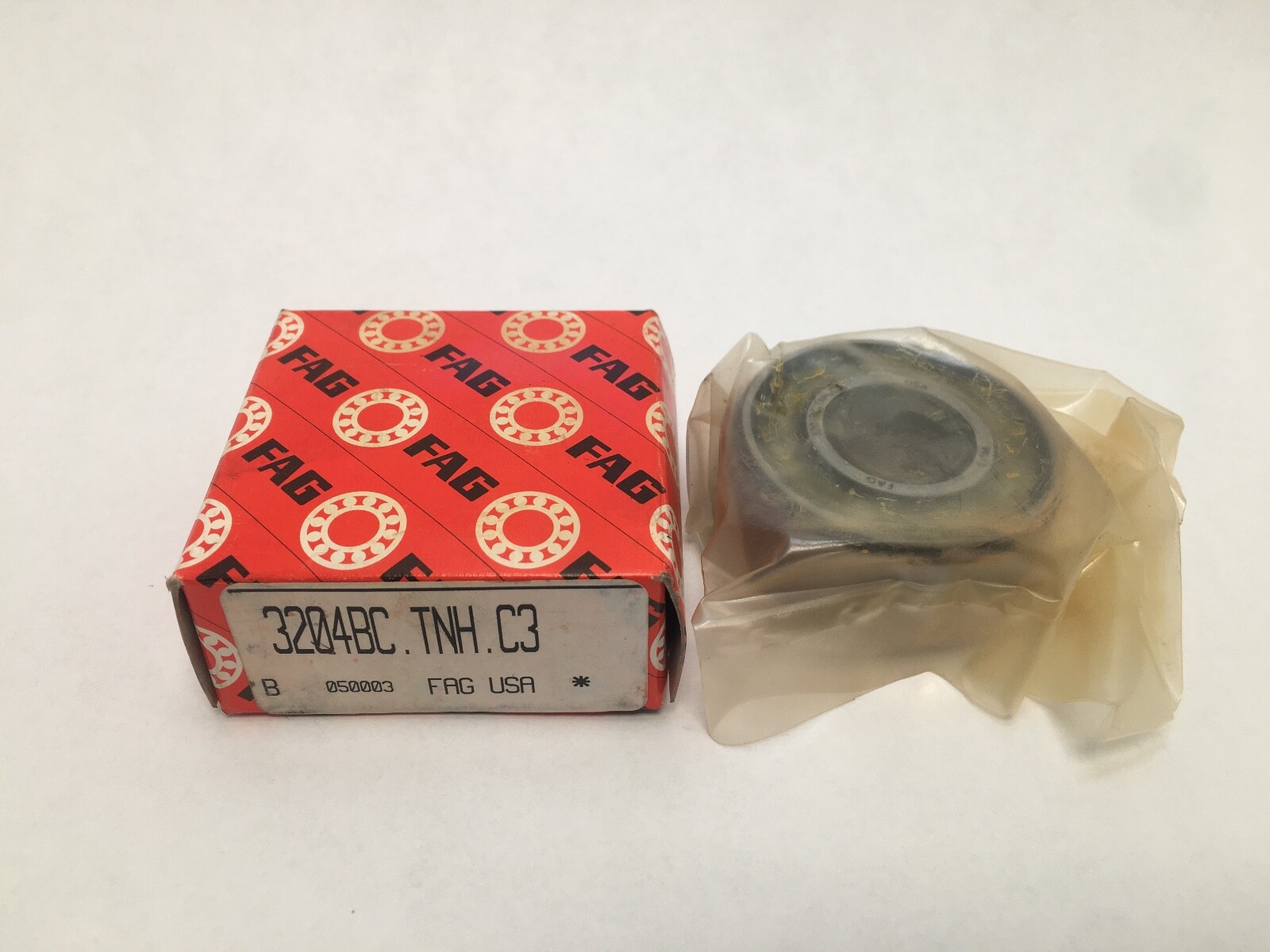

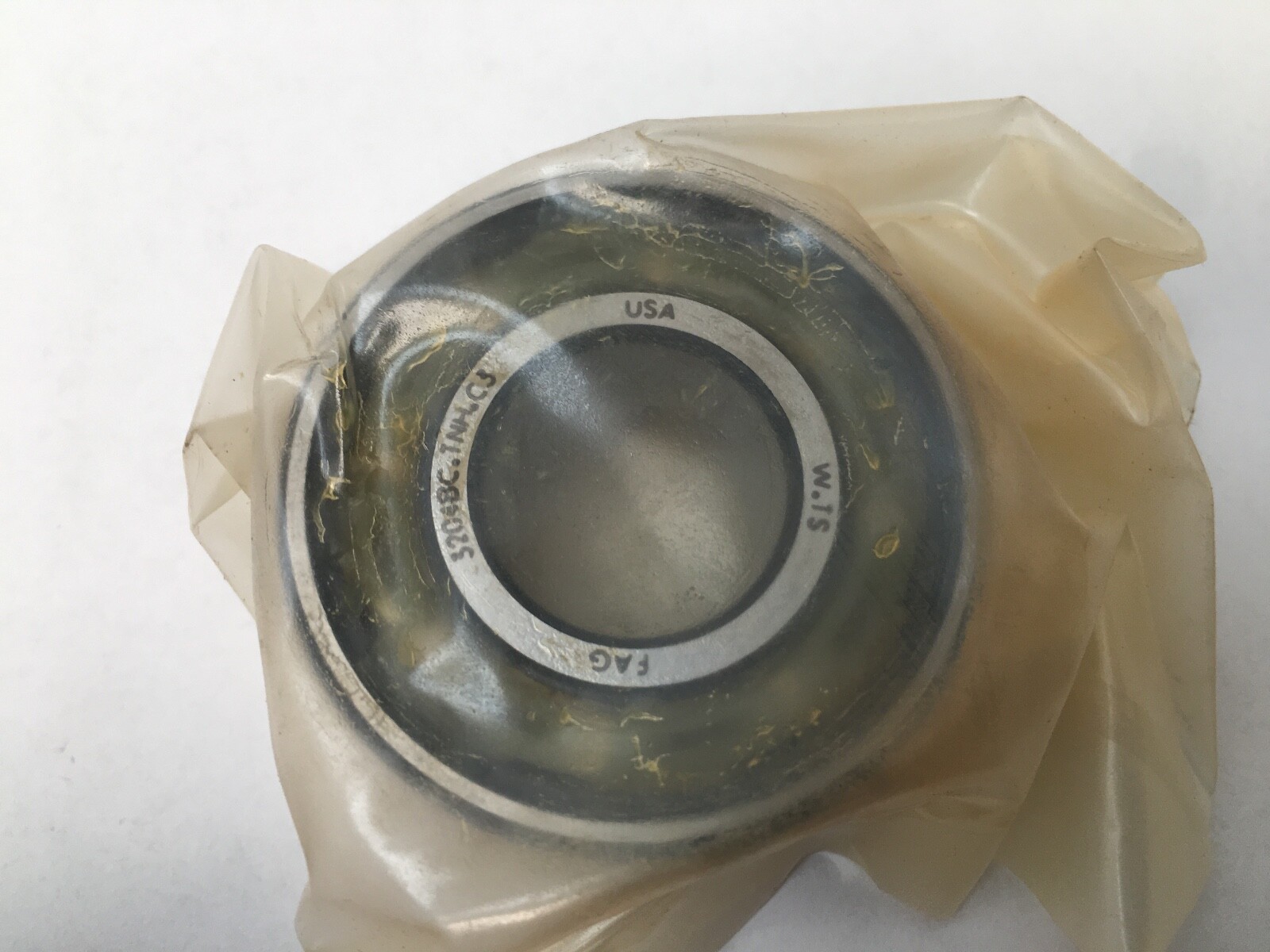

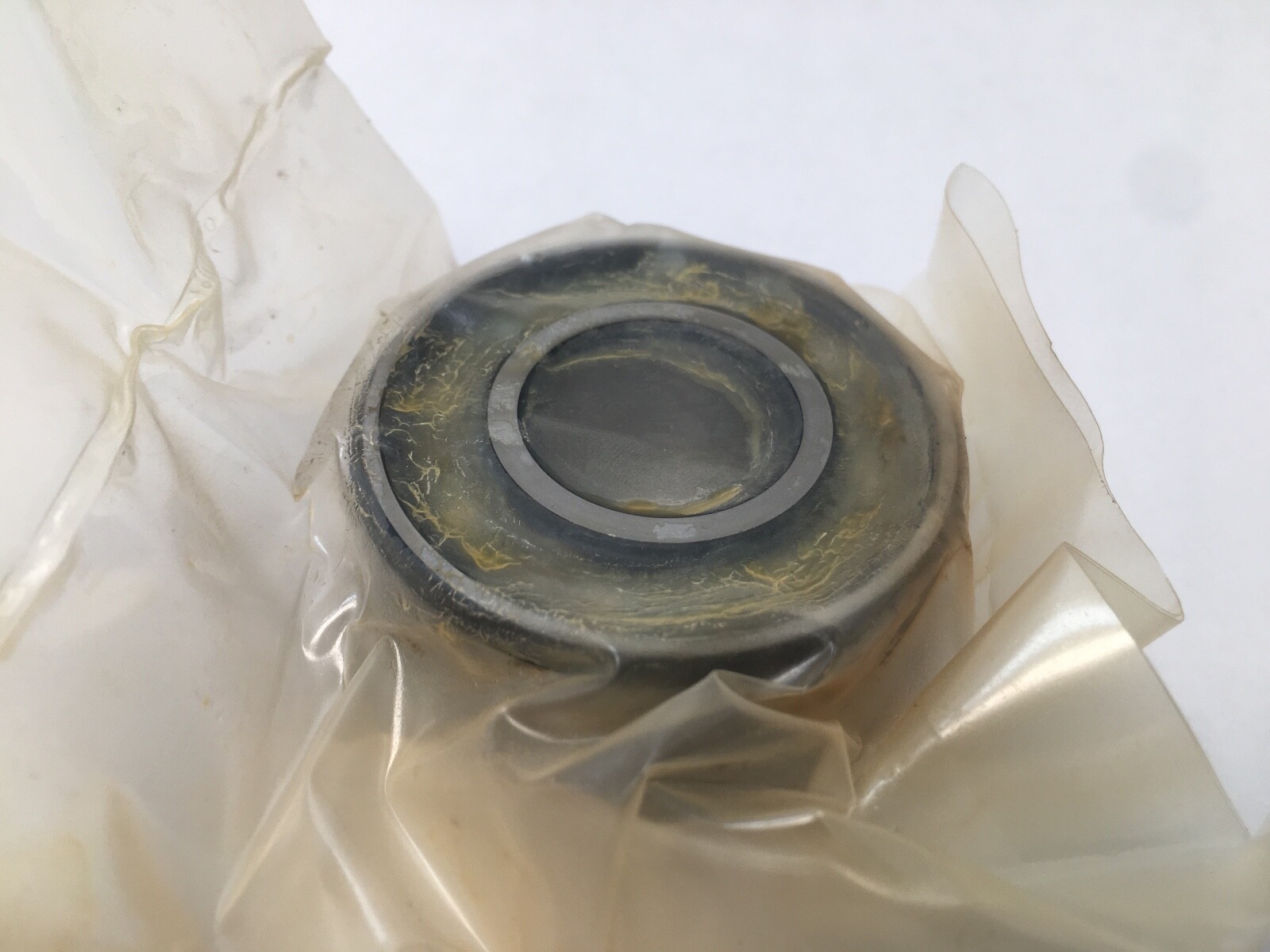

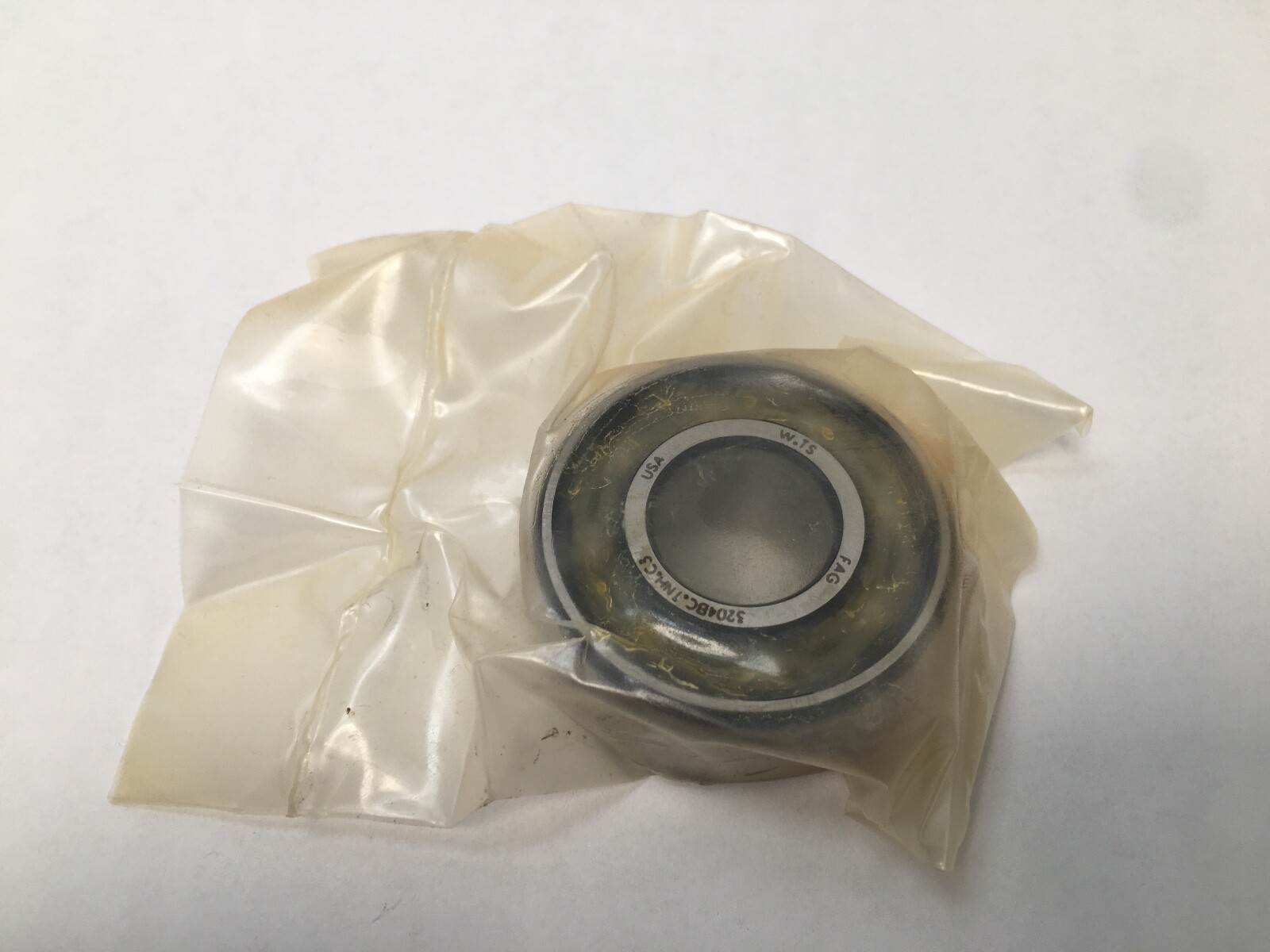

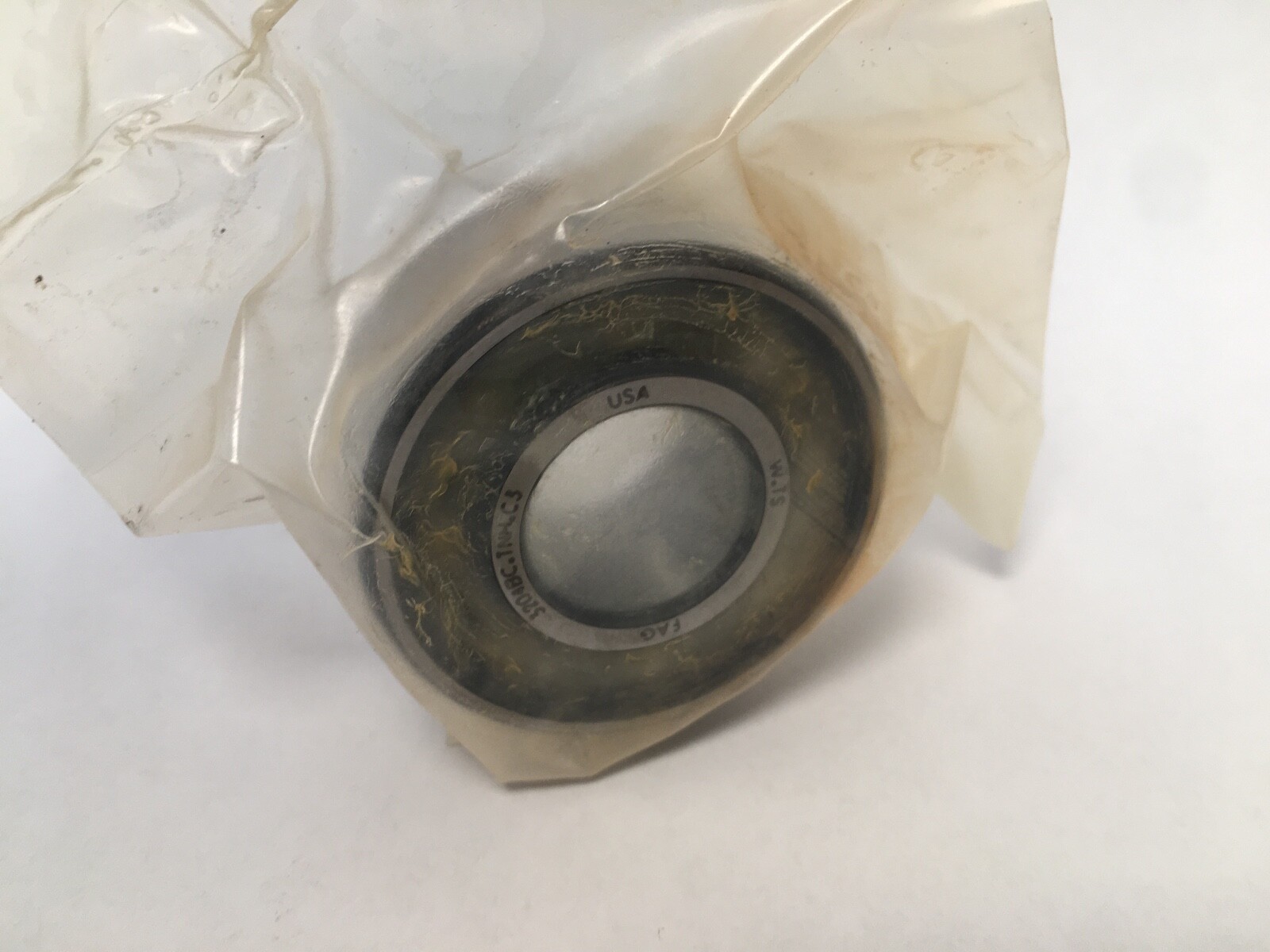

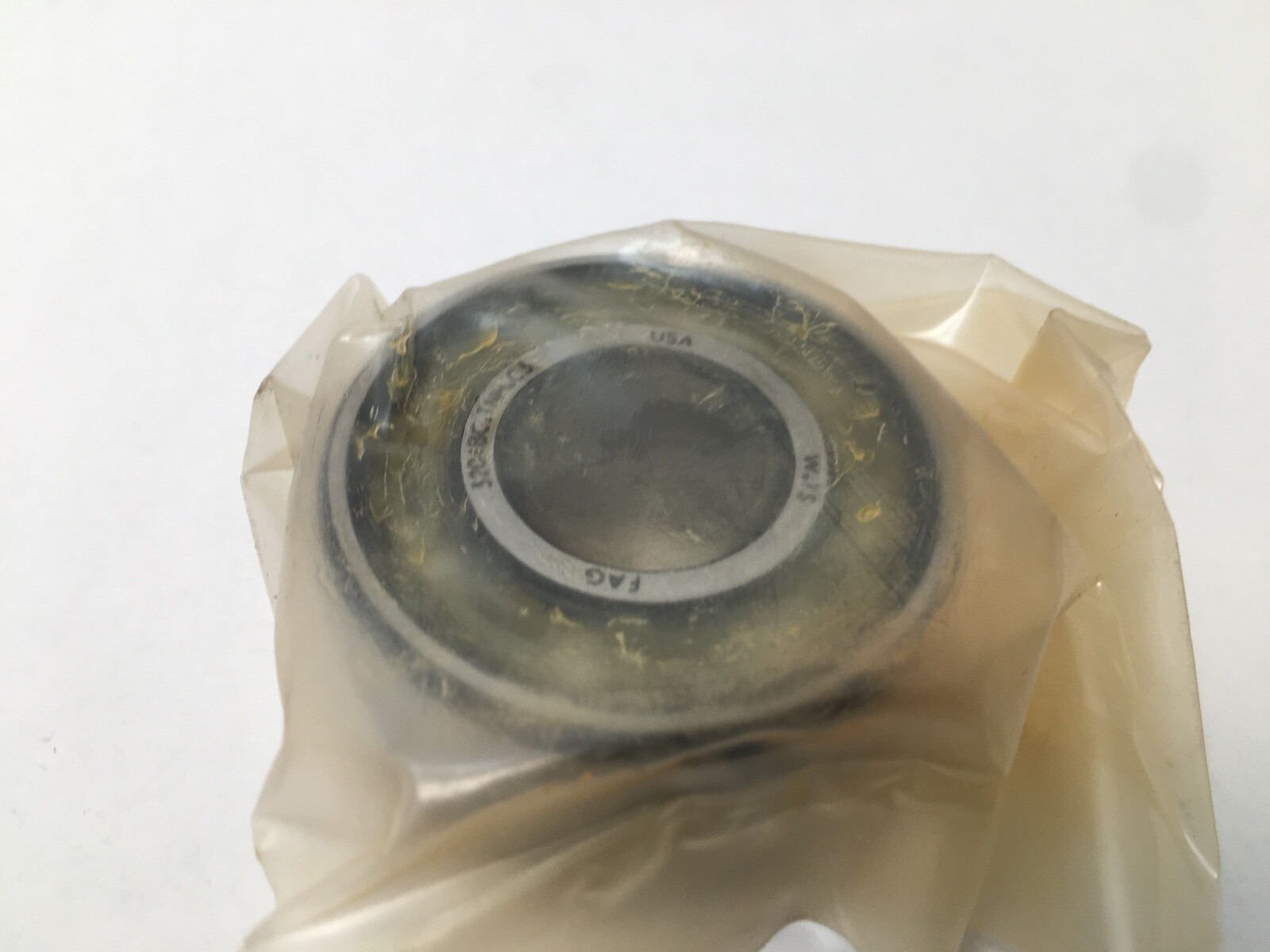

FAG 3204BC.TNH.C3 is a double-row angular contact ball bearing without filling slots, 20 mm bore, 47 mm outside diameter, 20.6 mm (13/16 in) wide. Open, with a glass-fibre reinforced polyamide cage and C3 internal clearance. Unit Quantity: 1 Pc.
32 — FAG double-row angular contact ball bearing, 32 series, the same envelope as the 5200 series.
04 — bore code, 4 x 5 = 20 mm bore.
B — design without filling slots.
TNH — glass-fibre reinforced polyamide cage.
C3 — internal clearance larger than normal.
Number Of Rows: 2. Rolling Elements: Ball. Cage Material: Polyamide. Internal Clearance: C3. Bore Type: Straight. Seal Type: Open. Series: 3200 Series. Bearing Material: Bearing steel.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 20.6 mm (13/16 in).
Cross-references at 20 x 47 x 20.6 mm double-row: SKF 3204 A; NSK 3204; NTN 5204; MRC 5204. The current FAG execution is 3204-BD-XL-TVH-C3.
Bore 20 mm, outside diameter 47 mm, width 20.6 mm (13/16 in).
Glass-fibre reinforced polyamide cage (TNH) and C3 internal clearance.
B denotes the design without filling slots.
