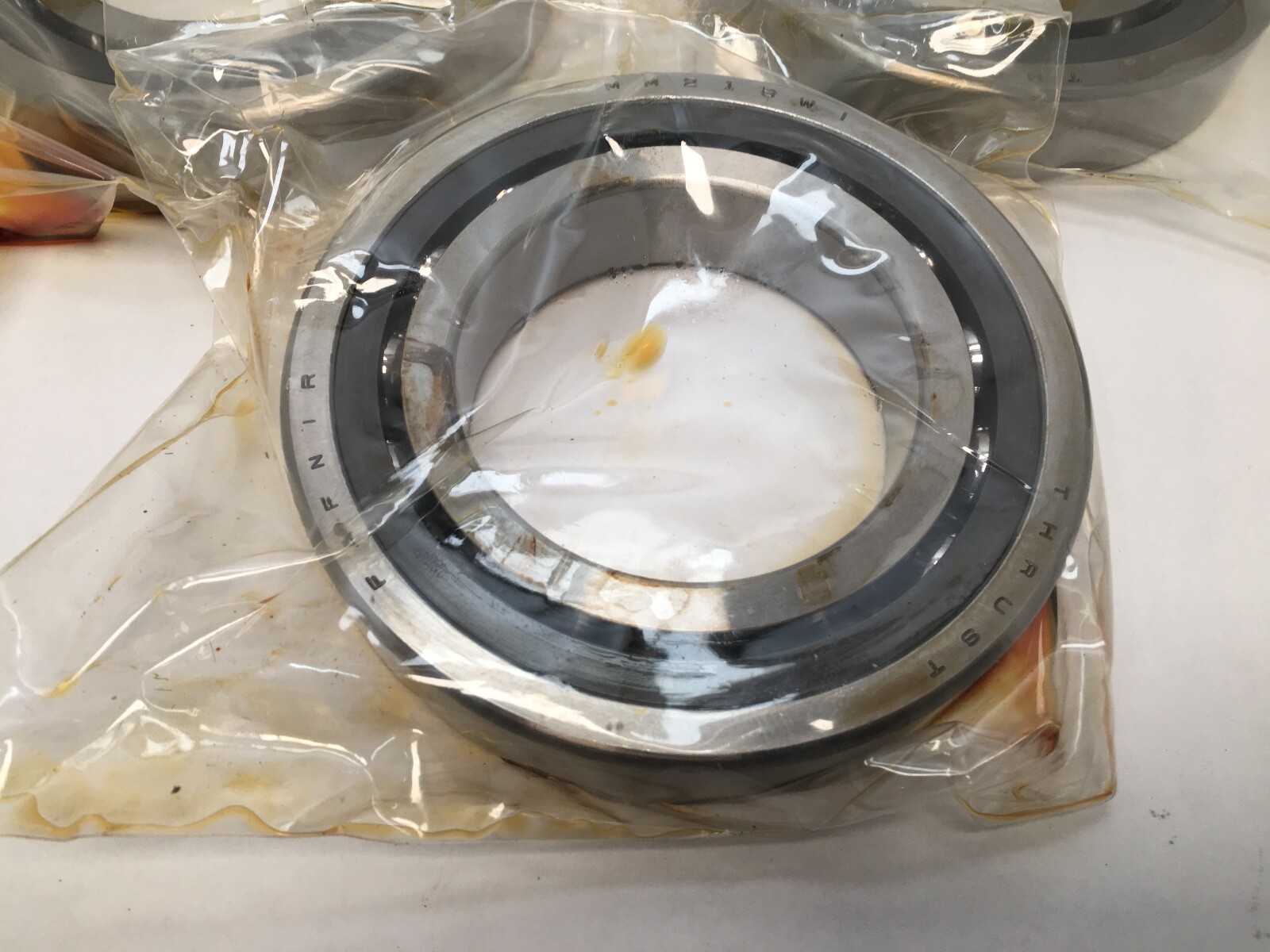

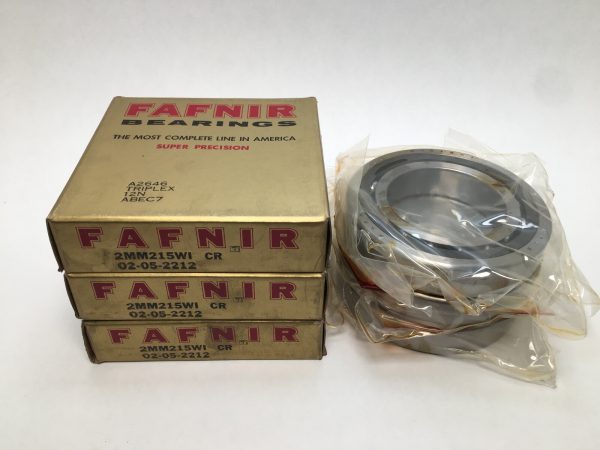

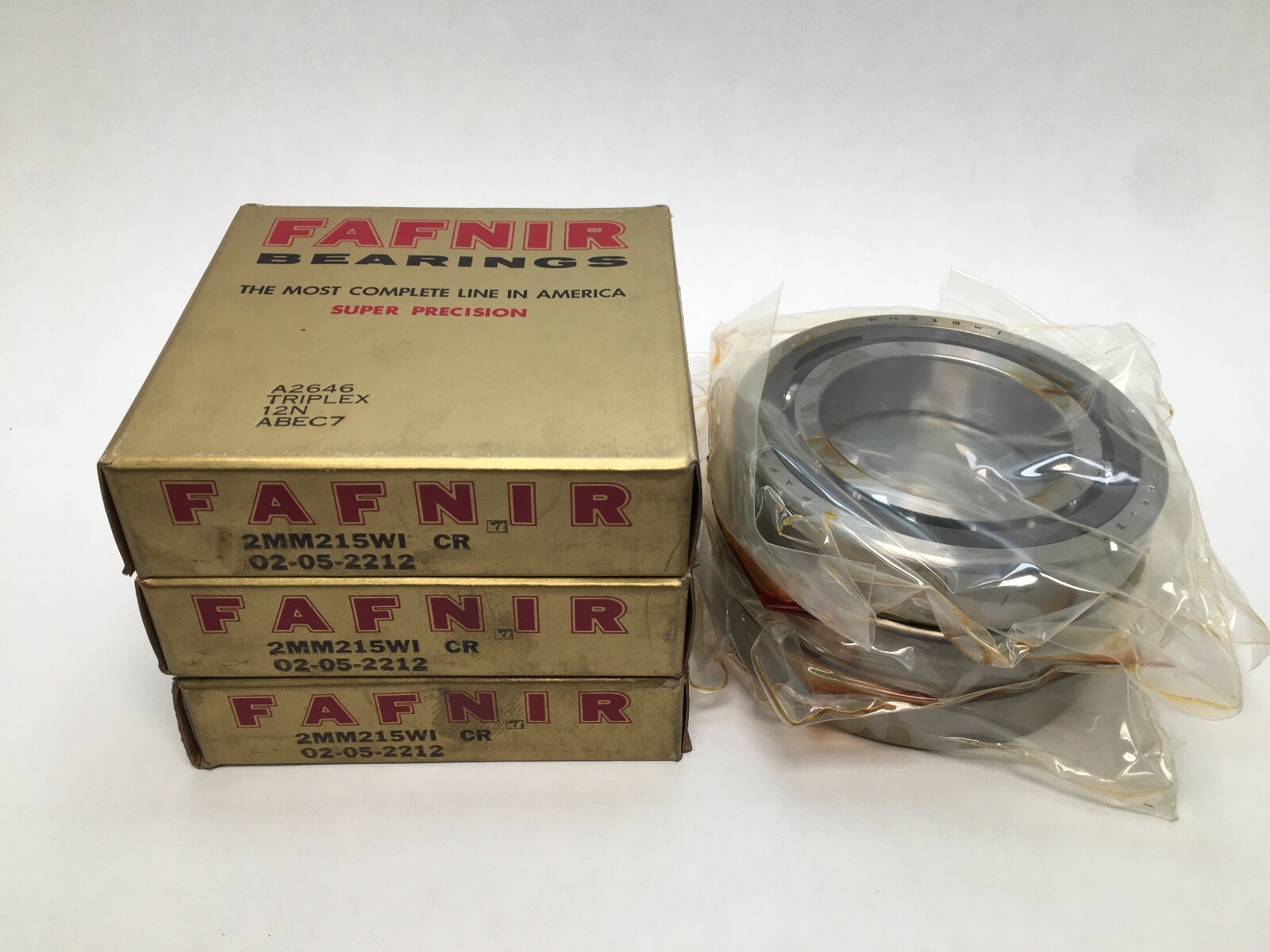

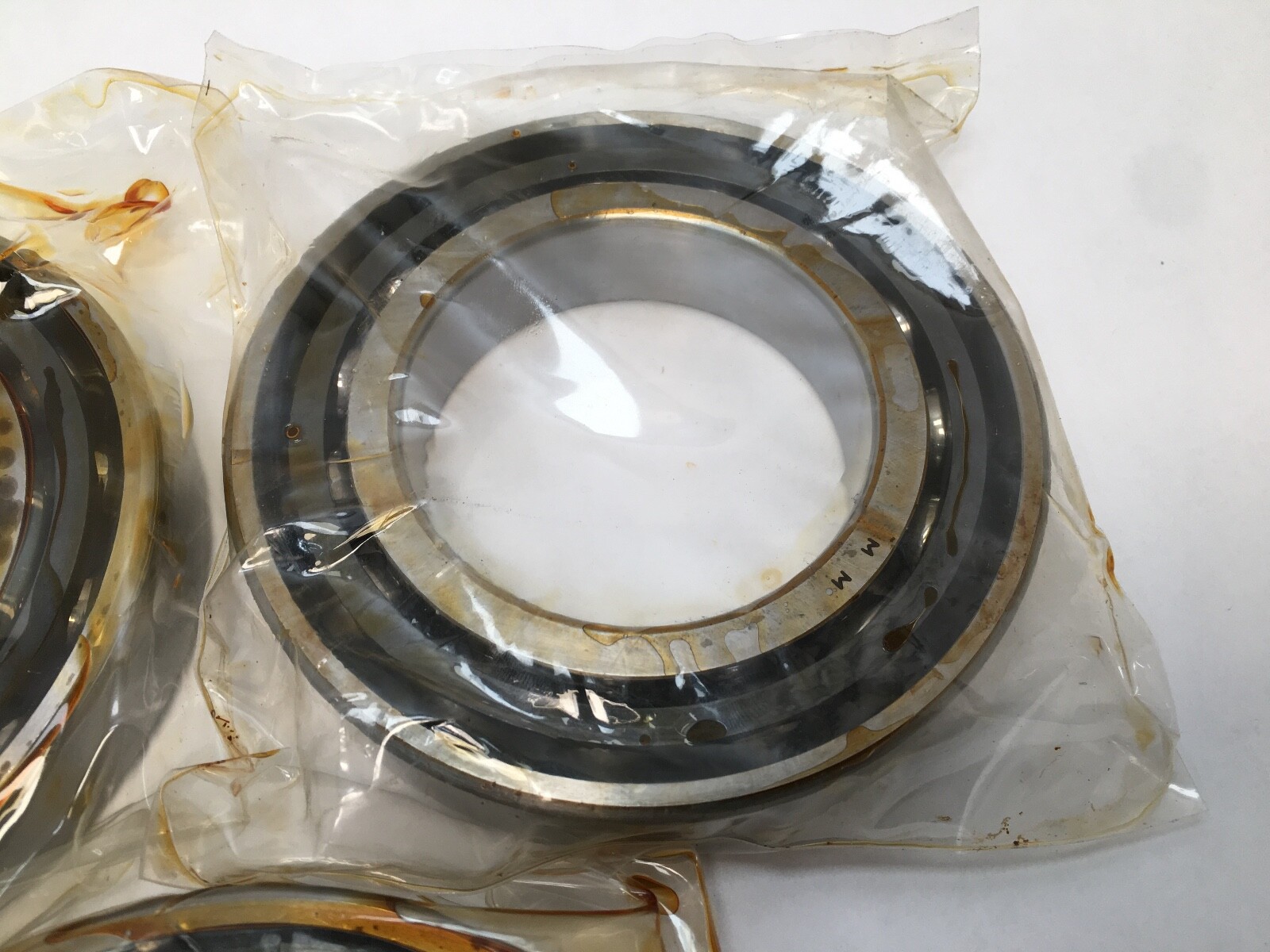

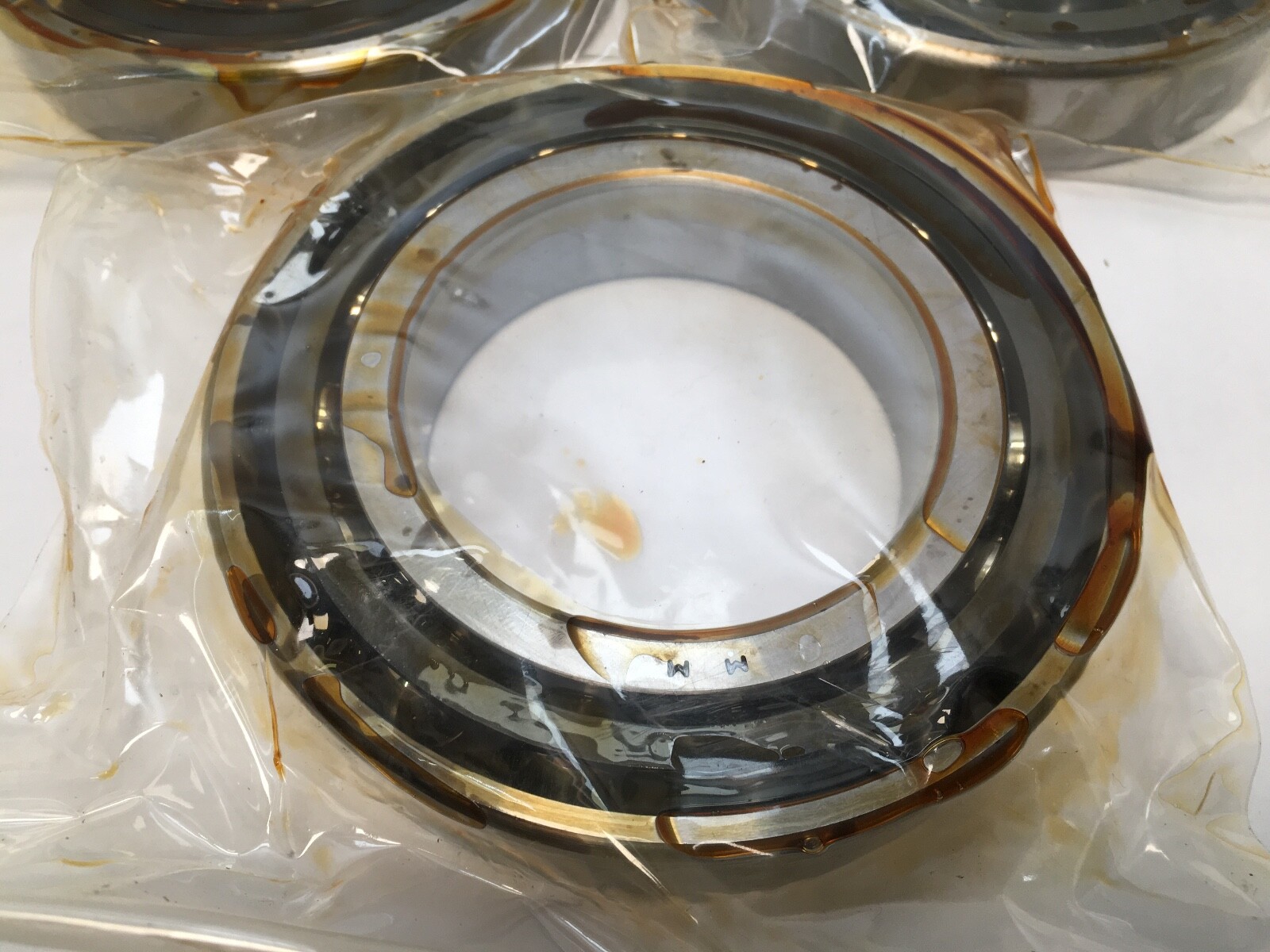

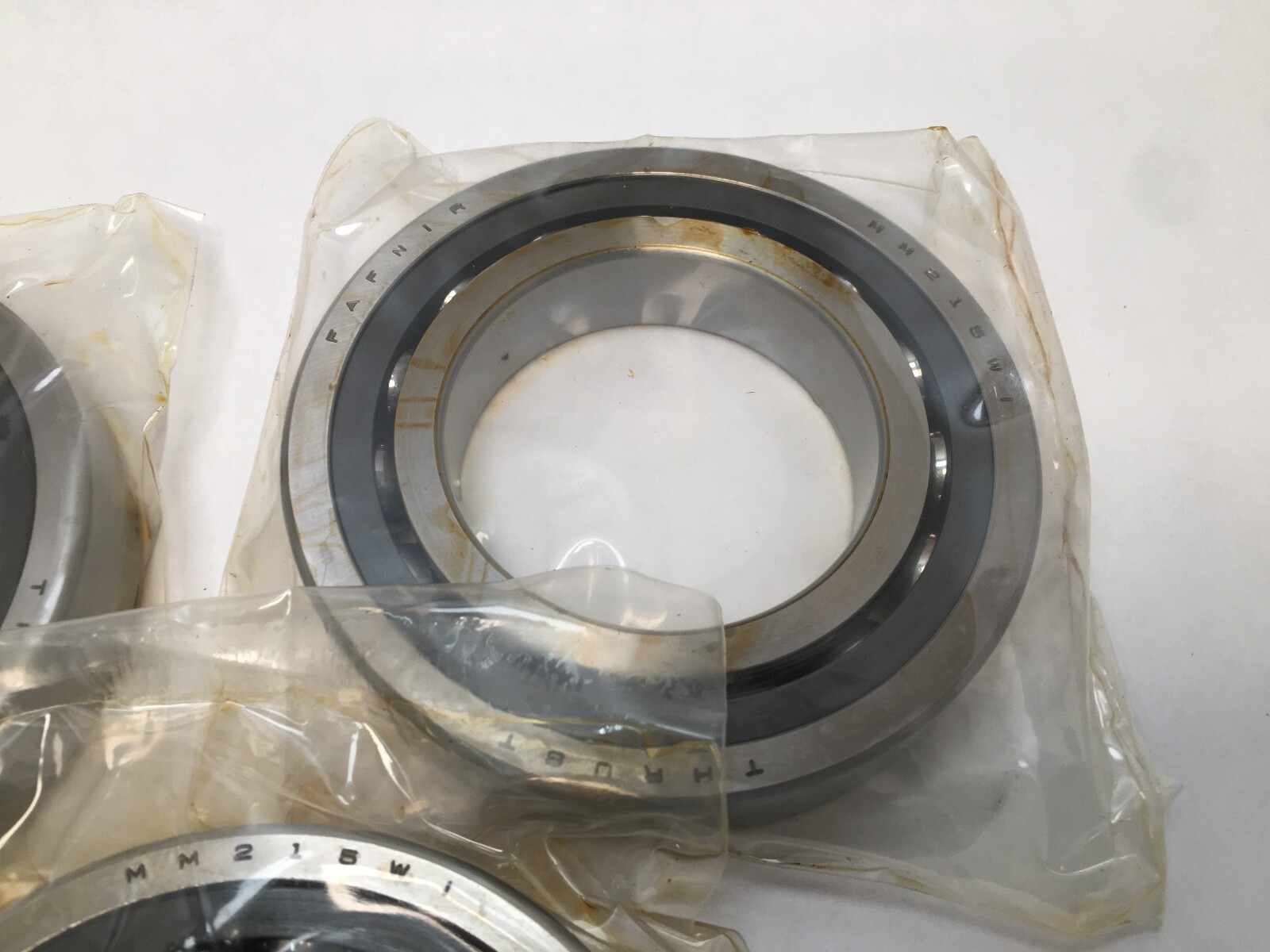

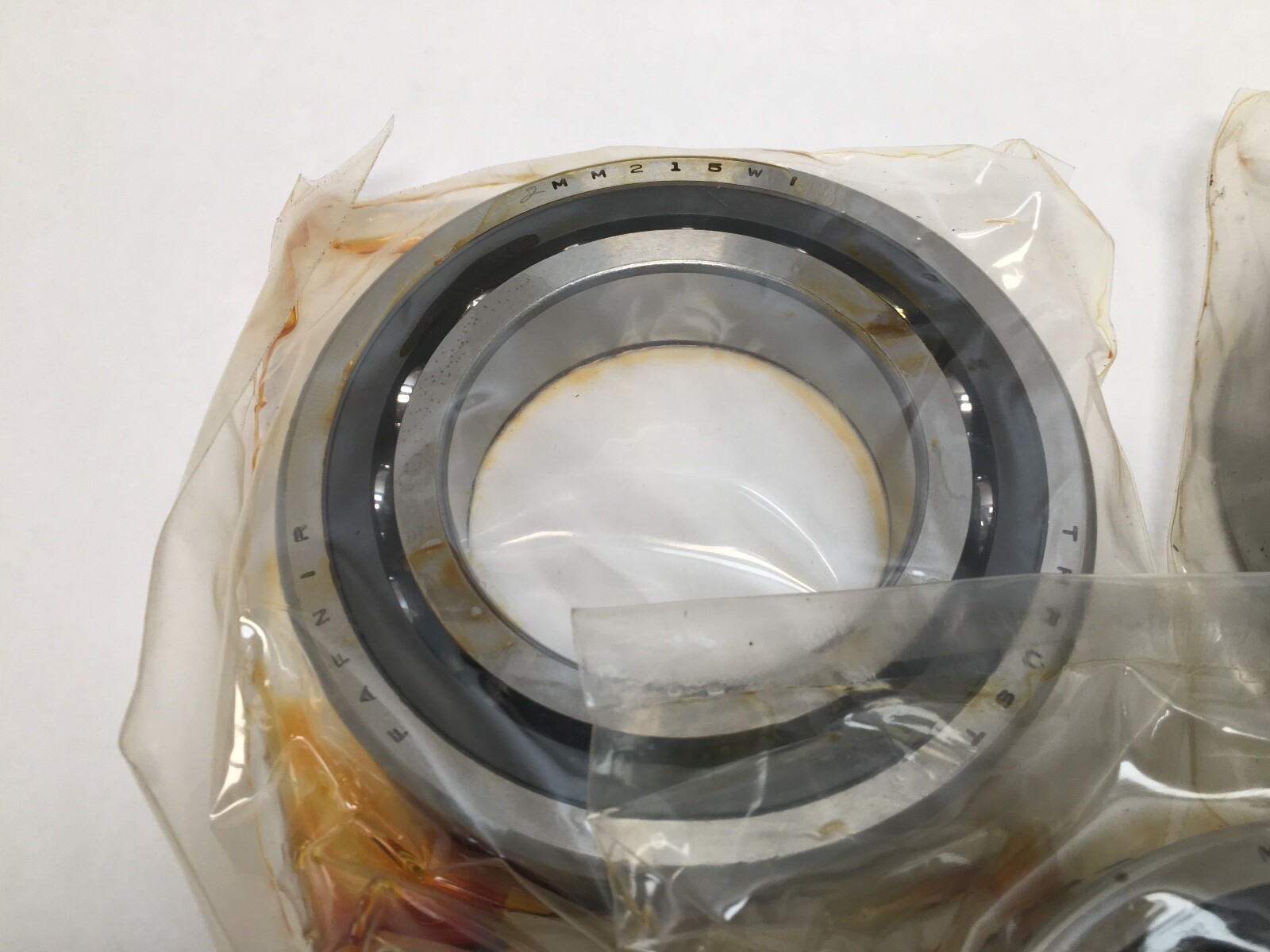

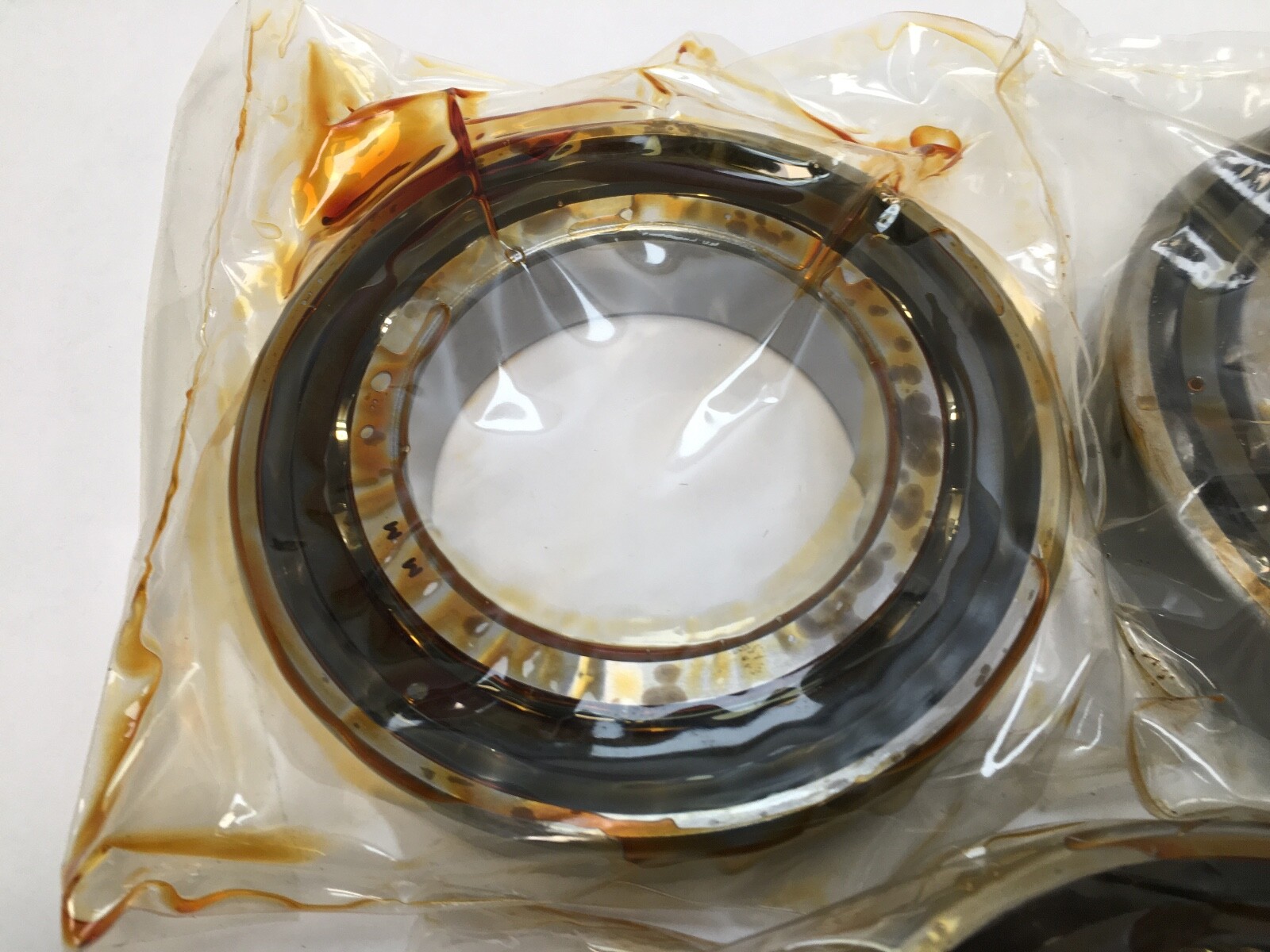

Triplex set of three super precision angular contact ball bearings, 75 x 130 x 25 mm each, 75 mm total, 15° contact angle, light preload, phenolic cage.
List Price
$672.16
16 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM215WI-TUL |
| Model | 2MM215WITUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm per bearing |
| Series | 200WI (ISO 72) |
|---|---|
| Lubricant | Oil/Grease |
| Base Number | 7215 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, triplex set, ABEC 7/9 |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 2MM215WI-TUL, 2MM215WITUL, 2MM215WI TUL, 2MM 215 WI TUL, 2MM-215-WI-CR-T/TRI, 7215C-T-P4S-TUL, 7215-C |
| Closure Type | Open |
| Rolling Elements | Steel balls |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Part Number | 2MM215WI-TUL |

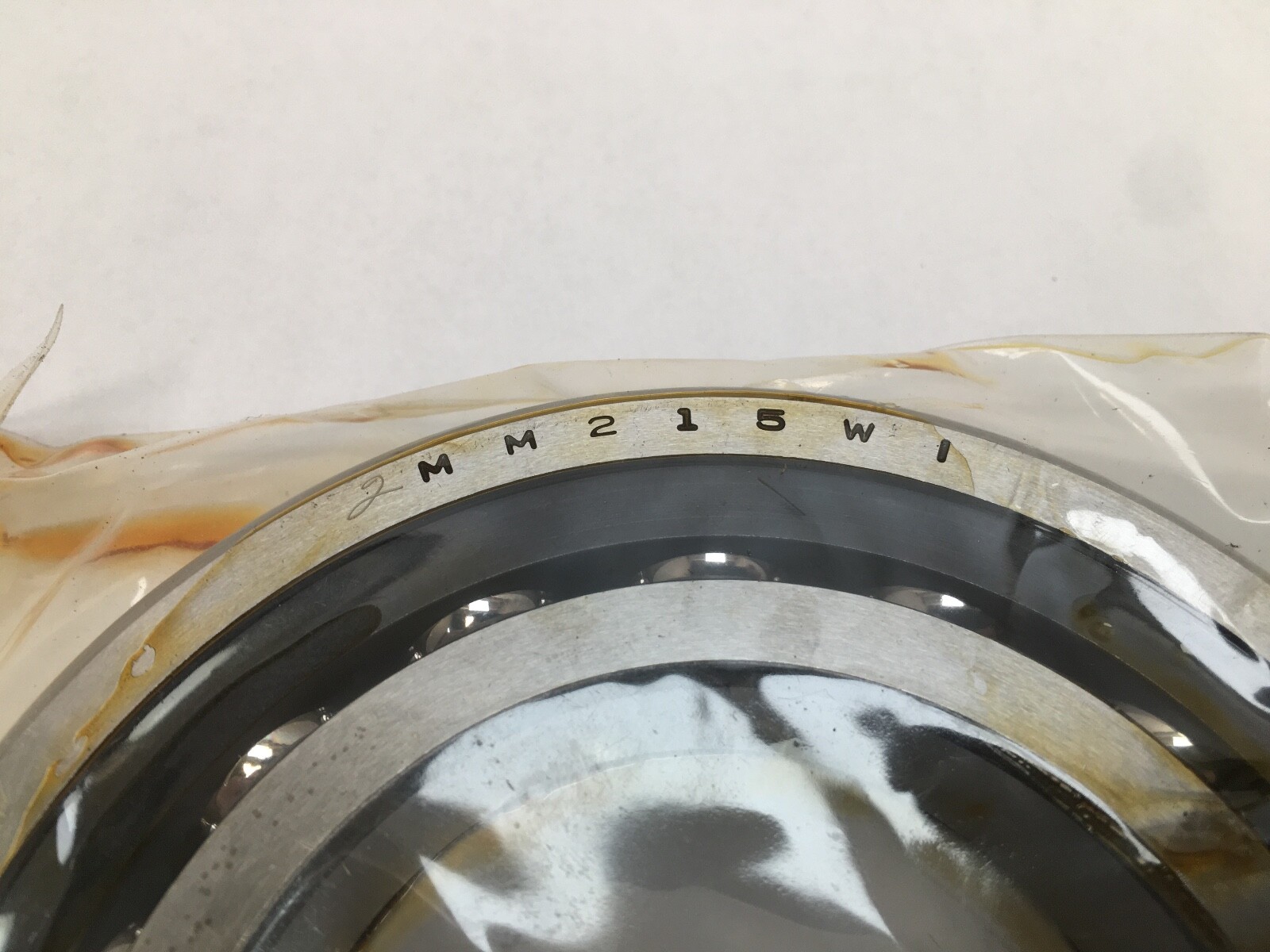

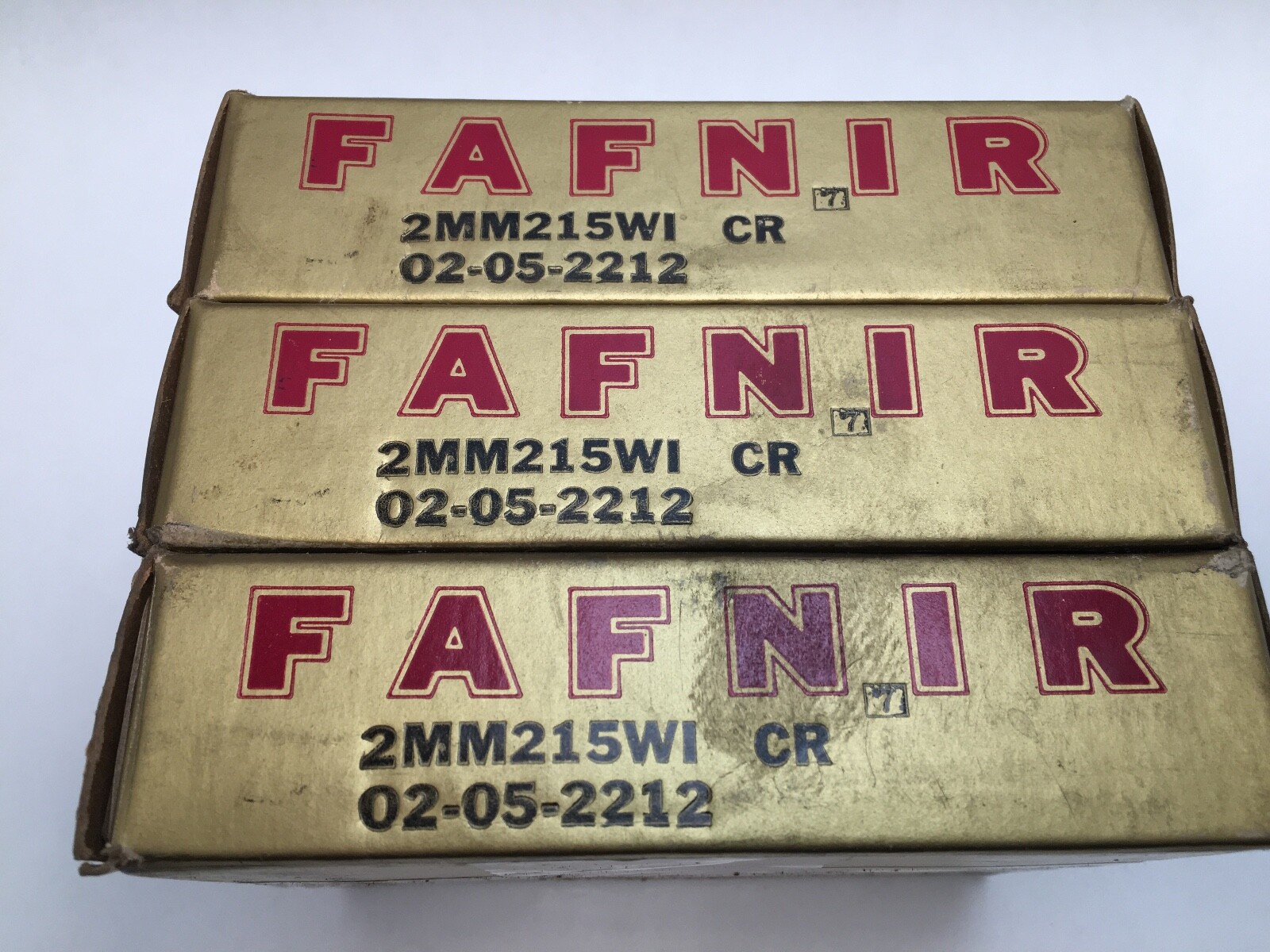

Fafnir 2MM215WI-TUL super precision angular contact ball bearing set from Timken. Series: 200WI. ISO equivalent: 7215. Bore: 75 mm. Outside Diameter: 130 mm. Width: 25 mm per bearing. Total Width: 75 mm. Timken world part number: 7215C-T-P4S-TUL.
Contact Angle: 15°. Precision Rating: ISO P4S, ABEC 7/9. Preload: light. Rows per set: triplex, three bearings. Cage: machined phenolic, outer-ring-land-riding. Ball material: steel. Closure: open. Searchable forms include 2MM215WI-TUL, 2MM215WITUL, 2MM 215 WI TUL, 2MM-215-WI-CR-T/TRI and 7215C-T-P4S-TUL.
A 15° contact angle favours speed and radial rigidity, which suits high-speed machine tool spindles. Light preload keeps heat generation and running torque low while still removing all play. A triplex set spreads load across three rows, raising stiffness and capacity over a duplex pair in the same envelope. P4S tolerances hold tighter running accuracy and lower vibration than P4 alone.
Dynamic Radial Load Rating, triplex set: 87 900 N. Dynamic Radial Load Rating per row, ISO C1: 79 900 N. Static Radial Load Rating: 64 900 N. Limiting Speed, grease: 10 800 rpm. Limiting Speed, oil: 21 600 rpm.

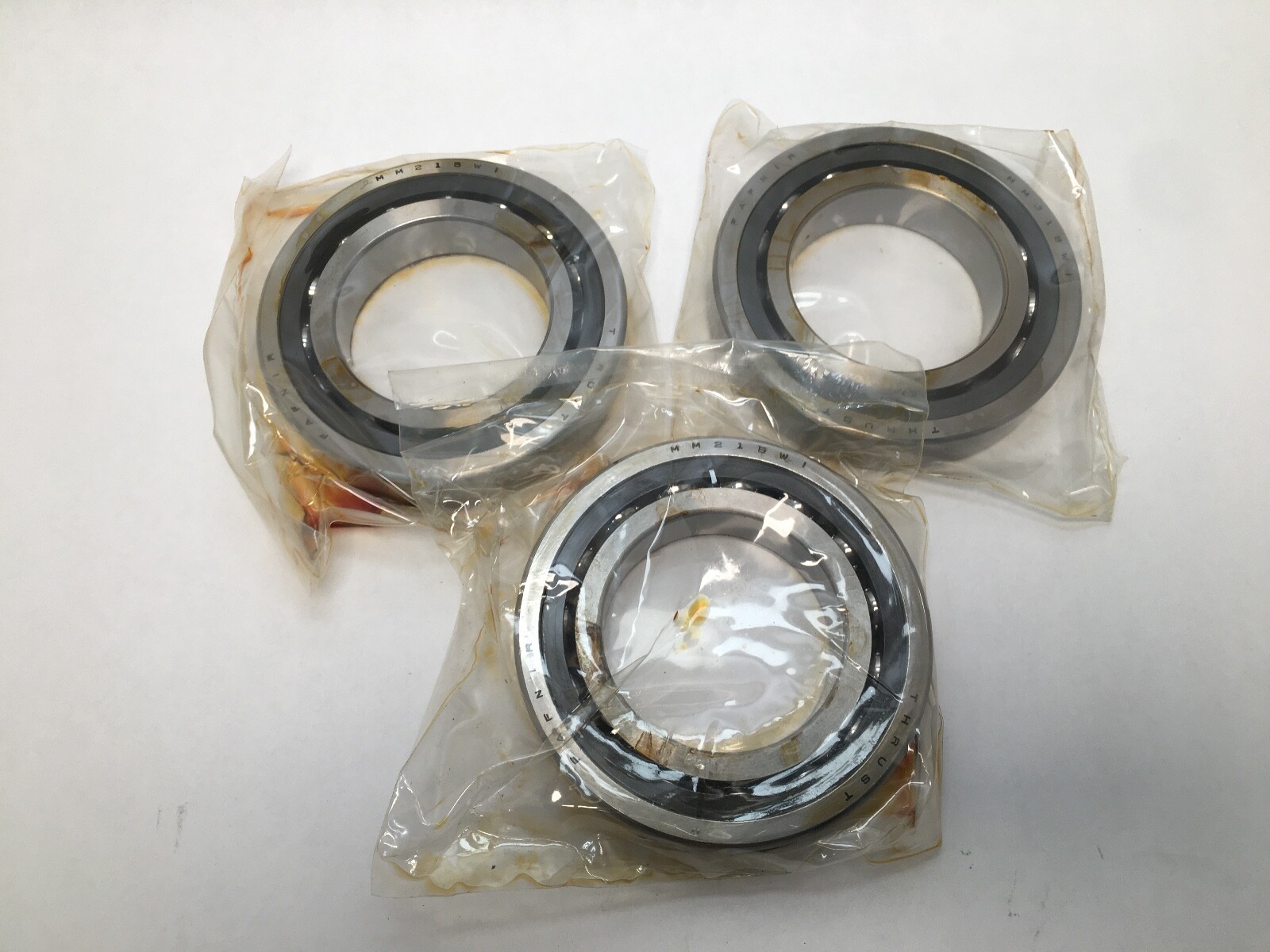

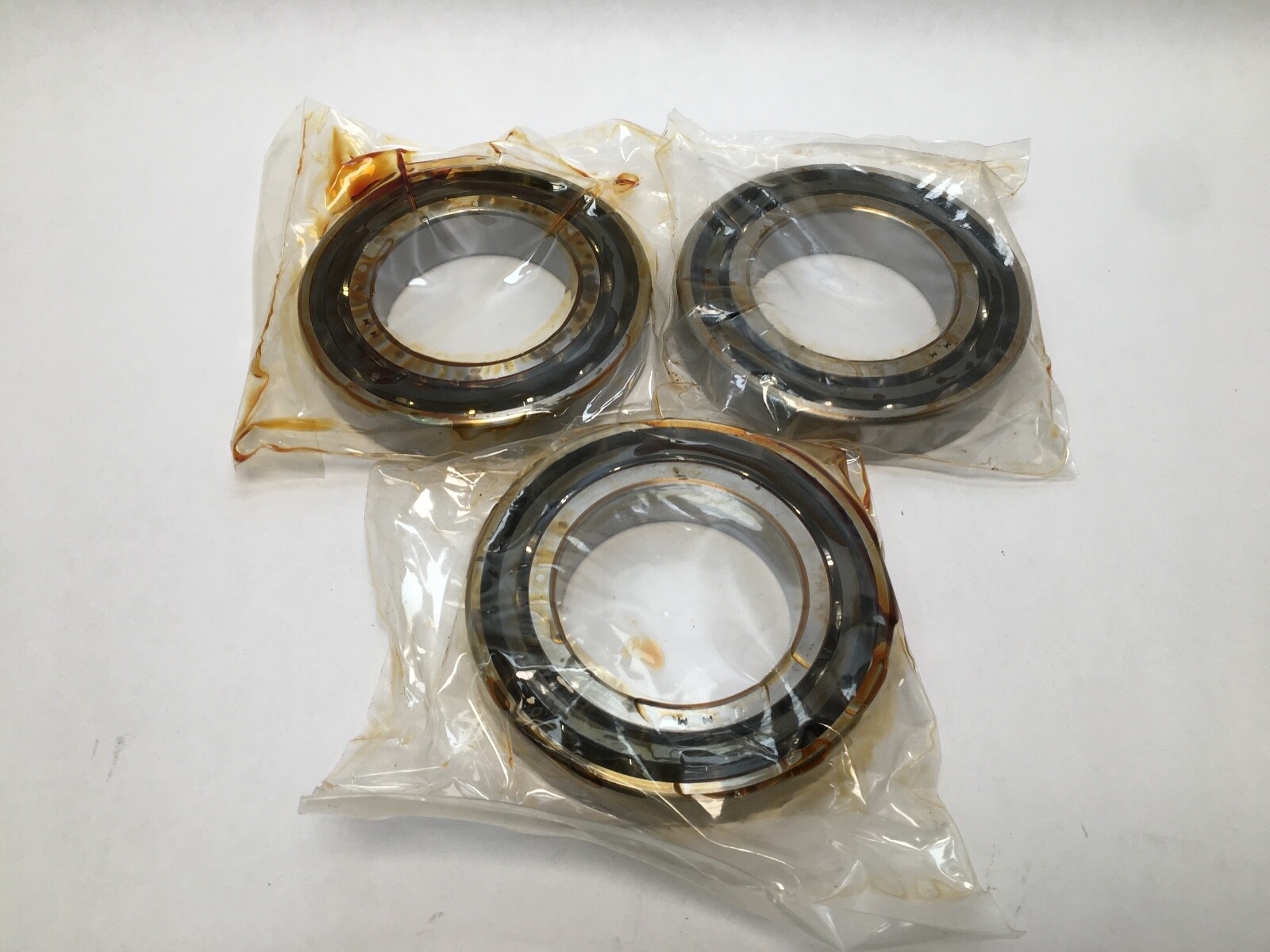

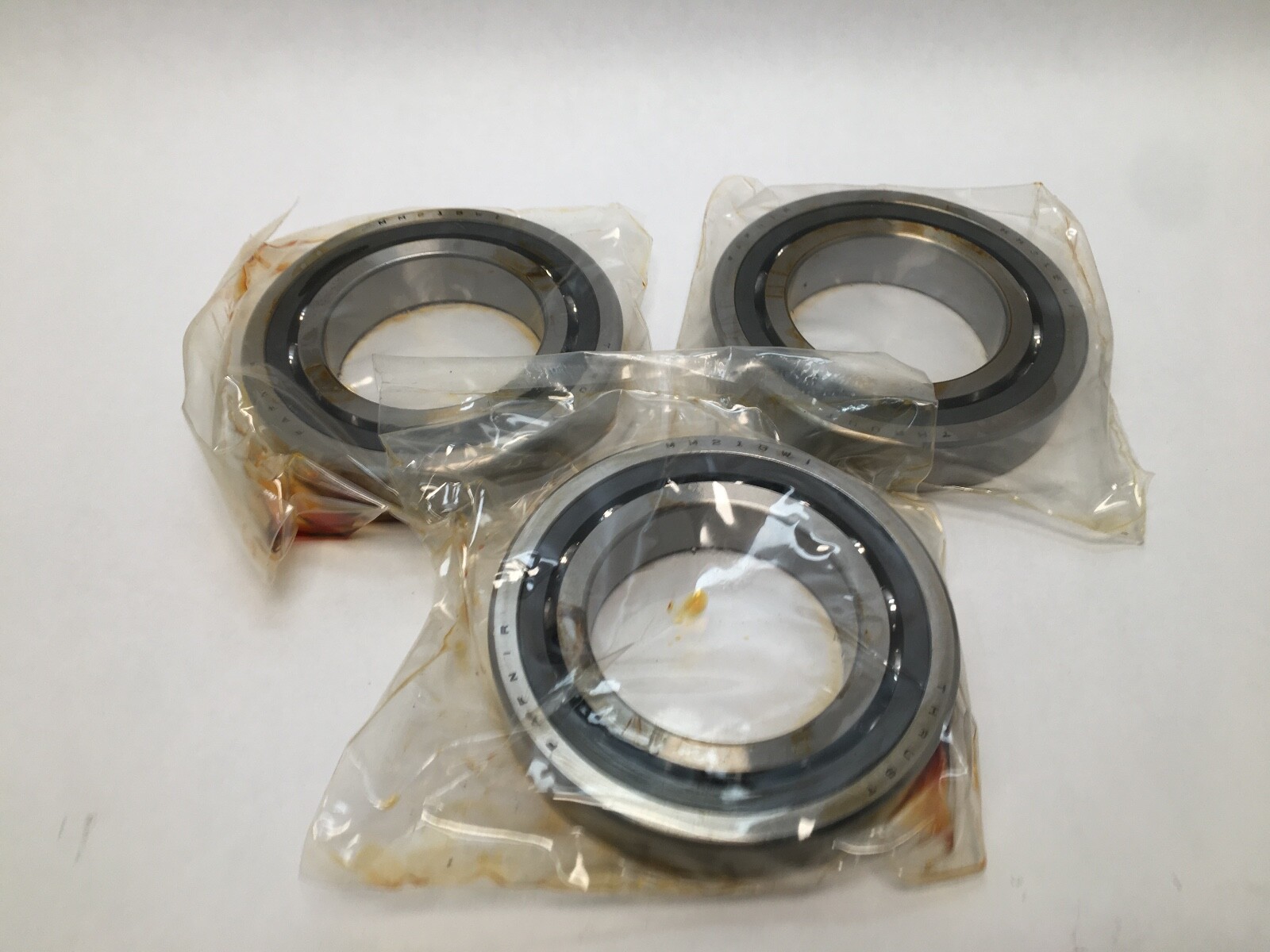

Three bearings, supplied as a matched triplex set. Universally ground, so the set is matchable in triplex arrangements. Single row of balls per bearing.
Maximum shaft fillet radius: 1.5 mm. Shaft backing shoulder diameter: 85.2 mm. Housing backing shoulder diameter: 120.8 mm. Outer ring to-clear radius: 1.5 mm. Bore form is straight. Preload is ground into the faces, so no shim stack or clearance setting is required at assembly. Lubrication: oil or grease.
Same-specification equivalent: FAG B7215-C-T-P4S-TUL. A 7215 in a different contact angle, preload grade or piece count is a related size, not an interchange.
