Super Precision Angular Contact Ball Bearing — 65 mm ID, 100 mm OD, 18 mm Width, 15° Contact Angle, Light Preload, P4A$366.38
Angular Contact Ball Bearing - 65 mm ID, 100 mm OD, 18 mm Width, Open, 15°, PEEK Cage to 250°C, ABEC 7$52.49
Super Precision Angular Contact Ball Bearing - 65 mm ID, 100 mm OD, 18 mm Width, Open, Light Preload, Machined Phenolic Cage, P4 / EP7$67.31
Angular Contact Ball Bearing - 65 mm ID, 100 mm OD, 18 mm Width, Open, 15°, Light Preload, PEEK Cage to 250°C, ABEC 7$73.62| MFR / Brand | Barden |
|---|---|
| MPN | 113 HDM |
| Model | 7013 C T DUM P4 / 2MM9113WI CR DUM / 113 HD M |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 100 |
| Preload | Medium |
| Closure Type | Open |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 31 kN |
| Static Load Rating | 29 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 1.05 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Limiting Speed | 14000 rpm |
| Cross Reference 1 | SKF 7013 CD/P4ADGB |
|---|---|
| Cross Reference 2 | FAG B7013-C-T-P4S-DUM |
| Cross Reference 3 | NSK 7013CTYNDUMP4 |

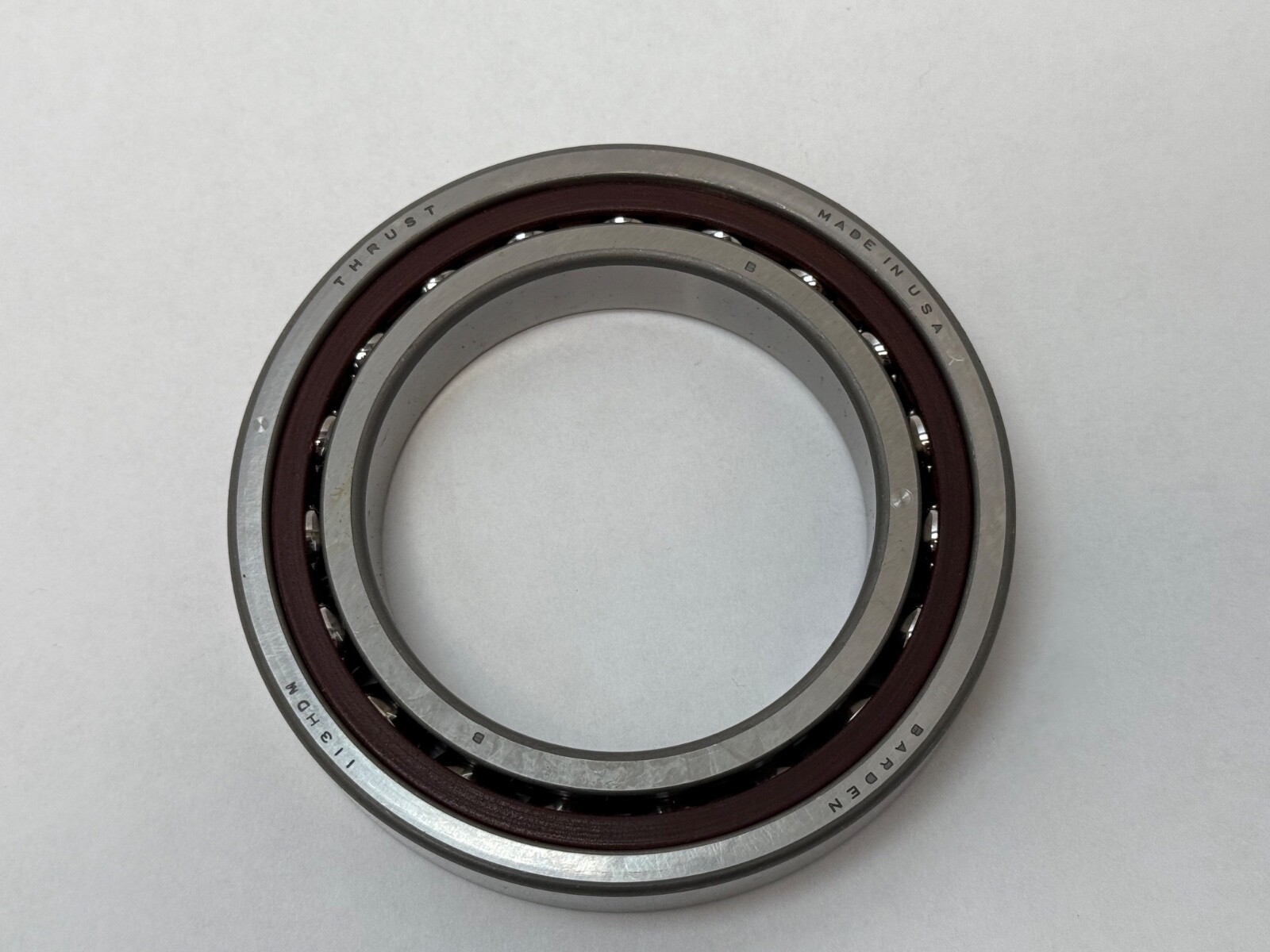

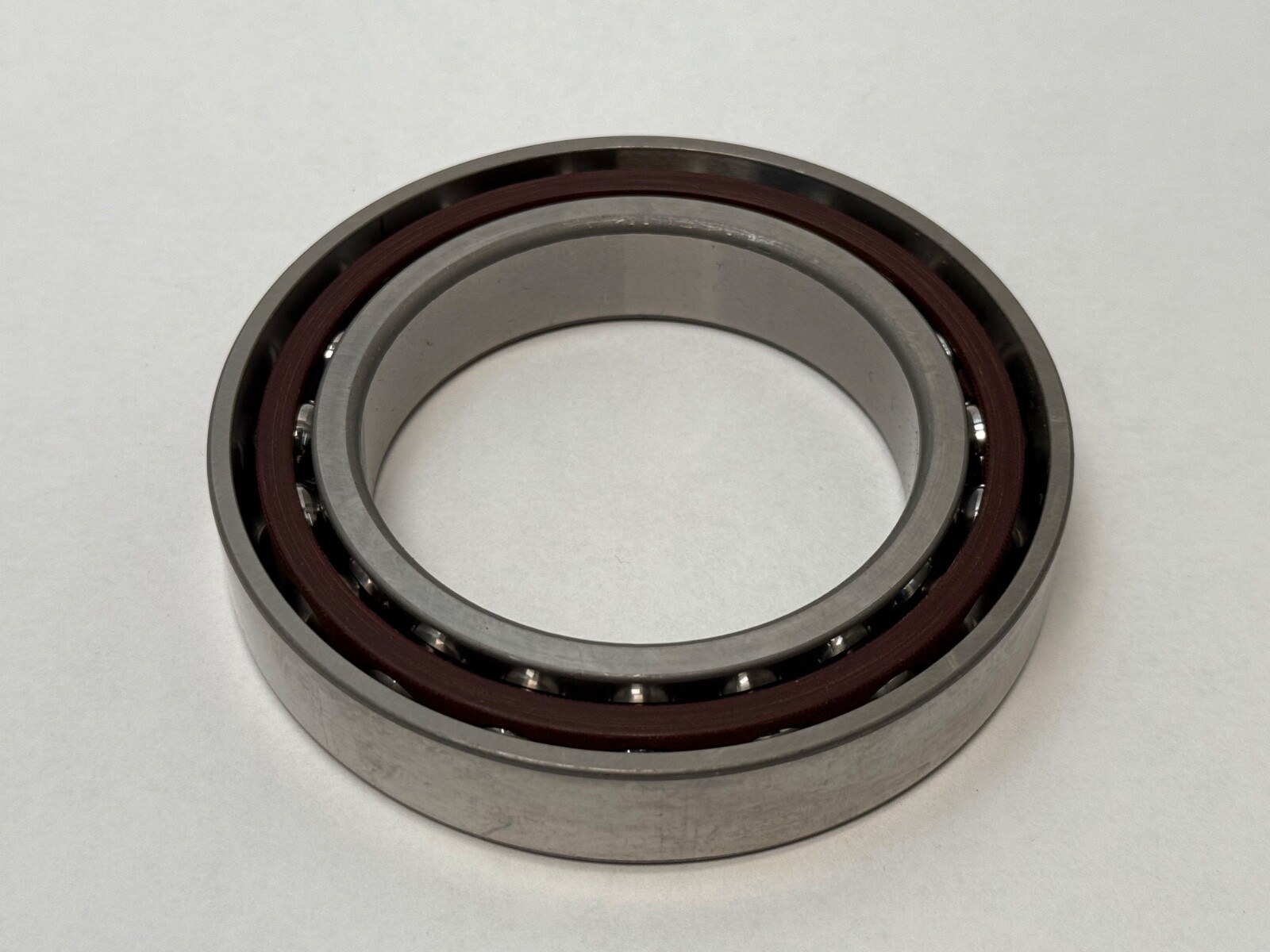

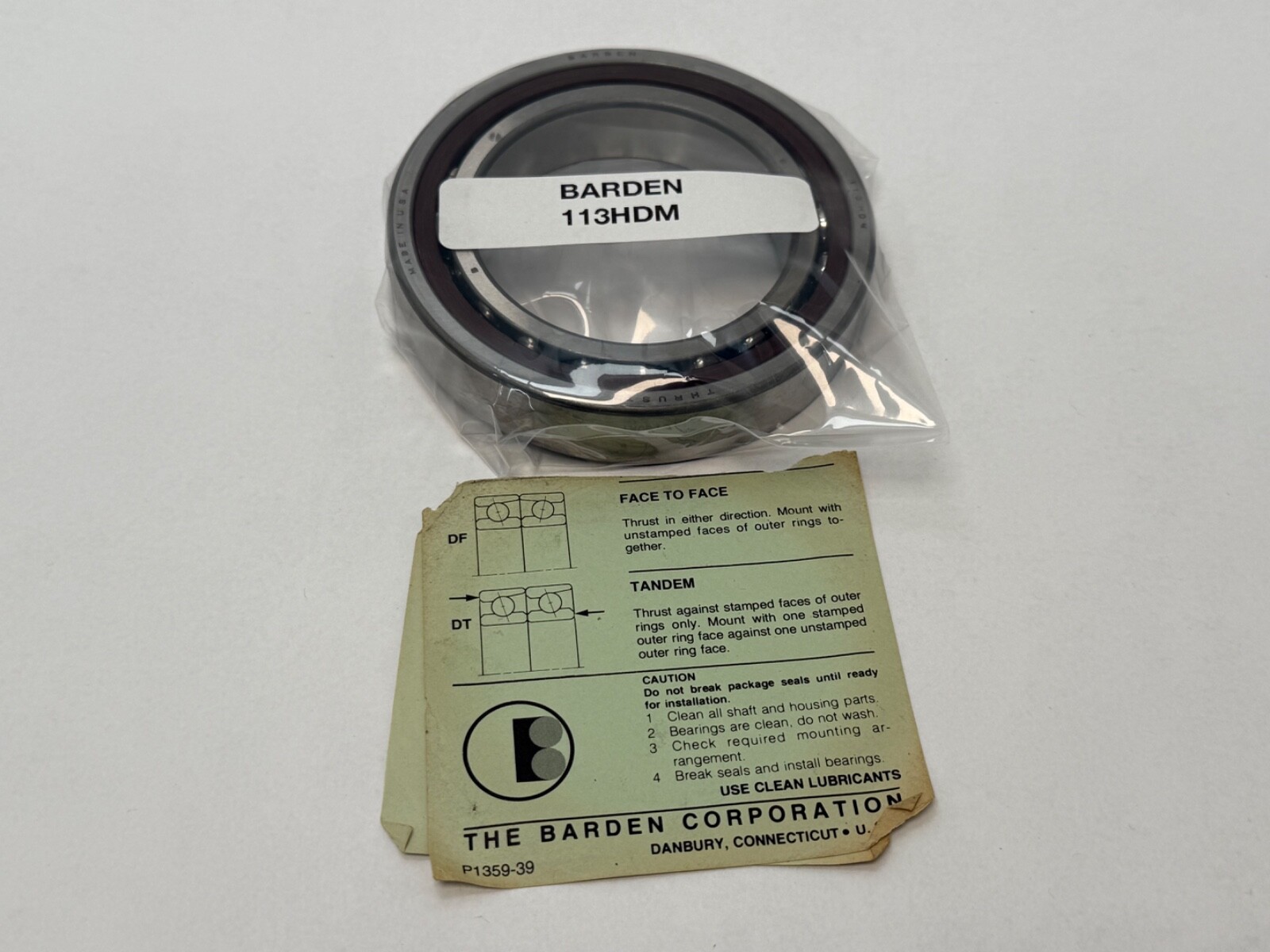

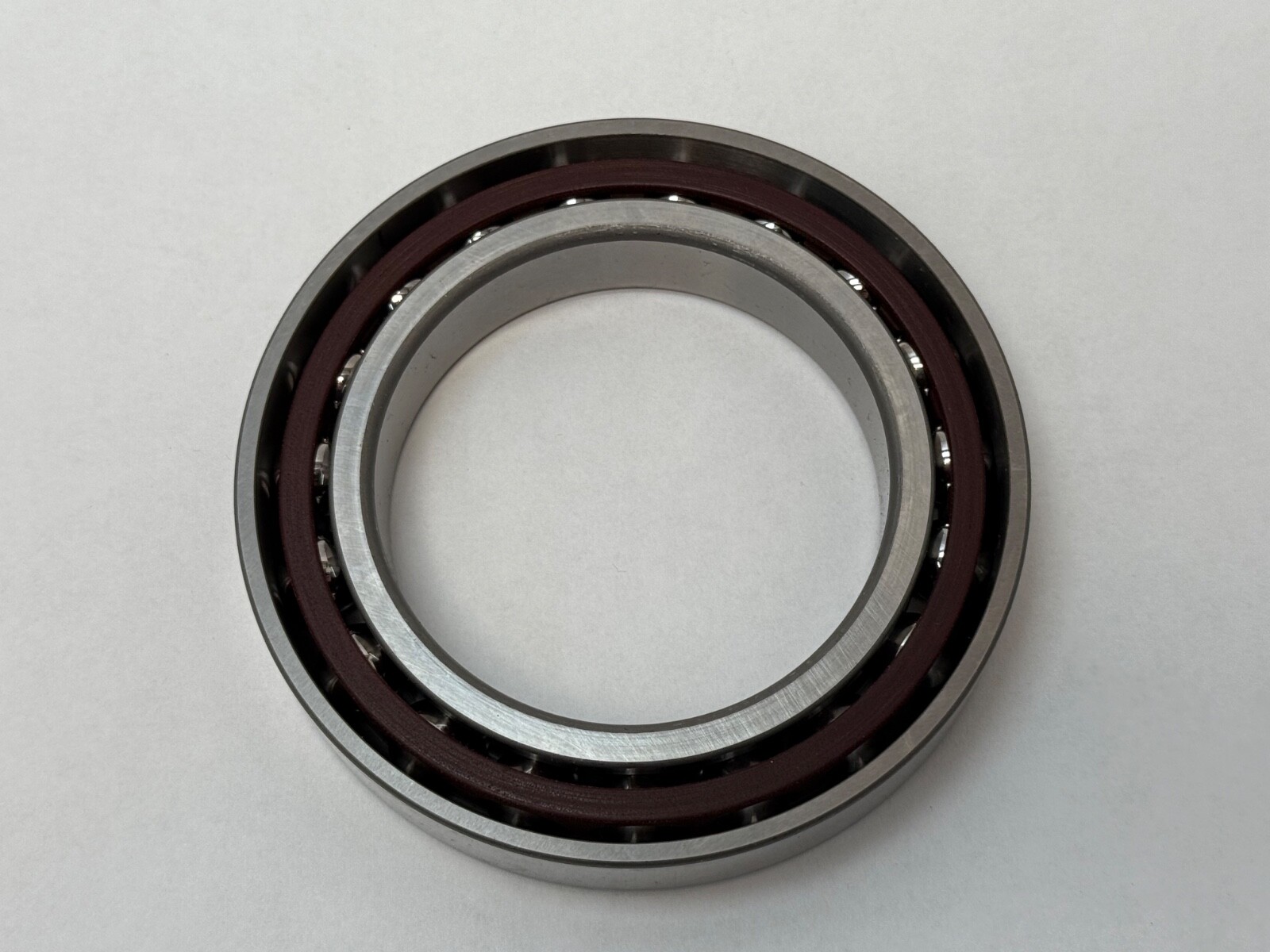

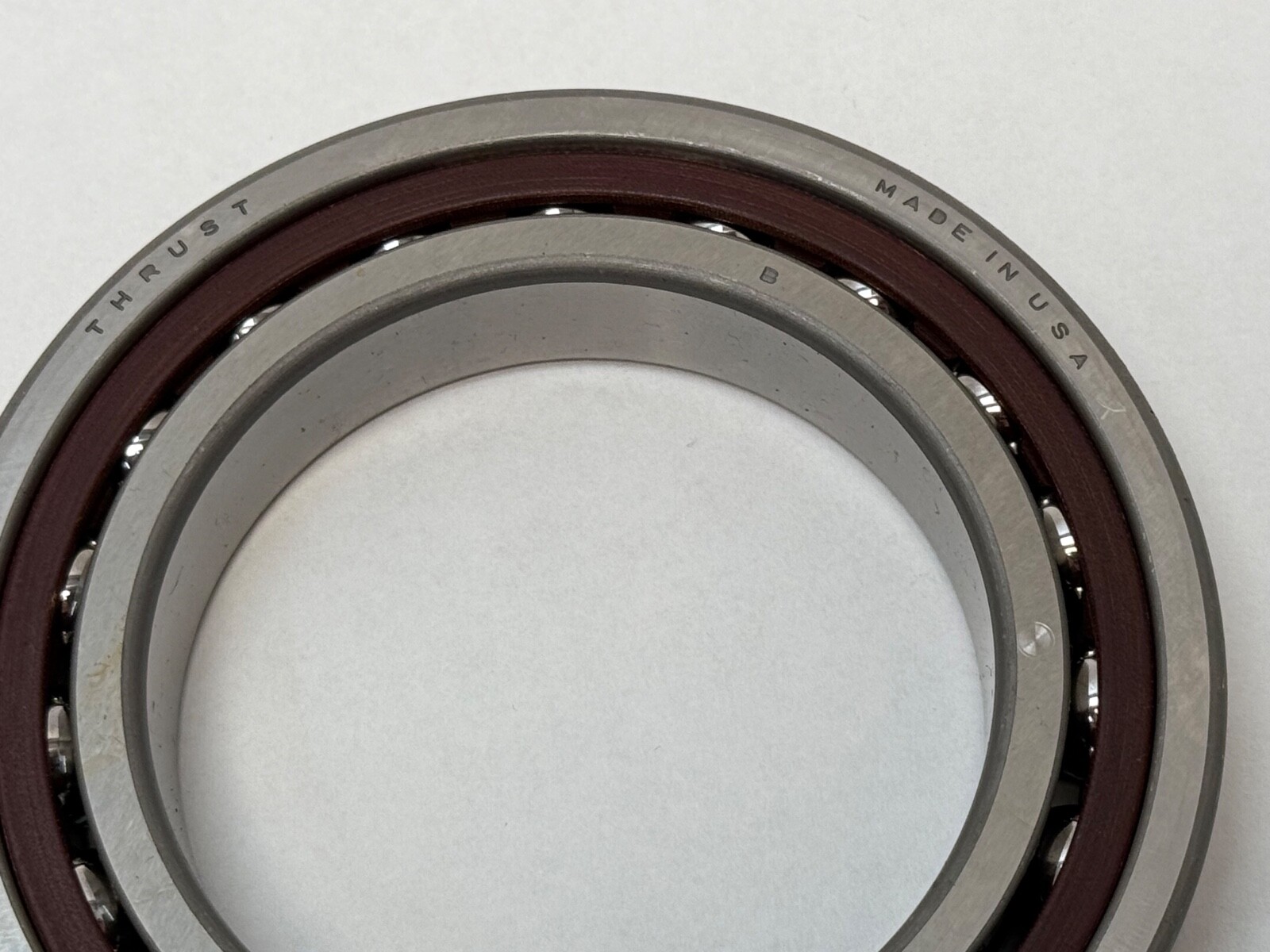

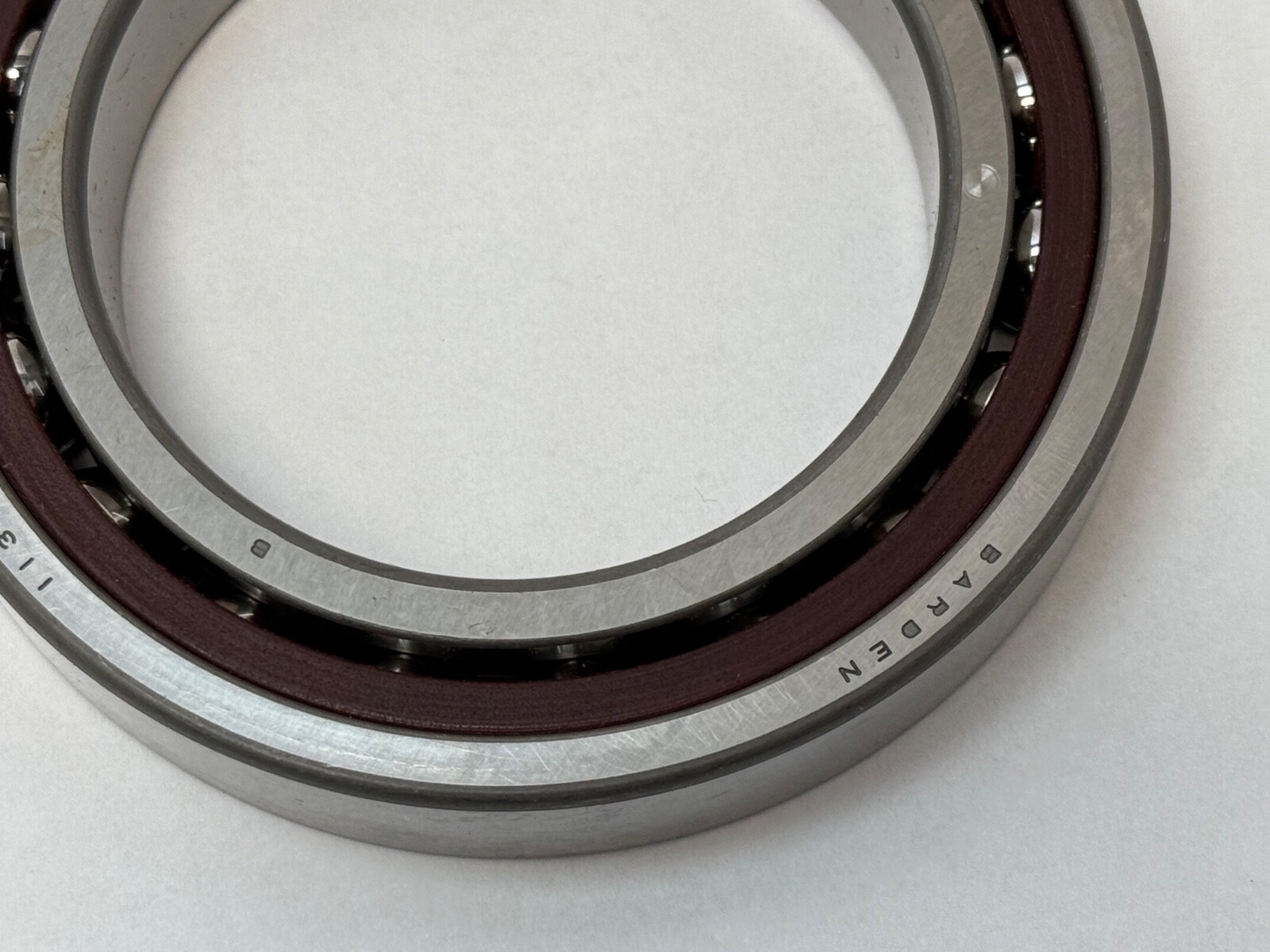

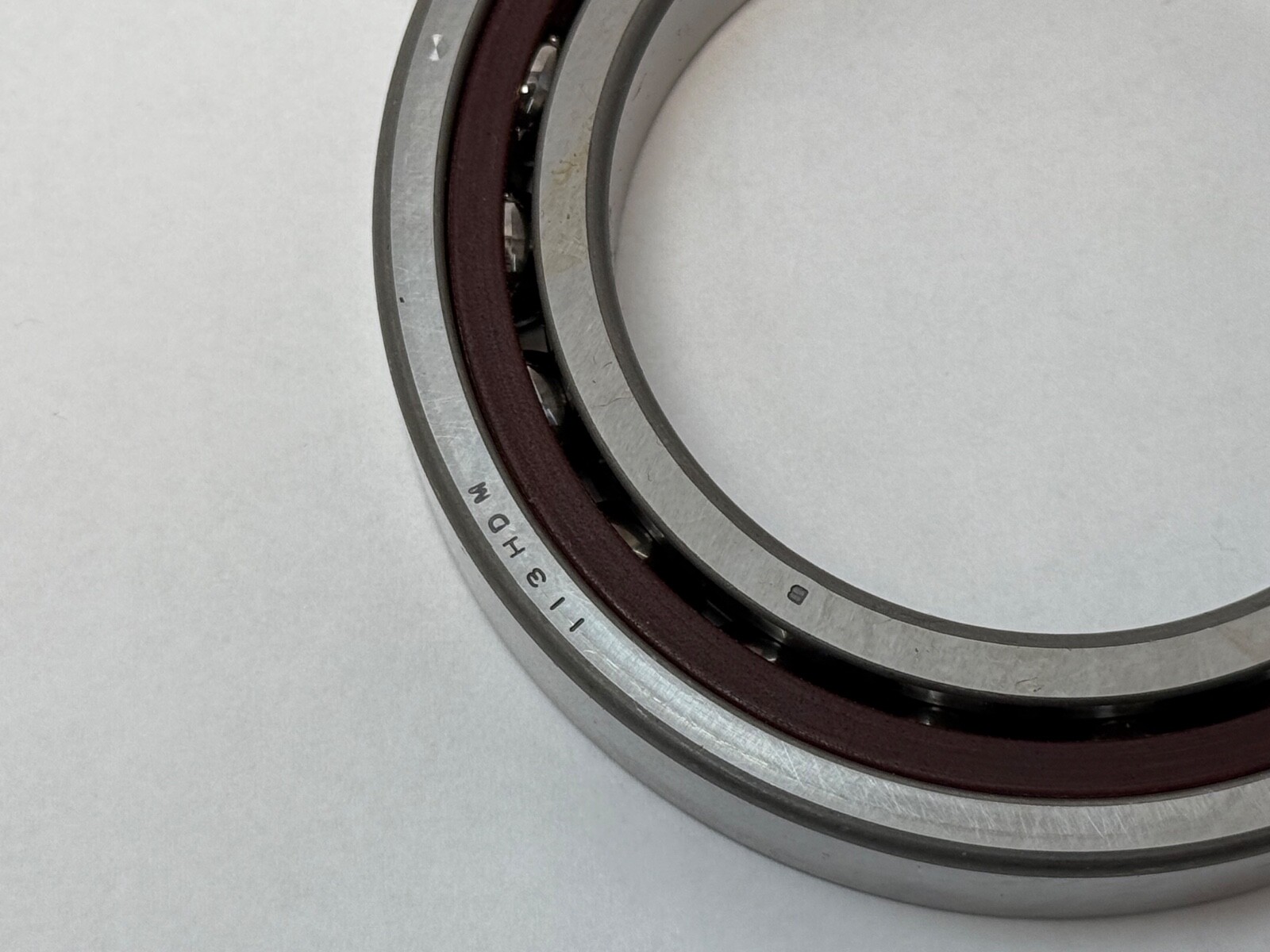

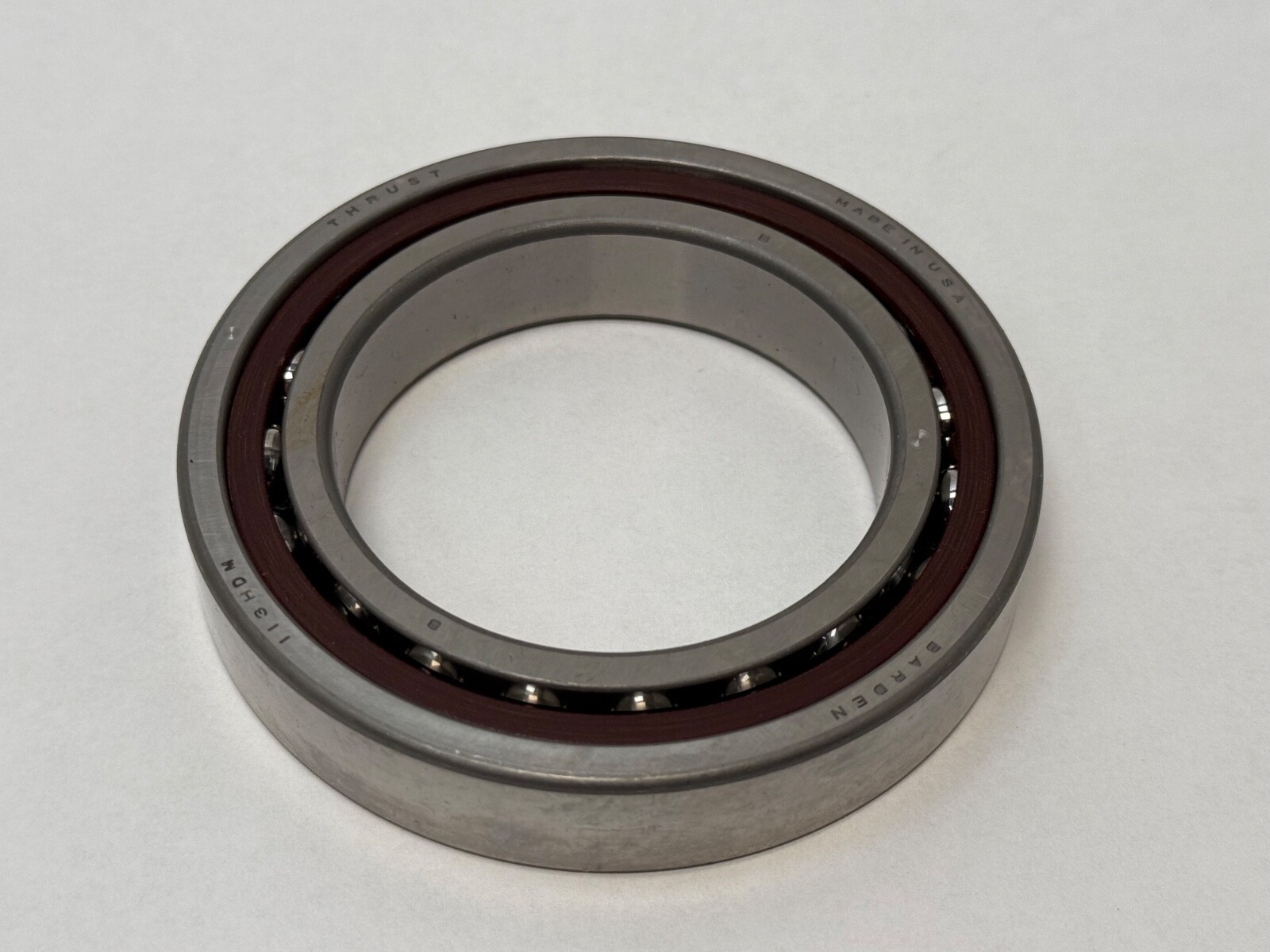

Introducing the Barden 113HDM Bearing 7013C 7013-C-T-DUM-P4, a top-tier solution for precision and reliability where it counts. If you seek unmatched durability and exceptional performance, this Angular Contact Ball Bearing is tailor-made for your needs.
With precise dimensions of 65 mm bore diameter, 100 mm outside diameter, and 18 mm width, the Barden 113HDM has been engineered to handle high-speed operations with ease. This premium bearing is expertly manufactured in the United States, adhering to the highest standards of quality and consistency.
The Barden 113HDM Bearing is your go-to choice for a myriad of applications, ensuring smooth transitions and significantly reduced vibration. This makes it an ideal fit for any machinery requiring superior performance while minimizing friction and wear. Whether you are a DIY enthusiast or a seasoned professional, experience reliability and peace of mind with every use.
We offer competitive pricing along with SAME DAY SHIPPING on all items, plus NEXT DAY SHIPPING choices at checkout. International and combined shipping options make ordering even more convenient. Should you need assistance in sourcing other parts, do not hesitate to get in touch; we can procure all components at great rates.
Trust in Barden for outstanding performance and quality. Order your 113HDM Bearing today!
