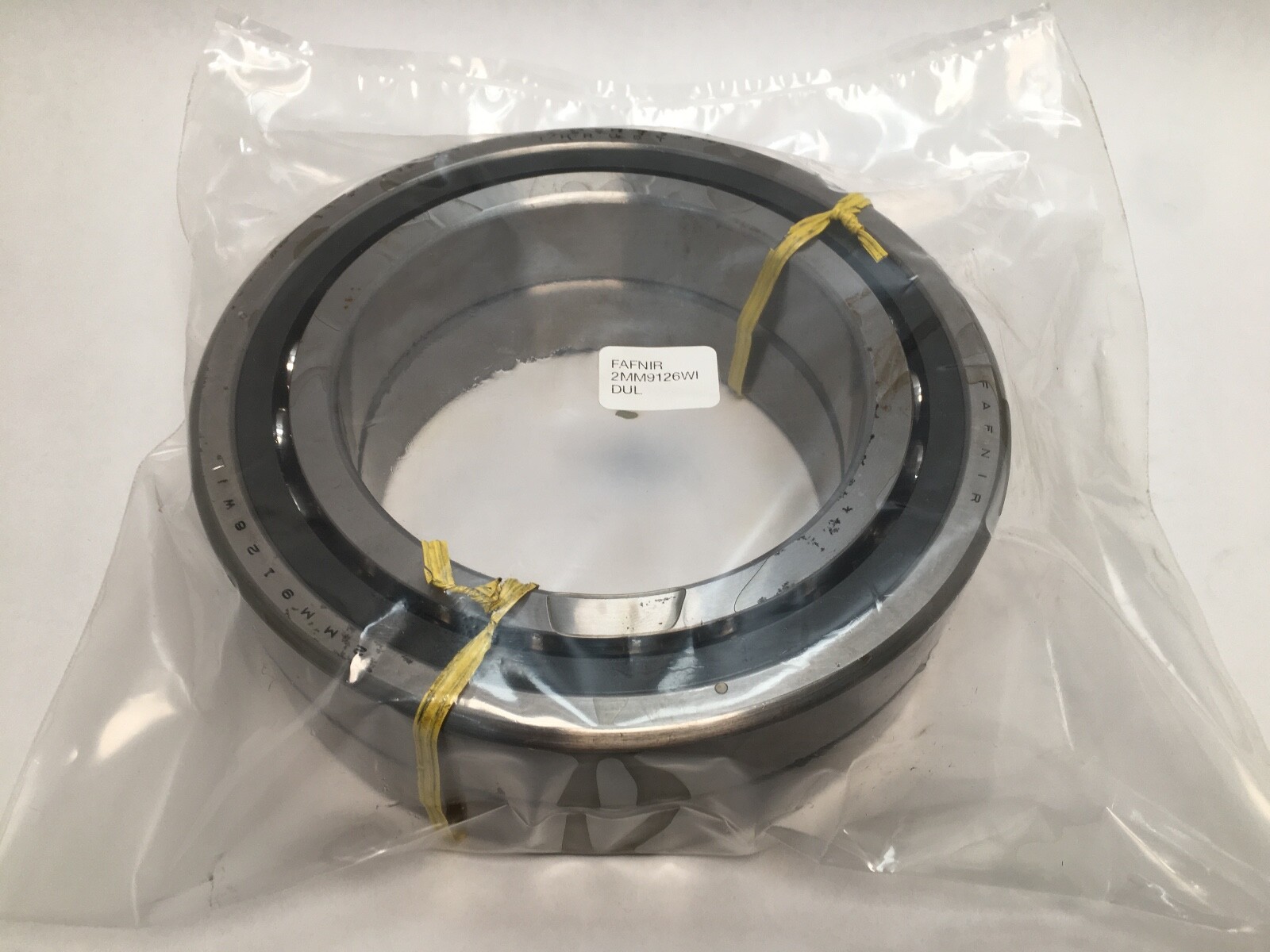

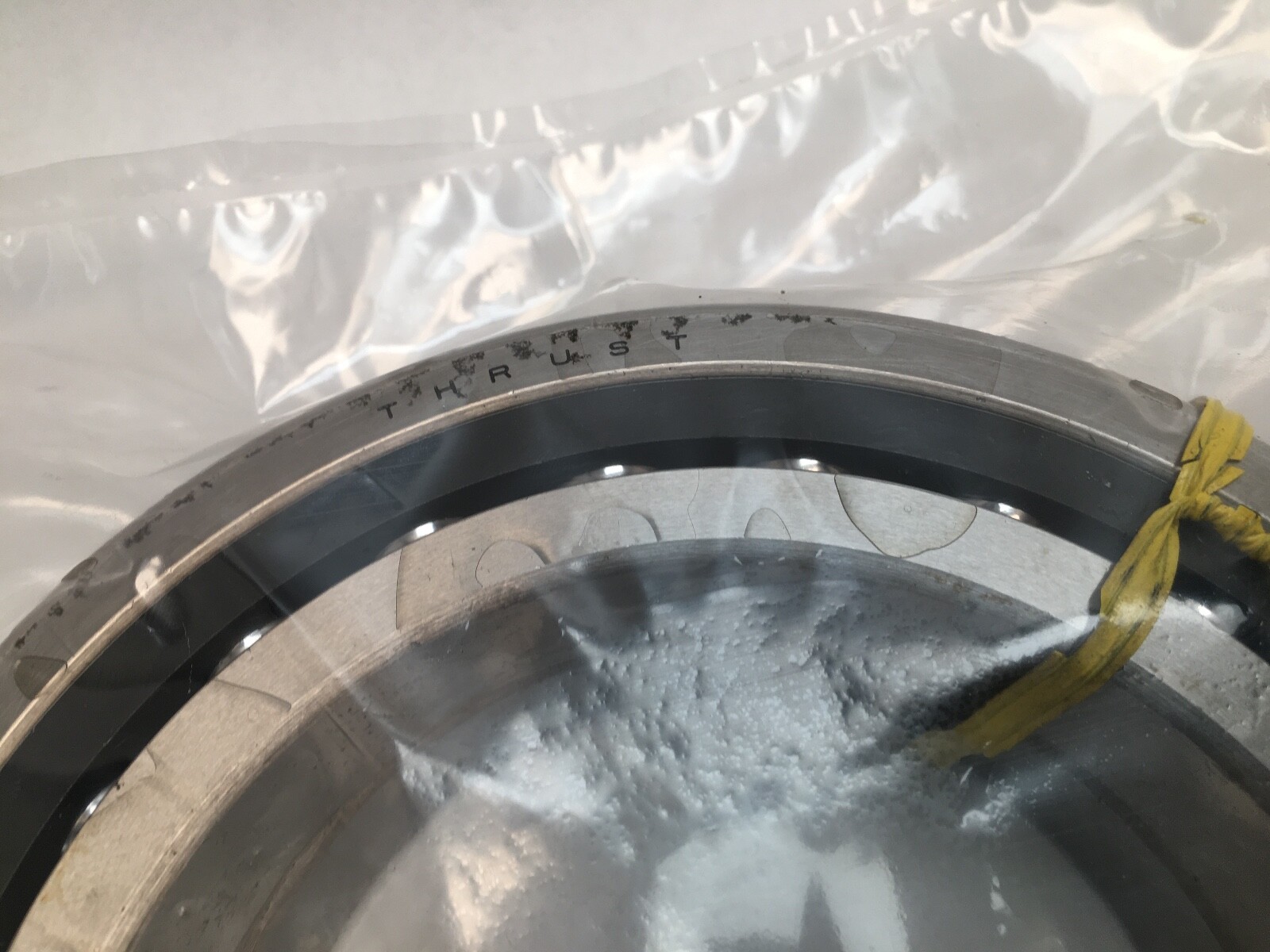

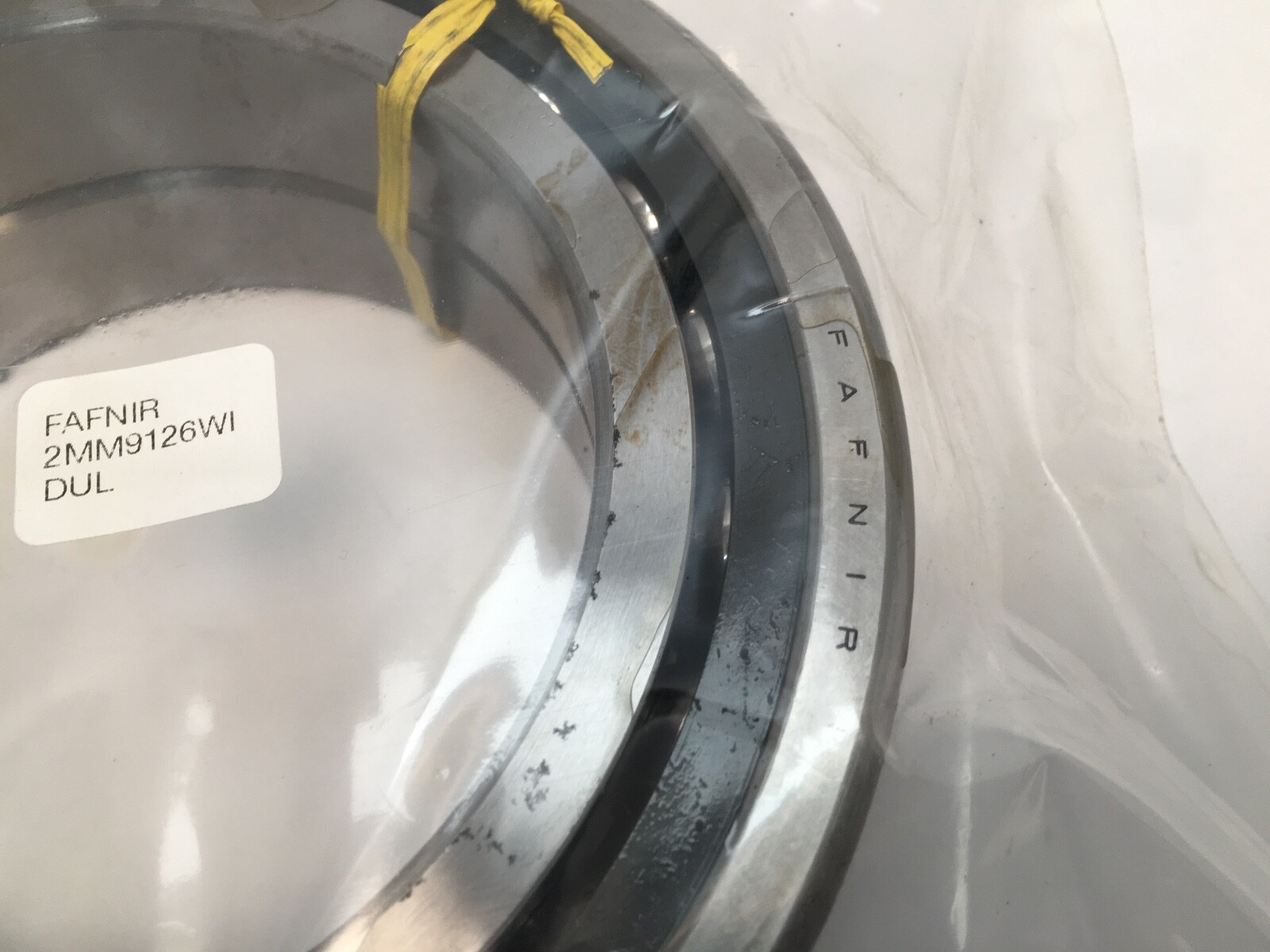

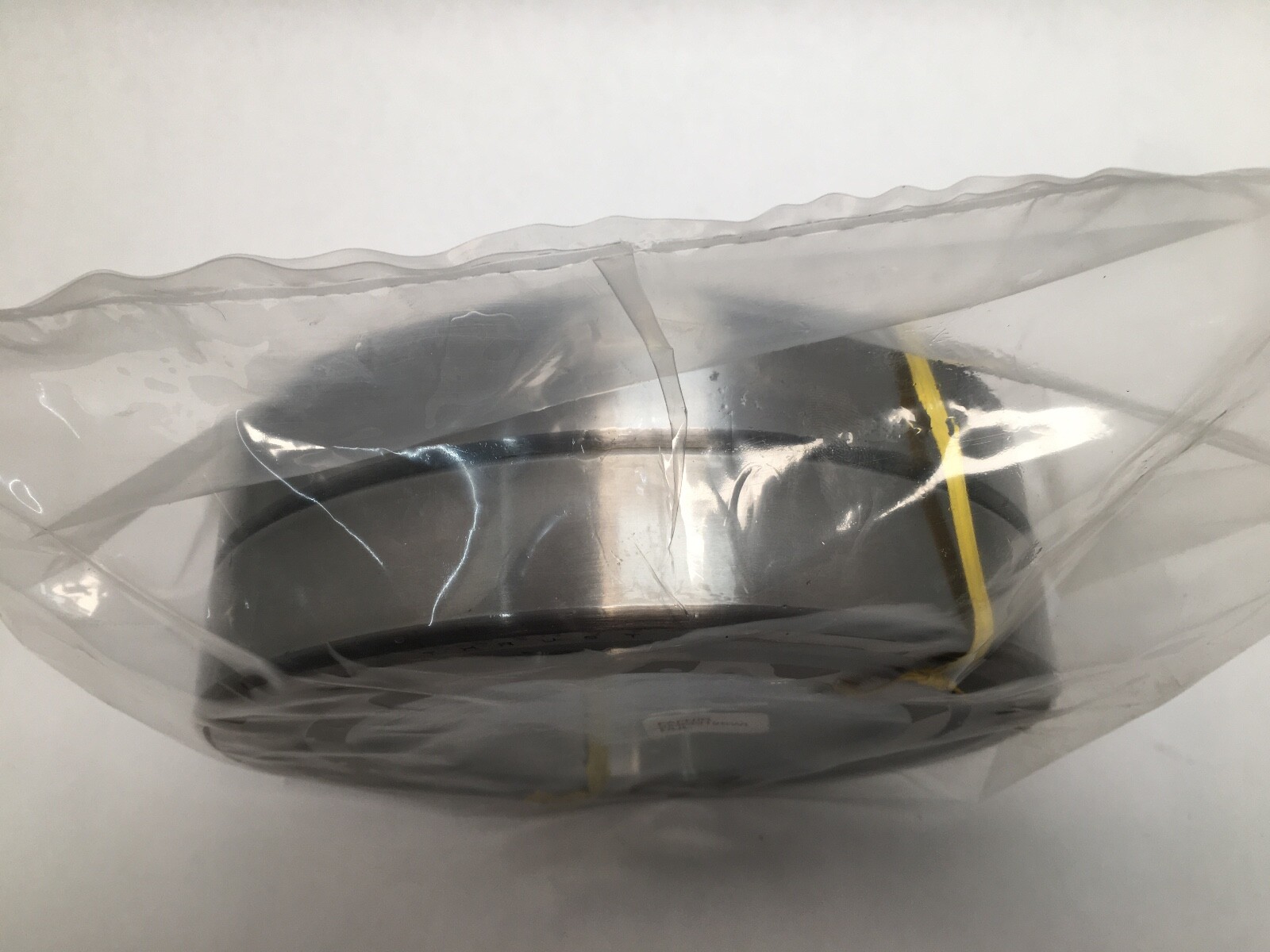

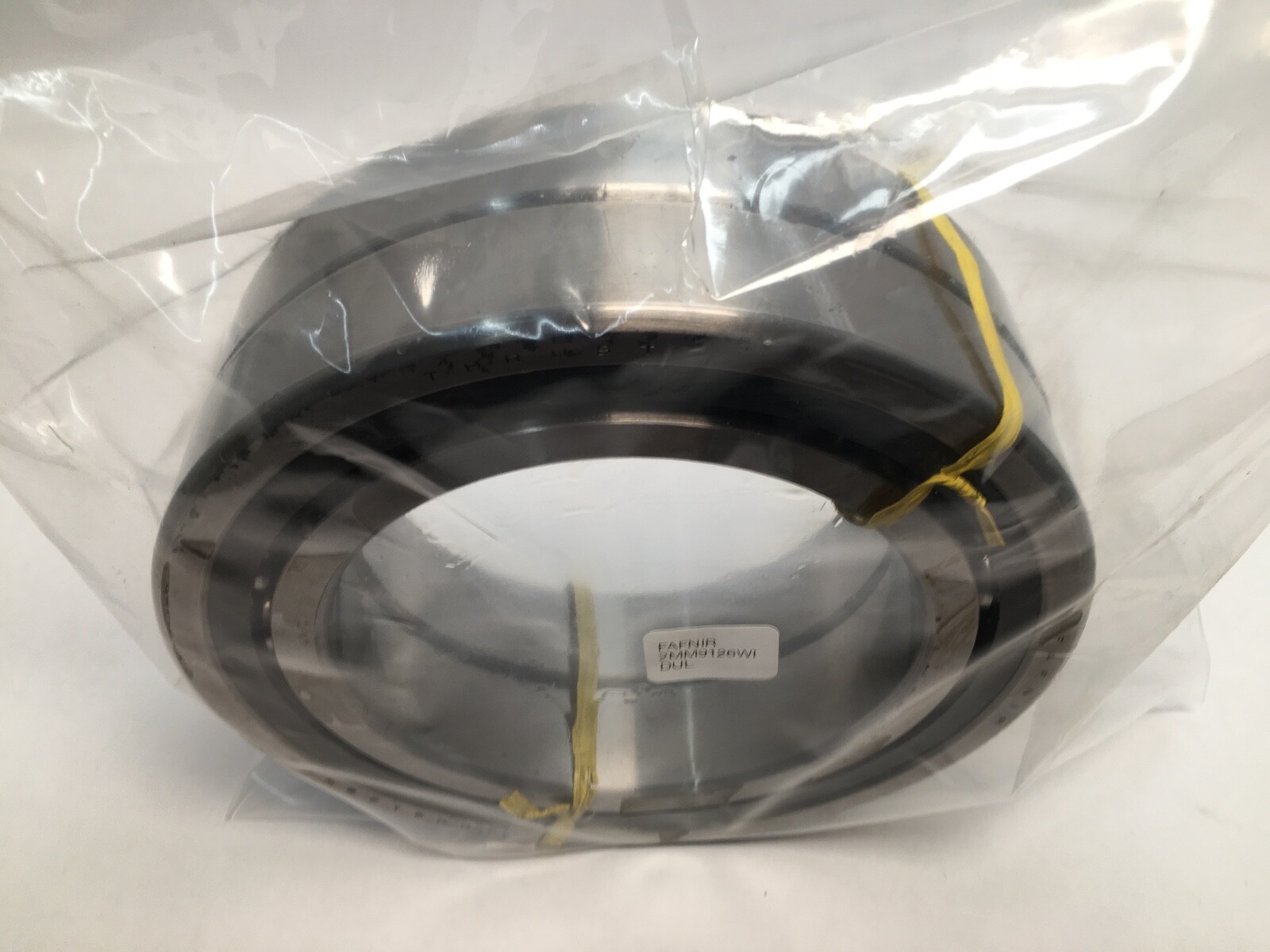

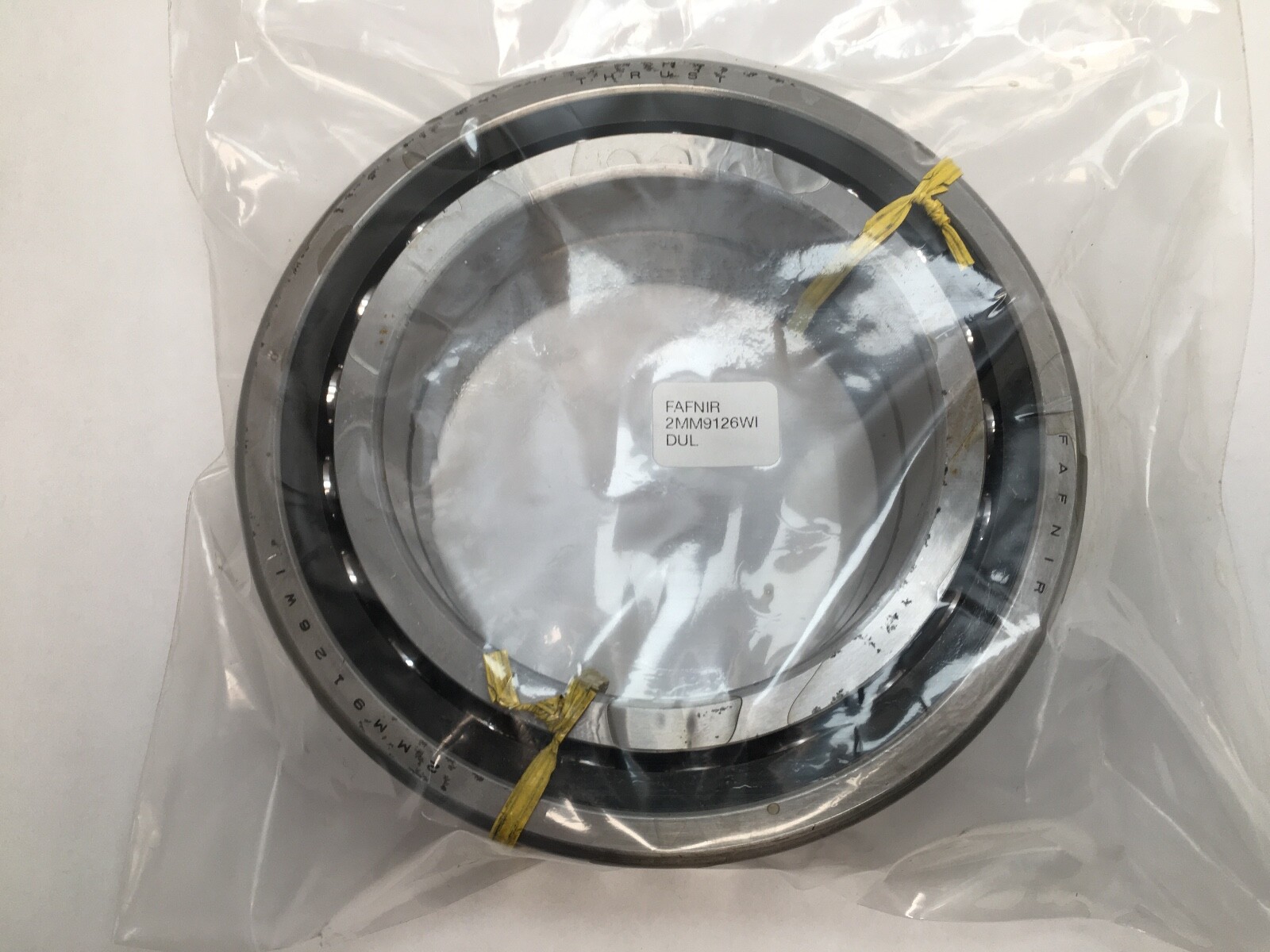

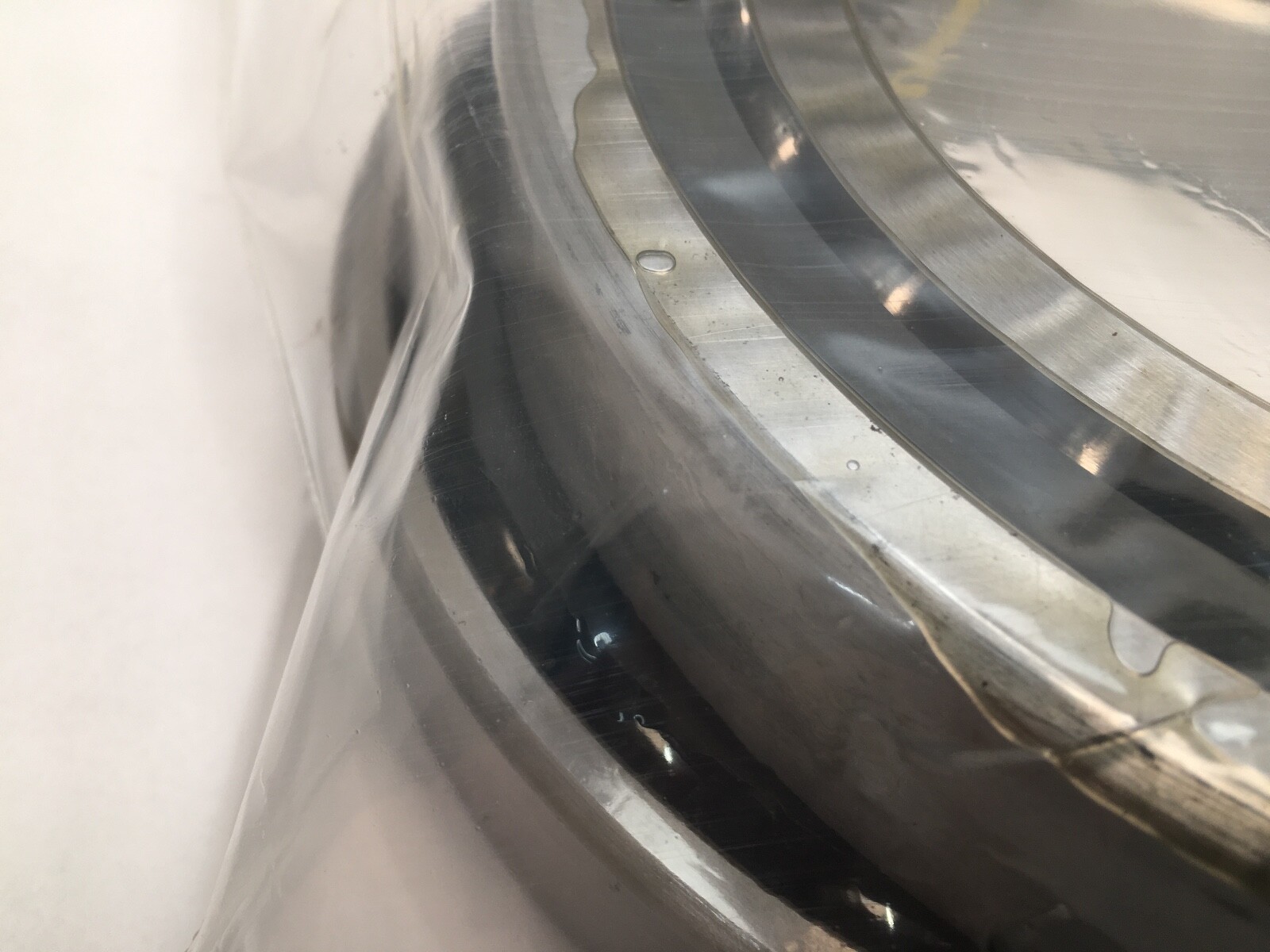

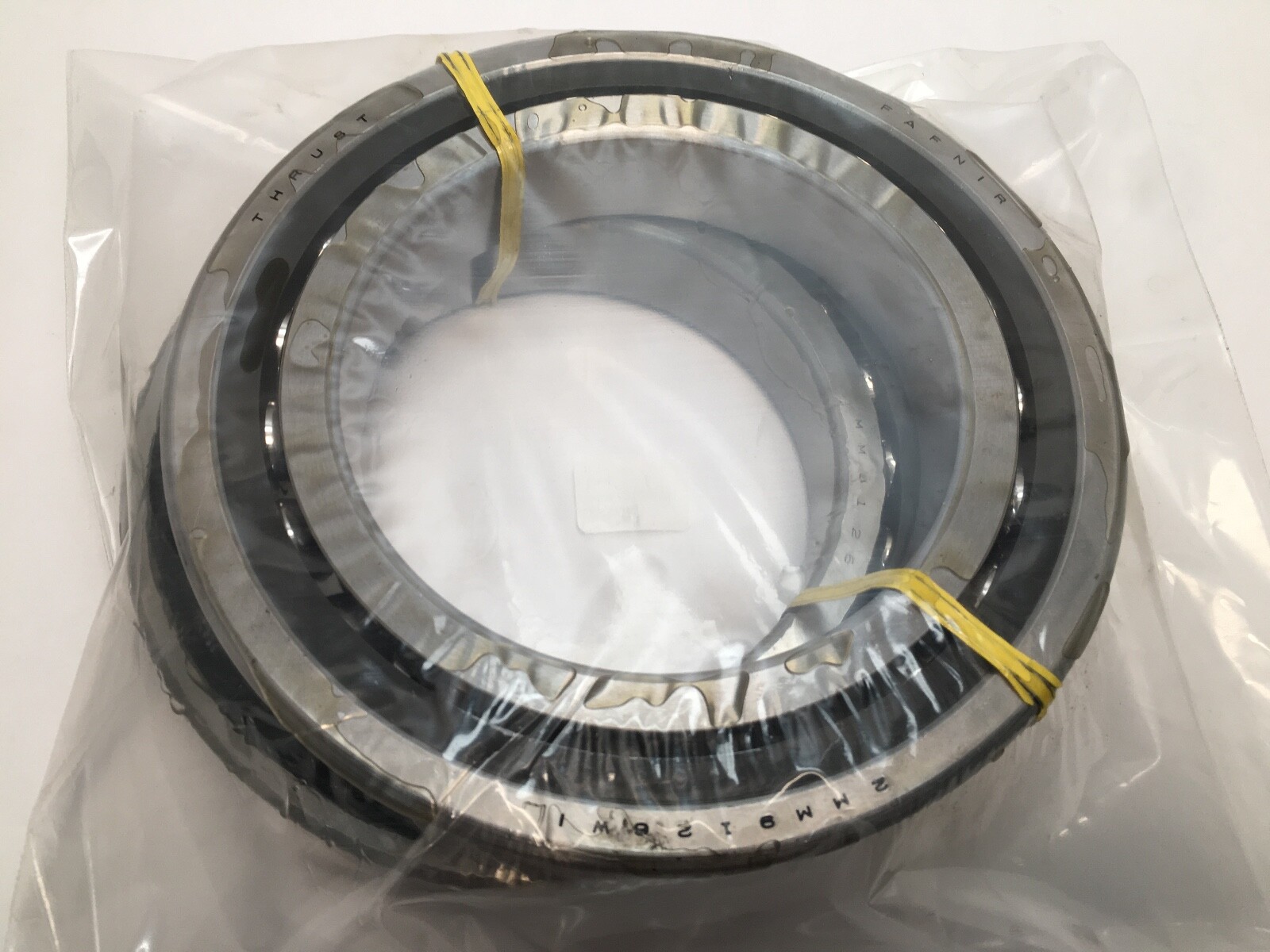

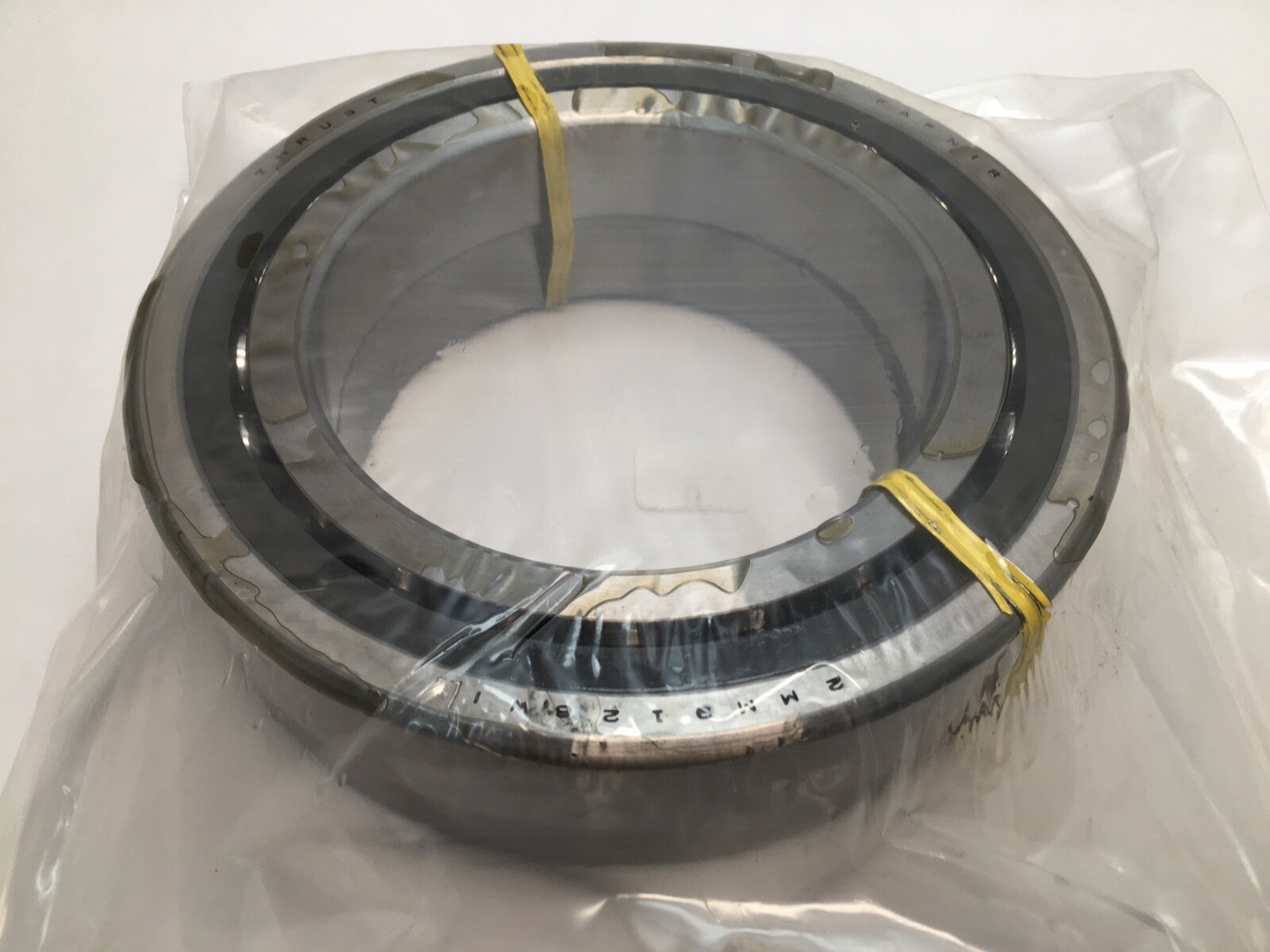

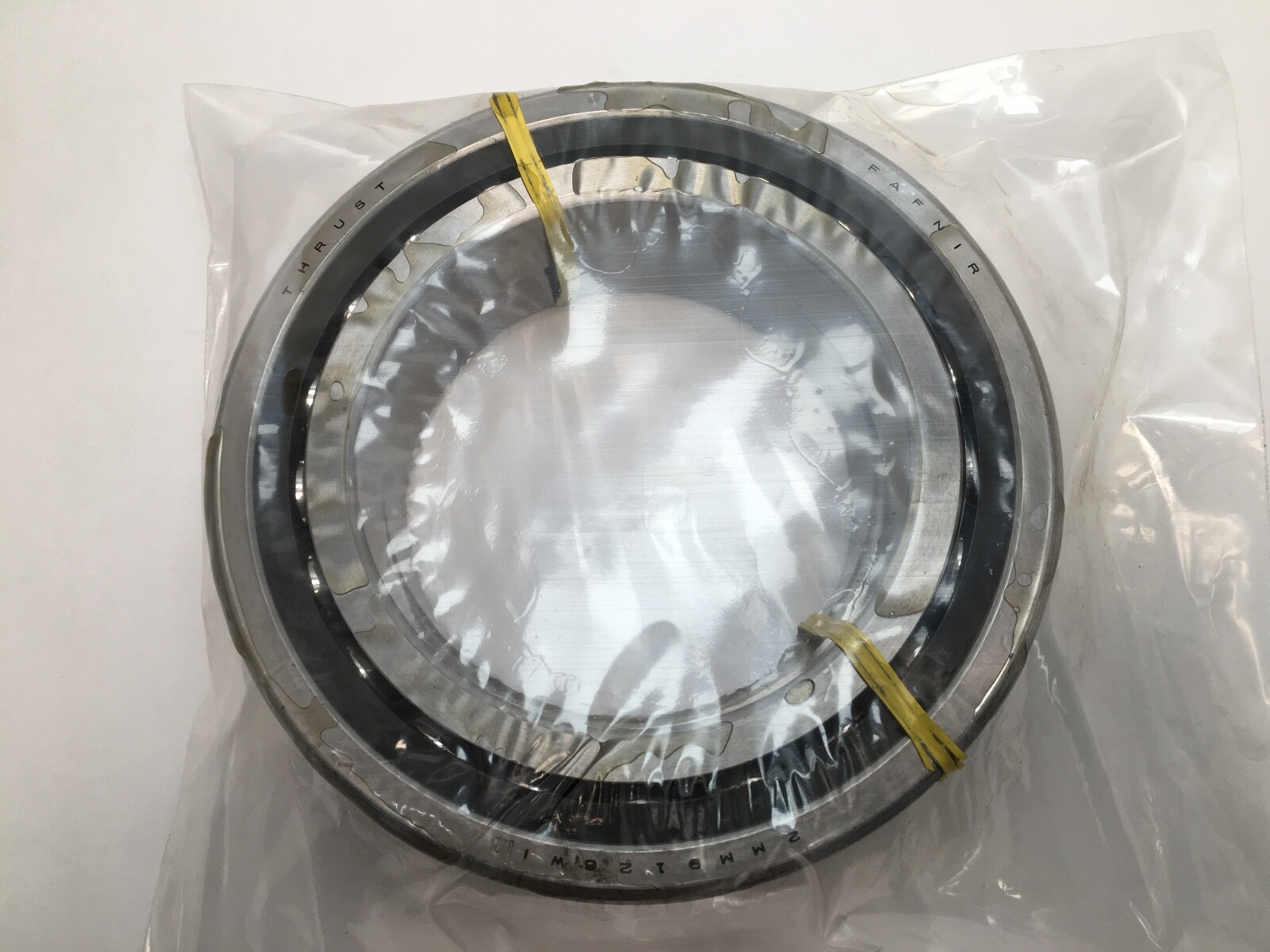

Fafnir 2MM9126WI-DUL angular contact ball bearing, 130mm bore, 200mm OD, 33mm width. Duplex pair, 15° contact angle, light preload, ABEC 7 precision.
List Price
$1,261.30
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing Pair - Straight Bore, 130 mm ID, 200 mm OD, 33 mm Width, Open, 15° Contact Angle, Extra Light Preload, Universally Matchable.$955.74
Angular Contact Ball Bearing — 130 mm Bore, 200 mm OD, 33 mm Width, 15° Contact Angle, ABEC 7 / P4, Phenolic Cage, Light Preload$1,516.77
Super-Precision Angular Contact Ball Bearing 130x200x33 mm, 15 Degree Contact Angle, Duplex Light Preload, Phenolic Cage, Matched Pair$1,516.77
Super-Precision Angular Contact Ball Bearing 130x200x33 mm 15° Light Preload ABEC 7$667.36| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9126WIDUL |
| Model | 7026C 2MM 9126 WI DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Steel |
|---|---|
| Series | 9100 |
| Preload | Light |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Steel |
| Part Number | 2MM9126WI-DUL |
Angular contact ball bearing, 130 mm bore, 200 mm outside diameter, 33 mm width. Duplex pair, ground for face-to-face or back-to-back mounting.

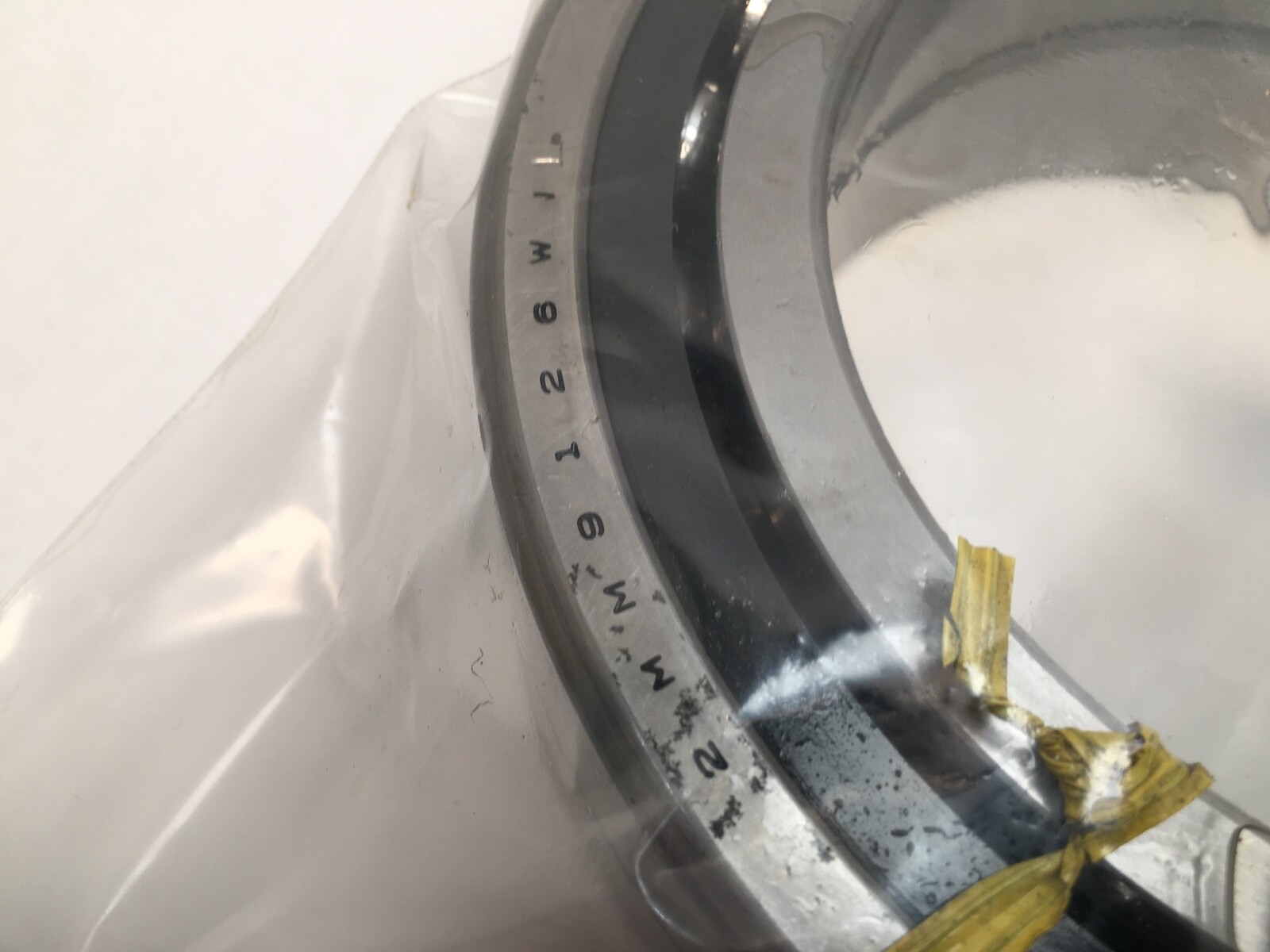

2MM — Fafnir 15° contact angle series, ABEC 7 / ISO P4 precision.
9126 — Fafnir’s size code for the 130 x 200 x 33 mm envelope, cross-referenced on the carton as 7026-C.
WI — low-shoulder duplex form, ground for pairing.
CR — phenolic cage.
DUL — duplex universal ground, light preload.
Bore Diameter: 130 mm. Outside Diameter: 200 mm. Overall Width: 33 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open. Preload: Light.
Unit Quantity: 2 Pcs. Sold as one duplex-ground pair.
Cross-Reference 3: GMN S6026CTA.
