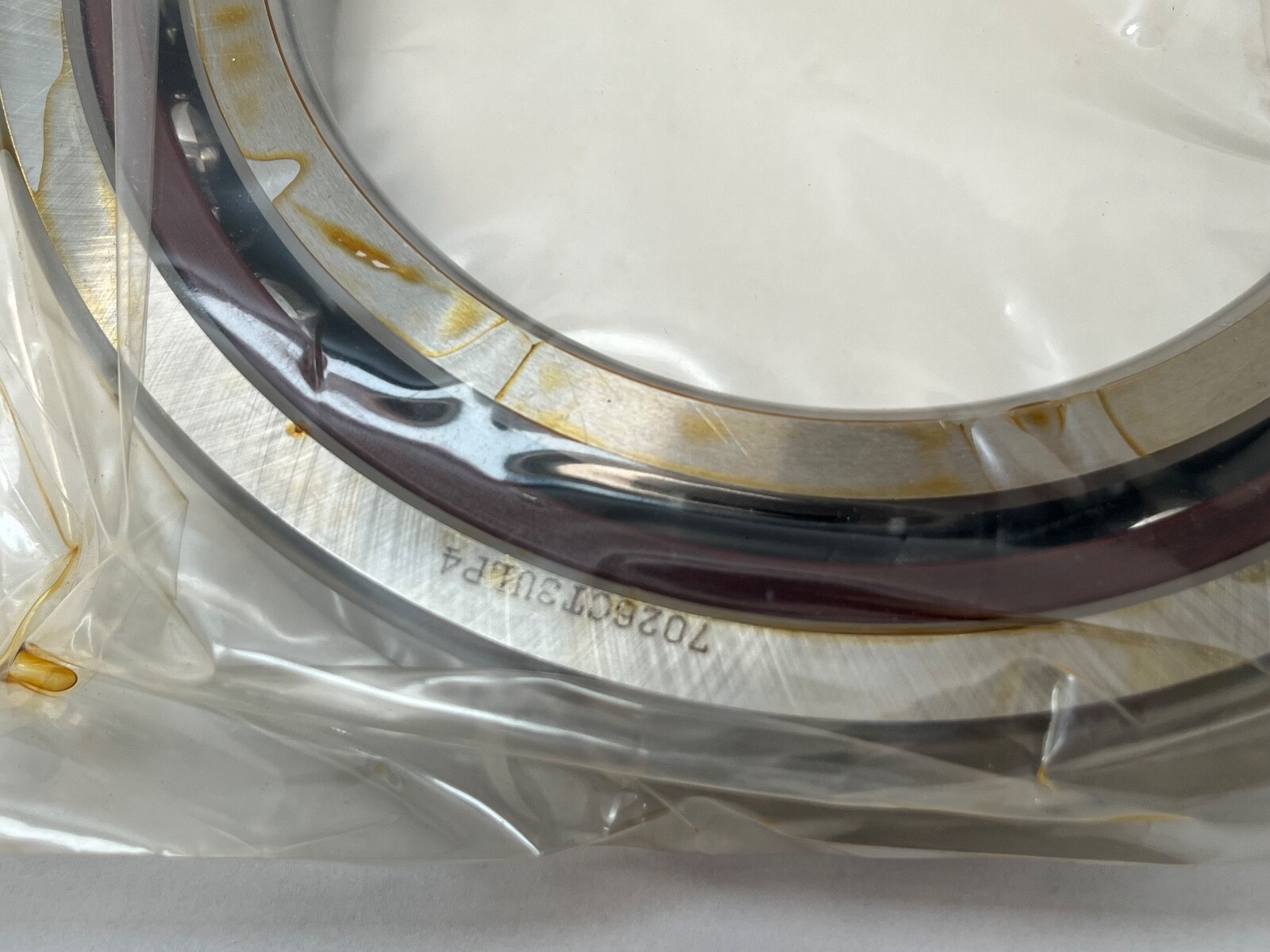

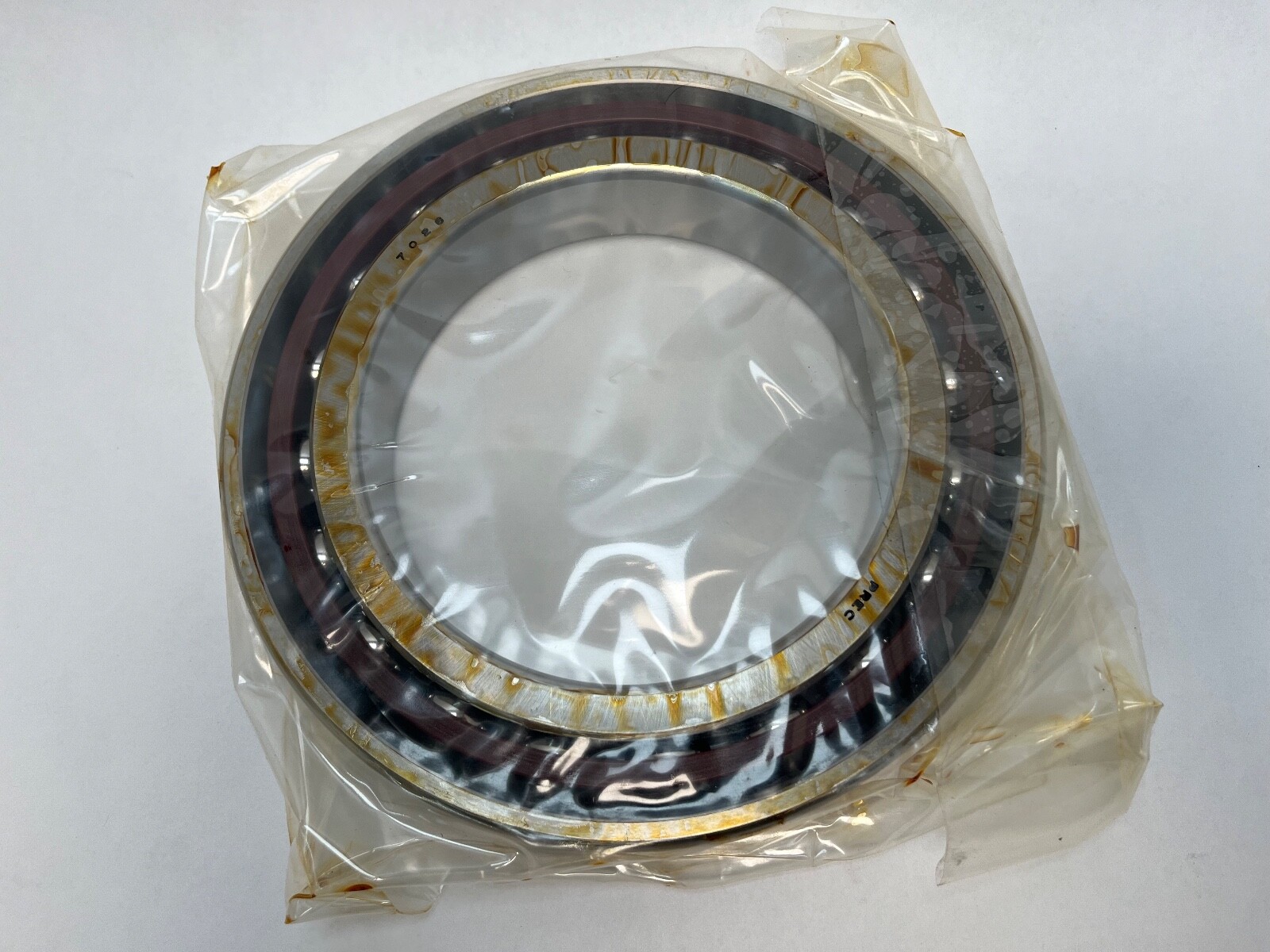

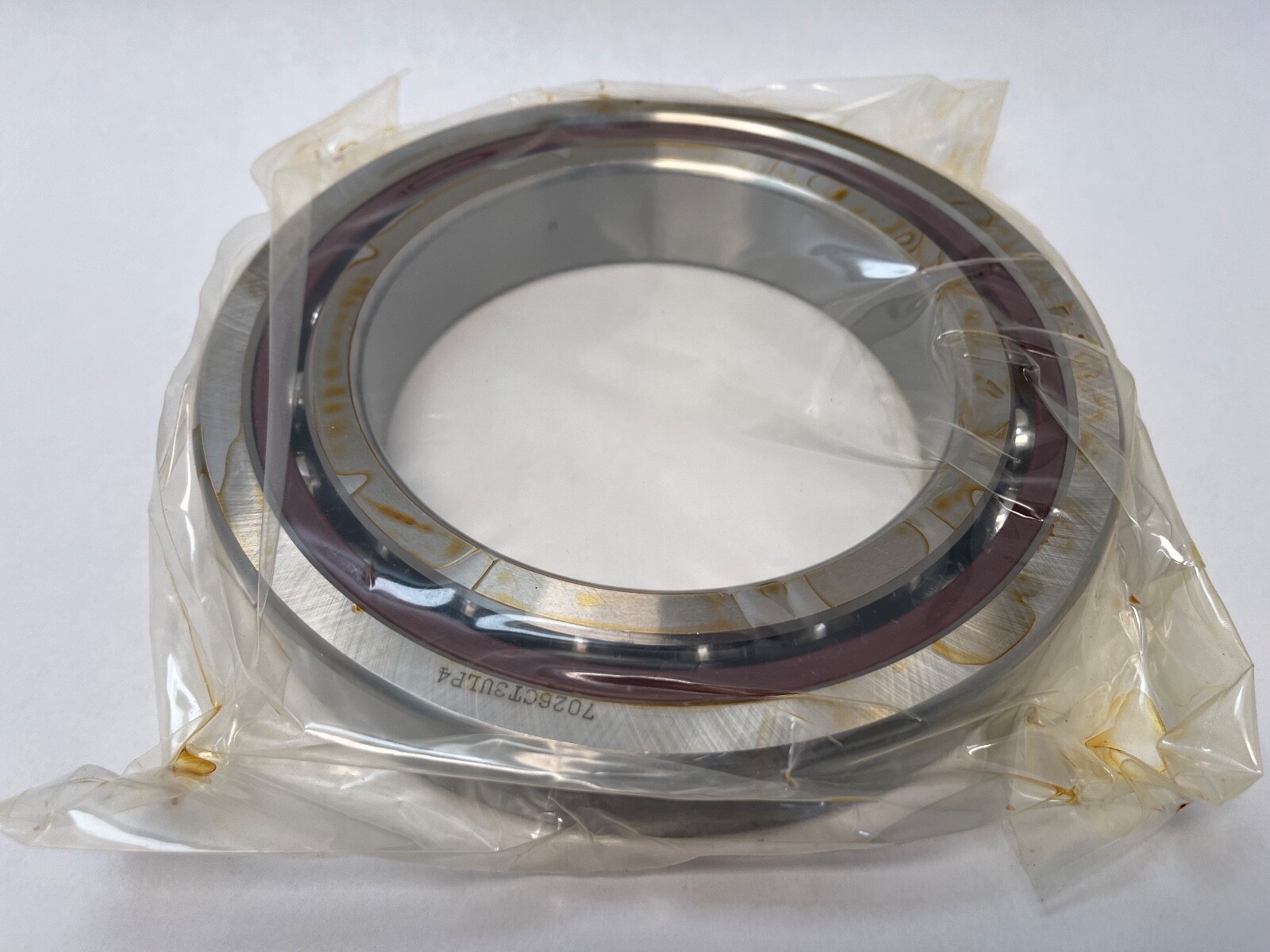

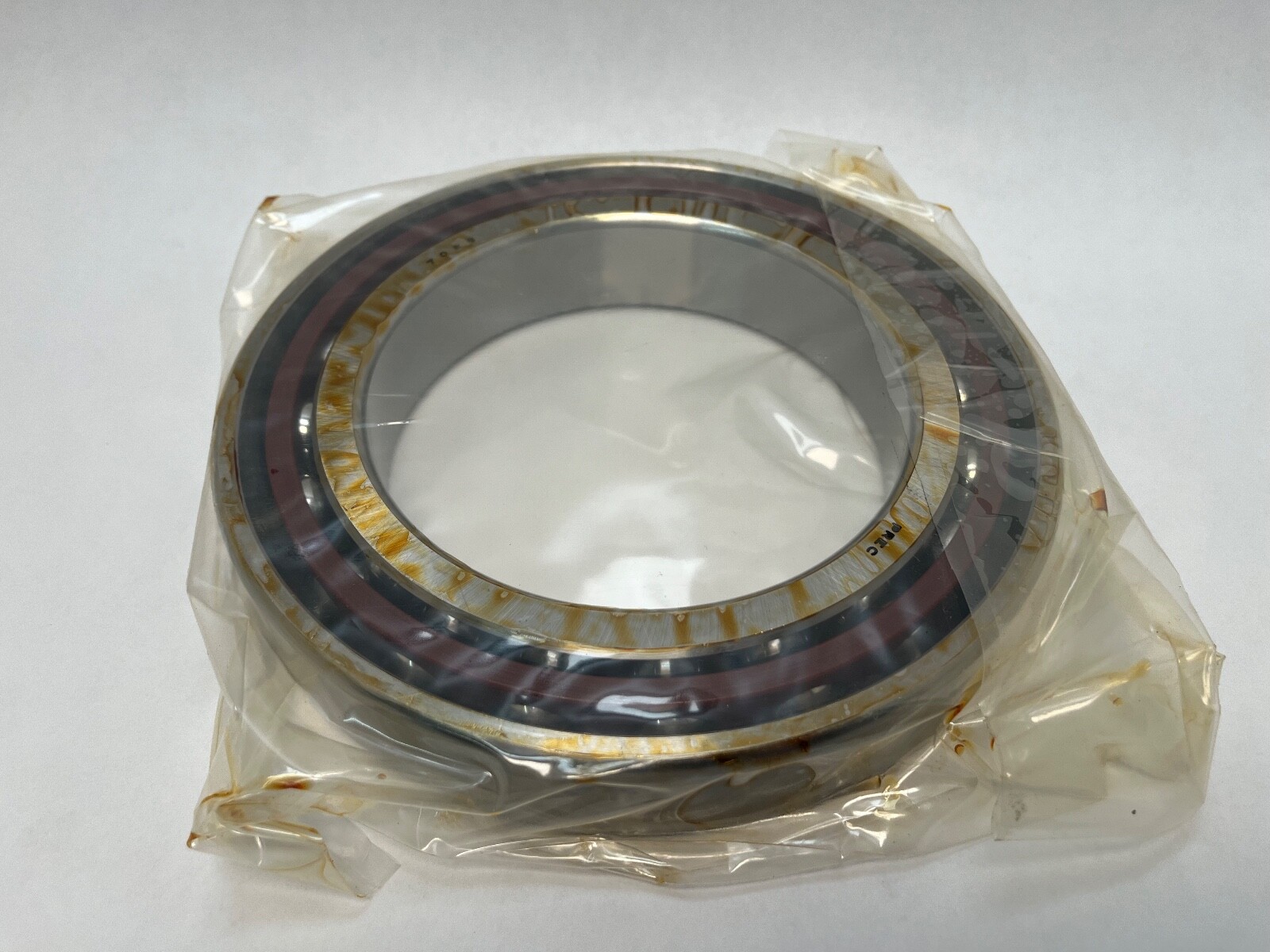

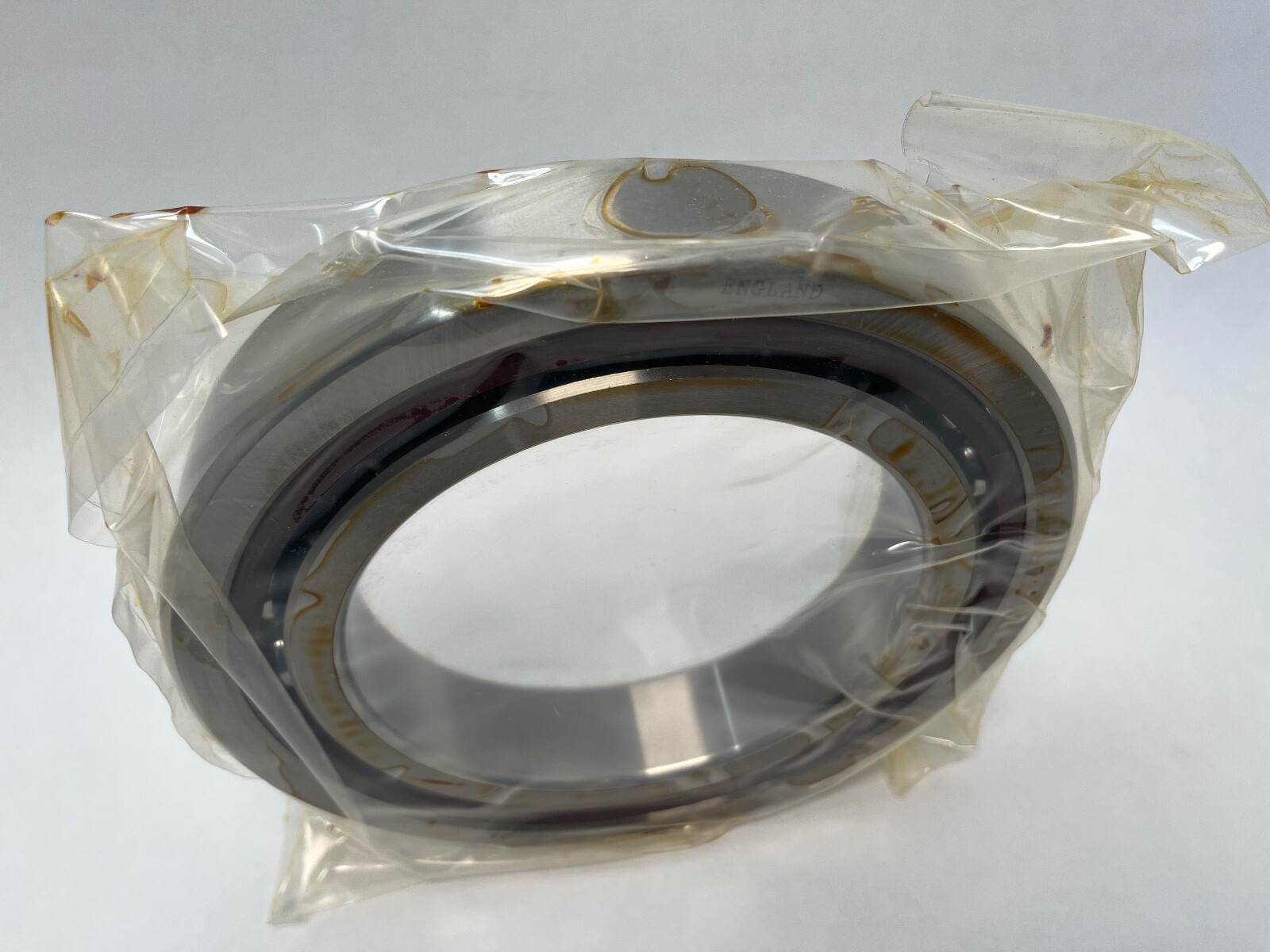

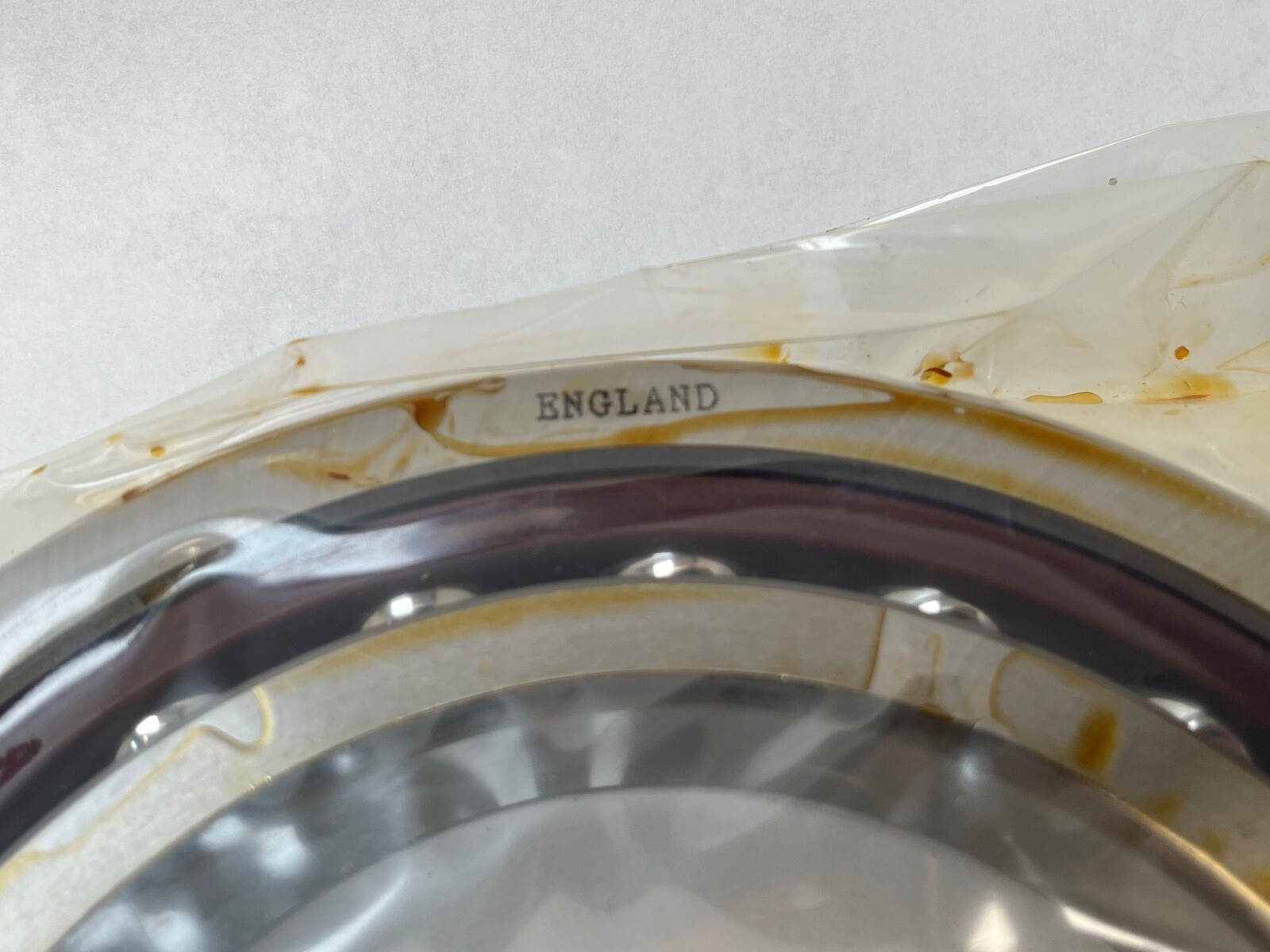

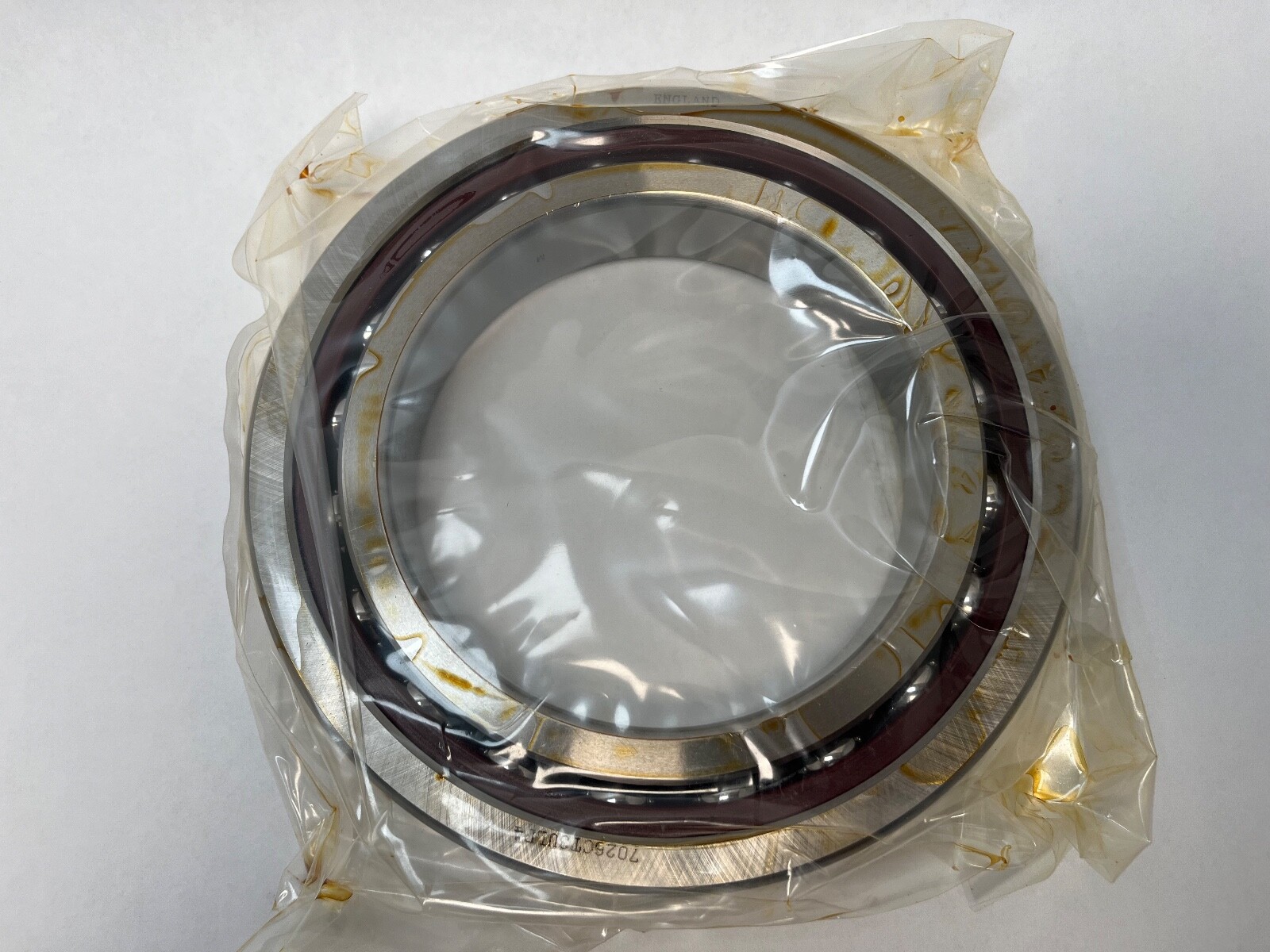

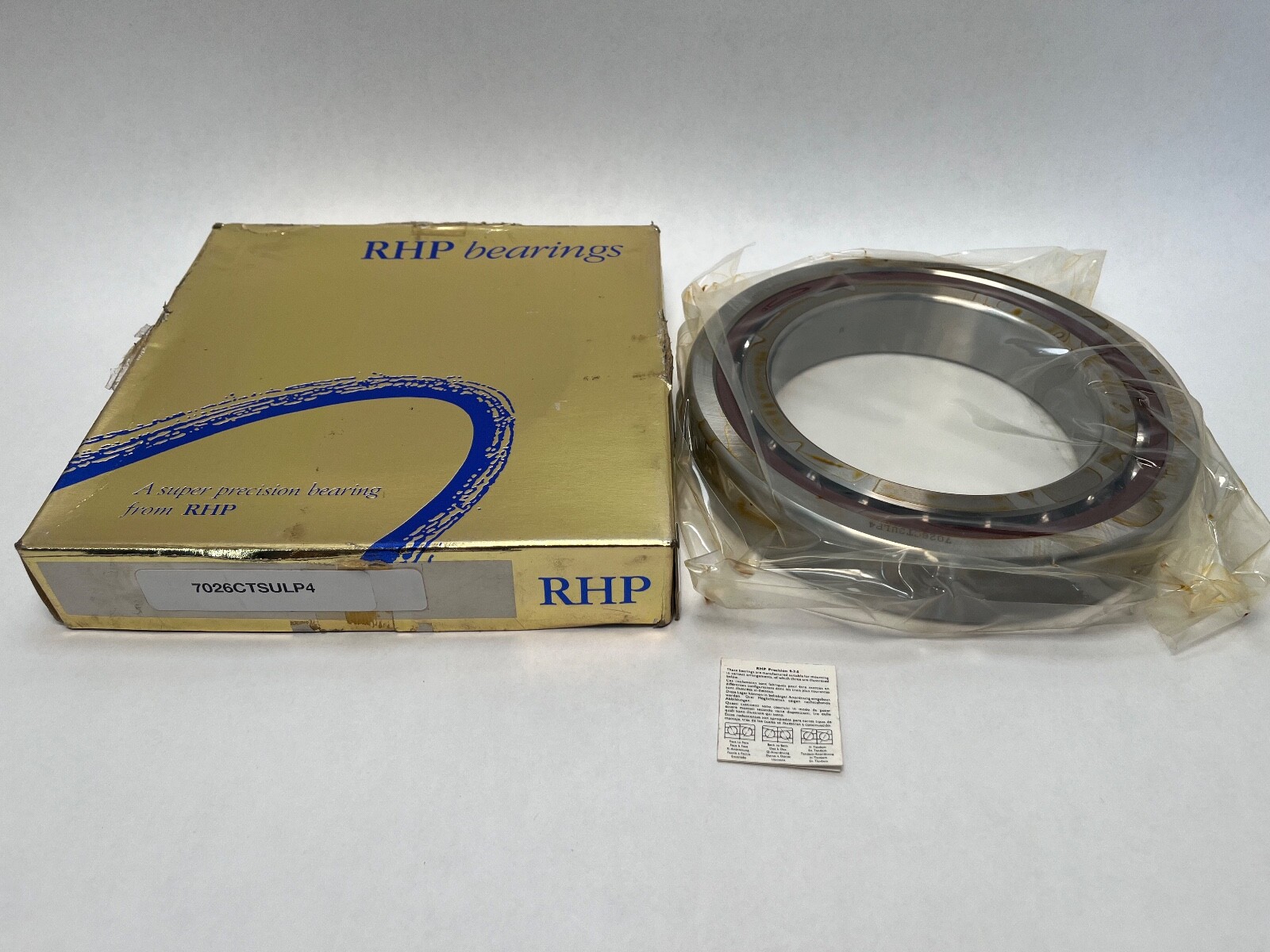

RHP7026CTSULP4Super-Precision Angular Contact Ball Bearing 130x200x33 mm 15° Light Preload ABEC 7

Condition: New

Availability:

5 in stock

Super-precision single-row angular contact ball bearing, 130 mm bore, 200 mm OD, 33 mm wide, 15° contact angle, light preload, ABEC 7 class, open.

List Price

$633.99

5 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

5 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandRHP
MPN7026CTSULP4
Model7026 C T SUL P4 / 2MM9126WI CR SUL
Bearing TypeAngular Contact Ball Bearing, Open
ID130 mm
OD200 mm
Width33 mm

Technical Specifications

MaterialHigh Carbon Chrome Steel
LubricantPreserved
PreloadLight
Base Number7026
Industry Termssuper precision spindle bearing, machine tool bearing, precision angular contact, ABEC 7 bearing
Common Misspellings7026 CTSULP4, RHP 7026CTSUL P4, Ransome Hoffmann Pollard, 7026CTSULP-4
Application TypesMachine tool spindles, grinding spindles, precision gearboxes, high-speed rotary tables
Bore Shaft Size130 mm (5.118 in)
Mpn Variants7026CTSULP4, 7026-C-T-SUL-P4, 7026 C T SUL P4, 7026C, 7026CTSUL
Precision ClassABEC 7 / P4
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedWithout Snap Ring
Harmonization Code8482.10.50
Contact Angle15°
Part Number7026CTSULP4

Cross-References

Cross Reference 1FAG B7026-C-T-P4S-UL - P4S class
Cross Reference 2SKF 7026 CD/P4A
Cross Reference 3NSK 7026CTRSULP4
Seller Part Number: B-CA4#3GUPEN

Product Description

What this part is:

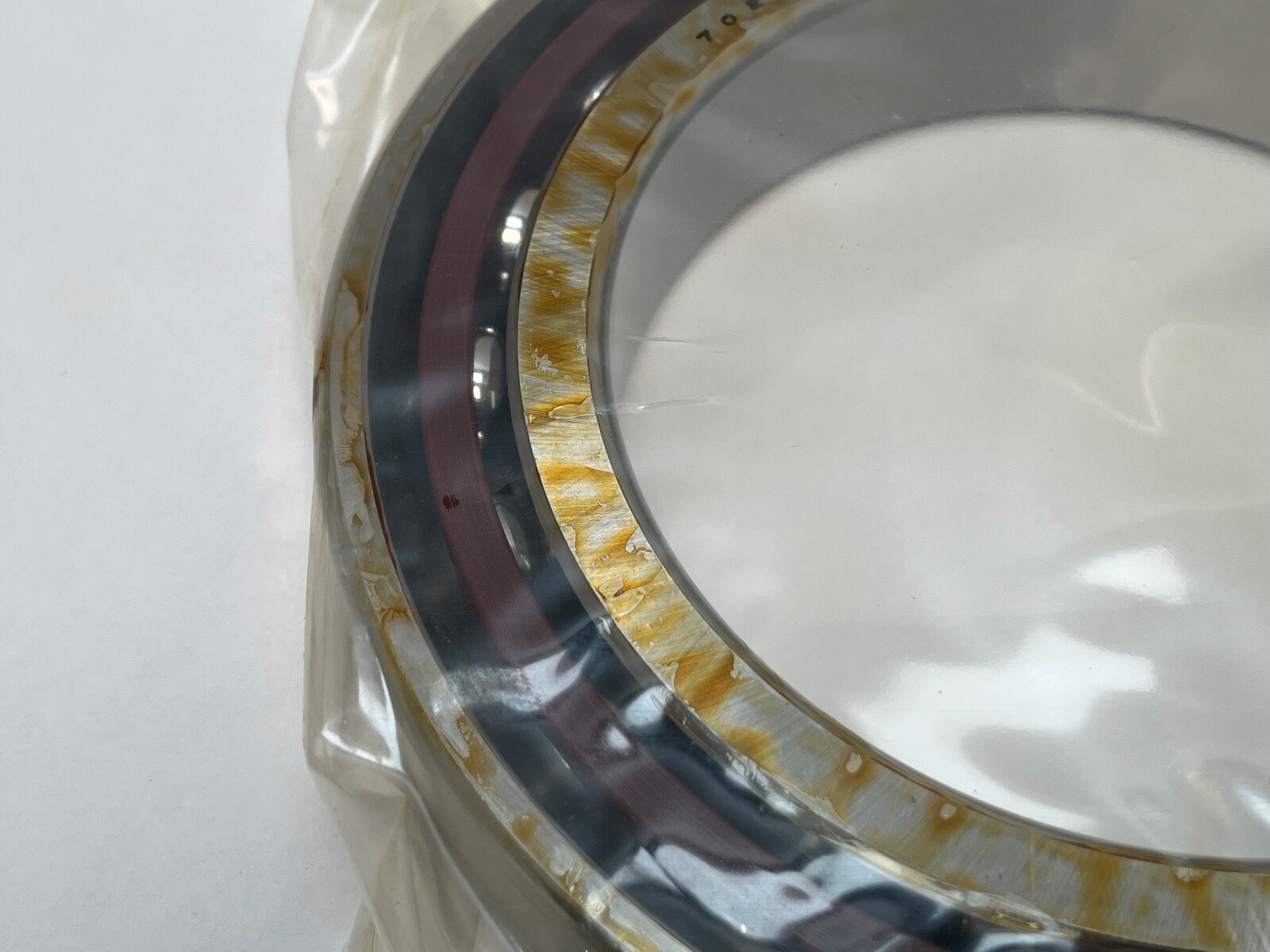

RHP 7026CTSULP4 super-precision single-row angular contact ball bearing in the ISO 70 dimension series. Bore 130 mm, outside diameter 200 mm, width 33 mm. Open on both faces, phenolic cage, single universally ground. Unit Quantity: 1 Pc.

Decoding the designation:

7026 — single-row angular contact, 130 mm bore, ISO 70 series.

C — 15° contact angle in the RHP scheme.

T — phenolic cage.

SU — single universally ground; any two bearings of this designation can be stacked back-to-back, face-to-face or in tandem.

L — light preload.

P4 — ABEC 7 precision class.

Specifications:

Bore Diameter: 130 mm. Outside Diameter: 200 mm. Width: 33 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Number Of Rows: 1. Closure Type: Open. Rolling Elements: Ball. Cage Material: Phenolic. Series: 70 Series. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 130 mm (5.118 in). Outside Diameter: 200 mm. Width: 33 mm. Single-row bearing carrying thrust load in one direction.

Compatibility and replacement:

Cross-references at 15° contact angle, light preload: FAG B7026-C-T-P4S-UL (P4S class), SKF 7026 CD/P4A, NSK 7026CTRSULP4. The 7026E and 7026-A variants share the envelope at 25° and 30° contact angle and are related sizes. Searchable variants: 7026CTSULP4, 7026-C-T-SUL-P4, 7026 C T SUL P4, 7026C, 7026CTSUL.

Frequently asked questions:

What are the dimensions of the RHP 7026CTSULP4?

Bore 130 mm, outside diameter 200 mm, width 33 mm.

What contact angle and preload does the 7026CTSULP4 have?

Contact angle 15°, light preload, ABEC 7 / P4 precision class.

Which bearings are cross-references for the 7026CTSULP4?

FAG B7026-C-T-P4S-UL, SKF 7026 CD/P4A and NSK 7026CTRSULP4.
