RHP7026CTSULP4Super-Precision Angular Contact Ball Bearing 130x200x33 mm 15° Light Preload ABEC 7

Product Description

What this part is

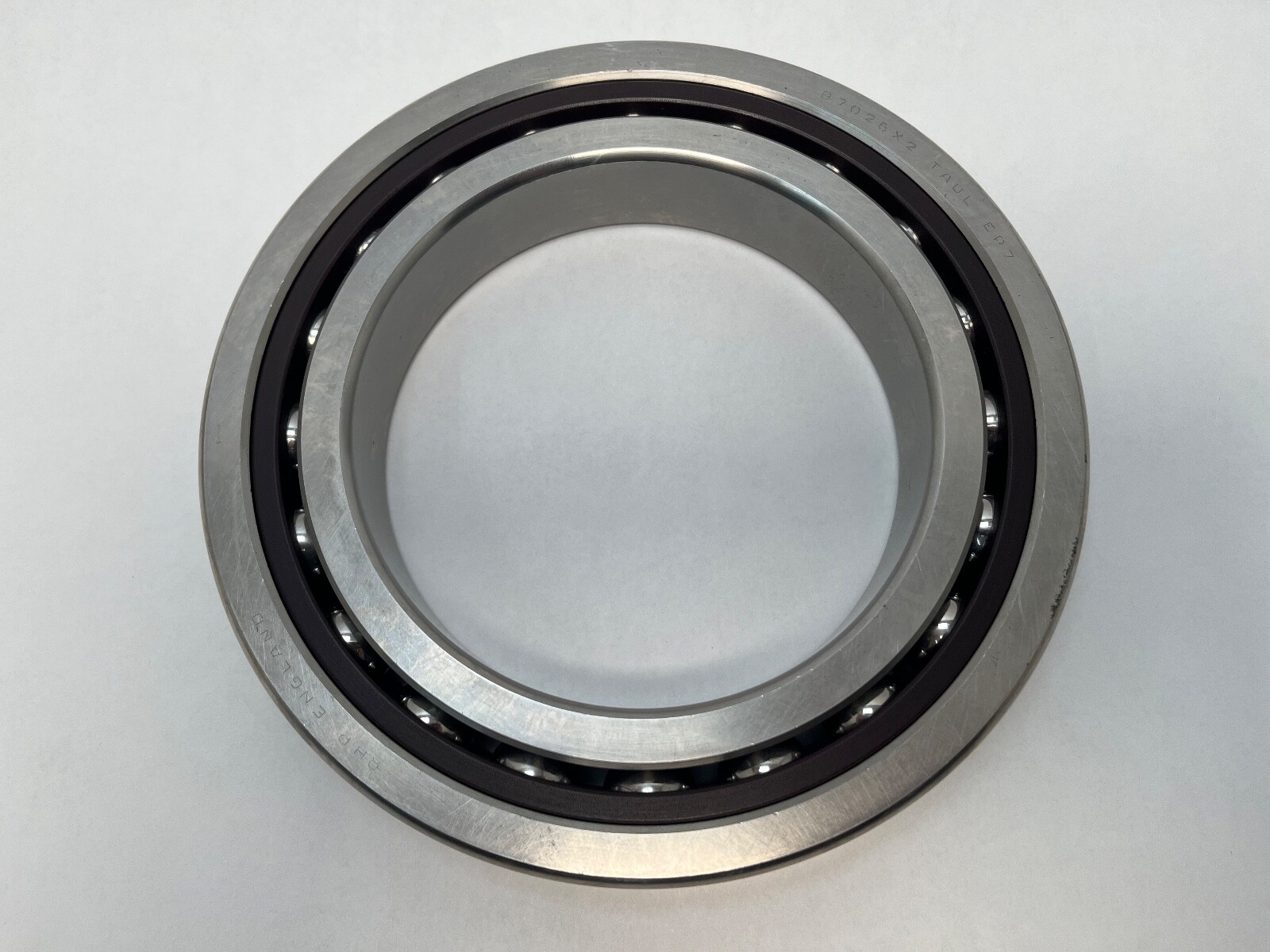

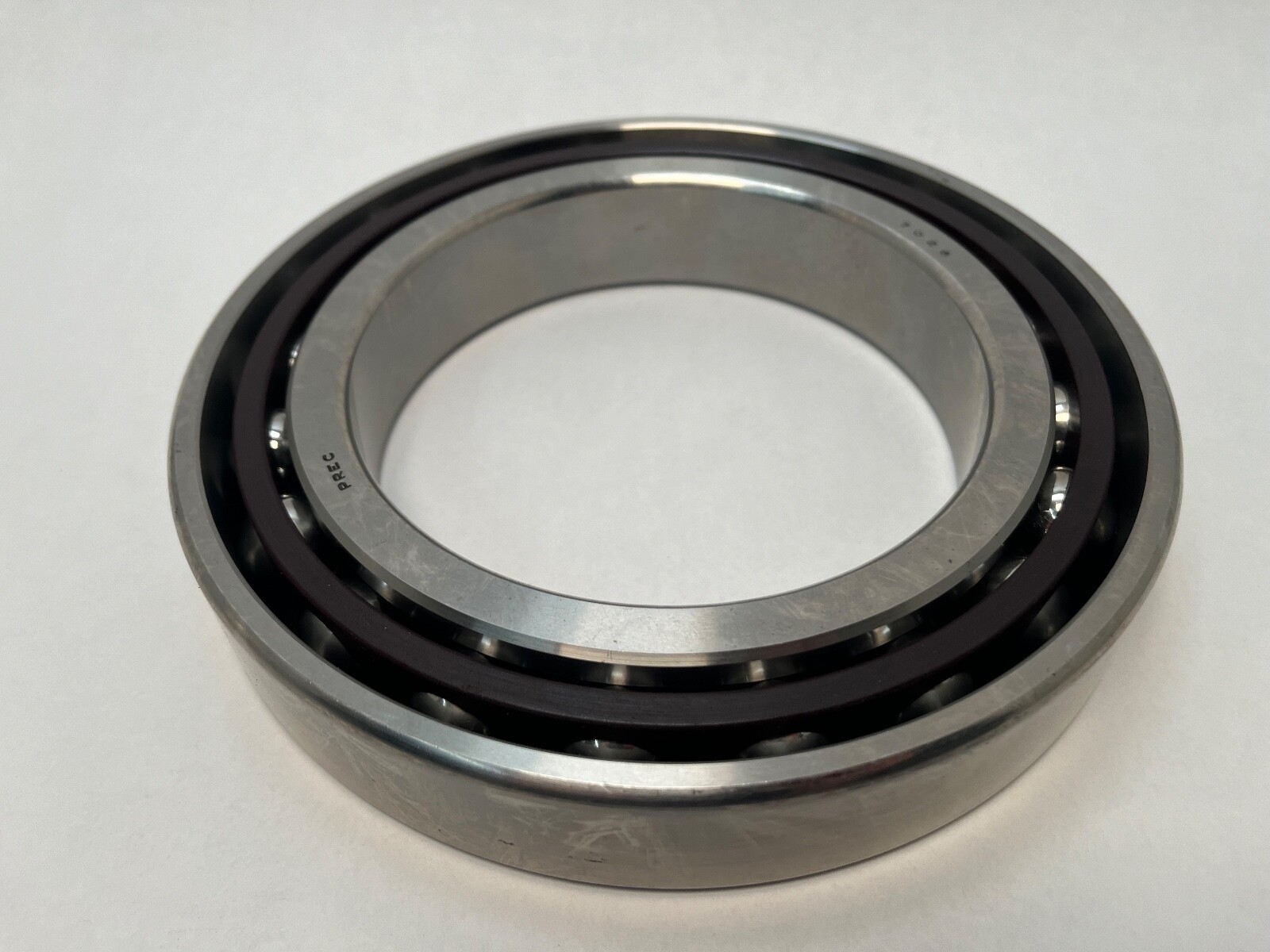

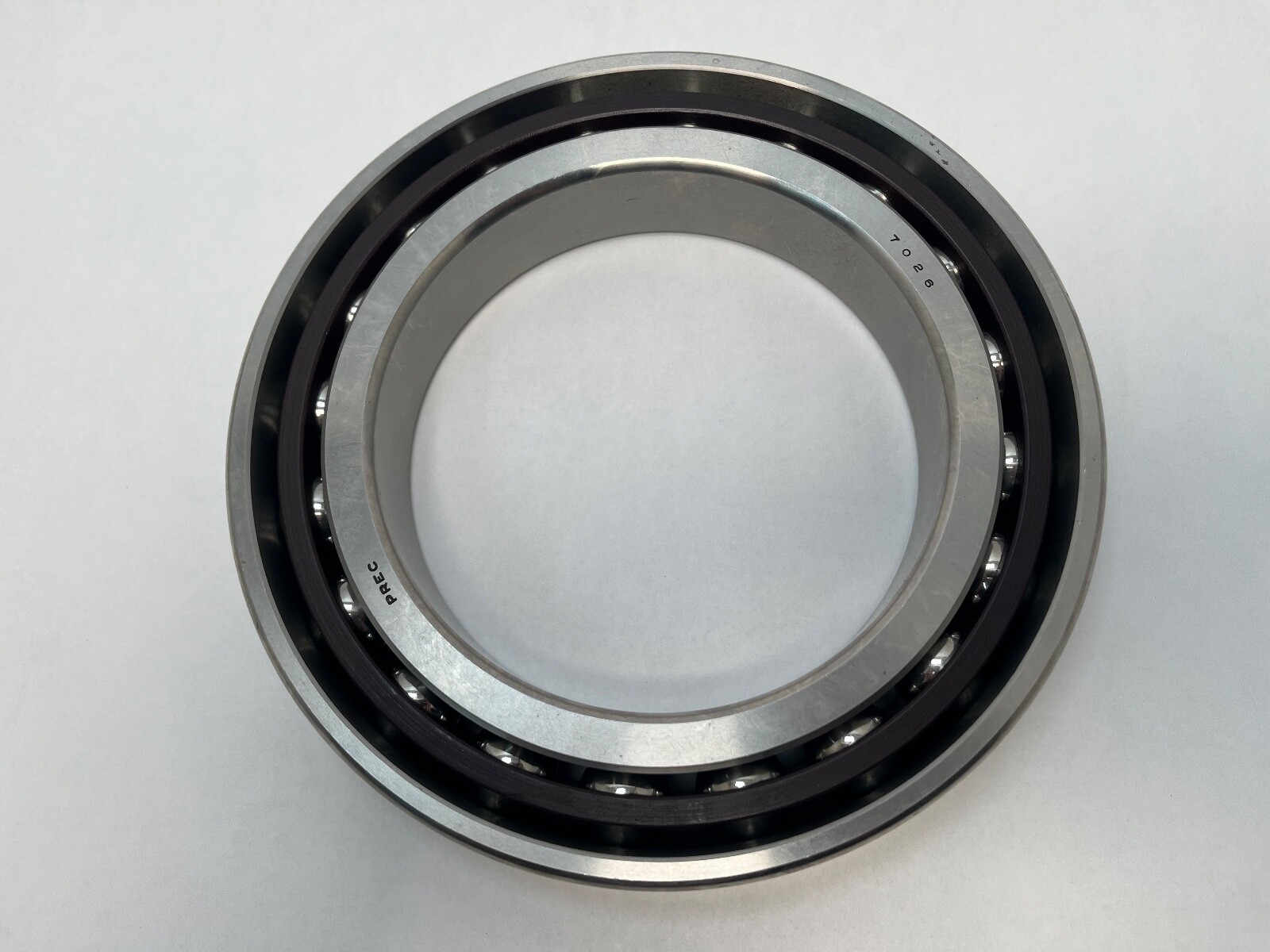

An RHP 7026CTSULP4 super-precision single-row angular contact ball bearing in the 72 dimension series. Bore 130 mm, outside diameter 200 mm, width 33 mm. Open on both faces, phenolic cage, universally ground for stacking into sets.

Decoding the designation

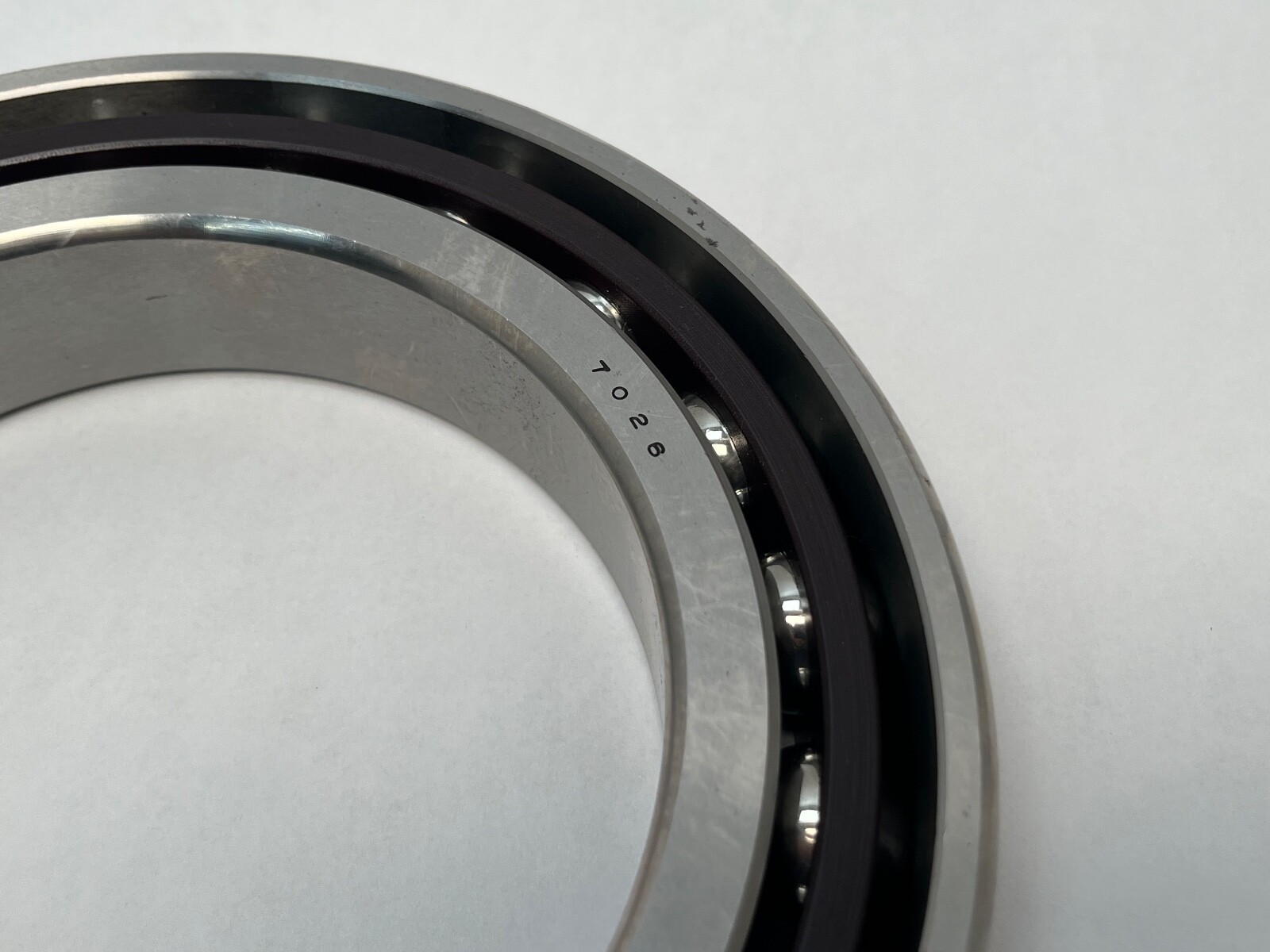

7026 — single-row angular contact, 130 mm bore, 72 seriesC — 15° contact angle in the RHP/Timken schemeT — phenolic (fabric-reinforced) cageSU — single universally groundL — light preloadP4 — ABEC 7 precision

What these specs mean in practice

A 15° contact angle favours speed and radial rigidity over thrust capacity; the 25° variants of the same envelope reverse that trade. A phenolic cage is light and self-lubricating, which suits high-speed spindle duty. Universal grinding means any two rings of this designation stack back-to-back, face-to-face or in tandem and arrive at the intended light preload without shims.

Published specifications

Bore: 130 mmOutside diameter: 200 mmWidth: 33 mmContact angle: 15°Precision: P4 / ABEC 7Preload: lightRows: 1Closure: open

Quantity and configuration

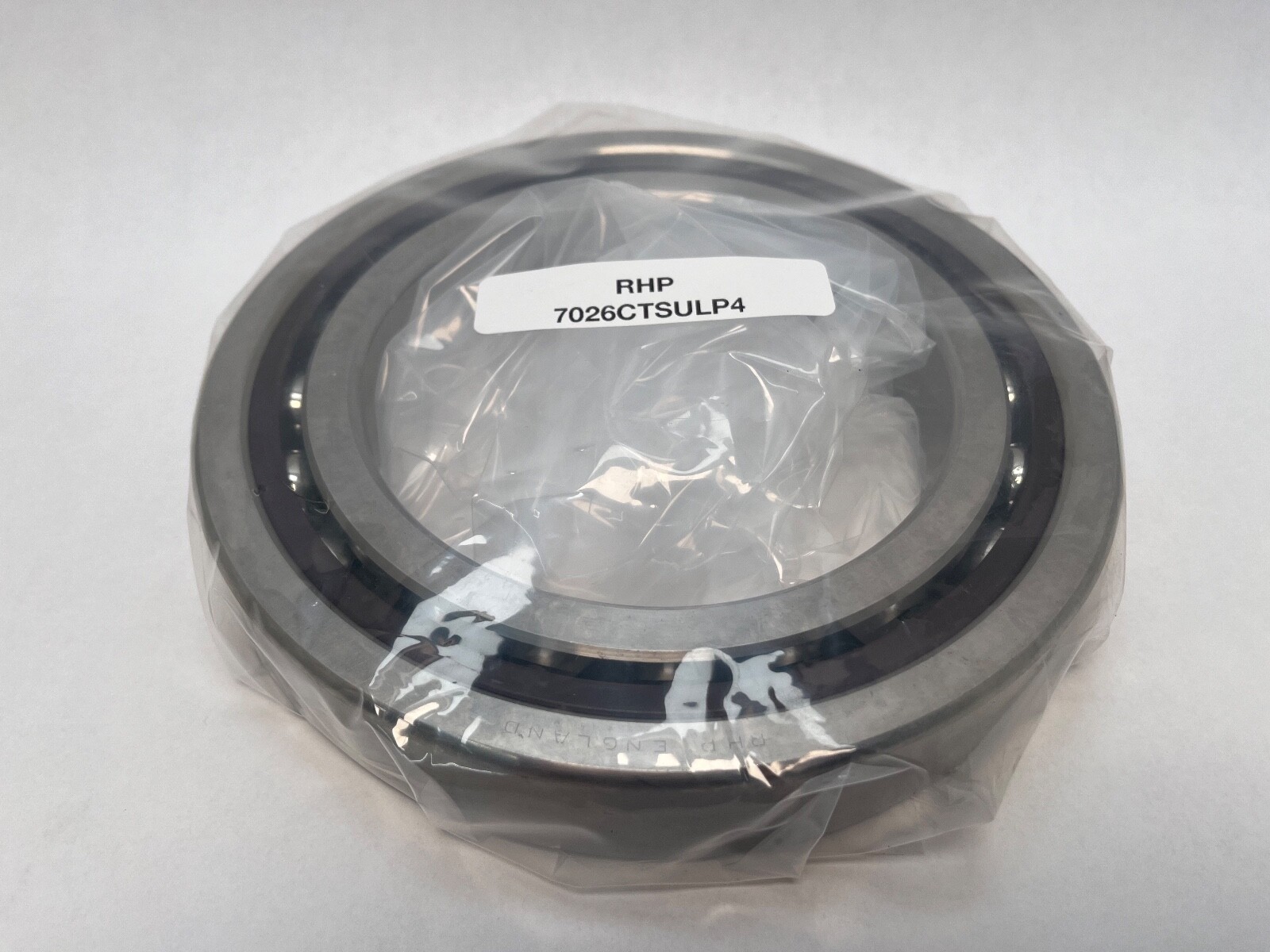

Single universally ground bearing. 1 Pc per sale unit.

Fitting notes

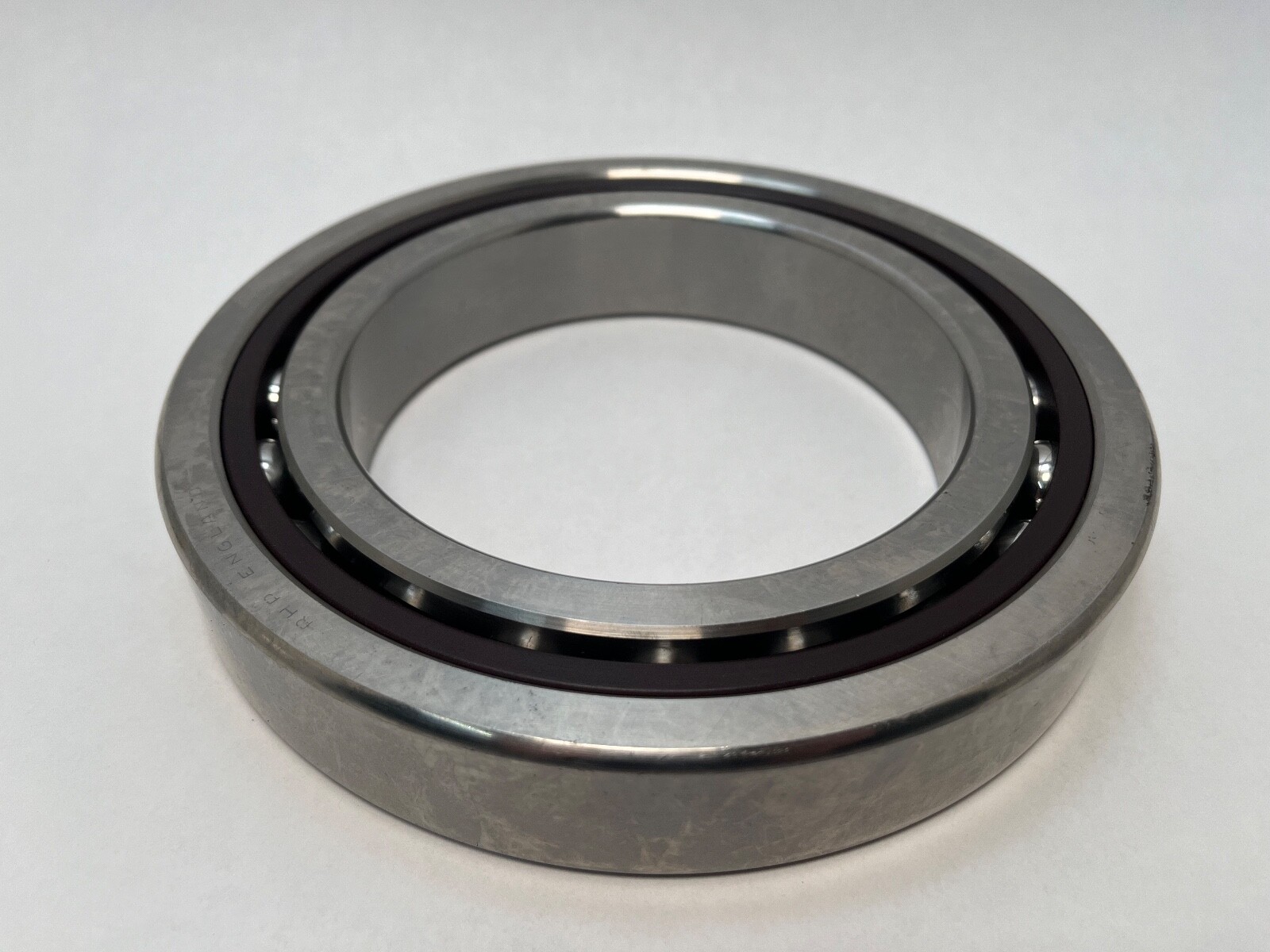

Thrust is carried in one direction only, so the bearing works against an opposing bearing or a shoulder. The wide land on the outer ring marks the thrust face; matching that face orientation sets the arrangement.

Interchange guidance

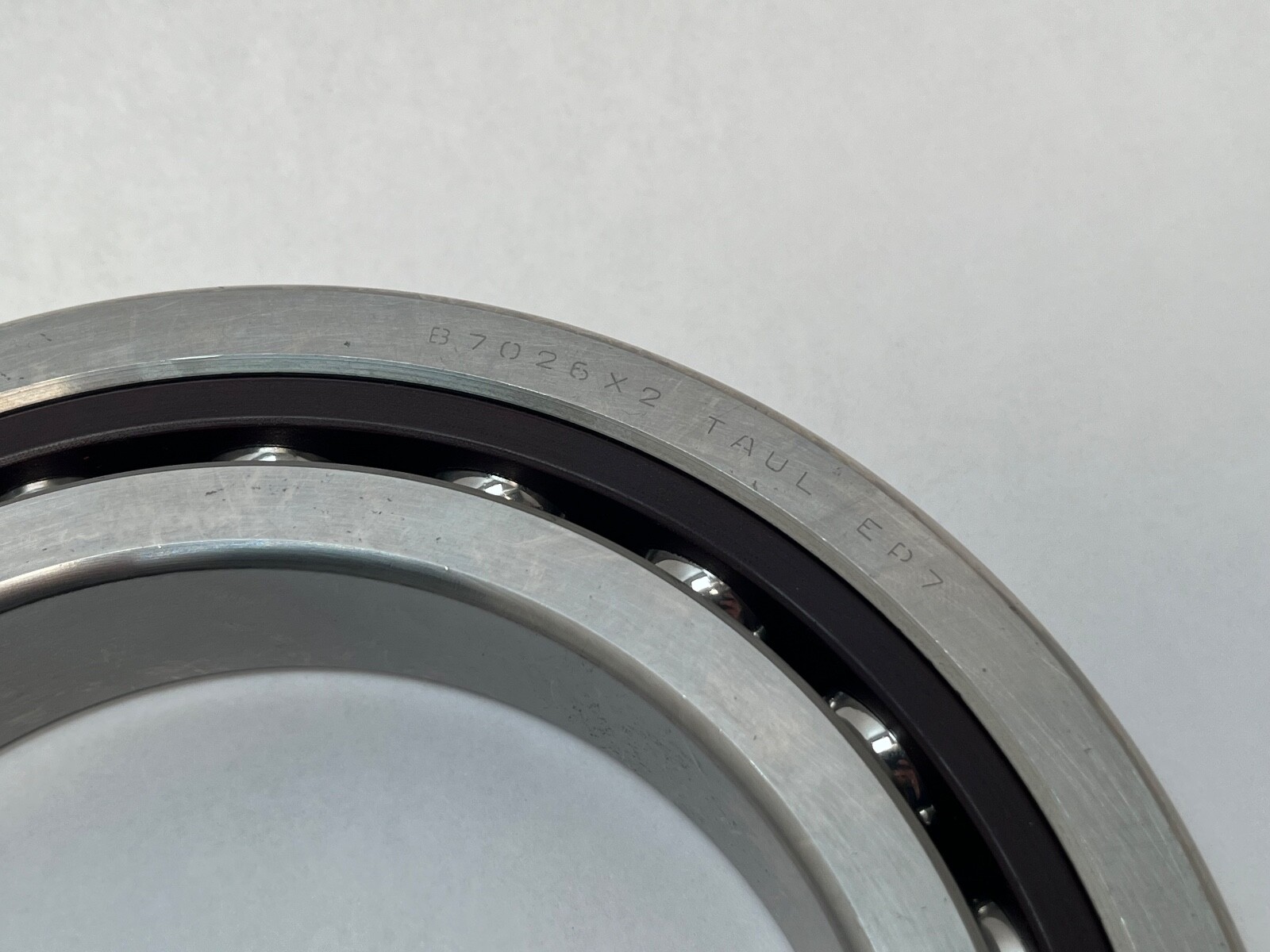

Same-spec equivalents at 15°, ABEC 7, light preload: FAG B7026C.T.P4S.UL, SKF 7026 CD/P4A, NSK 7026CTRSULP4, Fafnir 2MM9126WI-SUL. RHP B7026X2TAULEP7 is the B-series equivalent number. The 7026E and 7026-A variants share the envelope at 25° and 30° and are related sizes rather than interchanges.
