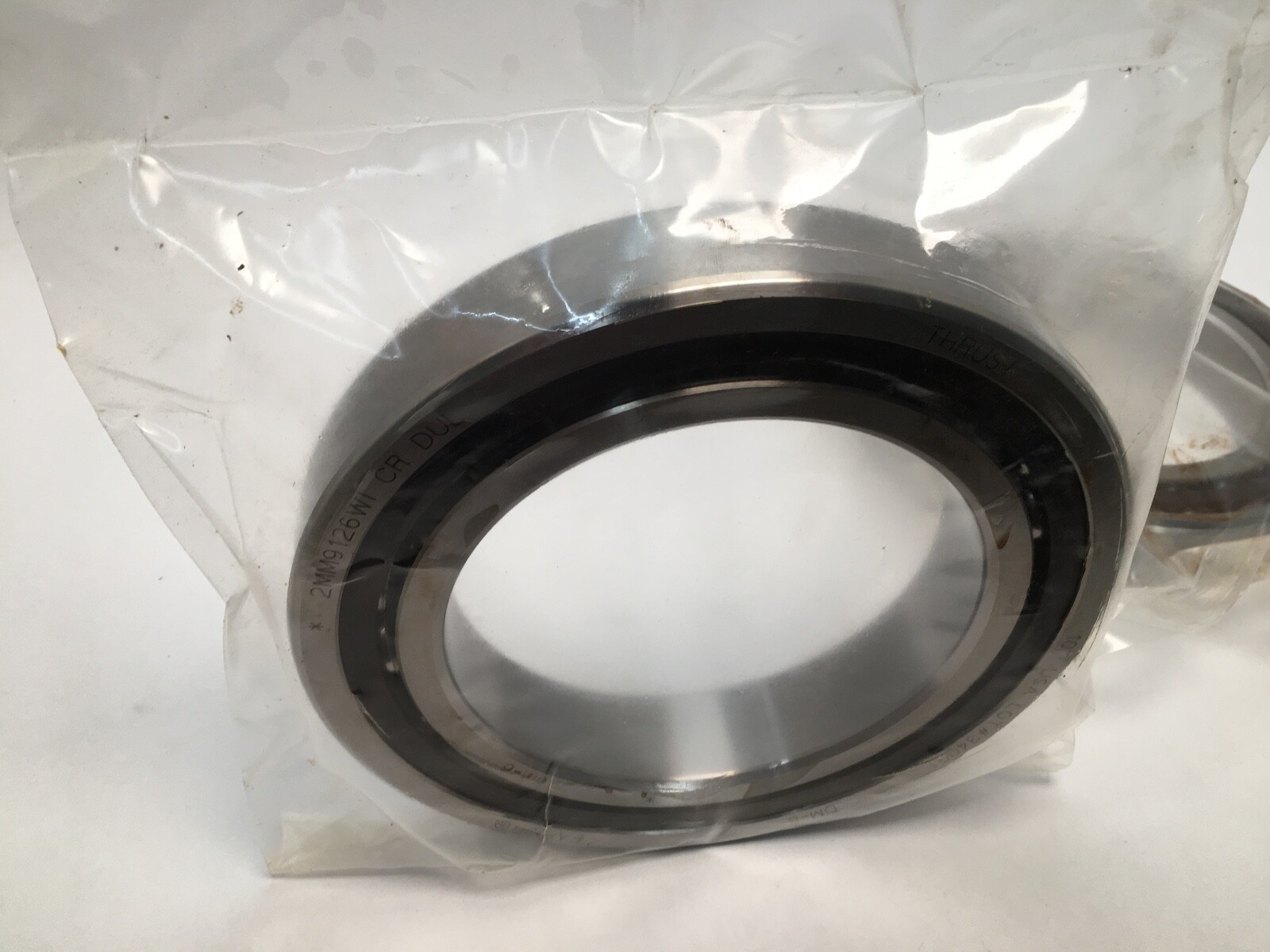

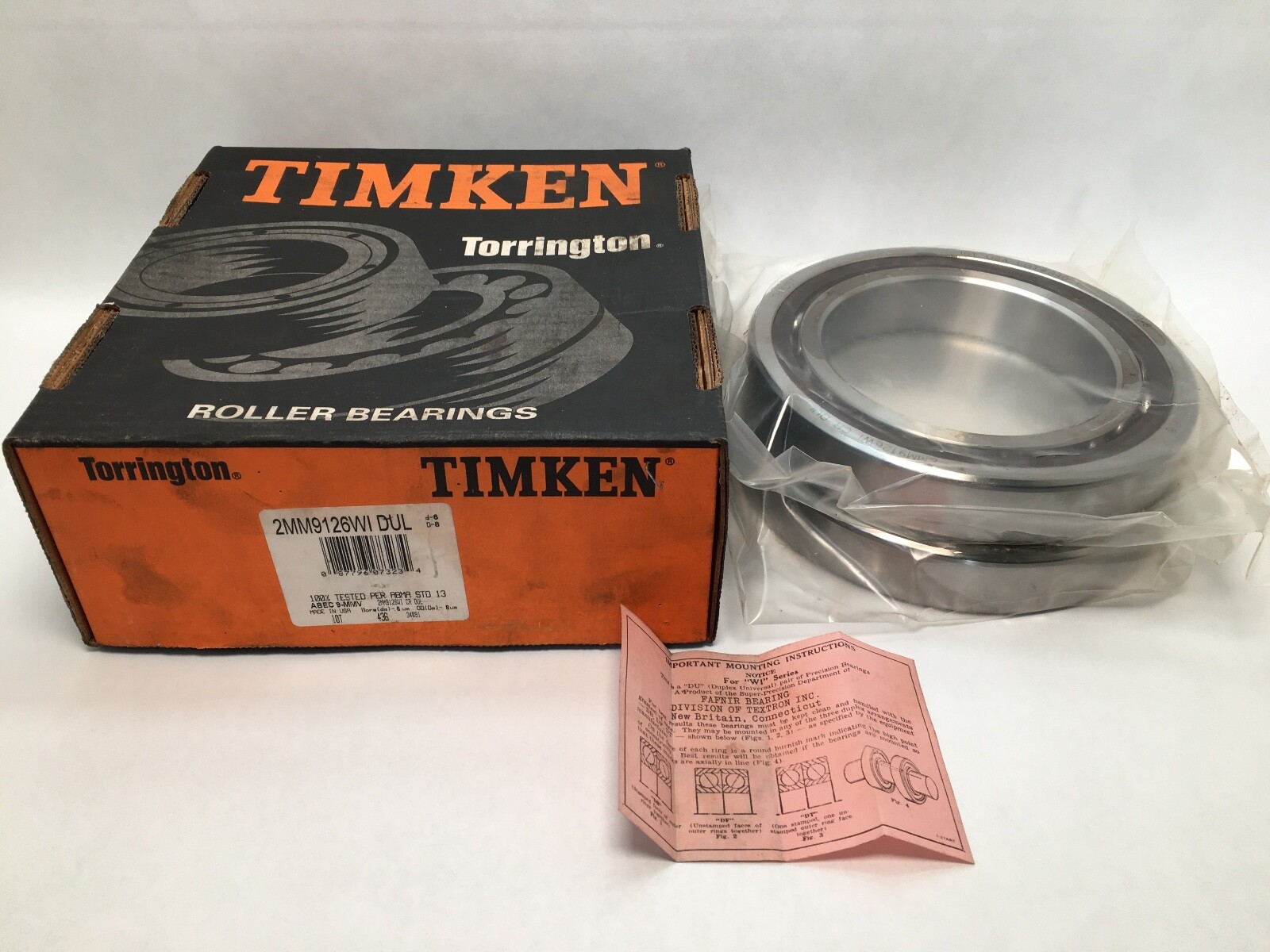

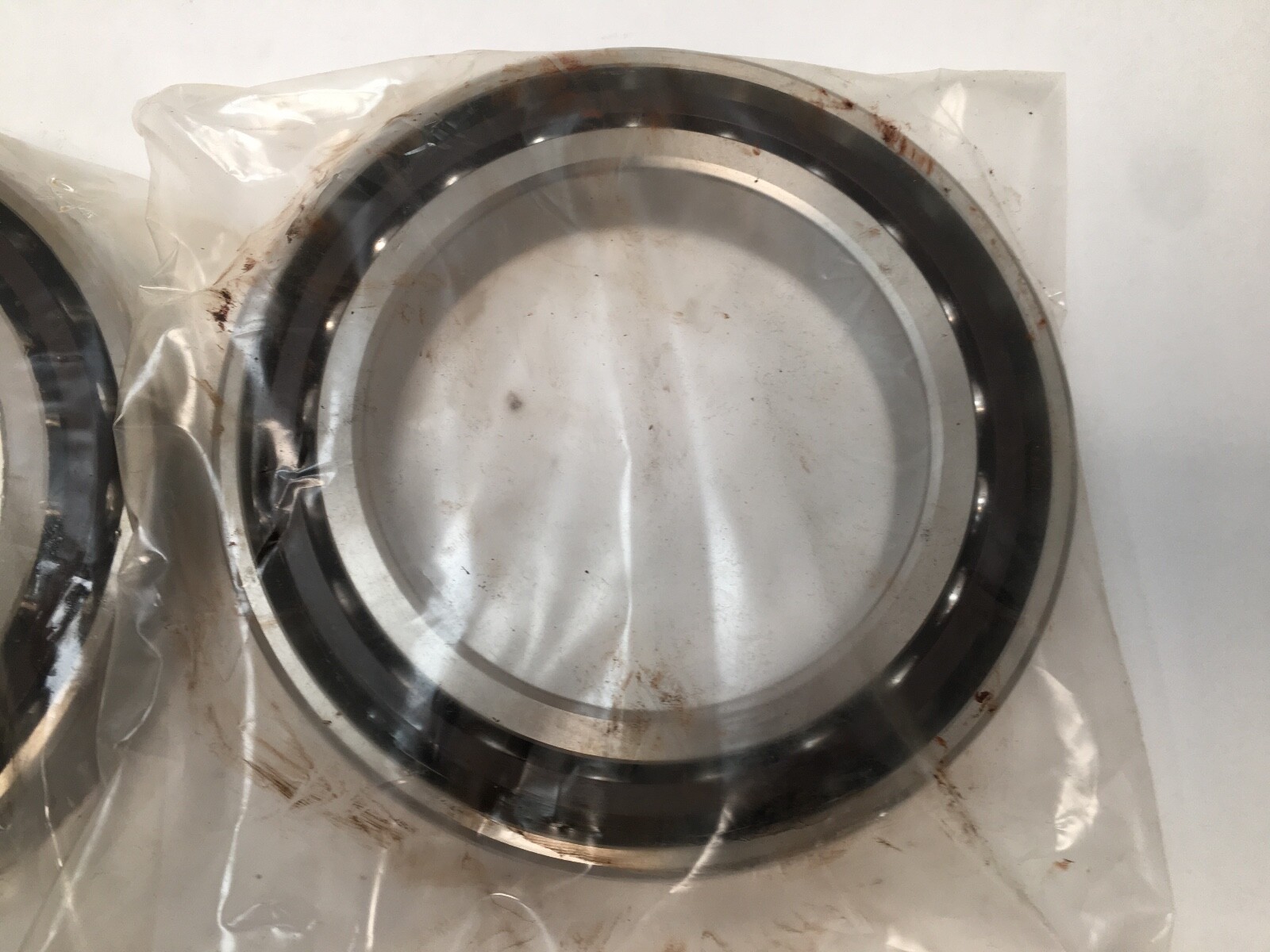

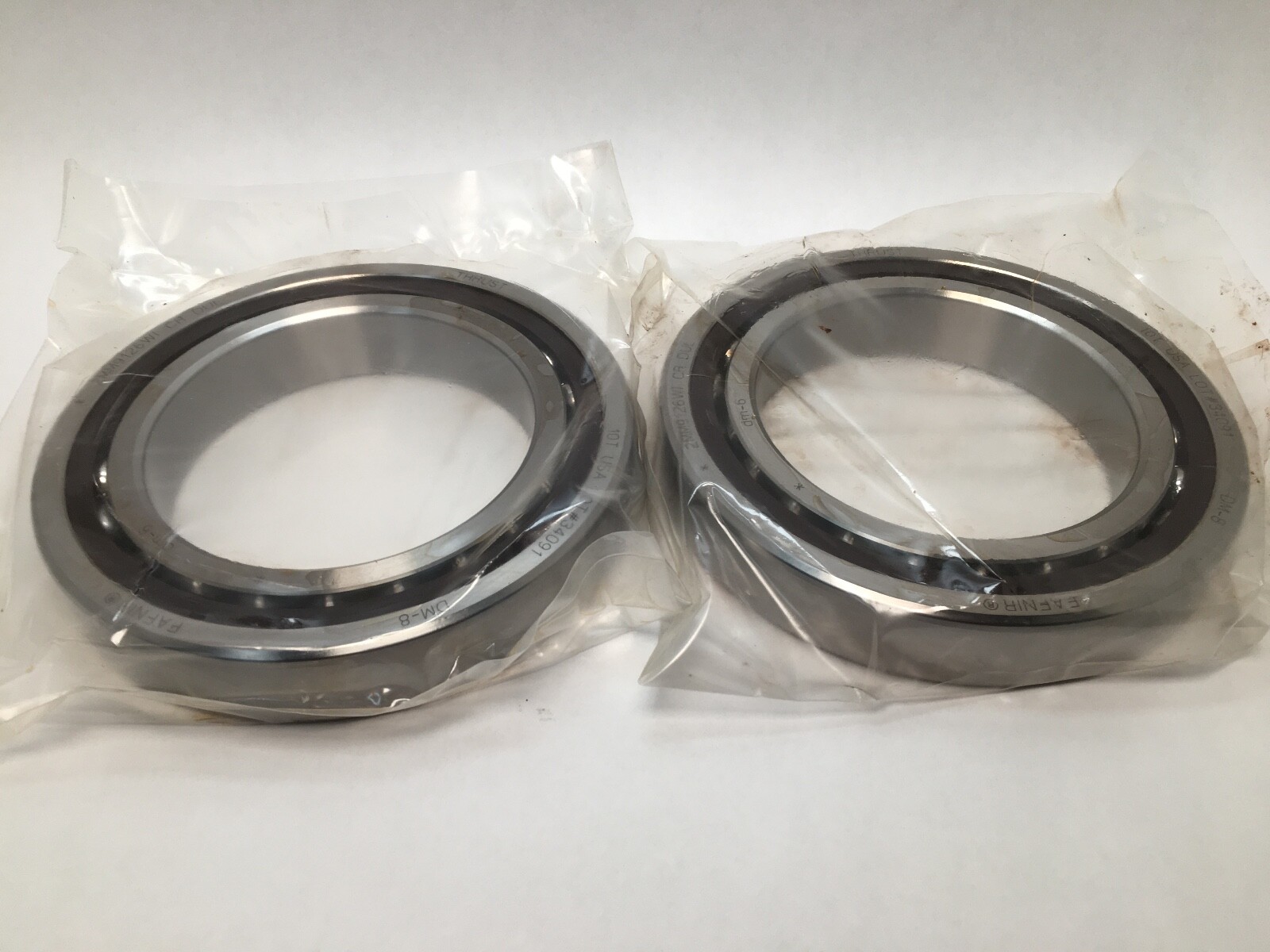

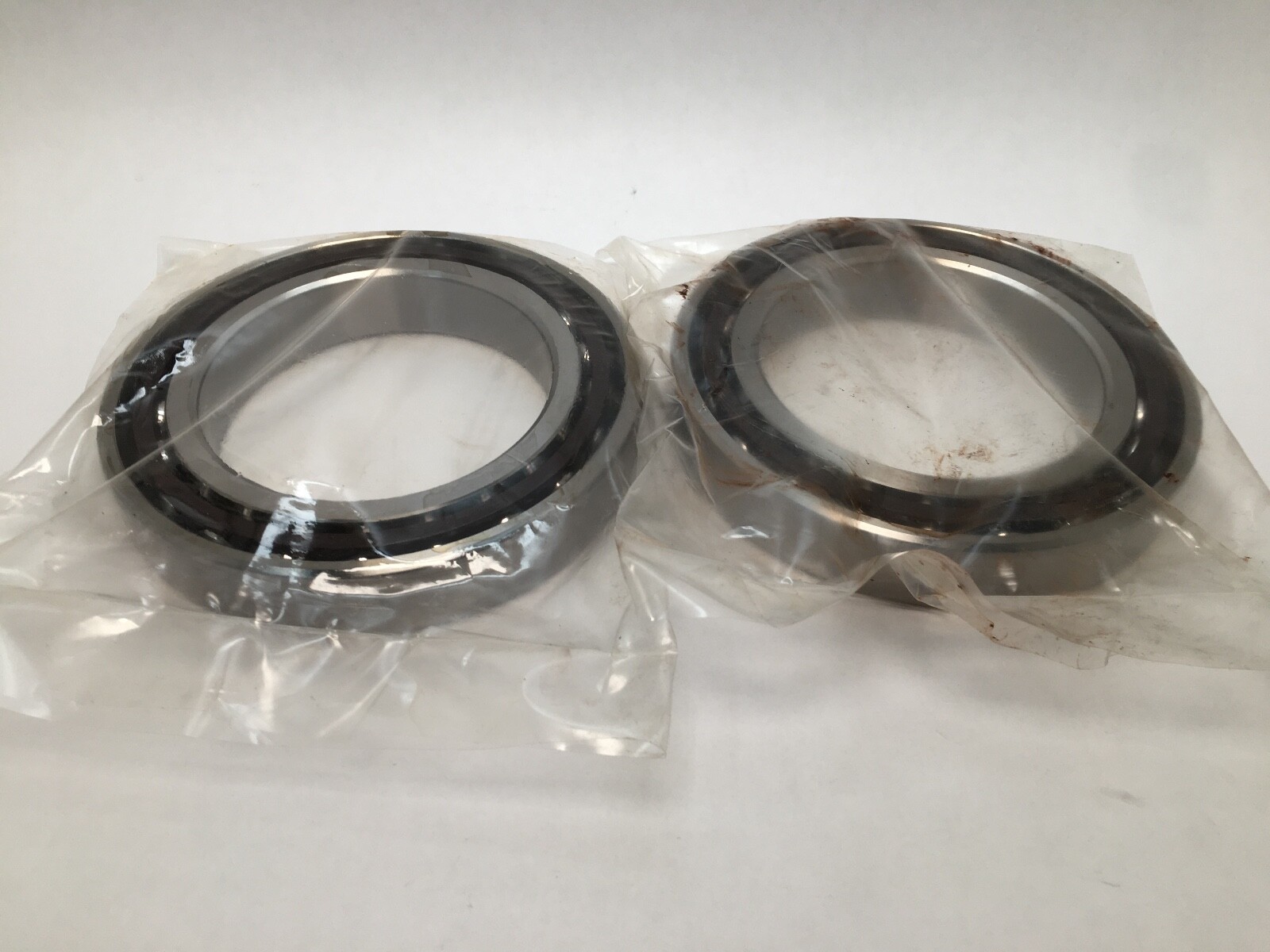

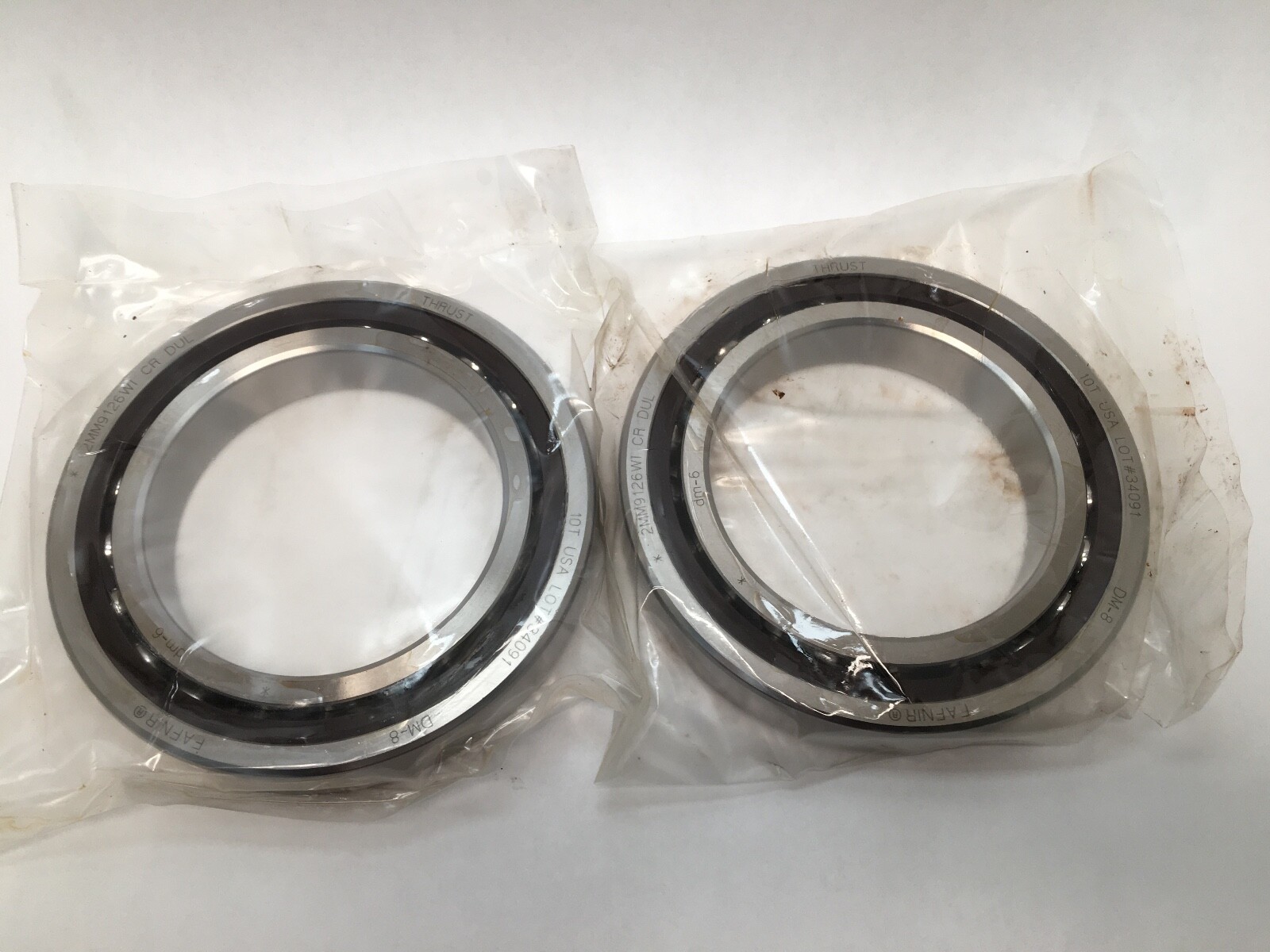

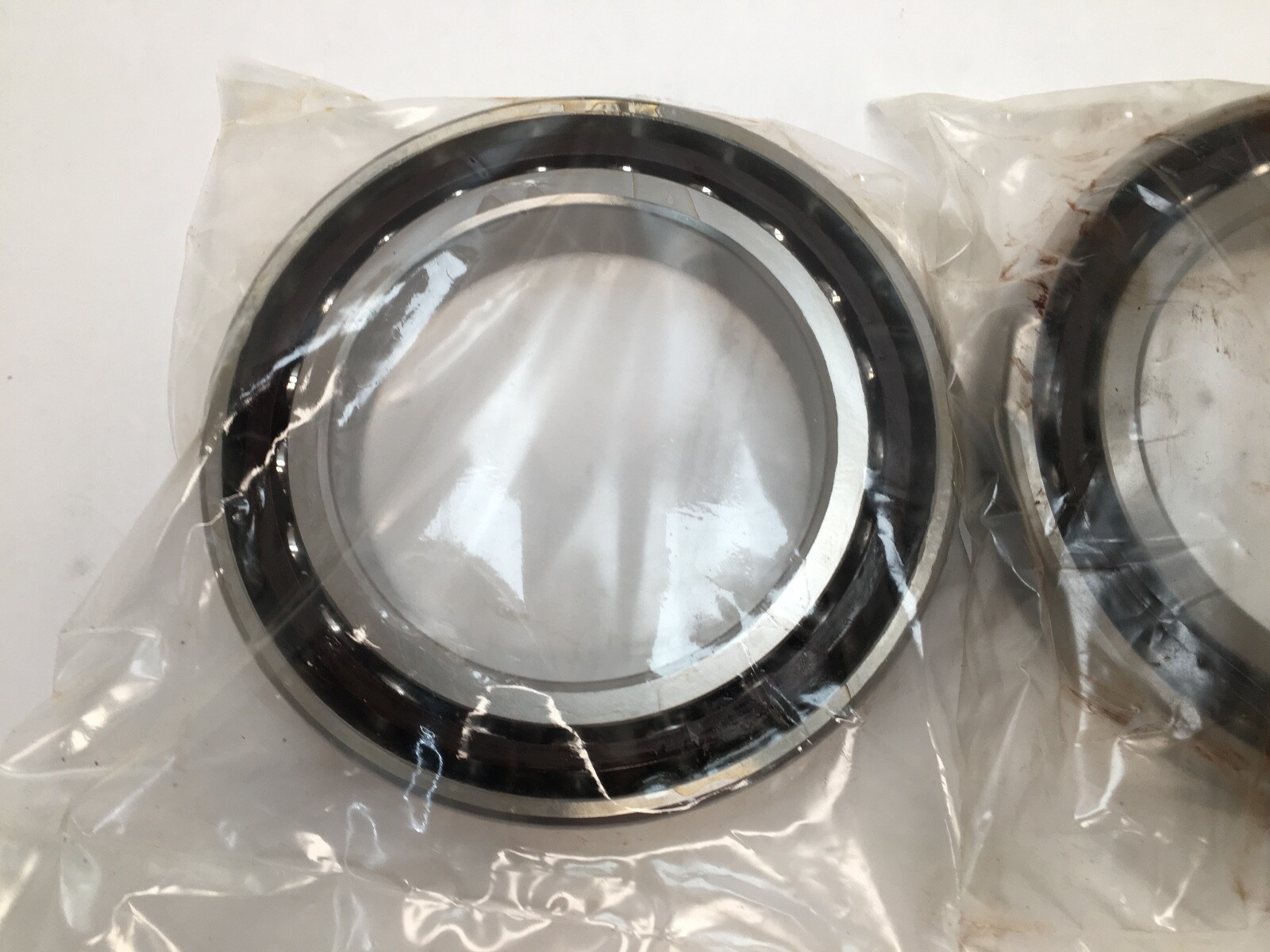

Fafnir2MM9126WICRDULSuper-Precision Angular Contact Ball Bearing 130x200x33 mm, 15 Degree Contact Angle, Duplex Light Preload, Phenolic Cage, Matched Pair

Condition: New

Availability:

1 in stock

Super precision angular contact ball bearing duplex pair, 130 x 200 x 33 mm, 15 degree contact angle, P4, light preload, phenolic cage, Fafnir 9100WI.

Same day shipment

List Price

$1,440.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPN2MM9126WICRDUL
GTIN087796073234
Model7026 CCR-DUL-P4S / 7026C / 2MM 9126 WI CR DUL
Bearing TypeAngular Contact Ball Bearing, Open
ID130 mm
OD200 mm
Width33 mm

Technical Specifications

MaterialSteel
Series9100WI
PreloadLight
Base Number7026
Industry TermsSpindle bearing; super precision bearing; machine tool bearing; matched pair; duplex set; ABEC 7; phenolic cage bearing
Common MisspellingsFaffnir; Fafner; 2MM9126W1-DUL; 2M9126WI-DUL
Application TypesMachine tool spindles; CNC spindles; robotics; precision motion systems
Bore Shaft Size130 mm (5.1181 in)
Mpn Variants2MM9126WICRDUL; 2MM9126WI DUL; 2MM9126WI-DUL; 2MM9126-WI-CR-DUL; 2MM 9126 WI CR DUL; 7026 CCR-DUL-P4
Manufacturer StatusFafnir super-precision line, now branded Timken
Precision ClassABEC 7 / P4
Dynamic Load Rating143,200 N
Static Load Rating137,000 N
Rolling ElementsBalls
Item Weight6.546 kg (14.42 lb) per pair
Cage MaterialPhenolic
Number Of Rows1 per bearing, 2 rows as the mounted pair
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementDuplex universal (DU)
Part Number2MM9126WICRDUL
Limiting Speed6,400 rpm grease; 12,800 rpm oil
Dynamic Load Rating C1143,200 N
Additional AttributesShaft backing shoulder diameter: 144.2 mm; housing backing shoulder diameter: 186.6 mm; max shaft fillet radius: 2 mm; dynamic rating C1 for 1M revolutions; ratings per Timken page cad.timken.com

Cross-References

Cross Reference 1SKF 7026 CD/P4ADGA
Seller Part Number: B-BQ5#CTMGBX

Product Description

What this part is:

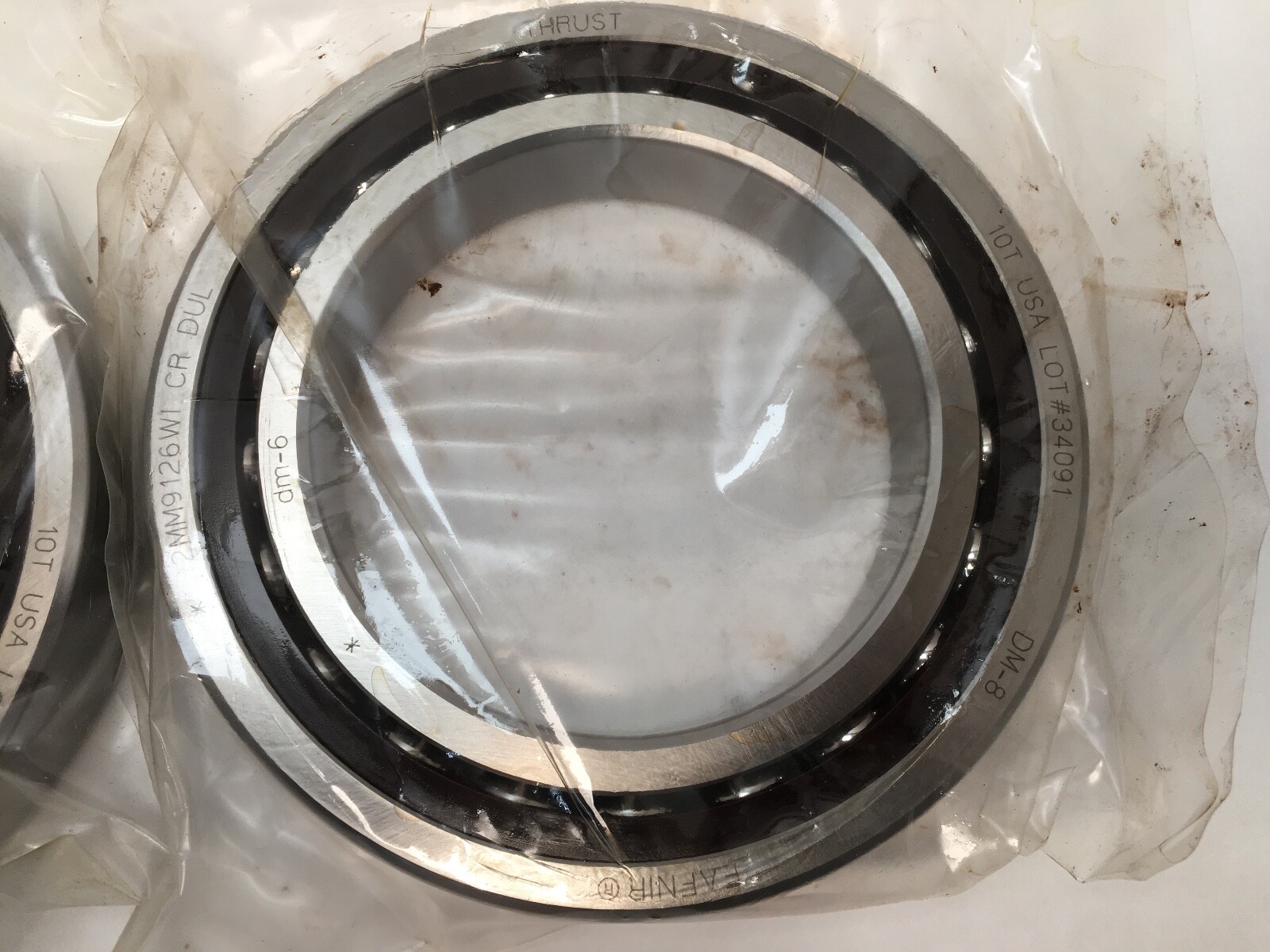

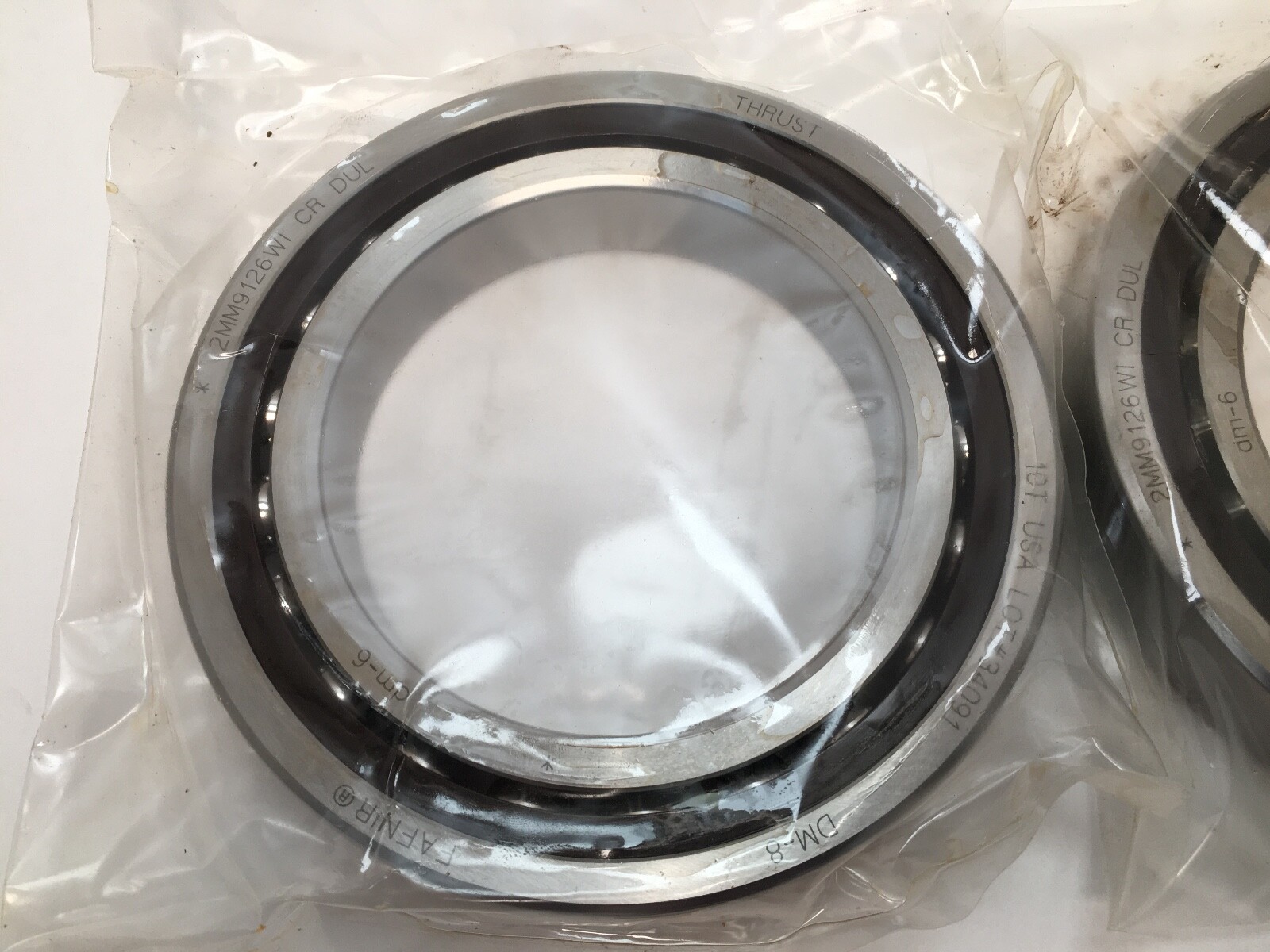

Fafnir (Timken) 2MM9126WICRDUL super precision angular contact ball bearing, supplied as a matched duplex pair of 2 pieces. Series 9100WI, ISO 7026 envelope: 130 mm bore, 200 mm outside diameter, 33 mm width per bearing. Phenolic cage, universally ground, light preload, open. Unit Quantity: 2 Pcs.

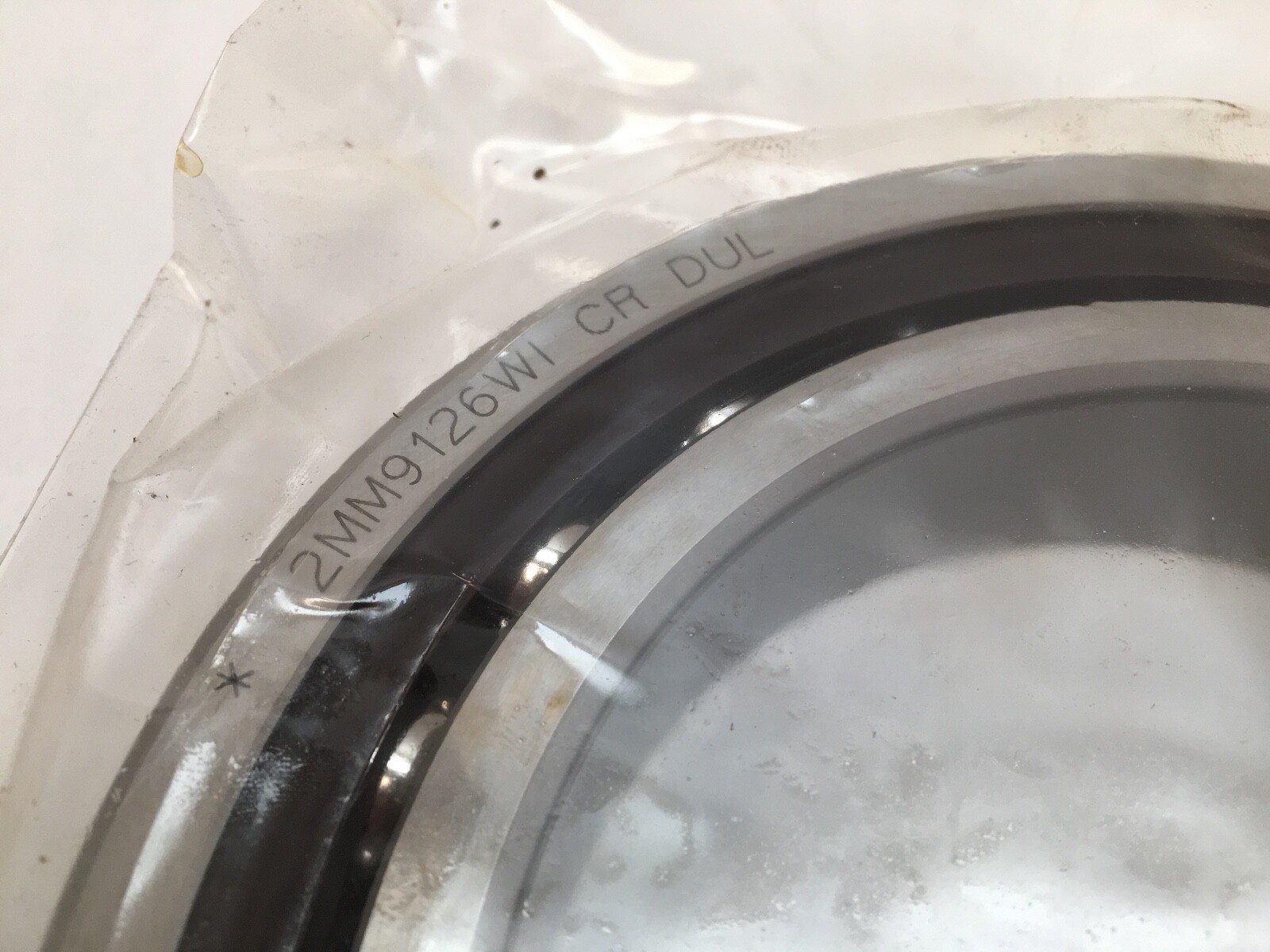

Decoding the designation:

2MM — 15° contact angle, P4 precision class (ABEC 7).

9126 — 9100WI series, ISO 7026 equivalent, 130 mm bore.

WI — low shoulder on both rings, the duplex form.

CR — phenolic cage.

DUL — duplex, universally ground, light preload.

Specifications:

Bore Diameter: 130 mm. Outside Diameter: 200 mm. Width: 33 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Dynamic Radial Load Rating (C1, 1M revolutions): 143,200 N. Static Radial Load Rating (C0): 137,000 N. Limiting Speed: 6,400 rpm grease; 12,800 rpm oil. Weight of the pair: 6.546 kg (14.42 lb). GTIN: 087796073234. Country of Origin: United States.

Dimensions and mounting:

Shaft backing shoulder diameter: 144.2 mm. Housing backing shoulder diameter: 186.6 mm. Maximum shaft fillet radius: 2 mm. Mounting Arrangement: duplex universal; stacks back-to-back, face-to-face or in tandem.

Compatibility and replacement:

Cross-reference: SKF 7026 CD/P4ADGA, 15° angle, P4 class, duplex light preload. Designation variants: 2MM9126WI-DUL, 2MM9126-WI-CR-DUL, 2MM9126WICRDUL, 2MM 9126 WI CR DUL, 7026 CCR-DUL-P4. CAD model and data sheet: available from Timken (cad.timken.com).

Frequently asked questions:

What size is the Fafnir 2MM9126WICRDUL?

130 mm bore, 200 mm outside diameter, 33 mm width per bearing, the ISO 7026 envelope.

What are the load ratings of the 2MM9126WICRDUL?

Dynamic radial load rating C1 is 143,200 N and static radial load rating C0 is 137,000 N; limiting speed is 6,400 rpm on grease and 12,800 rpm on oil.

What does DUL mean in 2MM9126WICRDUL?

DUL is a duplex set, universally ground, at light preload; this listing is a pair of 2 bearings.
