Extra-light angular contact ball bearing, 130 mm bore, 200 mm OD, 33 mm width, 15° contact angle, open, tandem duplex pair with machined phenolic cage.
List Price
$2,275.86
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | MRC |
|---|---|
| MPN | 7126KRDT |
| Model | 7126KRDT ABEC5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Series | 7100 |
|---|---|
| Condition | New – Open box |
| Material | Bearing Steel |
| Base Number | 7126 |
| Industry Terms | angular contact ball bearing, duplex pair, tandem set, spindle bearing, precision ball bearing, thrust ball bearing, counterbored outer ring bearing |
| Common Misspellings | 7126KRDT, 7126KDRT, 7126KRTD, 7126 KRDT, 7126KRD T, MRC 7126 KR DT, 7126KRDT beaering, 7126KRDT bearring |
| Application Types | machine tool spindles, pump shafts, gearbox thrust positions, high-speed rotating assemblies, industrial motion control |
| Total Width | 66 mm |
| Condition Note | Made In USA, New Old Stock |
| Overall Width | 33 mm |
| Bore Shaft Size | 130 mm |
| Mpn Variants | 7126KRDT, 7126 KR DT, 7126-KR-DT, 7126KR DT, 7126KRDT ABEC5, 7126KR-DT, 7126 K R DT, MRC7126KRDT, carton arrangement code DT |
| Arrangement Configuration | DT tandem duplex pair |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 148 kN / 33300 lbf |
| Static Load Rating | 156 kN / 35100 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 7.00 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Internal Clearance | N/A |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15 ° |
| Preload | Preloaded, tandem duplex pair |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Bearing Material | Bearing Steel |
| Part Number | 7126KRDT |

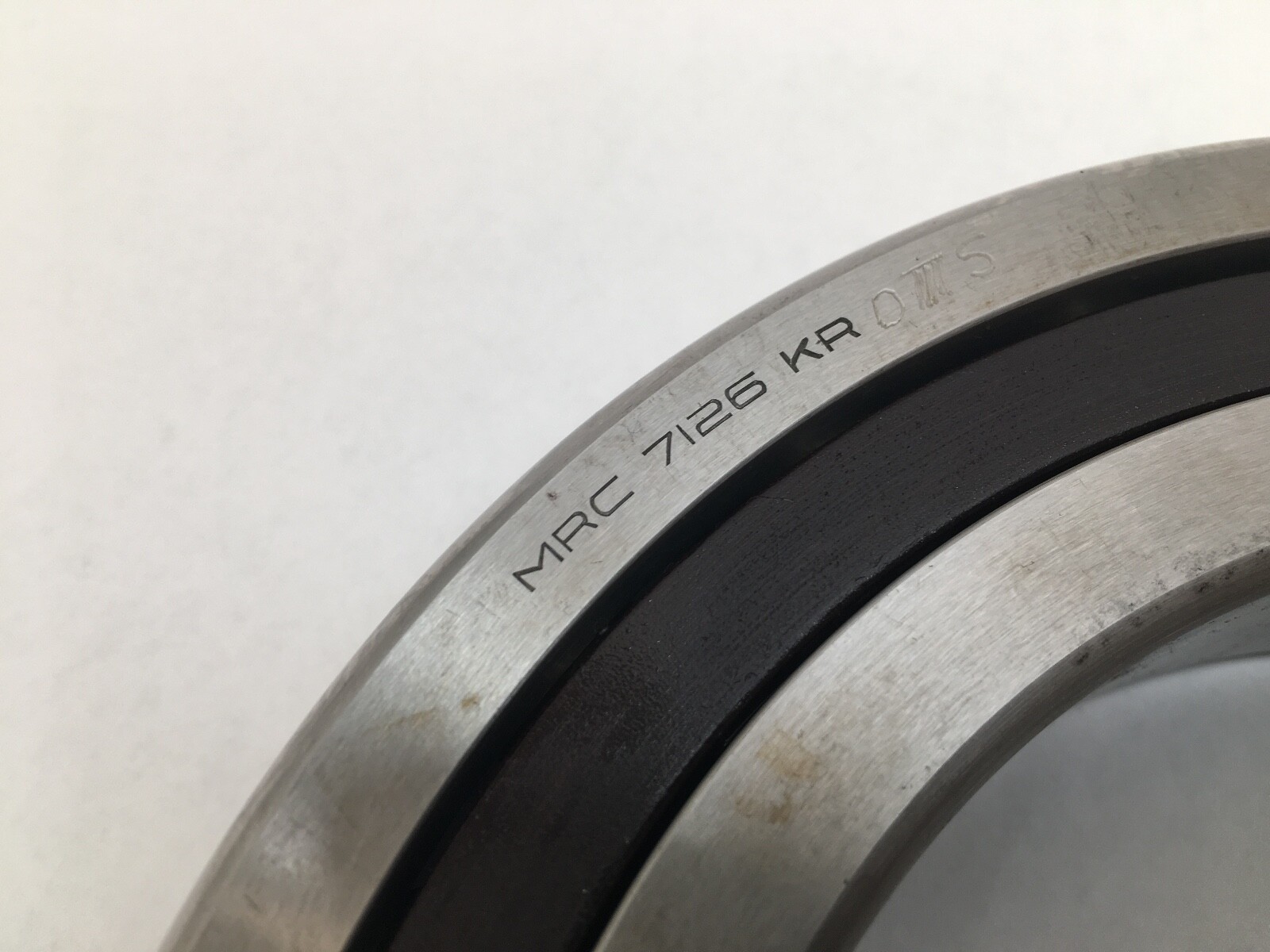

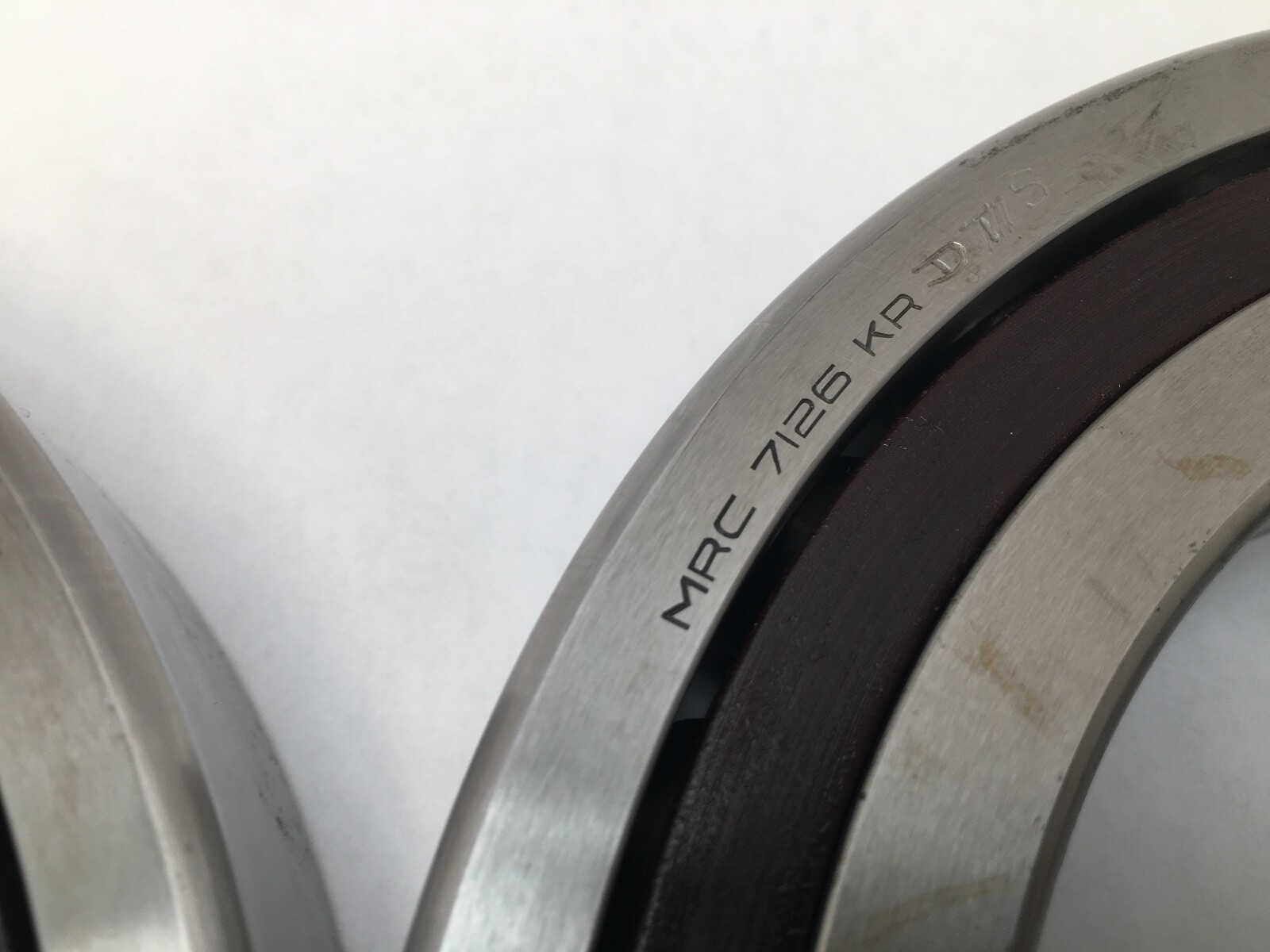

MRC 7126KRDT angular contact ball bearing. Envelope: 130 mm bore × 200 mm outside diameter × 33 mm width per bearing. Series: 7100K angular contact extra light. Contact angle: 15°. Closure: open. Rolling elements: balls. Bearing material: bearing steel.
Base number: 7126. Bore code 26 gives a 130 mm bore. Type letter R sets the 15° contact angle and a counterbored outer ring. Execution code DT is a tandem duplex pair. Searchable forms: 7126KRDT, 7126 KR DT, 7126-KR-DT, 7126KRDT ABEC5.

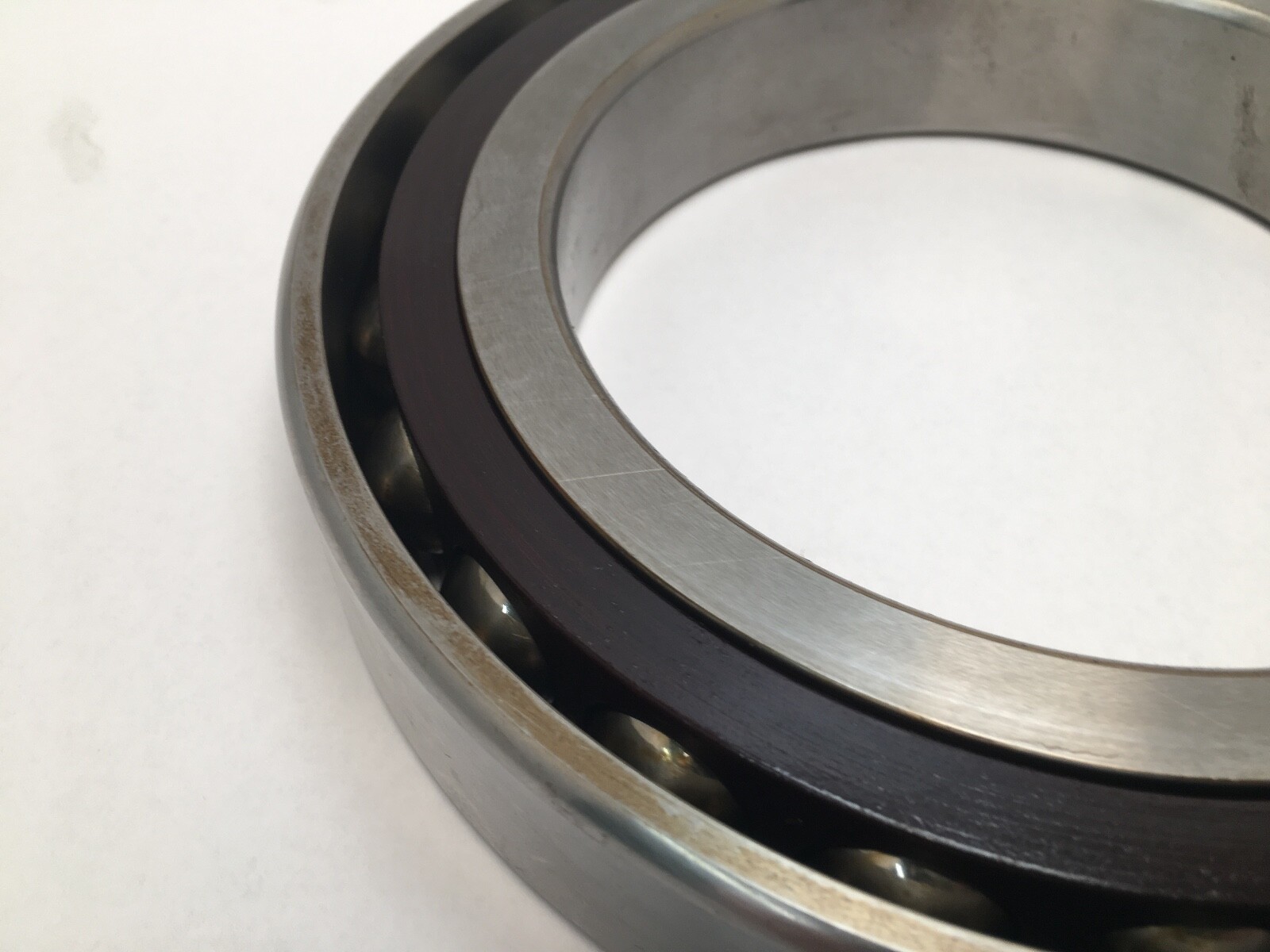

A 15° contact angle carries less thrust and more speed than a 40° angle, and it holds shaft position closely under combined radial and light axial load. The counterbored outer ring gives a single defined thrust direction per bearing. A machined phenolic cage runs light and quiet at speed and tolerates oil-lubricated high-rpm service. Limiting speed on the record: 4300 rpm. Dynamic load rating: 148 kN / 33300 lbf. Static load rating: 156 kN / 35100 lbf.

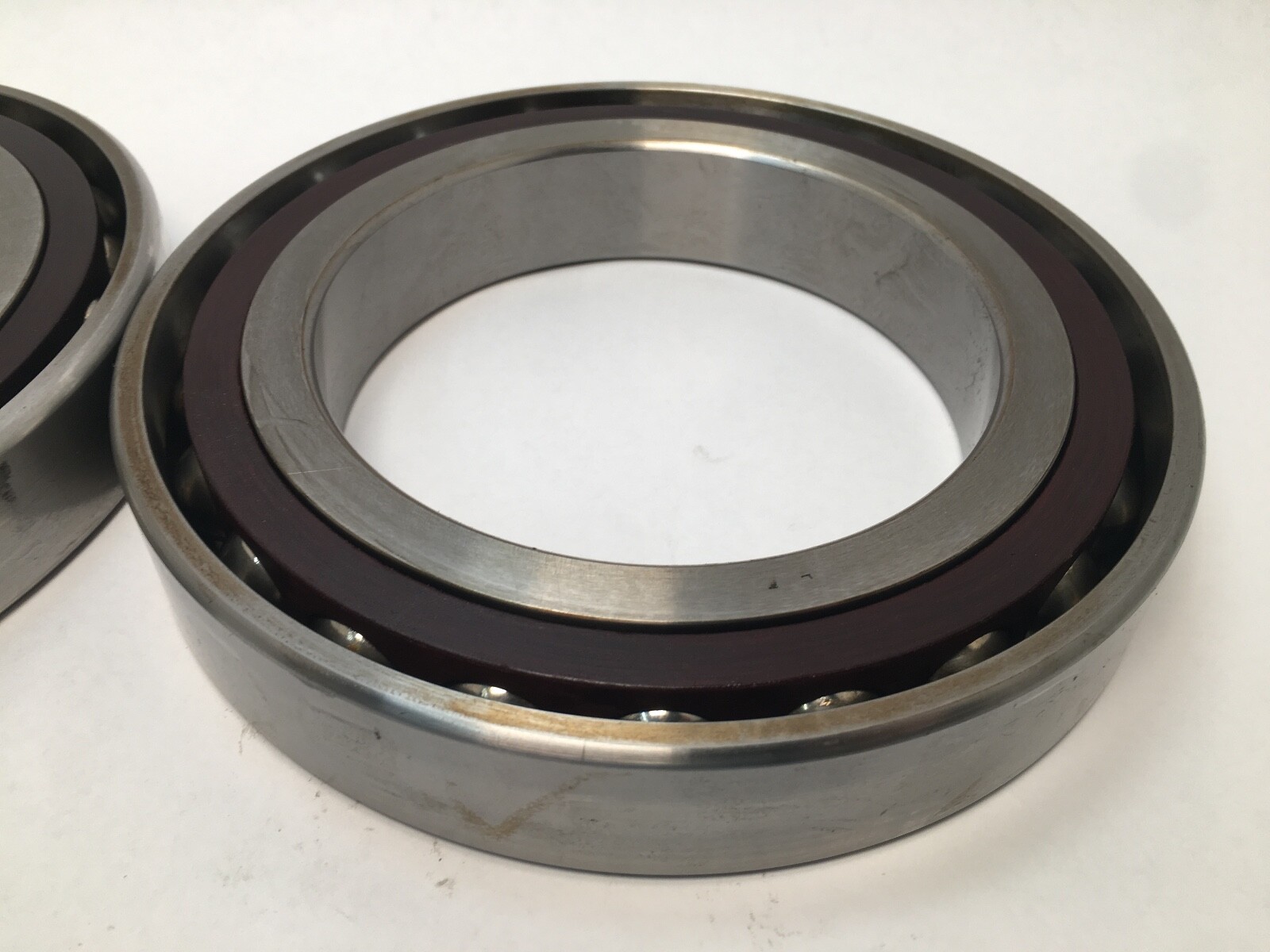

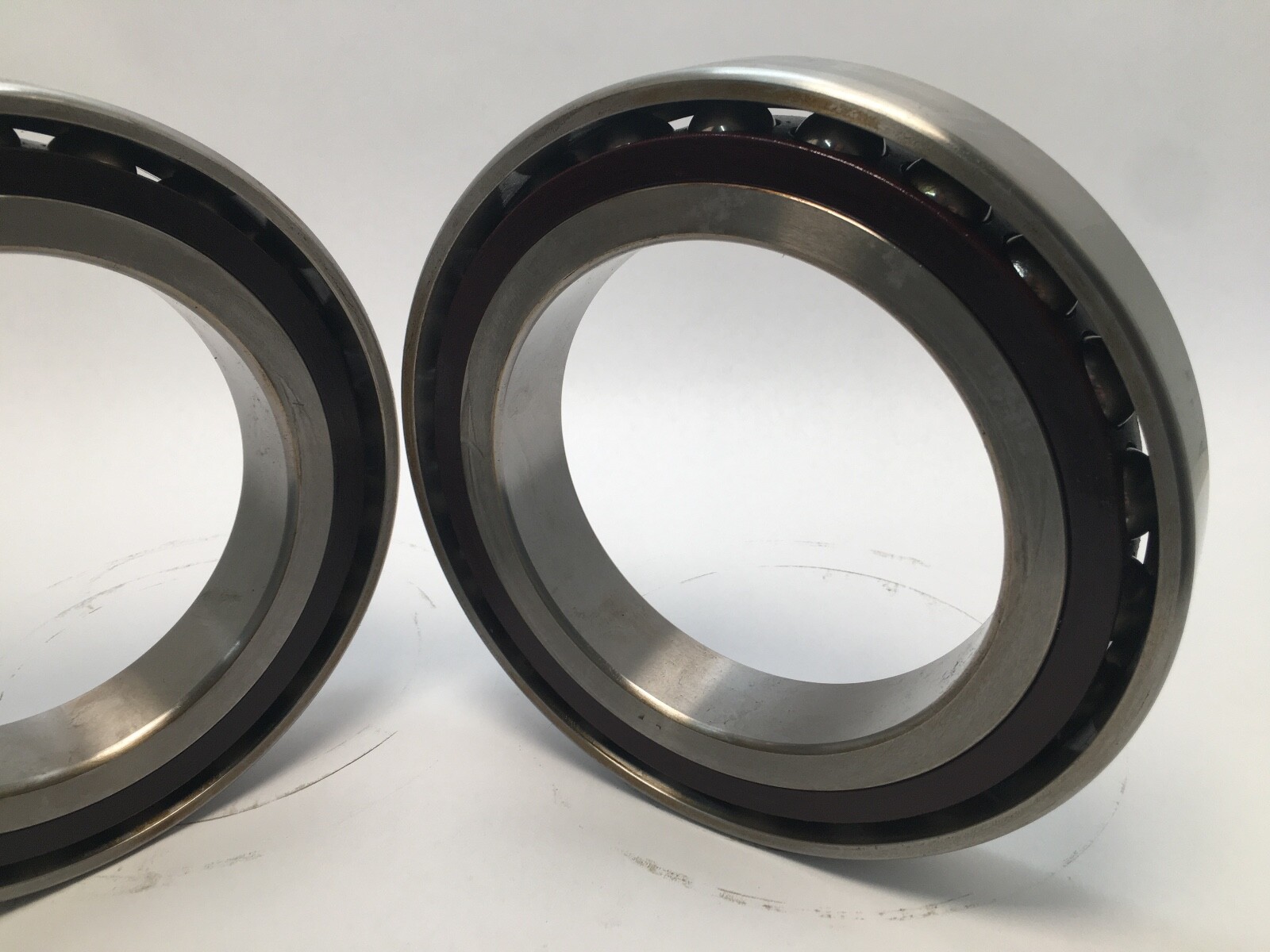

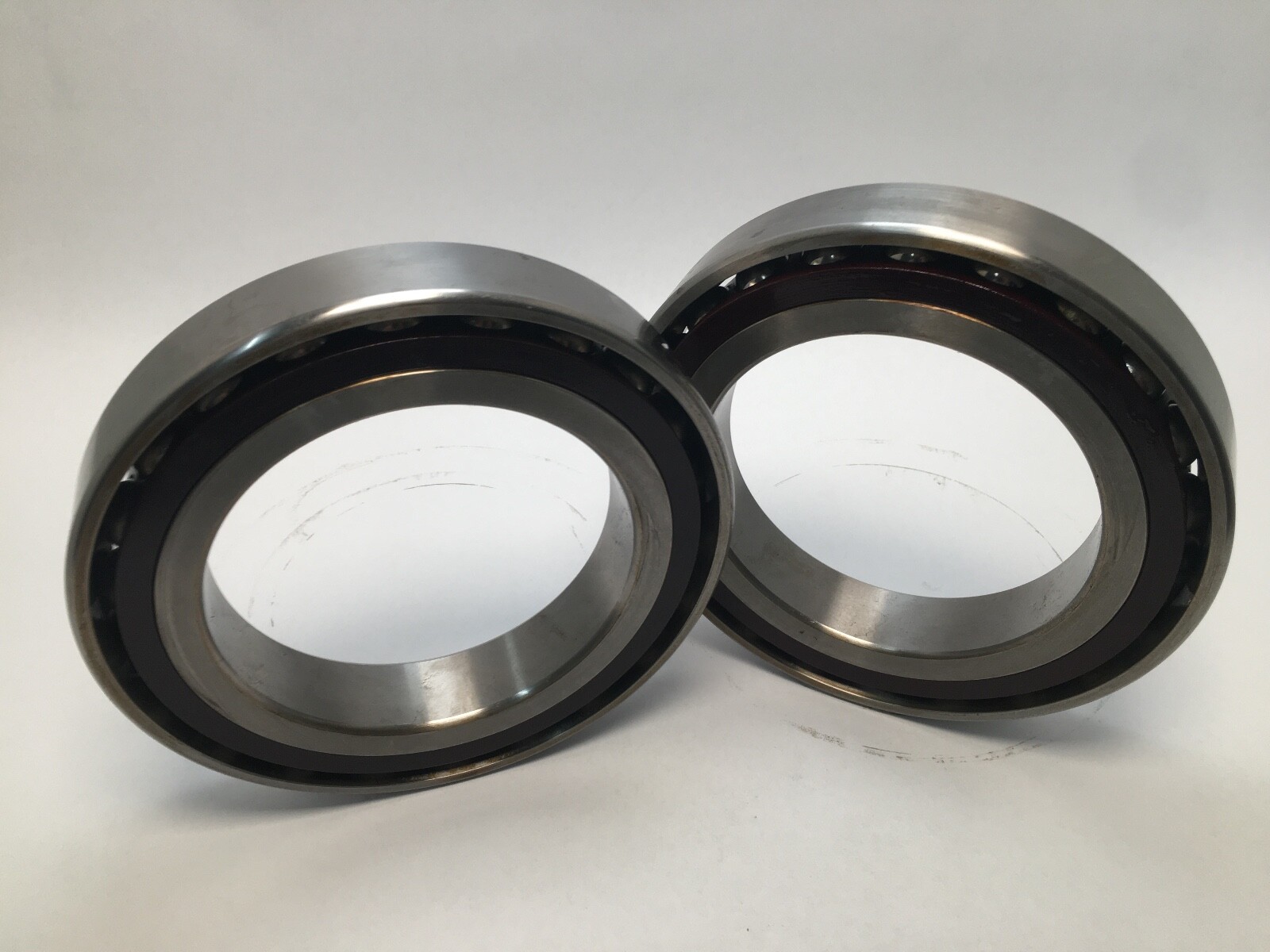

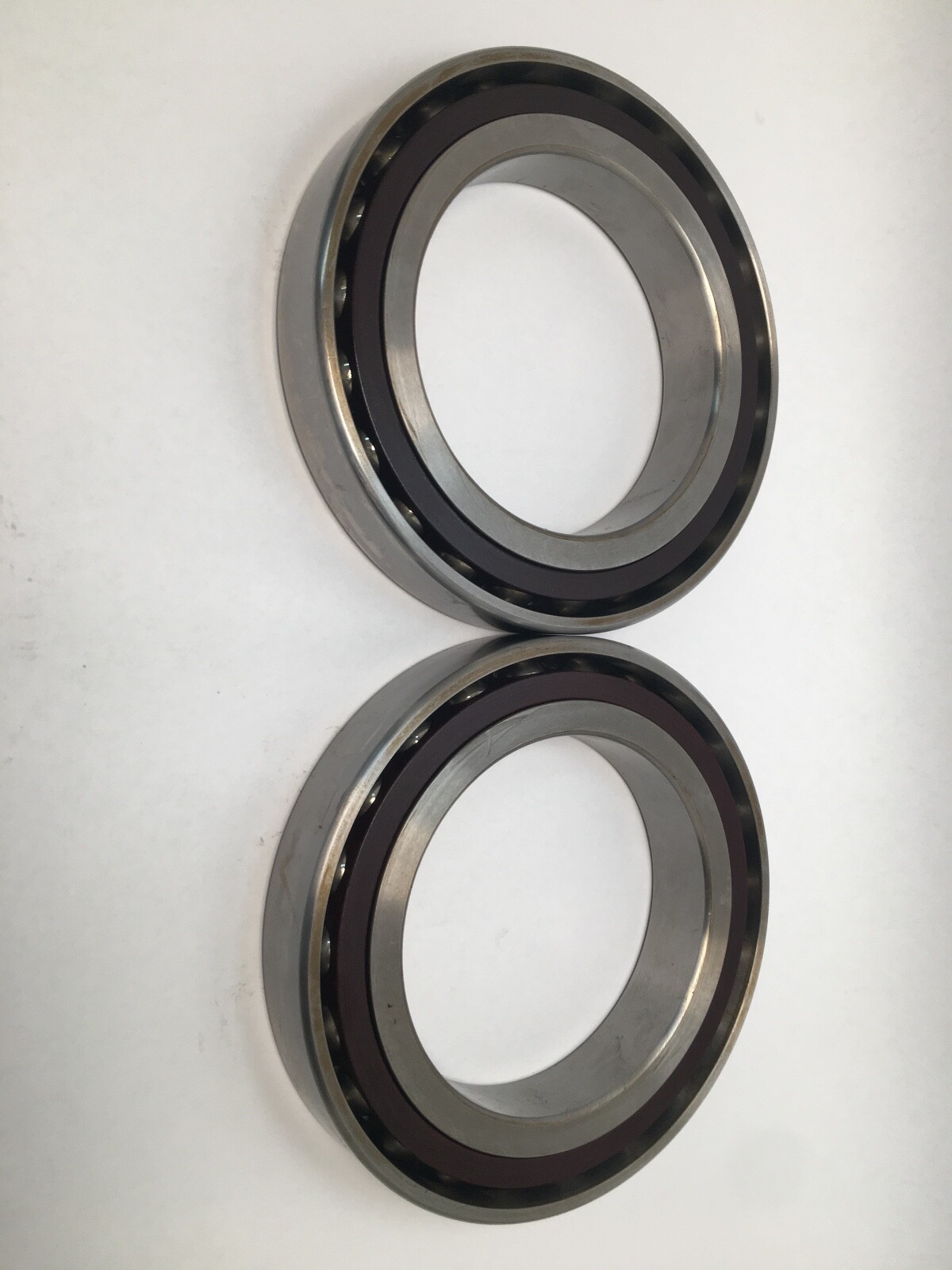

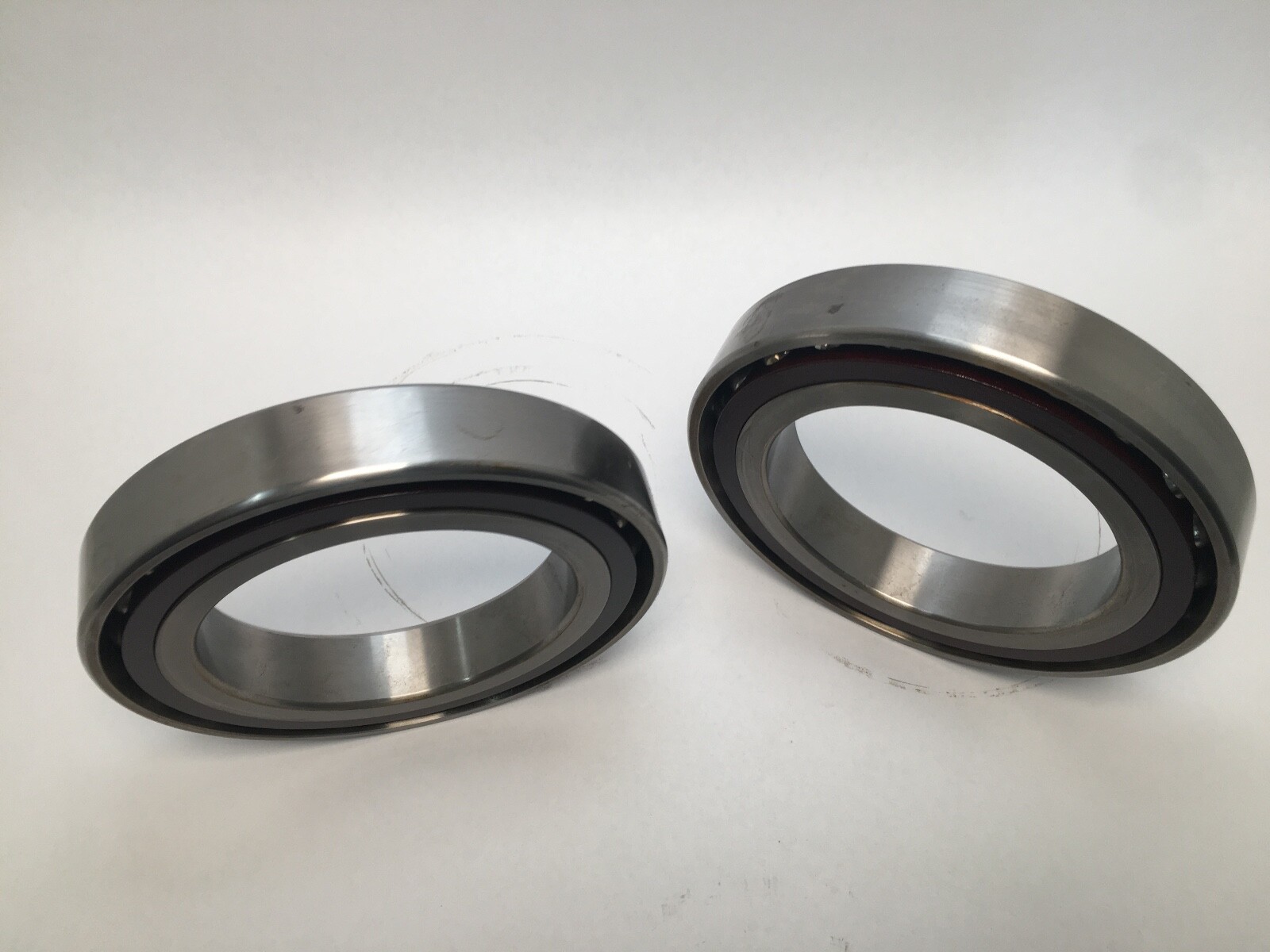

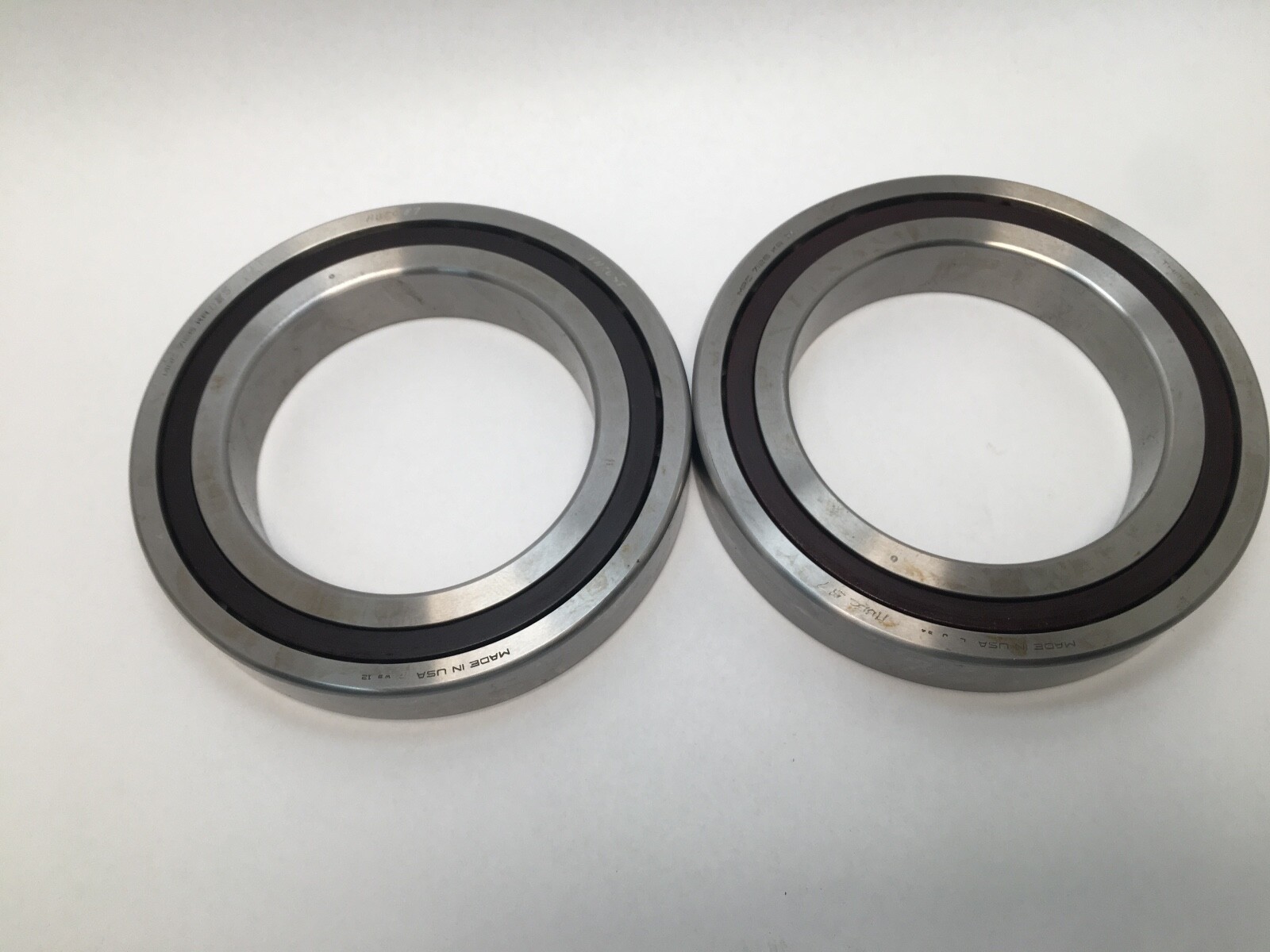

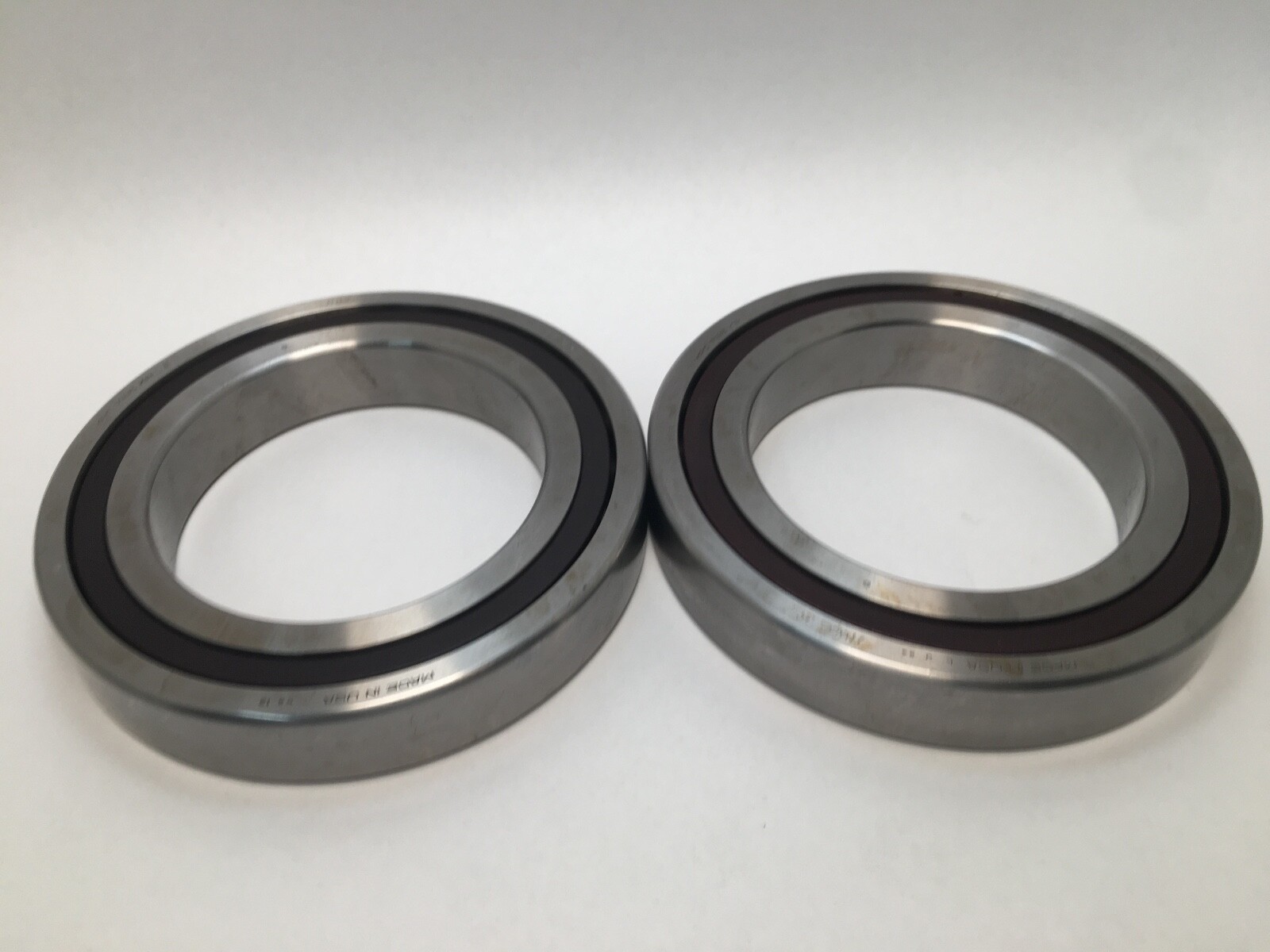

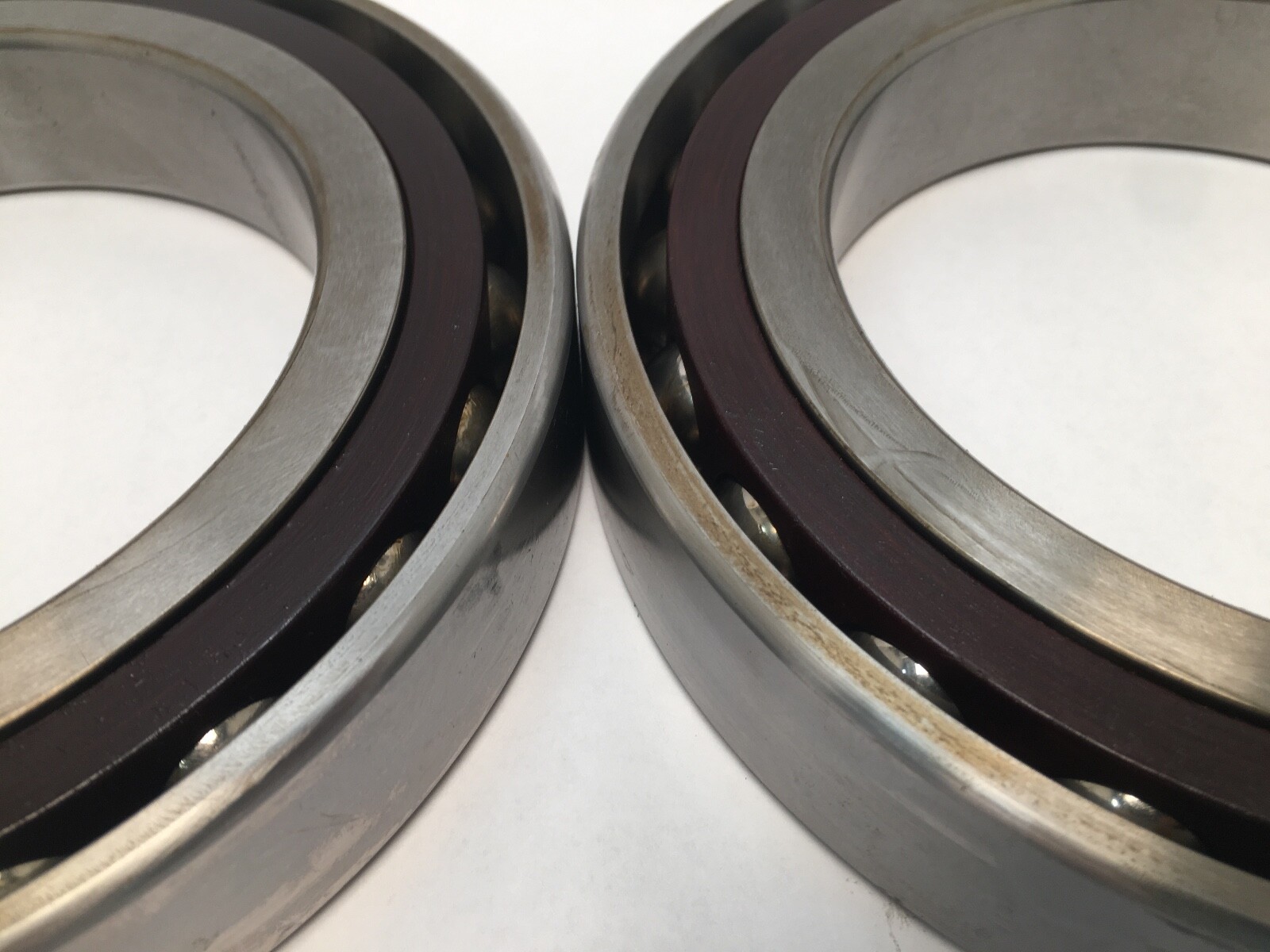

Two pieces ship, a factory tandem duplex pair. Tandem execution places both contact angles in the same direction, so the two bearings share one axial load path and roughly double the thrust capacity of a single bearing in that direction. Stacked total width for the pair: 66 mm. Carton arrangement code: DT.
Mounting arrangement: universal ground, which allows the pair to be assembled tandem. Bore type: straight. Internal clearance: N/A — a tandem duplex pair is ground for preload, so a running-clearance class has no meaning here. Operating temperature range on the record: −30 °C to 120 °C. Lubrication: oil or grease suited to a phenolic cage.
The MRC 12x-R block steps two designation units per 10 mm of bore, and its envelopes sit outside the ISO 72xx and 74xx dimension series. No ISO cross-reference is published for a 12x-R part. Interchange is by envelope and contact angle: 130 × 200 × 33 mm, 15°, tandem duplex, machined cage.

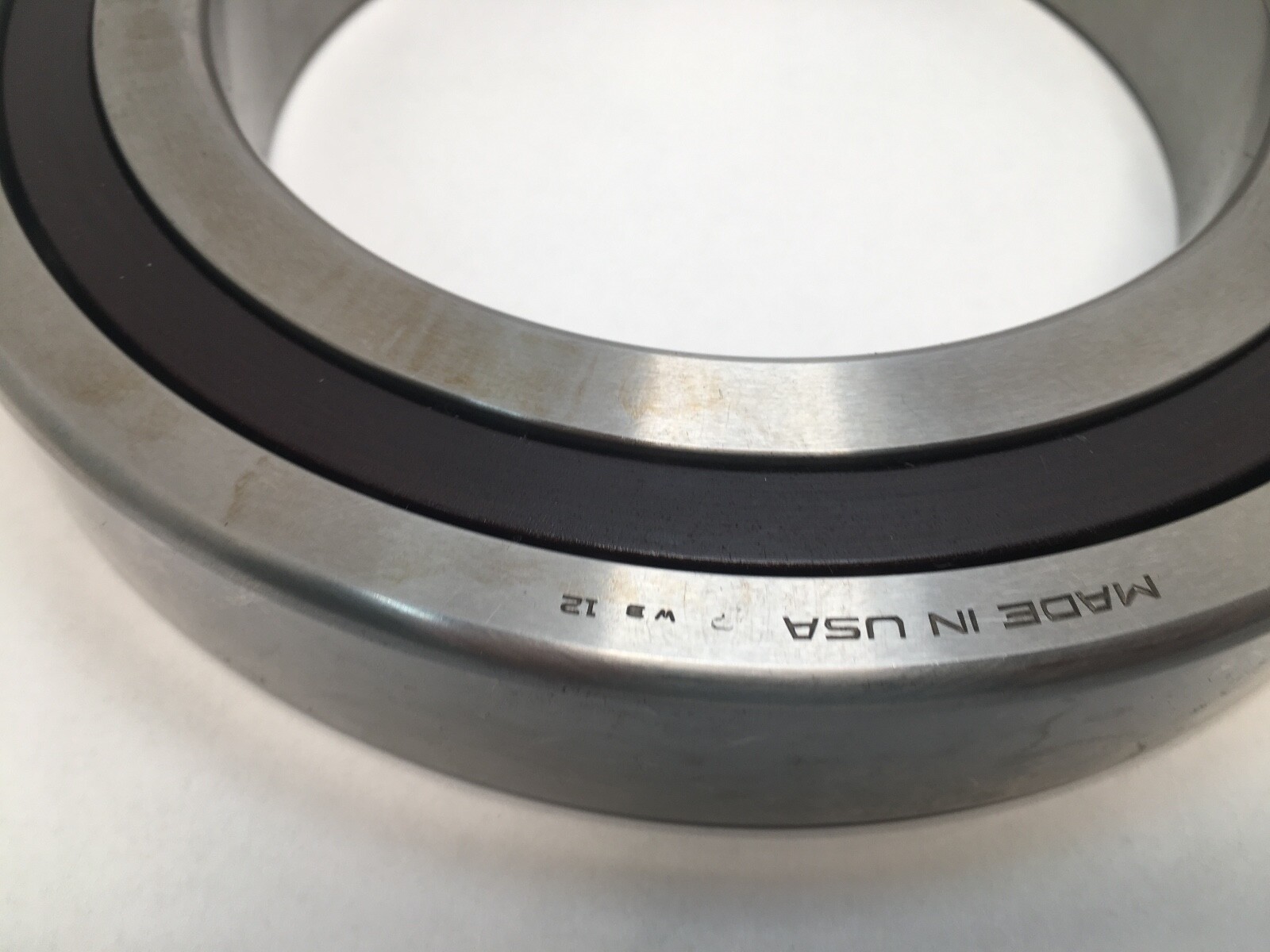

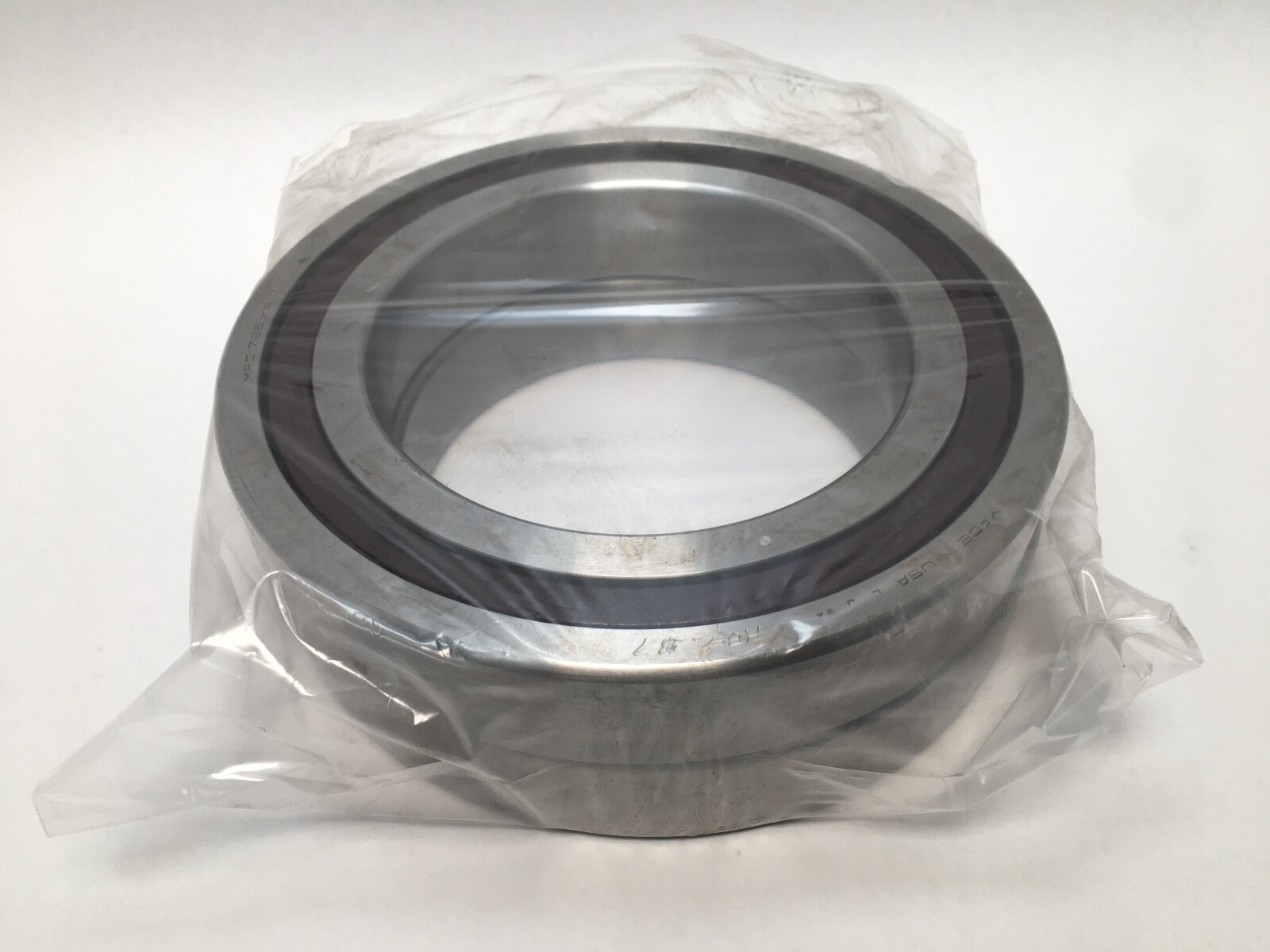

Country of origin: United States. Condition: new old stock, open box. Harmonization code: 8482.10.50.
