Availability:
1 in stock

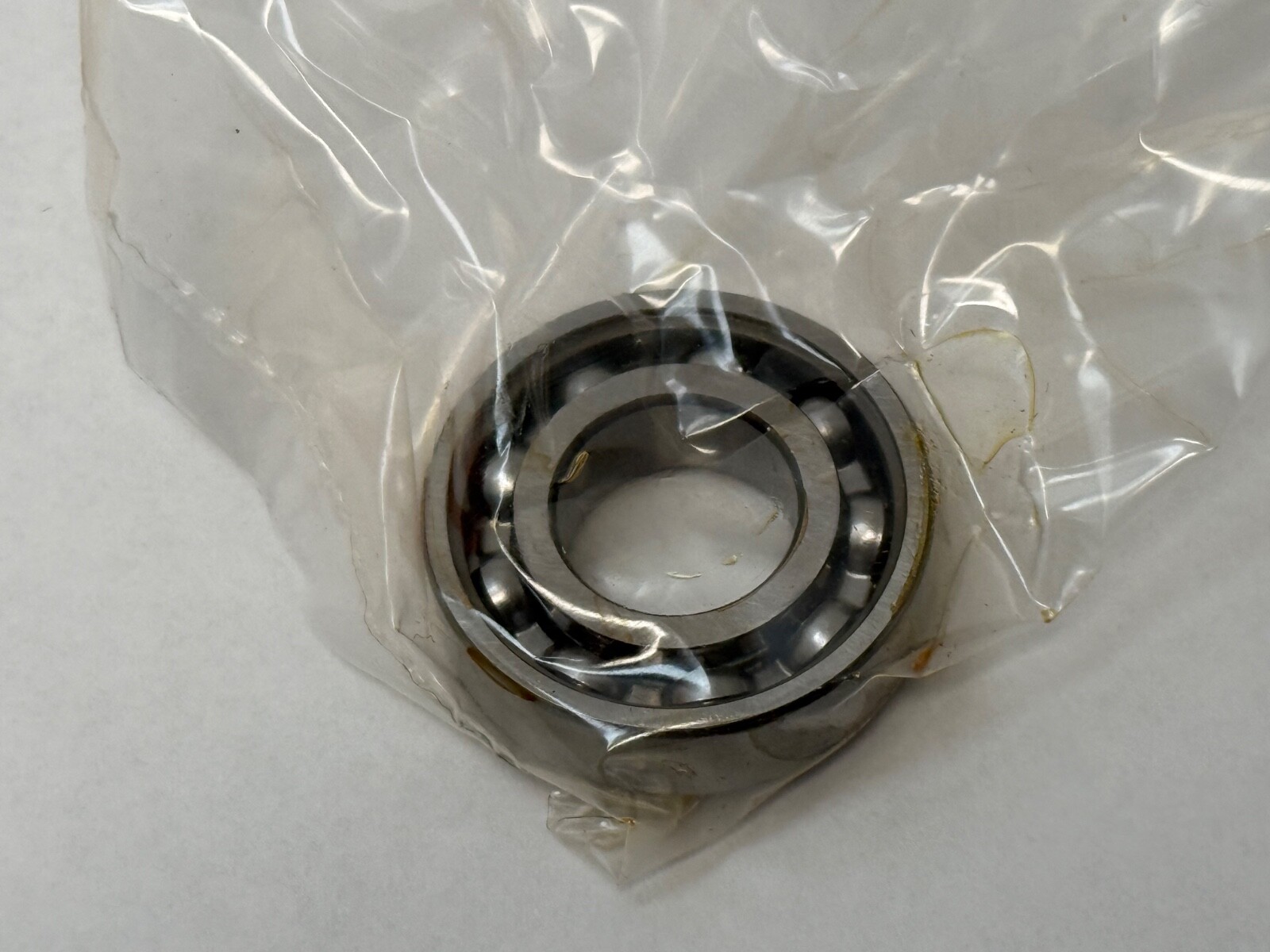

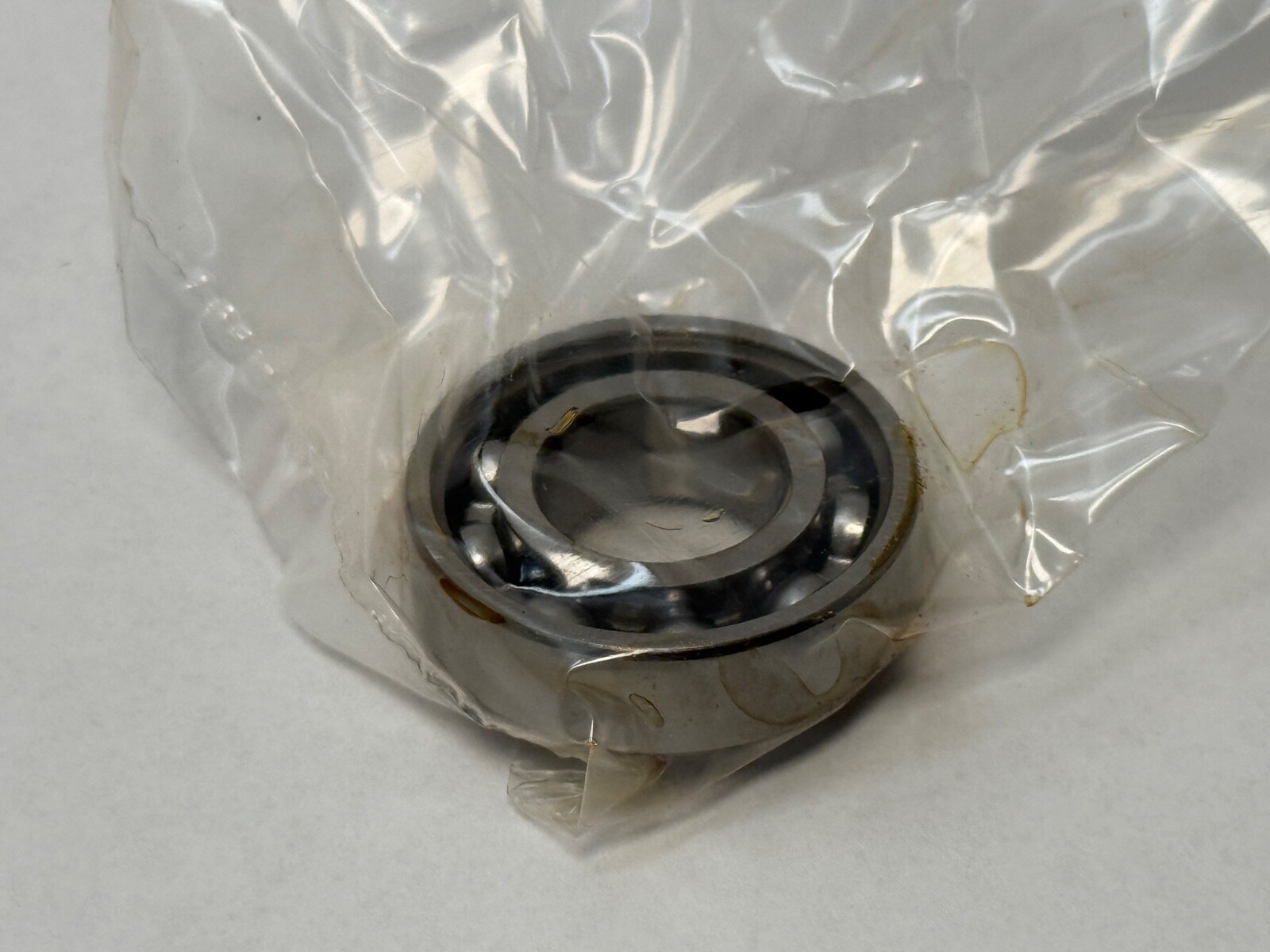

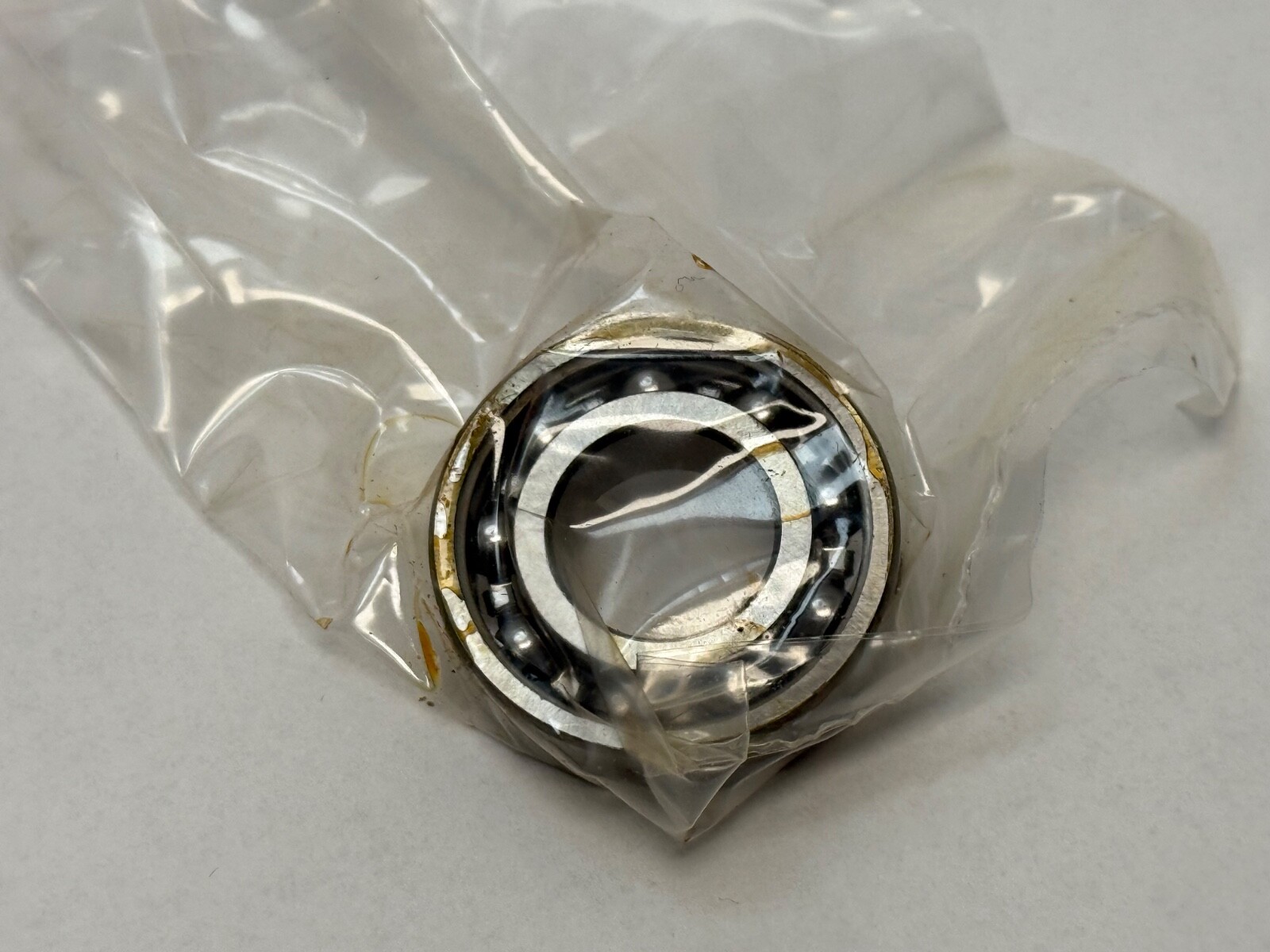

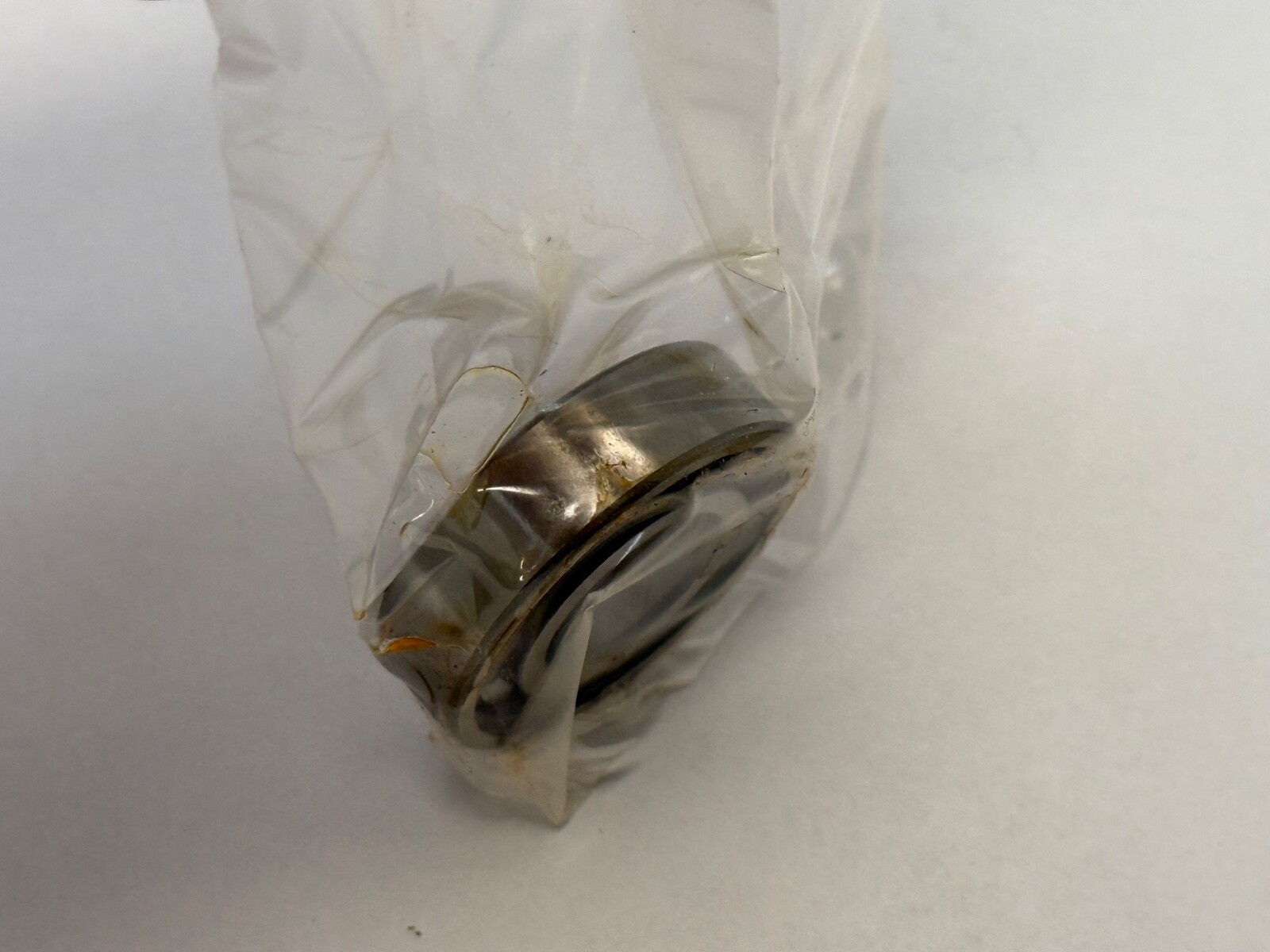

Deep groove ball bearing, 15 x 32 x 9 mm, open, MRC 100-KS extra light series. Dynamic Load Rating 5,590 N, Static 2,850 N. Pressed steel cage, CN clearance.
List Price
$42.47
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 102KS |
| GTIN | 097741000178 |
| Model | 102KS |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Series | 100-KS Extra Light |
|---|---|
| Dynamic Load Rating | 5,590 N |
| Static Load Rating | 2,850 N |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Limiting Speed | 22,000 rpm grease; 28,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Base Number | 6002 |
| Industry Terms | Single row ball bearing, radial ball bearing, open ball bearing, Conrad bearing, 15mm bore ball bearing, extra light series ball bearing |
| Common Misspellings | MRC 102ks bearing, MCR 102KS, 102-KS, 6002 bearing MRC, MRC102KS |
| Total Width | 9 mm |
| Overall Width | 9 mm |
| Bore Shaft Size | 15 mm |
| Mpn Variants | 102KS, 102-K-S, 102 KS, 102K-S |
| Additional Attributes | Maximum fillet radius (shaft or housing): 0.30 mm |
| Design Units | Metric |
| Part Number | 102KS |
| Application Types | Electric motors; small gearboxes; pumps; instruments; general industrial machinery |
| Cross Reference 1 | SKF 6002 |
|---|---|
| Cross Reference 2 | FAG 6002 |
| Cross Reference 3 | NSK 6002 |
| Cross Reference 4 | NTN 6002 |
| Cross Reference 5 | Koyo 6002 |
| Cross Reference 6 | Fafnir 9102K |
MRC 102KS is a single-row Conrad deep groove ball bearing from the MRC 100-KS Extra Light Series, open on both faces. It has a 15 mm bore, 32 mm outside diameter and 9 mm width, with a pressed steel cage and CN internal clearance.
102 — MRC 100 series, bore code 02, giving a 15 mm bore.
KS — MRC 100-KS Extra Light Series, Conrad-type single-row deep groove construction.
Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Closure Type: Open. Dynamic Load Rating: 5,590 N. Static Load Rating: 2,850 N. Limiting Speed: 22,000 rpm grease; 28,000 rpm oil. Cage Material: Pressed steel. Internal Clearance: CN. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Series: 100-KS Extra Light. Unit Quantity: 1 Pc.
The 15 x 32 x 9 mm envelope has a straight bore for a 15 mm shaft seat and a 32 mm housing bore. Maximum Fillet Radius (shaft or housing): 0.30 mm. The extra light section carries light to moderate radial load and thrust load in either direction.
Cross-references: SKF 6002, FAG 6002, NSK 6002, NTN 6002, Koyo 6002 and Fafnir 9102K. All are open deep groove bearings in the 15 x 32 x 9 mm envelope. MPN variants: 102KS, 102-K-S, 102 KS, 102K-S.
15 mm bore, 32 mm outside diameter and 9 mm width.
22,000 rpm with grease and 28,000 rpm with oil.
The MRC 100-KS Extra Light Series, a Conrad-type single-row deep groove bearing.
