Availability:
1 in stock

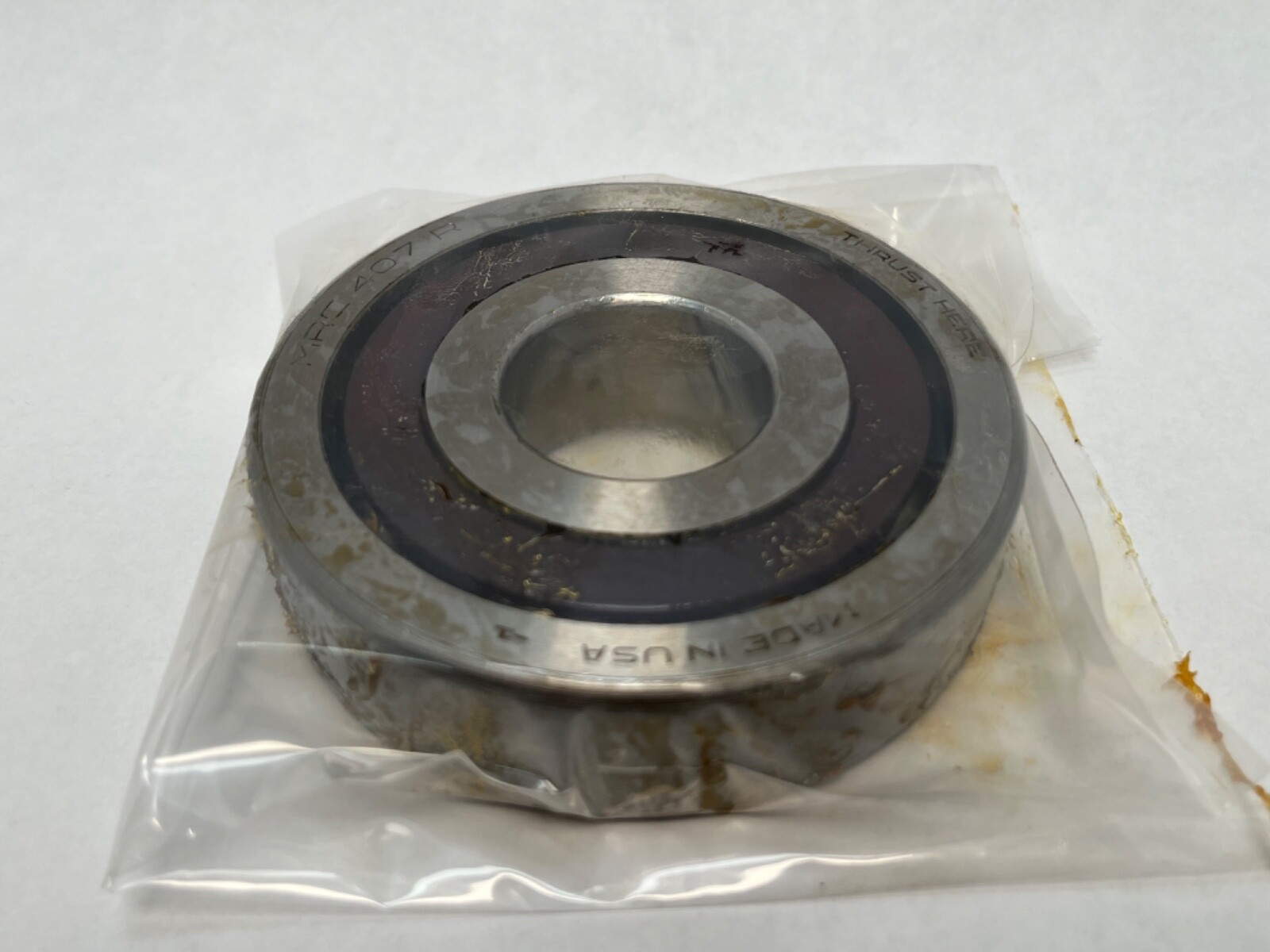

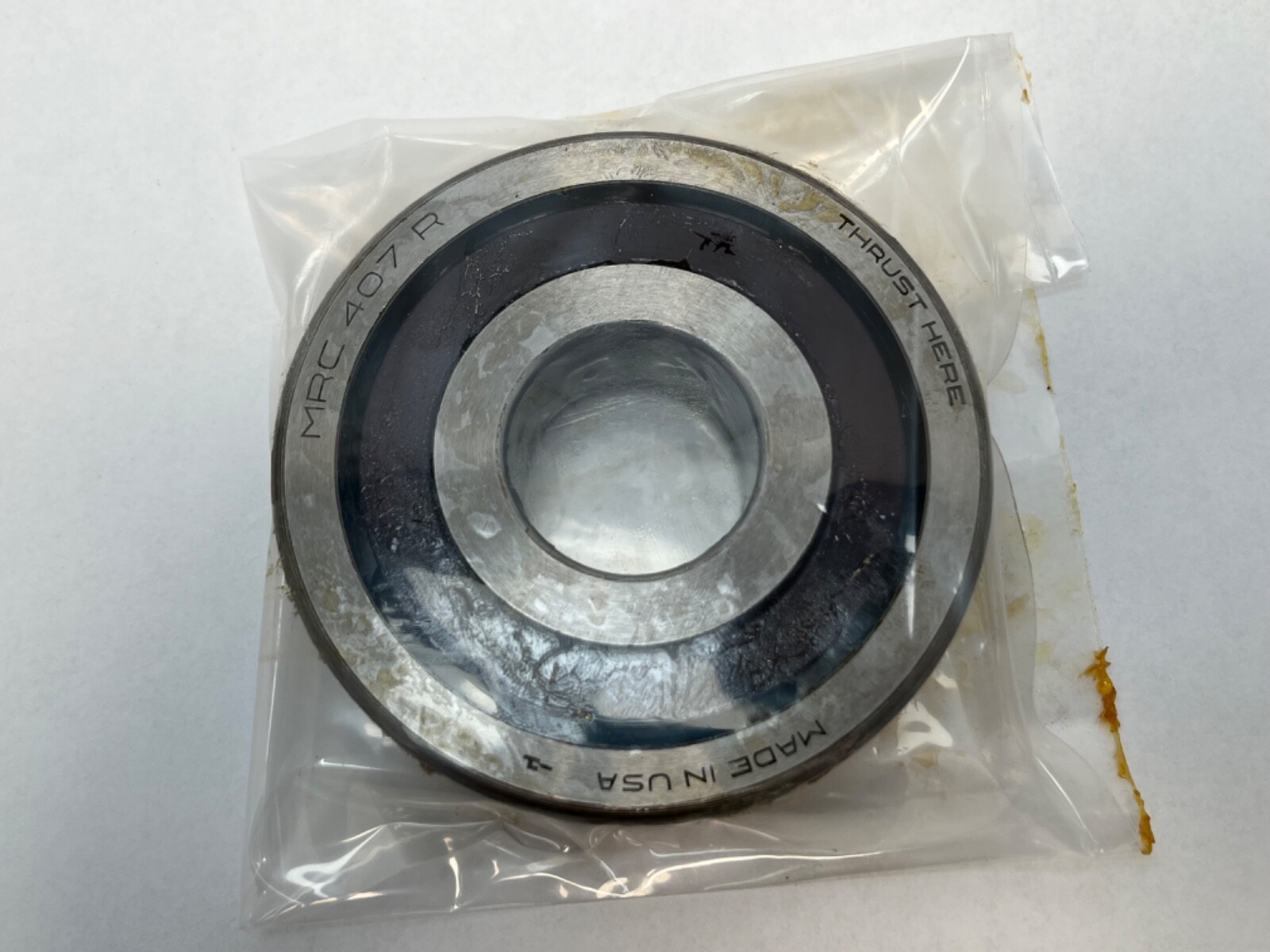

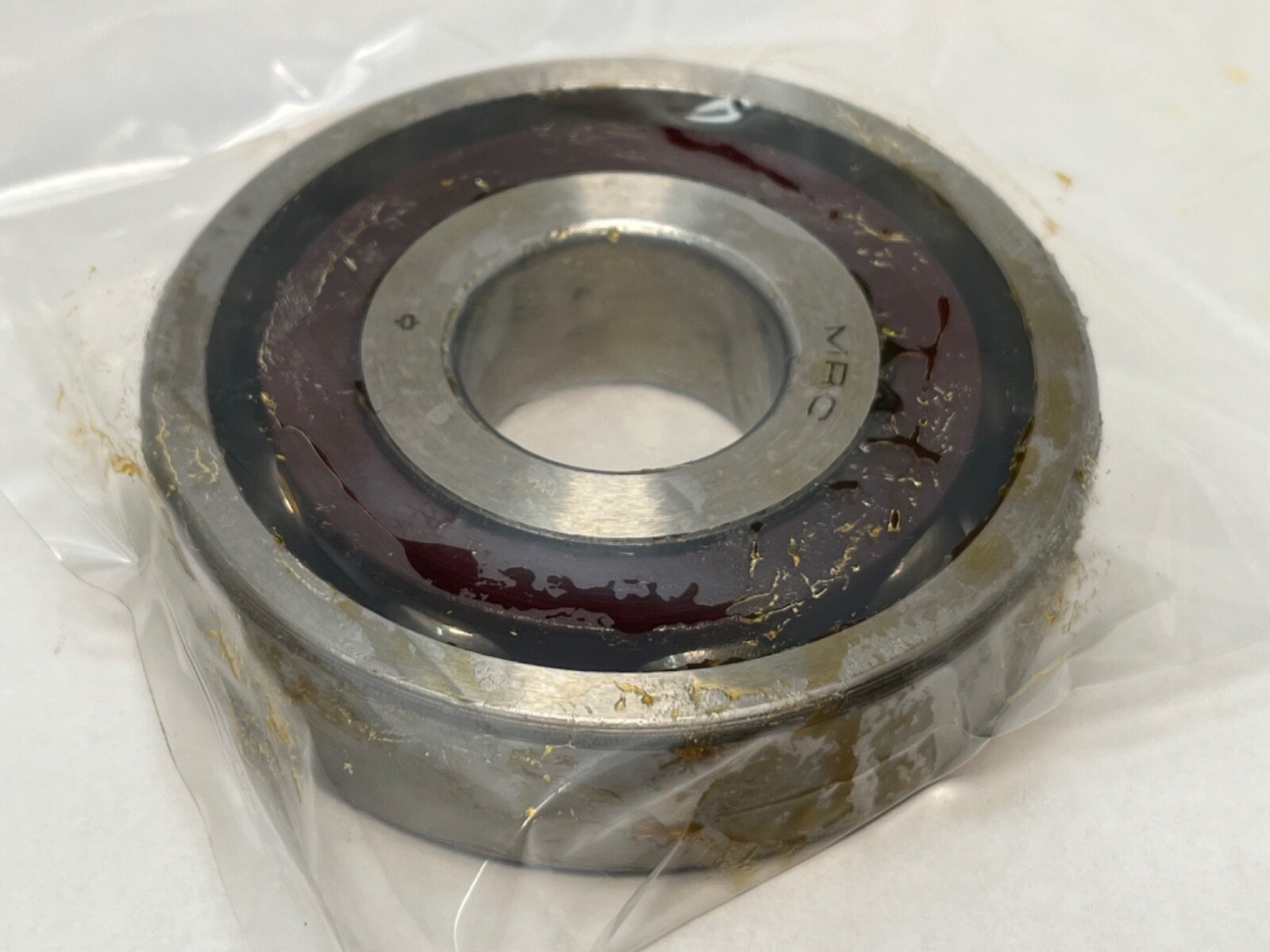

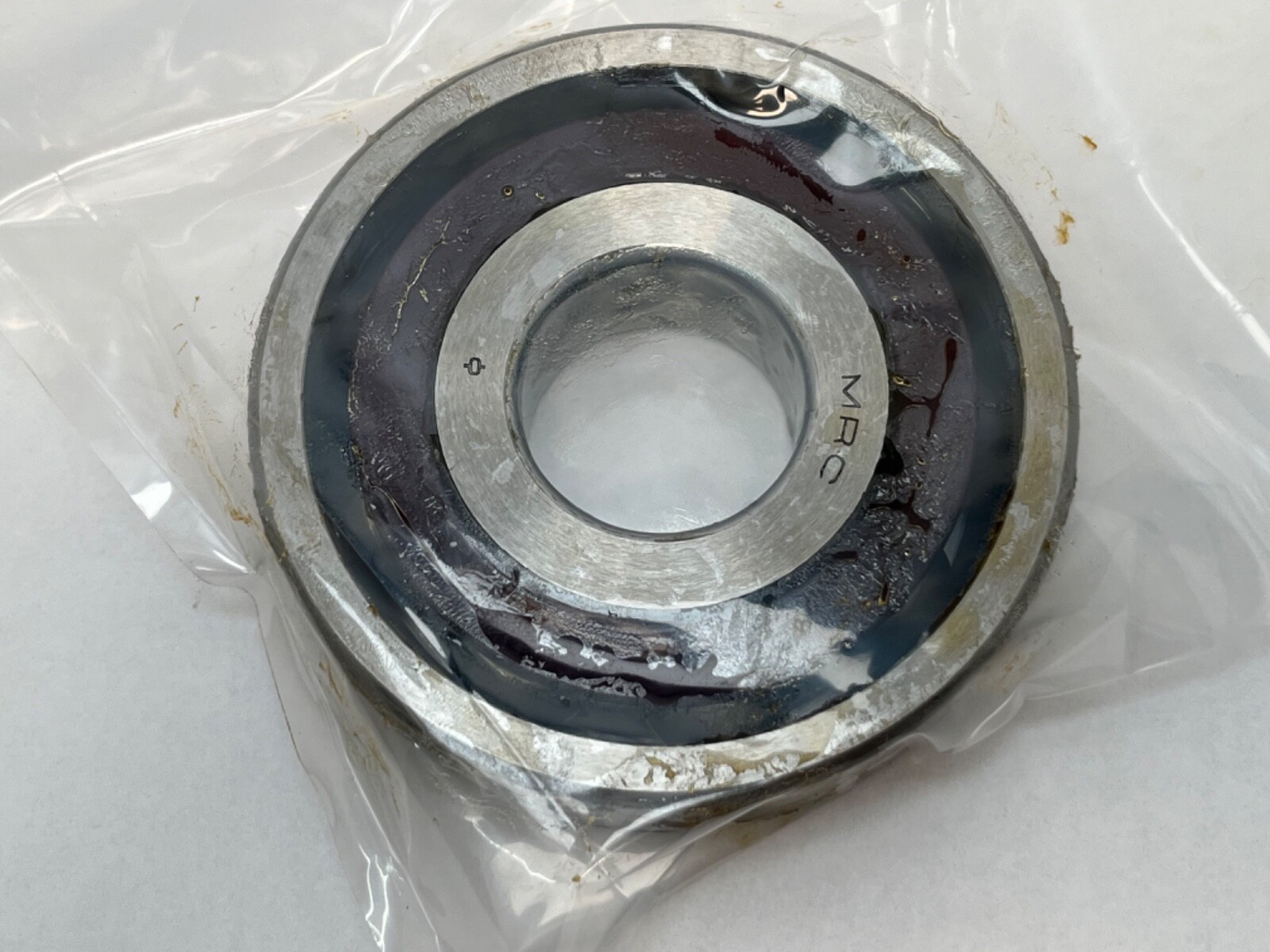

Single-row 15 degree angular contact ball bearing, 35 x 100 x 25 mm, heavy 400 series, counterbored outer ring, ABEC 3 precision, one-direction thrust.
List Price
$76.36
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 407-R |
| Model | 7407C / 407 R |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm (1.3780 in) |
| OD | 100 mm (3.9370 in) |
| Width | 25 mm (0.9843 in) |
| Base Number | 407 |
|---|---|
| Industry Terms | R-type angular contact bearing; heavy series angular contact; counterbored ball bearing; MRC heavy series |
| Common Misspellings | 407-RD single; 7407R; MCR 407R |
| Application Types | Heavy radial and one-direction thrust duty; vertical pump shafts; gear drives; machine spindles |
| Bore Shaft Size | 35 mm (1.3780 in) |
| Mpn Variants | 407R; 407-R; 407 R; 7407C; 7407-C |
| Manufacturer Status | Obsoleted by MRC; 400-R and 400-RD Heavy Series listed for reference only |
| Material | Chrome steel |
| Precision Rating | ABEC 3 |
| Series | MRC 400-R Heavy Series |
| Rolling Elements | Steel balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Part Number | 407R |
| Cross Reference 1 | 7407-C (ISO heavy angular contact, same 35x100x25, 15 deg) |
|---|
MRC 407-R single-row angular contact ball bearing, MRC 400-R Heavy Series. Bore Diameter: 35 mm (1.3780 in). Outside Diameter: 100 mm (3.9370 in). Width: 25 mm (0.9843 in). Contact Angle: 15°. Precision: ABEC 3. Number Of Rows: 1. Rolling Elements: Steel balls. Closure Type: Open. Unit Quantity: 1 Pc. Thrust capacity acts in one direction.
407 — bore code, 35 mm, in MRC’s 400 Heavy Series.
R — R-type construction, a single-row 15° angular contact bearing with a counterbored outer ring.

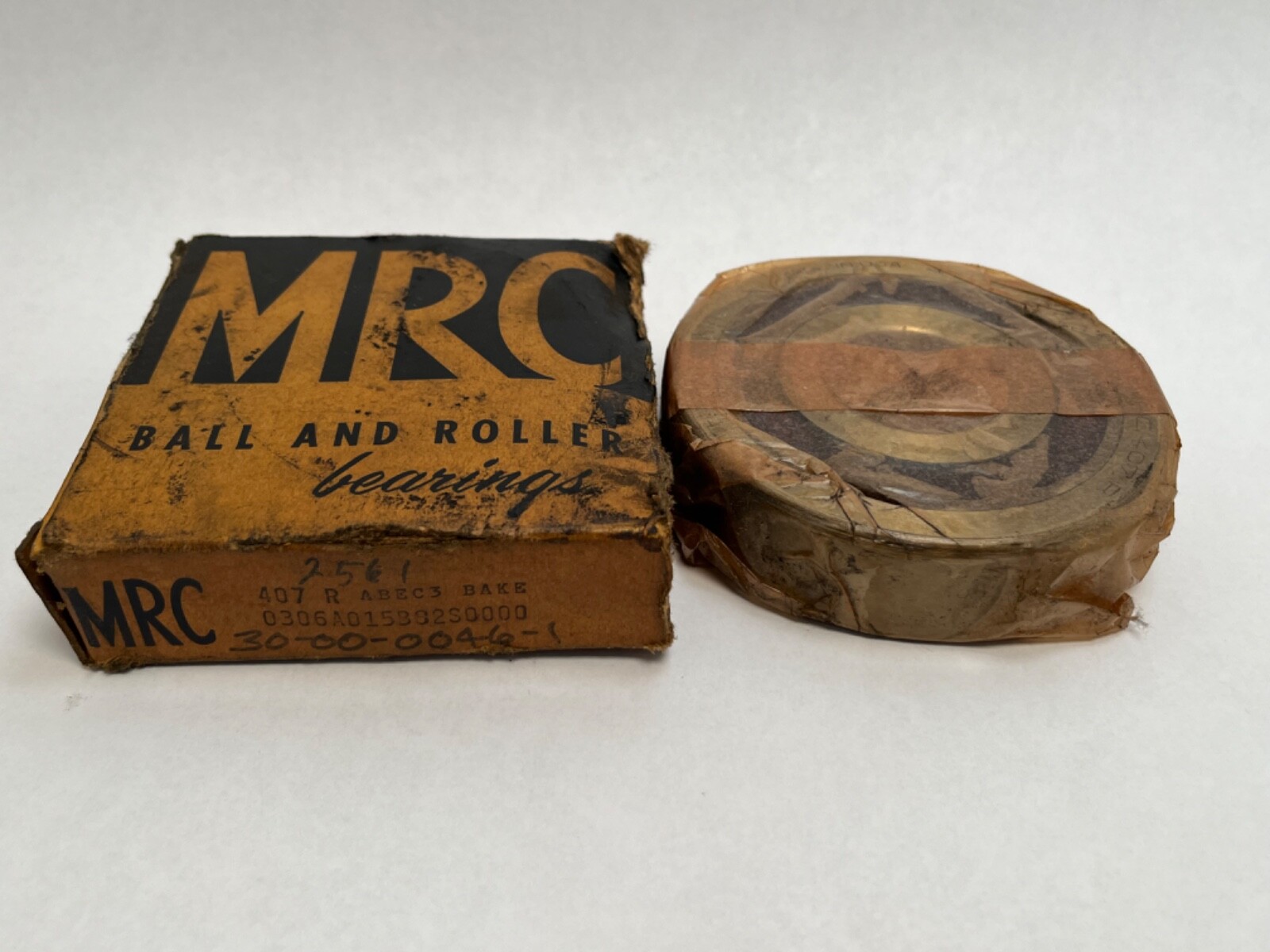

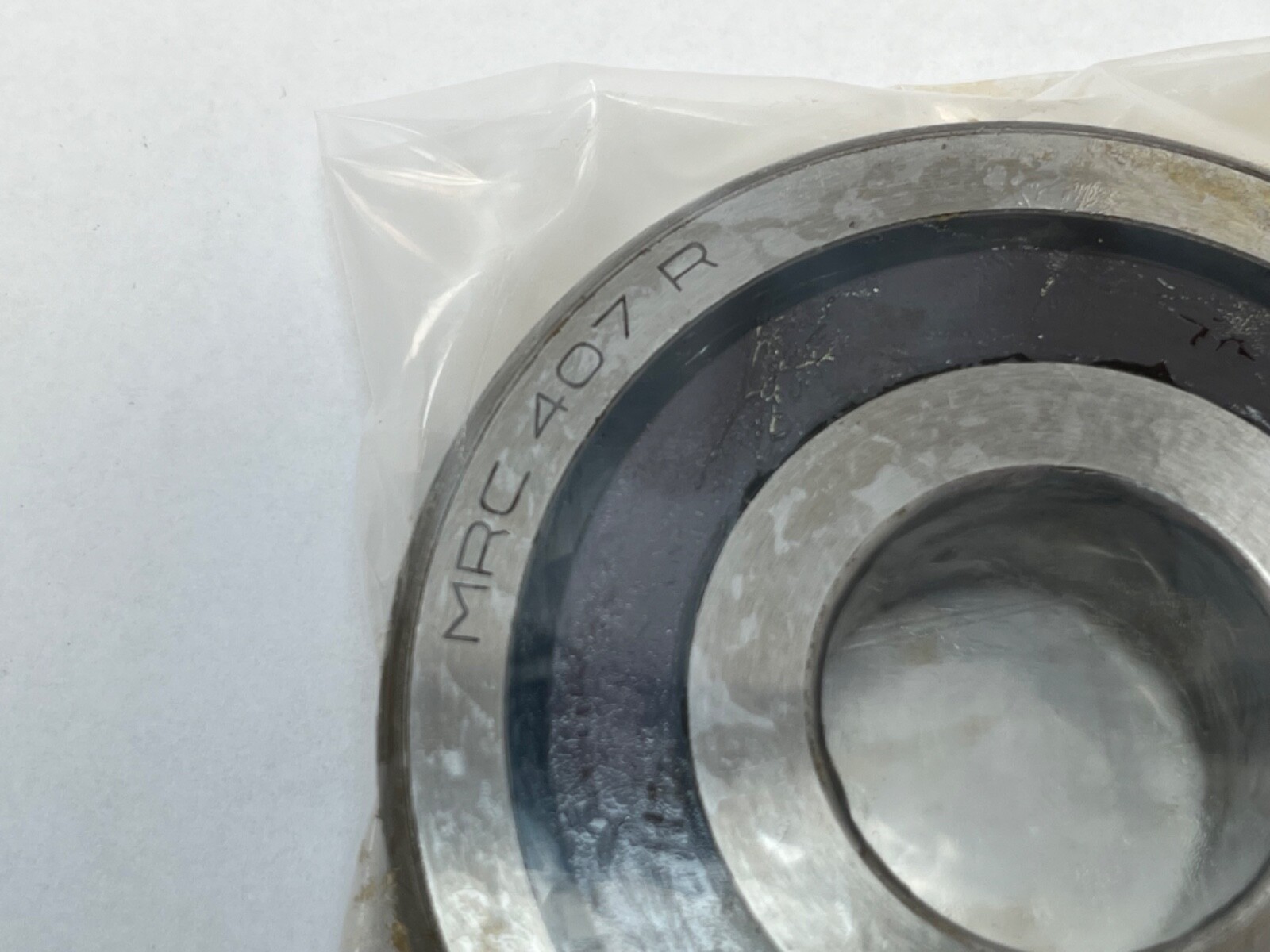

Carton markings — 407R, 407-R and 407 R.
Bore Diameter: 35 mm. Outside Diameter: 100 mm. Width: 25 mm. Contact Angle: 15°. Precision Rating: ABEC 3, with tighter bore, outside-diameter and runout tolerances than ABEC 1. Series: MRC 400-R Heavy Series. Material: Chrome steel. Harmonization Code: 8482.10.50.28.
The Heavy Series section has a 100 mm outside diameter at a 35 mm bore, against 62 mm for an ISO 6207 deep groove bearing on the same shaft. That section carries very heavy radial load, heavy one-direction thrust, or a combination. The 15° contact angle keeps speed capability high relative to 25° or 40° bearings. Maximum shaft fillet radius cleared by the bearing corner, ra: 1.5 mm (0.06 in). Maximum housing fillet radius, rb: 1.0 mm (0.040 in). The counterbored side is the low-shoulder face and does not carry thrust.
Cross-reference: 7407-C. The 407-R shares its 35 x 100 x 25 mm envelope and 15° contact angle with the ISO 7407 C heavy angular contact section, carried on the carton as 7407-C. Two 407-R bearings mounted back-to-back form the 407-RD duplex arrangement, 35 x 100 x 50 mm, which takes thrust in both directions. MRC has obsoleted the 400-R and 400-RD Heavy Series.
35 mm bore, 100 mm outside diameter, 25 mm width.
15° contact angle and ABEC 3 precision.
7407-C is the ISO heavy angular contact designation with the same 35 x 100 x 25 mm envelope and 15° contact angle.
