Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock
Single-direction thrust ball bearing, 75 mm bore x 110 mm OD x 27 mm high, P5 / ABEC 5 tolerance, 67,000 N axial dynamic rating, pressed steel cage.
List Price
$53.52
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 51215 P5 |
| ID | 75 mm |
| OD | 110 mm |
| Width | 27 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Lubricant | Grease |
| Series | 51200 |
| Rolling Elements | Ball |
| Mpn Variants | 51215.P5, 51215-P5, 51215P5, 51215 |
| Precision Class | ABEC 5 / P5 |
| Dynamic Load Rating | 67,000 N |
| Static Load Rating | 169,000 N |
| Precision Rating | ABEC 5 / P5 |
| Bearing Type | Thrust Ball Bearing, Open |
| Item Weight | 0.795 kg (1.75 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.80.00 |
| Cross Reference 1 | SKF 51215 - normal tolerance, not P5 |
|---|---|
| Cross Reference 2 | NSK 51215 - normal tolerance, not P5 |
| Cross Reference 3 | NTN 51215 - normal tolerance, not P5 |
| Cross Reference 4 | Koyo 51215 - normal tolerance, not P5 |
| Cross Reference 5 | Timken 51215 - normal tolerance, not P5 |

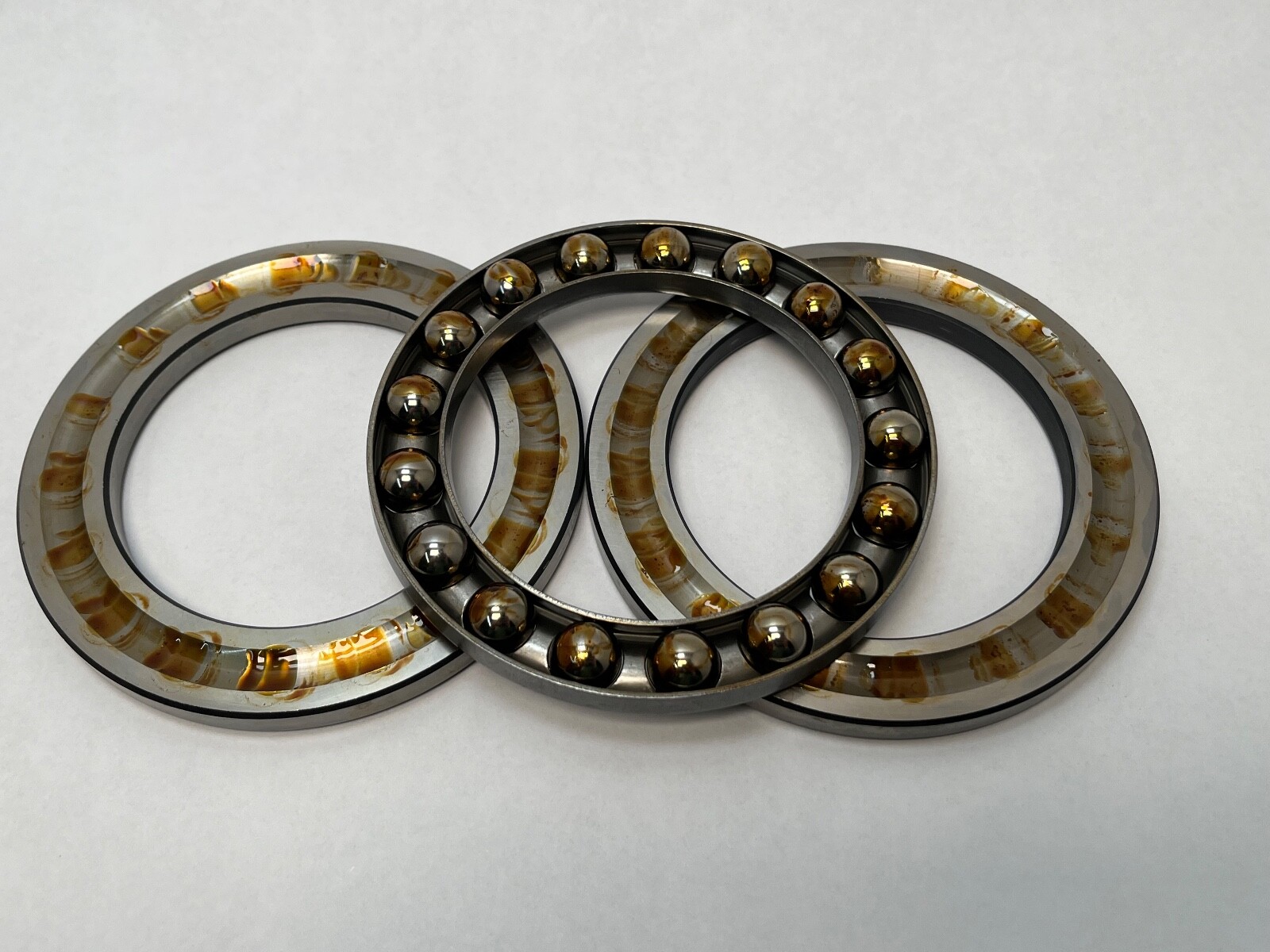

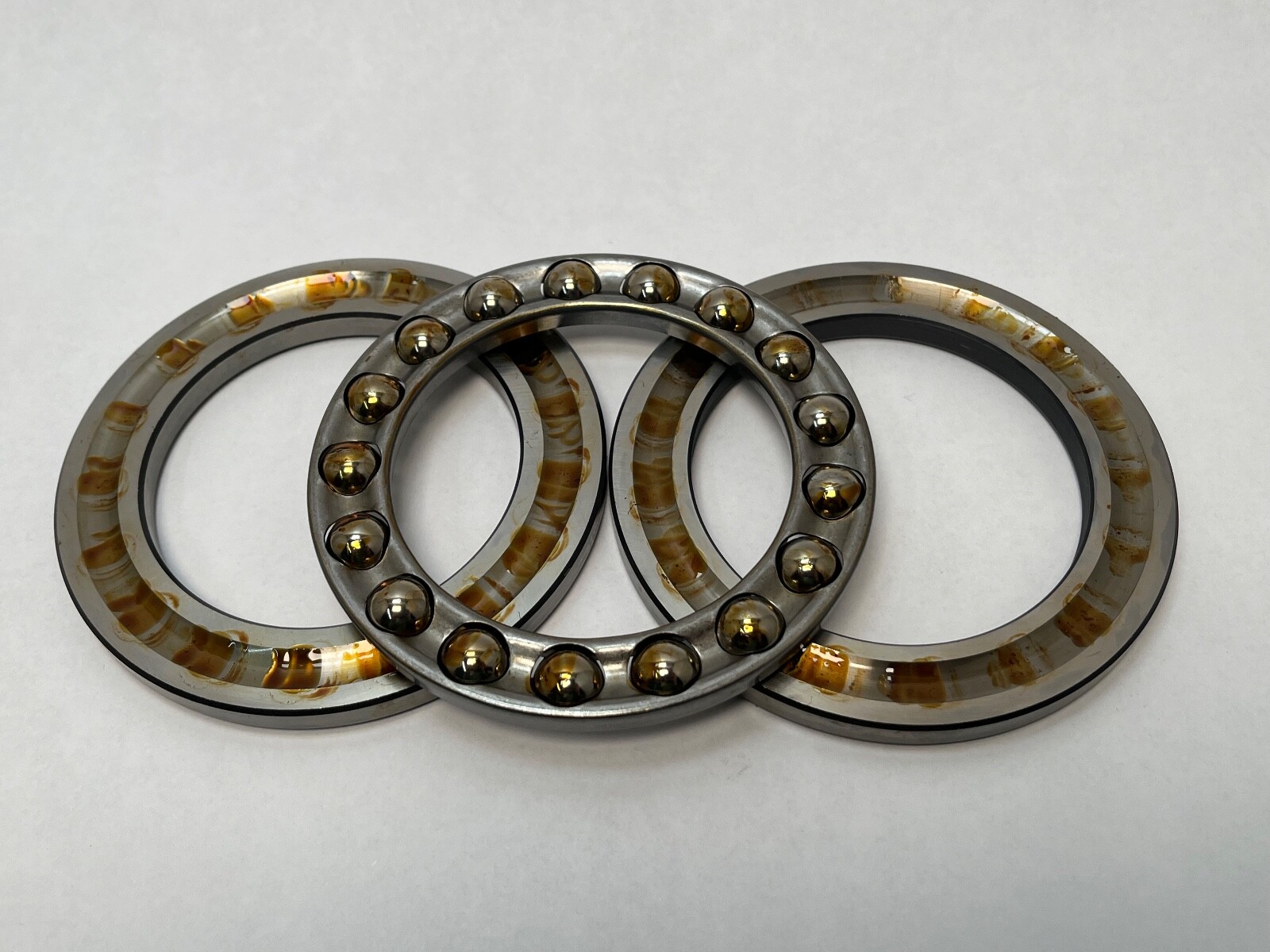

FAG 51215-P5 single-direction axial deep groove ball bearing: shaft washer, housing washer and ball-and-cage assembly. Bore Diameter: 75 mm. Outside Diameter: 110 mm. Height: 27 mm. Precision Class: ABEC 5 / P5. Rolling Elements: Ball.
512 — single-direction thrust ball bearing, 12 dimension series.
15 — bore code, 15 x 5 = 75 mm bore.
P5 — ISO tolerance class P5, equivalent to ABEC 5.
Dynamic Load Rating: 67,000 N axial. Static Load Rating: 169,000 N axial. Fatigue load limit: 7,700 N axial. Cage Material: Pressed steel. Item Weight: 0.795 kg (1.75 lb). The bearing carries axial load in one direction only and no radial load. The P5 class gives tighter washer runout than a standard thrust bearing.
Shaft washer outside diameter: 110 mm. Housing washer bore: 77 mm. Minimum shaft shoulder diameter: 96 mm. Maximum housing shoulder diameter: 89 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1 mm. Minimum load factor A: 0.18.
Unit Quantity: 1 Pc. Complete three-piece thrust bearing.
Same 75 x 110 x 27 mm single-direction envelope: SKF 51215, NSK 51215, NTN 51215, Koyo 51215, Timken 51215. These are normal-tolerance designations unless ordered in class P5.
