Pilot-operated 3-port, 2-position normally closed solenoid valve, SYJ5000 series, base mounted, 24 V DC, 0.55 W, 0.15 to 0.7 MPa, Rc1/8 with sub-plate.
List Price
$41.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SMC |
|---|---|
| MPN | SYJ514-5LOUD-Q |
| Model | SYJ514 5LOUD Q |
| Type | Solenoid Valve |
|---|---|
| Base Number | SYJ514 |
| Industry Terms | Solenoid valve; 3-port solenoid valve; 3/2 valve; Pilot operated solenoid valve; Base mounted valve; Pneumatic directional valve; SYJ valve |
| Common Misspellings | SMC SYJ514 5LOUD Q; SMC SYJ5145LOUD-Q; SMC SYJ541-5LOU-Q; SMC SYJ514-5L0U-Q |
| Application Types | Single-acting cylinder control; Vacuum pad control; Air spring control; Semiconductor equipment; Display manufacturing; Factory automation; Packaging machinery |
| Connector Style | L-type plug connector |
| Maximum Pressure | 0.7 MPa (102 psi) |
| Valve Operation | Normally closed, solenoid and spring return, pilot operated |
| Coil Voltage | 24 V DC |
| Mpn Variants | SYJ514-5LOUD-Q; SYJ5145LOUDQ; SYJ514 5LOUD Q |
| Additional Attributes | Individual pilot exhaust; copper-free specification |
| Min Temp | -10 C |
| Series | SMC SYJ5000 |
| Max Temp | 50 C |
| Nominal Rated Input Voltage | 24 V DC |

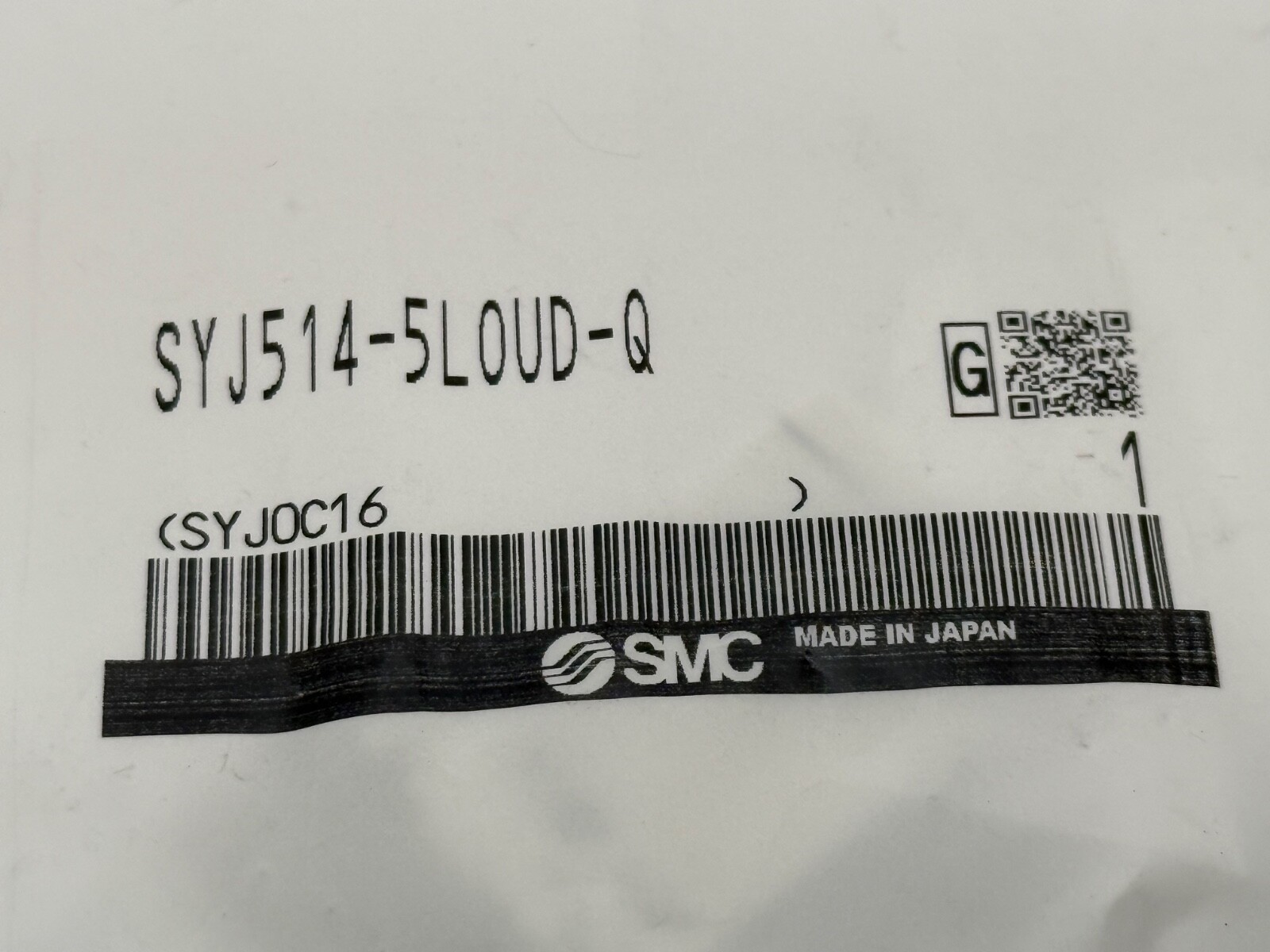

| Part Number | SYJ514-5LOUD-Q |
| Mounting Type | Base mounted, sub-plate or manifold |
| Cross Reference 1 | SYJ514-5LOU-Q - without D code |
|---|

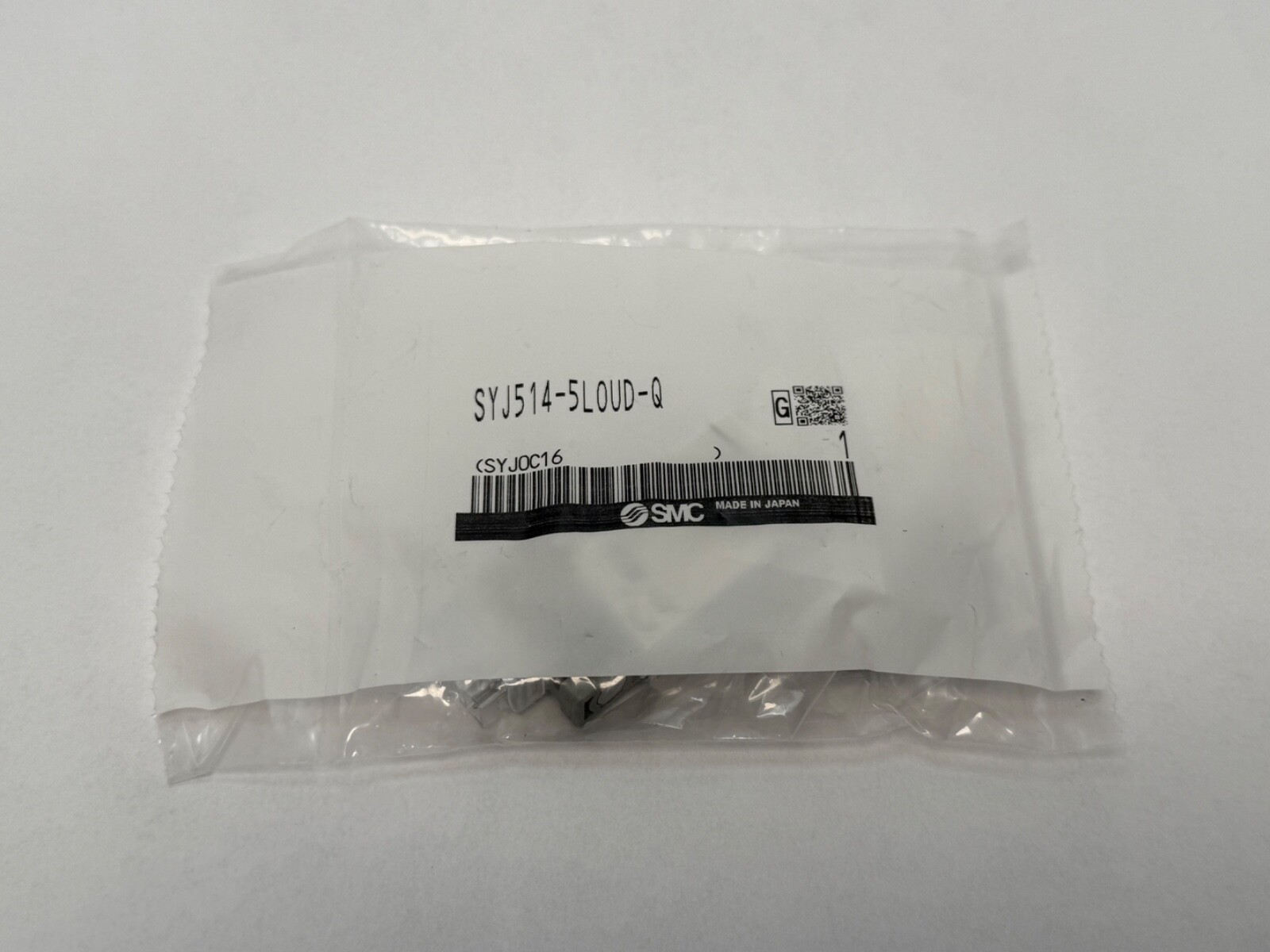

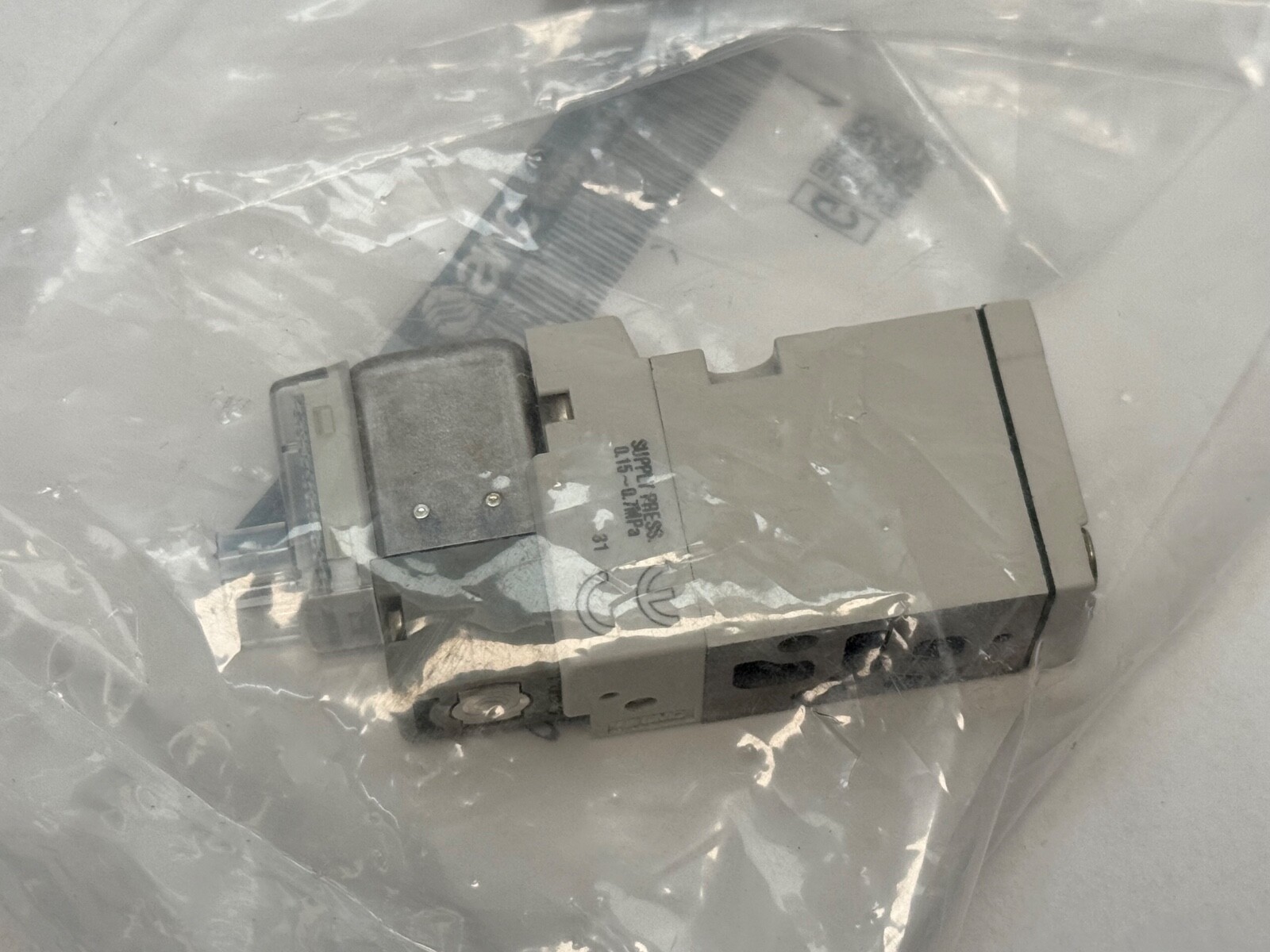

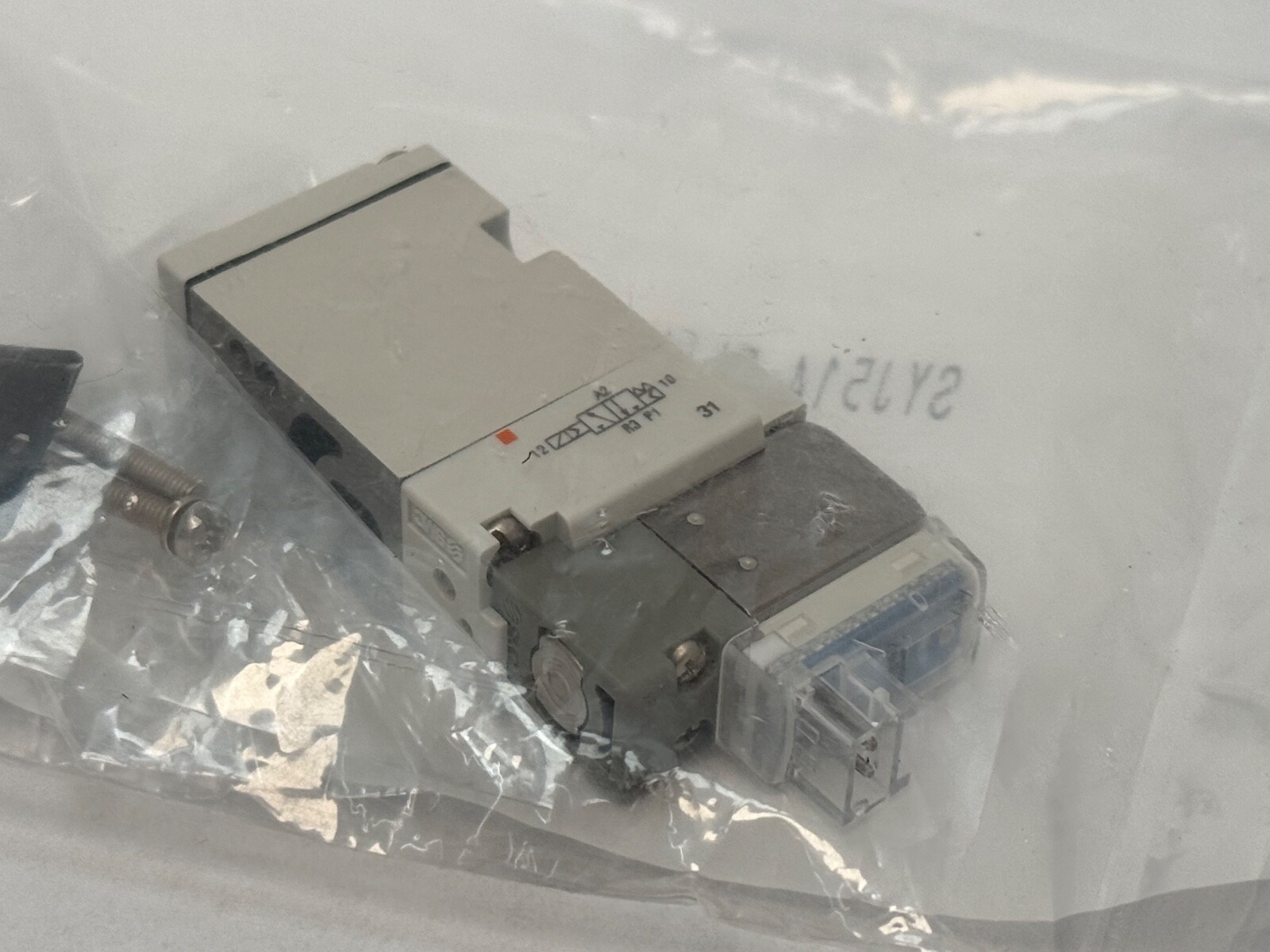

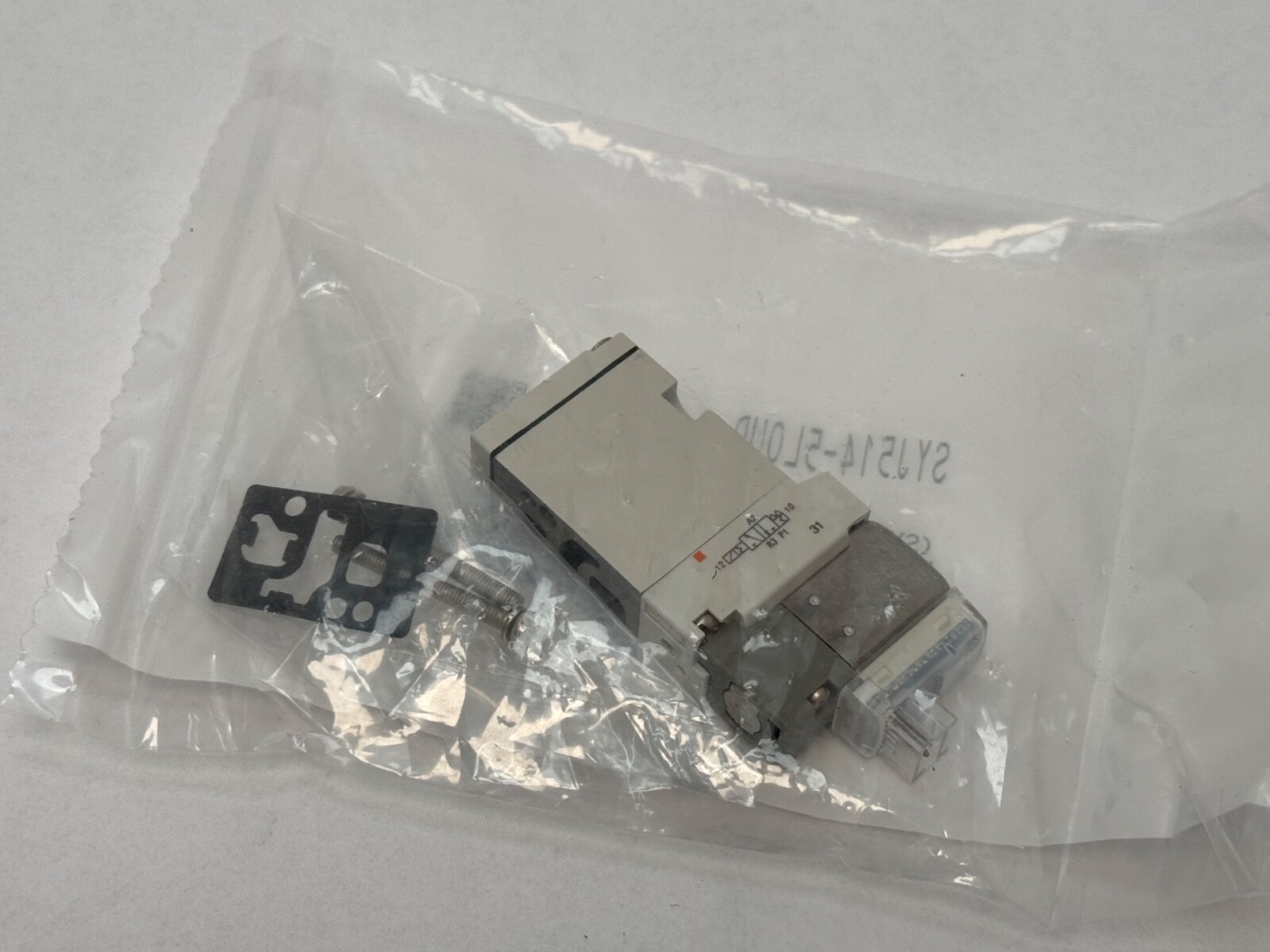

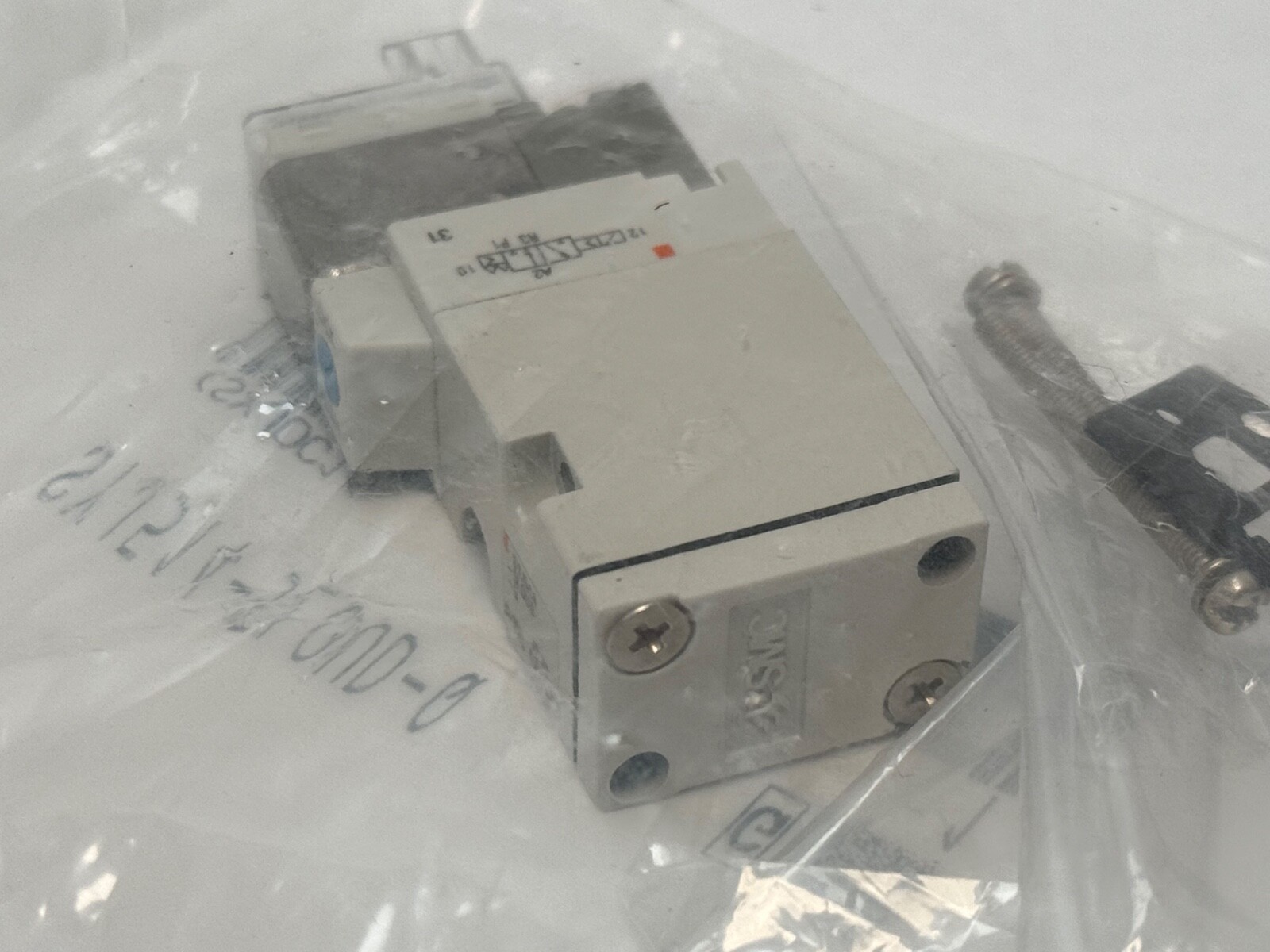

SMC SYJ514-5LOUD-Q pilot-operated solenoid valve from the SYJ5000 series: 3-port, 2-position, normally closed, base mounted, 24 V DC coil. Unit Quantity: 1 Pc.
SYJ5 — SMC SYJ5000 solenoid valve series.
1 — normally closed function.
4 — base-mounted piping.
5 — 24 V DC coil.
LO — L plug connector, without connector.

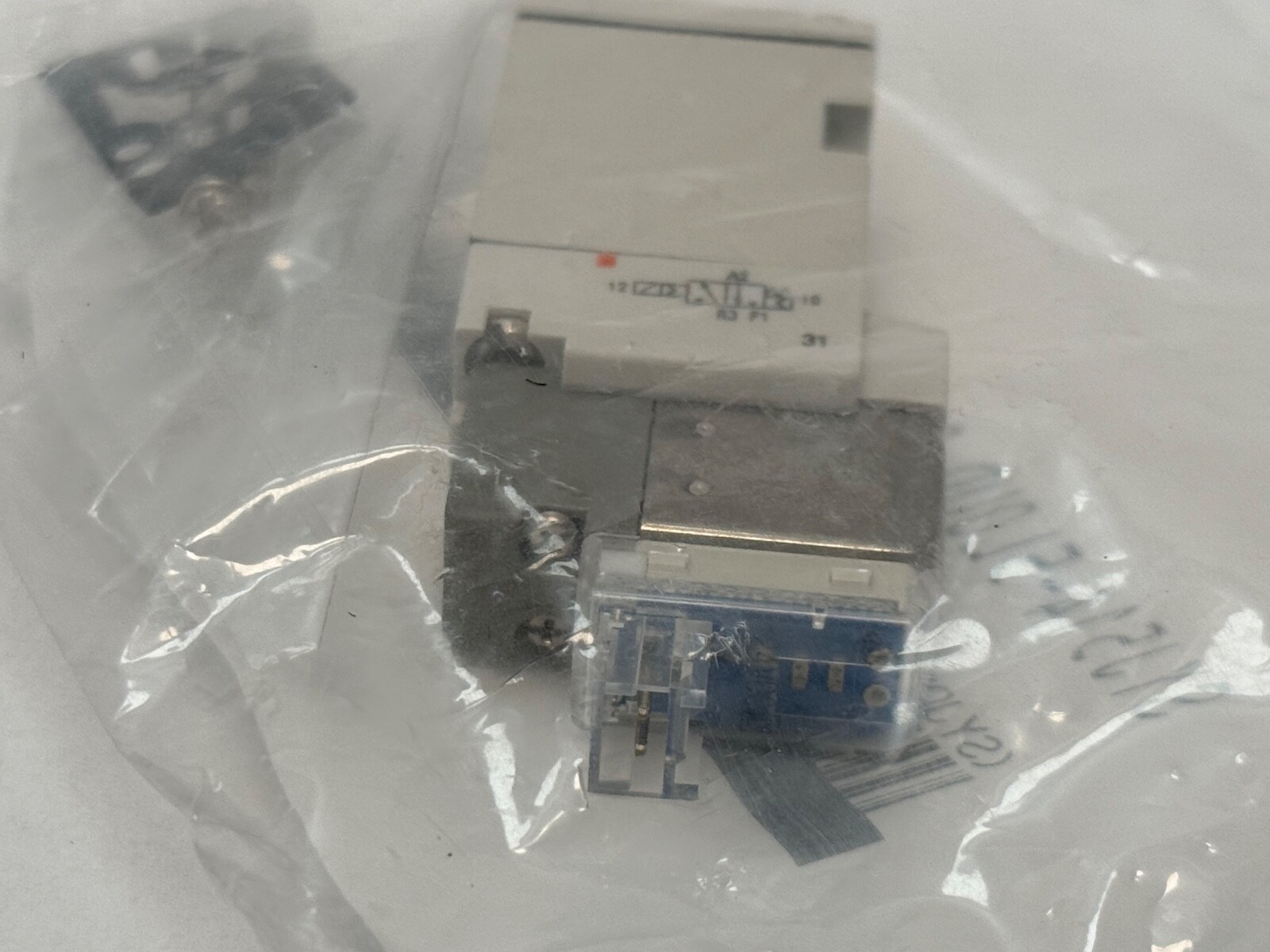

U — surge voltage suppressor with light, non-polar.
Manufacturer: SMC. Series: SYJ5000. Ways and Positions: 3-port, 2-position. Valve Operation: normally closed, solenoid and spring return, pilot operated. Coil Voltage: 24 V DC. Power Consumption: 0.55 W. Operating Pressure: 0.15 to 0.7 MPa. Maximum Flow Rate: 245.38 NL/min. Operating Temperature: -10 °C to +50 °C. Seal Type: rubber seal. Medium: compressed air.

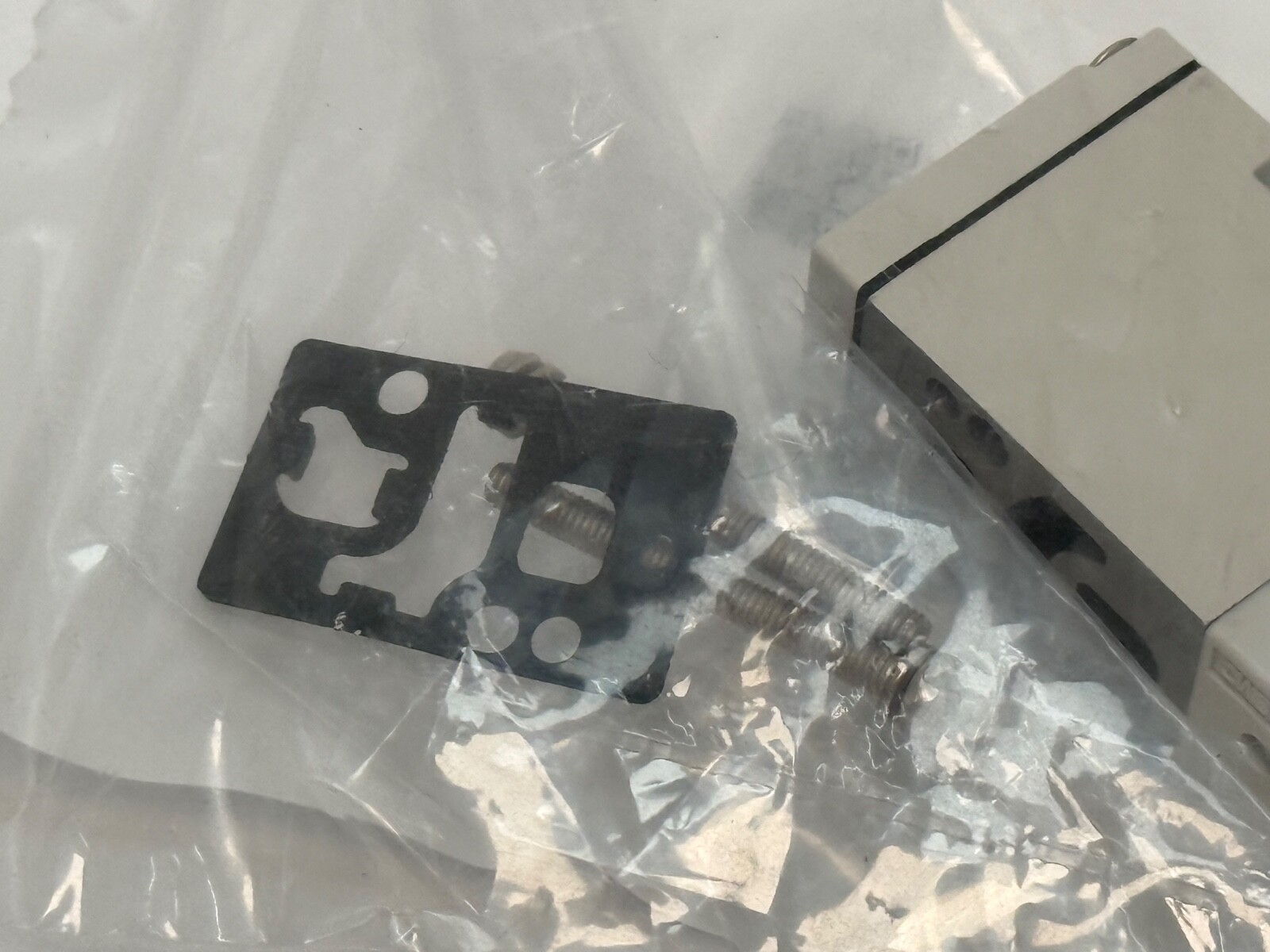

Mounting: base mounted. Port Size: Rc1/8 with sub-plate. A base-mounted valve bolts to a sub-plate or manifold block that carries the pipe threads.
Cross-reference: SYJ514-5LOU-Q, the same valve without the D code. Part number variants: SYJ5145LOUDQ, SYJ514 5LOUD Q.
24 V DC, with a power consumption of 0.55 W.
Operating Pressure: 0.15 to 0.7 MPa. Operating Temperature: -10 °C to +50 °C.
It is base mounted, with Port Size Rc1/8 with sub-plate.
