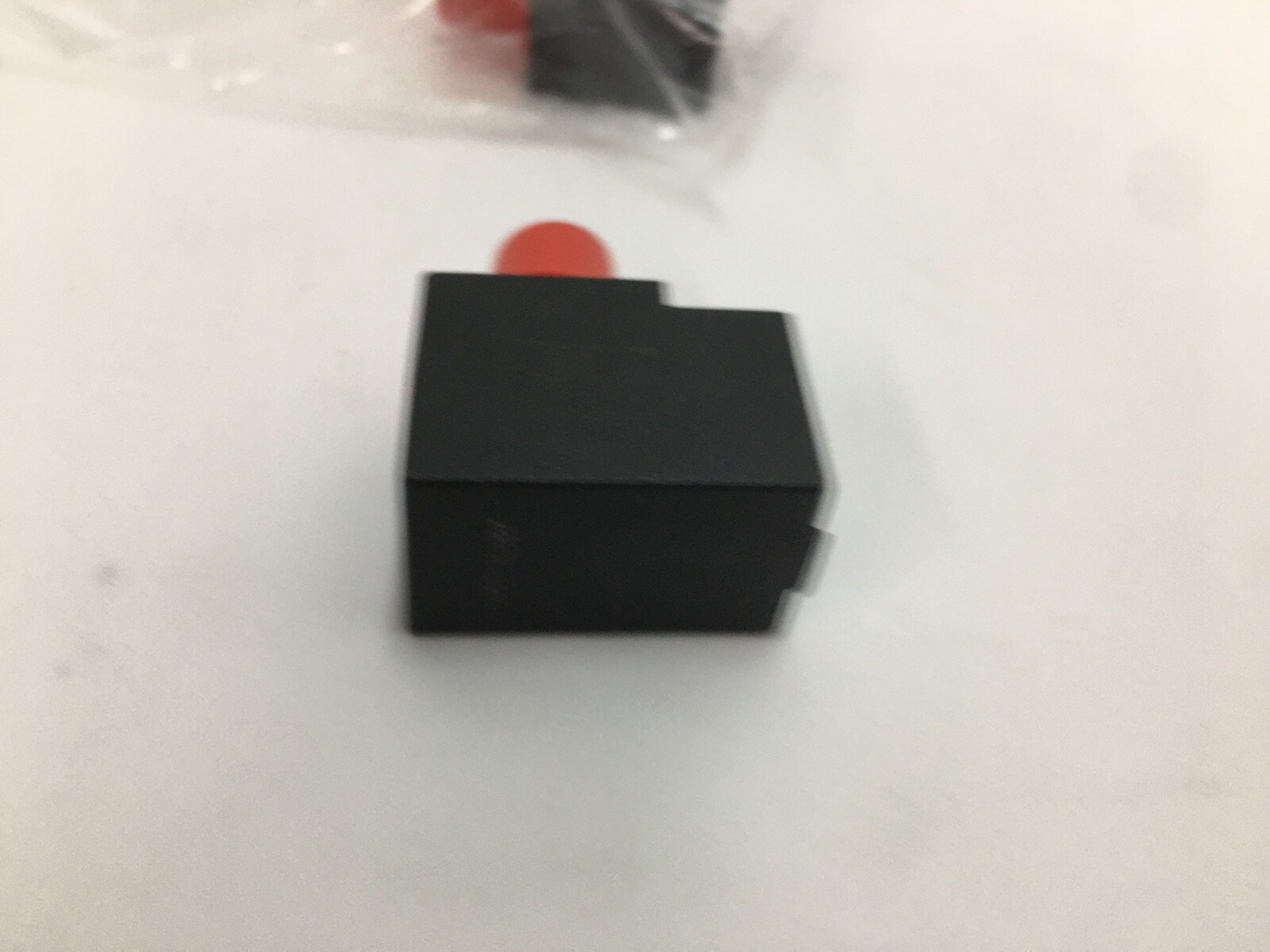

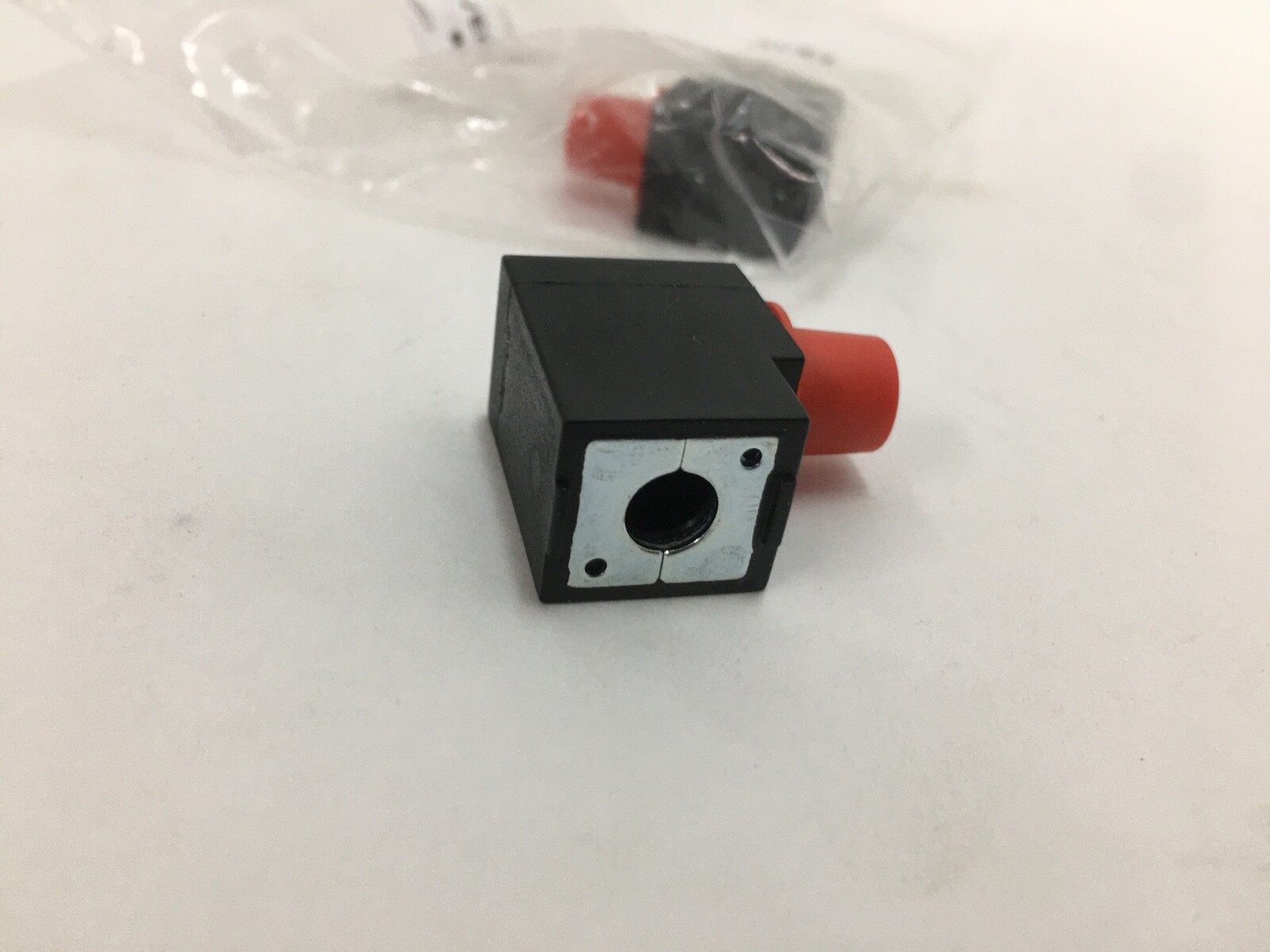

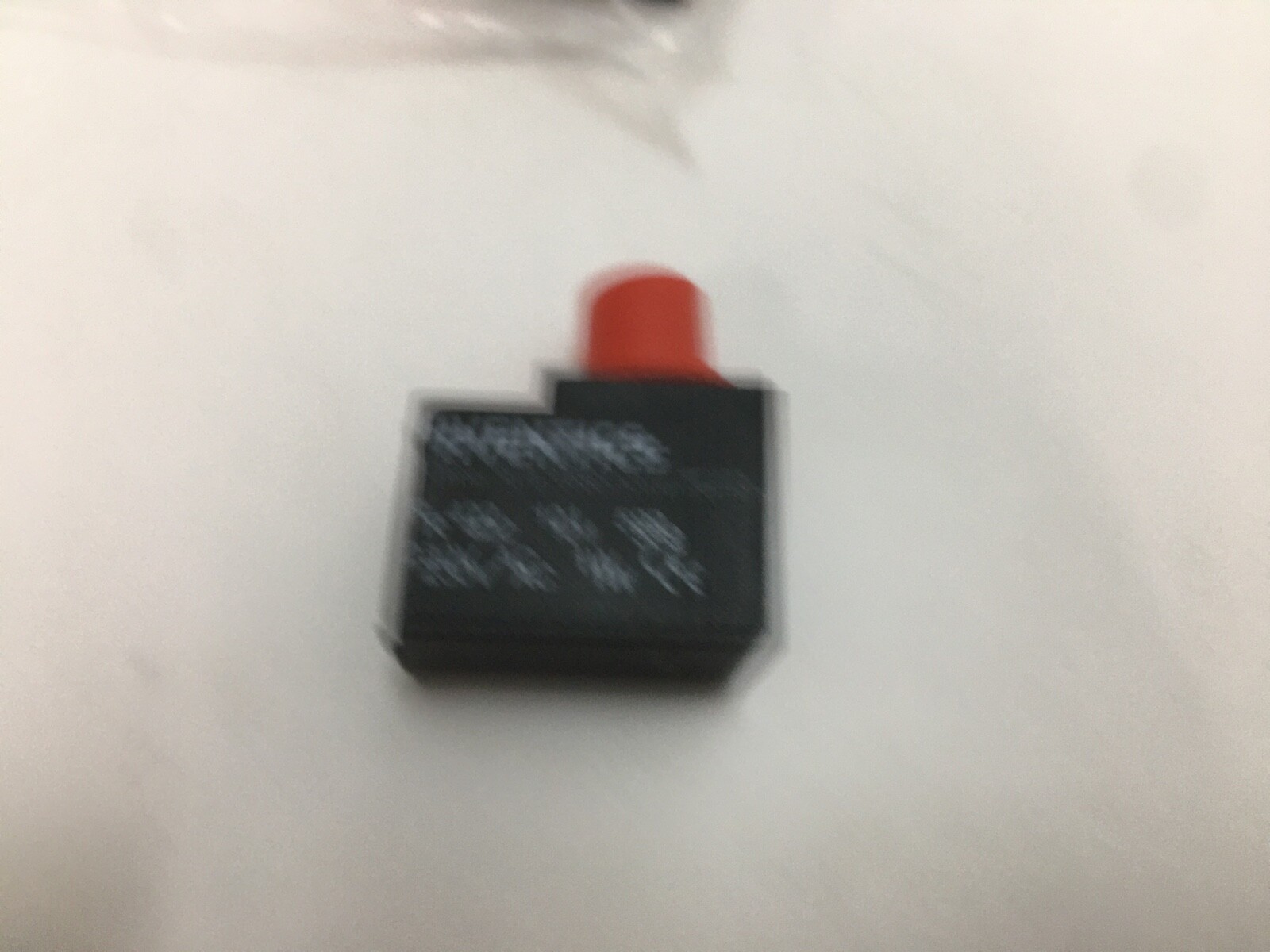

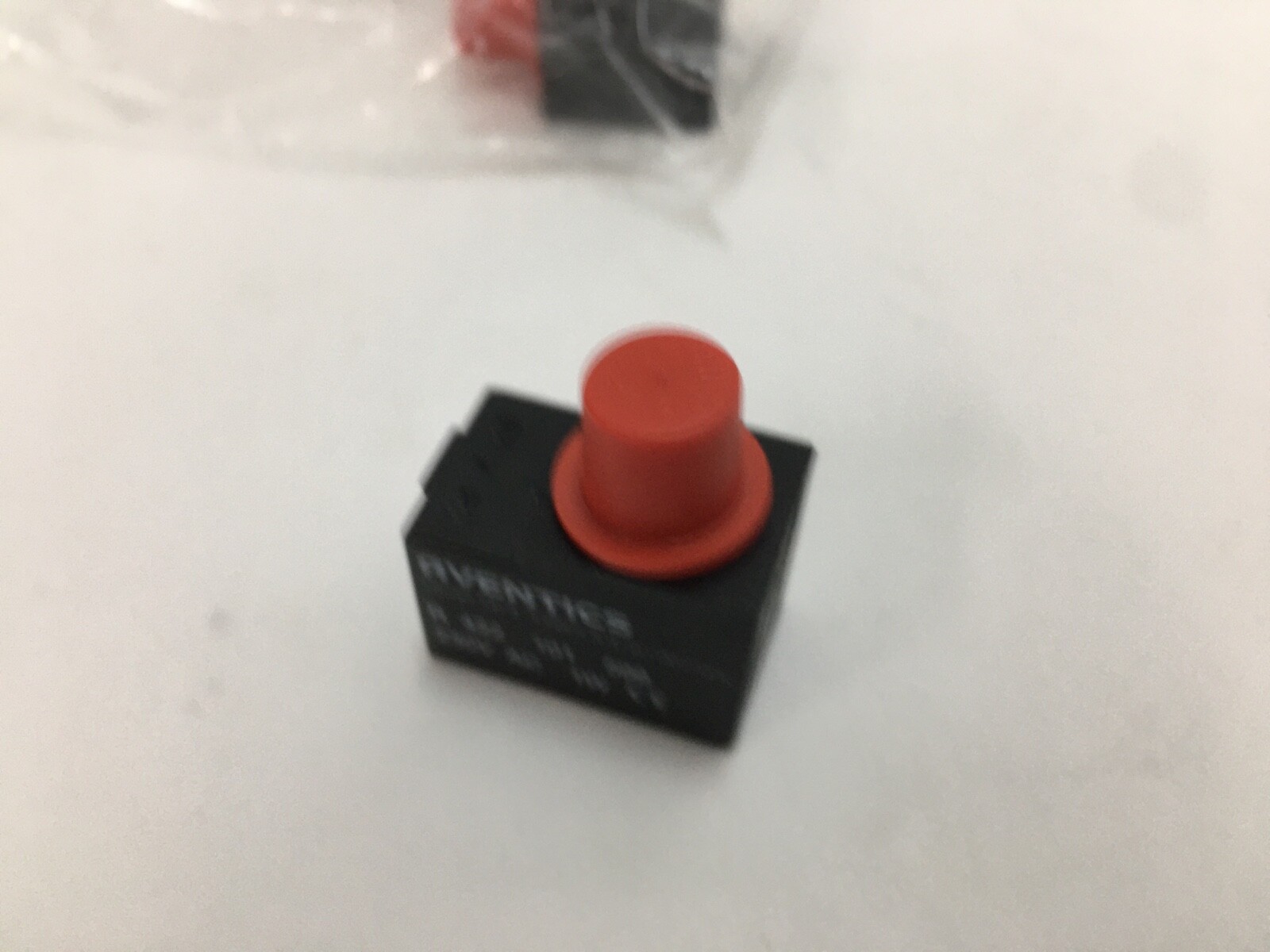

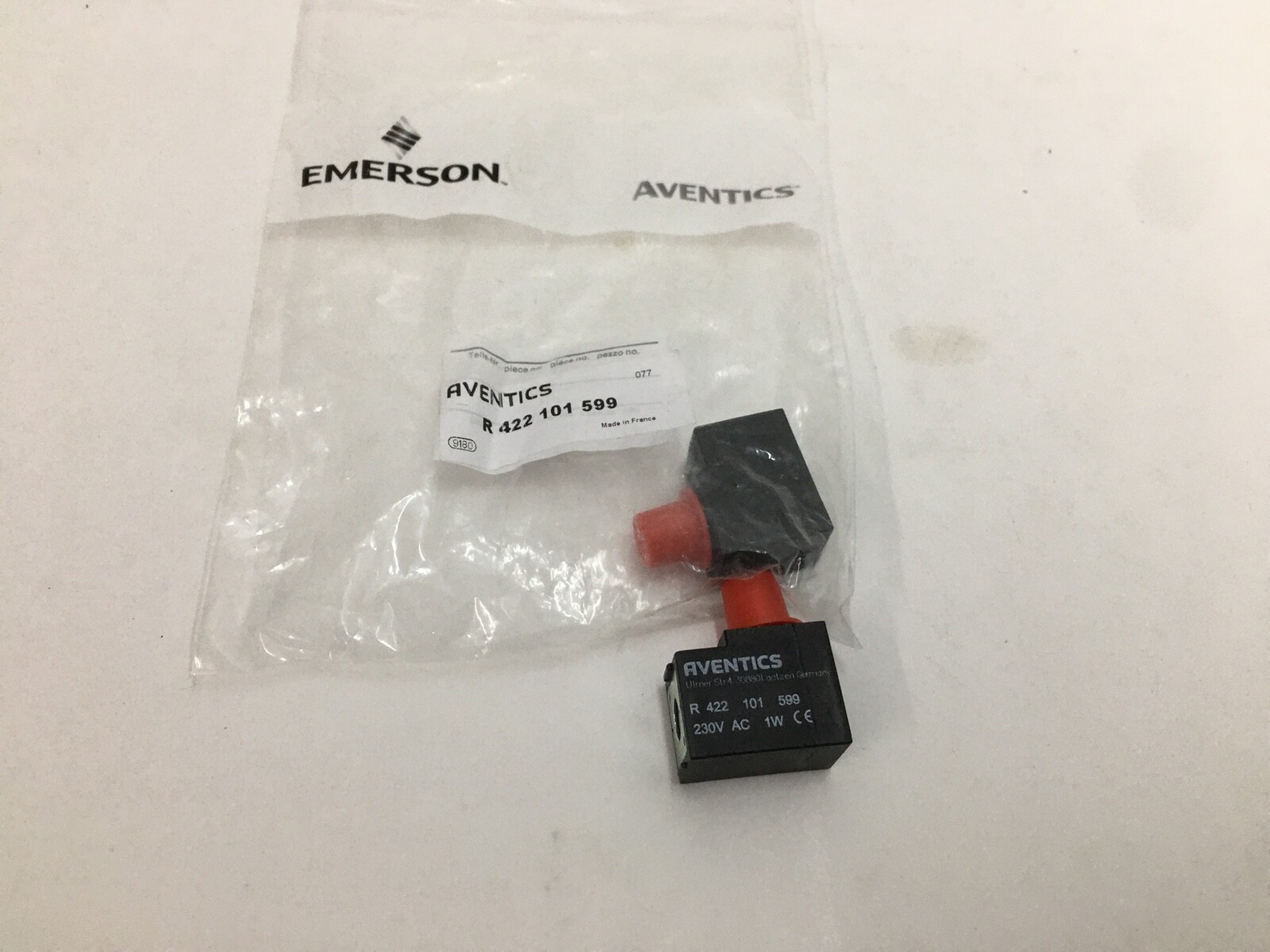

AventicsR422101599Solenoid Valve Coil — 230 V AC, 50/60 Hz, Form C Plug, 15 mm, IP65

Condition: New – Open box

Availability:

2 in stock

AVENTICS R422101599 CO1 solenoid valve coil, 230 V AC 50/60 Hz, Form C ISO 15217 3-pin plug, 15 mm width, IP65, 100% duty cycle. Set of 2 pieces.

List Price

$28.90

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAventics
MPNR422101599
ModelR-422-101-599

Technical Specifications

Valve OperationSolenoid
Coil Voltage230 V AC
Voltage230 V AC
Mpn VariantsR422101599, R-422-101-599, R 422 101 599
Min Temp-10 °C
SeriesCO1
Max Temp50 °C
TypeSolenoid Valve Coil
Ip RatingIP65
Item Weight0.022 kg
Housing MaterialPolyamide
Industry TermsSolenoid valve coil; 230 VAC valve coil; pneumatic valve solenoid coil; CO1 coil; Form C coil
Common MisspellingsAventic R422101599, Aventis R422101599, R 422101599, R422 101 599, R4221O1599
Application TypesPneumatic valve control, automation equipment, packaging machinery, material handling
Seller Part Number: AM3B3#YD3O1M

Product Description

What this part is:

AVENTICS R422101599 is a 230 V AC solenoid valve coil from the AVENTICS CO1 series, with a Form C plug connection. Each purchase is a set of 2 coils.

Specifications:

Series: CO1. Operational Voltage: 230 V AC at 50 Hz and 60 Hz. Voltage Tolerance: -10 % / +10 %. Holding Power: 1.6 VA at 50 Hz, 1.4 VA at 60 Hz. Switch-on Power: 2.2 VA at 50 Hz, 2 VA at 60 Hz. Duty Cycle: 100 % ED. Electrical Connection: Plug, Form C. Connector Standard: ISO 15217. Number of Poles: 3-pin. Protection Class: IP65 (EN 60529). Ambient Temperature: -10 °C to 50 °C. Housing Material: Polyamide. Weight: 0.022 kg. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Coil Width: 15 mm.

Compatibility and replacement:

Part number formats: R422101599, R-422-101-599, R 422 101 599. AVENTICS product description: COIL KIT TC SERIES 230V AC FORM C.

CAD model and data sheet: available from Emerson AVENTICS (discreteautomation.emerson.com).

Frequently asked questions:

What voltage is the AVENTICS R422101599 coil?

230 V AC, rated for both 50 Hz and 60 Hz, with a -10 % / +10 % tolerance.

What connector does it use?

A Form C 3-pin plug to ISO 15217, sealed to IP65.

How much power does the coil draw?

Holding Power: 1.6 VA at 50 Hz and 1.4 VA at 60 Hz. Switch-on Power: 2.2 VA at 50 Hz and 2 VA at 60 Hz.
