SircaAP00DACQ3SButterfly Valve with Double Acting Pneumatic Actuator — AP Size 00, 10 bar

Condition: New – Open box

Availability:

1 in stock

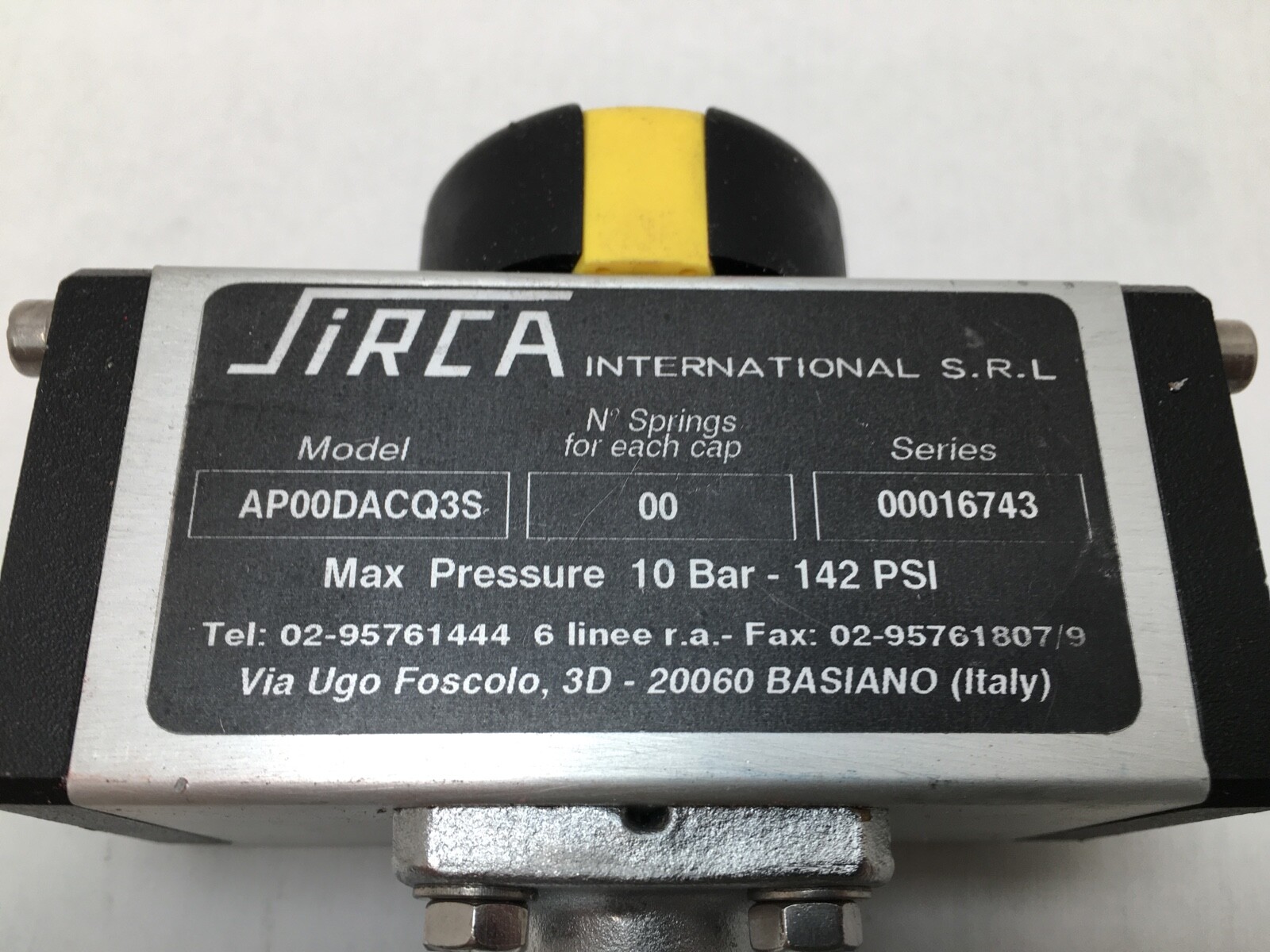

Sirca AP00DACQ3S butterfly valve fitted with a Sirca AP size 00 double acting pneumatic rotary actuator, 90 degree quarter-turn, marked 10 bar (142 psi).

List Price

$98.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSirca
MPNAP00DACQ3S
ModelAP 00 DA CQ3S

Technical Specifications

Valve OperationAir-Operated
Mpn VariantsAP00DACQ3S, AP 00 DA CQ3S, AP00DA
TypeButterfly Valve
Industry Termsbutterfly valve with actuator; pneumatic rotary actuator; double acting actuator; quarter-turn actuator; rack and pinion actuator
Common MisspellingsCirca AP00DACQ3S; Sirka AP 00 DA CQ3S; Sirca AP00 DACQ3S
Application TypesProcess piping; automated flow control; pneumatic valve automation
Seller Part Number: AF3B1#10KKVX

Product Description

What this part is:

Sirca AP00DACQ3S butterfly valve assembly fitted with a Sirca AP series pneumatic rotary actuator. The AP series is a rack-and-pinion quarter-turn actuator built by Sirca International for ball, butterfly and plug valves. Valve Type: Butterfly valve. Actuation Type: Pneumatic, double acting. Max Pressure: 10 bar (142 psi). Unit Quantity: 1 Pc.

Decoding the designation:

AP — Sirca AP series pneumatic rotary actuator.

00 — actuator size 00.

DA — double acting. Air pressure drives the actuator both to open and to close.

Specifications:

Actuation: Pneumatic, double acting. Stroke: 90° with travel adjustment. Pressure Marking: 10 bar (142 psi). Operating Pressure, AP series double acting: 2 to 8 bar. Operating Temperature, AP series: -20 °C to +80 °C.

Dimensions and mounting:

Valve Interface: ISO 5211 flange. Pilot Valve Interface: NAMUR.

Compatibility and replacement:

Designation forms: AP00DACQ3S, AP 00 DA CQ3S, AP00DA.

Frequently asked questions:

What is the Sirca AP00DACQ3S?

It is a butterfly valve fitted with a Sirca AP size 00 double acting pneumatic rotary actuator, marked 10 bar (142 psi).

What does DA mean in AP 00 DA CQ3S?

DA means double acting: air pressure drives the actuator both to open and to close. The stroke is 90°.

What mounting interfaces does the AP series actuator have?

The valve interface is an ISO 5211 flange and the pilot valve interface is NAMUR.
