Atos HM-015/350-40 modular double pressure relief valve, ISO 4401 size 06 (NG06), ports A and B cross-discharged, 5 to 350 bar range, 60 l/min maximum flow.
List Price
$197.03
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Atos |
|---|---|
| MPN | HM-015/350-40 |
| Model | HM-015/350/40 |

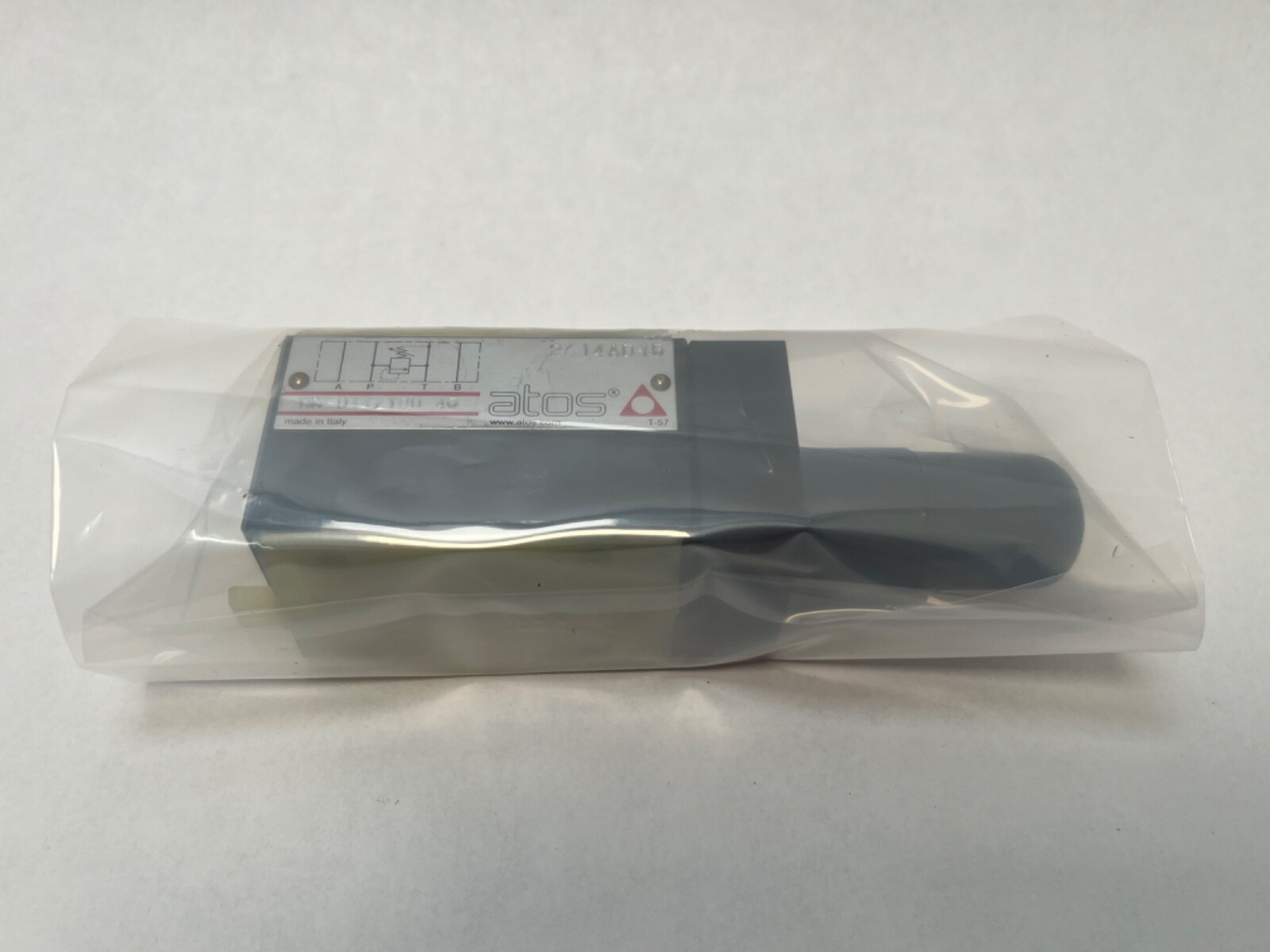

| Condition | New – Open box |
|---|---|
| Maximum Pressure | 350 bar |
| Mpn Variants | HM-015/350-40, HM-015/350/40, HM015/350, 2614AD15, LM-06/100-20 |
| Min Temp | -30 °C ambient |
| Series | HM |
| Max Temp | 70 °C ambient |
| Type | Modular Pressure Relief Valve |

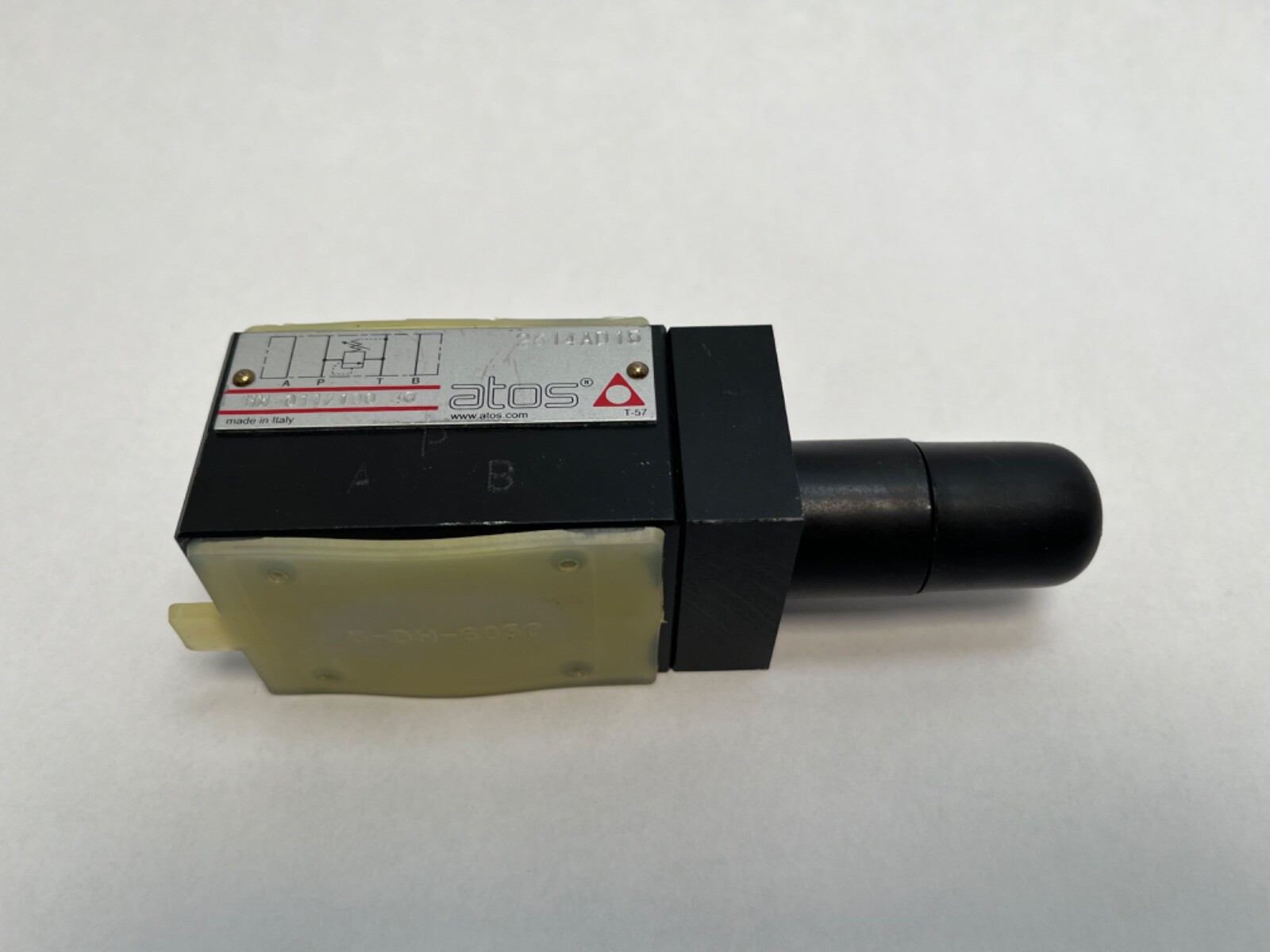

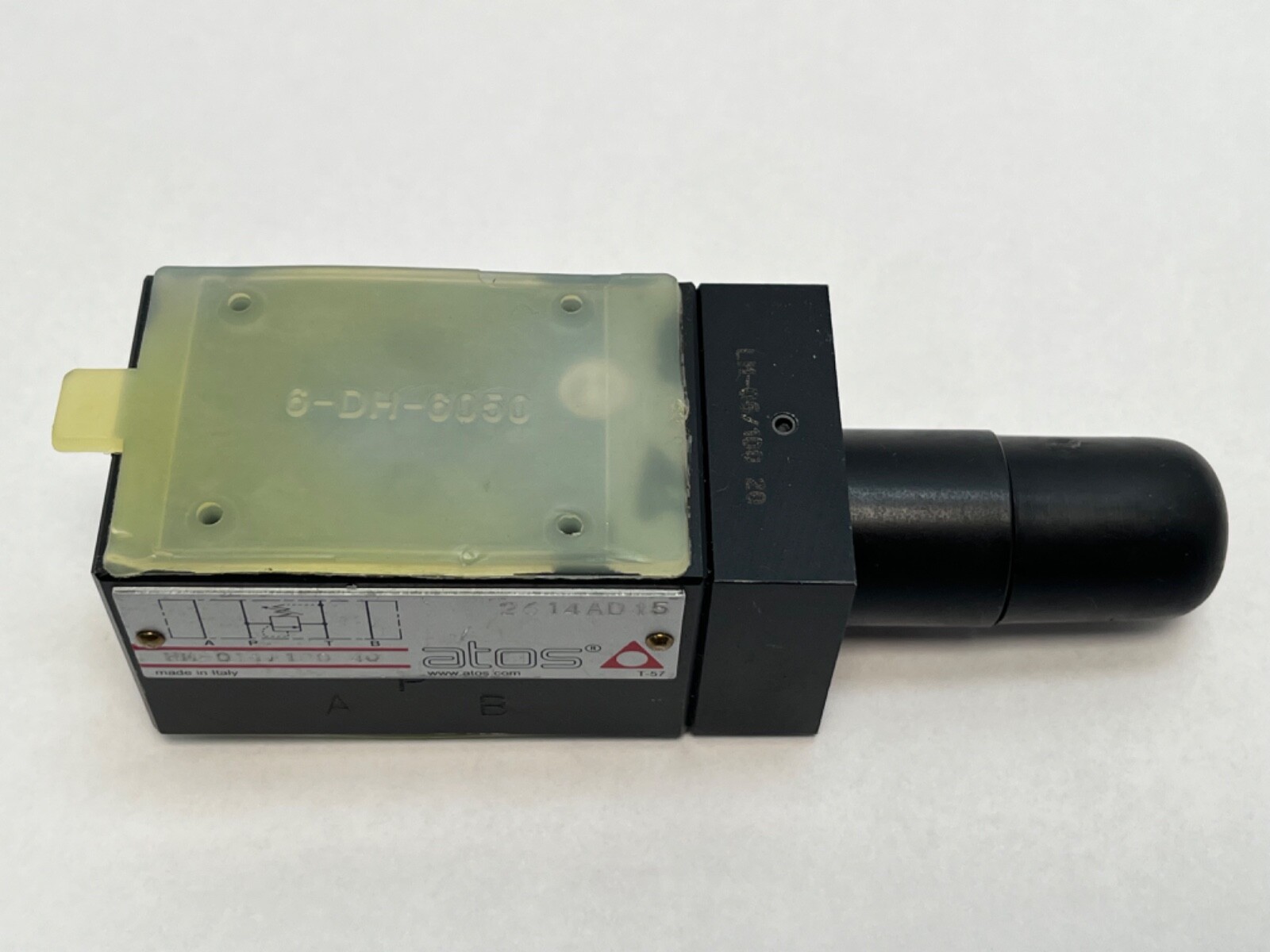

Atos HM-015/350-40 is a double-stage modular pressure relief valve with balanced poppet, for ISO 4401 size 06 (NG06) stacks. The 015 configuration relieves ports A and B with the relieved pressure cross-discharged.
HM — Atos double-stage modular relief valve, size 06, max flow 60 l/min.
015 — double on ports A and B, relieved pressure cross-discharged.
350 — pressure range 5 to 350 bar.
40 — series number.
No seal suffix — NBR seals (standard).

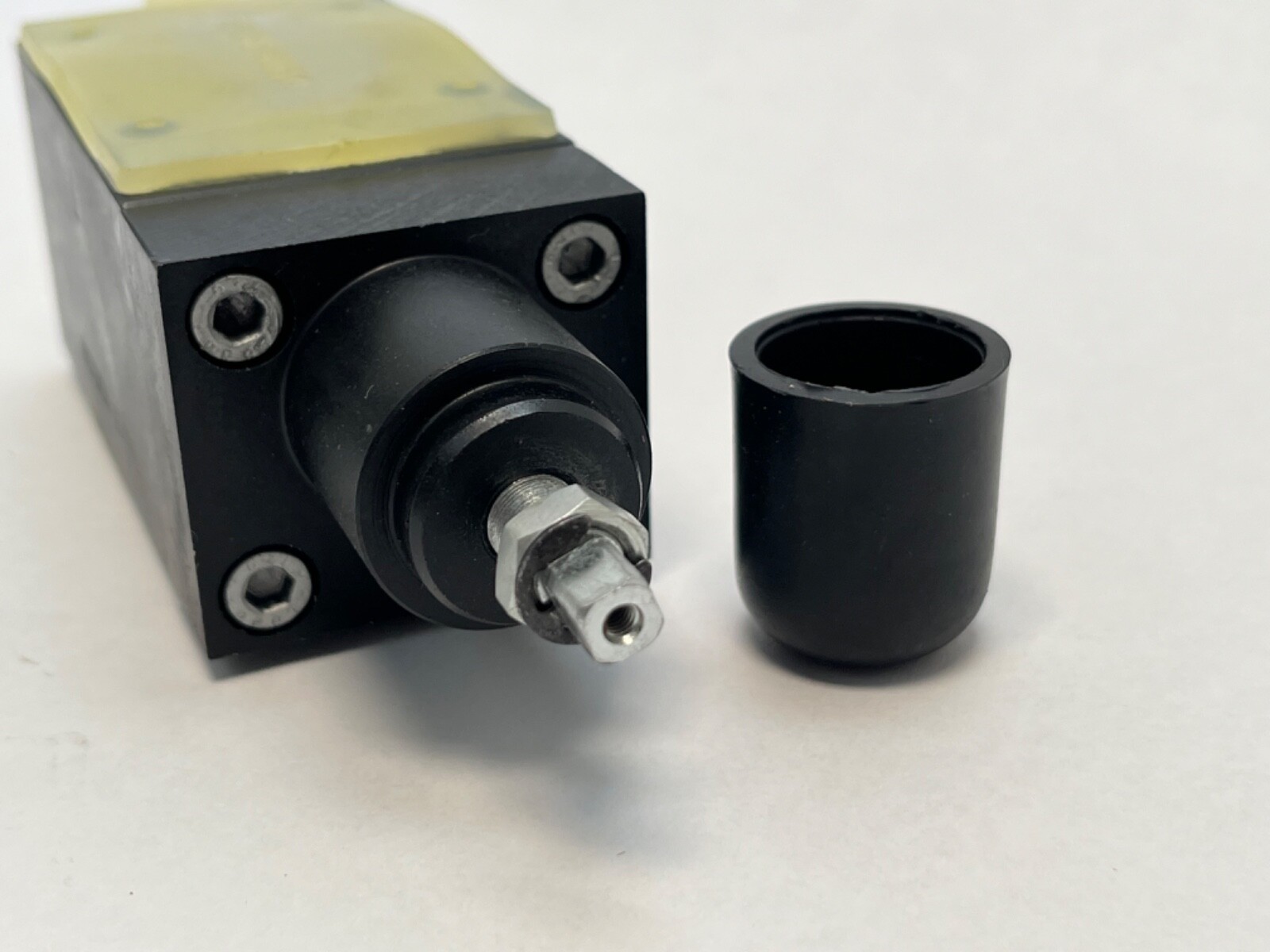

Valve Type: Modular pressure relief valve, double stage, balanced poppet. Size: ISO 4401 size 06. Max Flow: 60 l/min. Pressure Range: 5 to 350 bar. Configuration: Double on A and B, cross-discharged. Seals: NBR. Fluid Temperature (NBR): -20 °C to +80 °C. Ambient Temperature: -30 °C to +70 °C. Recommended Viscosity: 15 to 100 mm²/s. Max Contamination Level: ISO 4406 class 20/18/15, NAS 1638 class 9. Hydraulic Fluids: Mineral oils HL, HLP, HLPD, HVLP, HVLPD (DIN 51524). MTTFd: 150 years (EN ISO 13849). Adjustment: Grub screw with locking nut and protective cap; clockwise rotation increases pressure.
Mounting Surface: ISO 4401-03-02-0-05. Port Diameter A, B, P, T: 7.5 mm. Seals: 4 OR 108. Fastening Bolts: 4 socket head screws M5, length set by the modular stack. Assembly Position: Any.

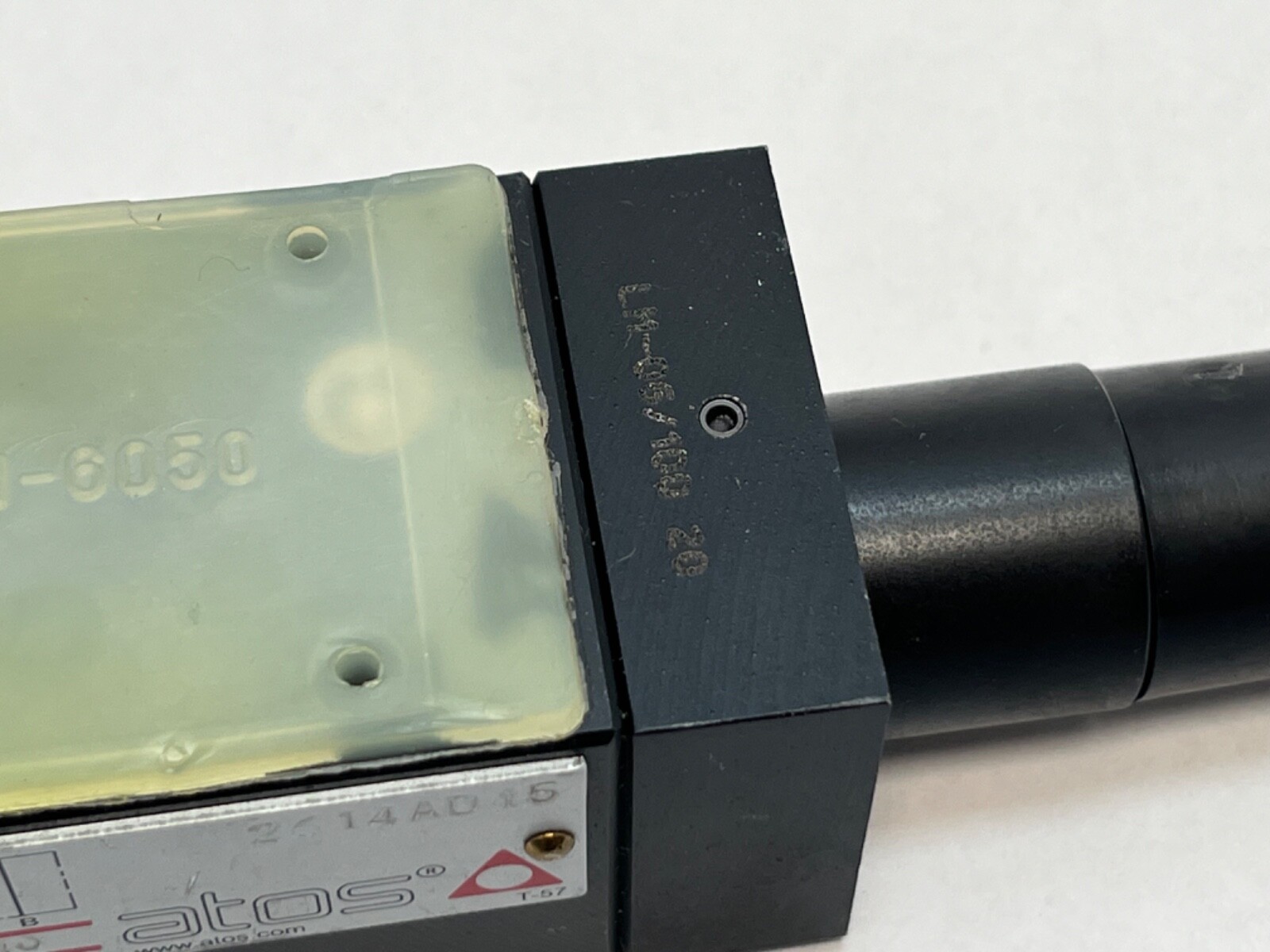

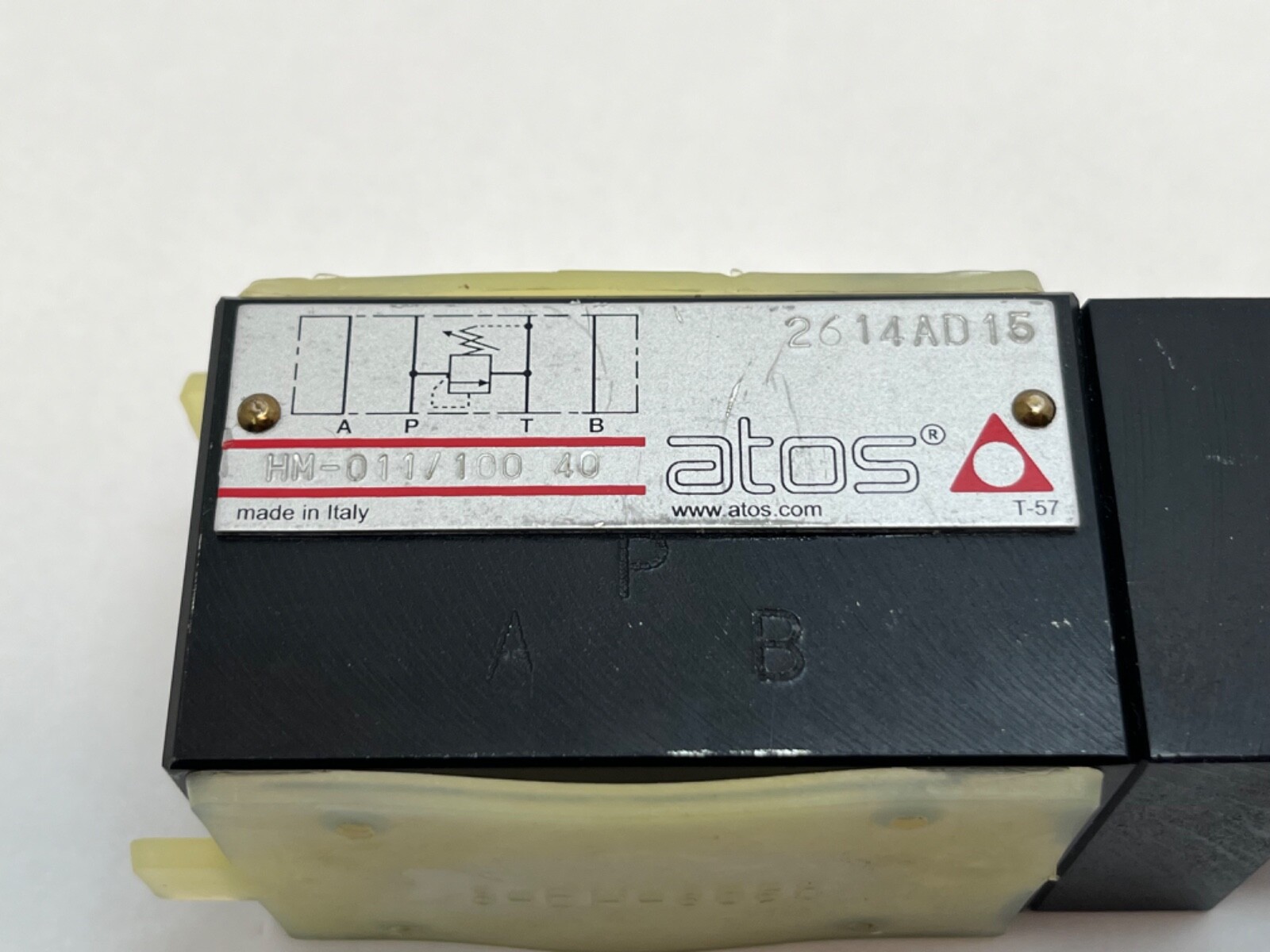

Part number formats: HM-015/350-40, HM-015/350/40, HM015/350. Other markings on this unit: 2614AD15, LM-06/100-20. Atos technical table D120 covers the HMP, HM and KM modular relief valve family.
CAD model and data sheet: available from Atos (atos.com).
What size is the Atos HM-015/350?
ISO 4401 size 06 (NG06), mounting surface 4401-03-02-0-05.
What pressure range does it cover?
5 to 350 bar, set by a grub screw under a protective cap.
What does the 015 configuration mean?
Double relief on ports A and B with the relieved pressure cross-discharged.
