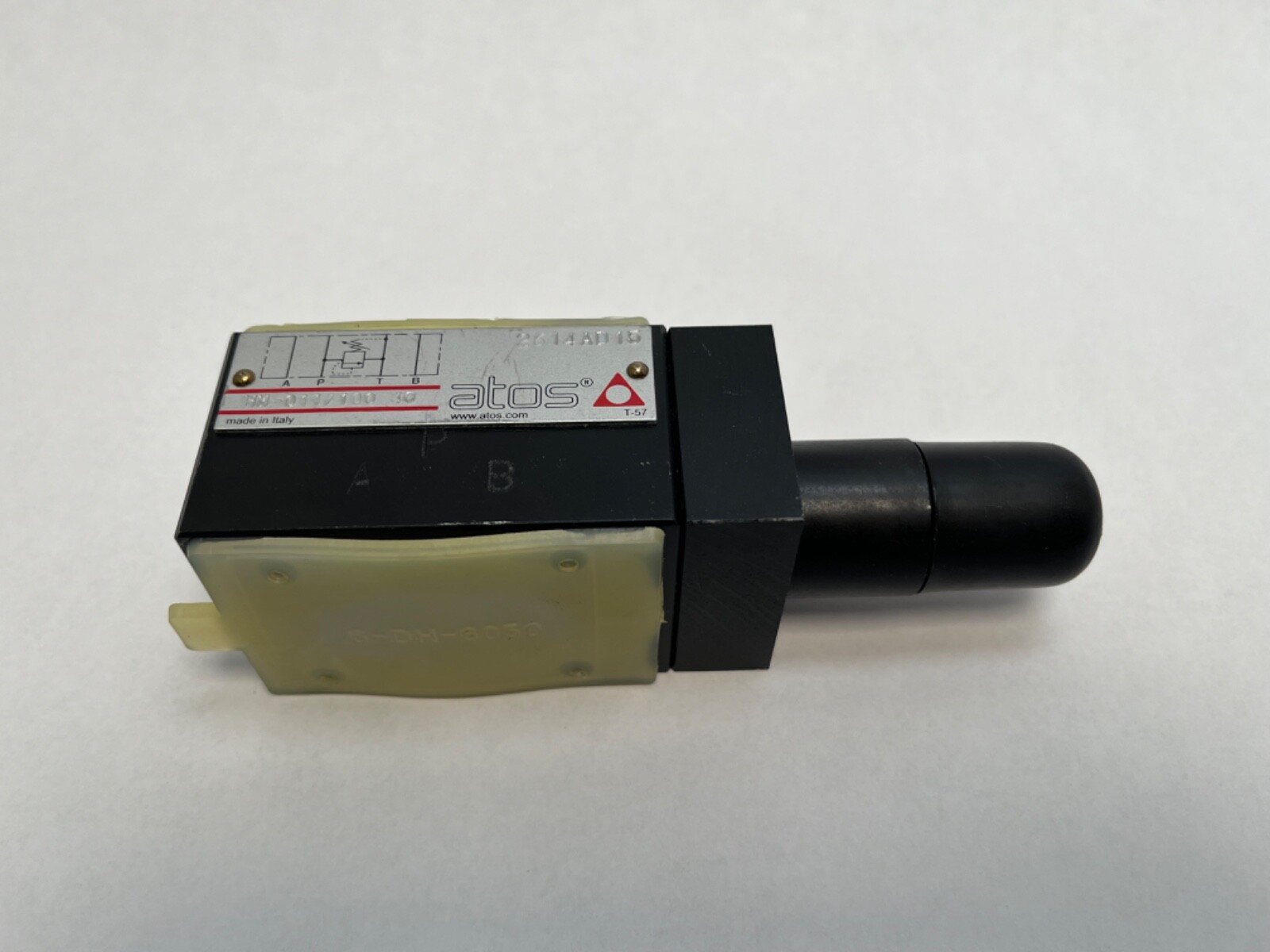

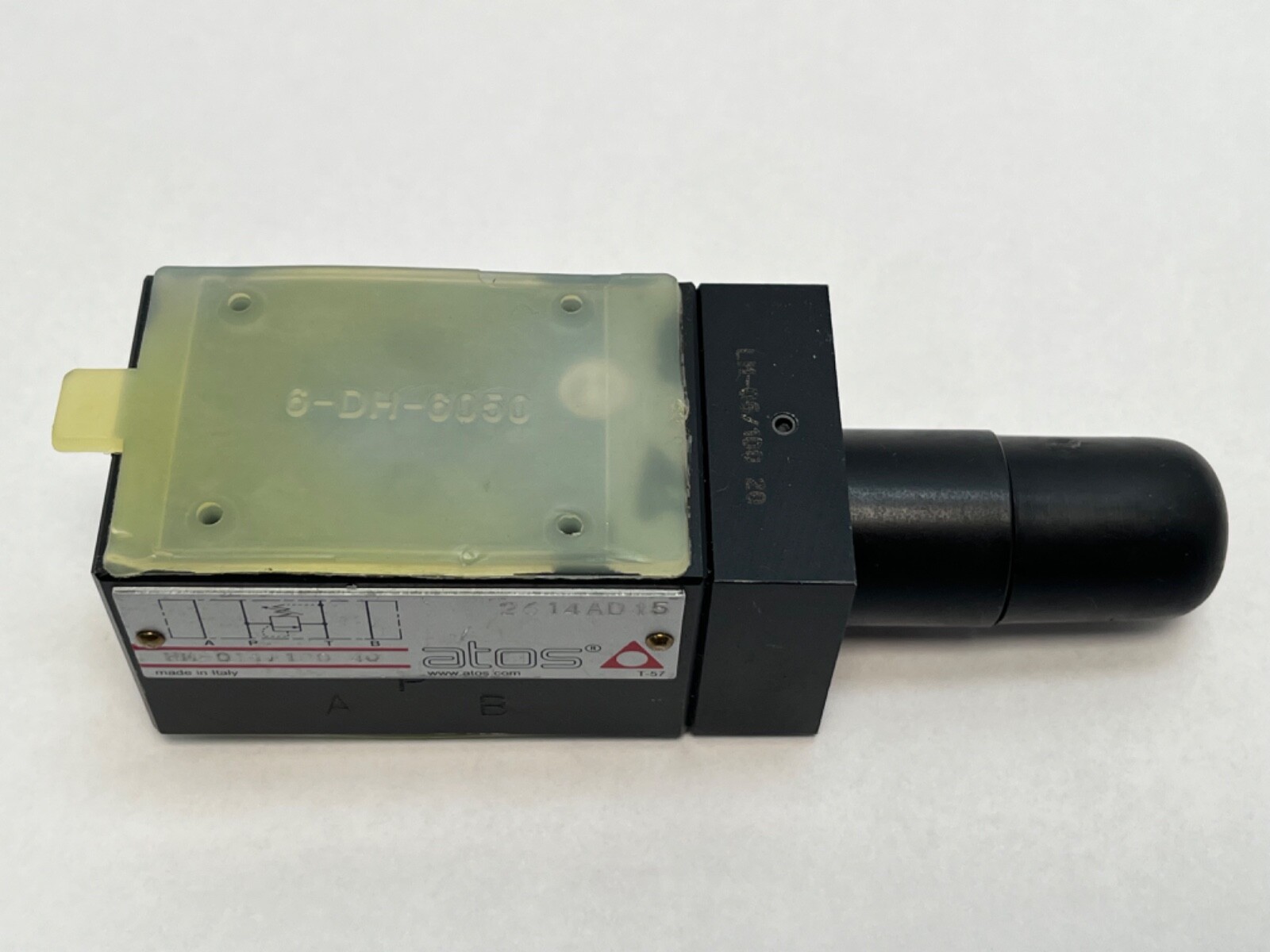

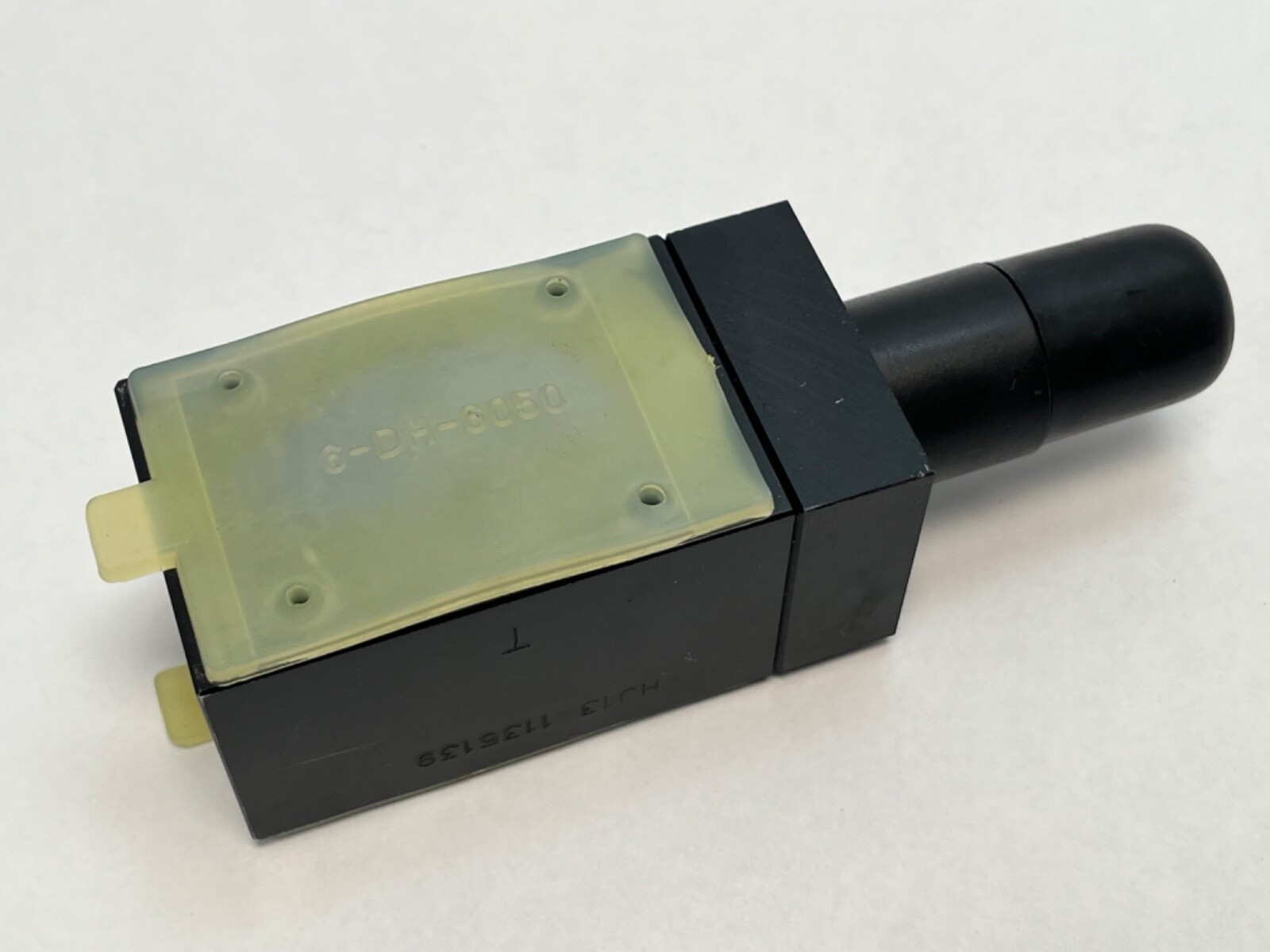

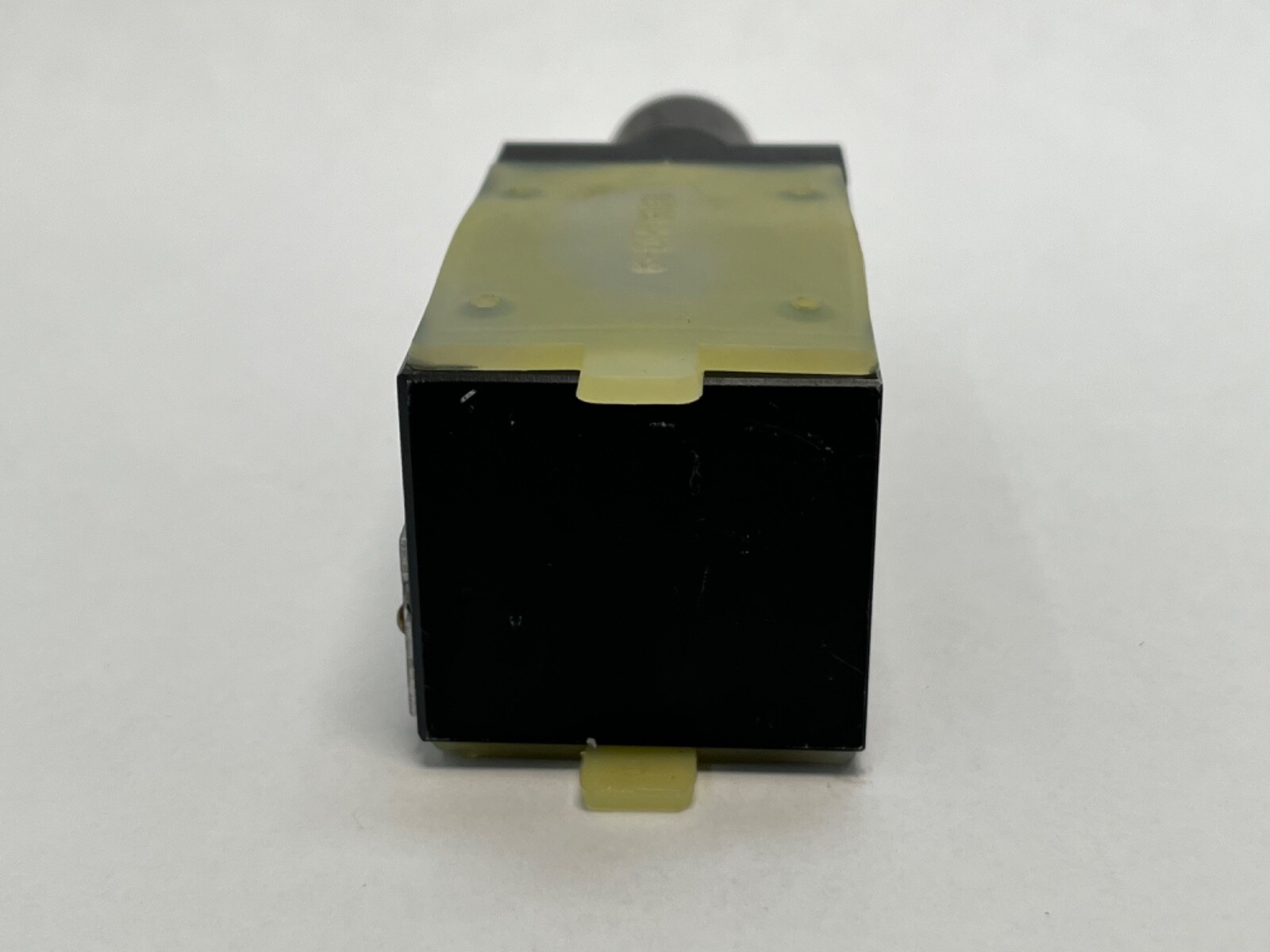

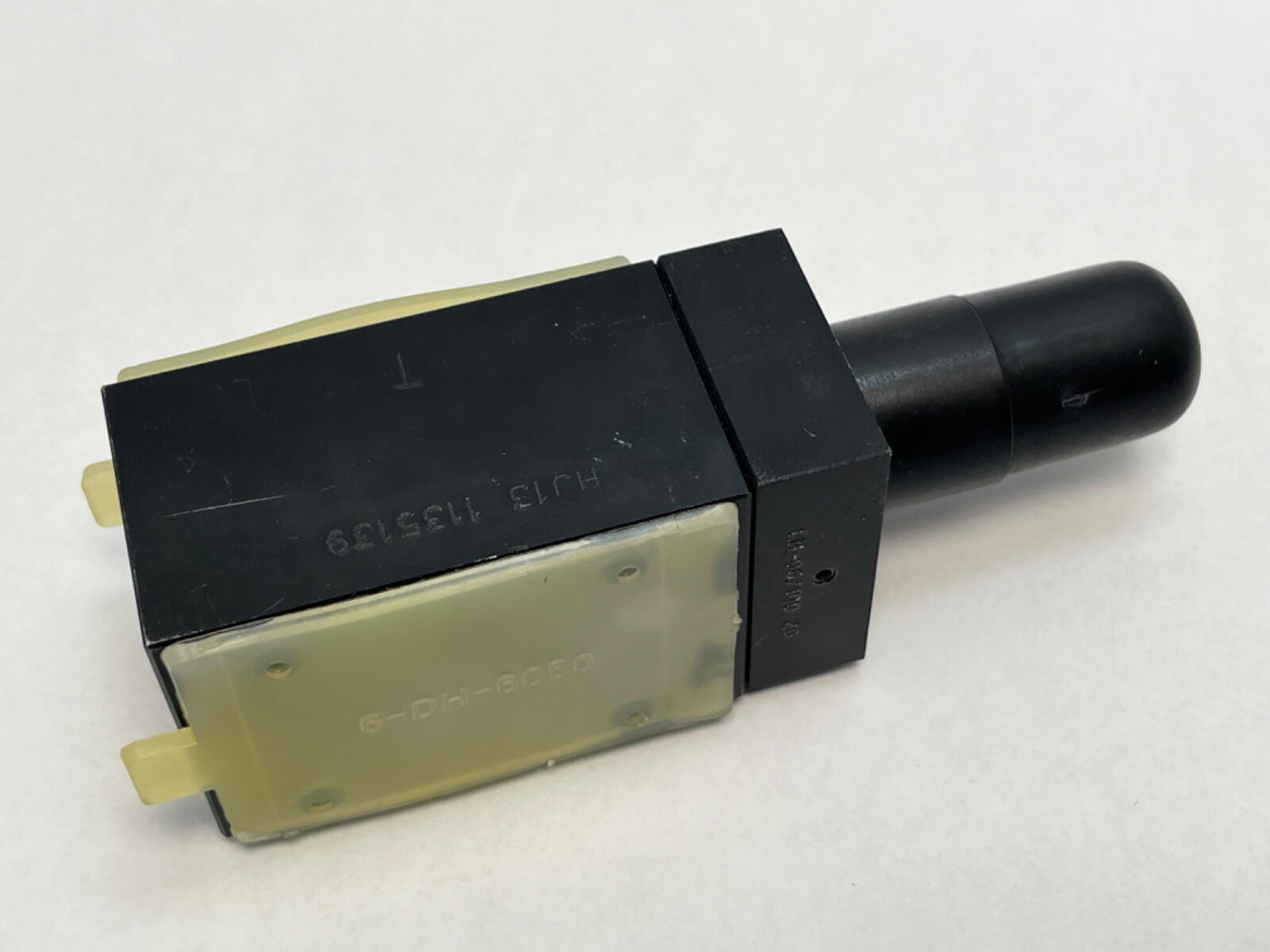

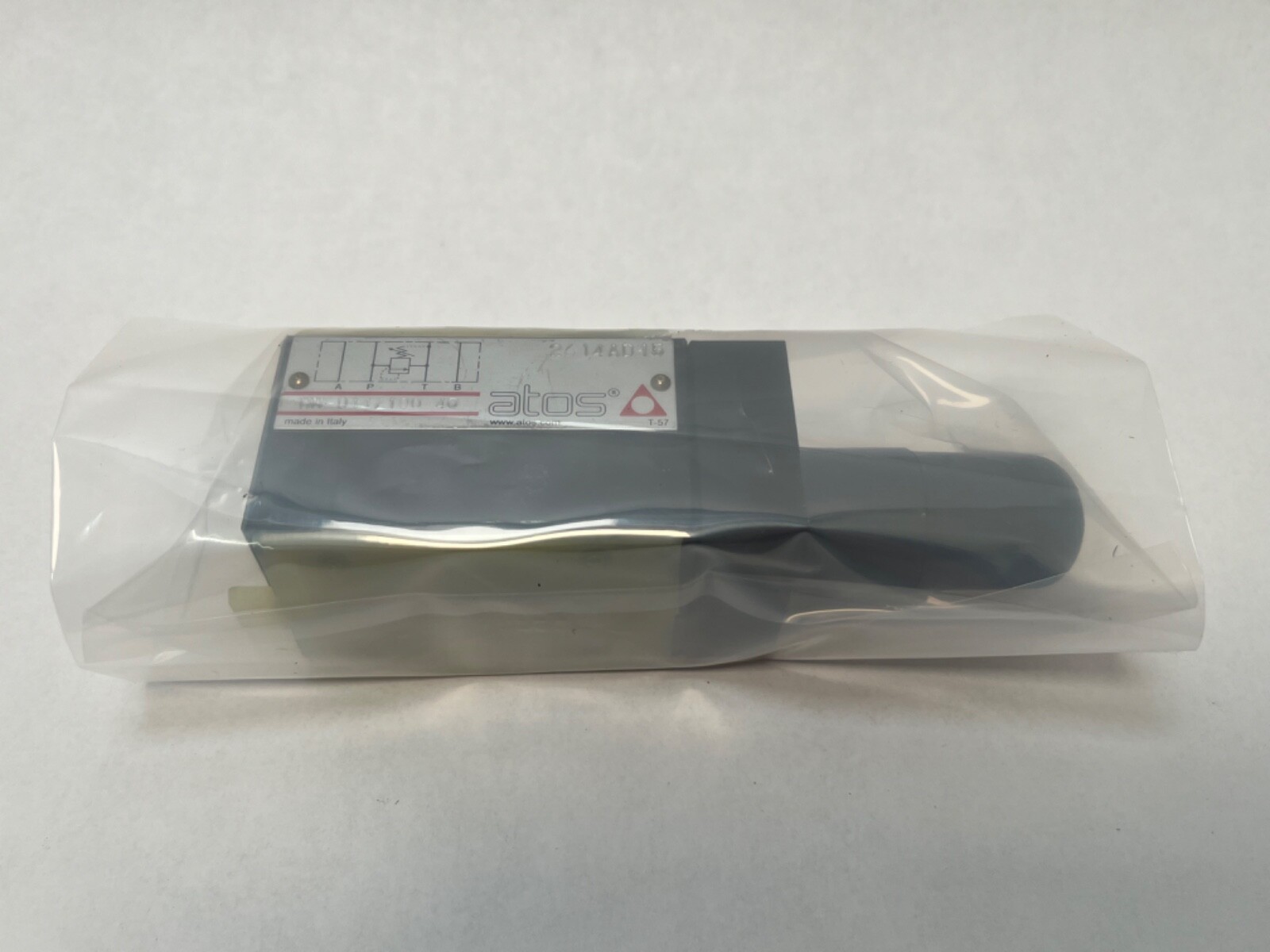

AtosHM-015/350-40Modular Pressure Relief Valve – ISO 4401 Size 06, Double A/B Cross-Discharge, 5–350 bar, 60 l/min

Condition: New – Open box

Availability:

1 in stock

Atos HM-015/350-40 modular pressure relief valve, ISO 4401 size 06, double on A and B with cross-discharge, 5–350 bar, 60 l/min, NBR seals, any position.

List Price

$231.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAtos
MPNHM-015/350-40
ModelHM-015/350

Technical Specifications

Industry Termsmodular relief valve; sandwich relief valve; CETOP 3 relief valve; NG6 relief valve; double pressure relief valve
Common MisspellingsAtos HM-15/350; Attos HM-015/350
Application Typeshydraulic power units; ISO 4401 size 06 valve stacks; actuator line pressure protection
Maximum Pressure350 bar

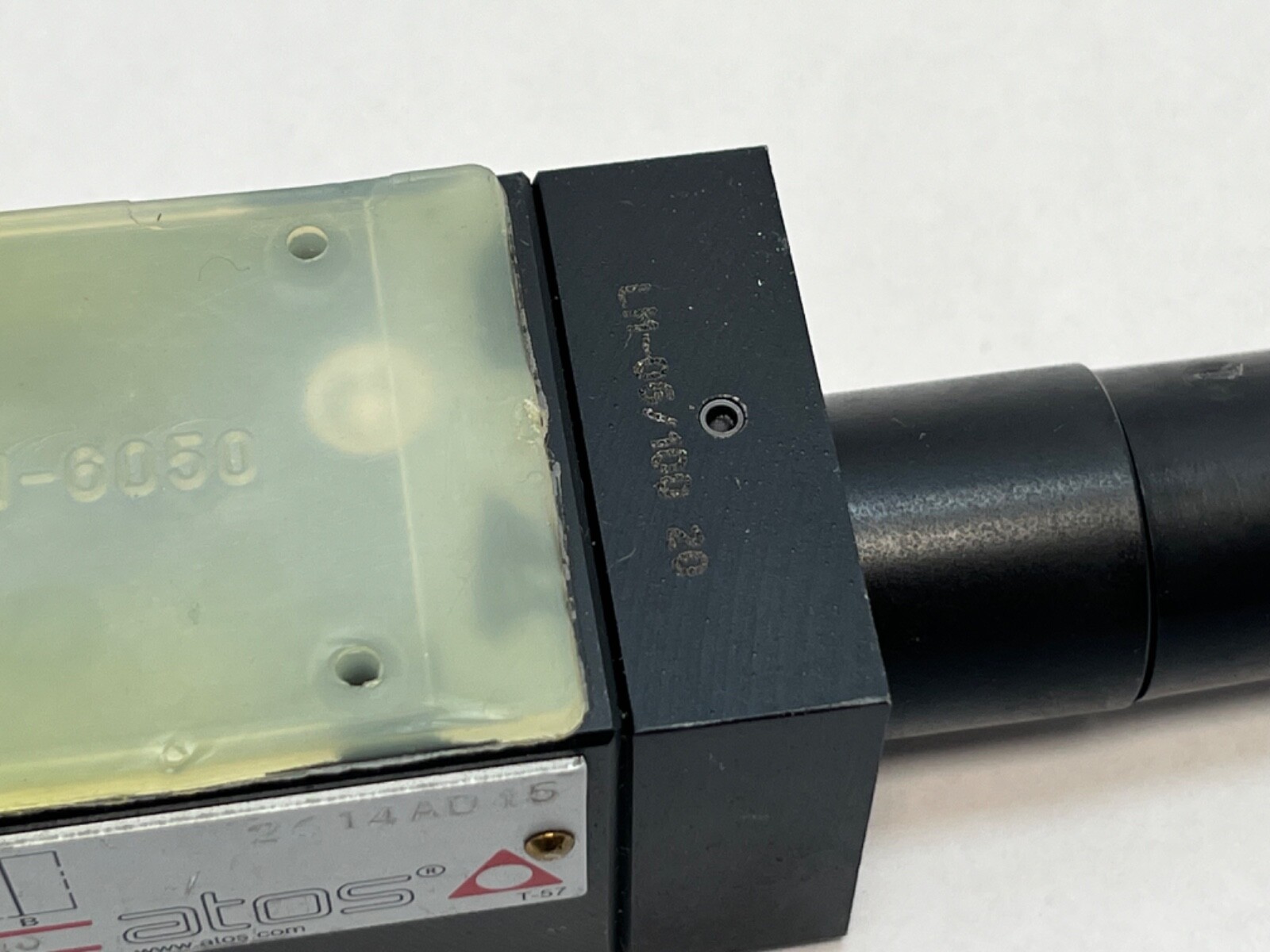

Mpn VariantsHM-015/350-40; HM-015/350; HM015/350-40; HM 015 350 40; 2614AD15; LM-06/100-20
Compatible With ReplacesISO 4401-03 (size 06 / NG6) modular stacks
Additional AttributesConfiguration: 015, double on A and B, cross-discharged; Pressure range: 5–350 bar; Max flow: 60 l/min; Seals: NBR; Mounting: ISO 4401-03-02-0-05; Ports: 7.5 mm; Fasteners: 4 x M5 socket head
Part NumberHM-015/350-40
Seller Part Number: B-AO4B5#EYXBXP

Product Description

What this part is:

The Atos HM-015/350-40 is a modular pressure relief valve for ISO 4401 size 06 sandwich stacks. HM valves are double-stage pressure relief valves with a balanced poppet. Type: Modular pressure relief valve. Valve Size: 06. Max Flow: 60 l/min. Pressure Range: 5–350 bar.

Decoding the designation:

HM — Atos double-stage modular relief valve, size 06, max flow 60 l/min.

015 — hydraulic configuration: double relief on ports A and B, with the relieved pressure cross-discharged.

350 — pressure range 5–350 bar.

40 — series number.

No seal suffix — NBR seals (standard execution).

Specifications:

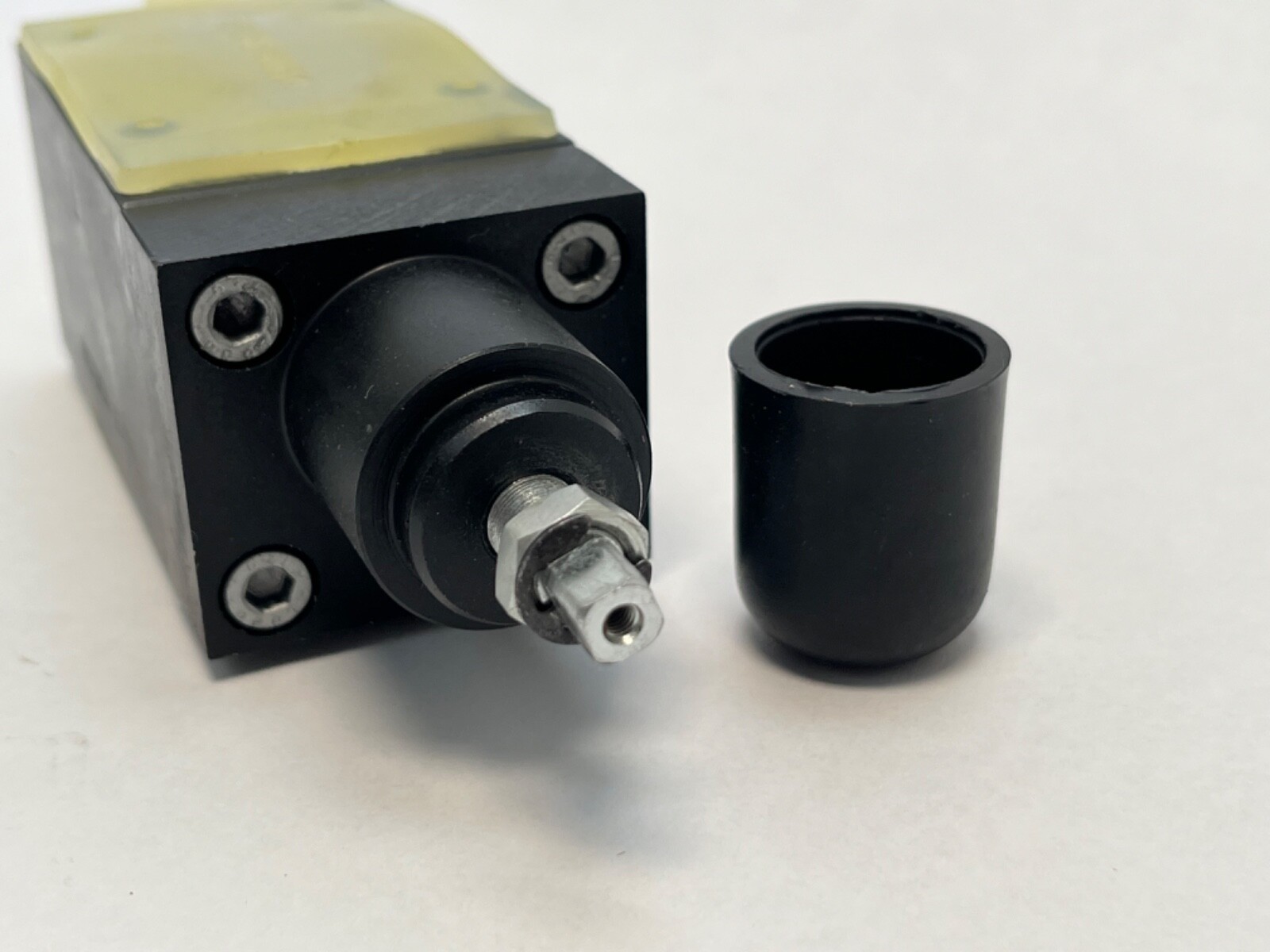

Valve Size: 06. Max Flow: 60 l/min. Pressure Range: 5–350 bar. Max Pressure: 350 bar. Pressure Adjustment: Screw protected by cap, with locking nut. Seals: NBR. Recommended Fluid Temperature (NBR): –20 °C to +60 °C. Ambient Temperature (standard execution): –30 °C to +70 °C. Hydraulic Fluids (NBR): mineral oils HL, HLP, HLPD, HVLP, HVLPD (DIN 51524) and HFC water-based fluids. Recommended Viscosity: 15–100 mm²/s. Fluid Contamination Class: ISO 4406 21/19/16, NAS 1638 class 10. MTTFd (EN ISO 13849): 150 years.

Dimensions and mounting:

Mounting Surface: ISO 4401-03-02-0-05 (size 06). Port Diameter (A, B, P, T): 7.5 mm. Seals: 4 OR 108. Fastening Bolts: 4 socket head screws M5, length set by the modular stack. Assembly Position: Any position.

Compatibility and replacement:

Other configurations in the Atos HM range: HM-011 (single on P), HM-012 (double on A and B, discharge to T), HM-013 (single on A), HM-014 (single on B). The KM range is the size 10 counterpart. Compatible with ISO 4401-03 (size 06 / NG6) modular stacks.

Frequently asked questions:

What is the Atos HM-015/350-40?

The Atos HM-015/350-40 is a double-stage modular pressure relief valve for ISO 4401 size 06 stacks. It relieves ports A and B with cross-discharge, adjustable from 5 to 350 bar.

What does the 015 configuration mean?

015 is double relief on ports A and B, with the relieved pressure cross-discharged to the opposite port. HM-012 is the version that discharges to T.

What is the maximum flow?

The HM valve is rated for a maximum flow of 60 l/min at pressures up to 350 bar.
