Jefferson two-way normally closed general purpose solenoid valve, 3/8 in NPT ports, brass body, 14 mm orifice, Cv 2.75, 0 to 105 psig pressure range.
List Price
$108.21
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Parker |
|---|---|
| MPN | 1335BA3-INAT |
| Model | 1335BA3-INAT |
| Base Number | 1335BA3 |
|---|---|
| Industry Terms | Solenoid valve; 2-way solenoid valve; Normally closed solenoid valve; General purpose solenoid valve; Brass solenoid valve; NPT solenoid valve; Shut-off solenoid |
| Common Misspellings | Jefferson 1335BA3 INAT; Jeferson 1335BA3INAT; Jefferson 1335 BA3INAT; Jefferson 1355BA3INAT |
| Application Types | Water lines; Compressed air lines; Light oil service; Inert gas; Fuel dispensing; Process shut-off; Wash-down equipment |
| Maximum Pressure | 105 psig |
| Valve Operation | Normally closed |
| Mpn Variants | 1335BA3INAT; 1335BA3-INAT; 1335 BA3 INAT; 1335BA3 |
| Body Material | Brass |
| Material | Brass body, Buna-N seat |
| Series | Jefferson 1335 General Purpose |
| Max Temp | 176 F (80 C) |
| Item Weight | 1.75 lb |
| Part Number | 1335BA3-INAT |
| Mounting Type | In-line threaded, 3/8 in NPT |
| Port Size | 3/8 in NPT |
| Cross Reference 1 | Jefferson 1335BA3T - different coil/enclosure |
|---|---|
| Cross Reference 2 | Jefferson 1335BA3AT - different coil/enclosure |
| Cross Reference 3 | Jefferson 1335BA3DT - different coil/enclosure |

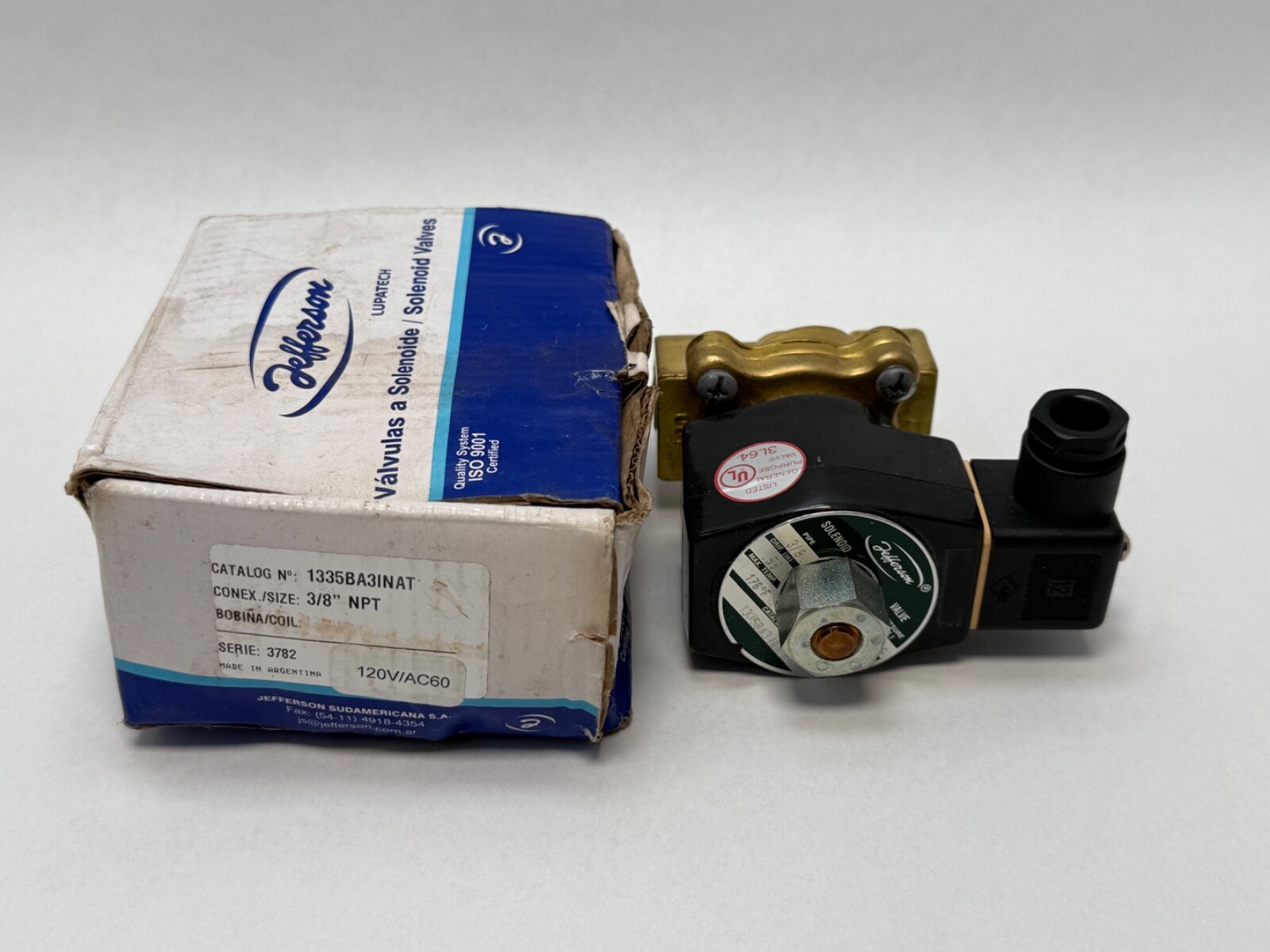

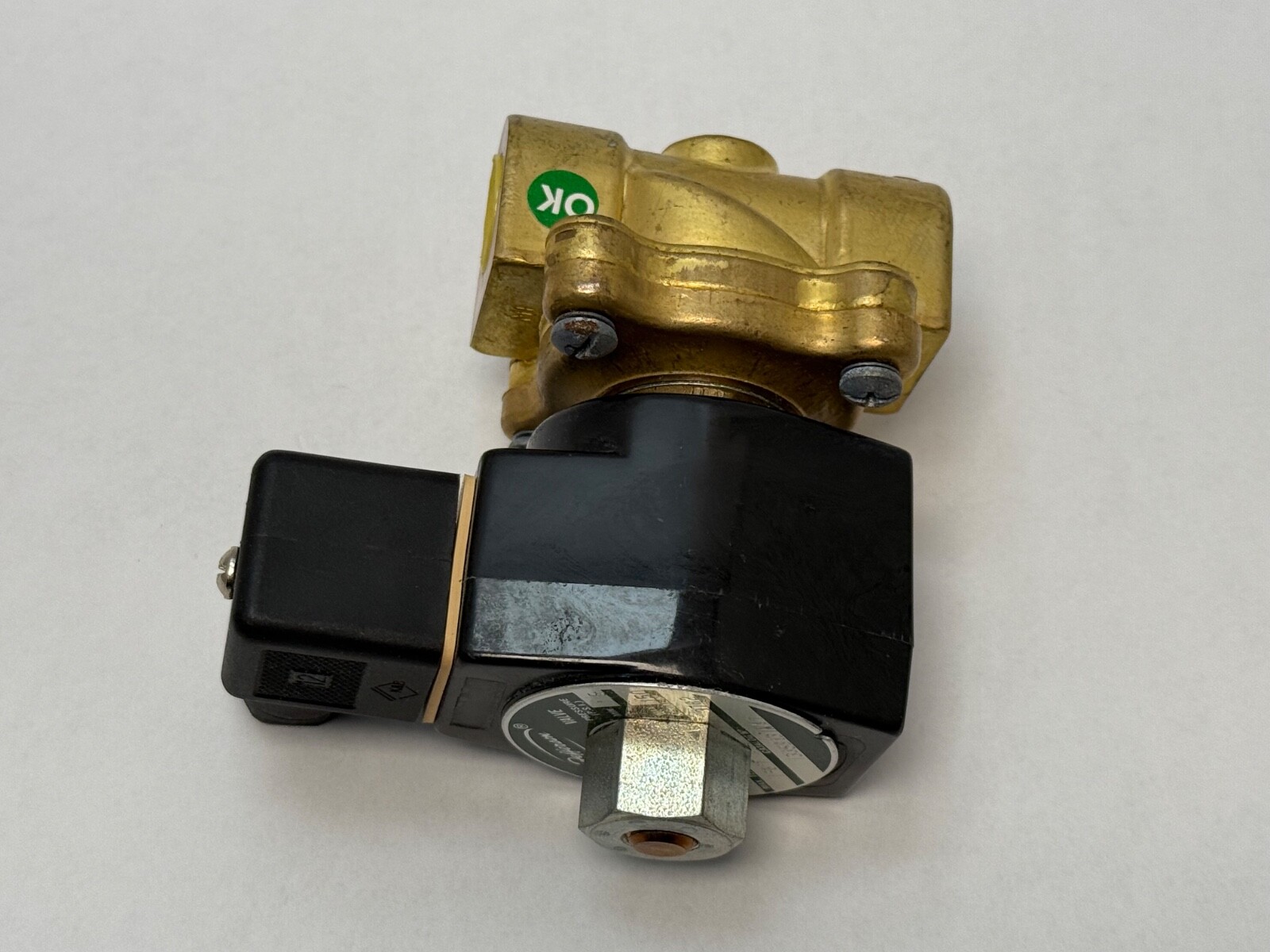

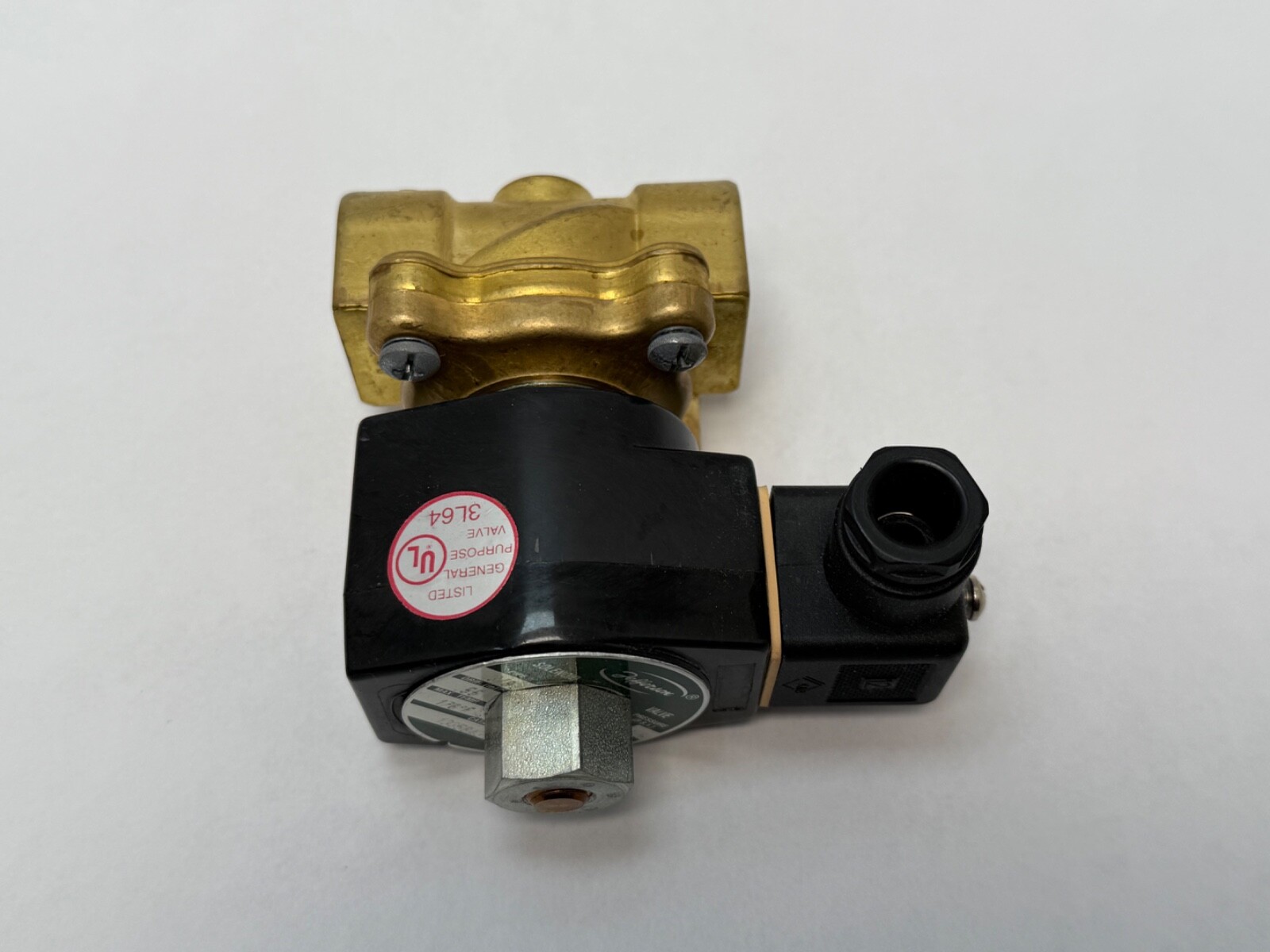

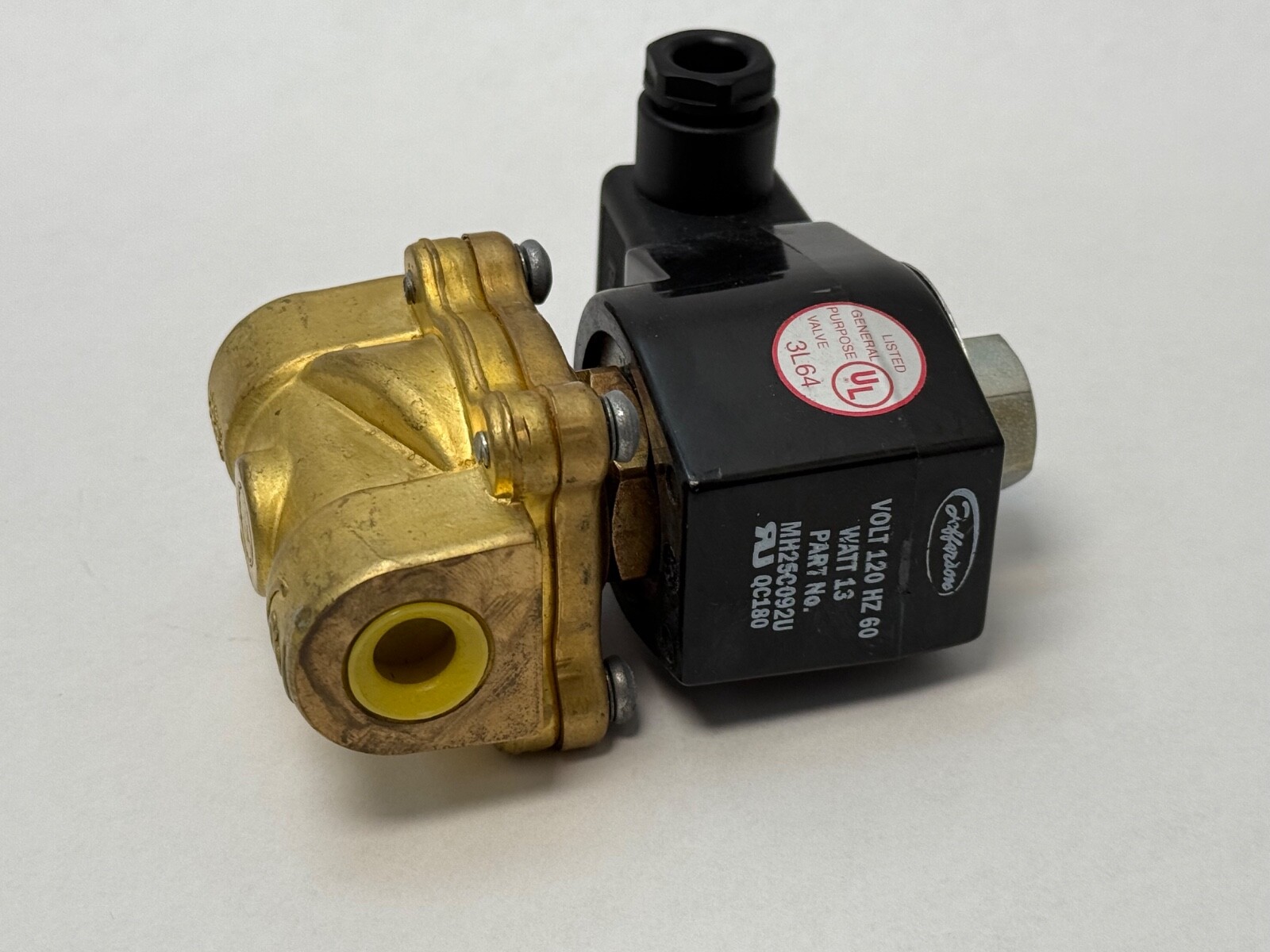

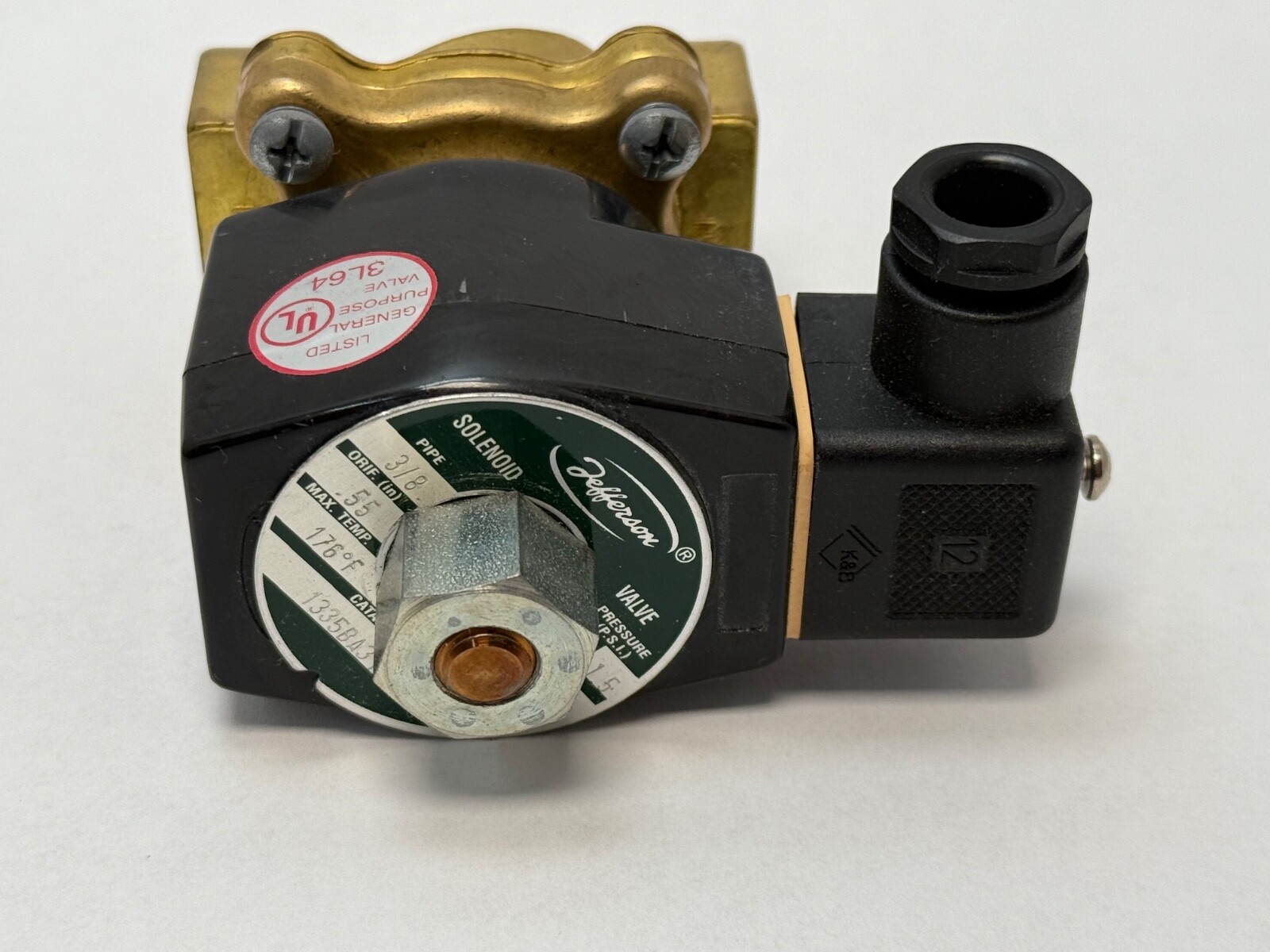

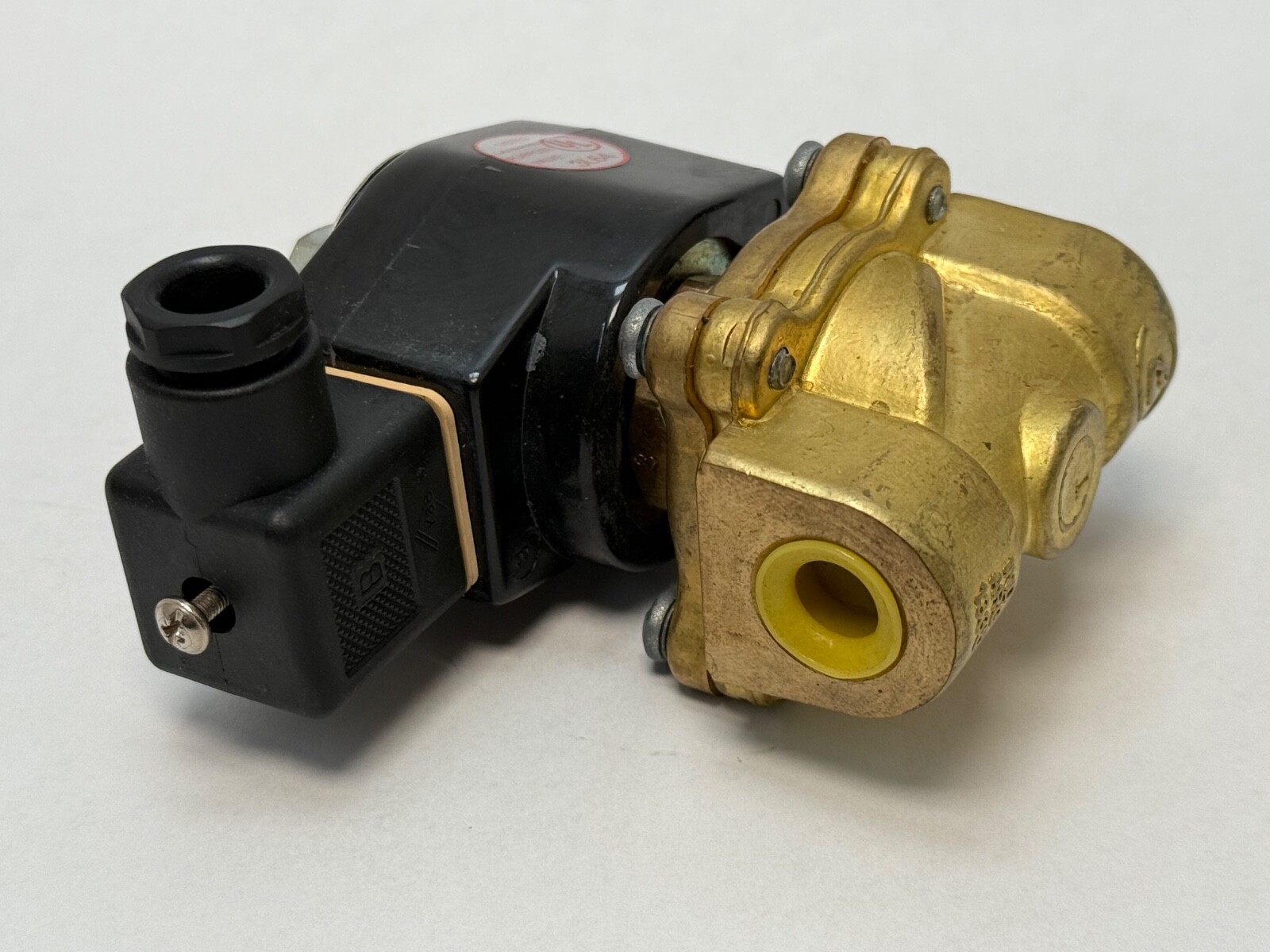

Jefferson 1335BA3INAT is a two-way, normally closed general purpose solenoid valve from the 1335 series, with 3/8 in NPT ports, a brass body and a Buna-N seat. One complete valve with coil. Unit Quantity: 1 Pc.
1335 — Jefferson’s 1335 general purpose two-way solenoid valve series.
B — brass body.
A3 — the 3/8 in NPT port size within the series.
1335BA3-INAT — the punctuated form; 1335BA3INAT is the same part number run together.

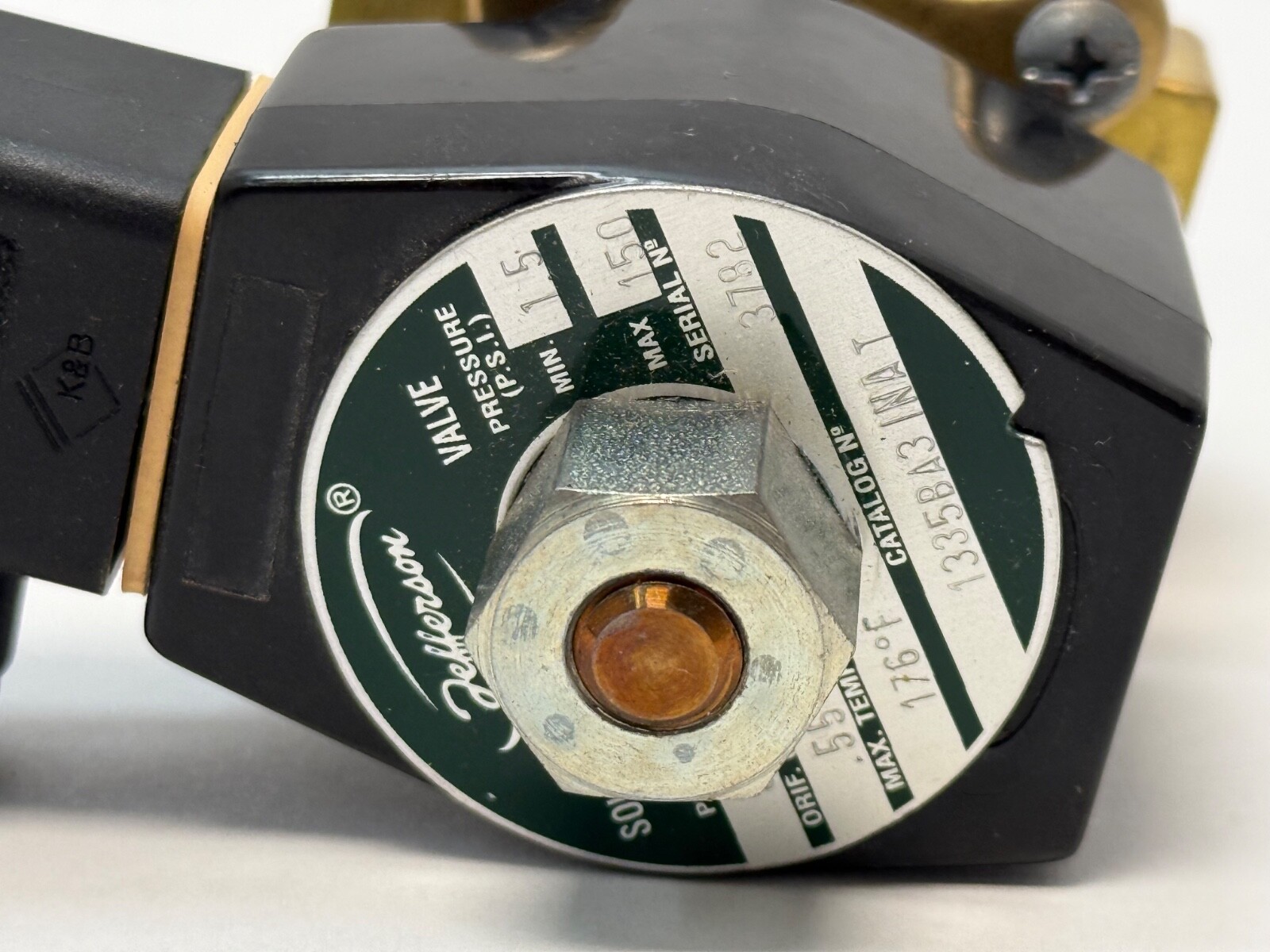

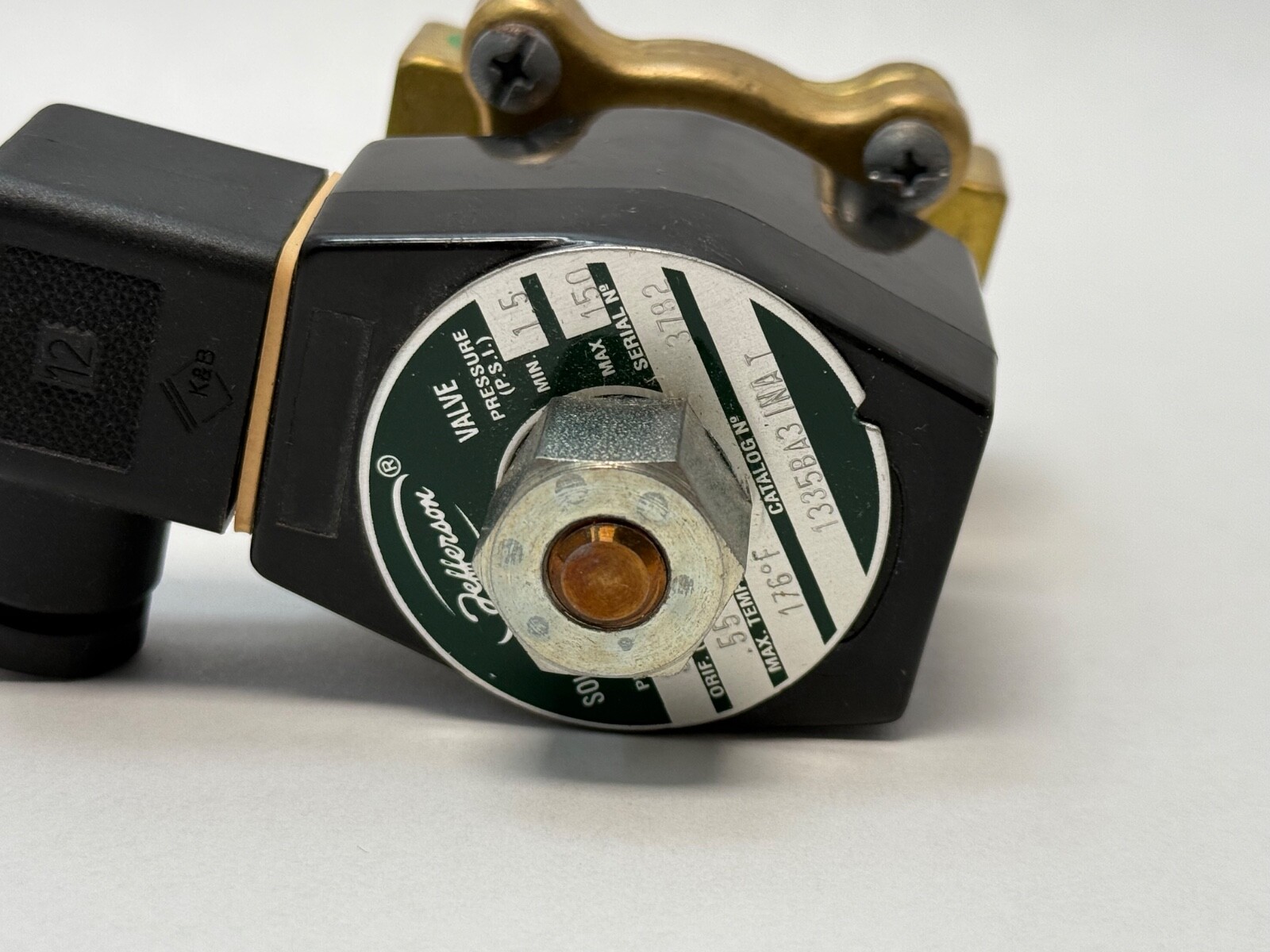

Manufacturer: Jefferson. Part Number: 1335BA3-INAT. Series: 1335, general purpose. Ways and Positions: 2-way, 2-position. Valve Operation: Normally closed. Port Size: 3/8 in NPT. Body Material: Brass. Seat Material: Buna-N. Orifice: 14 mm (0.55 in). Flow Coefficient: Cv 2.75. Pressure Range: 0 to 105 psig. Maximum Operating Pressure: 105 psig. Maximum Fluid Temperature: 176 °F (80 °C). Weight: 1.75 lb.
Port Size: 3/8 in NPT, inlet and outlet. Mounting: threaded in-line valve for a 3/8 in NPT pipe run, no subbase or manifold. Weight: 1.75 lb.

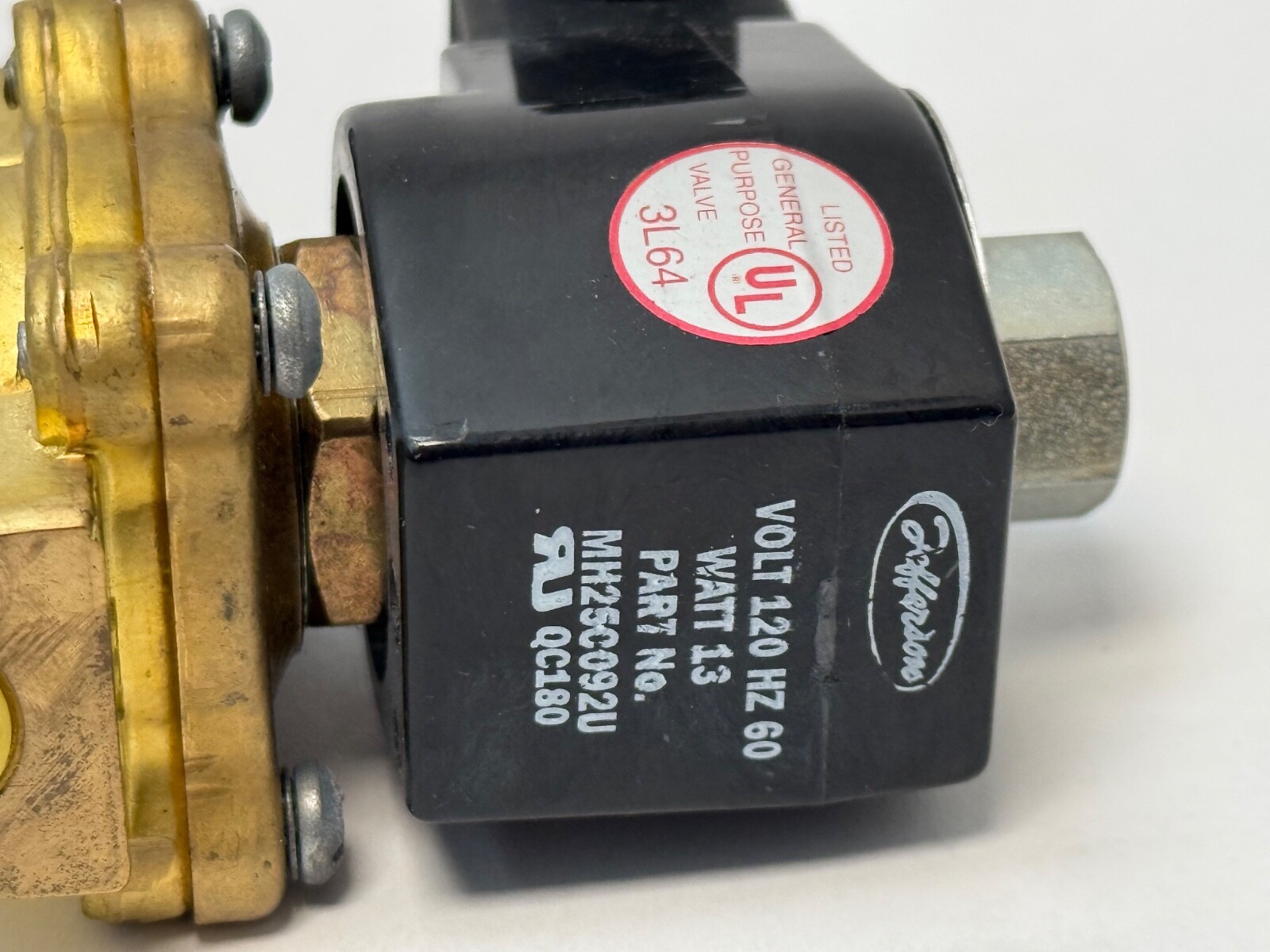

1335BA3INAT, 1335BA3-INAT and 1335 BA3 INAT are the same part number. The trailing letters after 1335BA3 carry the coil and enclosure execution. Siblings 1335BA3T, 1335BA3AT and 1335BA3DT share the 3/8 in NPT porting, 14 mm orifice, Cv 2.75 and 0 to 105 psig range.
3/8 in NPT inlet and outlet.
Yes. It seals with the coil de-energised and opens when the coil is energised.
0 to 105 psig, with a Cv of 2.75 through a 14 mm orifice.
