Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Direct-operated 2-port solenoid media valve, Rc1/8 ports, 2 mm orifice, Cv 0.23, 24 V DC coil, IP65, for air, water, oil, steam and vacuum lines.
List Price
$51.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SMC |
|---|---|
| MPN | VX2120-01-5DZ1-B |
| Model | VX2120015DZ1B |
| Type | Solenoid Valve |
|---|---|
| Base Number | VX2120-01 |
| Industry Terms | Solenoid valve; 2-port solenoid valve; Media valve; Direct operated solenoid valve; Water solenoid valve; Steam solenoid valve; Process solenoid valve |
| Common Misspellings | SMC VX2120-01-5DZI-B; SMC VX212001-5DZ1B; SMC VX2120 015DZ1B; SMC VX2210-01-5DZ1-B |
| Application Types | Water lines; Steam service; Vacuum lines; Coolant control; Light oil service; Inert gas; Process shut-off; Factory automation |
| Maximum Pressure | 1.0 MPa (145 psi) |
| Valve Operation | Direct operated |
| Coil Voltage | 24 V DC |
| Mpn Variants | VX2120015DZ1B; VX2120-01-5DZ1-B; VX2120 01 5DZ1 B; VX2120-01-5DZ1 |
| Series | SMC VX21 |
| Nominal Rated Input Voltage | 24 V DC |
| Item Weight | 300 g |
| Part Number | VX2120-01-5DZ1-B |
| Mounting Type | In-line threaded, Rc1/8 |
| Cross Reference 1 | VX2120-02N-5DZ1 - same body, 1/4 NPT port |
|---|

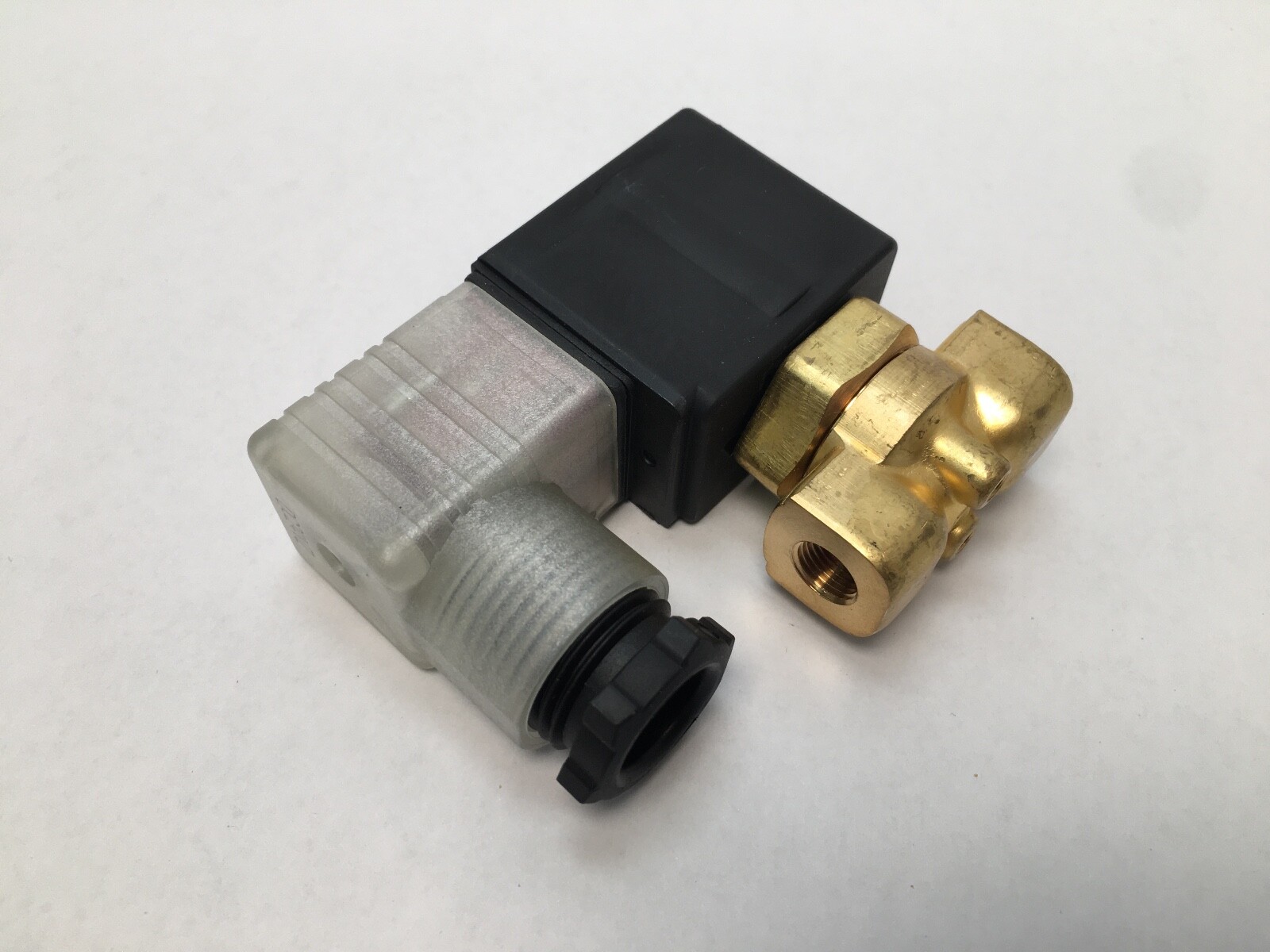

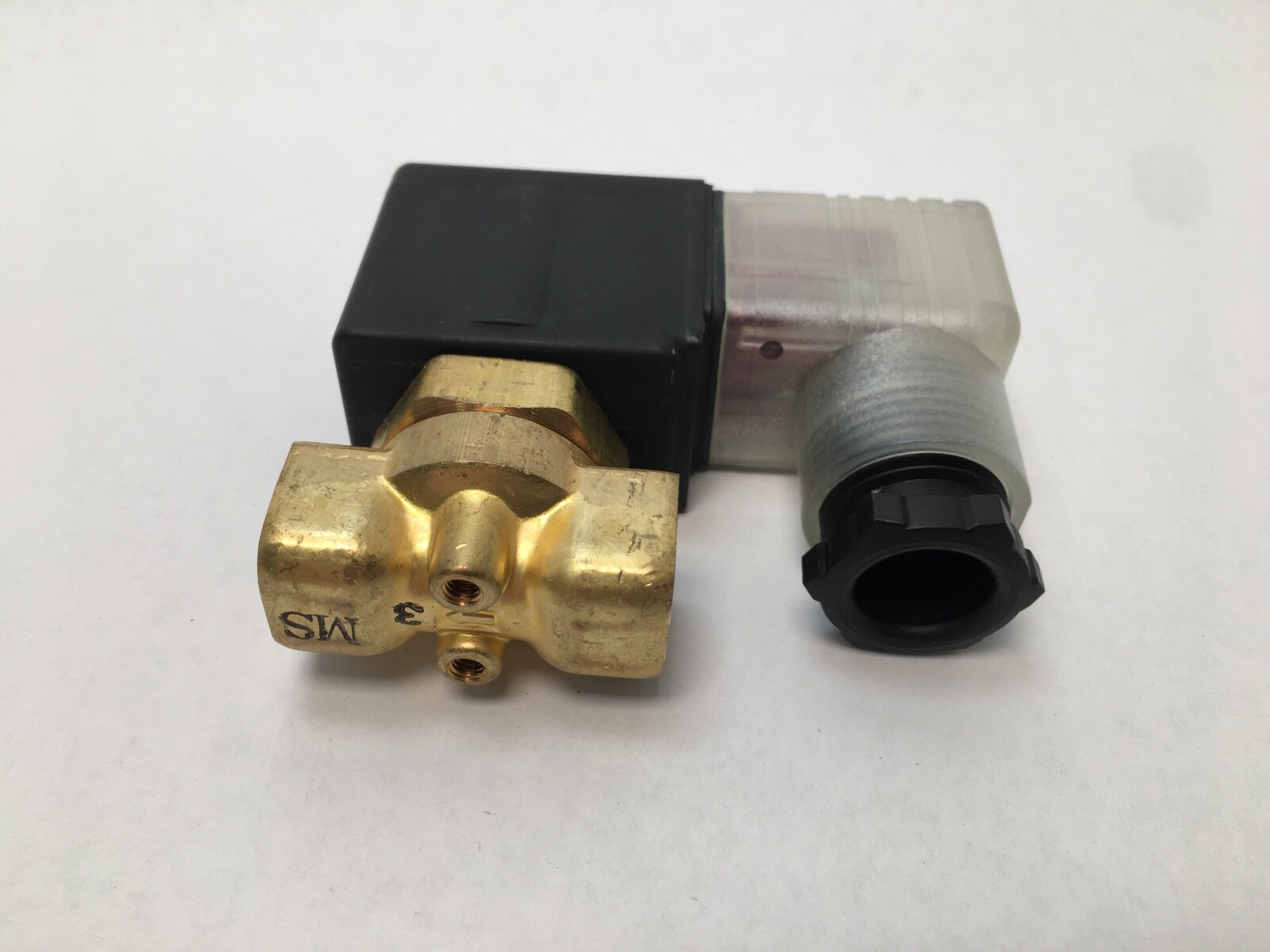

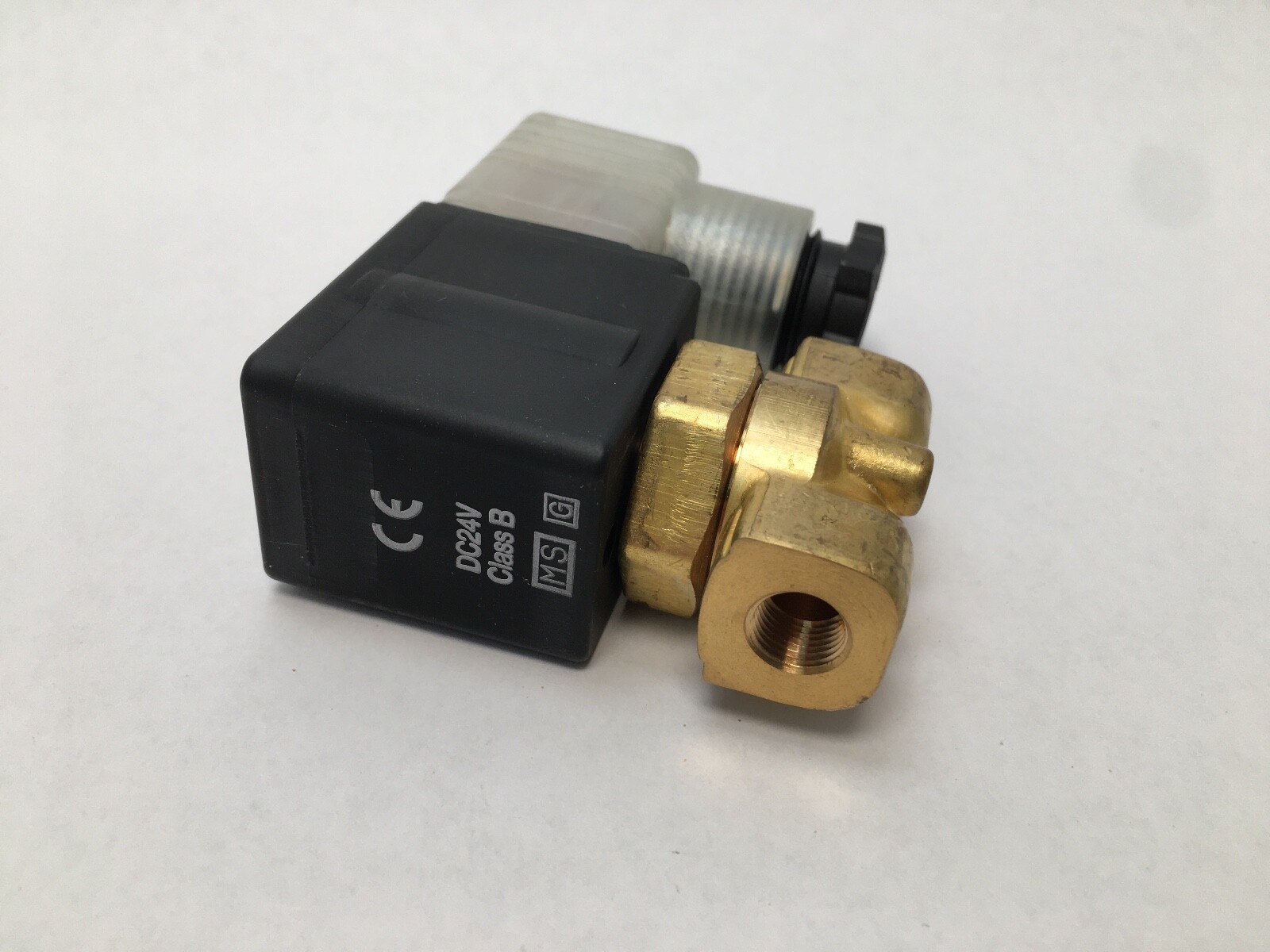

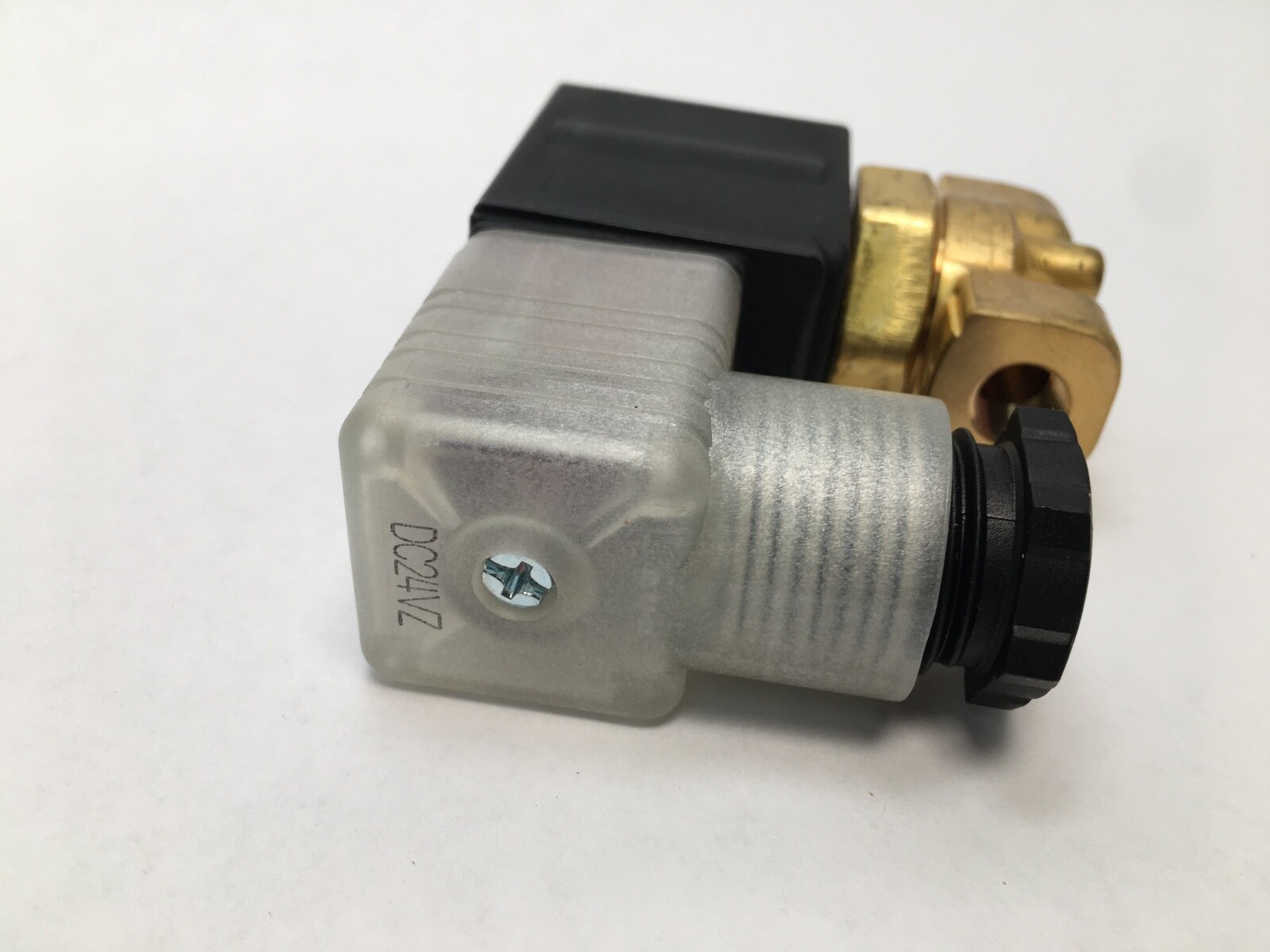

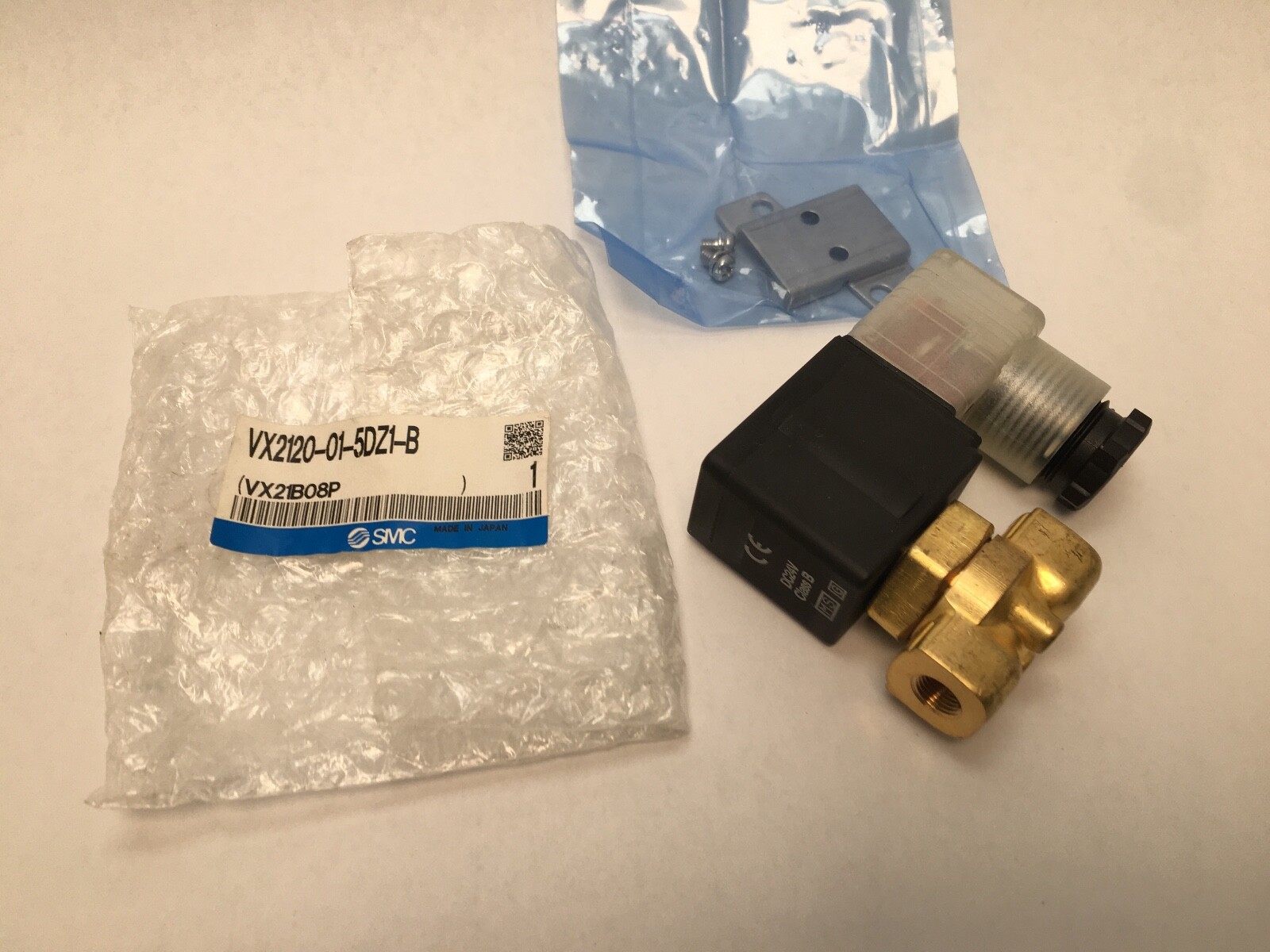

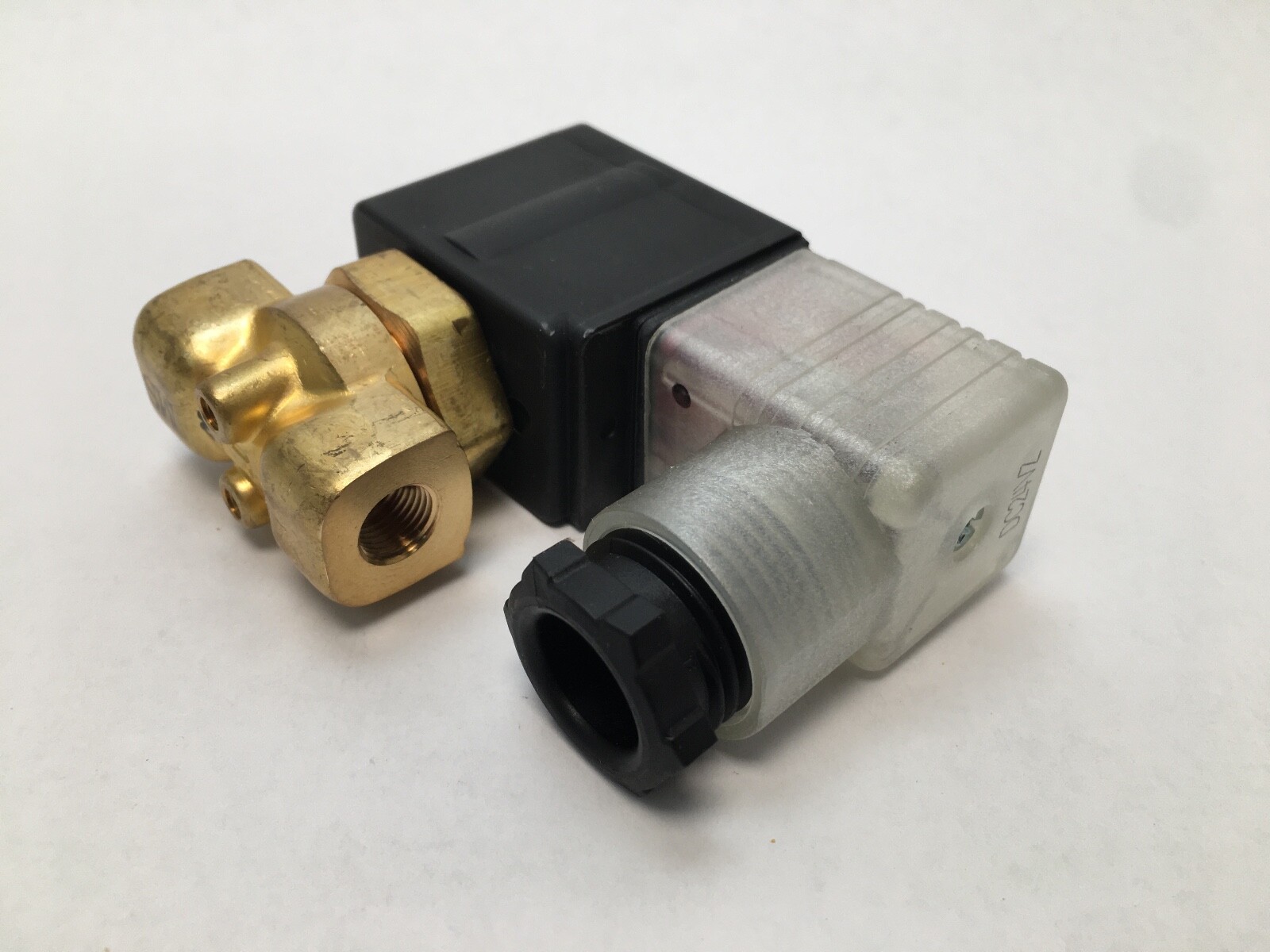

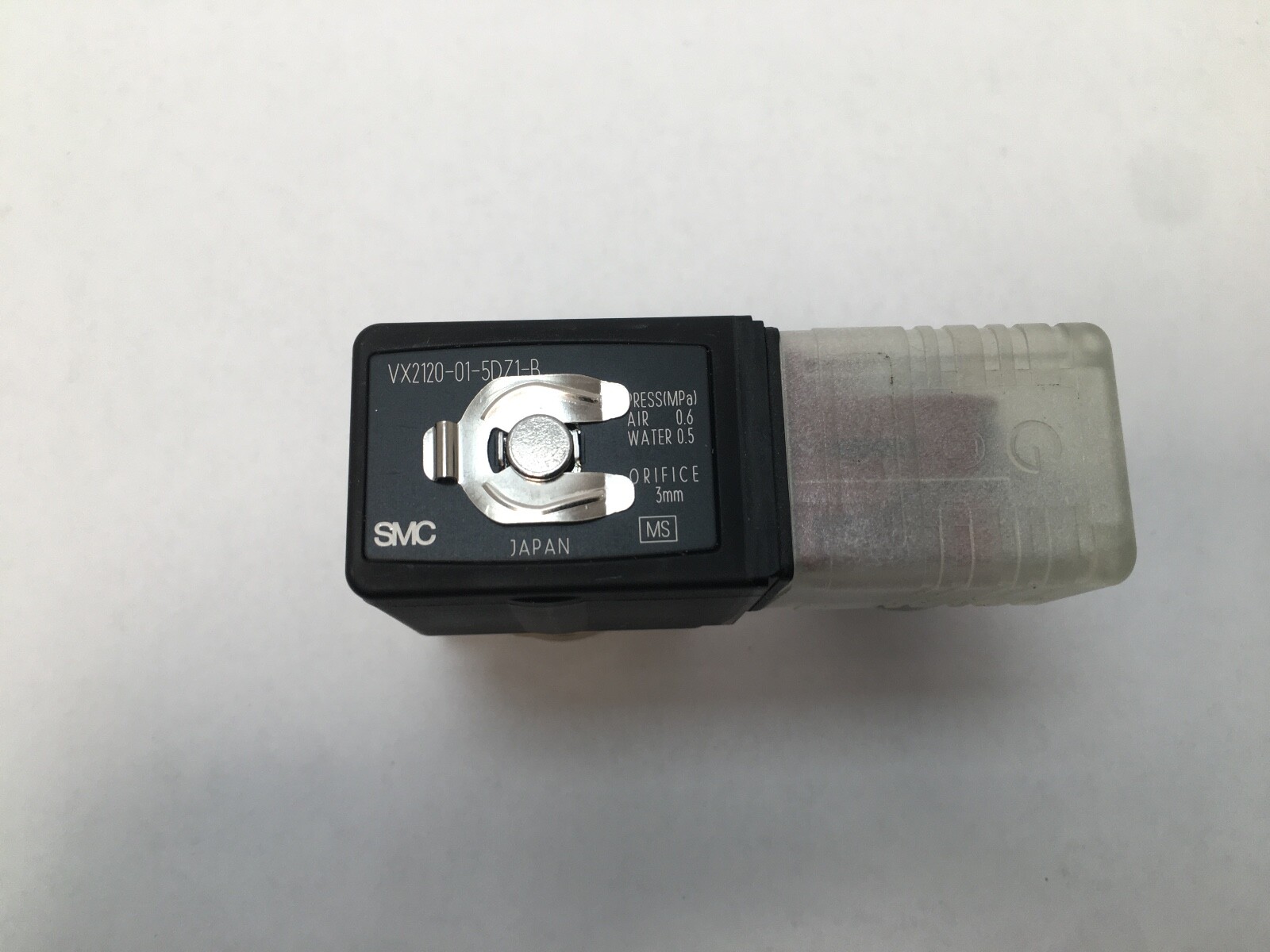

SMC VX2120-01-5DZ1-B direct-operated two-port solenoid valve from the VX21 series, with Rc1/8 ports, a 2 mm orifice and a 24 V DC coil. Unit Quantity: 1 Pc. One complete valve with coil.
VX2 — SMC’s direct-operated two-port media valve family for air, gas, vacuum, water, steam and oil.
VX21 — the single-unit body of the family, as against the VX22 and VX23 sizes.
2 — the size 1 body with a 2 mm orifice.
01 — Rc1/8 port size.
5 — 24 V DC coil.
Manufacturer: SMC. Series: VX21. Ways and Positions: 2-port, 2-position. Operation: direct operated. Port Size: Rc1/8. Orifice: 2 mm. Flow Coefficient: Cv 0.23. Effective Area: 5.5 x 10−6 m². Maximum Operating Pressure Differential: 1.0 MPa (145 psi). Coil Voltage: 24 V DC. Power Consumption: 4.5 W. Enclosure: IP65. Medium: air, inert gas, vacuum, water, steam, oil.
Port Size: Rc1/8, inlet and outlet. Weight: 300 g. Threaded in-line valve body. The housing conforms to UL94V-0 flame resistance.
MPN Variants: VX2120015DZ1B, VX2120-01-5DZ1-B, VX2120 01 5DZ1 B, VX2120-01-5DZ1. The VX2120-02N-5DZ1 has the same body with a 1/4 NPT port.
Rc1/8 inlet and outlet ports.
24 V DC at 4.5 W power consumption.
1.0 MPa (145 psi), with no minimum differential needed because the valve is direct operated.
