Rexroth0822123009Profile Pneumatic Cylinder, ISO 15552, 63 mm Bore, 320 mm Stroke, Double-Acting, Magnetic Piston, Adjustable Cushioning

Product Description

What this part is:

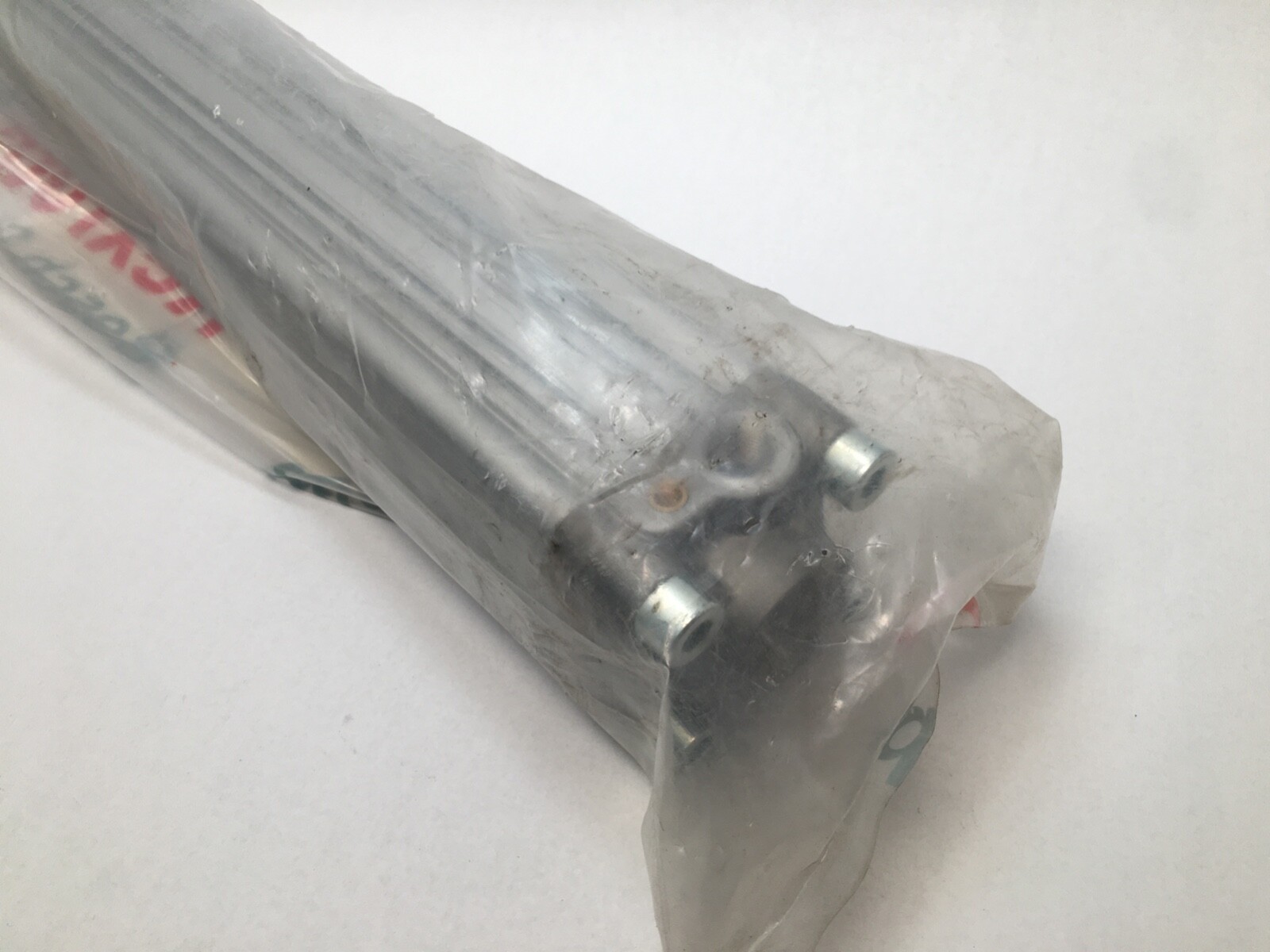

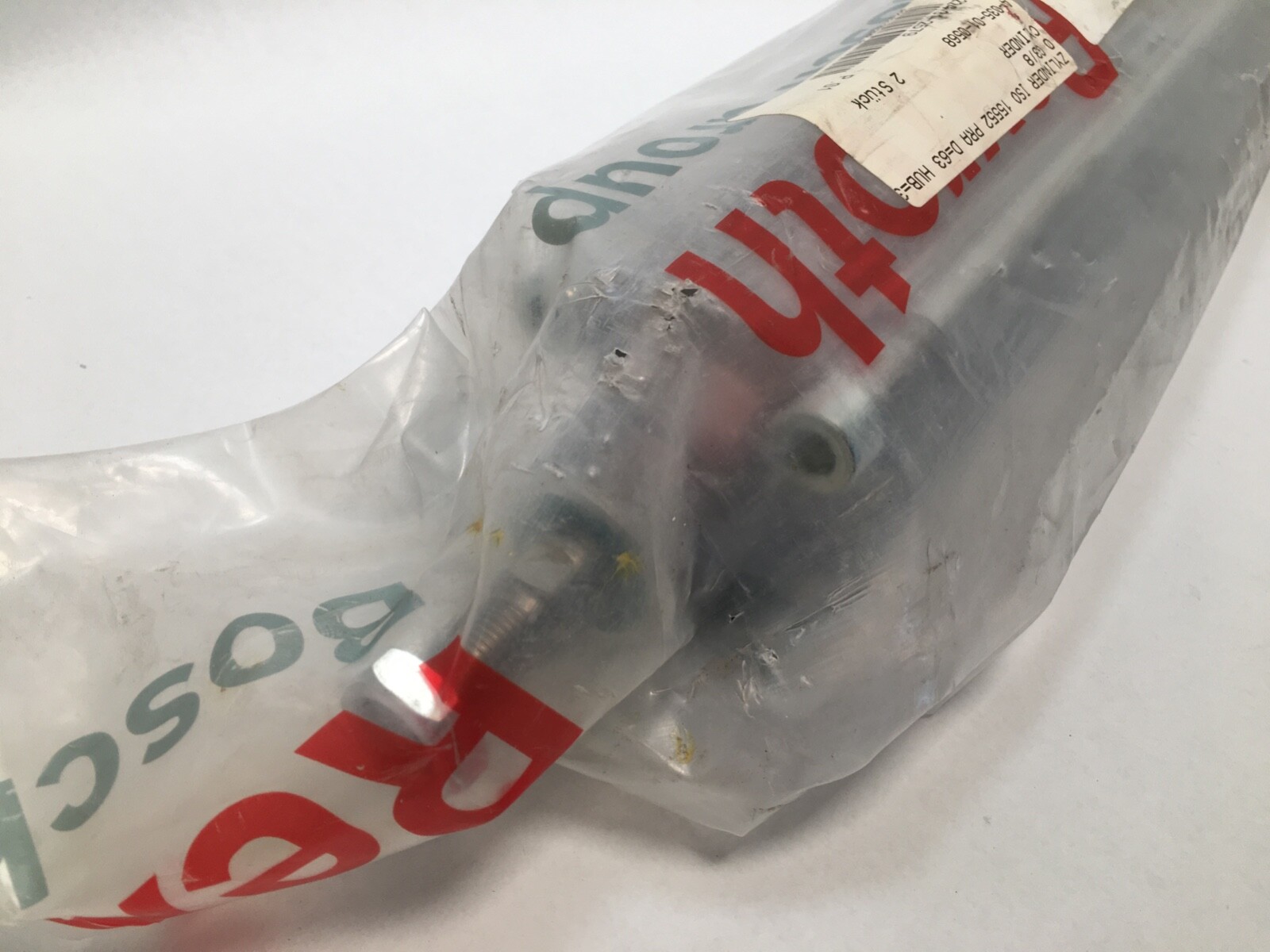

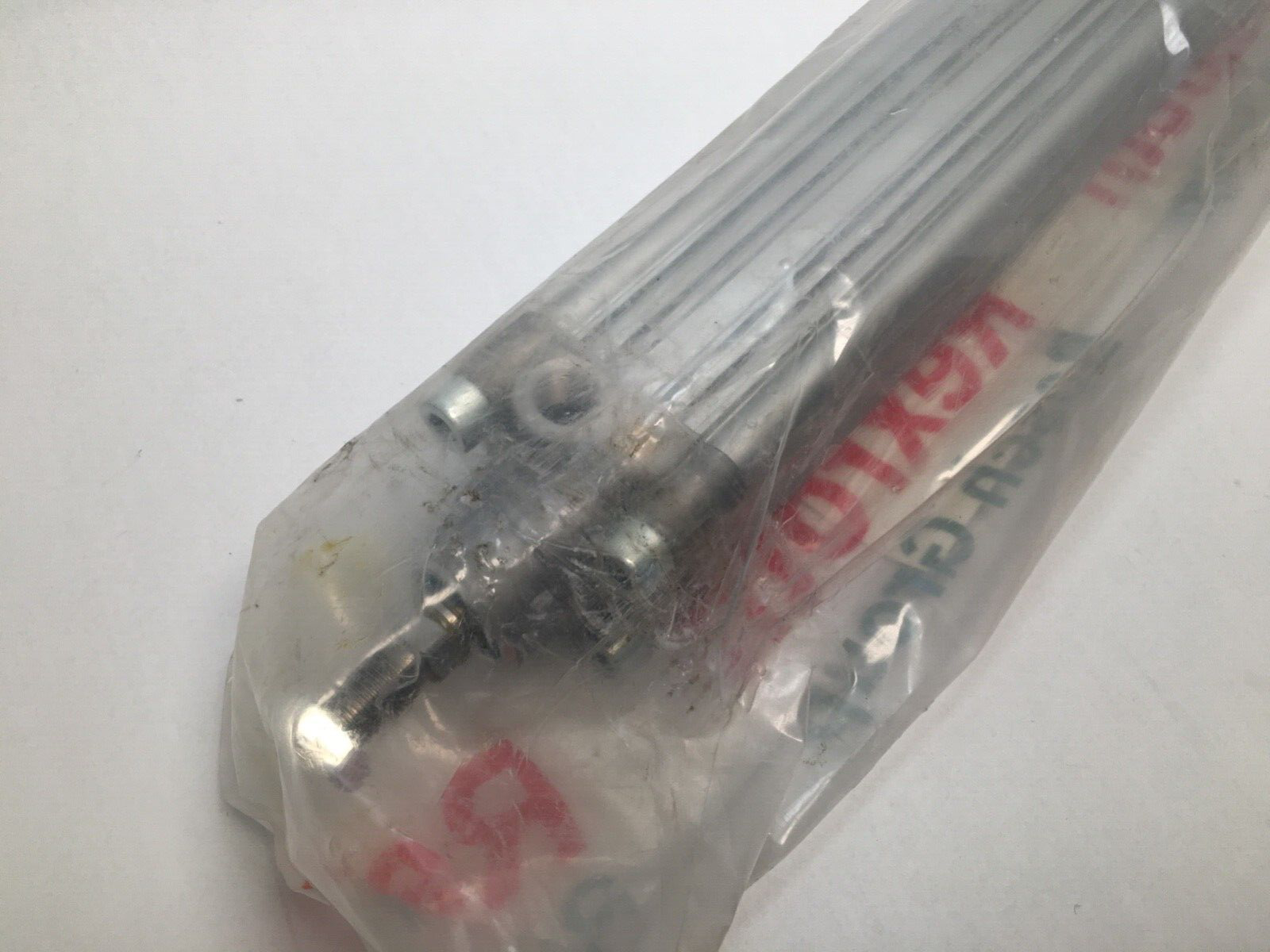

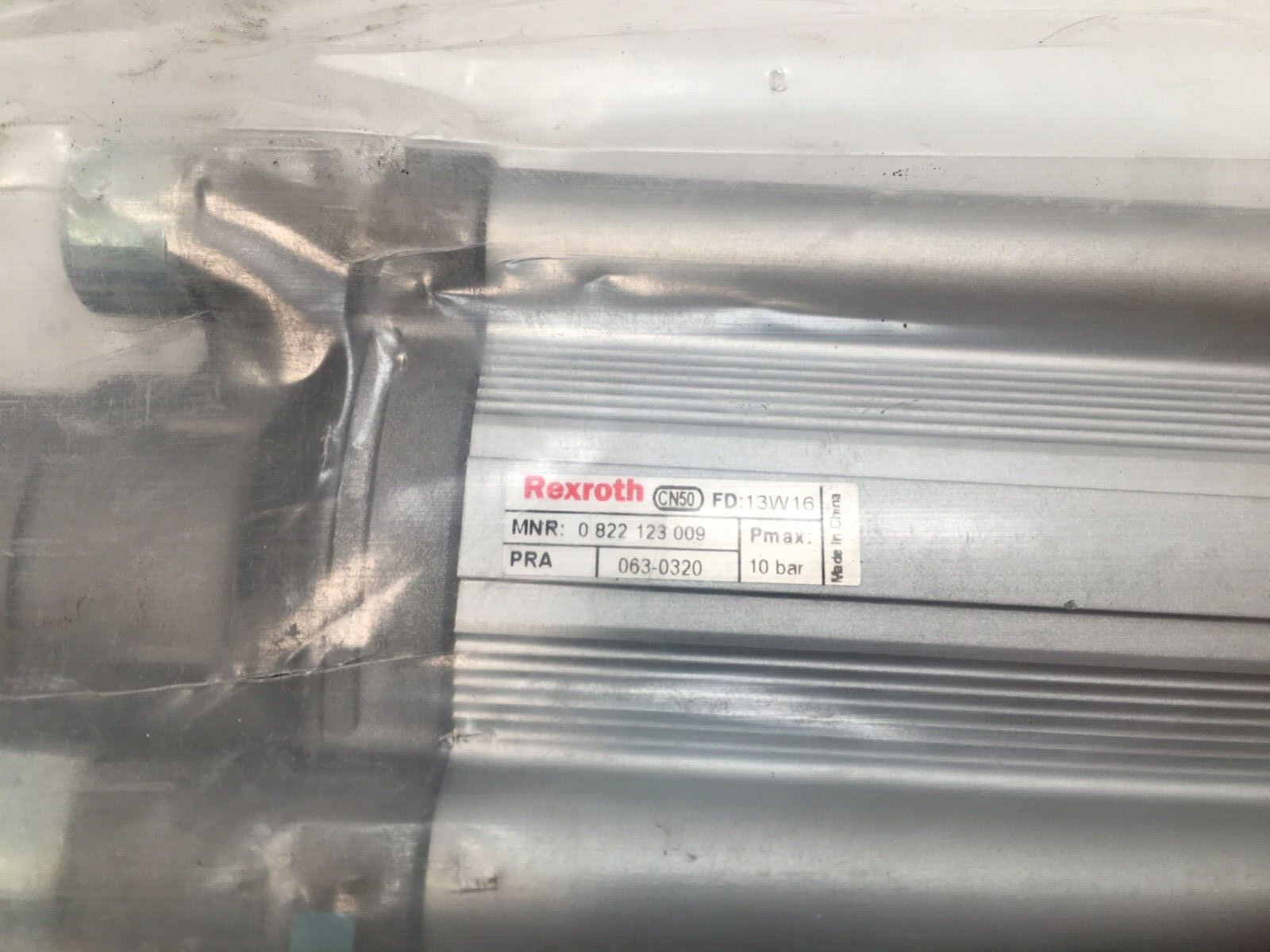

Bosch Rexroth 0822123009 is a double-acting ISO 15552 profile pneumatic cylinder, series PRA. Piston Diameter: 63 mm. Stroke: 320 mm. Piston Rod Diameter: 20 mm. Piston Rod Thread: M16 x 1.5, external. Port Size: G3/8, internal thread. Cushioning: pneumatic, adjustable, with elastic end cushioning. Piston: magnetic. Weight: 3.15 kg. Overall Body Length: 441 mm. Unit Quantity: 1 Pc. Cylinder only.

Decoding the designation:

0822123009 — Bosch Rexroth material number. Within the PRA table, 0822123xxx is the 63 mm bore column and the trailing 009 is the 320 mm stroke row.

PRA — Rexroth ISO 15552 profile-barrel standard cylinder range.

063-0320 — 63 mm piston diameter, 320 mm stroke.

DA — double-acting.

BAS — base execution, magnetic piston with adjustable pneumatic cushioning at both ends.

Specifications:

Extending Piston Force at 6.3 bar: 1960 N. Retracting Piston Force at 6.3 bar: 1765 N. Working Pressure: 1.5 to 10 bar. Cushioning Length: 16.5 mm. Cushioning Energy: 27 J. Maximum Stroke for the 63 mm Bore: 2500 mm. Ambient Temperature: −20 to +80 °C. Medium Temperature: −20 to +80 °C. Medium: compressed air. Maximum Particle Size: 50 µm. Oil Content of Compressed Air: 0 to 5 mg/m³. Pressure Dew Point: at least 15 °C below ambient and medium temperature, and no higher than 3 °C.

Material, Cylinder Tube: anodised aluminium. Material, Piston Rod: stainless steel. Material, Front Cover and End Cover: die-cast aluminium. Material, Seal and Scraper: polyurethane. Material, Piston Rod Nut: galvanised steel.

ATEX execution published under ATEX ID II 2G2D c T4 T135 °C with an ambient range of −20 to +60 °C.

Dimensions and mounting:

Body Length at 0 mm Stroke: 121 mm ±0.8. Rod Extension Beyond the Front Cover: 37 mm. Piston Rod Thread Length: 32 mm. Across Flats on the Rod: 17 mm. Spigot Diameter: 45 mm to d11. Spigot Length: 16 mm. End Cap Width: 75 mm. Tie-Rod Thread: M8. Cover Tapped Hole: M10. Mounting Hole Centre Distance: 56.5 mm ±0.7. Port Centre Offset PL: 24 mm. L2: 25 mm. Piston Rod Diameter Tolerance: 20 mm f8. ISO 15552 sensor grooves on the barrel. ISO 15552 accessories for the 63 mm bore: foot, front and rear flange, rear clevis, trunnion, rod clevis and rod eye.

Compatibility and replacement:

ISO 15552 63 mm bore, G3/8 ports, 20 mm rod, M16 x 1.5 rod thread: Festo DNC-63-320-PPV-A, SMC C96SB63-320C, Norgren PRA/182063/M/320 and Parker P1D-B063MS-0320. Rexroth siblings: 0822123008 is 250 mm stroke, 0822123010 is 400 mm stroke, 0822122009 is the 50 mm bore at 320 mm stroke and 0822124009 is the 80 mm bore at 320 mm stroke.

Frequently asked questions:

What are the bore and stroke of the Rexroth 0822123009?

63 mm bore and 320 mm stroke, with a 20 mm piston rod and M16 x 1.5 rod thread.

What is the piston force of the 0822123009?

1960 N extending and 1765 N retracting at 6.3 bar.

What port size and working pressure does it have?

G3/8 internal-thread ports and a working pressure of 1.5 to 10 bar.
