DodgeP2B-S2-103RSpherical Roller Pillow Block — 1-3/16 in Bore, 2-Bolt Base, Cast Iron, 65° Set Screw Collar, Triple-Lip Seal, Non-Expansion

Product Description

What this part is:

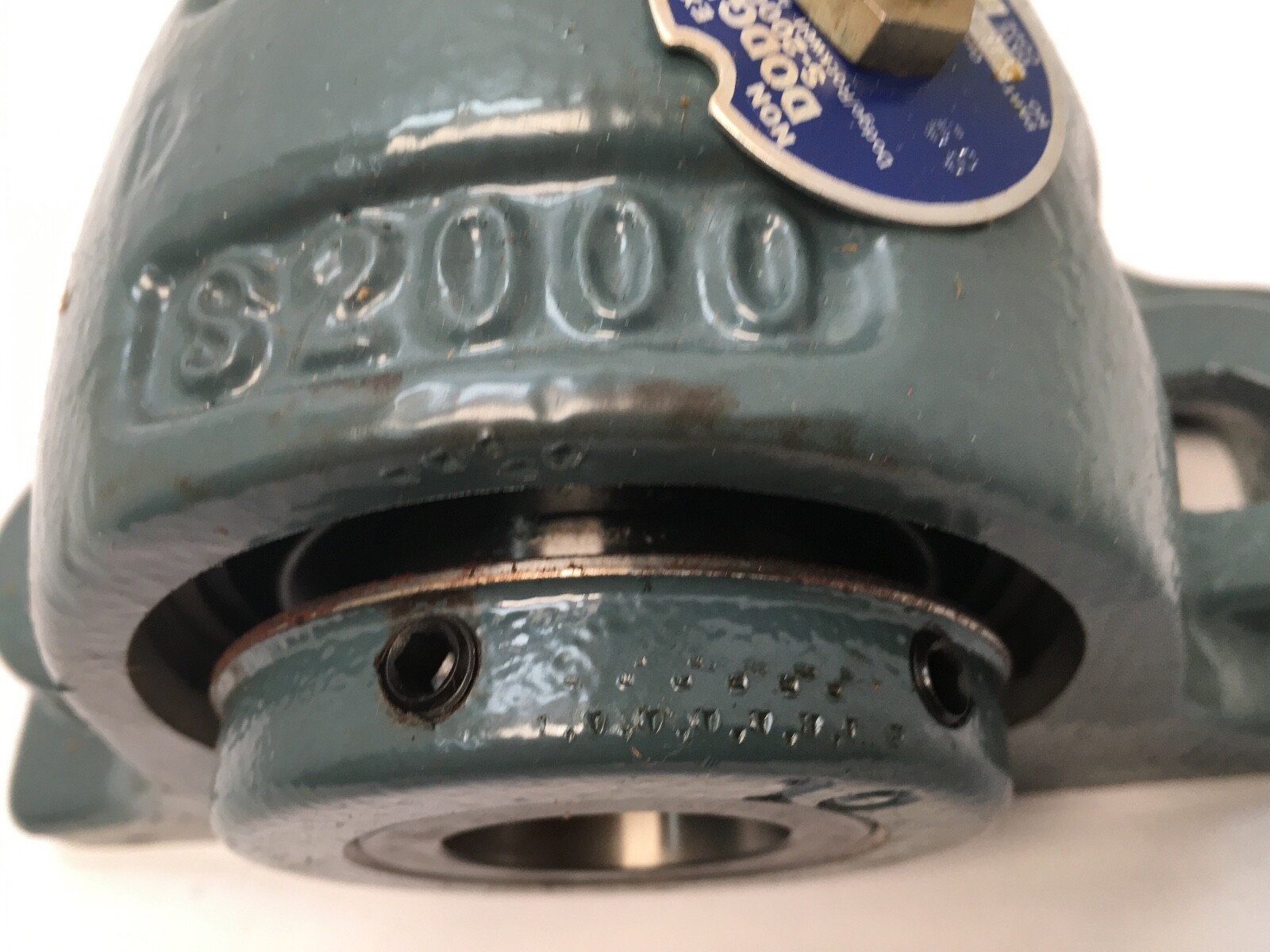

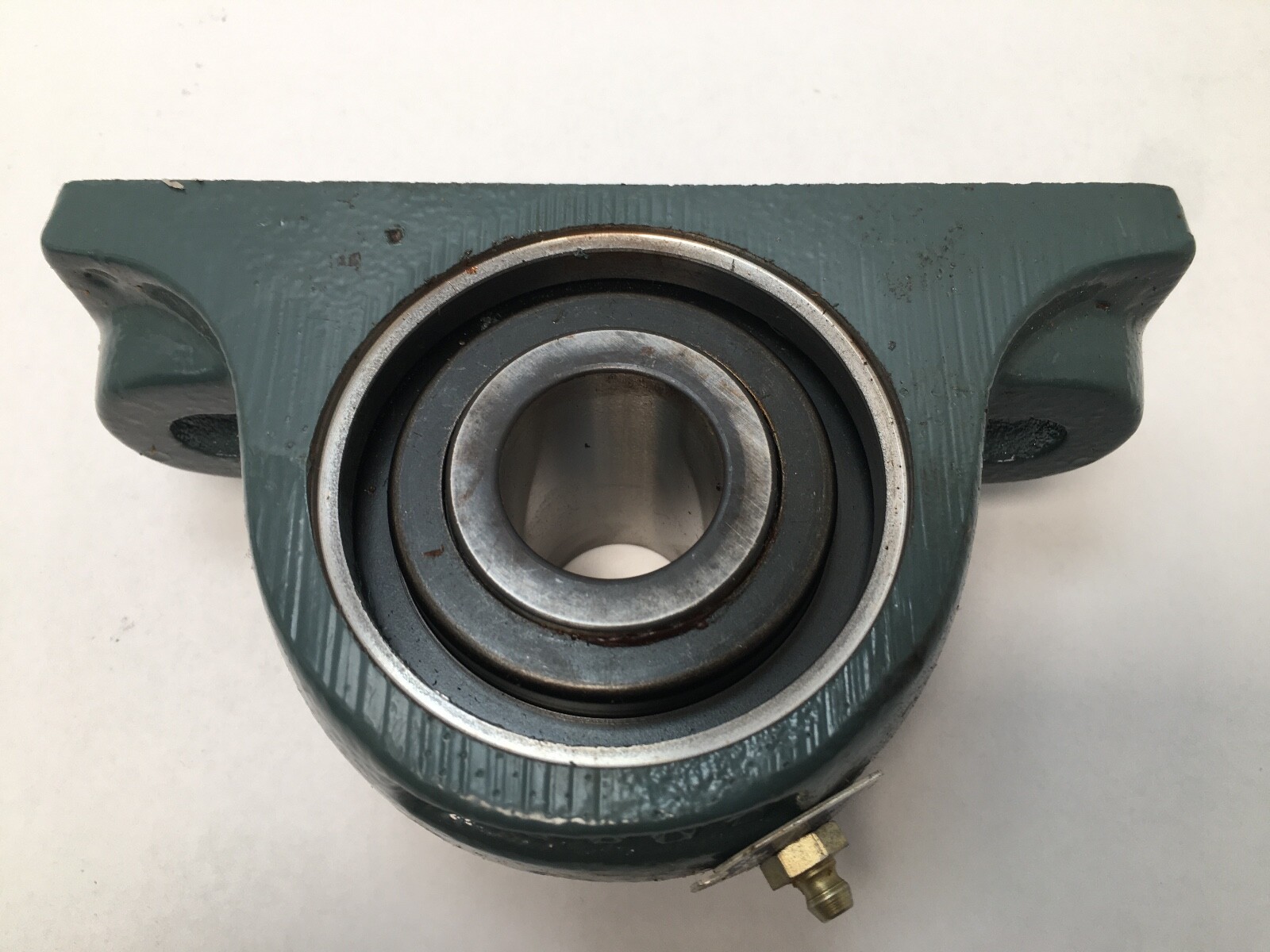

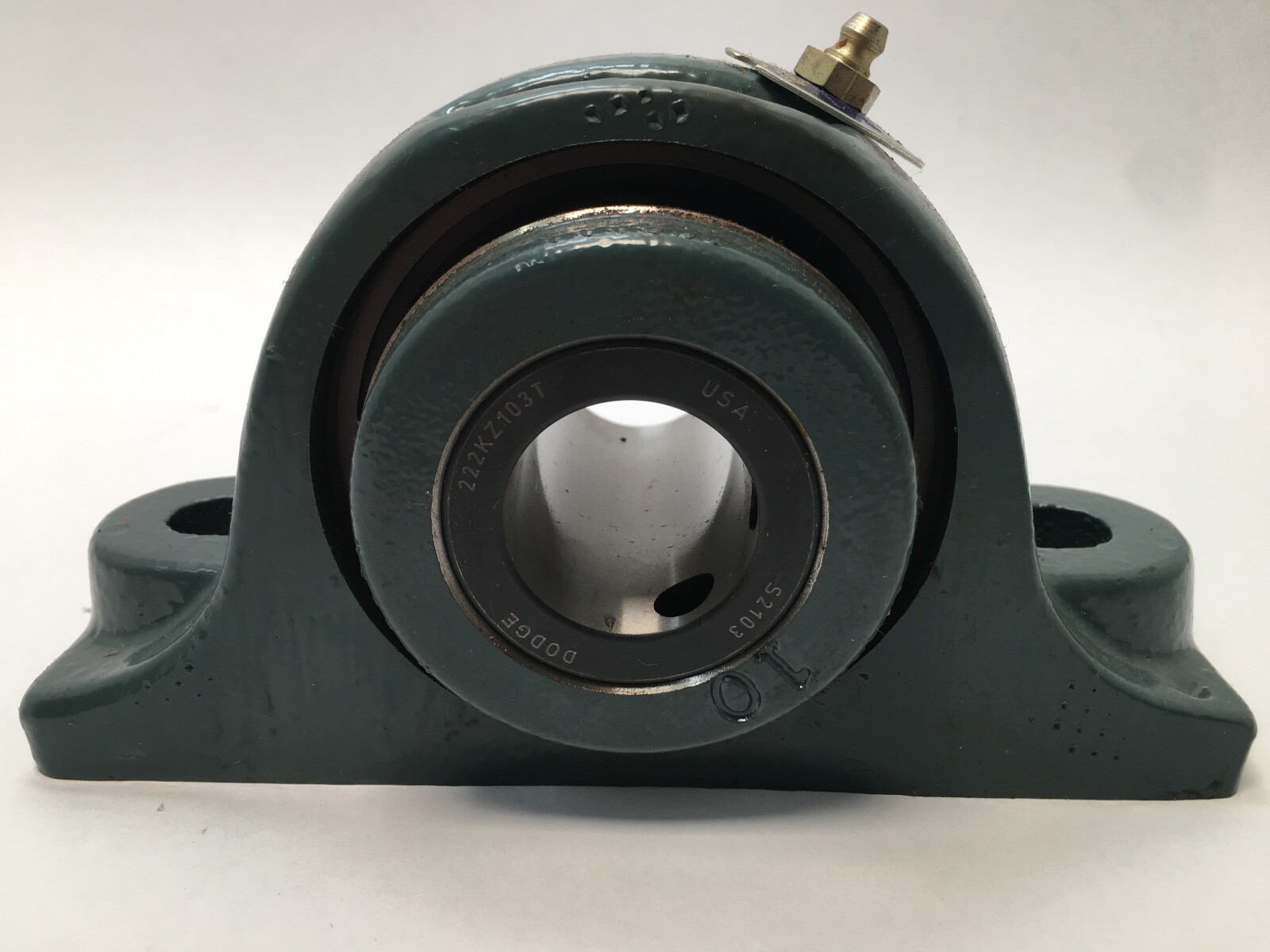

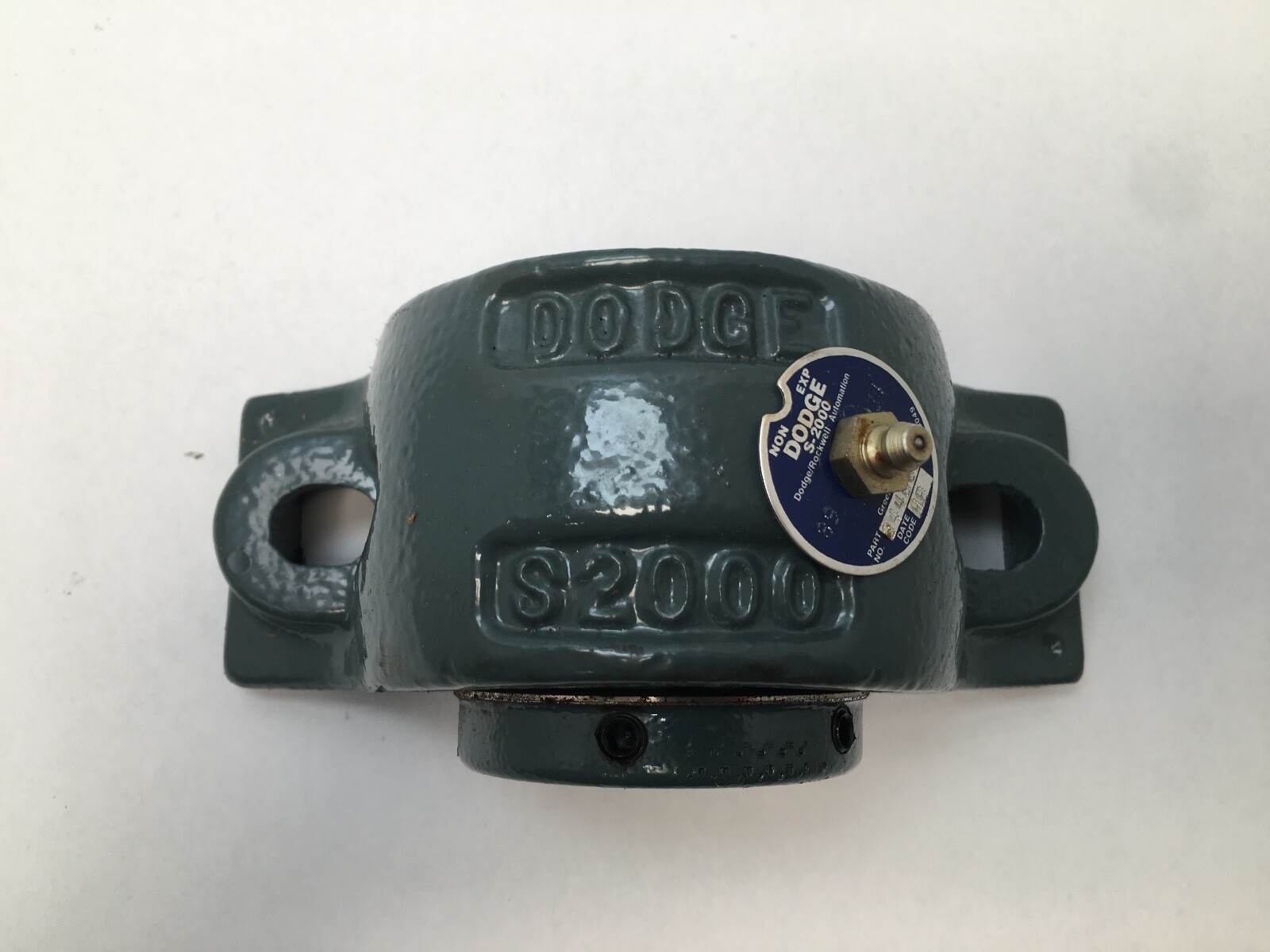

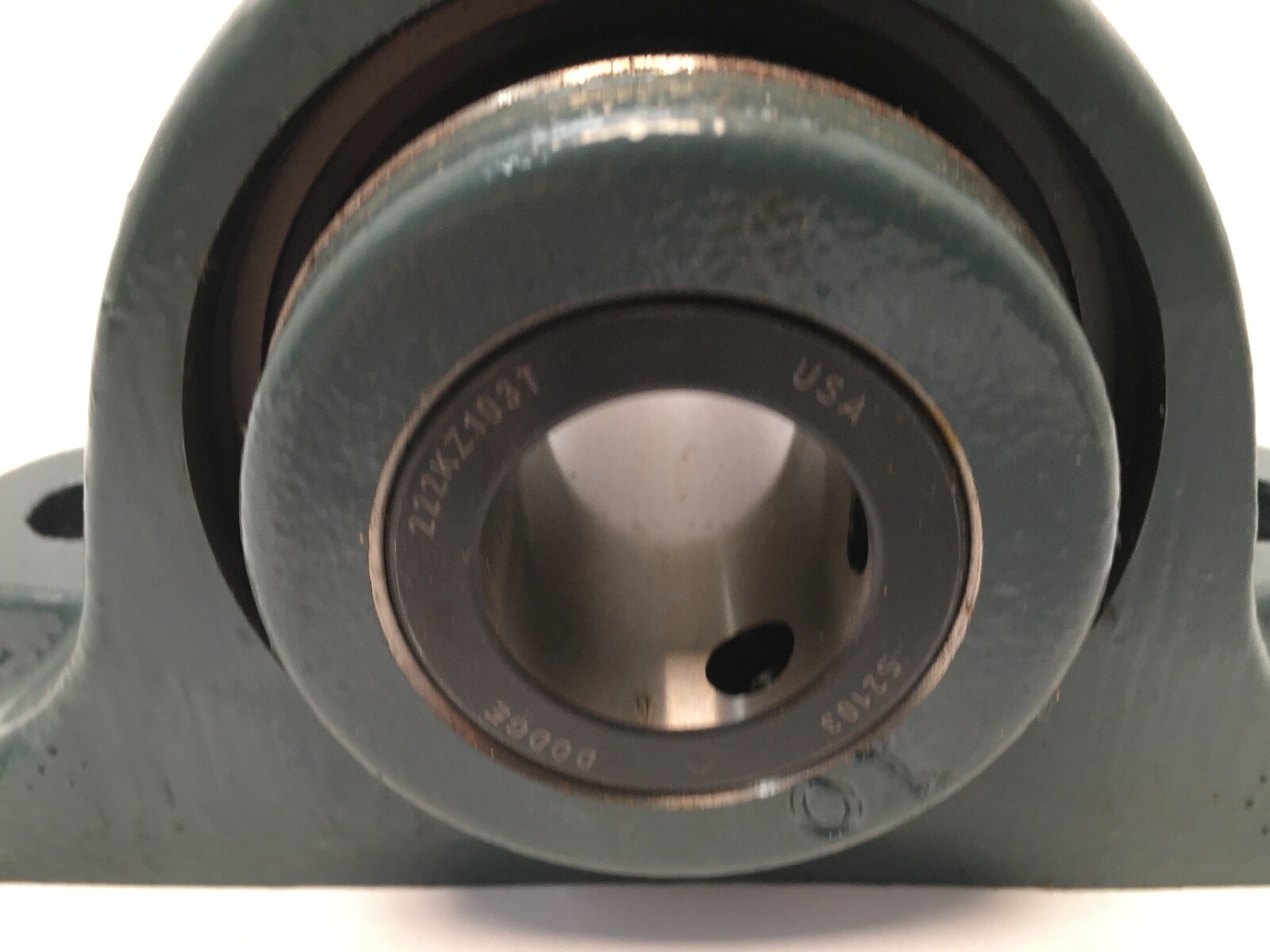

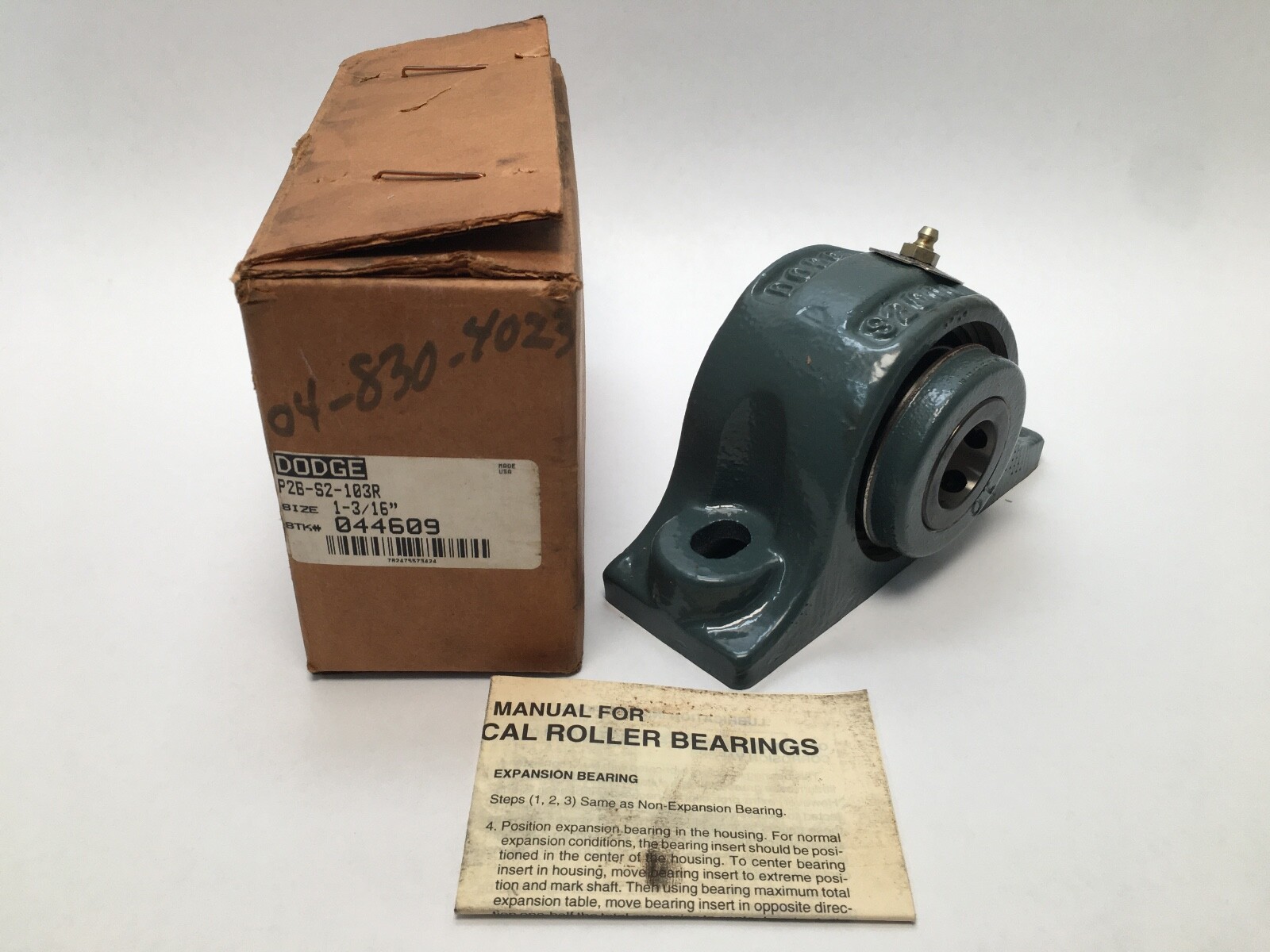

Dodge P2B-S2-103R is an S-2000 two-bolt pillow block carrying a double-row spherical roller insert for a 1-3/16 in shaft. Dodge part number: 044609. Unit Quantity: 1 Pc.

Decoding the designation:

P2B — pillow block, two-bolt base, cast iron.

S2 — S-2000 spherical roller bearing insert, inch sizes.

103 — 1-3/16 in shaft size.

R — TRIDENT triple-lip rubbing seal.

No E suffix — non-expansion unit. The insert is held axially in the housing and locates the shaft.

Specifications:

Housing Style: Two-bolt pillow block. Bore / Shaft Size: 1-3/16 in. Bearing Type: Double-row spherical roller. Housing Material: Cast iron, ASTM A48 Class 30. Locking Method: Set screw, Springlok collar with screws spaced 65° apart. Seal Type: TRIDENT triple-lip contact seal. Expansion Type: Non-expansion. Series: S-2000.

Dimensions and mounting:

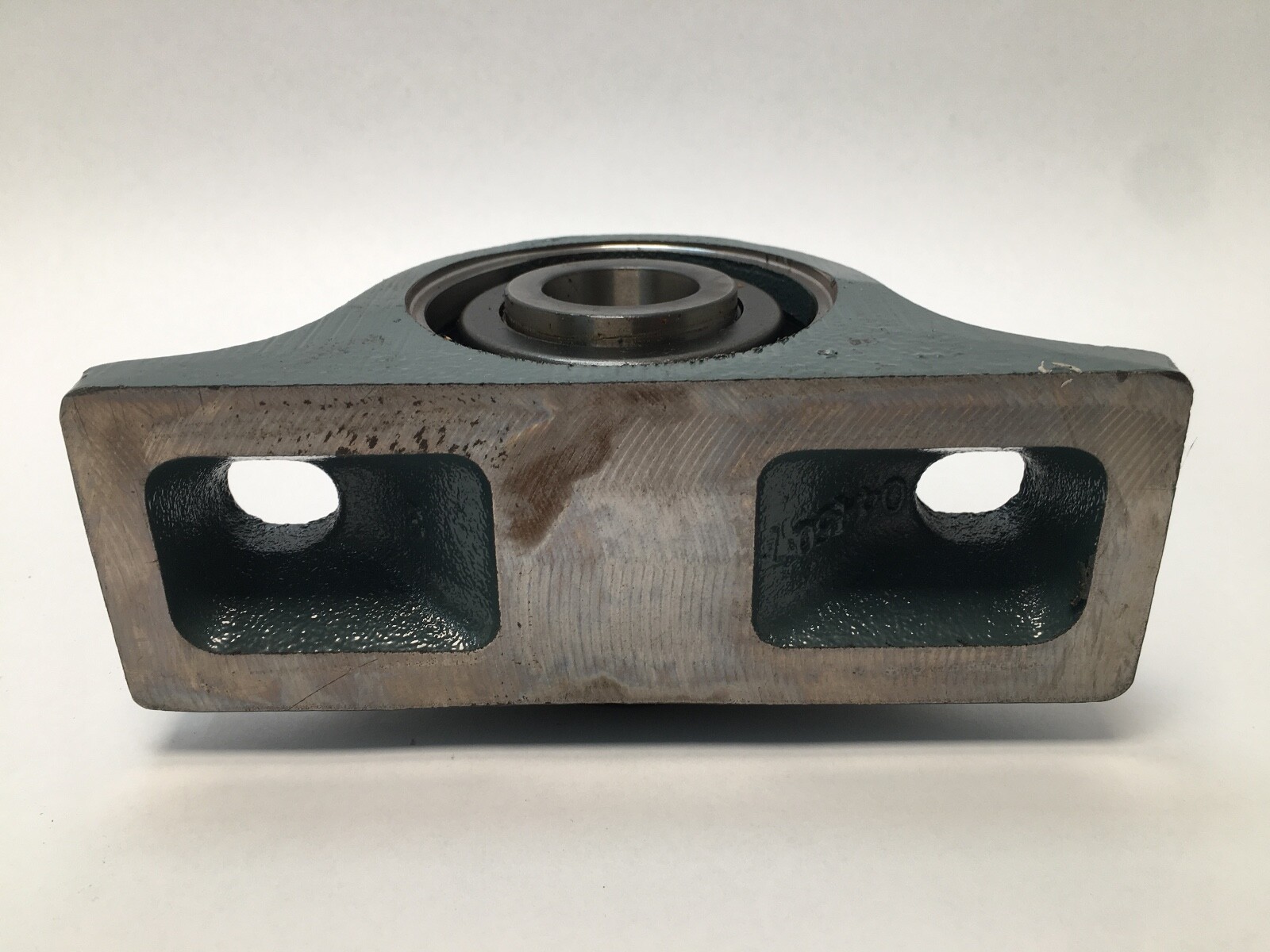

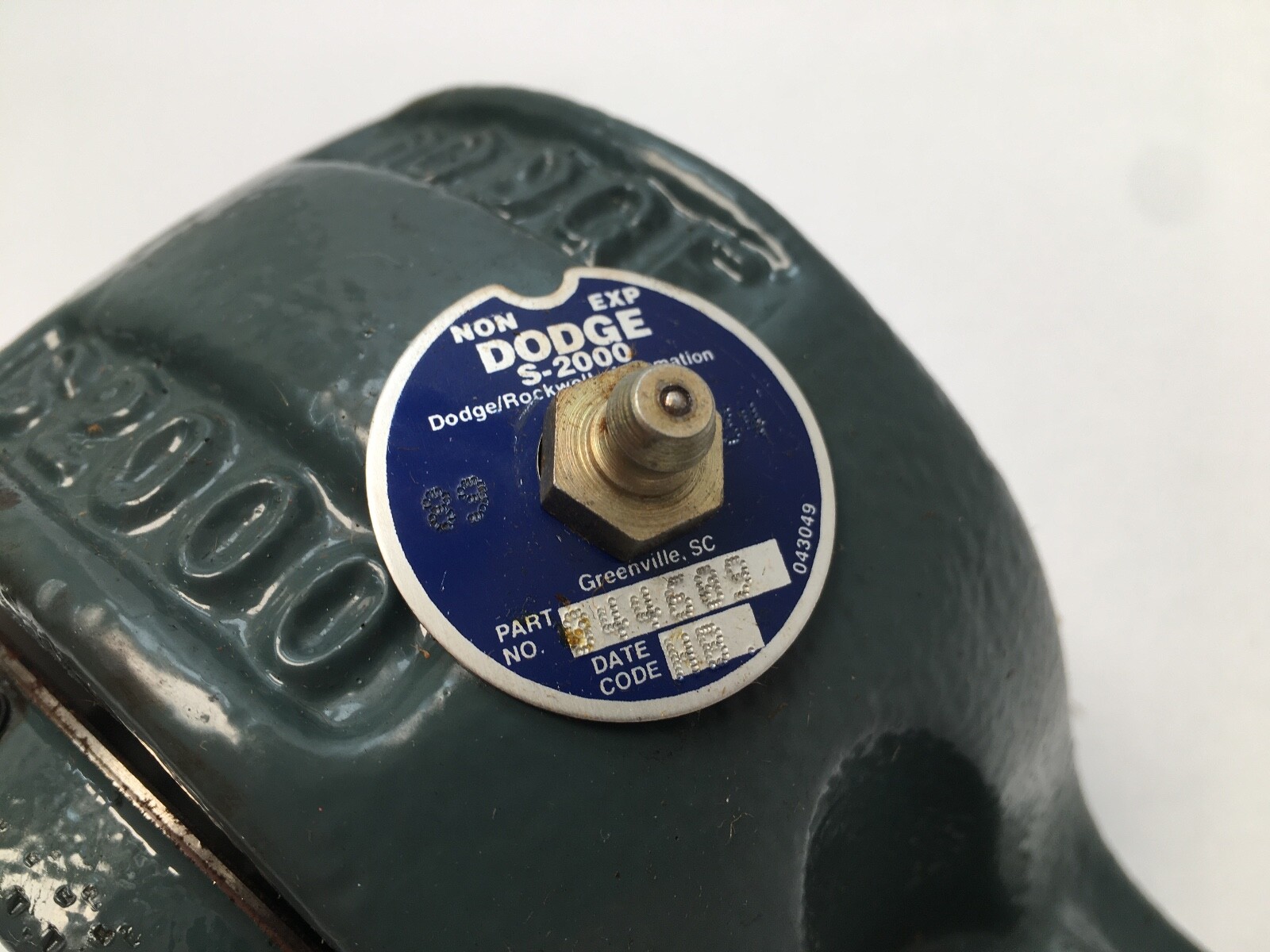

Number Of Bolt Holes: 2. Relubrication: 1/8-27 NPT hydraulic grease fitting. The unit is factory lubricated, sealed and adjusted.

Frequently asked questions:

What shaft size does the Dodge P2B-S2-103R fit?

Bore / Shaft Size: 1-3/16 in.

What bearing is inside the housing?

An S-2000 double-row spherical roller insert in a two-bolt cast iron pillow block.

What does R mean in P2B-S2-103R?

R is the TRIDENT triple-lip rubbing seal. A unit without the E suffix is non-expansion.
