Deep groove ball bearing, 25 x 47 x 12 mm, ABEC 3 / P6 tolerance, open. 11,200 N dynamic rating, 15,000 rpm grease. NTN 6005 size, single row.
List Price
$32.06
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Single Row Deep Groove Ball Bearing 25x47x12 mm, P6 Tolerance with C3 Internal Clearance$121.45
Deep Groove Ball Bearing – 25 x 47 x 12 mm, Open, Straight Bore, C0 Clearance$53.55
Imperial Tapered Roller Bearing Cone, 2.0625 in / 52.388 mm Bore, Mates Cup 3720 - 2 Pcs$29.73
Tapered Roller Bearing Cone — 1.6250 in Bore, 1.2160 in Width, Inch Series$29.84| MFR / Brand | NTN |
|---|---|
| MPN | 6005P6 |
| Model | 6005 P6 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Series | 6000 |
|---|---|
| Material | Chrome Steel |
| Mpn Variants | 6005P6, 6005-P6, 6005 P6 |
| Precision Class | ABEC 3 / P6 |
| Dynamic Load Rating | 11,200 N |
| Static Load Rating | 5,850 N |
| Rolling Elements | Ball |
| Item Weight | 0.080 kg (0.176 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 15,000 rpm grease; 18,000 rpm oil |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 6005/P6 |
|---|---|
| Cross Reference 2 | FAG 6005-P6 |
| Cross Reference 3 | NSK 6005P6 |
| Cross Reference 4 | Koyo 6005P6 |

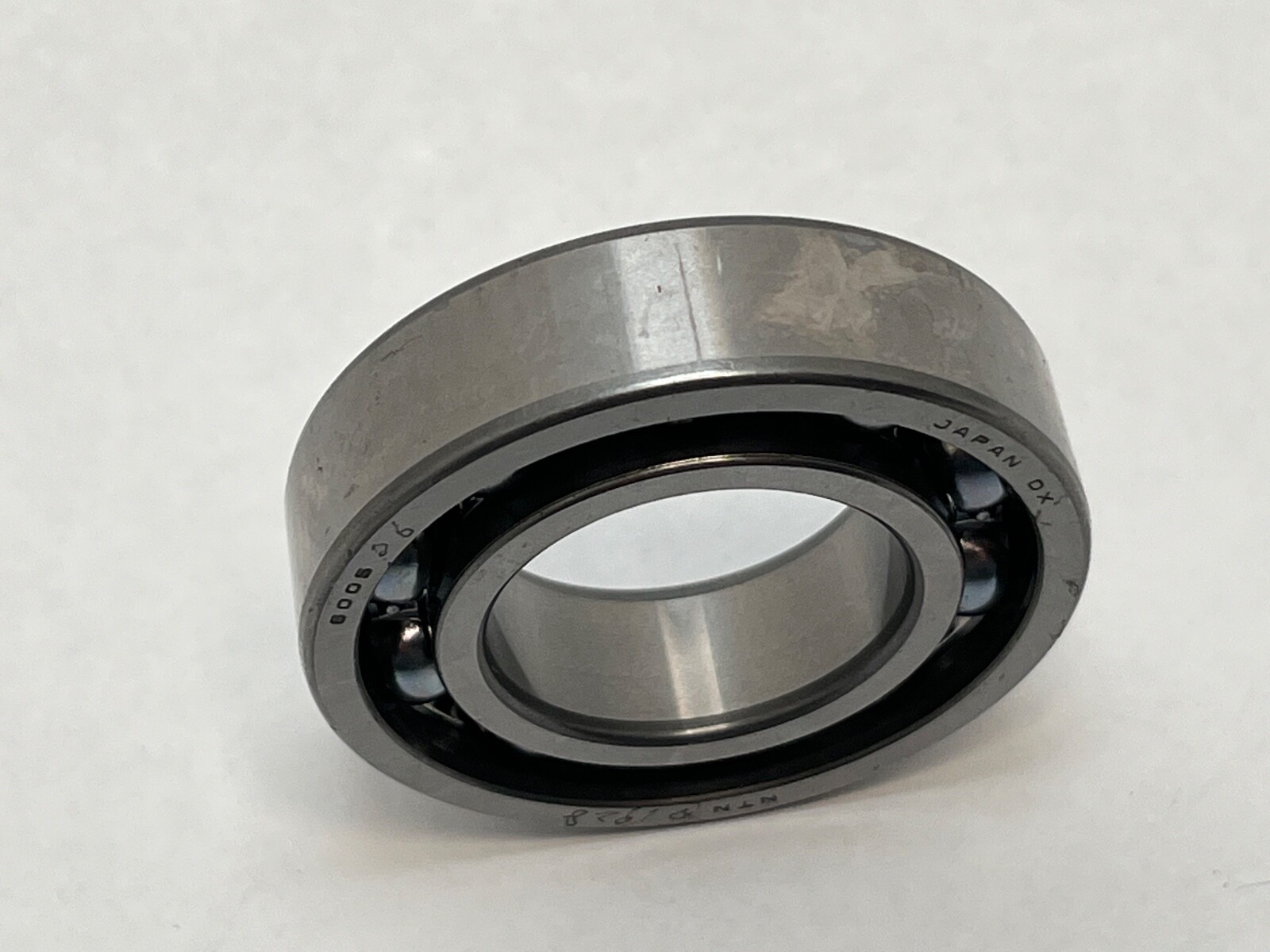

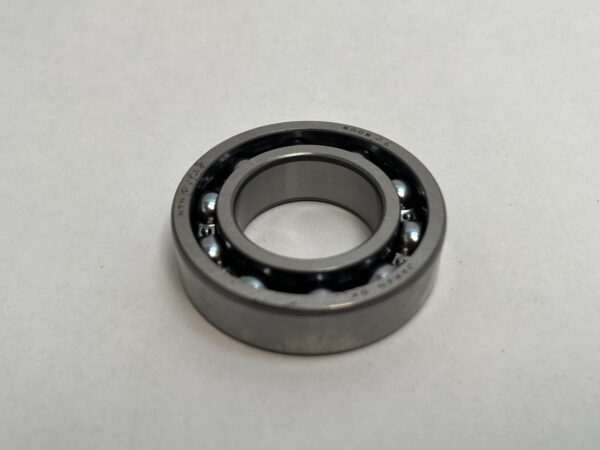

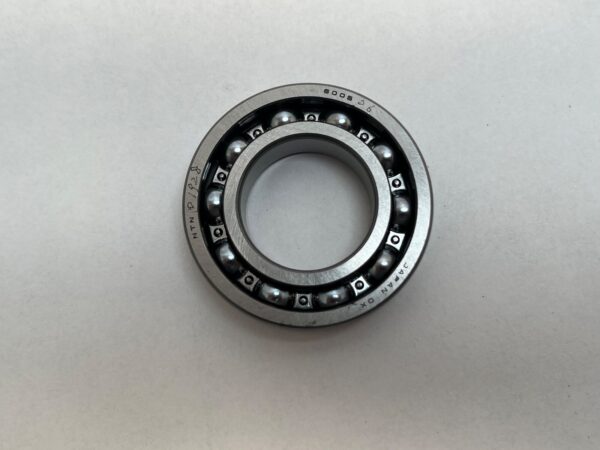

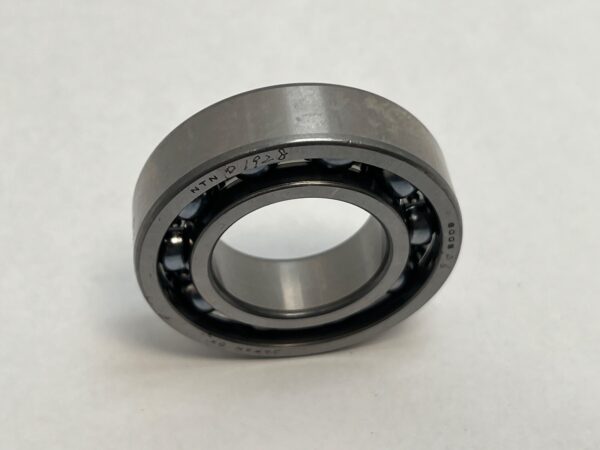

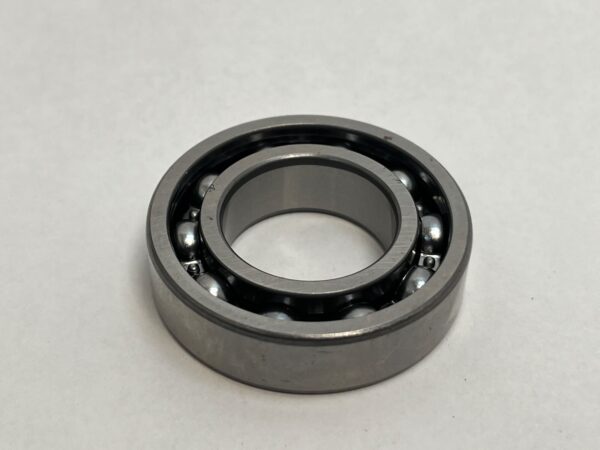

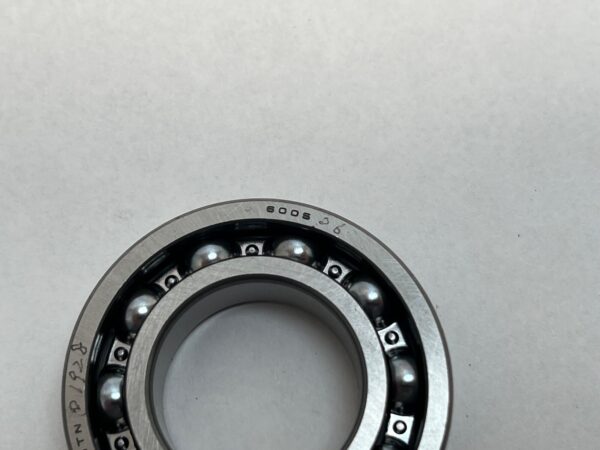

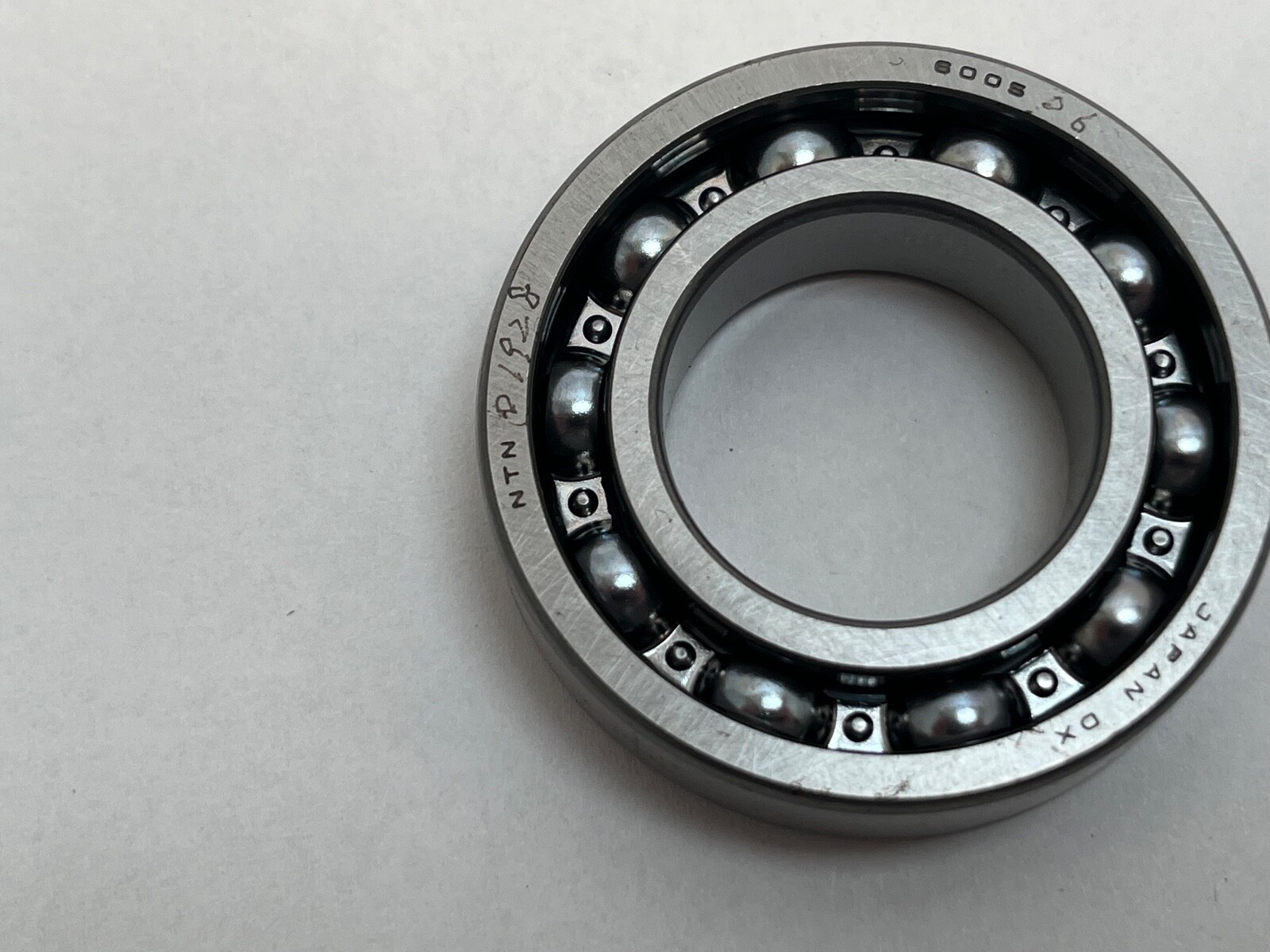

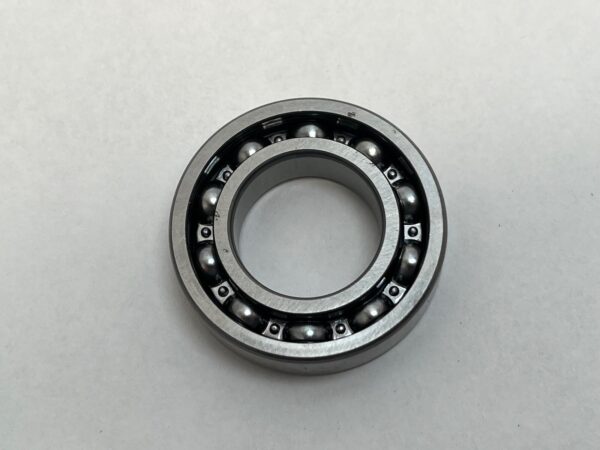

NTN 6005P6 single-row deep groove ball bearing, open, made to P6 tolerance. Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Precision Class: ABEC 3 / P6. Closure Type: Open. Rolling Elements: Ball. Cage Material: Pressed steel. Internal Clearance: CN.
6005 — single-row deep groove ball bearing, 10 dimension series, bore code 05: 25 x 47 x 12 mm.
P6 — ISO Class 6 tolerance, equivalent to ABEC 3. Tighter bore, OD and running accuracy than standard Class 0.
Dynamic Load Rating: 11,200 N. Static Load Rating: 5,850 N. Limiting Speed: 15,000 rpm grease; 18,000 rpm oil. Item Weight: 0.080 kg (0.176 lb). The open design runs on oil or grease. The P6 class gives lower runout for motors, spindles and instruments.
Fillet Radius r min: 0.6 mm. Shaft Abutment Diameter da min: 29 mm. Housing Abutment Diameter Da max: 43 mm. Max Abutment Fillet ras: 0.6 mm.

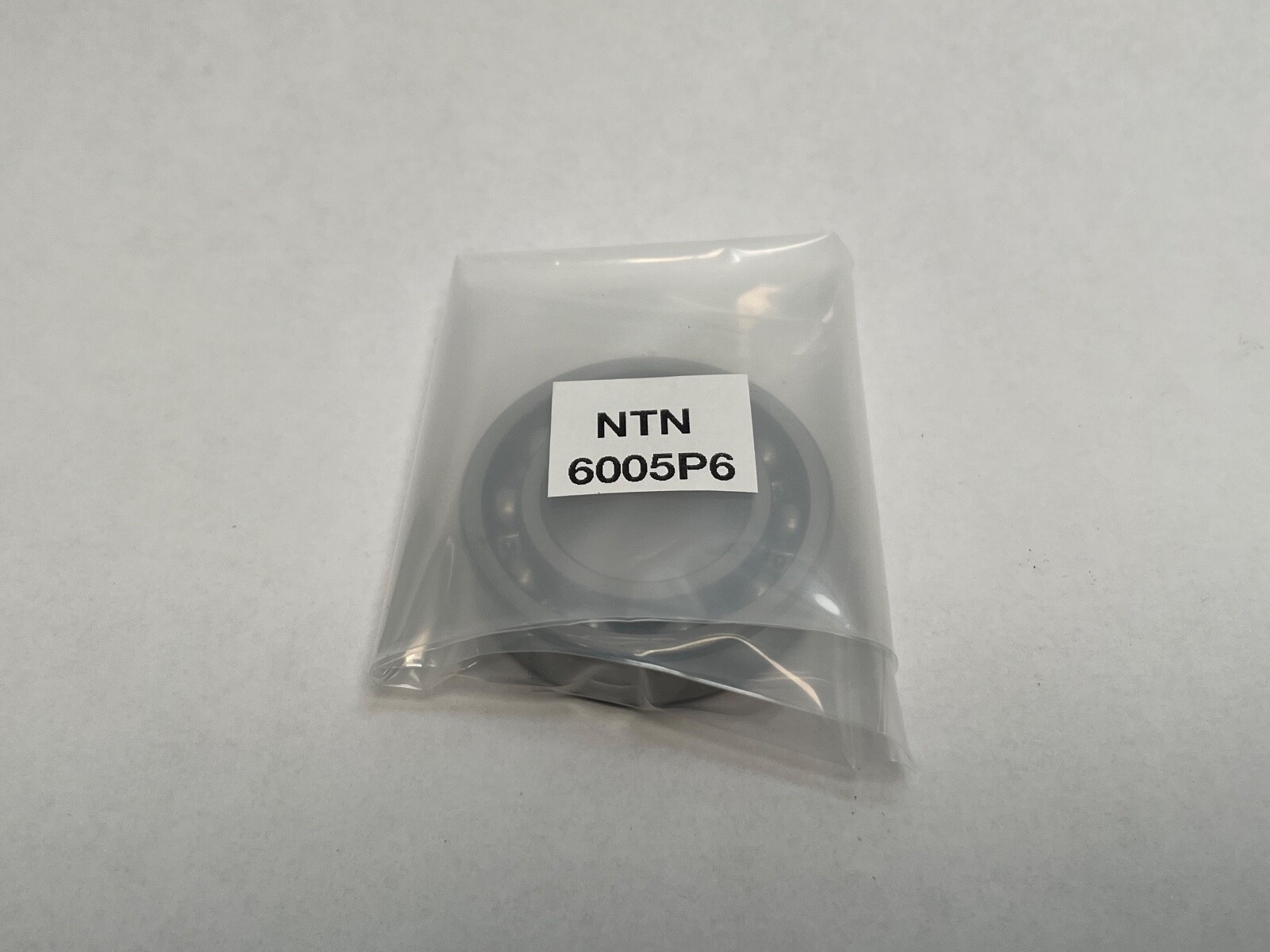

Unit Quantity: 1 Pc.
Same 25 x 47 x 12 mm envelope at ABEC 3 / P6: SKF 6005/P6, FAG 6005-P6, NSK 6005P6, Koyo 6005P6.
