Allen Bradley00100.0000.0000.00Industrial Servo Motor, 3000 rpm Rated Speed, MO Series, Closed-Loop Motion Control

Product Description

What this part is:

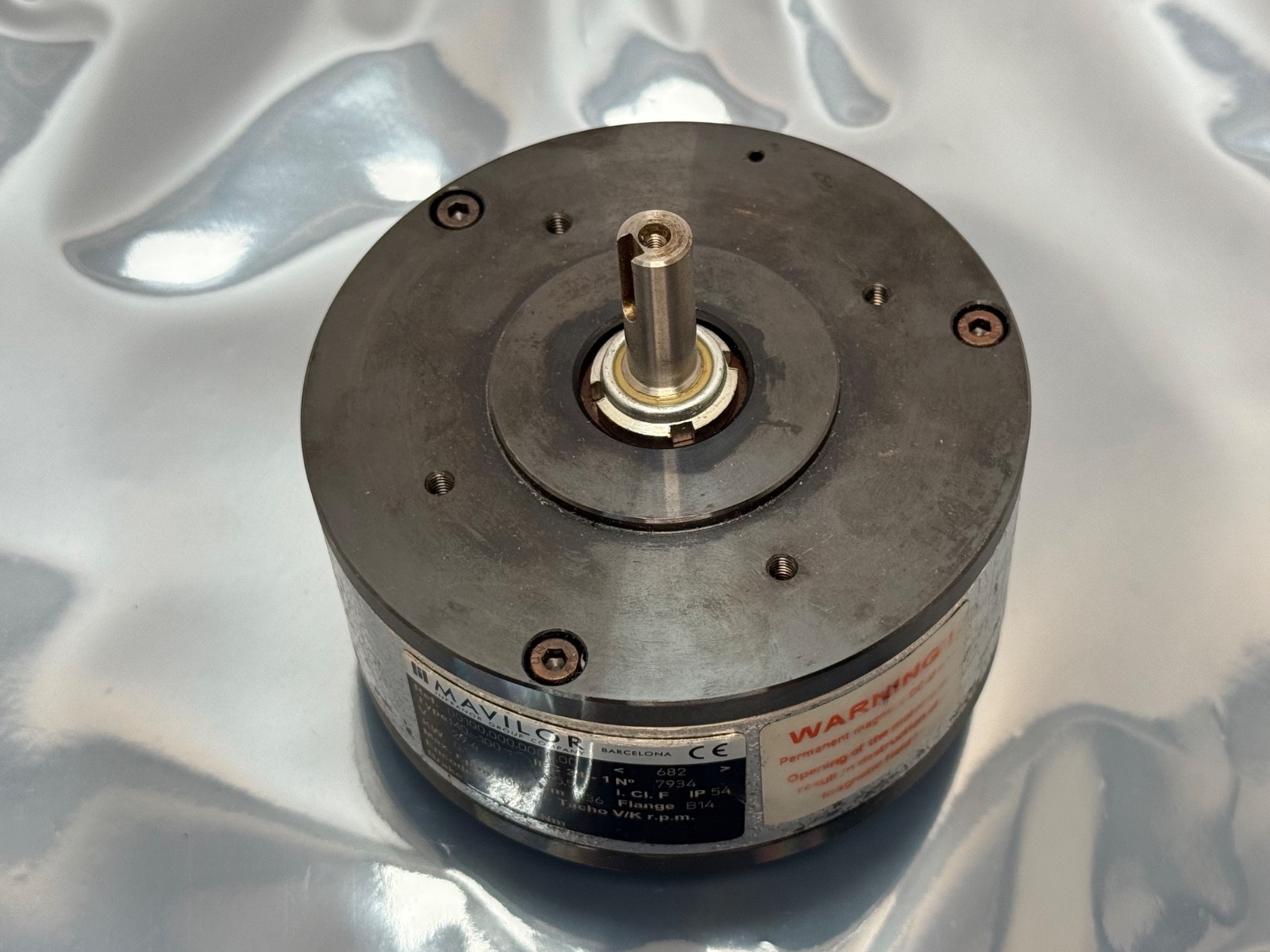

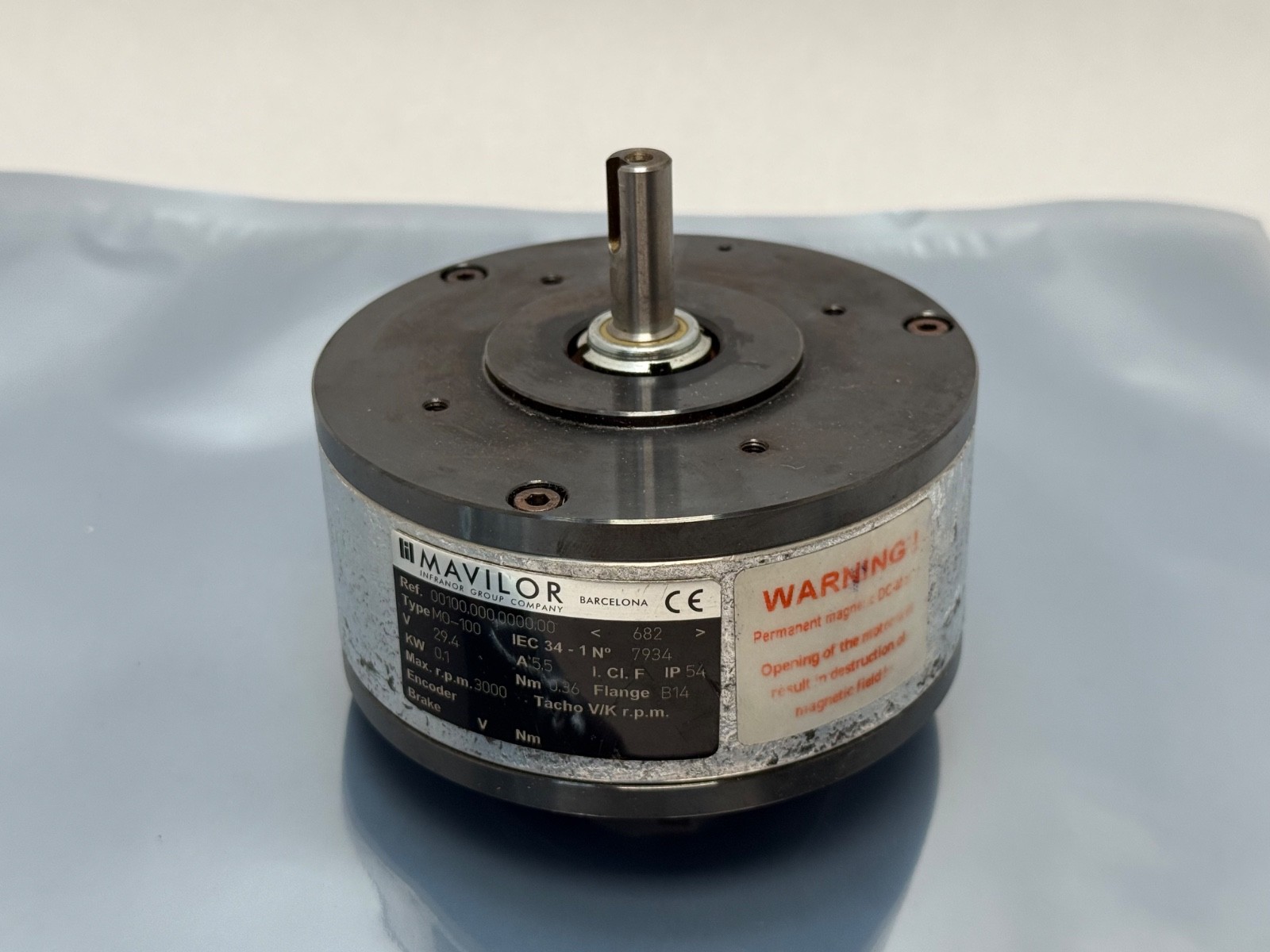

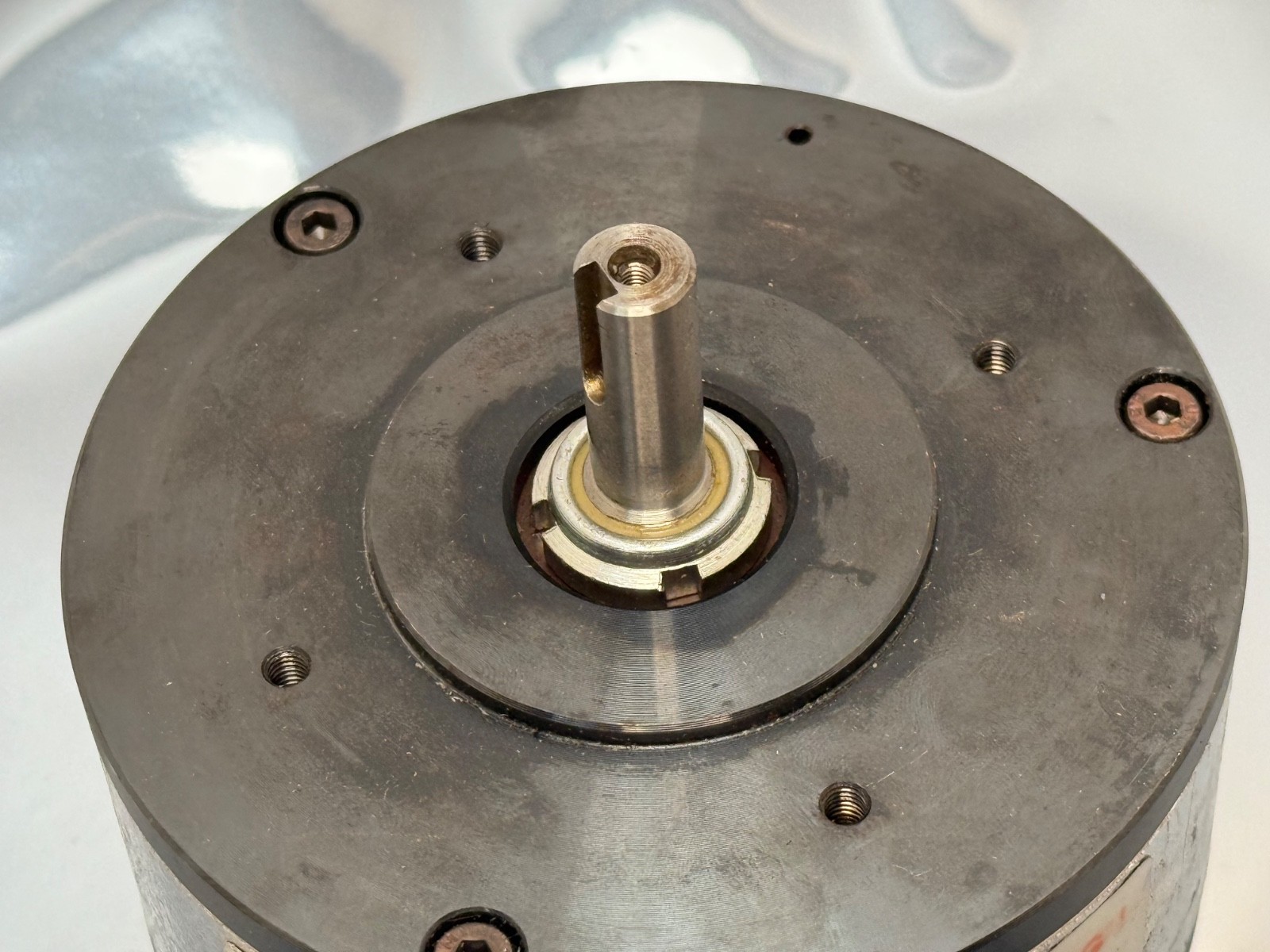

Mavilor MO-100 servo motor. Product Type: industrial servo motor for closed-loop motion control. Series: MO. Rated Speed: 3000 rpm. Order Code: 00100.0000.0000.00. Country of Manufacture: Spain. Unit Quantity: 1 Pc.

Decoding the designation:

MO — the Mavilor MO servo motor series, sized by the numeral that follows.

100 — the frame and rating position within that series, alongside the MO-300 and MO-1000.

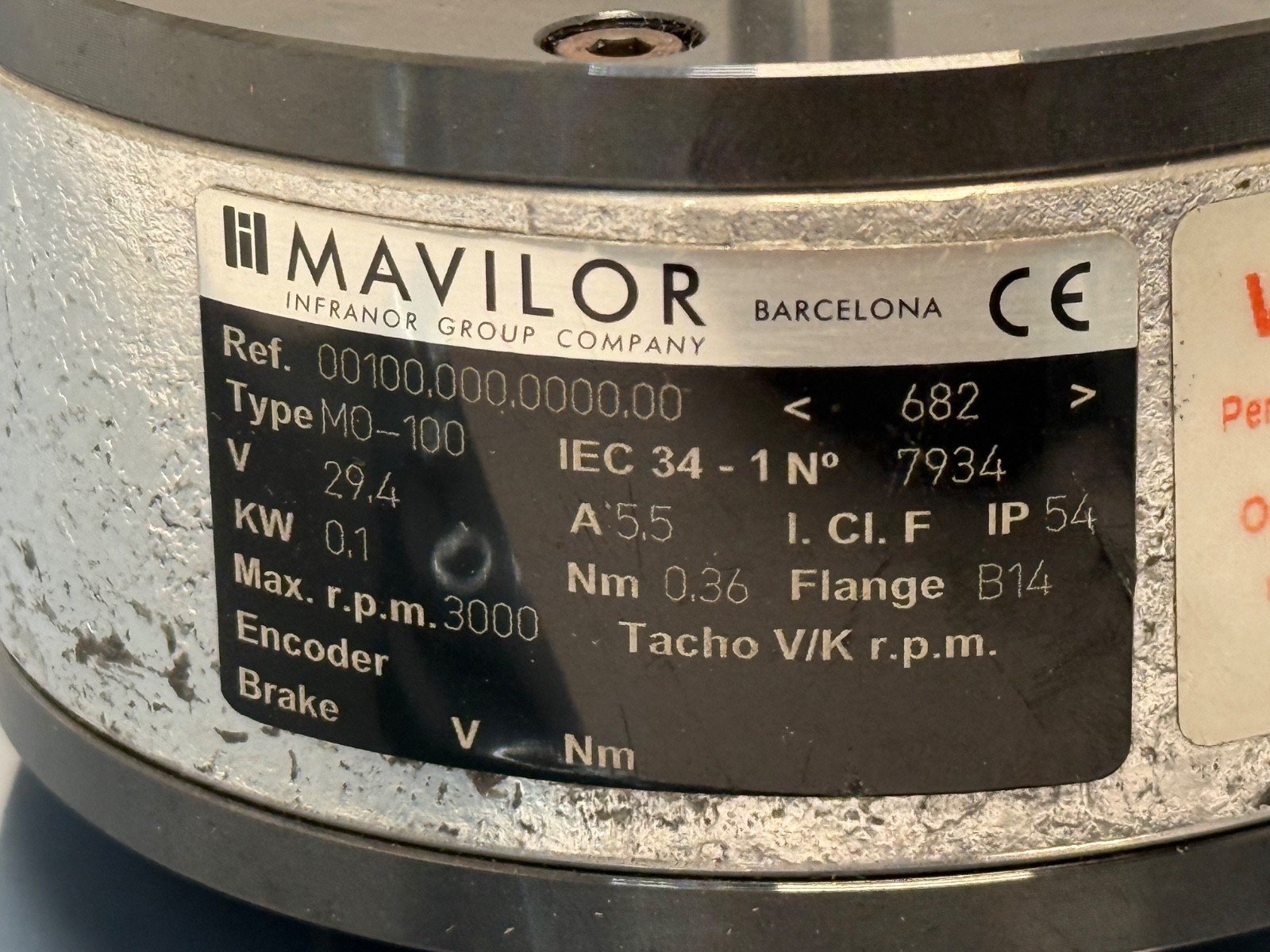

00100.0000.0000.00 — the Mavilor structured order code for this build, the number stamped on the motor and the one a replacement is quoted against.

What these specs mean in practice:

Rated Speed: 3000 rpm. That is the standard servo base speed for machine tool and packaging axes, and it is the figure the drive’s velocity loop and any gearbox ratio are set around.

Product Type: servo motor. A servo motor is built for repeated acceleration and reversal under closed-loop position control, with a rotor inertia low enough to follow a commanded profile rather than simply to run at speed.

Series: MO. Mavilor builds the MO range in Barcelona and the series runs across several frame sizes on a common mechanical and electrical scheme, so a replacement is selected by the numeral rather than by a new mounting design.

Mounting data:

Country of Manufacture: Spain. Series: MO. Order Code: 00100.0000.0000.00.

Quantity and configuration:

Unit Quantity: 1 Pc. One servo motor.

Interchange guidance:

Manufacturer Status: discontinued. Part Number: MO-100. MPN Variants: MO100, MO 100, 00100.0000.0000.00. Within the same MO range the MO-300 and the MO-1000 are the larger frames, so both are related sizes rather than equals. Mavilor also builds the CML series of DC servo motors and the MA series of AC servo motors, which are separate ranges on their own designation schemes. Mavilor is part of the Infranor group.
