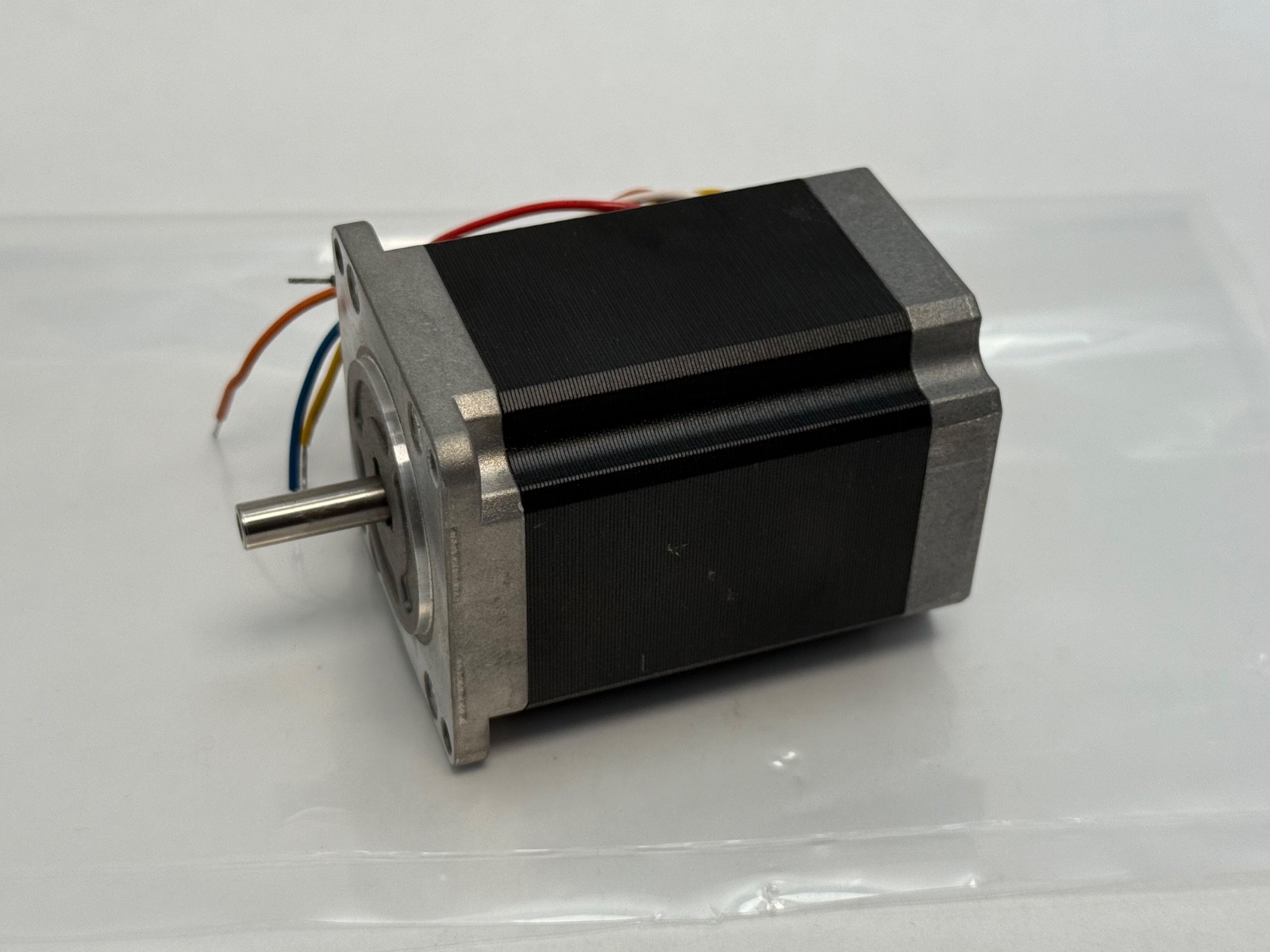

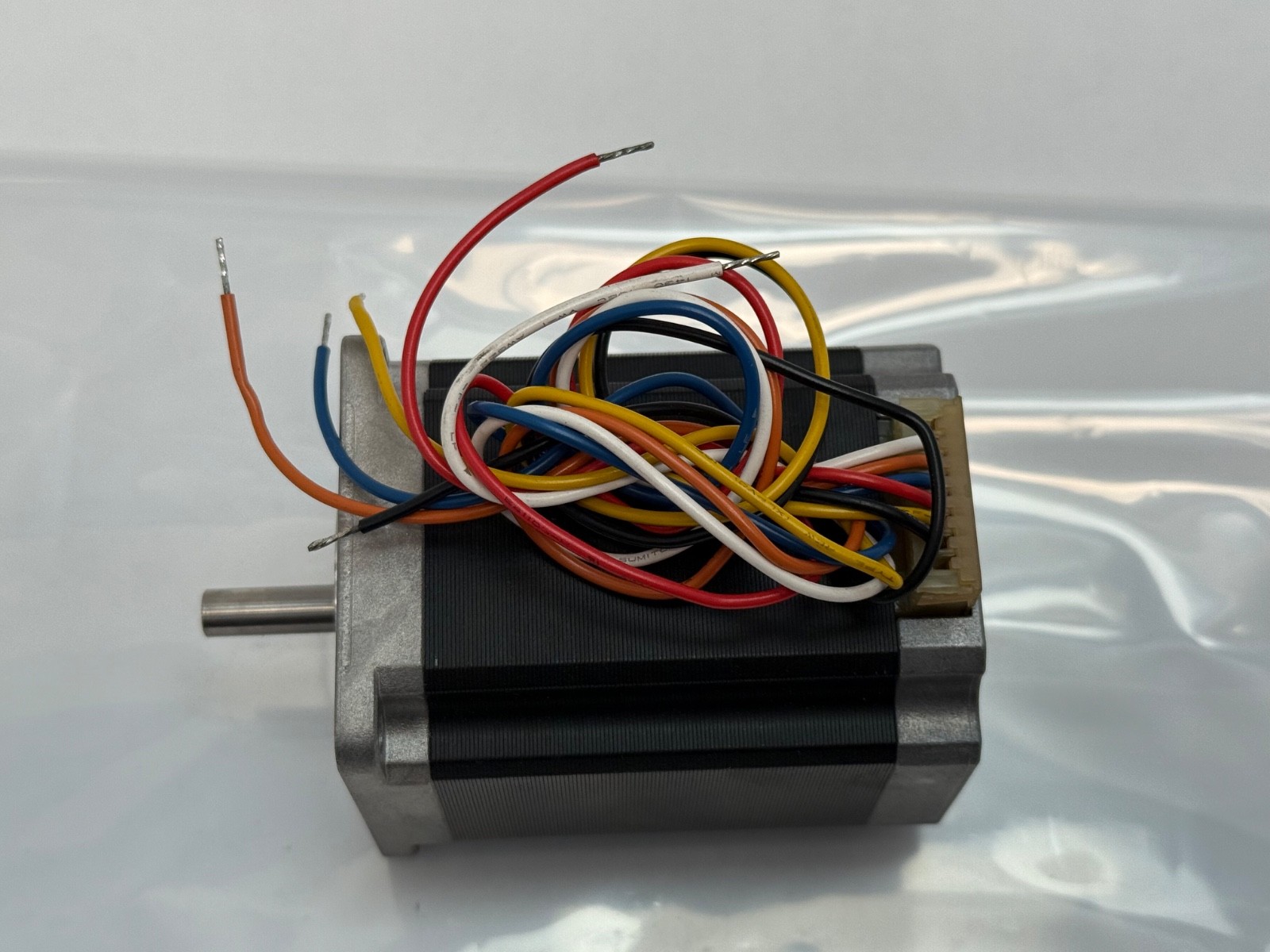

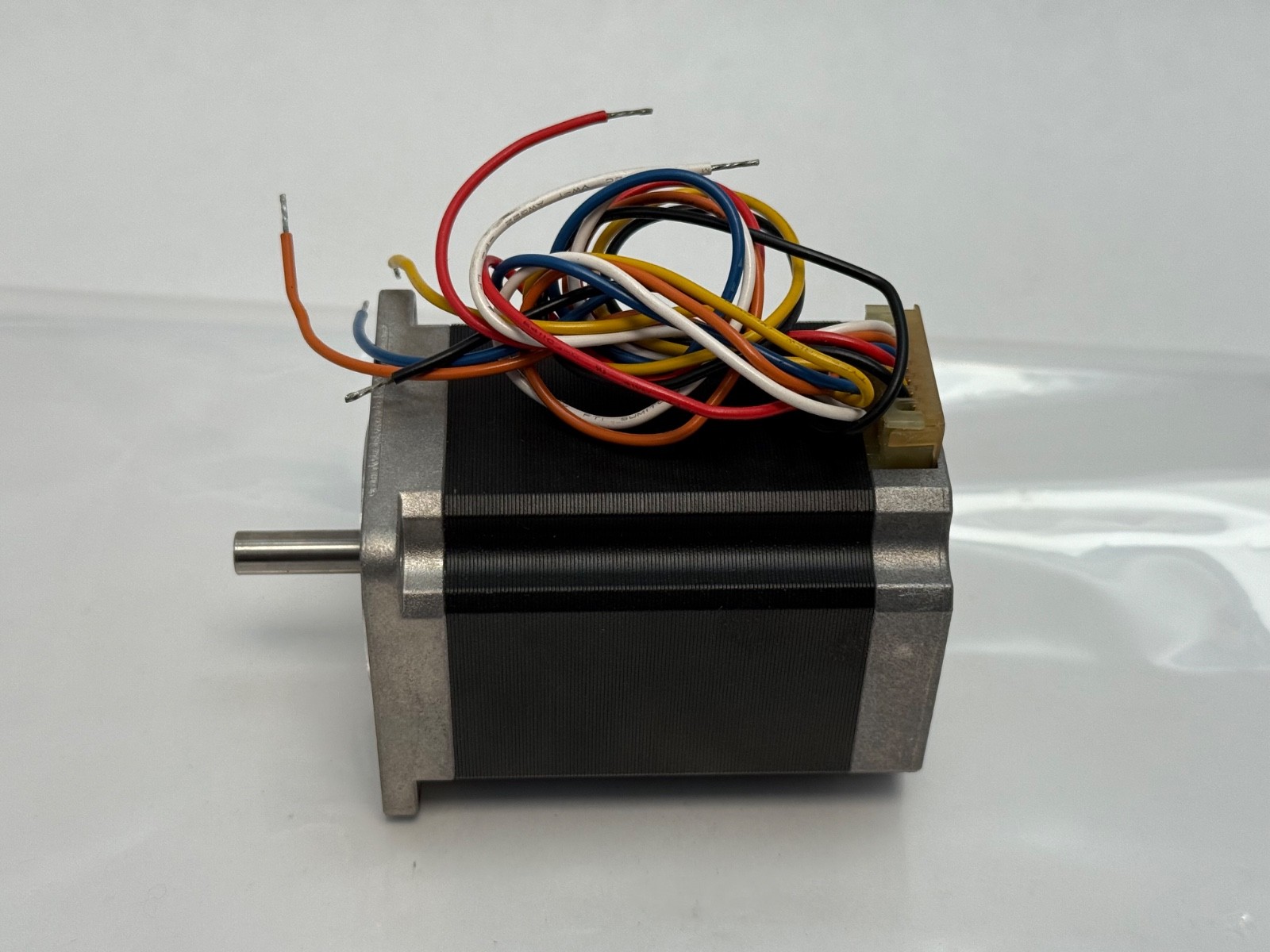

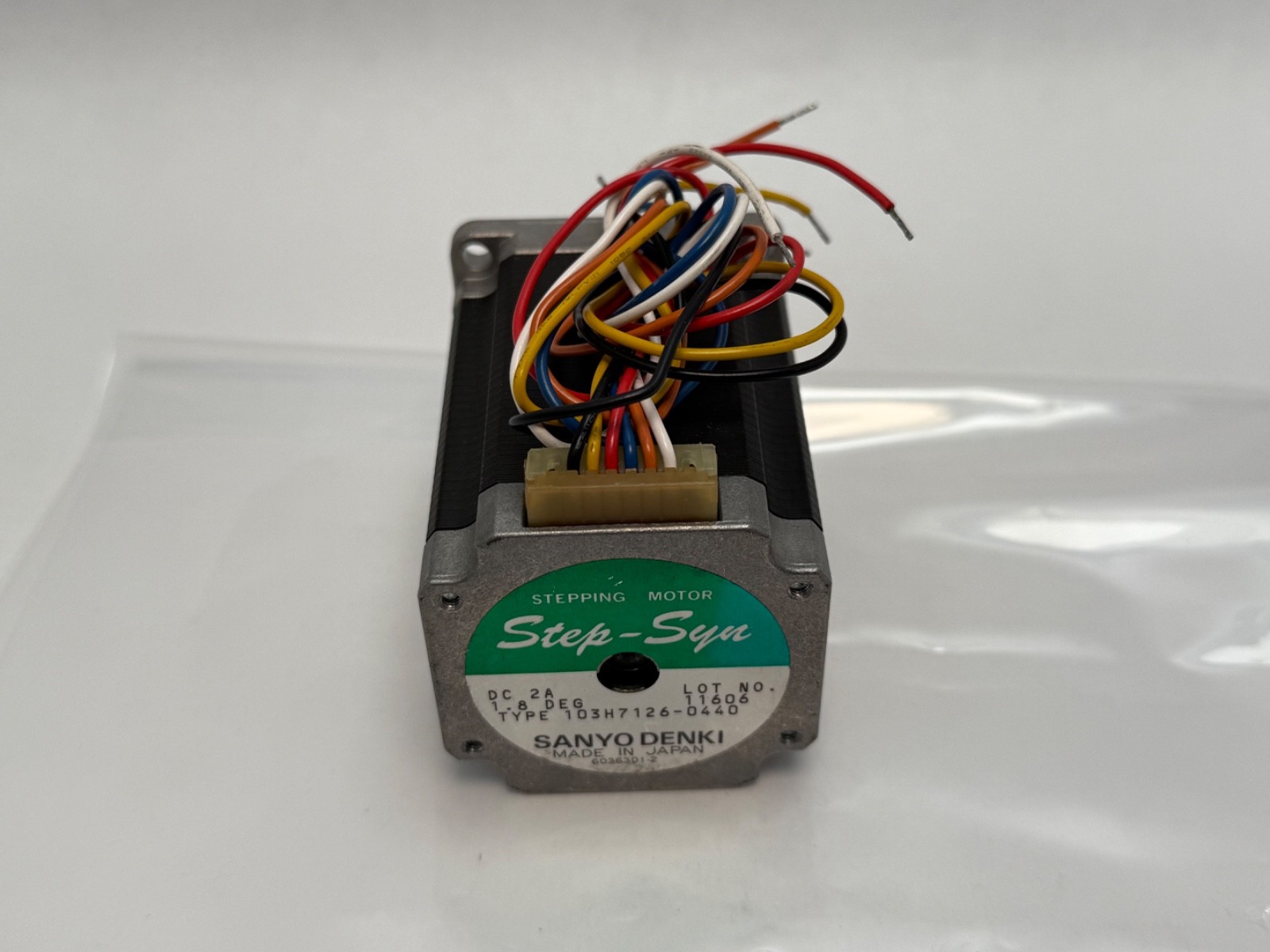

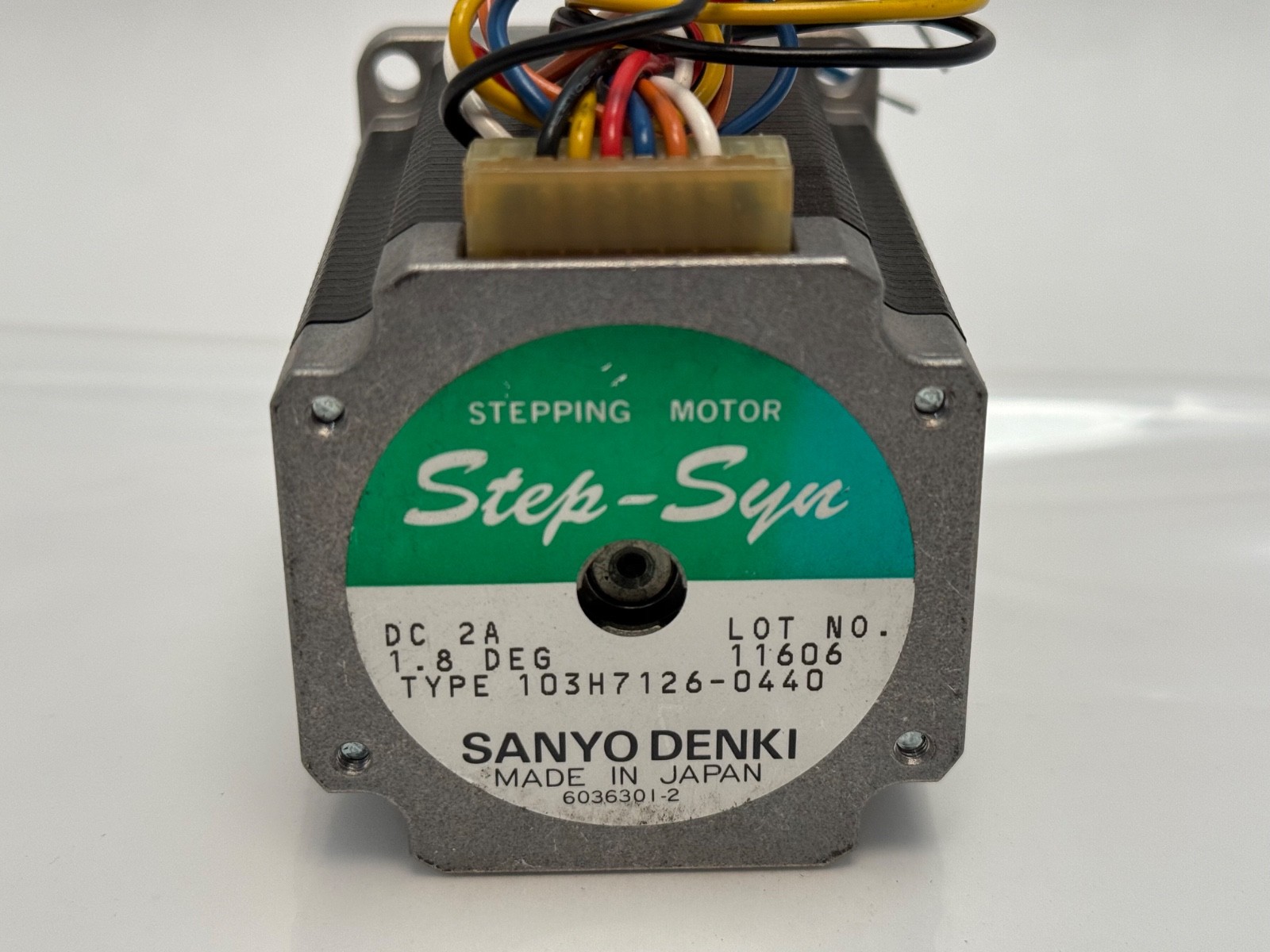

Sanyo103H7126-0440Stepper Motor — 2-Phase, 56 mm Flange, 1.8° Step, 1.27 N·m, 2 A

Condition: New – Open box

Availability:

2 in stock

Categories: ,

Sanyo Denki 103H7126-0440 SANMOTION F2 2-phase stepping motor, 56 mm flange, 1.8° step, 1.27 N·m holding torque, 2 A/phase, unipolar lead wire. 2 Pcs.

List Price

$48.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSanyo
MPN103H7126-0440
Model103H71260440

Technical Specifications

Materials Sourced FromJapan
Base Number103H7126
Industry Termshybrid stepper motor, 2-phase stepping motor, StepSyn, SANMOTION
Common Misspellings103H71260440, 103H7126 0440, 103-H7126-0440, Sanyo Denky
Number Of Phases2
Termination TypeLead wire
Item Width56 mm
Item Height56 mm
Item Length75.8 mm
Current Rating2 A/phase
Minimum Operating Temperature-10 °C
Maximum Operating Temperature50 °C
Shaft TypeSingle shaft, round
Mpn Variants103H7126-0440, 103H71260440, 103H7126 0440
Compatible With ReplacesDriver: Sanyo Denki US1D200P10; Set: DU16H716S
SeriesSANMOTION F2
TypeStepper Motor
Item Weight0.98 kg (2.16 lb)
Holding Torque1.27 N·m
Frame Size56 mm
Seller Part Number: AH6B2#HAOBR1

Product Description

What this part is:

The Sanyo Denki 103H7126-0440 is a 2-phase hybrid stepping motor from the SANMOTION F2 range. Frame Size: 56 mm square flange. Step Angle: 1.8°. Holding Torque: 1.27 N·m. Rated Current: 2 A per phase. Unit Quantity: 2 Pcs.

Specifications:

Series: SANMOTION F2. Motor Type: 2-phase stepping motor. Basic Step Angle: 1.8°. Holding Torque: 1.27 N·m. Rated Current: 2 A/phase. Rotor Inertia: 0.36 x 10-4 kg·m2. Wiring: Unipolar. Termination Type: Lead wire. Operating Temperature: -10 to +50 °C. Operating Humidity: 20 to 90% RH, non-condensing. Item Weight: 0.98 kg.

Dimensions and mounting:

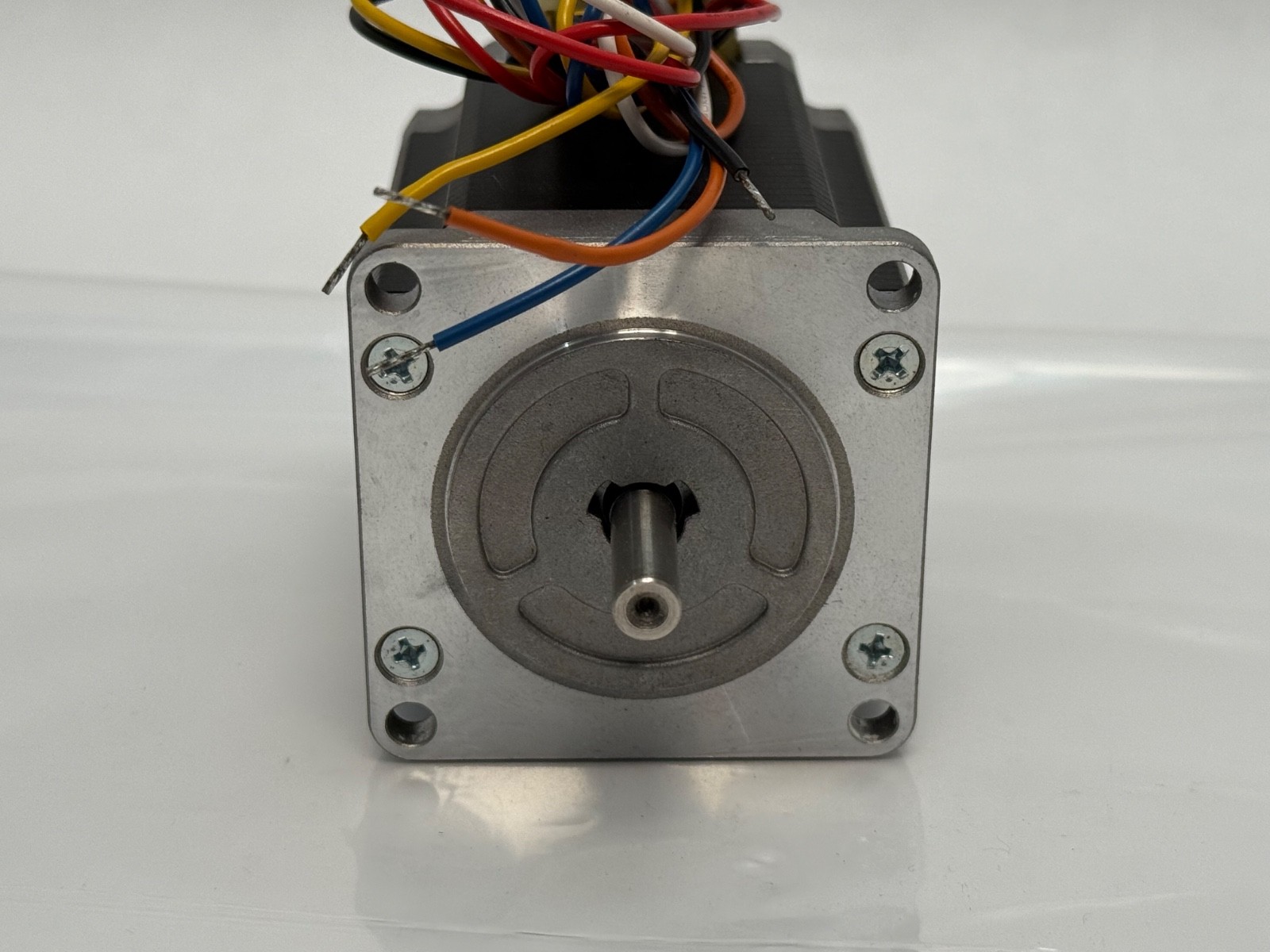

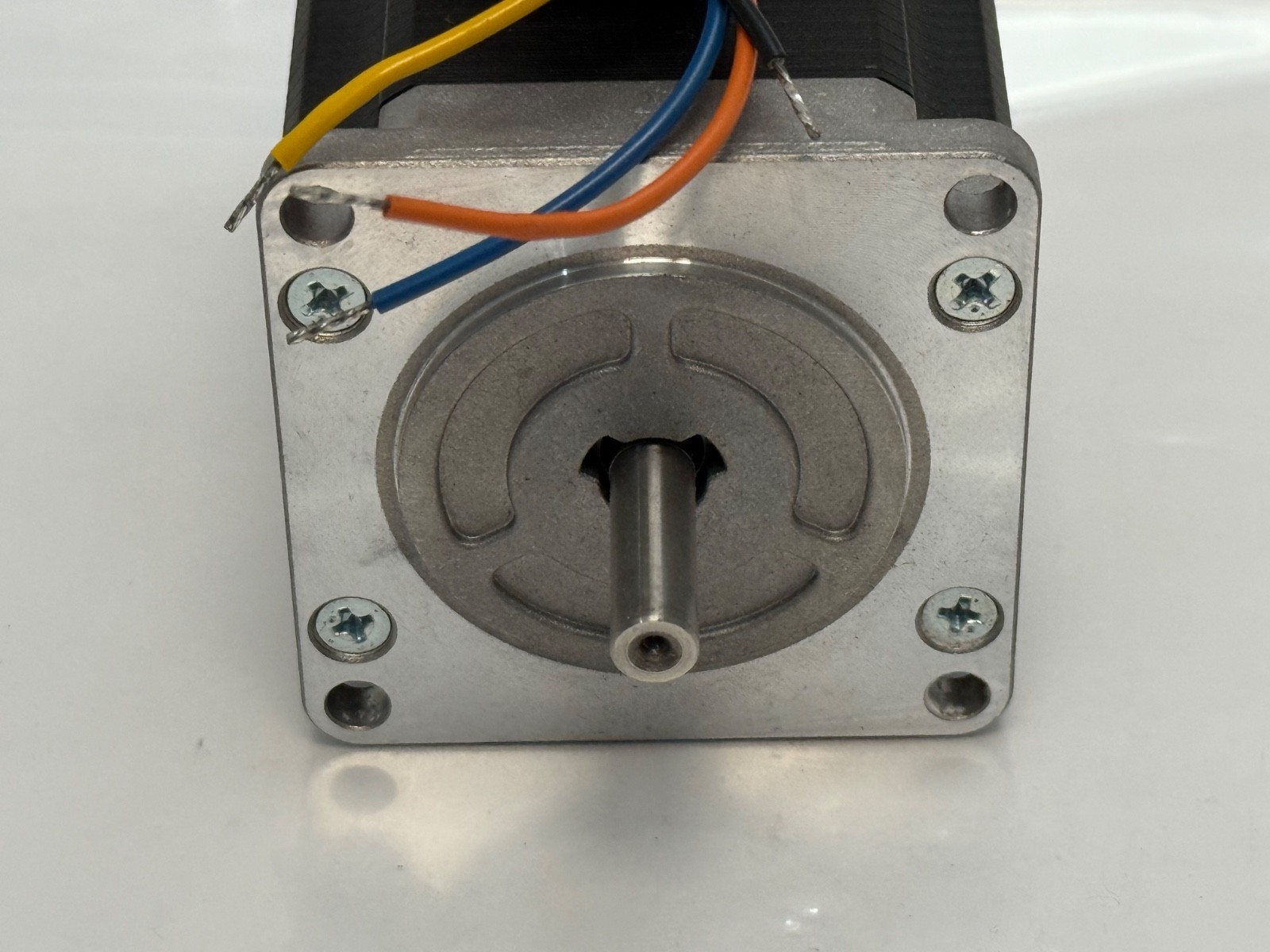

Motor Flange Size: 56 mm square. Motor Length: 75.8 mm. Shaft Type: Single shaft, round output shaft.

Compatibility and replacement:

Applicable Driver: Sanyo Denki US1D200P10 2-phase stepping driver, SANMOTION F2. Set Model: DU16H716S pairs this motor with the US1D200P10 driver. MPN Variants: 103H7126-0440, 103H71260440, 103H7126 0440. CAD model and data sheet: available from Sanyo Denki (sanyodenki.com).

Frequently asked questions:

What is the holding torque of the 103H7126-0440?

Sanyo Denki rates the holding torque at 1.27 N·m with a rated current of 2 A per phase.

Which driver pairs with the 103H7126-0440?

Sanyo Denki lists the US1D200P10 SANMOTION F2 2-phase stepping driver; the set model DU16H716S combines both.

What are the frame size and length?

Flange Size: 56 mm square. Motor Length: 75.8 mm. Mass: 0.98 kg.
