FANUCA03B-0801-C141Digital Output Module OD64A, 64 Point DC, 0.125 A per Point, Series 11 / 15 CNC PLC

Product Description

What this part is

Fanuc A03B-0801-C141, module type OD64A — a 64-point DC digital output module for the Fanuc Series 11 and Series 15 CNC PLC. It is the card the PMC ladder uses to switch field loads on and off: solenoid valve coils, relay and contactor coils, indicator lamps, brake and clamp solenoids. It is output only; there are no inputs on this module.

Decoding the order code

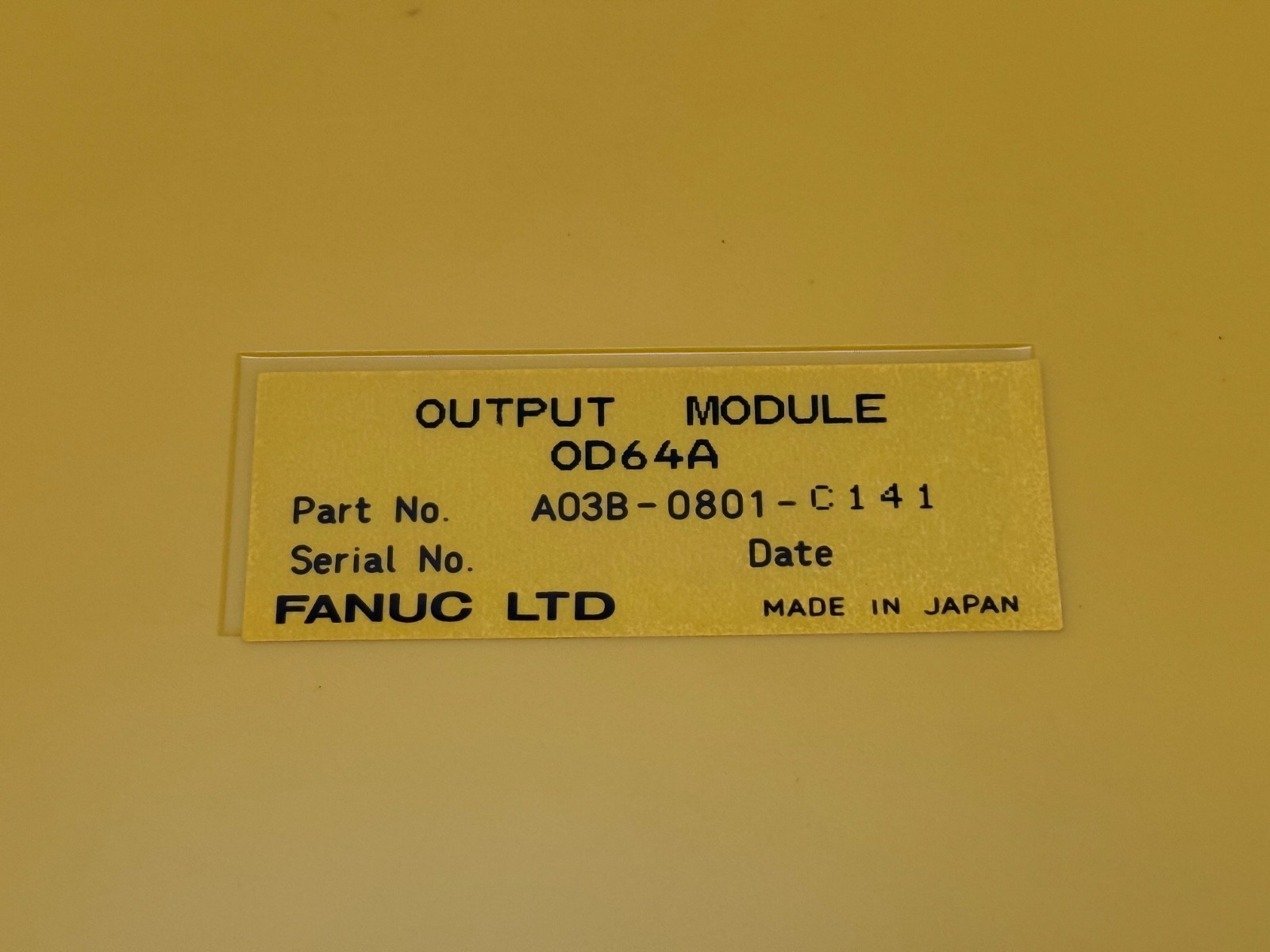

A03B – Fanuc’s own product scheme for CNC peripheral and I/O hardware. This is a Fanuc number, not a GE Fanuc IC-prefix number. The two catalogues are separate and are regularly confused; some resellers list this part under “Series 90-30”, which is GE Fanuc’s PLC family and has nothing to do with it.0801 – the Fanuc Series 11 / Series 15 CNC PLC I/O module rangeC141 – the specific module within that range: OD64AOD64A – the module type name marked on the board. OD = output, digital; 64 = sixty-four points; A = version.

Published specifications

Module type: OD64AFunction: digital output, output onlyPoints per module: 64Output type: DCMaximum load current: 0.125 A per pointPlatform: Fanuc Series 11 and Series 15 CNC PLCManufactured in Japan by Fanuc

What these specs mean in practice

The two numbers that decide whether this card suits your machine pull in opposite directions, and it is worth being clear about both. 64 points is high density — this is the card you fit when a machine needs a great many outputs and panel space is tight, which is why it turns up on well-equipped machining centres with large tool changers, pallet systems and extensive guarding interlocks. 0.125 A per point is modest, and that is the direct consequence of the density: 64 switching devices on one board means each one is small.

125 mA drives a typical small DC solenoid valve coil, an interposing relay coil, or an LED or small filament indicator without difficulty. It will not drive a large contactor coil, a heavy clamp solenoid or a motor brake directly. The standard and correct practice on this platform is to switch an interposing relay from the module and let the relay carry the real load; if you find a previous repair has wired a heavy coil straight onto an OD64A point, that point is living on borrowed time.

Because the outputs are solid-state DC, expect a small leakage current in the off state. On a high-impedance load that can be enough to hold it faintly energised, and a bleeder resistor across the load is the usual remedy. Inductive DC loads also need a flyback diode across the coil — without one, the turn-off spike shortens the life of the output transistor, and on a 64-point card that failure tends to arrive one point at a time.

Do not exceed the per-common current limit by loading every point simultaneously at maximum; the card’s total is not simply 64 times 0.125 A, and heavily loaded groups run hotter.

What is included

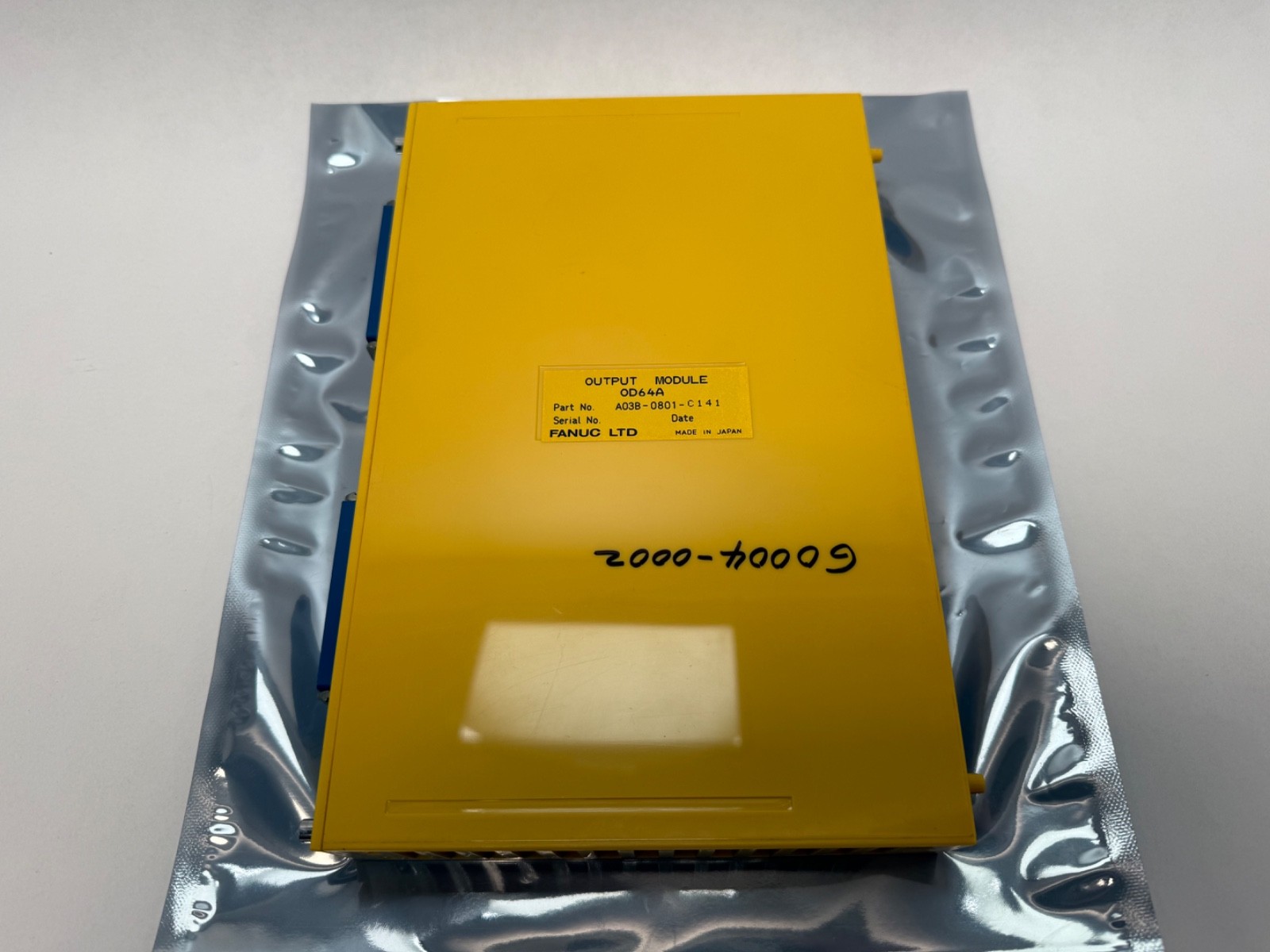

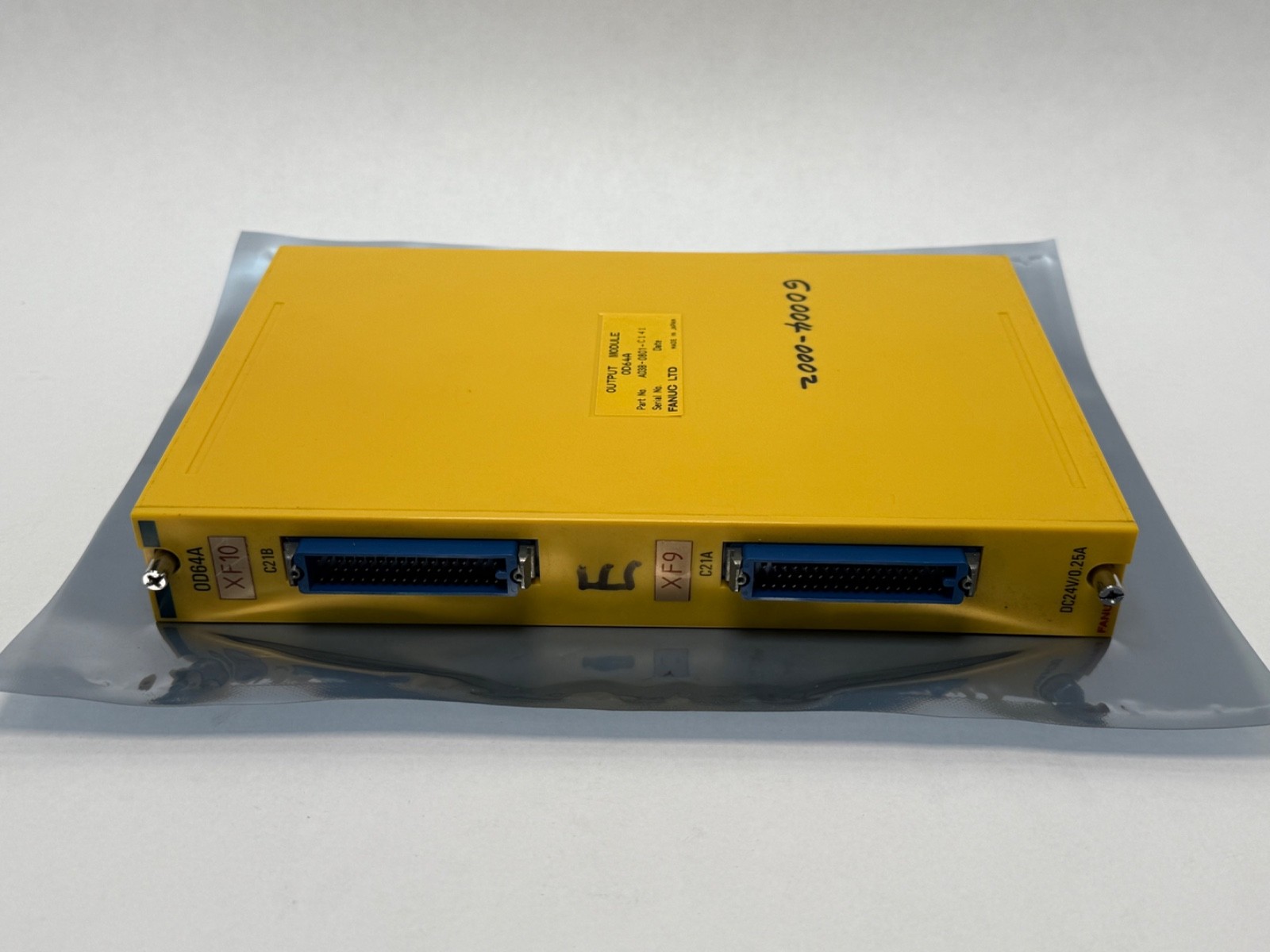

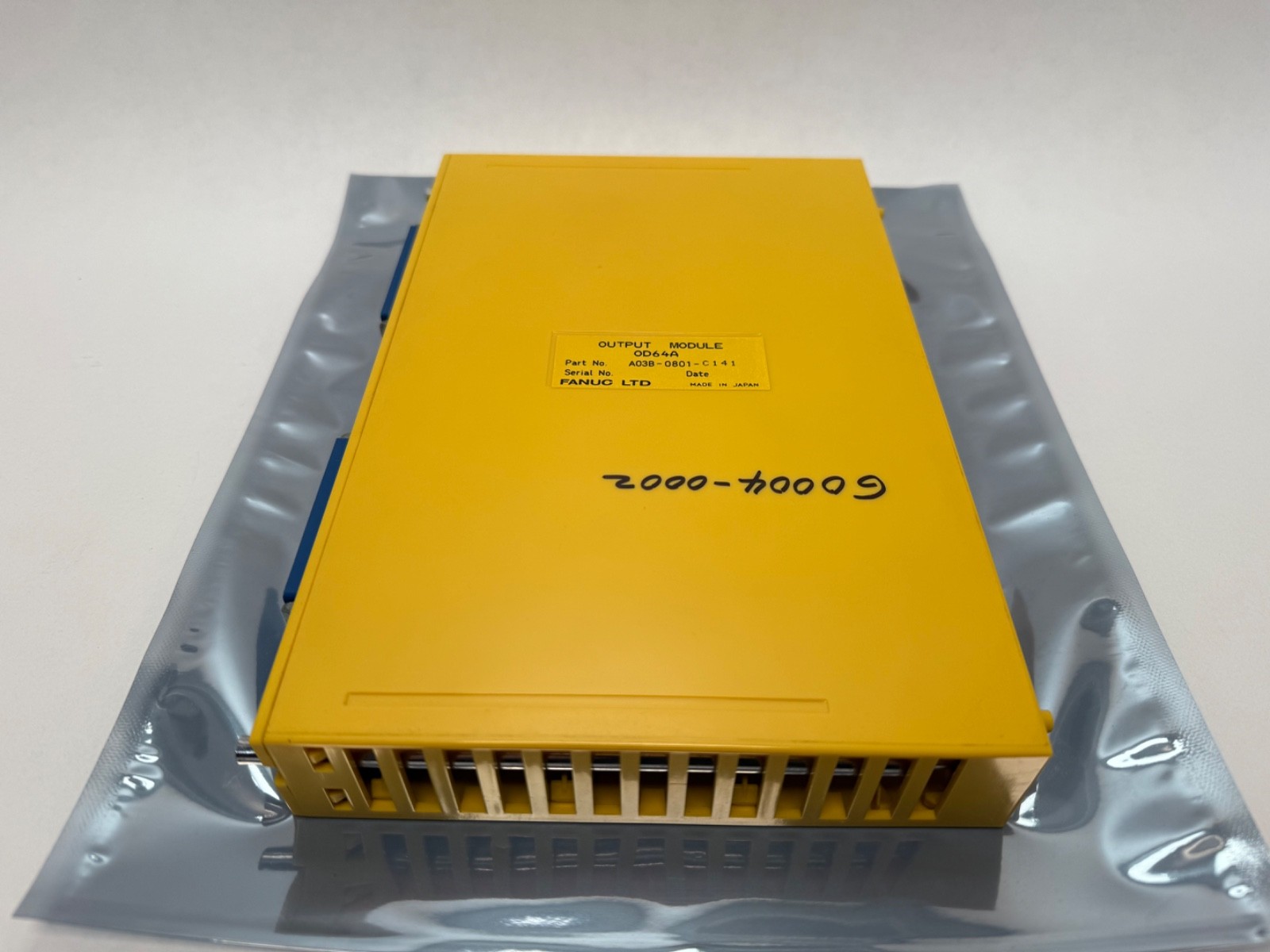

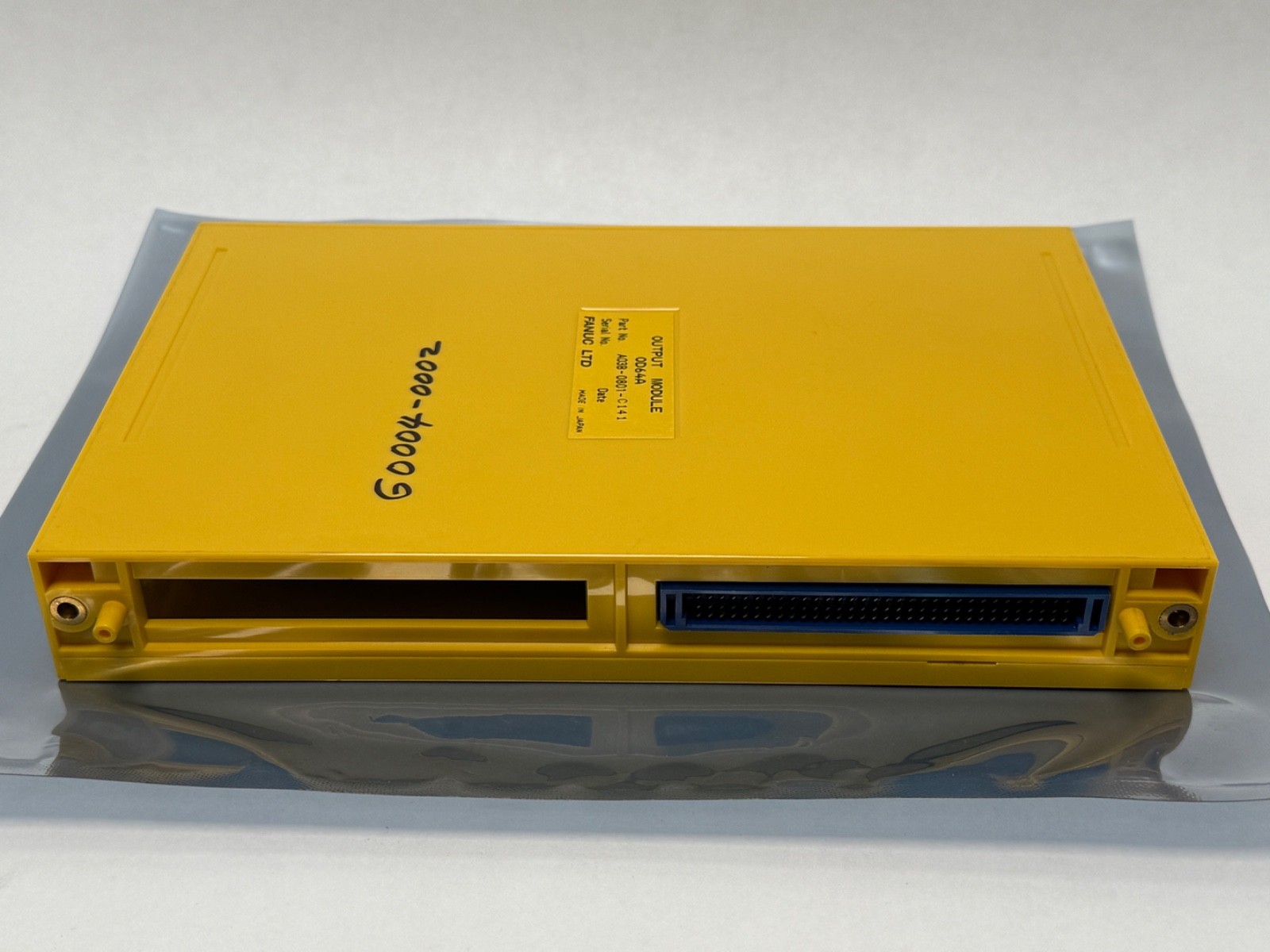

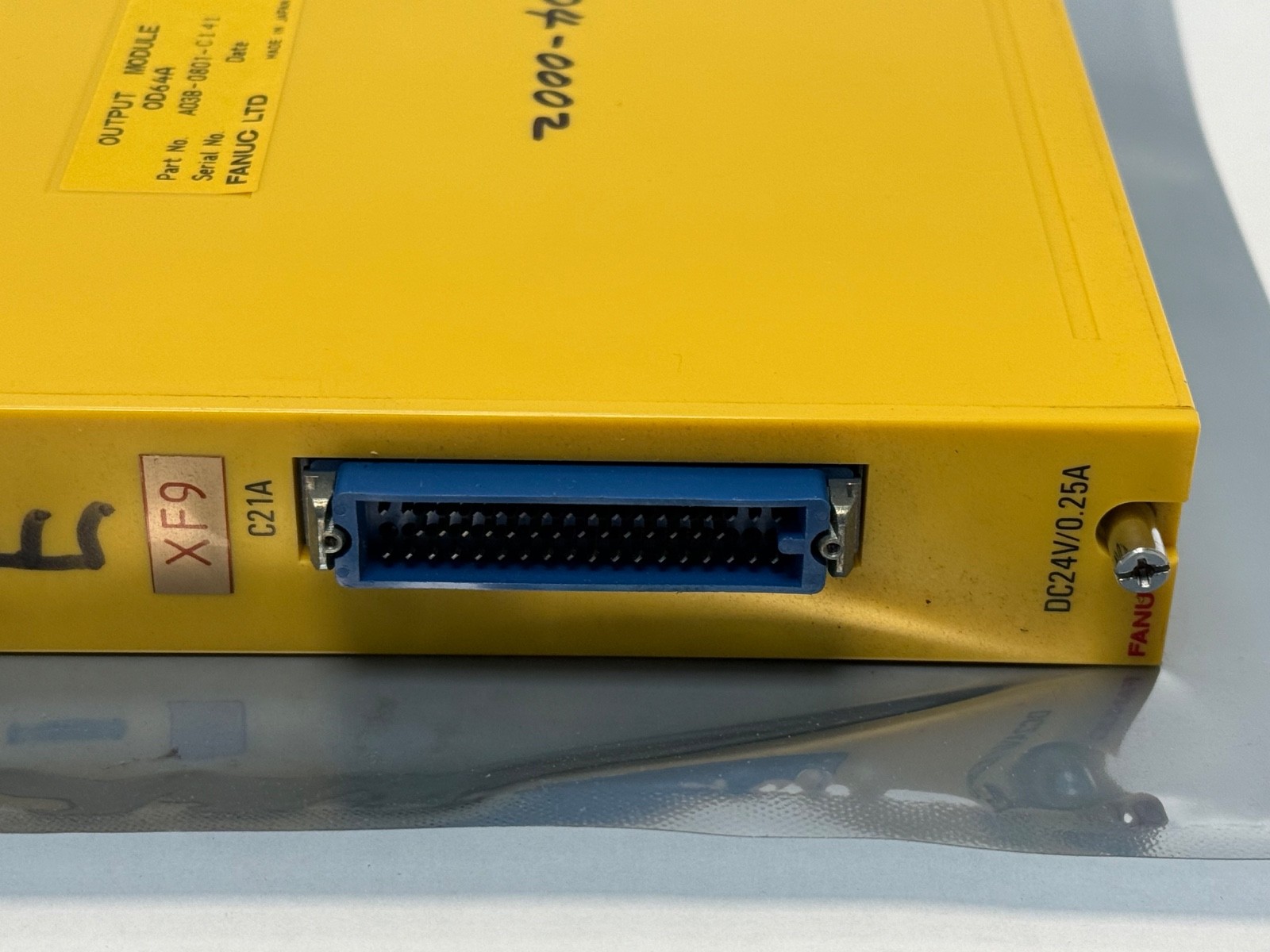

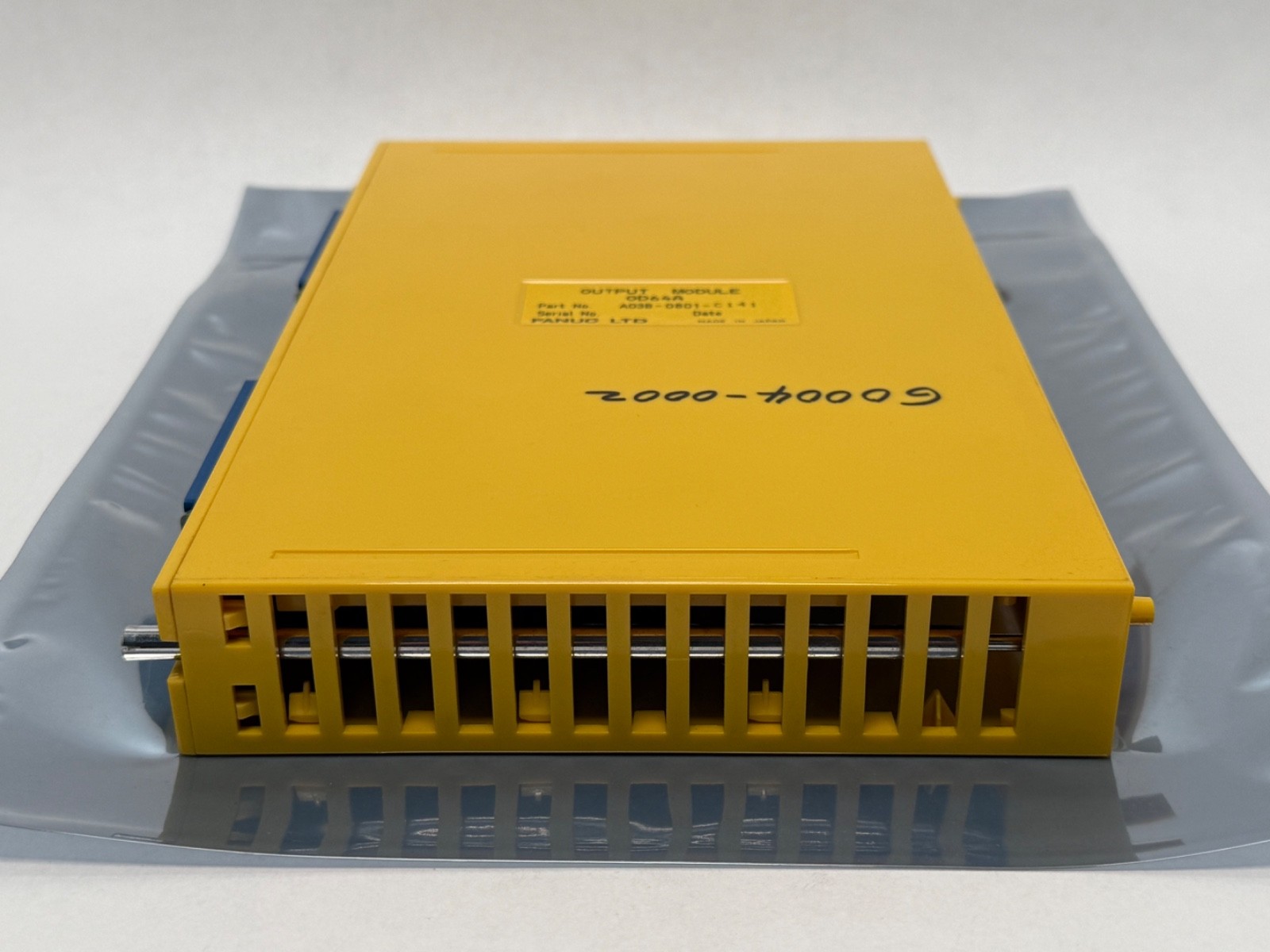

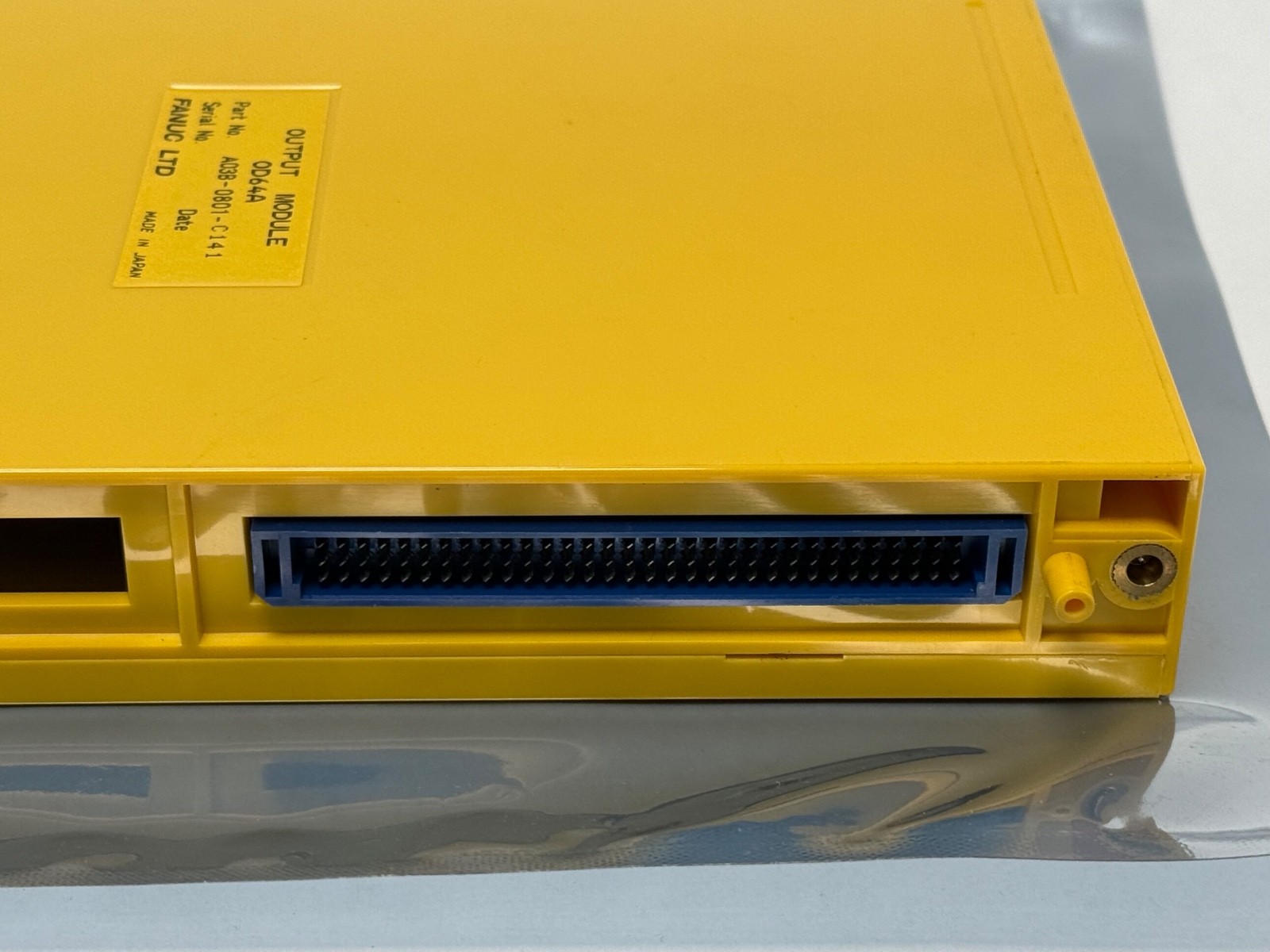

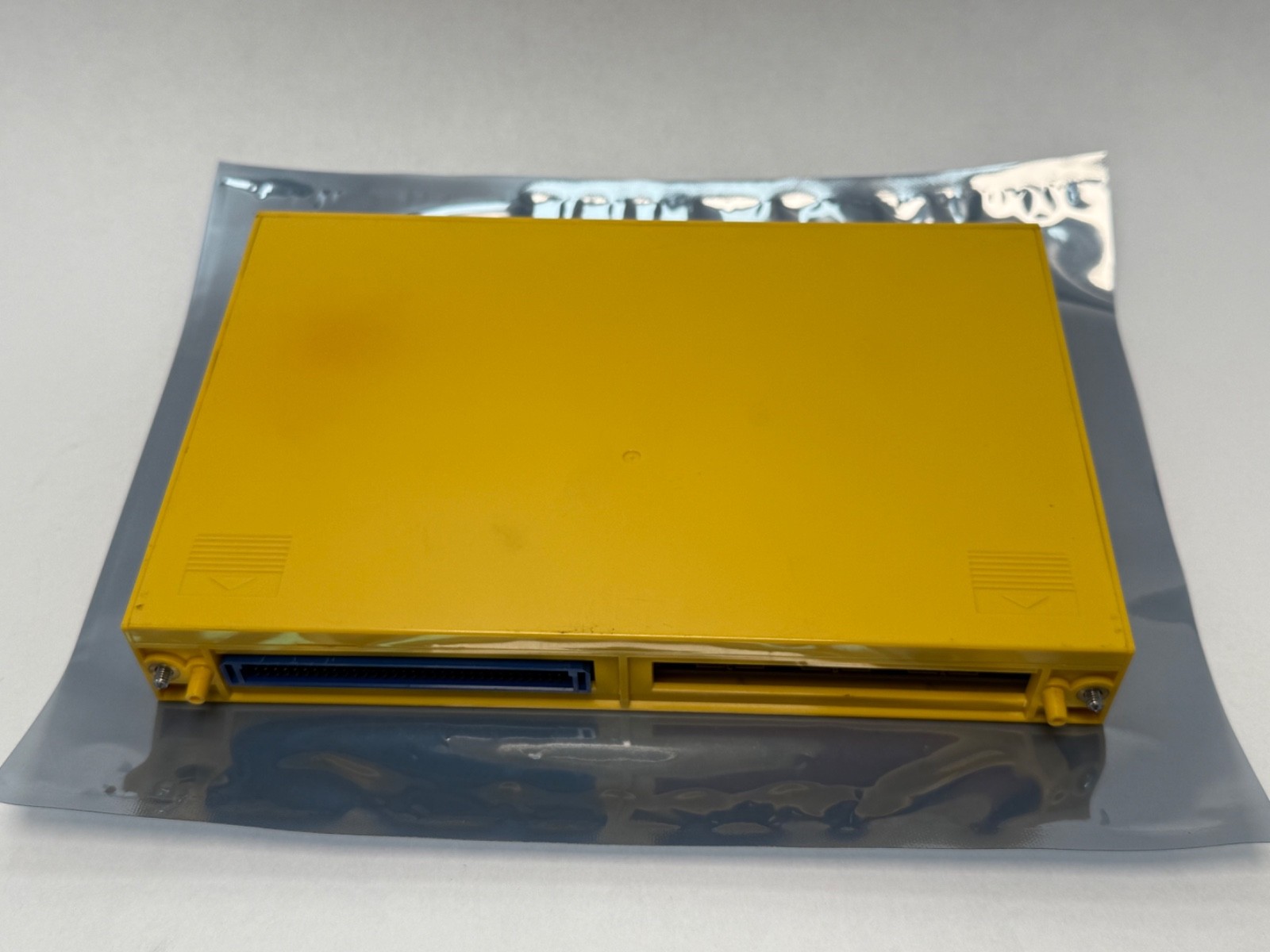

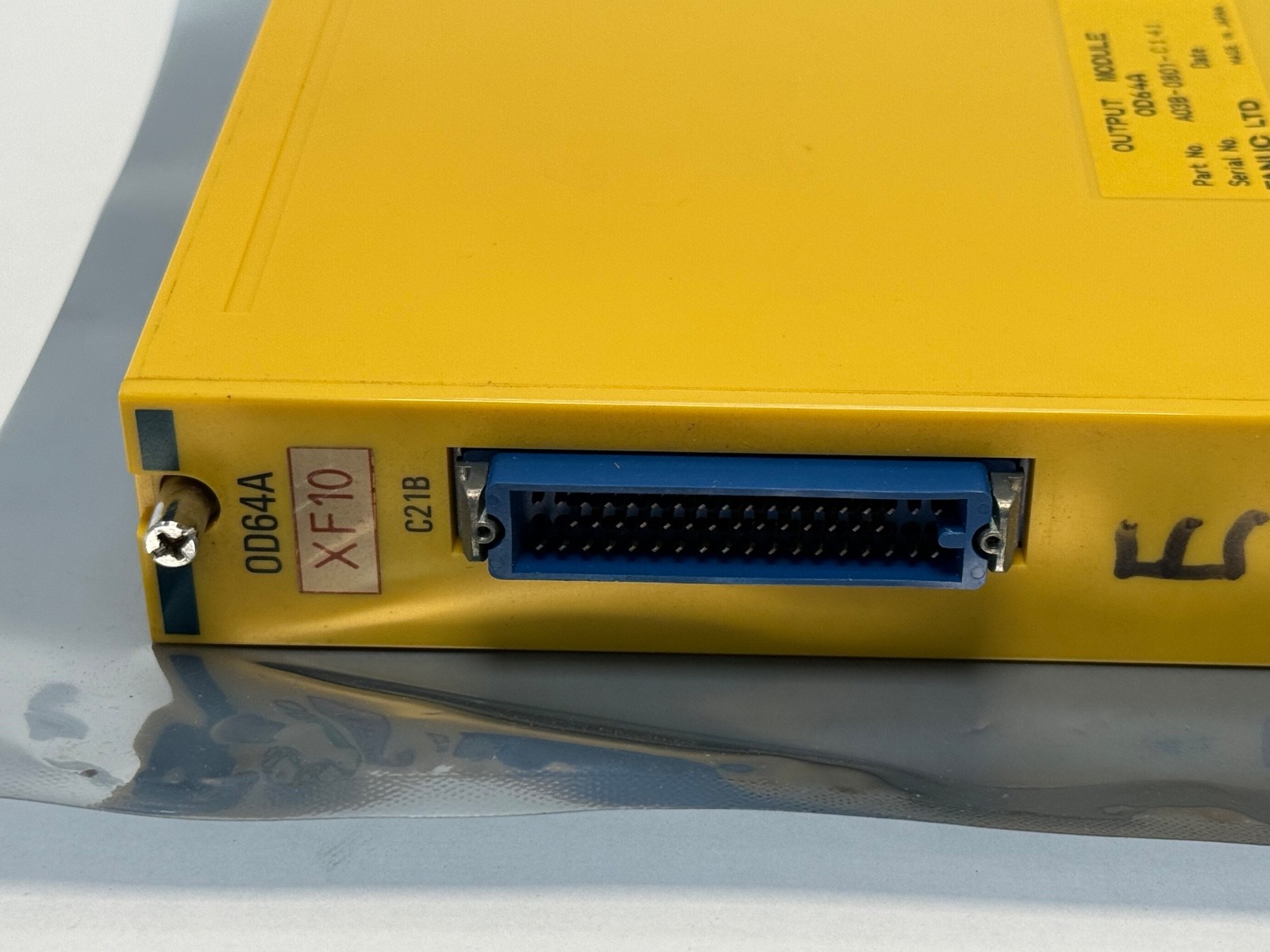

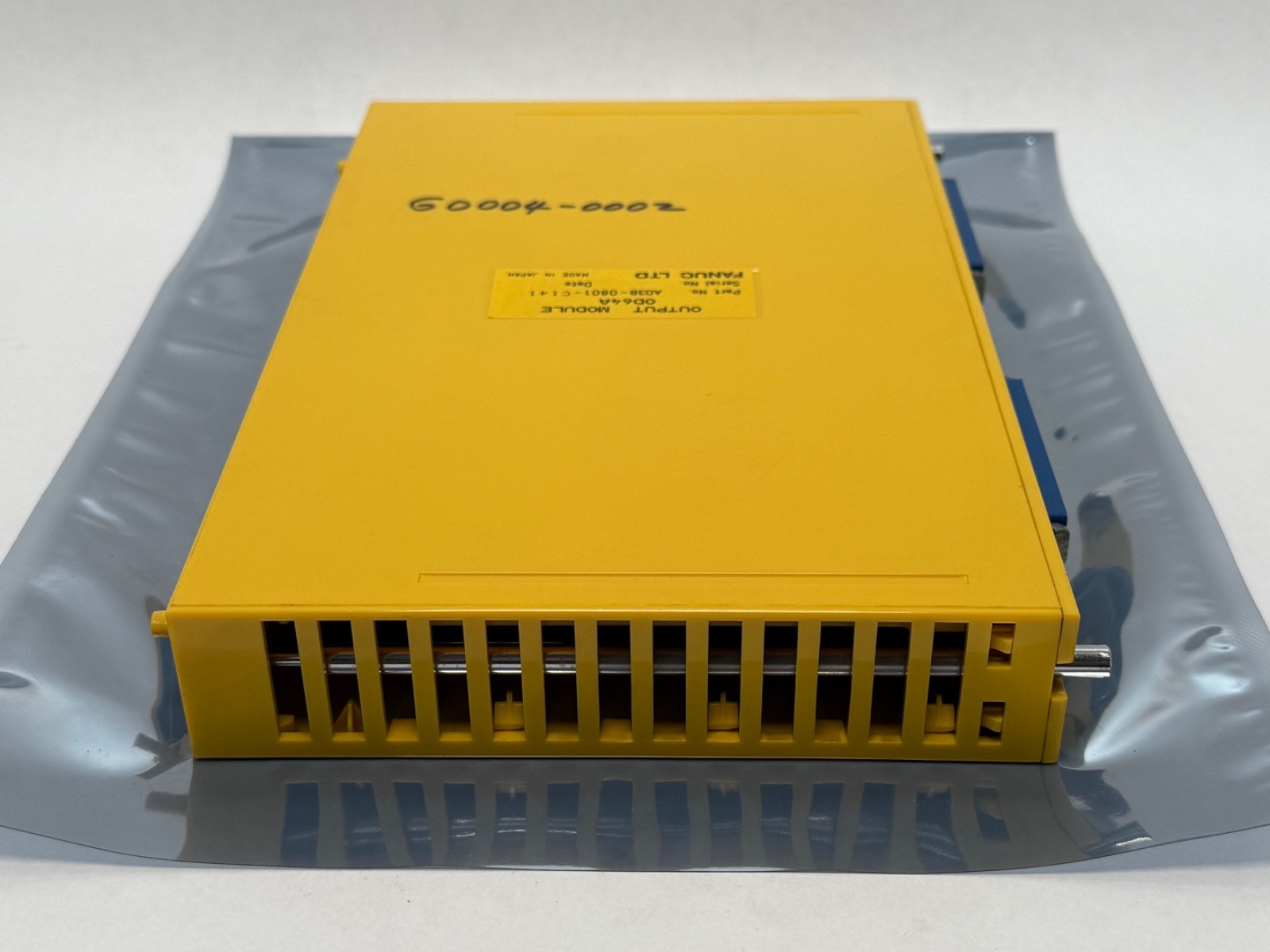

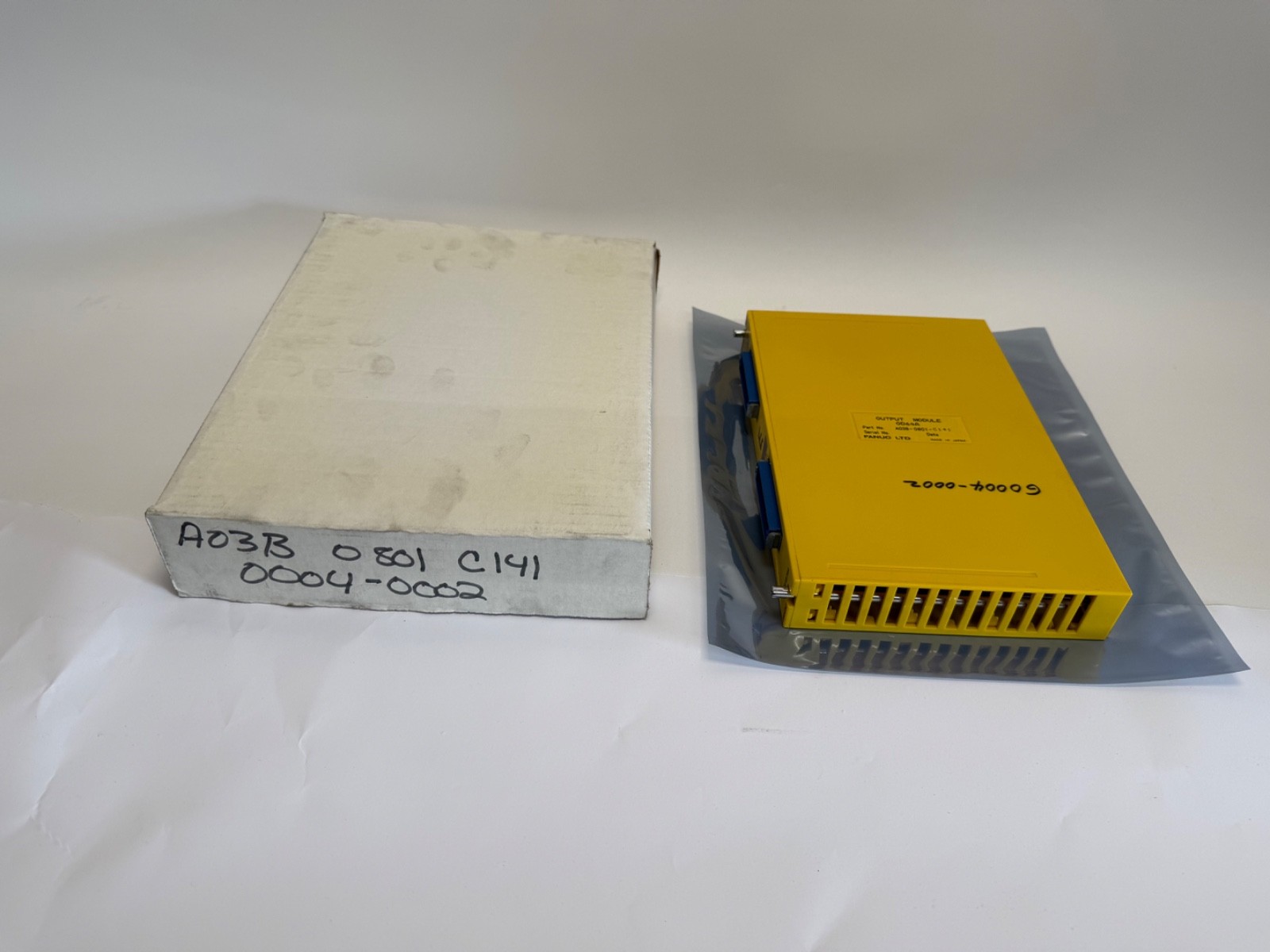

Module as pictured. This listing does not include the CNC rack, base unit or backplane; the interface or master module; a power supply, including the external DC supply the output loads require; field wiring, connectors or connector kits; a terminal board or breakout board; interposing relays, flyback diodes or bleeder resistors; fuses; solenoids or valves; PMC programming software or cables; or documentation. This is one module out of a populated rack and cannot function on its own.

Installation and setup notes

The module is addressed by its slot position, so where it sits in the rack determines the addresses the PMC program writes to — moving a card between slots without updating the program is the usual reason a freshly fitted output card appears dead. Isolate the field supply before wiring; with 64 points there is a lot of wiring to get wrong, and it is worth confirming the group and common arrangement against the module documentation rather than assuming a single common. Fit flyback diodes on inductive DC loads with correct polarity. Commission by forcing points individually with the machine’s motion and hydraulics isolated, before running the program. Handle as static-sensitive.

Interchange guidance

A03B-0801-C141 is the OD64A 64-point DC output module. Other output modules in the same range are different point counts and current ratings, so they are related sizes rather than equivalents: A03B-0801-C115 is the OD16C and A03B-0801-C117 is the OD16D, both 16-point cards. A03B-0801-C101 is the IF01A interface module and A03B-0801-C103 is the CIF0 interface module — different functions entirely, not output cards. A03B-0801-C055 in the same range is the DA03A analog output module, which is analog rather than digital and not a substitute. Note too that the A03B-0807 range is the later FANUC I/O Unit-MODEL A, a different platform; its output modules (AOD32A1, AOD16C, AOR16G and so on) are not drop-in replacements for a Series 11/15 card. Also searched as A03B0801C141, A03B 0801 C141, OD64A, OD-64A, OD 64A, Fanuc digital output module, and Fanuc 15 output card. Sold as 1 piece.
