FANUCA03B-0801-C12364-Point 24 V DC Digital Input Module ID64C for Fanuc I/O Unit

Product Description

What this part is

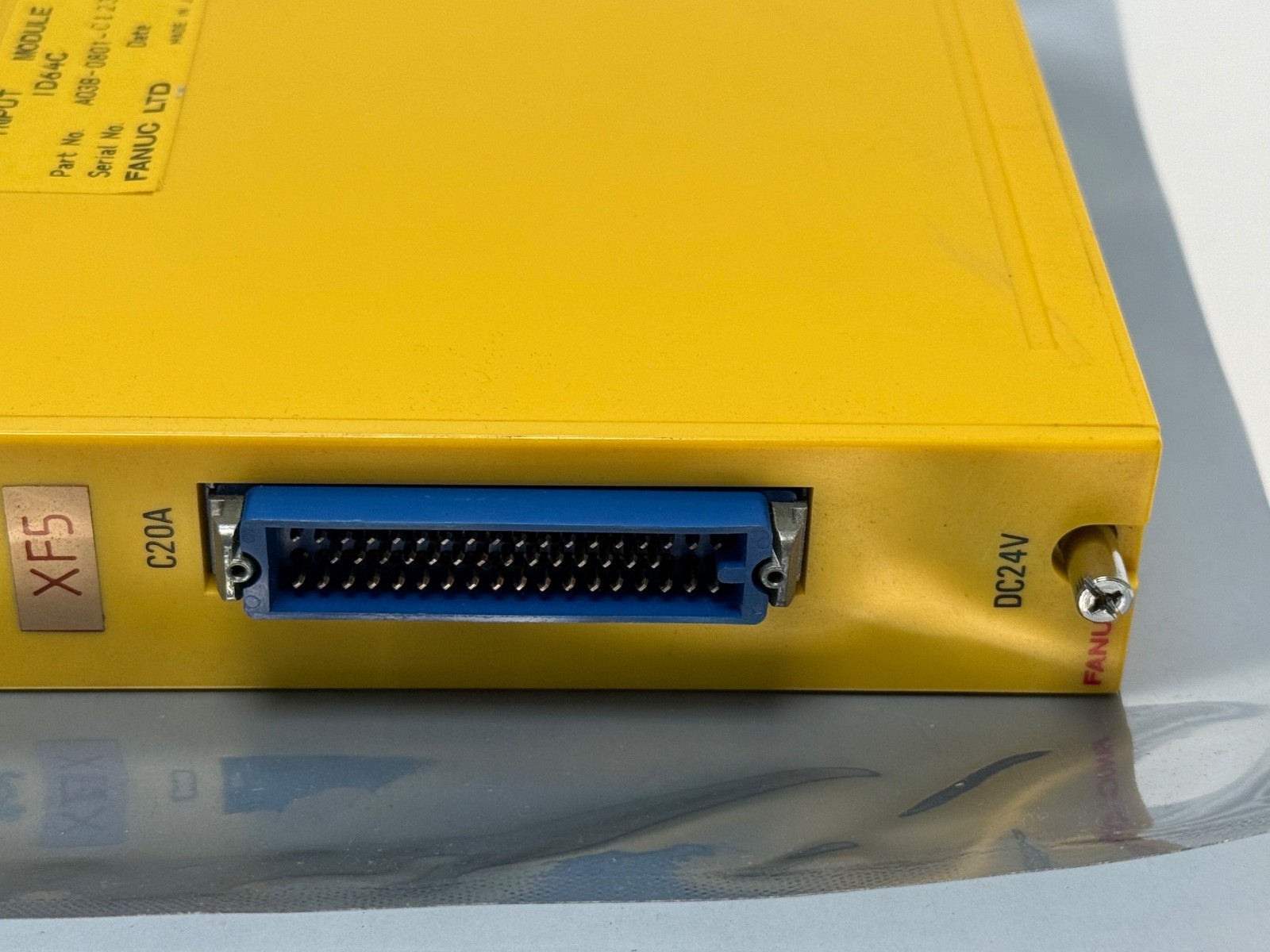

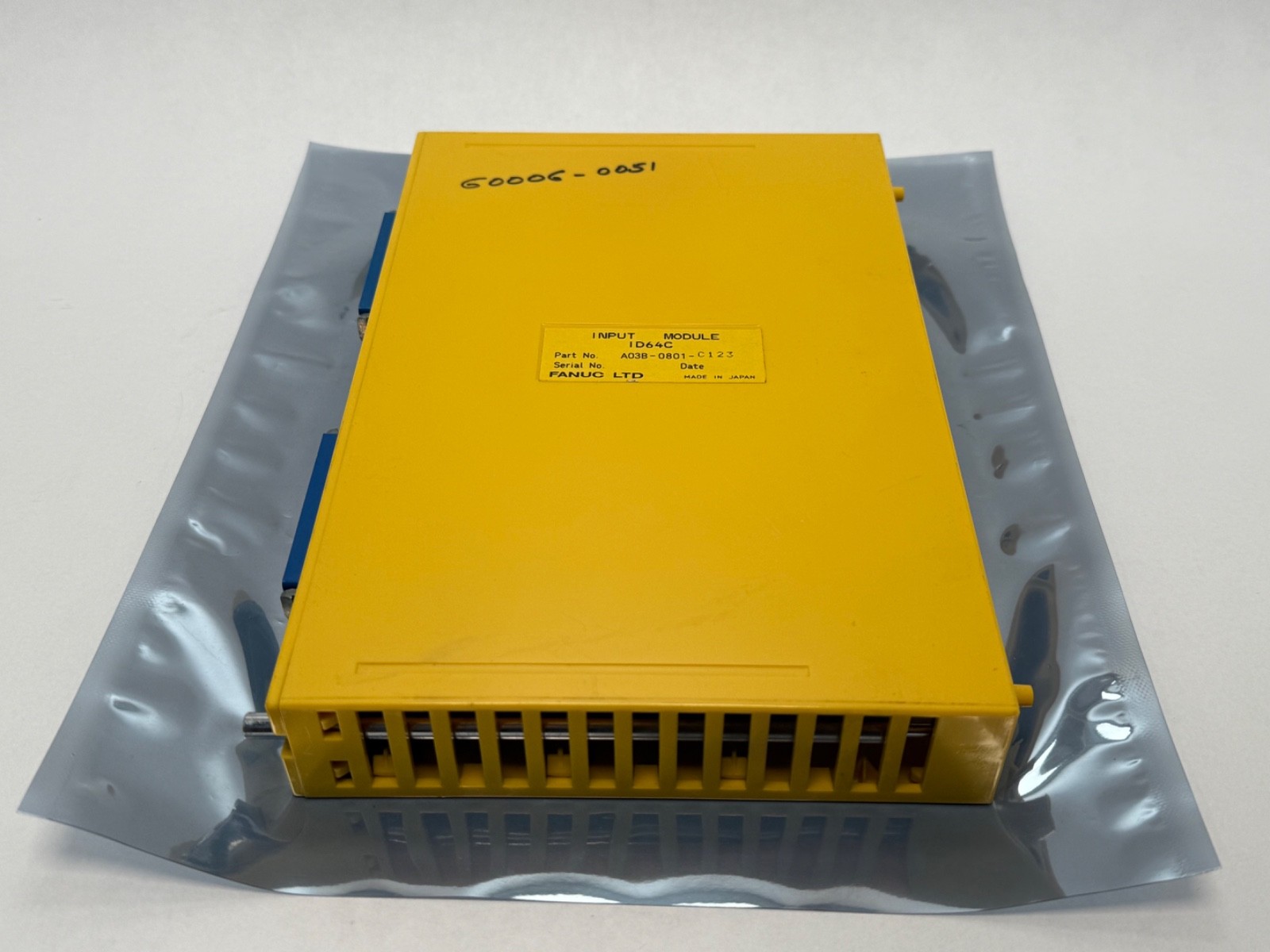

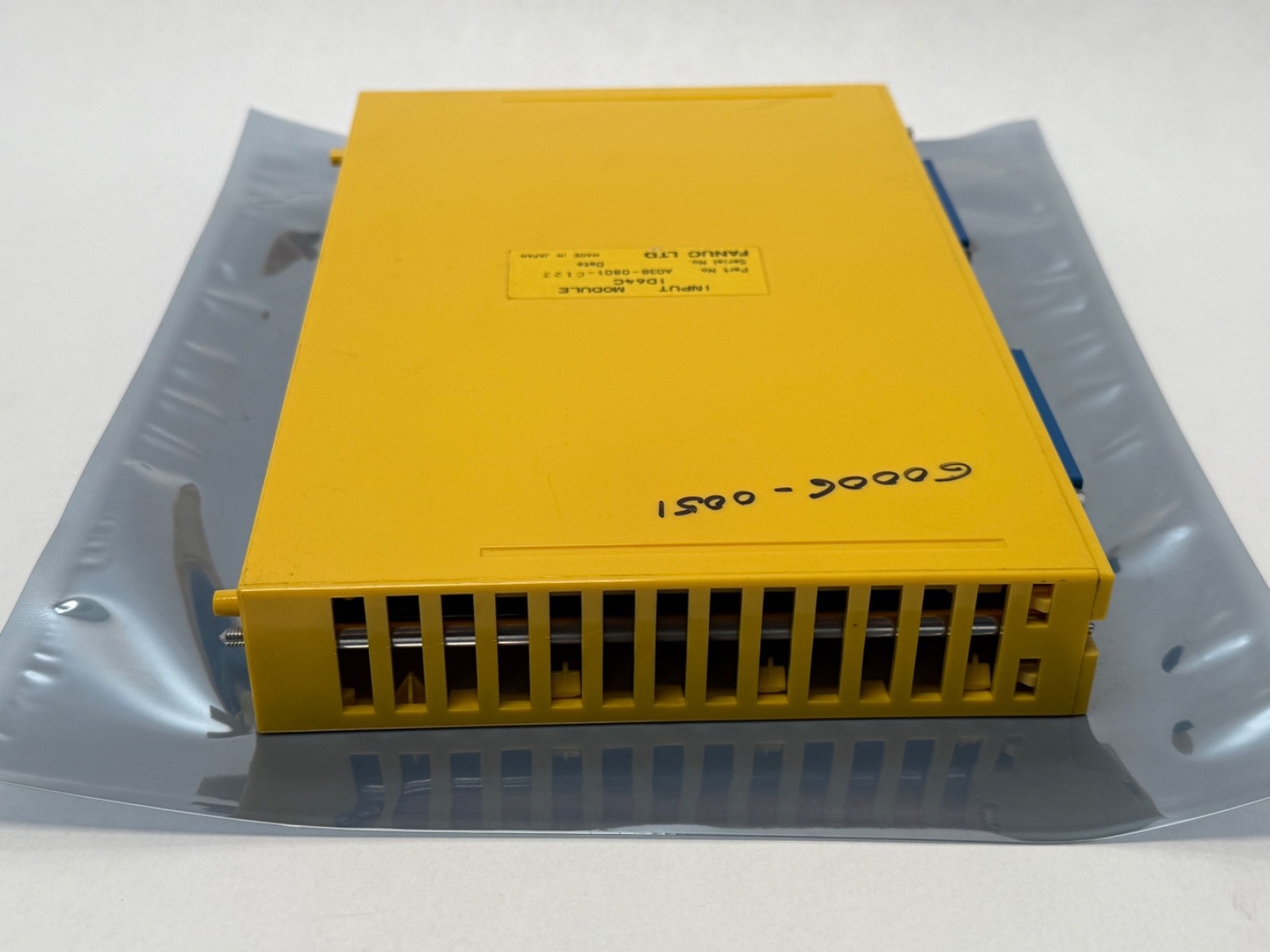

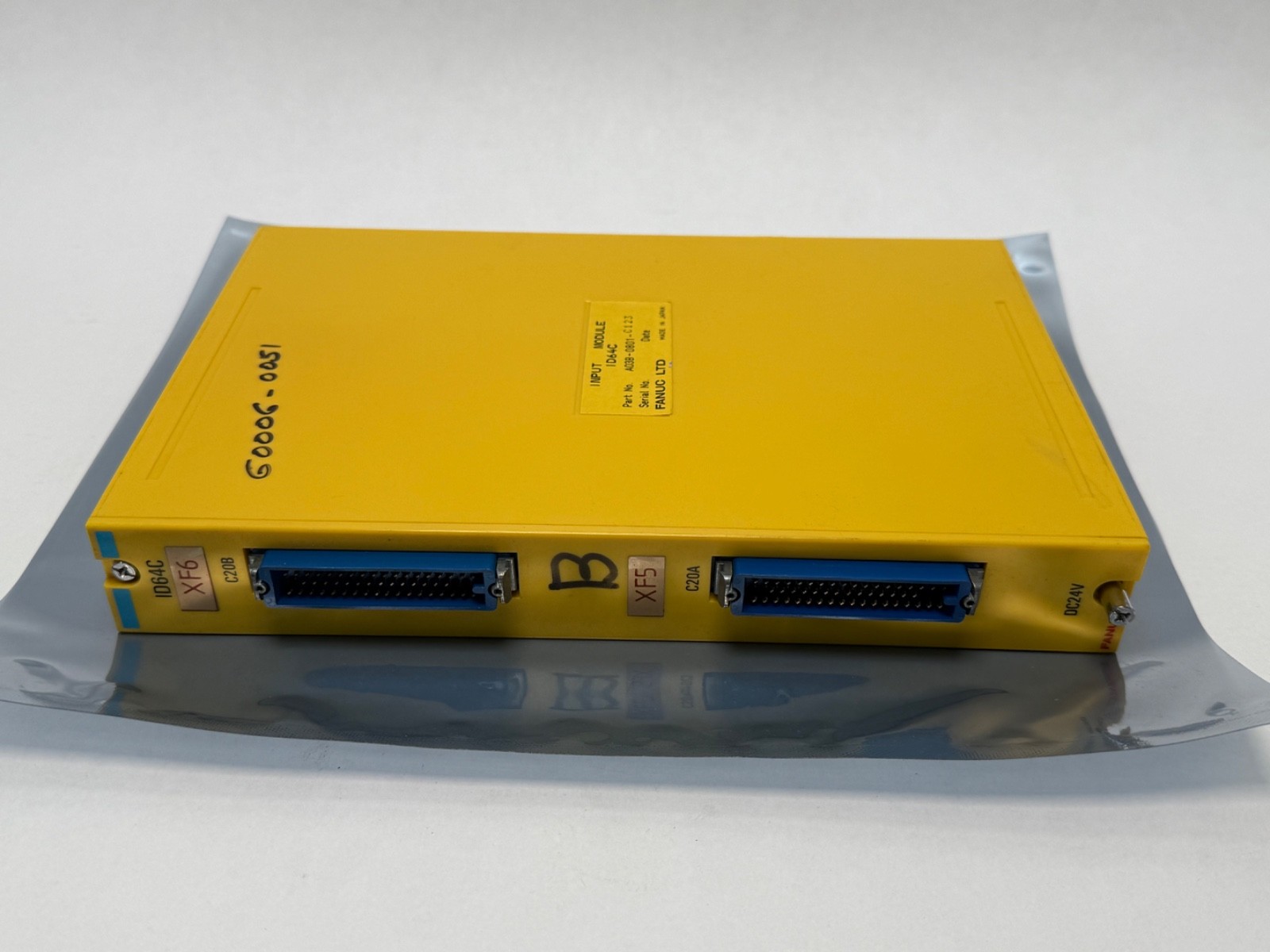

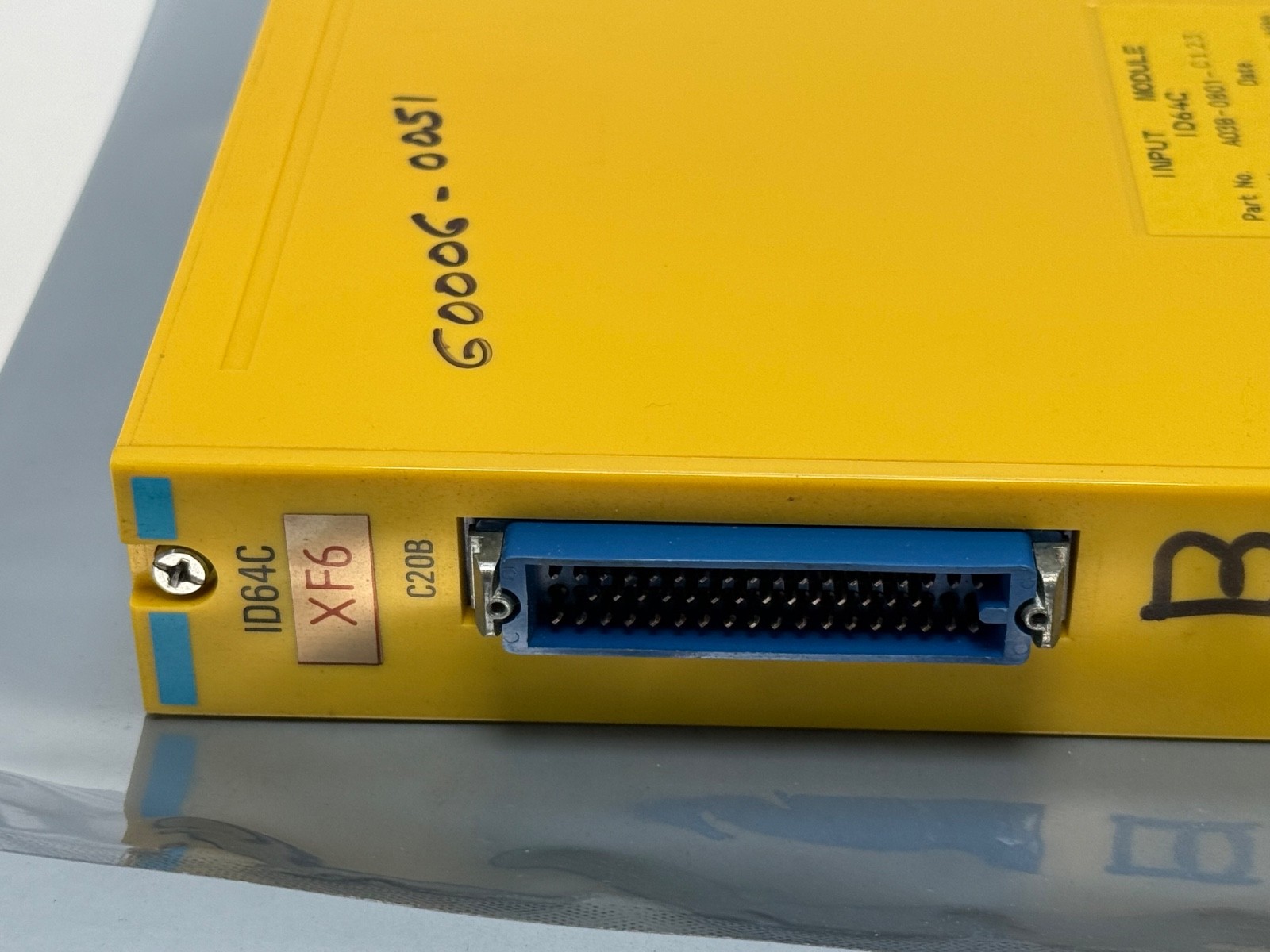

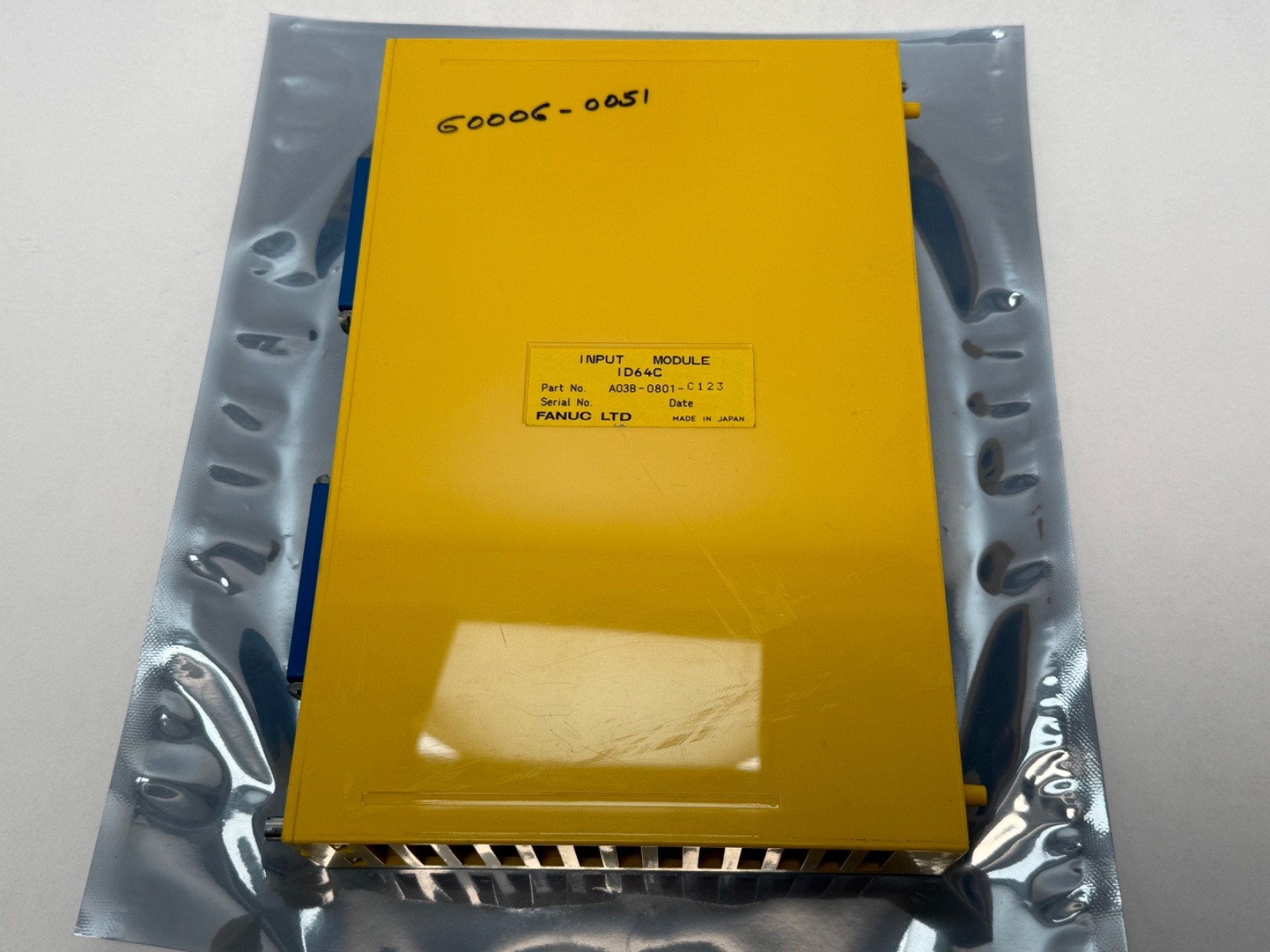

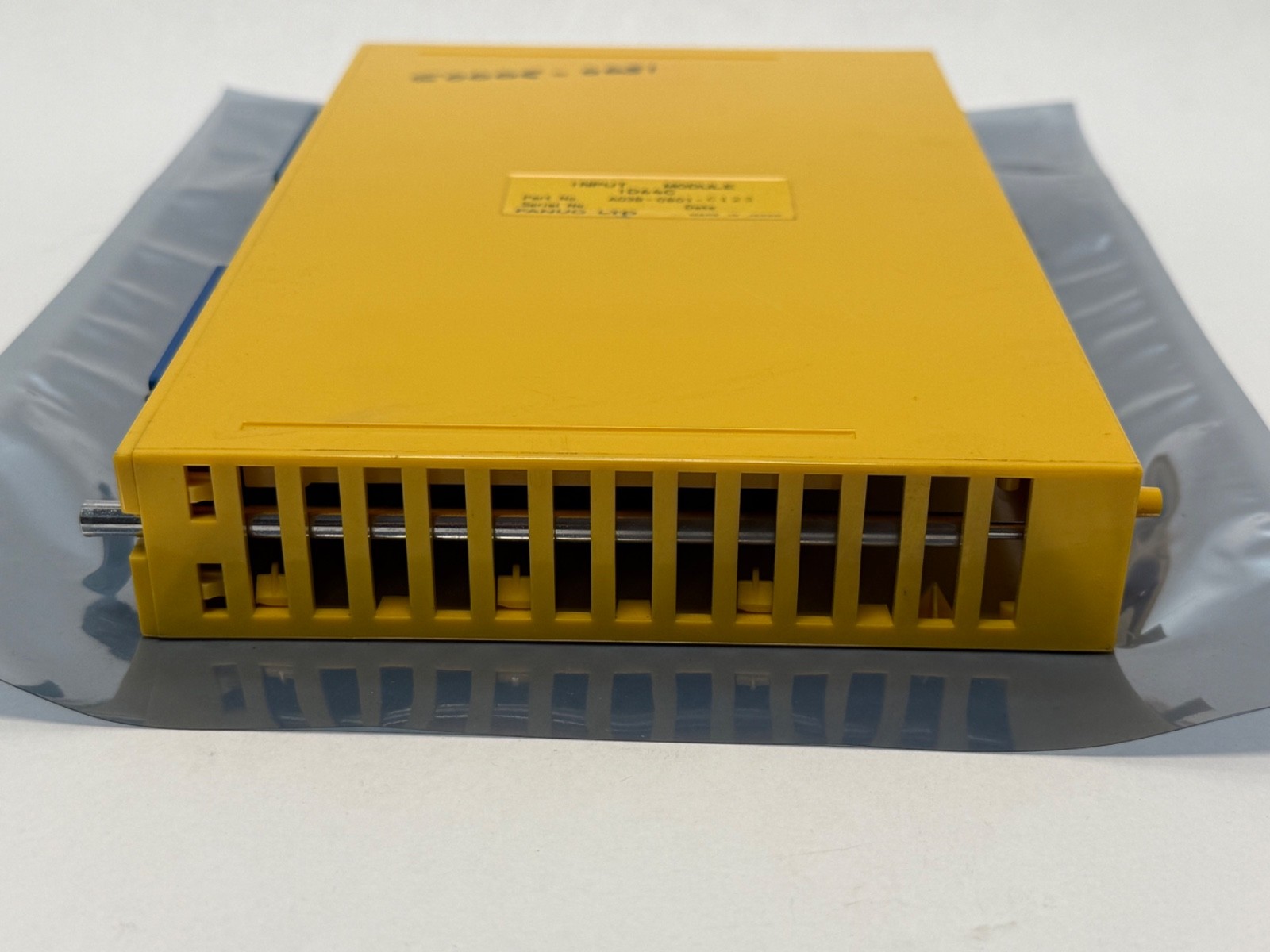

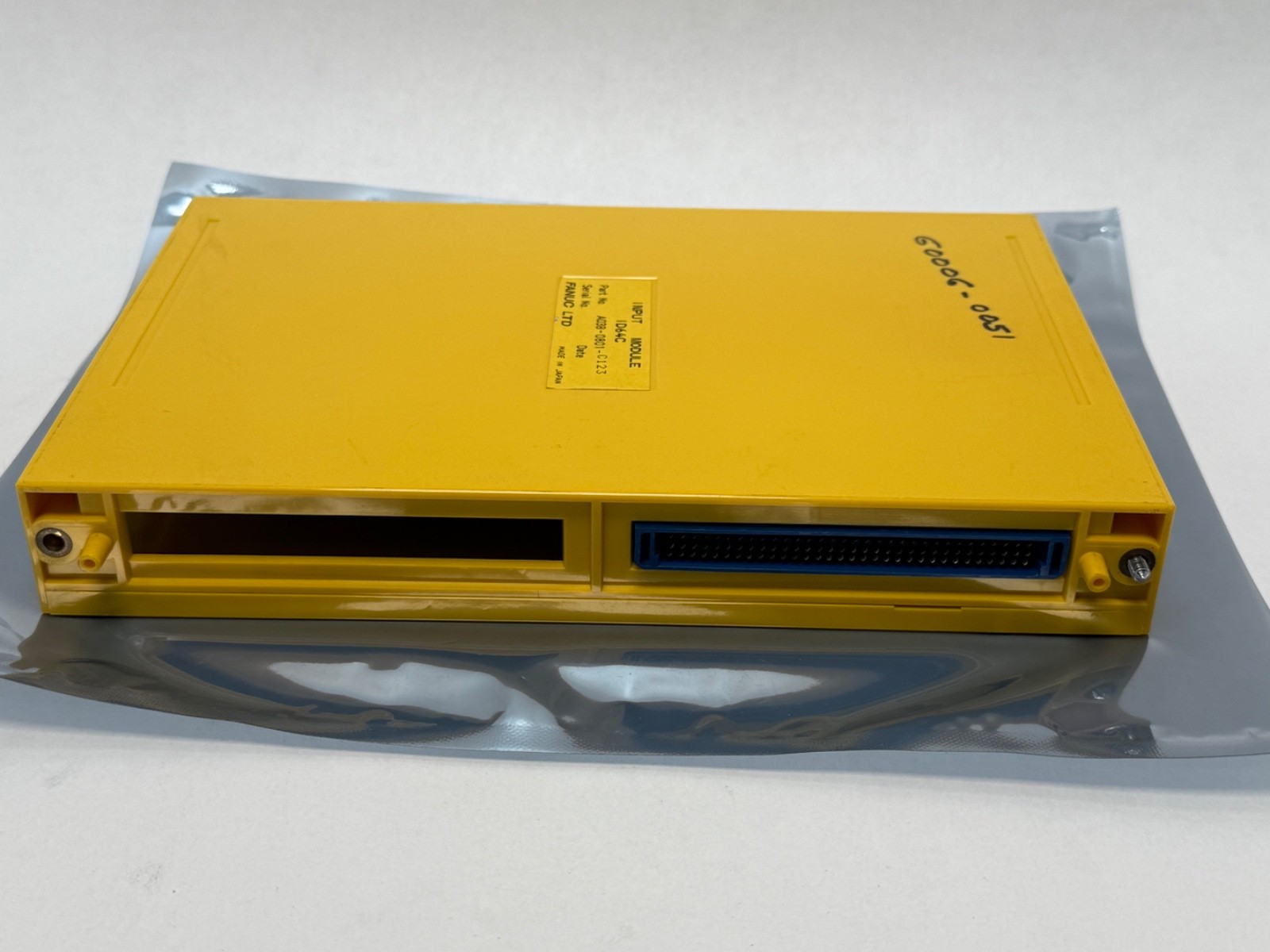

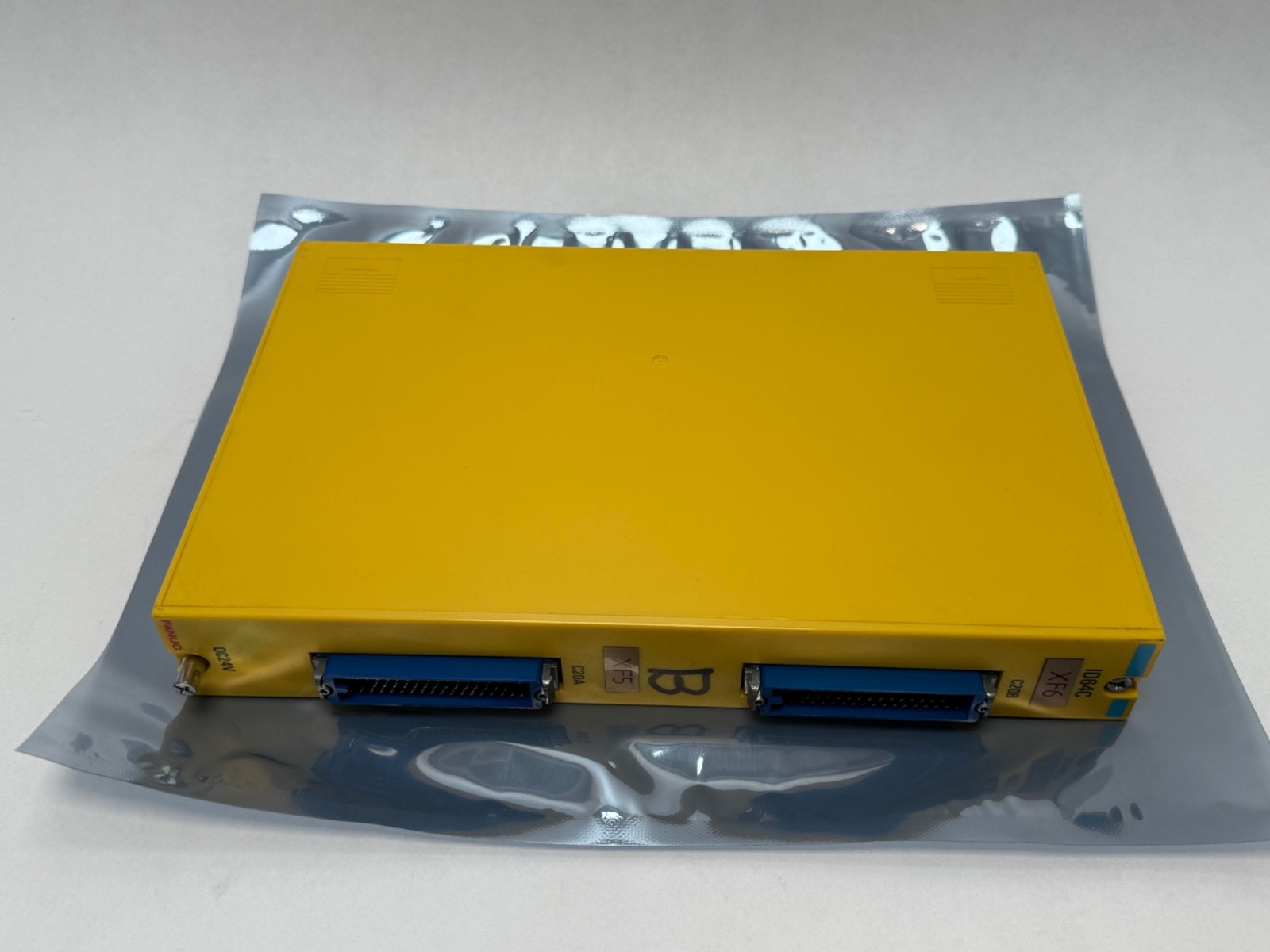

A Fanuc ID64C digital input module, ordered as A03B-0801-C123 — a 64-point, 24 V DC input module for the Fanuc I/O Unit that hangs off the PMC side of a Series 11 or Series 15 CNC control. It reads 64 field devices — limit switches, proximity sensors, pushbuttons, relay contacts — and presents them to the PMC ladder.

It is an input module only. There are no outputs on this card: it cannot drive a solenoid, a contactor or a lamp. The card carries the Fanuc board number A16B-1310-0141 internally.

Decoding the order code

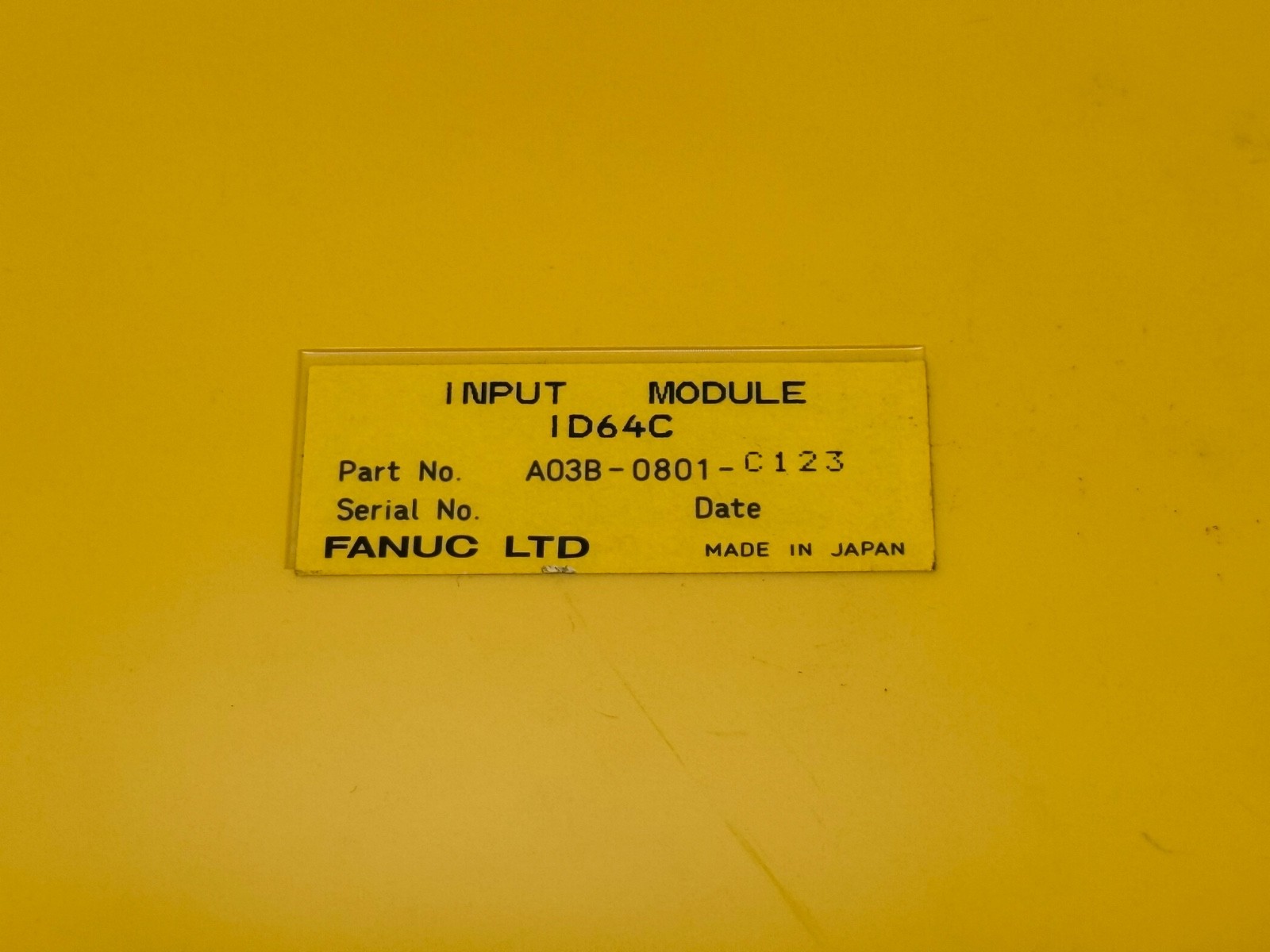

A03B – Fanuc prefix for I/O unit assemblies and the modules that populate them. Distinct from the board-level A16B / A20B prefixes and from the A02B control-unit prefix.0801 – the I/O Unit family group. A03B-0801 modules serve the Fanuc I/O Unit used on the System 10, 11, 12 and Series 15 generation controls.C123 – the specific module within that family, which Fanuc also names by its functional designation.ID64C – the functional designation, and the field a buyer should actually work from. ID = digital input, 64 = 64 points, and the trailing letter identifies the module variant. Fanuc’s output modules use different mnemonics entirely — OD for digital output, AD for analog input, DA for analog output — so the designation tells you the direction of the module at a glance.

Published specifications

Designation: ID64CFunction: digital input module, input onlyPoints: 64Input voltage: 24 V DCField connection: via connectorInternal Fanuc board number: A16B-1310-0141Platform: Fanuc I/O Unit on Series 11 and Series 15 CNC controls (A03B-0801 group also serves System 10 / 11 / 12)Occupies one module slot in the I/O Unit base

What these specs mean in practice

Sixty-four points on one card is dense, and the density is the reason to be careful: the field wiring lands on connectors rather than on individual screw terminals, so the connector and its wiring harness are as much a part of the installation as the module. Match the module designation exactly — ID64C and ID64D are different modules, and the letter is the only thing distinguishing them, so read what is printed on the card you are replacing rather than working from the A03B number alone.

Also confirm the addressing. The I/O Unit assigns module addresses by slot and by the unit’s configuration, and a 64-point module consumes a correspondingly large block. Dropping one into a different slot than the original will move every one of those 64 addresses in the PMC ladder.

What is not included

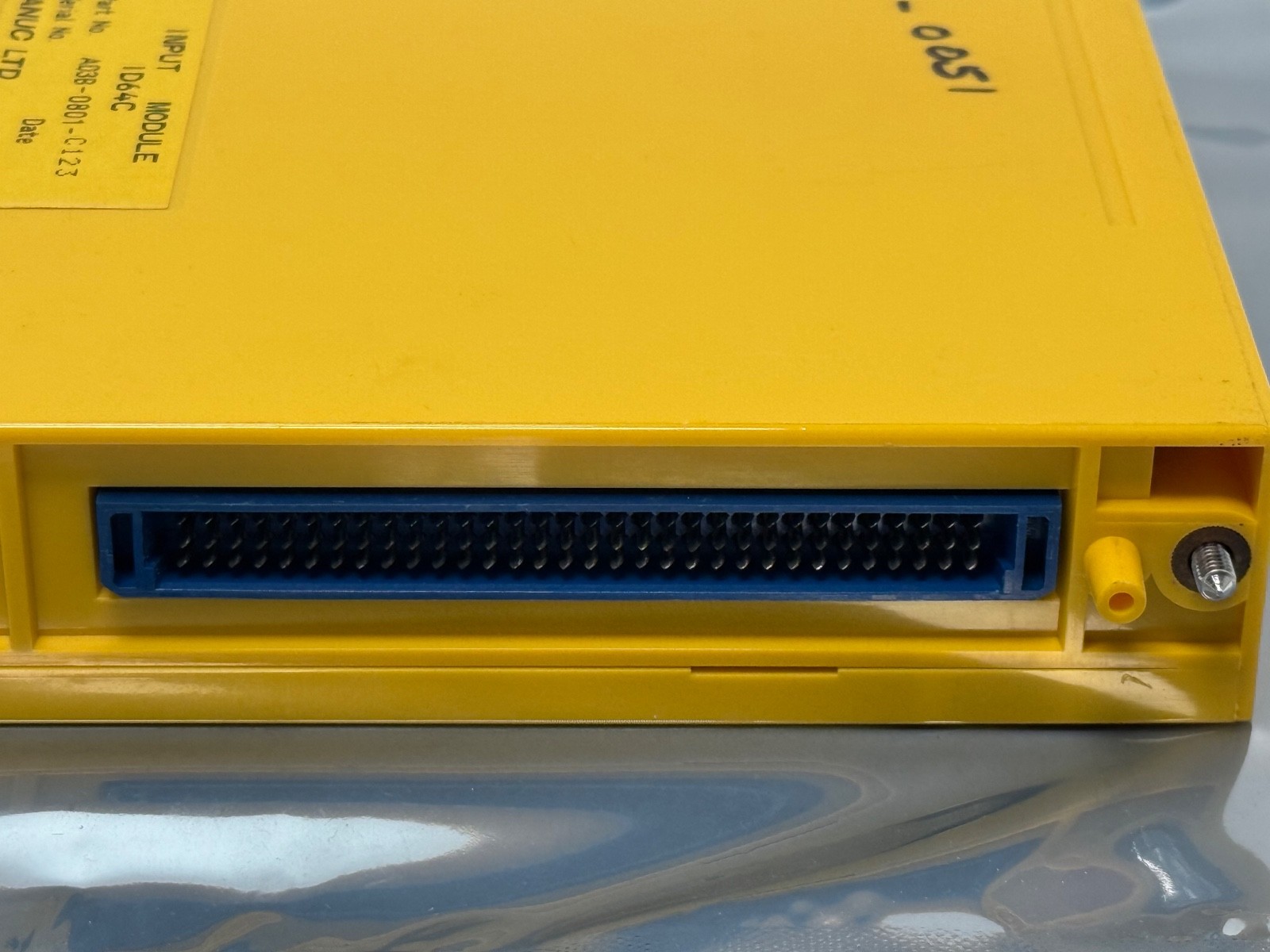

Module only. This listing does not include the I/O Unit base or rack, the I/O Unit interface / power module, the 24 V DC field supply, the field connectors, connector housings, crimp pins or terminal blocks, the wiring harness or field cabling, the I/O Link cable to the CNC, mounting hardware, or any PMC ladder, address configuration or documentation. Fanuc I/O Unit modules connect to the field through connectors; those connectors are frequently what a buyer actually still needs, and they are not supplied here.

Quantity and configuration

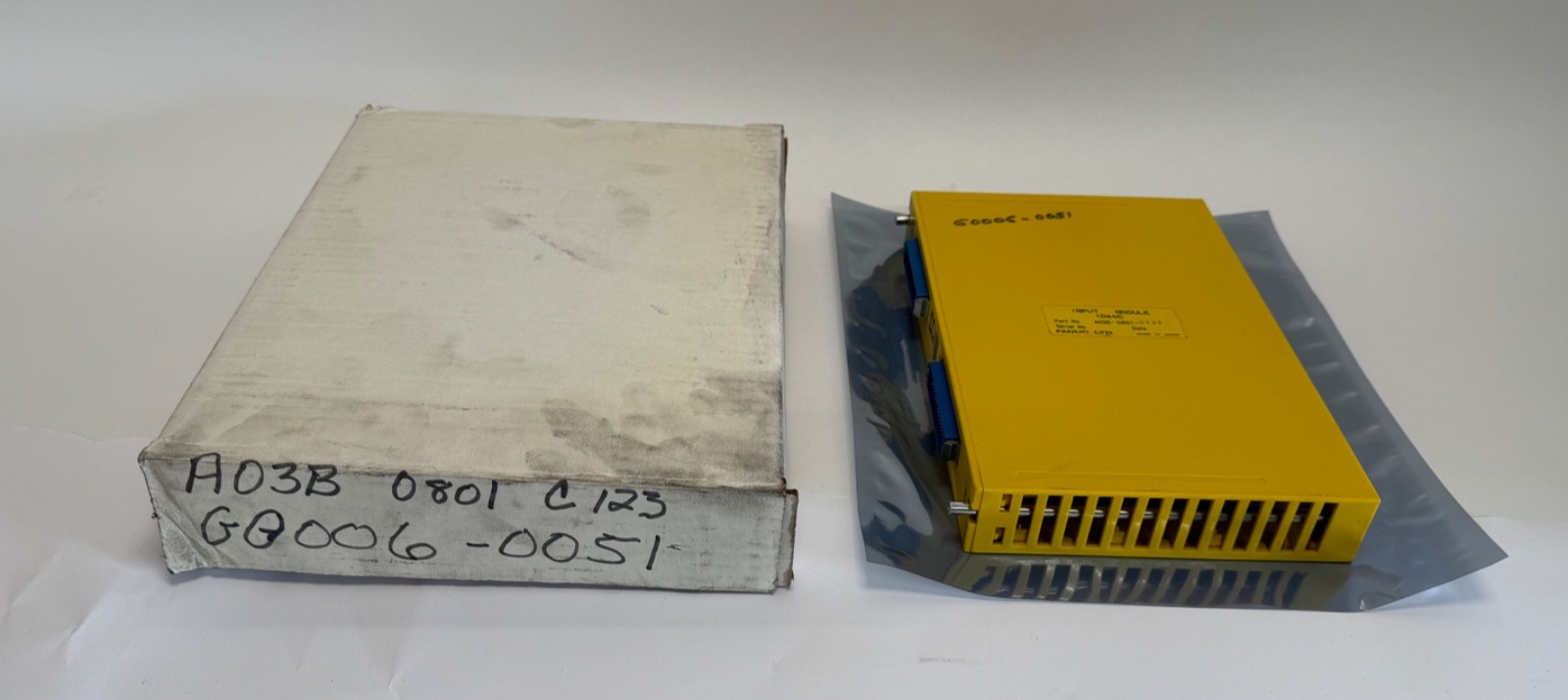

Sold as 1 piece — one input module. Takeout, tested, in an opened box.

Installation and setup notes

Power down the I/O Unit and the field supply before removing or fitting a module; these are not hot-swappable. Handle the card by its edges with a wrist strap. Note the original slot position before removal, because slot position determines the PMC addresses. Verify the field supply is 24 V DC and correctly polarised before energising — a 64-point input card is an expensive way to discover a miswired supply. After fitting, prove a handful of inputs through the PMC diagnostic screen before running the machine.
