Harowe 11BRW-300-C-10/5 Size 11 brushless resolver, single speed, 12 Vrms 400 Hz excitation, 1.93 transformation ratio. Replaced by AMCI R11W-C10/7.
List Price
$114.74
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | HAROWE |
|---|---|
| MPN | 11BRW-300-C-10/5 |
| Model | 11BRW300C105 |
| Manufacture | HAROWE |
|---|---|
| Condition | New – Open box |
| Type | Resolver |
| Base Number | 11BRW-300-C |
| Industry Terms | resolver, brushless resolver, Harosyn, angular position transducer, servo feedback |
| Common Misspellings | Harrowe, Harowe 11BRW300C, 11-BRW-300-C |
| Input Voltage | 12 Vrms |
| Mpn Variants | 11BRW-300-C-10/5, 11BRW300C105, 11BRW 300 C 10 5, 11BRW-300-C |
| Compatible With Replaces | AMCI R11W-C10/7; Micronor R11WC107 |
| Additional Attributes | Frequency: 400 Hz; Transformation Ratio: 1.93; Speed: 1 (single speed); Primary Winding: Stator; Output Voltage: 23.2 V; Temperature Rating: 155 °C (Size 11 series) |

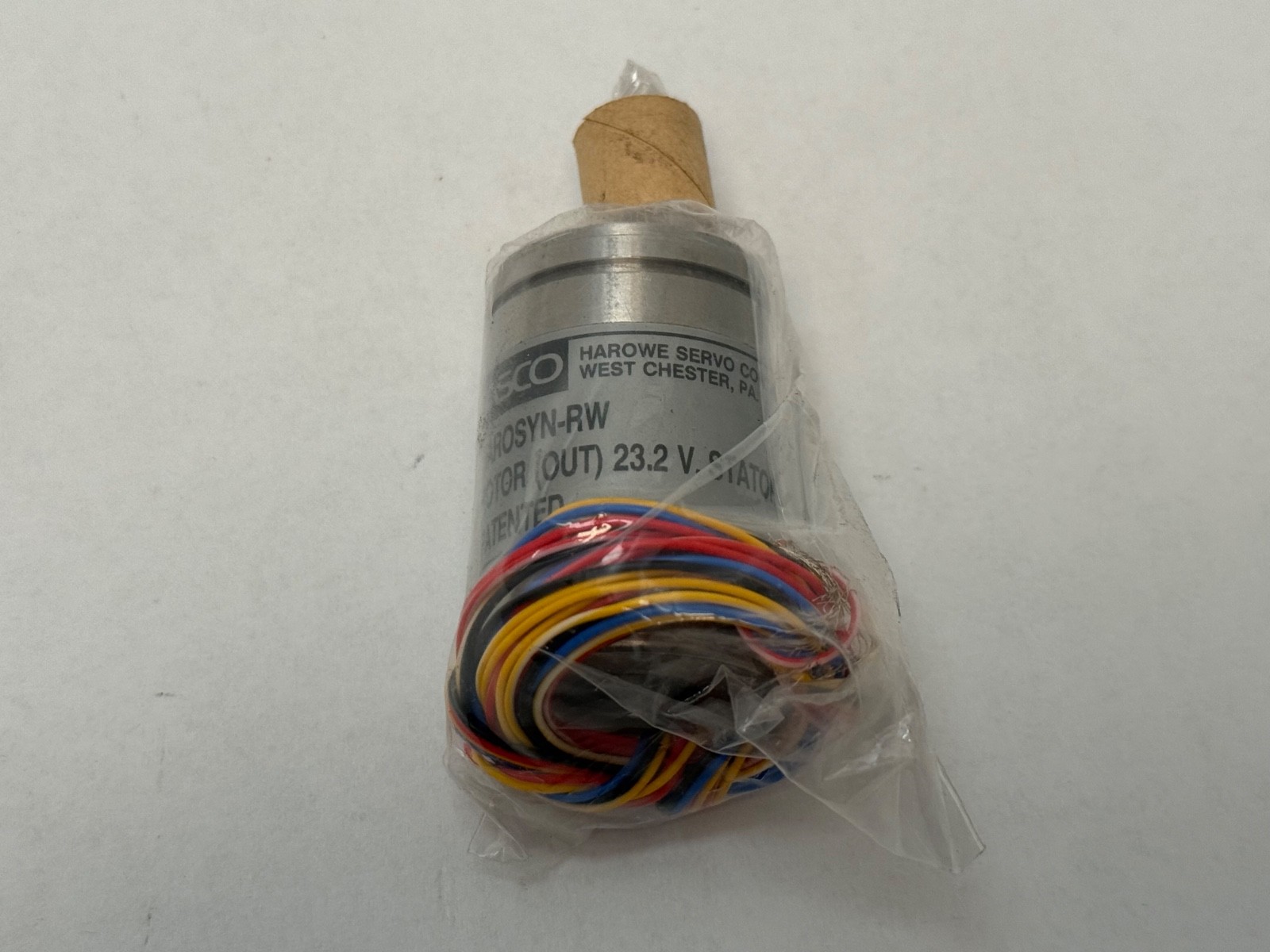

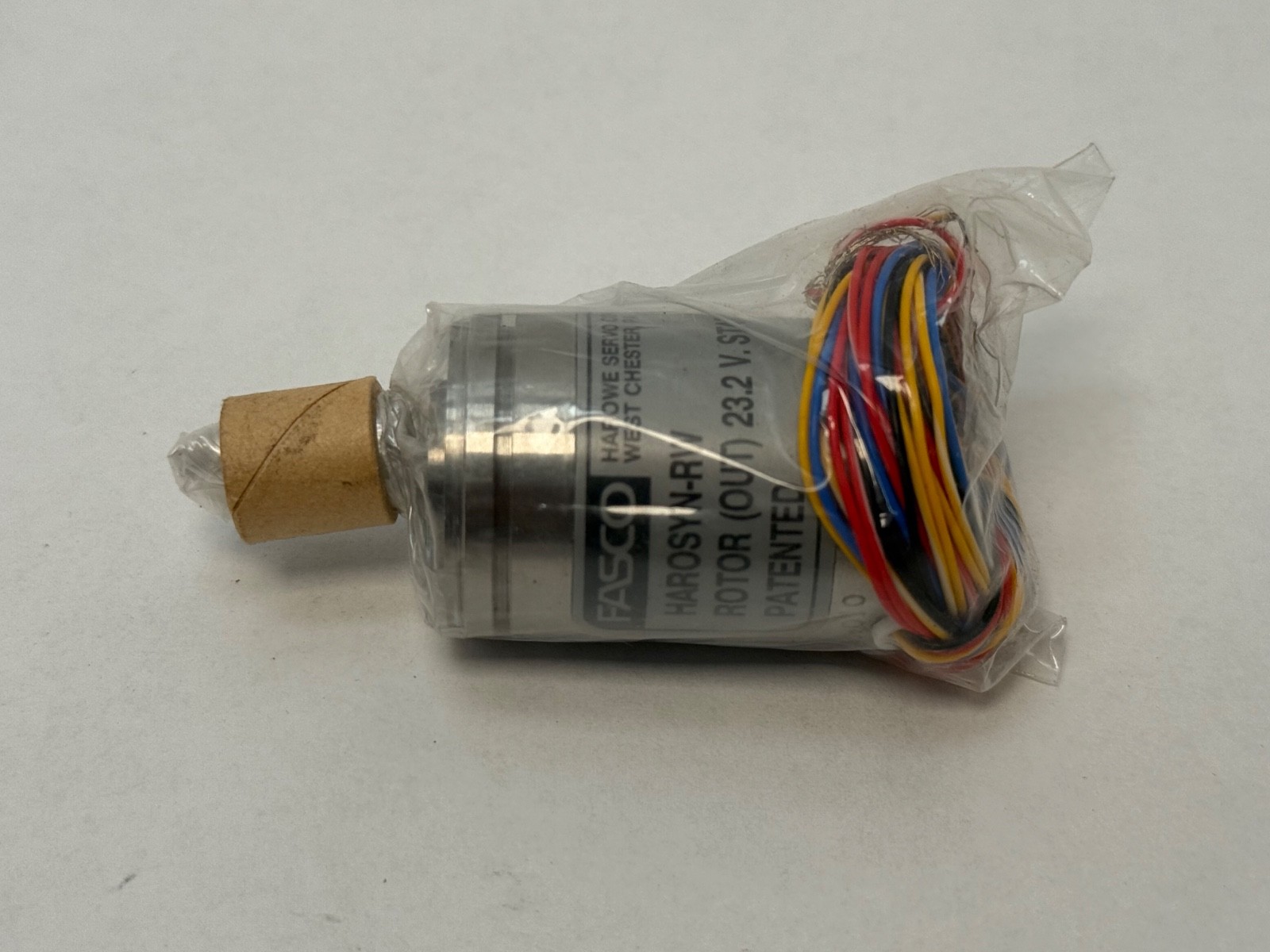

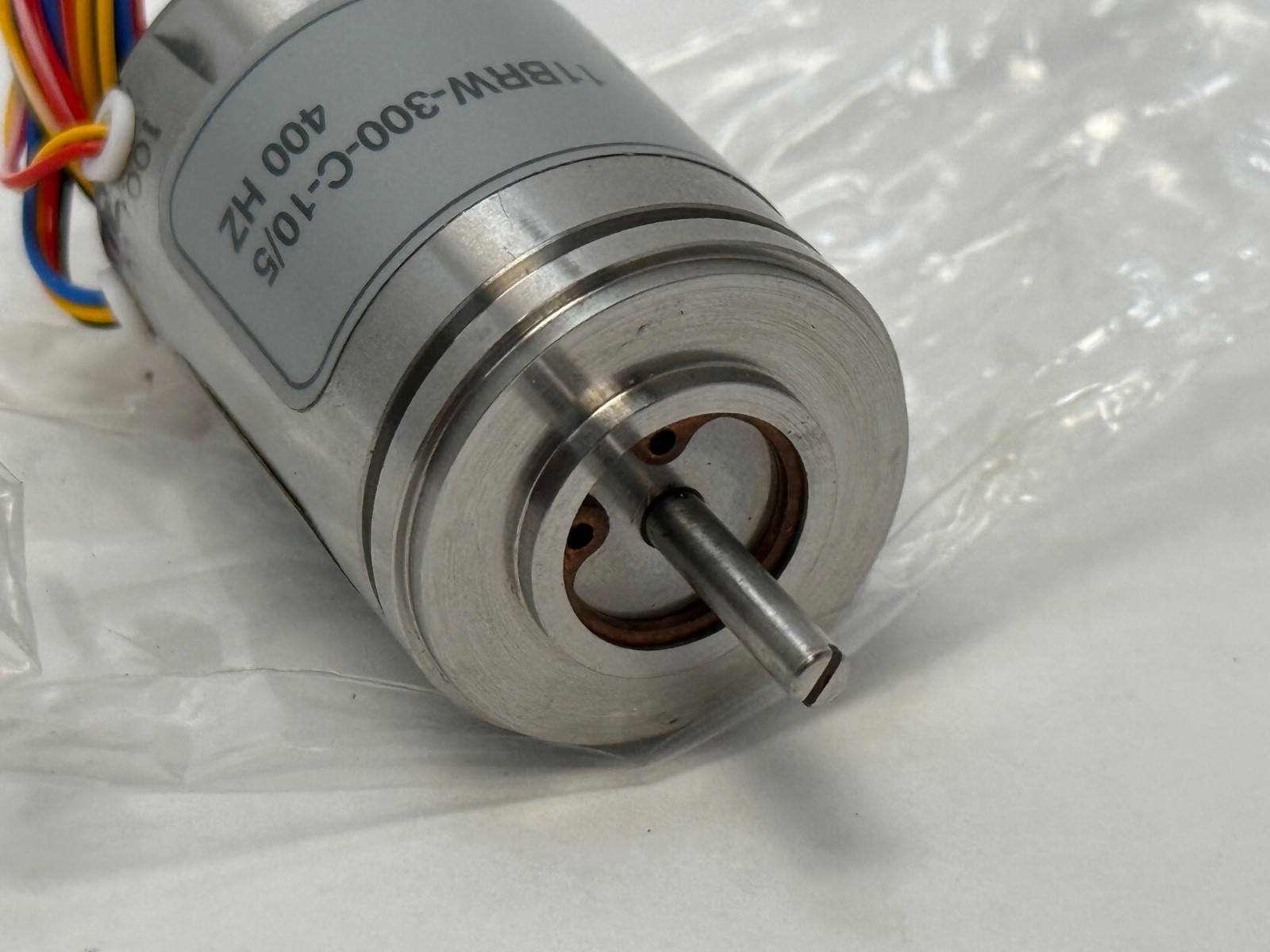

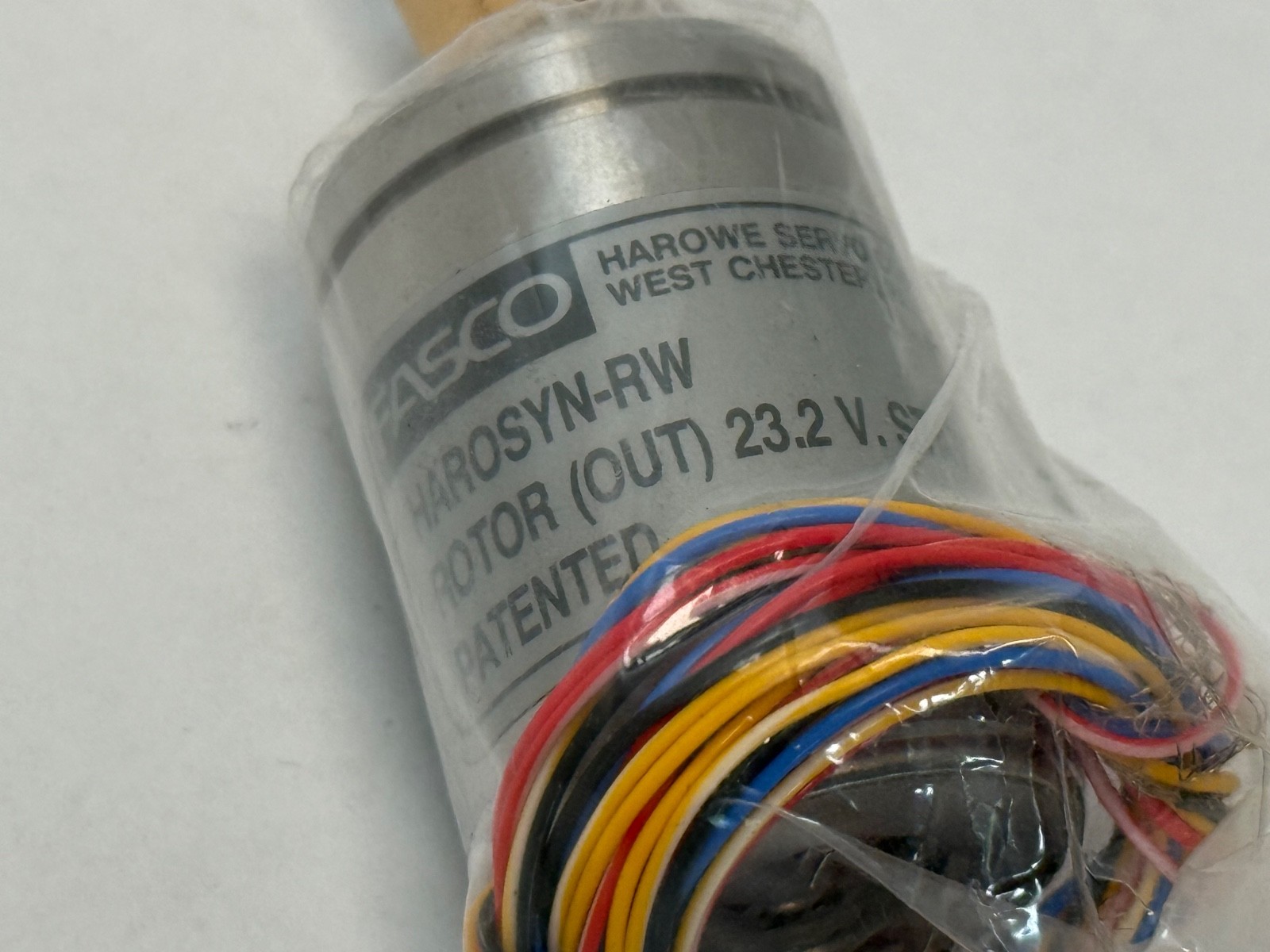

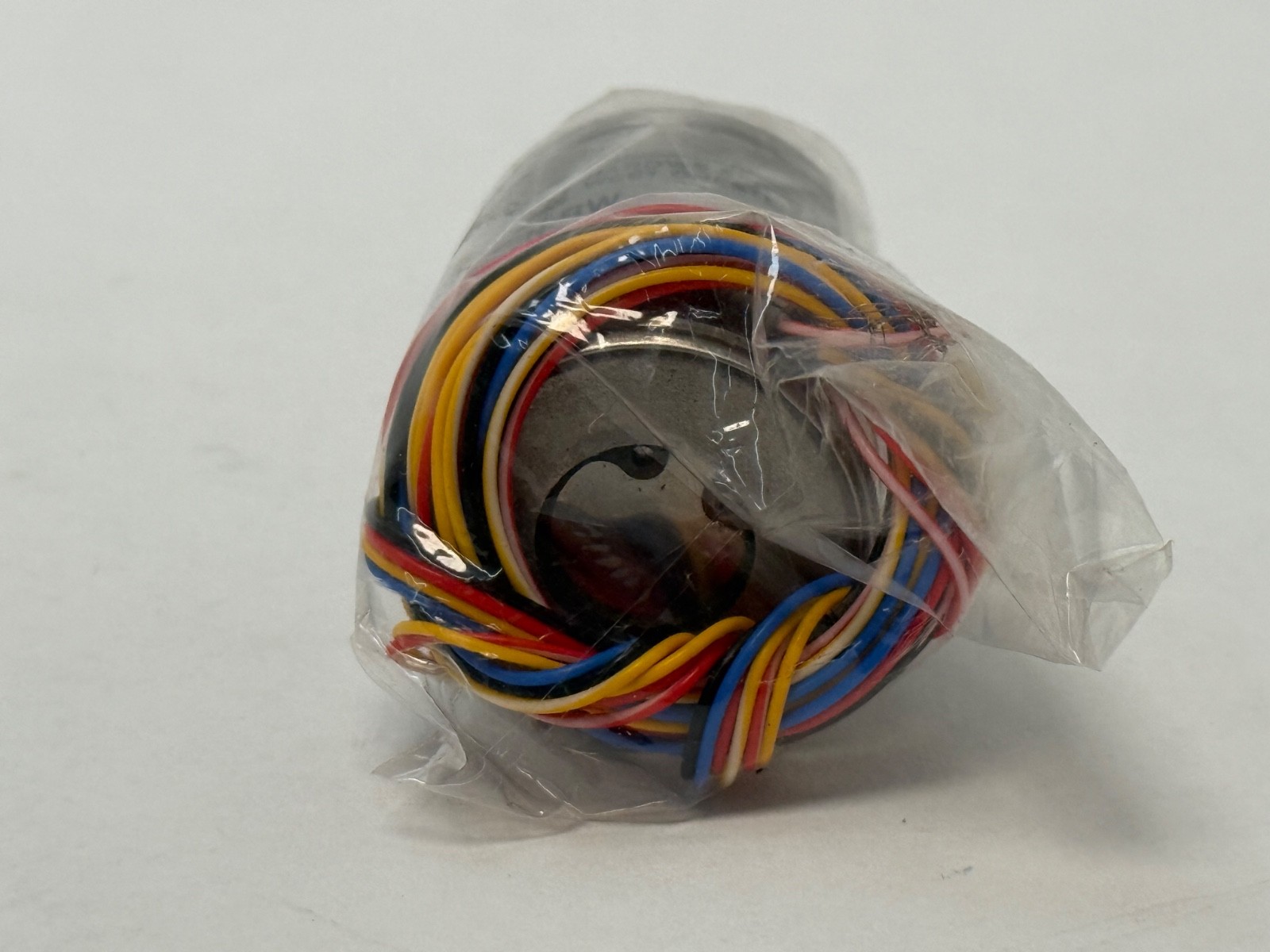

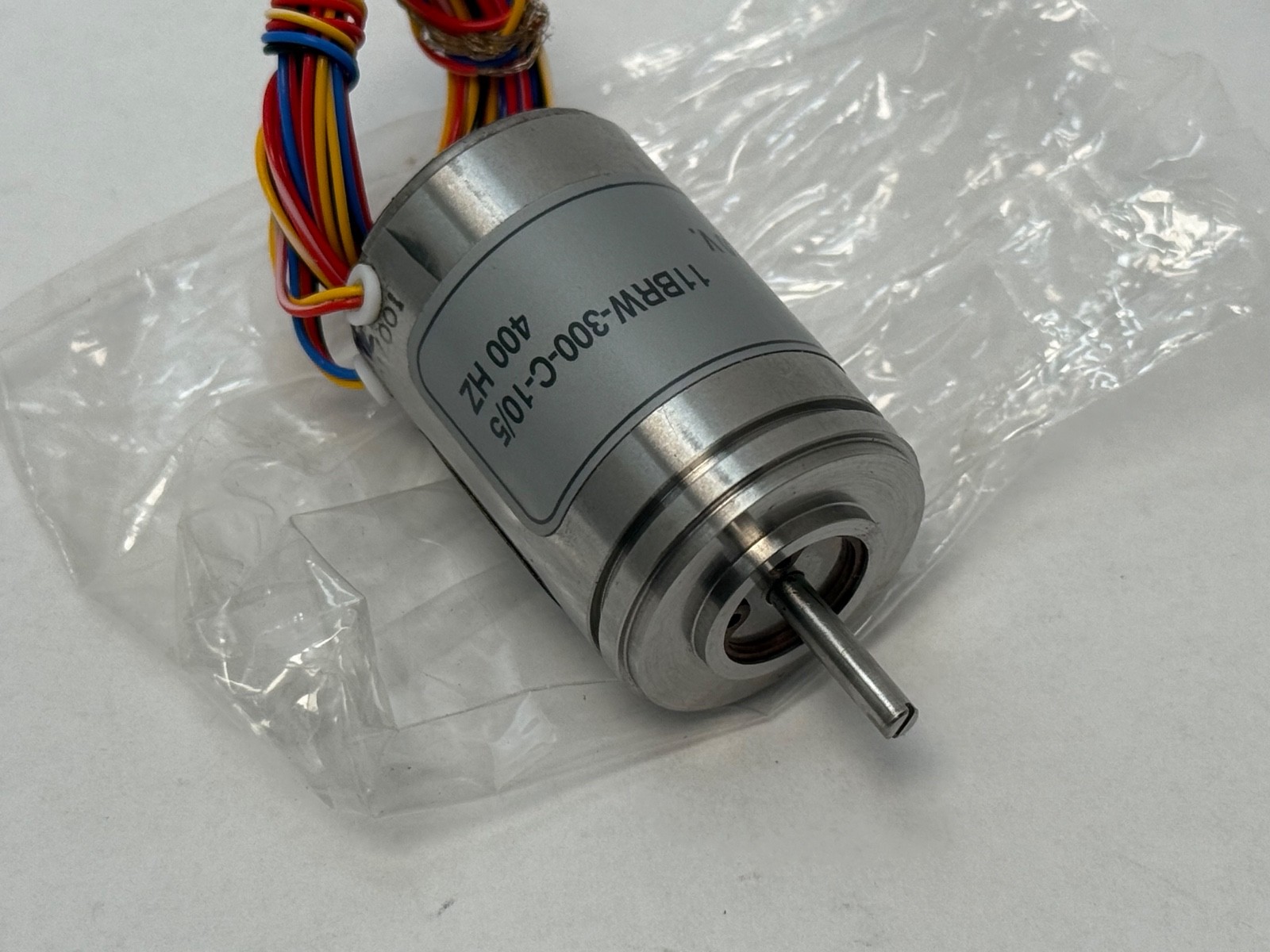

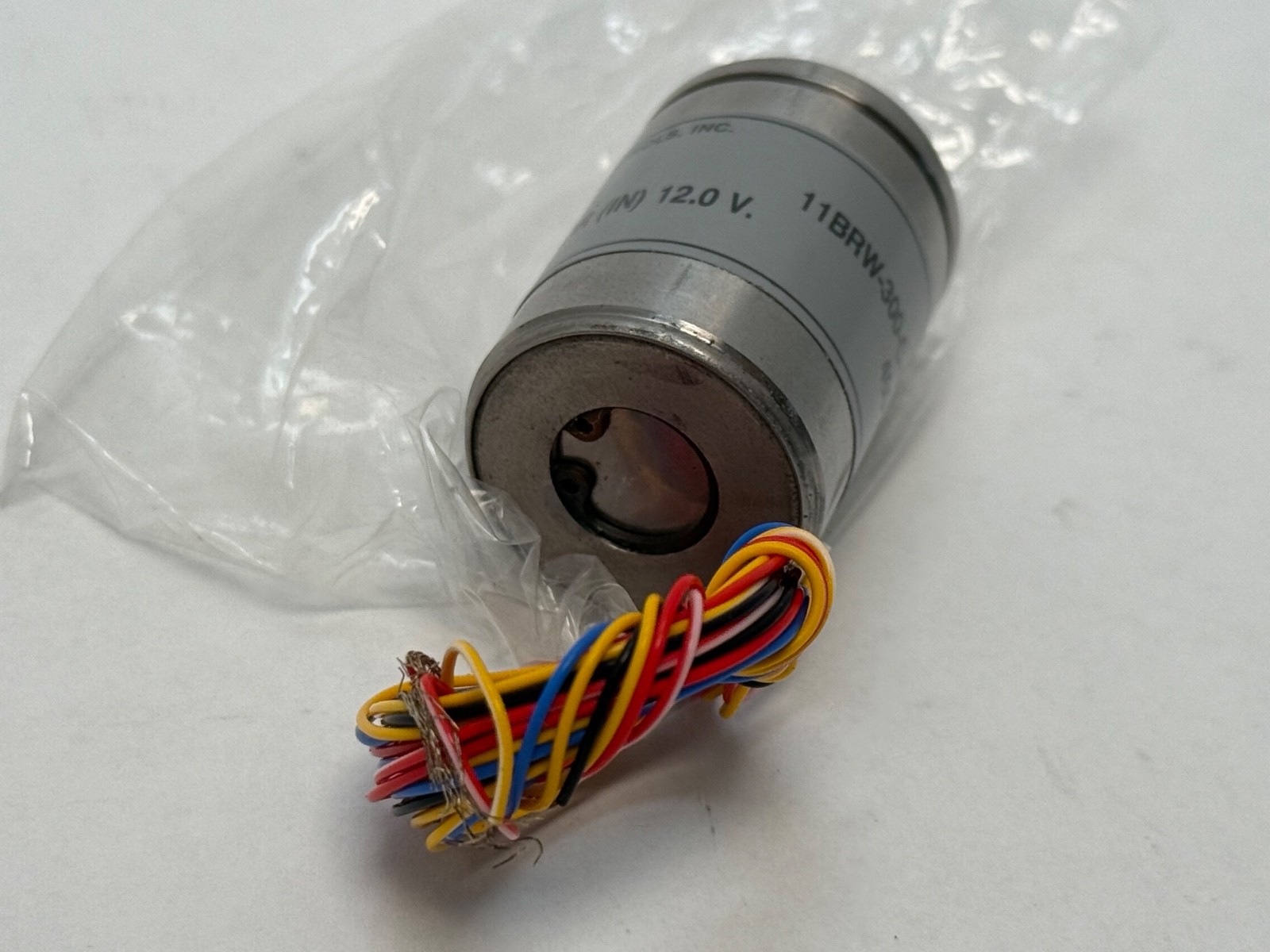

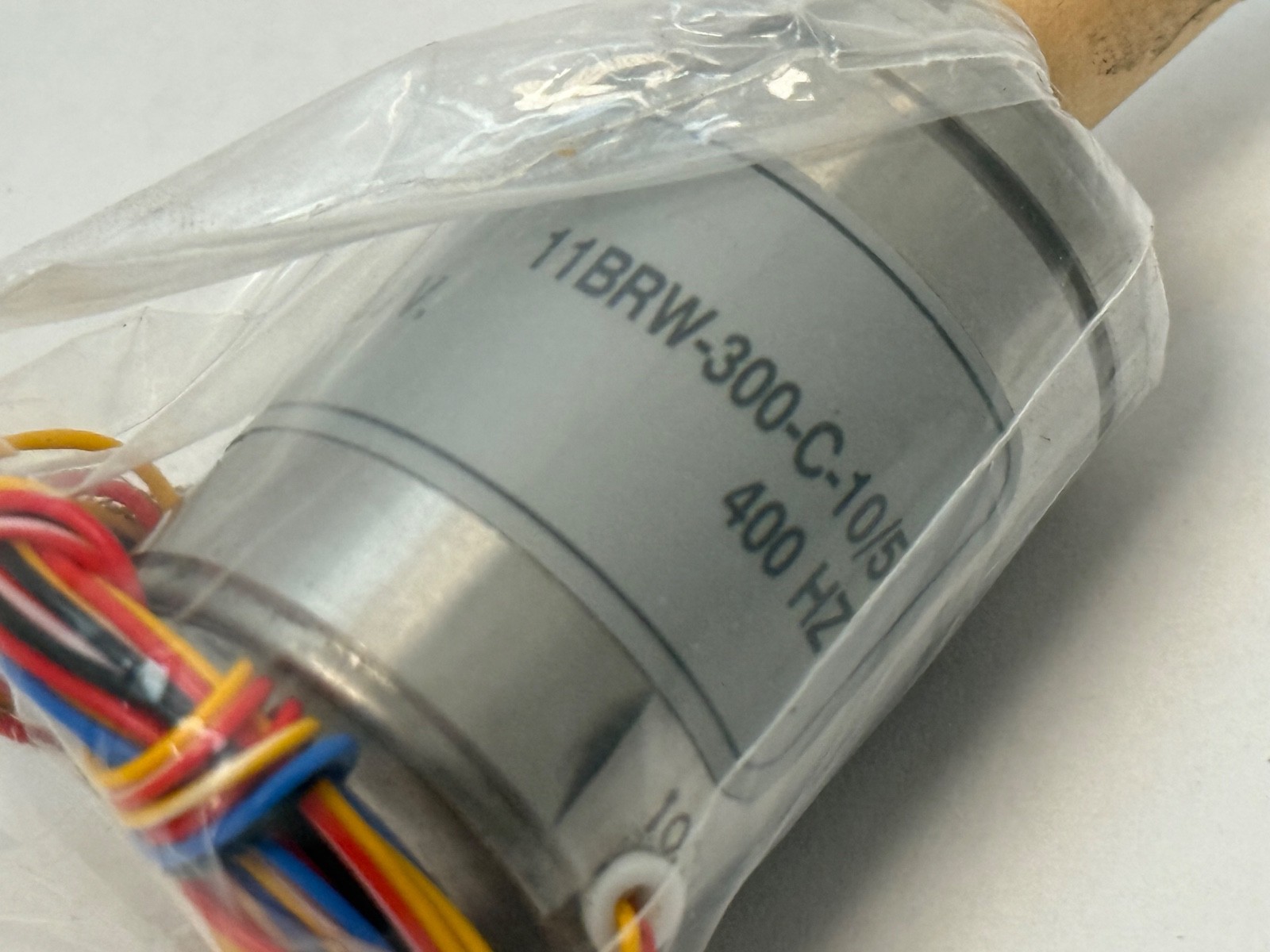

Harowe 11BRW-300-C-10/5 Size 11 housed brushless resolver. Single-speed angular position transducer with its own precision bearing system for coupling mounting. Brushless construction passes the reference signal to the rotor through a rotary transformer, with no brushes or slip rings.
11 — Size 11 industry-standard resolver frame.
BRW — Harowe housed brushless resolver family, stator primary winding.
300-C — C electrical winding: 400 Hz excitation, 1.93 transformation ratio.
Speed: 1 (single speed). Primary Winding: Stator. Input Voltage: 12 Vrms. Frequency: 400 Hz. Transformation Ratio: 1.93. Output Voltage: 23.2 V. Temperature Rating: 155 °C (Size 11 series). A single-speed resolver reports absolute shaft angle over one full revolution.
Compatible replacements: AMCI R11W-C10/7 and Micronor R11WC107, both built as replacements for the Harowe 11BRW-300-C series.
